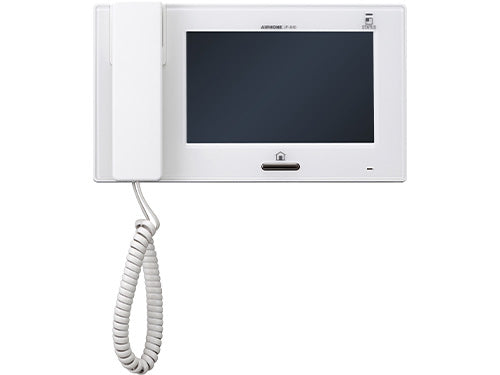

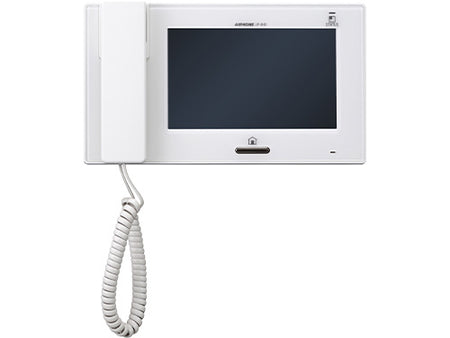

7" Video Sub Station with Touchscreen LCD
The JP-4HD is a sub-station for the JP Series. This sub-station attaches to the JP-4MED answering station and will receive calls from JP door stations attached to the JP-4MED. This station can also communicate with the JP-4MED and other JP-4HDs attached to the system for internal communication.
Features
- 7″ Touchscreen LCD
- Hands-free (VOX) or handset (duplex) communication
- Selective door release controls
- Room-to-room calling
- Door Station Monitoring
- Hearing Aid T-Mode Compatibility
- Digital Pan, Tilt, and Zoom
- Brightness Control
- Connects to JP-4MED or JP-8Z with a single Cat-5e cable
Specs
| 200mA (max.) |
| 7" TFT color touchscreen LCD |
| Handset: Simultaneous communication Hands-free: Auto-voice actuation |
| Surface wall mount or desk mount using MCW-S/A (sold separately) |
| Between Master/JP-8Z to Sub Master: Cat-5e or Cat-6 |
| JP-8Z to Sub Master: 165' Master to Sub Master with power supply: 650' Master to Sub Master without power supply: 98' |
| 32-104°F (0-40°C) |
| 5-11/16" H x 10-1/16" W x 1-7/8" D |
