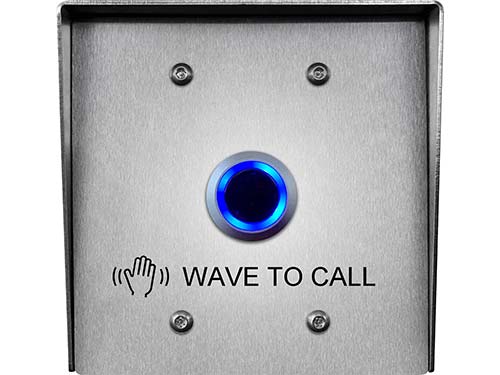

Hand Wave Call Sensor and Surface Mount Box
The IXW-HWCBP hand wave call sensor is weather resistant and includes the SBX-2G/A surface mount box. It also includes the PS-POE to power the sensor, which can be mounted inside the SBX-2G/A.
Features
- Weather resistant
- Includes the SBX 2G/A surface mount box and PS POE splitter to power the sensor
- Powered from either a PoE network drop or from the LAN 2 output on an IX Series door station (requires PoE+ switch)
- Form C dry contact output can be connected to the trigger input of an IX Series door station
- Allows visitors to place a call without touching the call button on the door station
- Sensor is illuminated in blue while in standby and turns green when activated
Specs
| PoE (IEEE 802.3af class 0) |
| 30mA standby, 50mA active |
| Infrared LED with LED ring |
| 0-10cm |
| 30VAC/DC, 3A |
| 18-Gauge stainless steel |
| -4° ~ 131°F (-20° ~ 55°C) |
| 4-13⁄16” H x 4-⁷⁄8” W x 4” D |
