Telephone and App Entry Box Kit

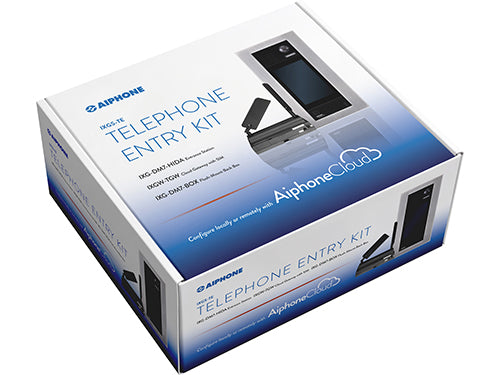

The IXGS-TE is a convenient box kit that offers a complete telephone and mobile app entry solution for multi-tenant applications. It allows visitors to call telephone numbers or mobile apps using the entrance station. The kit includes an IXG-DM7-HIDA entrance station, an IXGW‑TGW gateway adaptor, and an IXG‑DM7‑BOX flush-mount box. Additional IX | IXG Series stations can be added as needed.
If the IXG-DM7-HIDA needs to be surface mounted, an SBX-IXGDM7 surface-mount box can be purchased separately.
Features
- Entrance station can call to a telephone number, mobile apps, or both
- Customizable touchscreen entrance station
- Supports up to 9,999 IXG mobile apps
- 4G LTE data connection
- Expandable with more IX or IXG Series stations
- Configure through remote management on AiphoneCloud or IXG Support Tool
Specs
| PoE |
| 2.8W standby, 5.8W max |
| Ethernet (10BASE-T, 100BASE-TX) |
| LTE, WCDMA |
| AT&T™ nano SIM |
| Unicast, Multicast |
| v4/v6, TCP, UDP, SIP, HTTPS, RTP, RTCP, SRTP, SRTCP, IGMP, MLD, SFTP, DHCP, NTP, DNS, MQTT, ICE, DTLS, SDP |
| Intercom: 8 Phone: 1 |
| TLS 1.2, IEEE802.1X |
| 14° ~ 122°F (-10° ~ 50°C) |
| Main: 4-1/4" H x 8-1/4" W x 2-3/8" D Antenna Length: 5-9/16" |
| PoE (IEEE 802.3af class 0) |
| 4.2W standby, 12.7W max |
| 7" TFT display |
| 800 x 400 |
| Full-duplex |
| G.711 (μ-law, A law) |
| H.264 |
| IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS, TLS |
| IEEE 802.1X |
| -22°~140°F (-30°~60°C) |
| 13-11/16" H x 7-3/16" W x 2" D |
| High Frequency (13.56MHz): HID iClass, SEOS, HID iClass SR, HID iClass SE Low Frequency (125kHz): HID Proximity, Indala Proximity |
| H10301 (26-bit Weigand), H10302/H10304 (37-bit Wiegand), Aiphone 40-bit, 35-bit/48-bit Corporate 1000 |
