IP Video Guard Station

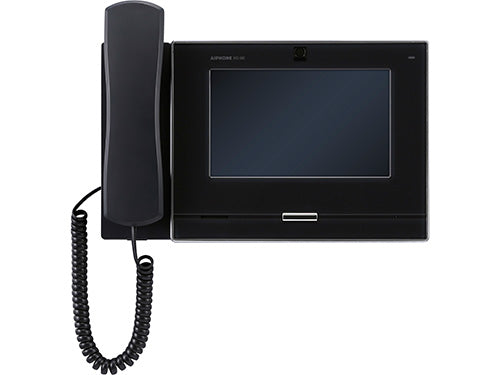

The IXG-MK is an IP video guard station with a 7" LCD touchscreen for the IX | IXG Series system. This station can answer calls from an entrance station, tenant station, or individual door stations, and make building-wide announcements. This station is SIP compliant and is compatible with all IX | IXG series devices.
Features
- SIP Compliant
- 7″ TFT LCD touchscreen
- Camera with privacy shutter
- Handset, Hands-free or push-to-talk communication
- Capture and store the audio/video of active conversations on a microSD™ card (not provided by Aiphone)
- Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
- 2 contact outputs
- 4 trigger inputs
- 8Ω 0.5 watt speaker output
- 600Ω audio input
- UL certified
Specs
| PoE (IEEE 802.3af class 0) |
| 4.32 Watts |
| 800x400 7" LCD TFT Touchscreen |
| ⅓" CMOS 720p |
| Full-duplex w/ Handset or Hands Free |
| G.711(µ-law, A-law) |
| H.264/AVC, Motion JPEG |
| IEEE 802.1X |
| 32° ~ 104°F (0° ~ 40°C) |
| 8-1⁄16" H x 11" W x 2-3⁄16" D |
| Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket. |
