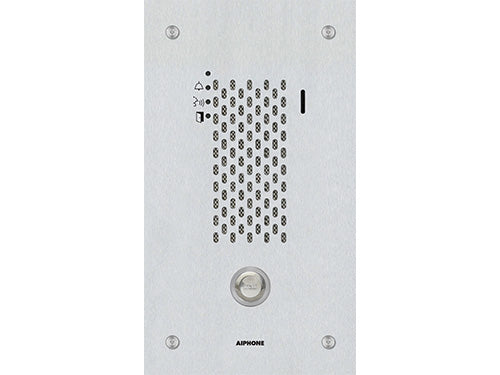

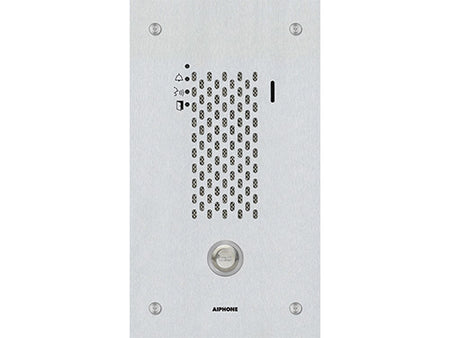

Flush Mounted IP Door Station
The IX-SSA is a flush mountable, vandal and weather resistant, stainless-steel IP Audio Intercom. Compliant with SIP and compatible with all IX | IXG devices.
Features
- SIP Compliant
- PoE with PoE pass through
- Illuminated call button indicator
- Slot for micro SD card (not provided by Aiphone)
- IP65 rated, weather resistant (IP65)
- 2 contact outputs
- 6 trigger inputs
- UL certified
Specs
| PoE (IEEE 802.3af class 0) PoE pass through (802.3at Type 2 PoE+) |
| 3.36 Watts |
| G.711 (μ-law, A law), G.722 |
| 73dB-96dB |
| IEEE 802.1X |
| -40° - 140°F (-40° - 60°C) |
| IP65 |
| IK08 |
| 10-7⁄16" H x 5-⅞" W |
| Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box |
