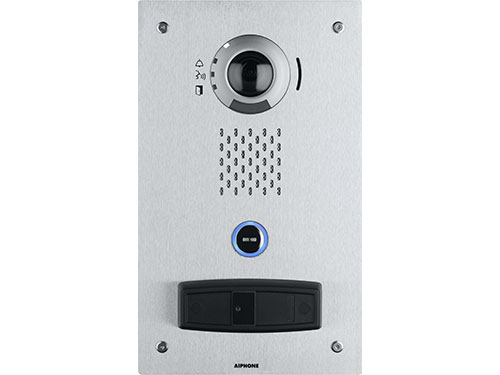

Flush Mount IP Video Door Station with Proximity Card Reader
The IX-DVF-PR is a flush mount, vandal resistant, and weather resistant IP Video Intercom, featuring a stainless-steel front cover and a built-in AC-PROX-1G proximity card reader. The IX-DVF-PR is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF-PR is compatible with all IX | IXG series devices.
Features
- 1.23 megapixel fixed video camera
- White LED for low light illumination
- Camera vertical adjustment +15°, 0°, or -8° (manual)
- Built-in proximity card reader
- Flush mount with included back box
- Weather and vandal resistant stainless steel panel
- Slot for microSD™ card
- Two contact outputs, six trigger inputs
- PoE pass-through
Specs
| PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL) PoE pass through (802.3at Type 2 PoE+) |
| 5.28W |
| 1/3" CMOS 1.23 megapixel |
| 5 lux |
| G.711 (μ-law, A law), G.722 |
| H.264/AVC, motion JPEG |
| 73dB-96dB |
| IEEE 802.1X |
| -40°~140°F (-40°~60°C) |
| IP65 |
| IK08 |
| 11-11/16" H x 7" W x 2-1/16" D |
| 5~14V DC |
| 45mA |
| 125kHz |
| CSA, FCC, CE, C-Tick |
| -31°~140°F (-35°~60°C) |
