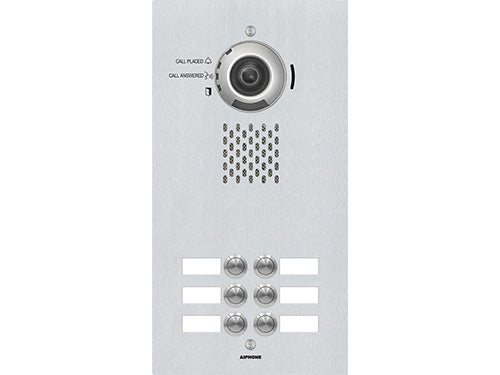

Flush Mount IP Video Door Station with 6 Call Buttons
The IX-DVF-6 is a flush mount, vandal-resistant, and weather-resistant IP Video Intercom, featuring a stainless-steel front cover and six programmable call buttons. The IX-DVF-6 is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF-6 is compatible with all IX | IXG series devices.
Features
- Six labeled call buttons (blank template included)
- SIP Compliant
- ONVIF® Profile S Compliant
- PoE with PoE pass-through
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low-light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Weather and vandal-resistant
- Stainless steel faceplate
- 2 contact outputs
Specs
| PoE (IEEE 802.3af class 0) or 24V DC (PS-2420UL) |
| 5.28W |
| 1/3" CMOS 1.23 megapixel |
| 5 lux |
| G.711 (µ-law, A law), G.722 |
| H.264/AVC, motion JPEG |
| 73dB-96dB |
| IEEE 802.1X |
| UL 62368-1 cUL 62368-1 |
| -40° ~ 140°F (-40° ~ 60°C) |
| IP65, IK08 |
| 13-11/16" H x 7-3/16" W |
