SIP Compatible IP Video Emergency Station

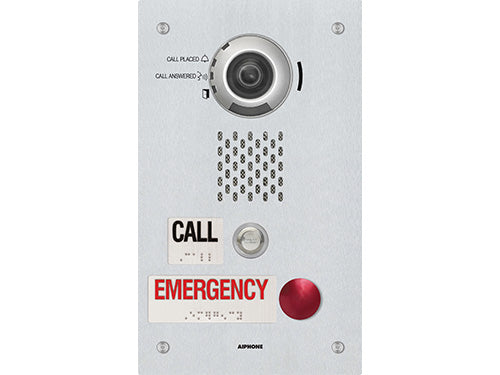

The IX-DVF-2RA is a flush mount, vandal resistant, and weather resistant IP Video Intercom, featuring a stainless-steel front cover, a standard call button and an ADA compliant emergency call button. The IX-DVF-2RA is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF-2RA is compatible with all IX | IXG series devices.
Features
- SIP Compliant
- ONVIF® Profile S Compliant
- ADA compliant raised lettering and Braille signage
- PoE with PoE pass through
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- IP65 rated, weather resistant
- Stainless steel faceplate
- 2 contact outputs
- 6 trigger inputs
- UL certified
Specs
| PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL) PoE pass through (802.3at Type 2 PoE+) |
| 5.28 Watts |
| ⅓" CMOS 1.23 megapixel |
| 5 lux |
| G.711 (μ-law, A law), G.722 |
| H.264/AVC, motion JPEG |
| 73dB-96dB |
| IEEE 802.1X |
| -40° - 140°F (-40° - 60°C) |
| IP65 |
| IK08 |
| 11-11⁄16" H x 7" W |
| Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box. Also compatible with the WB-CA, WB-HA, WB-CE, and WB-HE Emergency wall boxes or modular towers. |
