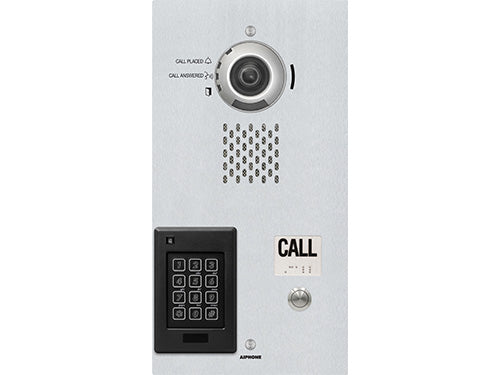

IP Video Door Station with Proximity Reader and Access Keypad
The IX-DVF-10KP is a flush mount, vandal resistant, and weather resistant IP Video Intercom, featuring a stainless-steel front cover and a combination proximity reader and access keypad. The IX-DVF-10KP is SIP compliant, ONVIF ® Profile S compliant, and is capable of streaming video feeds through ONVIF and RTSP. The IX-DVF is compatible with all IX | IXG series devices. The IX-DVF-10KP is capable of being surface mounted with the SBX-IXGDM7.
Features
- Built-in AC-10K-1G Keypad/Proximity reader
- SIP Compliant
- ONVIF® Profile S Compliant
- PoE with PoE pass-through
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low-light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Weather and vandal-resistant
- Stainless steel faceplate
- 2 contact outputs
- 6 trigger inputs
Specs
| PoE (IEEE 802.3af class 0) or 24V DC (PS2420UL) (PoE pass-through requires 802.3at Type 2 PoE+) |
| 5.28W |
| 1/3" CMOS 1.23 megapixel |
| 5 lux |
| G.711 (μ-law, A law), G.722 |
| 73dB-96dB |
| EEE 802.1X |
| -31°~140°F (-35°~60°C) |
| IP65 |
| IK08 |
| 13-11/16" H x 7-3/16" W |
| 5~14V DC |
| 50mA typical, 115mA peak |
| 125kHz |
| CSA, FCC, CE, C-Tick |
| Aiphone 40-bit, HID, AWID, Pyramid |
| -40°~149°F (-40°~65°C) |
| 4-5/16" H x 3" W x 11/16" D |
