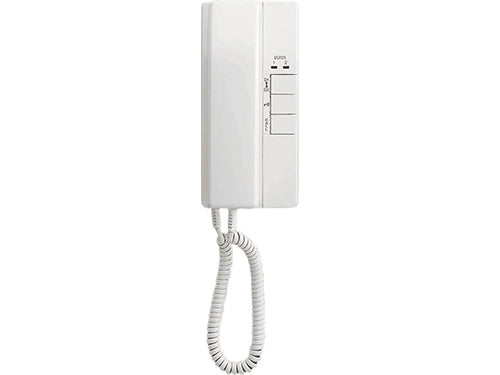

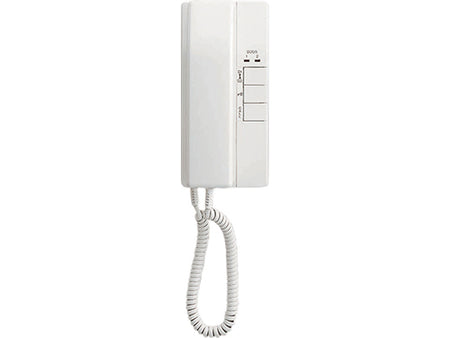

Main Handset for 2 Doors, Up To 3 Rooms
Features
- 2 door station and 3 inside station capacity
- Selective door release with RY-3DL
- All Call type room calling
- Door monitoring at master station
- AC or DC powered (12~16V AC or 12~24V DC)
Specs
| Handset for privacy |
| 24V AC/DC, 500mA |
| Door to master - Aiphone #822202, Master to subs - Aiphone #822206 |
| Door to master: 500'(22AWG) 1,180'(18AWG) Master to farthest sub: 250'(22AWG) 590'(18AWG) |
