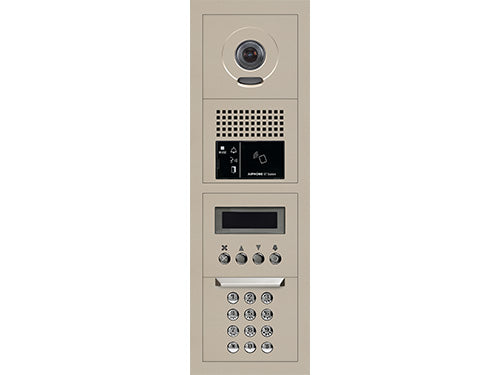

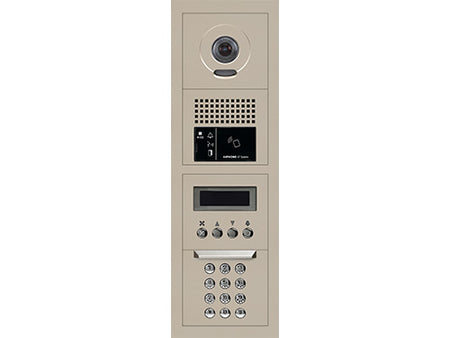

10-Key Video Entrance Panel Kit, 1x4 Size
Features
- Contains GT-DB audio module, GT-VB video module, and GT-NSB digital display and directory
- GT-10K keypad for direct dialing and access control
- Includes all appropriate frames and the GT-4B flush back box
- VFD screen displays a customizable greeting message, tenant directory, and system status
- Surface mount with the stainless steel GT-104HB
Specs
| 24V DC, use specified number of PS-2420UL per system configuration |
| Hands-free from entrance panel to tenant station |
| Max. 16 Entry panels per system Max. 4 Concierge stations per system Max. 500 Tenant stations per system Max. 4 Tenant stations per unit |
| Two sets of 2-conductor, PE insulation (two common buses for audio & video) Aiphone #872002, 2 conductor PE insulated, non-shielded, 11.05 pf/ft (Audio) Aiphone #871802, 2 conductor PE insulated, non-shielded, 11.05 pf/ft (Video) |
| GT-BC to farthest entrance: 980' GT-BC to farthest tenant (audio): 980' GT-VBC to farthest entrance: 980' GT-VBC to farthest tenant (video): 500' |
