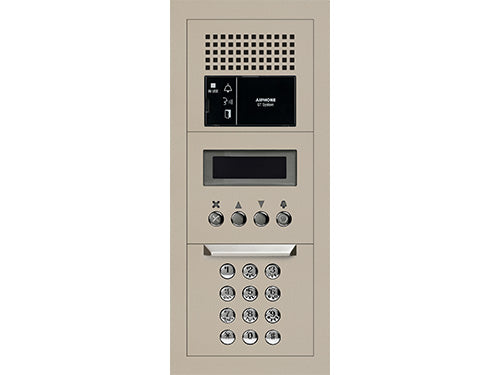

10-Key Audio Entrance Panel Kit
Features
- Contains GT-DB audio module and GT-NSB digital display and directory
- GT-10K keypad for direct dialing and access control
- Includes GF-3F frame and the GF-3B flush back box
- VFD screen displays a customizable greeting message, tenant directory, and system status
- Surface mount the GTA-DESB with the steel GT-103HB
Specs
| 24V DC, use specified number of PS-2420UL per system configuration |
| Hands-free from entrance panel to tenant station |
| Max. 16 Entry panels per system Max. 4 Concierge stations per system Max. 500 Tenant stations per system Max. 4 Tenant stations per unit |
| 2-conductor, PE insulation Aiphone #872002, 2-conductor PE insulated, non-shielded, 11.05 pf/ft (Audio) |
| GT-BC to farthest entrance: 980' GT-BC to farthest tenant (audio): 980' |
