1-Call Audio Entrance Box Set with Handset Tenant Station
Features

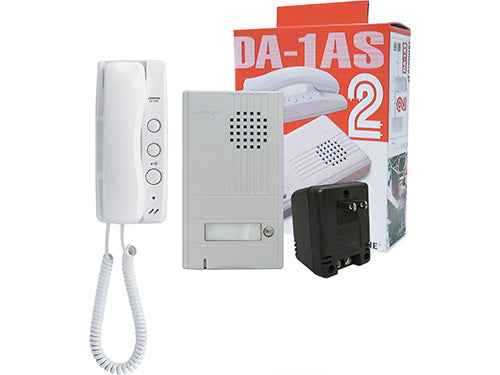

- Set includes DA-1DS entrance station, DA-1MD tenant station, and PT-1211C power supply
- Door release powered by entrance station without the need of an additional transformer
- Backlit directory
- Option button on tenant station to control an external device
- Call tone volume control with mute indicator
- 2-wire system is quick and easy to install
Specs
| Tenant: Handset (full-duplex) Door Station: Hands-free |
| 9.5~20V AC, 70Ω or higher resistance – use EL-12S |
| Entrance Station to Tenant Station: 2-cond., overall shield – use Aiphone #822202 or 2-cond., low cap, PE insulation, solid, non-shielded – use Aiphone #871802 Power Supply to Tenant Station: 2-cond., low cap, PE insulation, solid, non-shielded – use Aiphone #871802 |
| Power Supply to Entrance Station or Door Strike (cumulative): 360'(22AWG), 1,020'(18AWG) Power Supply to Tenant Station: 180'(22AWG), 510'(18AWG) |
