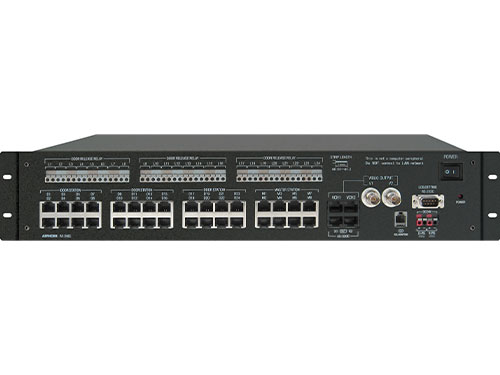

Central Exchange Unit for 24 Door Stations / Subs, 8 Master Stations
Features
- Wiring hub for AX Series using Cat-5e
- Two 24V DC power supply input terminals
- Rack mountable
- Controls all functionality of AX Series
- Two BNC composite video outputs and video switching triggers
- CO line transfer (requires Viking K-1900-5 programmable auto-dialer)
- Programmable functionality via supplied software
Specs
| Video: 0.62A max. Audio: 0.65A max. |
| RJ11 for Viking K-1900-5 programmable auto-dialer |
| Programmable dry contact, 24V AC/DC 500mA (use RY-24L for larger contact rating) |
| 19" EIA rack (2U) or wall mount |
| Between Door / Sub Station, Master Station, and Central Exchange Unit: Cat-5e Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 2-cond., overall shield - use Aiphone 821802 |
| Door / Sub Station to Central Exchange Unit and Add-On Central Exchange Unit: 980' Central Exchange Unit to Master: 980' Central Exchange Unit to Add-On Central Exchange Unit: 16' Power Supply to Central Exchange Unit and Add-On Central Exchange Unit: 16'(22AWG) 33'(18AWG) |
