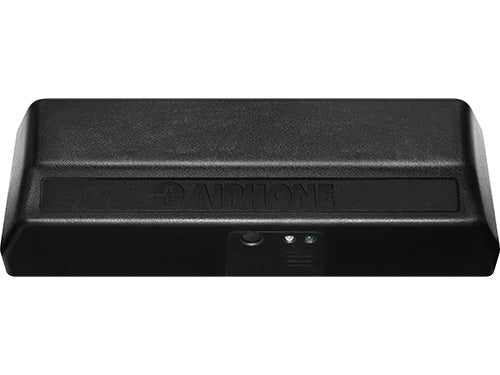

PoE Two-Door Access Controller, Black
The AC-2DM-B is a PoE two-door controller with a black case designed to be mounted above or near a door. It can be used to control and unlock the door it is mounted by, as well as a nearby door within 500'.
This module can be used on its own, or as part of a larger AC Series access control system, with additional AC-2DM modules and AC-2DR panels. The system is managed using the AC Nio management software for the AC Series, with partitioning options available.
This unit is also available in white, see the AC-2DM-W.
Features
- Two Wiegand reader inputs
- Two solid state dry contact relays
- Integrated lock power (12V DC, 500mA)
- Four configurable inputs
- Infrared motion sensor
- Up to 100,000 card holders
- Built-in diagnostic LCD
- PoE powered
- Custom scripting and actions available
- NDAA and TAA compliant
- UL and ULC Listed (UL 294/ULC 5319-05)
Specs
| PoE (IEEE 802.3af) |
| Infrared |
| 12V DC, 500mA |
| 12V DC, 300mA |
| 24V DC, 1A |
| IPv4, IPv6, TCP, UDP, HTTPS |
| Wiegand |
| Up to 100,000 user credentials |
| Up to 50,000 events (first in, first out) |
| UL 294/ULC S319-05 |
| 3-1/2" H x 10" W x 2-3/8" D |
