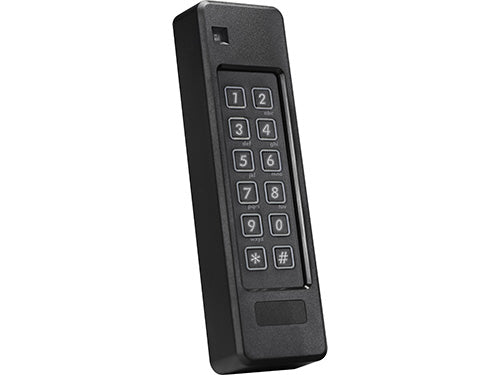

Mullion-Mount Proximity Reader with Access Keypad
The AC-10K-M is a combination 125 kHZ Wiegand proximity reader and security keypad designed to be mounted on a mullion. Clamshell cards can be read up to 6” away under ideal conditions. The keypad allows users to enter pin codes for entry, either on their own or in conjunction with a card swipe.
The following card formats are supported when used with AC Nio™ software:
| 26-Bit | HID 26-bit (Industry Standard) |
| 32-Bit | Kantech, CSN, CSN Type 2 |
| 33-Bit | DSX |
| 34-Bit | HID Standard, HID C10001, HID 0009P, Honeywell FS42, HID N10002 |
| 35-Bit | XceedID |
| 36-Bit | Keyscan Indala, Verex G-Prox, Continental |
| 37-Bit | XceedID, Fairways, Indala, Honeywell, Interlogix, STid 37-V FS01, Interlogix - XceedID |
| 39-Bit | Kantech XSF |
| 40-Bit | Aiphone 40-bit |
| 48-Bit | HID H2004604 |
| 50-Bit | RBH |
| 75-Bit | Common Access Card |
Specs
| Mullion Mount Proximity and Keypad Reader |
| 50mA typical, 115mA peak |
| 125 kHz |
| CSA, FCC, CE, C-Tick |
| Various; see the list above or the Spec Sheet for details. |
| UL 294 |
| -40°~149°F (-40°~65°C) |
| 6-1/8" H x 1-3/4" W x 15/16" D |
