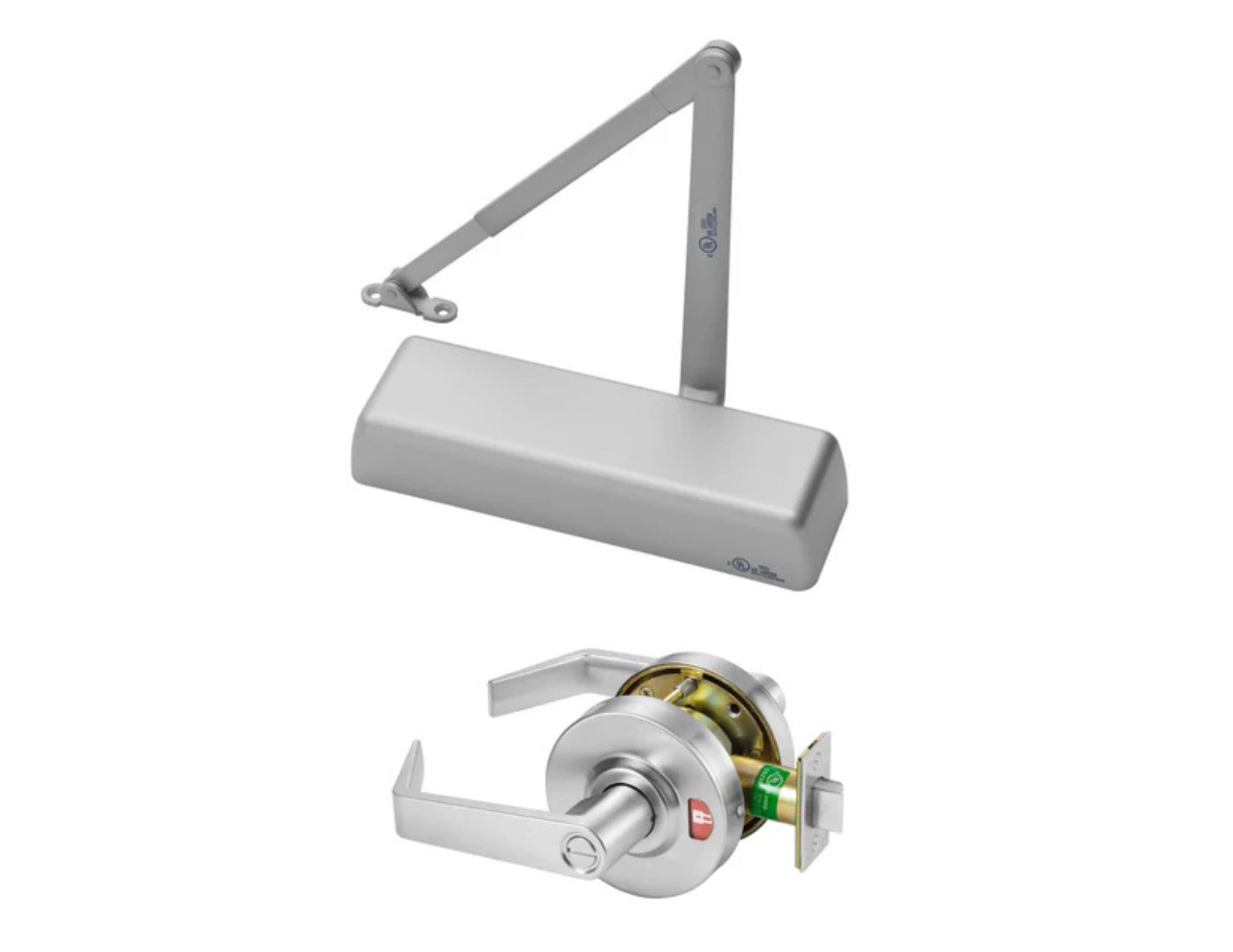

Yale's YPL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it's bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.
Features
Patent pending
ADA compliant
Visual status indicators in rose, displaying bold visuals for vacant or occupied lock status
Cylindrical lock construction provides durability and longevity
Available in four finishes (605, 613E, 626, BSP)
Benefits
Status indicator window allows the user to clearly see if the door is locked or unlocked at a glance
Quick and easy installation makes upgrading to accommodate a status indicator simple and cost effective
Allows for one motion egress and prevents lockouts of unoccupied rooms
Meets strength and durability standards for high use applications
3-year mechanical warranty
Patent pending
ADA compliant
Visual status indicators in rose, displaying bold visuals for vacant or occupied lock status
Cylindrical lock construction provides durability and longevity
Available in four finishes (605, 613E, 626, BSP)
Benefits
Status indicator window allows the user to clearly see if the door is locked or unlocked at a glance
Quick and easy installation makes upgrading to accommodate a status indicator simple and cost effective
Allows for one motion egress and prevents lockouts of unoccupied rooms
Meets strength and durability standards for high use applications
3-year mechanical warranty
Specifications
Filter
Backset Depth (Standard): 2 3/4"
Door Thickness (Standard): 1 3/4"
Handing: Non-handed
Latchbolt Throw: 1/2"
Minimum Backset: 2 3/8"
Minimum Door Thickness: 1 3/8"
Strike Type: ANSI Curved Lip
UL Listed: Yes
ULC Listed: Yes
Warranty: 3 year warranty
Certifications
Americans with Disabilities Act (ADA) Compliant
UL-cUL Fire-Rated Up to 3 Hours
NFPA 80 Compliant
ICC A117.1 Compliant
ANSI/BHMA A156.2, Series 4000, Grade 1
Filter
Backset Depth (Standard): 2 3/4"
Door Thickness (Standard): 1 3/4"
Handing: Non-handed
Latchbolt Throw: 1/2"
Minimum Backset: 2 3/8"
Minimum Door Thickness: 1 3/8"
Strike Type: ANSI Curved Lip
UL Listed: Yes
ULC Listed: Yes
Warranty: 3 year warranty
Certifications
Americans with Disabilities Act (ADA) Compliant
UL-cUL Fire-Rated Up to 3 Hours
NFPA 80 Compliant
ICC A117.1 Compliant
ANSI/BHMA A156.2, Series 4000, Grade 1
Yale 5800 Series Cast Iron Door Closers are ideal for retrofit and new construction applications where strength and durability are required at an economical price. The 5800 Series features rugged construction, adjustments for backcheck, closing, and latch speed, rack and pinion operation and a variety of arm options.
Features
- ANSI/BHMA Grade 1 Certified
- Adjustable spring sizes 1-6
- Non-handed
- Cast iron
- Tri-packed: regular, parallel or top jamb mounting
- Full plastic cover
- Spring power adjustment
- Hold open and heavy-duty arm configurations
- Sleeve nuts included with all models
