Accentra NTT613-NR / NTT623-NR - nexTouch Keypad Exit Trim – Electronic Access for Exit Devices

The ASSA ABLOY ACCENTRA nexTouch Keypad Exit Trim provides convenient electronic access control for commercial doors equipped with compatible exit devices or panic bars. Formerly sold under the Yale nexTouch name, this battery-powered electronic trim allows authorized users to enter from the exterior while preserving free egress through the exit device on the inside.

Designed for new construction and retrofit applications, nexTouch exit trim can replace mechanical outside trim on many existing pushpad exit devices. Patented adjustable mounting posts provide compatibility with numerous exit device makes and models, often without requiring additional mounting hardware. This makes nexTouch an excellent solution for upgrading delivery entrances, employee doors, stairwells, multifamily properties, offices, retail locations and other controlled commercial openings.

Depending on the selected model and configuration, users can gain access using a PIN code, supported card or fob, or compatible mobile credential. Modular technology provides an upgrade path from standalone keypad operation to Accentra data-on-card or supported wireless access-control functionality as facility requirements grow.

Available keypad styles include a tactile pushbutton keypad and a capacitive touchscreen. The pushbutton version is well suited to applications where tactile operation or accessibility is important, while the touchscreen provides a clean, contemporary appearance.

Key Features:

• Electronic keypad exit-device trim for commercial doors

• Provides controlled exterior entry while maintaining free egress

• Suitable for new installations and retrofit applications

• Compatible with many manufacturers’ pushpad exit devices

• Patented adjustable mounting posts simplify retrofit installation

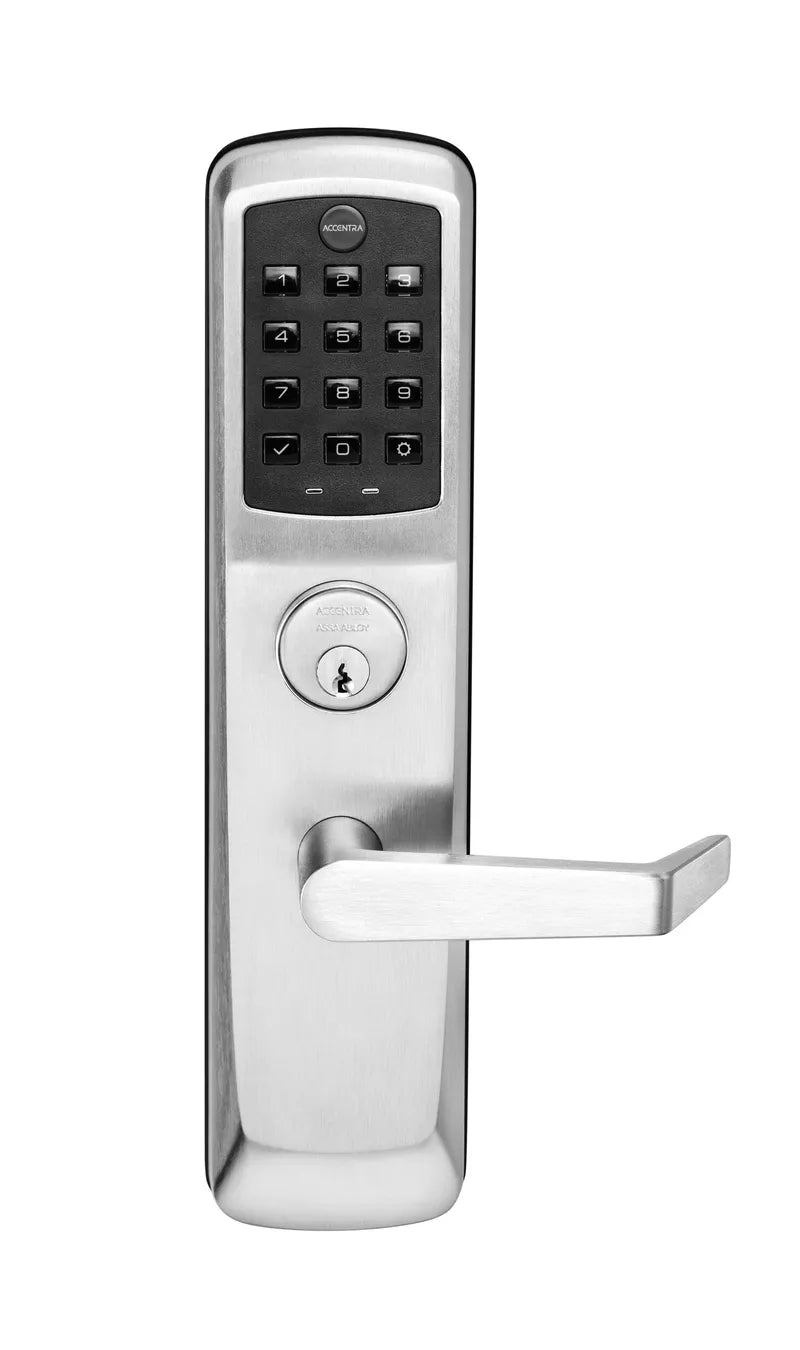

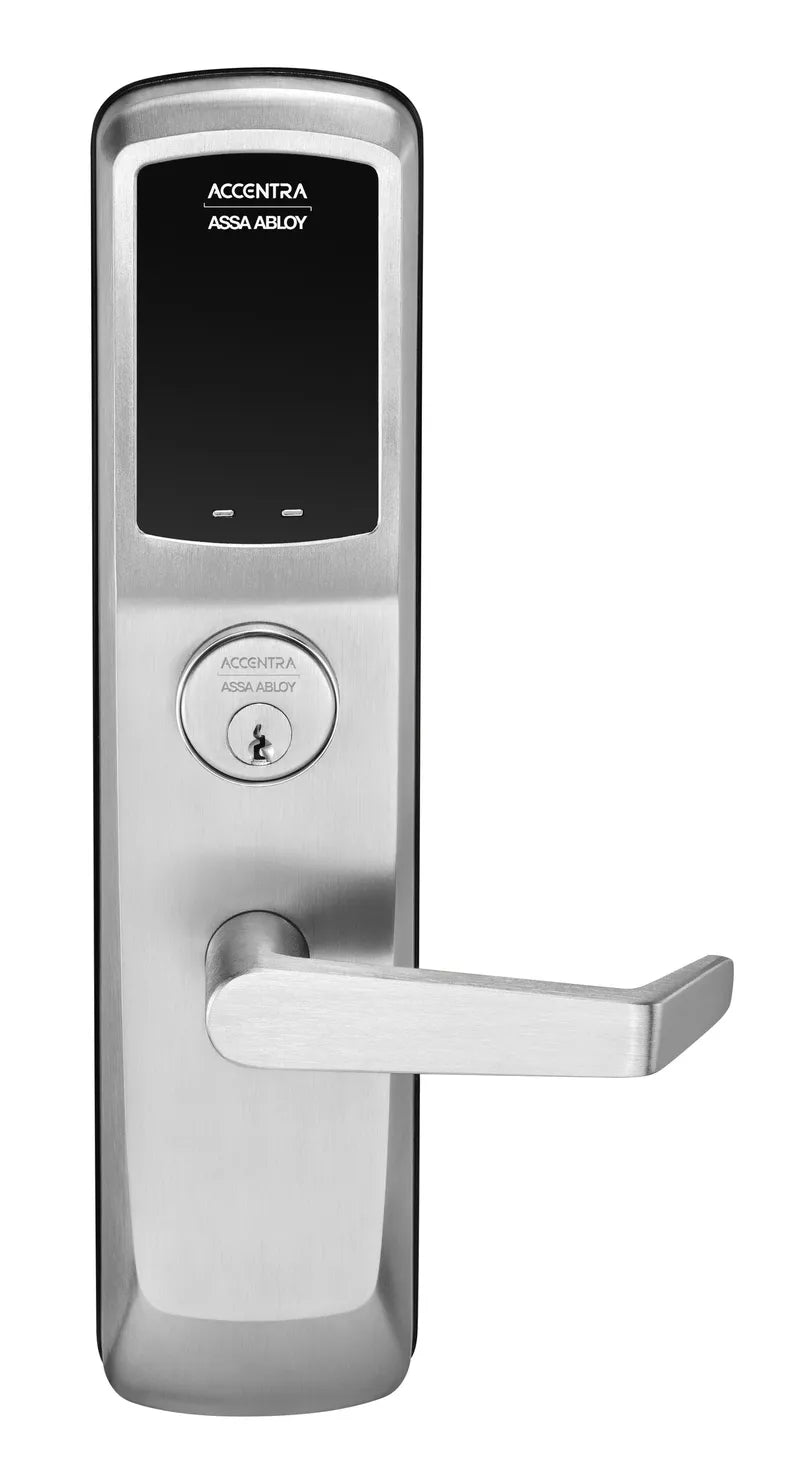

• Available with a pushbutton keypad or capacitive touchscreen

• Standalone PIN-code access with capacity varying by model

• Supports up to 500 user codes on applicable keypad-only configurations

• Available mechanical key override

• Automatic relocking with an adjustable relock period

• Passage-code capability for scheduled or temporary unlocked operation

• One-touch locking option

• All-code lockout mode

• Tamper alert

• Audible voice-guided programming

• English, Spanish and French voice settings

• Adjustable keypad volume

• Low-battery warning

• Powered by four AA alkaline batteries

• Exterior 9-volt battery terminals provide emergency power if the internal batteries are depleted

• Optional door position switch enables supported privacy functions

• Modular design supports selected credential and access-control upgrades

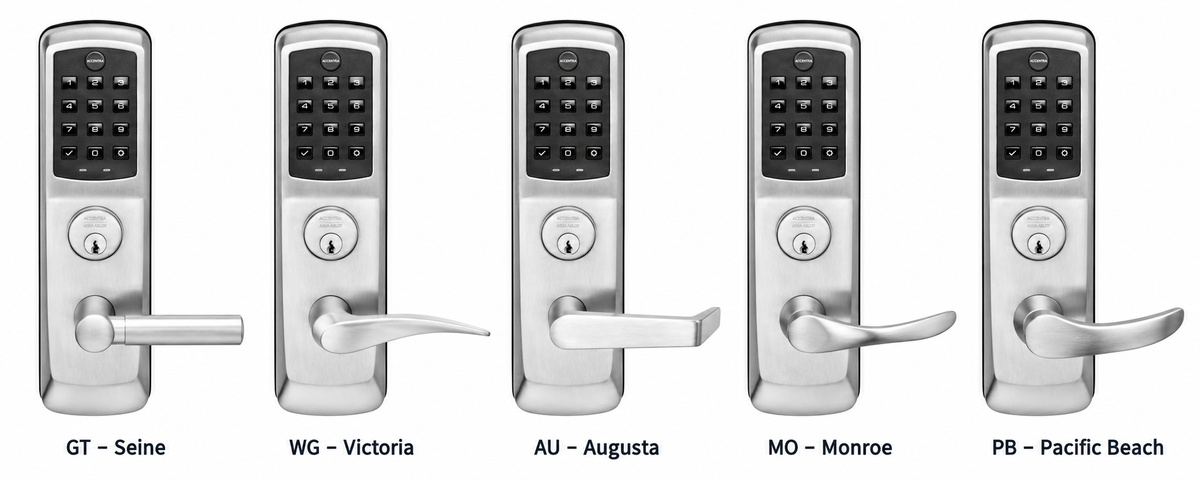

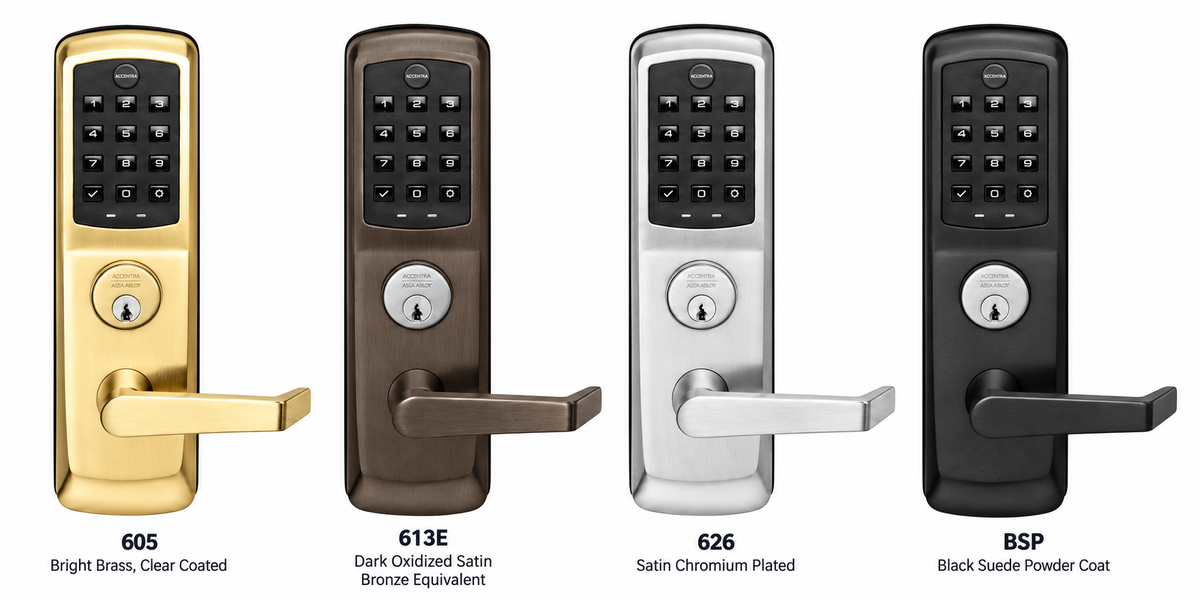

• Available in multiple architectural finishes and lever designs

• ANSI/BHMA Grade 1 certified

• Weather-resistant construction for compatible exterior applications

Common Applications:

• Delivery and receiving doors

• Employee entrances

• Commercial stairwell doors

• Multifamily and mixed-use properties

• Apartment common-area entrances

• Offices and small businesses

• Retail facilities

• Restrooms

• Existing doors with compatible panic or exit devices

How the nexTouch Exit Trim Works:

From the secure exterior side, an authorized user enters a valid credential to activate the lever and retract the exit device latch. After entry, the trim automatically returns to its locked state according to the programmed relock setting. From the inside, occupants continue to exit normally by pressing the exit device touchpad.

Available Configurations:

nexTouch exit trim is offered in multiple model, keypad, lever, cylinder, finish and technology configurations. User-code capacity and supported credential types depend on the exact model and optional module selected. Confirm exit-device compatibility and all required options before ordering.

Important Ordering Information:

The nexTouch product is the exterior operating trim and must be matched to a compatible exit device. The panic bar or exit device may be sold separately unless specifically stated in the selected product configuration. Verify the existing exit-device manufacturer and model, door preparation, door handing, lever design, finish, cylinder requirements and desired access-control technology before placing an order.

Manufacturer: ASSA ABLOY ACCENTRA
Former Brand Name: Yale nexTouch
Product Type: Electronic keypad exit trim
Application: Compatible commercial exit devices and panic bars
Keypad Options: Pushbutton or touchscreen
Power: Four AA alkaline batteries
Emergency Power: Exterior 9-volt battery terminals
Access Methods: Vary by model and optional technology module

Frequently Asked Questions

What is the ACCENTRA nexTouch Keypad Exit Trim?

The nexTouch Keypad Exit Trim is battery-powered electronic outside trim that provides controlled entry through a commercial door equipped with a compatible exit device. It was formerly branded as Yale nexTouch.

Does the nexTouch exit trim include the panic bar?

The nexTouch is the exterior electronic trim. The panic bar or exit device may be sold separately unless the individual product listing specifically states that it is included.

Can nexTouch be installed on an existing exit device?

Yes. Its adjustable mounting posts allow it to replace mechanical trim on many compatible pushpad exit devices. The manufacturer and exact model of the existing exit device must be verified before ordering.

Does nexTouch prevent people from exiting?

No. The electronic trim controls entry from the exterior. Occupants can continue to exit from the inside by pressing the panic bar or exit-device touchpad.

Is nexTouch available with physical buttons?

Yes. nexTouch exit trim is available with either a tactile pushbutton keypad or a capacitive touchscreen, depending on the selected model.

How many PIN codes can nexTouch hold?

Capacity depends on the exact model and operating configuration. Applicable keypad-only configurations support up to 500 user codes, while certain models or technology configurations may have different limits.

What happens when the nexTouch batteries die?

The lock provides low-battery warnings. If the internal batteries become completely depleted, a 9-volt battery can be held against the exterior emergency-power terminals to temporarily power the keypad and allow authorized entry.

What type of batteries does nexTouch use?

The nexTouch exit trim is powered by four AA alkaline batteries.

Can nexTouch use cards, fobs or mobile credentials?

Selected nexTouch configurations can support physical or mobile credentials through compatible optional technology modules. Credential support depends on the module and access-control system selected.

Is the nexTouch exit trim suitable for exterior doors?

The nexTouch is weather resistant and can be used in compatible exterior applications. Confirm the exact model, opening conditions and manufacturer requirements before installation.

Is the nexTouch exit trim handed?

Handing and compatibility depend on the complete exit-device and trim configuration. Confirm the door handing, exit-device model, lever and product options before ordering.
