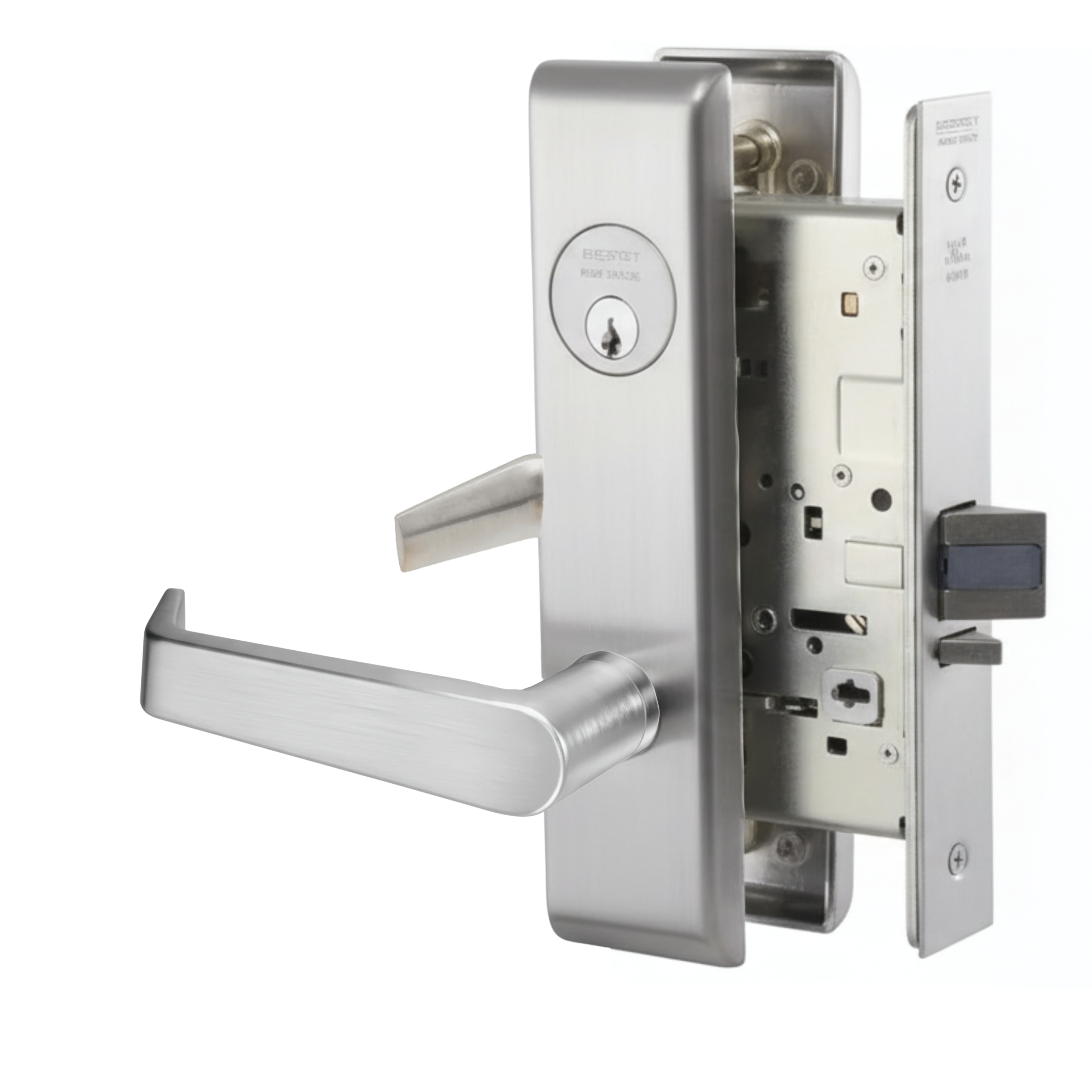

ASSA ABLOY ACCENTRA™ 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
Product Overview
Features
- Functions available for any industrial or commercial application
- Field adjustable handing
- Available in a variety of attractive trims and finishes
- Status indicator options available to provide peace of mind on the locked/unlocked status of a door
- Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
- Thrubolted security head screws offer added protection (Specific to 8800 SL version)
- UL/cUL listed for 3-hour fire rated doors
- Heavy-duty escutcheon trim for resistance against damage and vandalism
Benefits
- 10-year mechanical warranty
- Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).
Specifications
-ANSI/BHMA Code: A156.13
-ANSI/BHMA Series: Series 1000
-Backset Depth (Standard): 2 3/4"
-Cylinder Format: Conventional, Large Format, Small Format
-Door Thickness (Standard): 1 3/4"
-Handing: Field Reversible
-Latchbolt Throw: 3/4"
-Maximum Backset: 2 3/4"
-Minimum Backset: 2 3/4"
-Maximum Door Thickness: 3 1/4"
-Minimum Door Thickness: 1 3/4"
-Number of Keys: 2
-Strike Type: Curved Lip
-UL Listed: Yes
-ULC Listed: Yes
-Warranty: 10-year (Mechanical) / 2-year (Electrified) limited warranty
Certifications
-Environmental Product Declaration (EPD)
-CAL FIRE, 3775-0257:0113
Buy American Act*
*Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
-UL-cUL Fire-Rated Up to 3 Hours
-ANSI/BHMA A117.1
-ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1

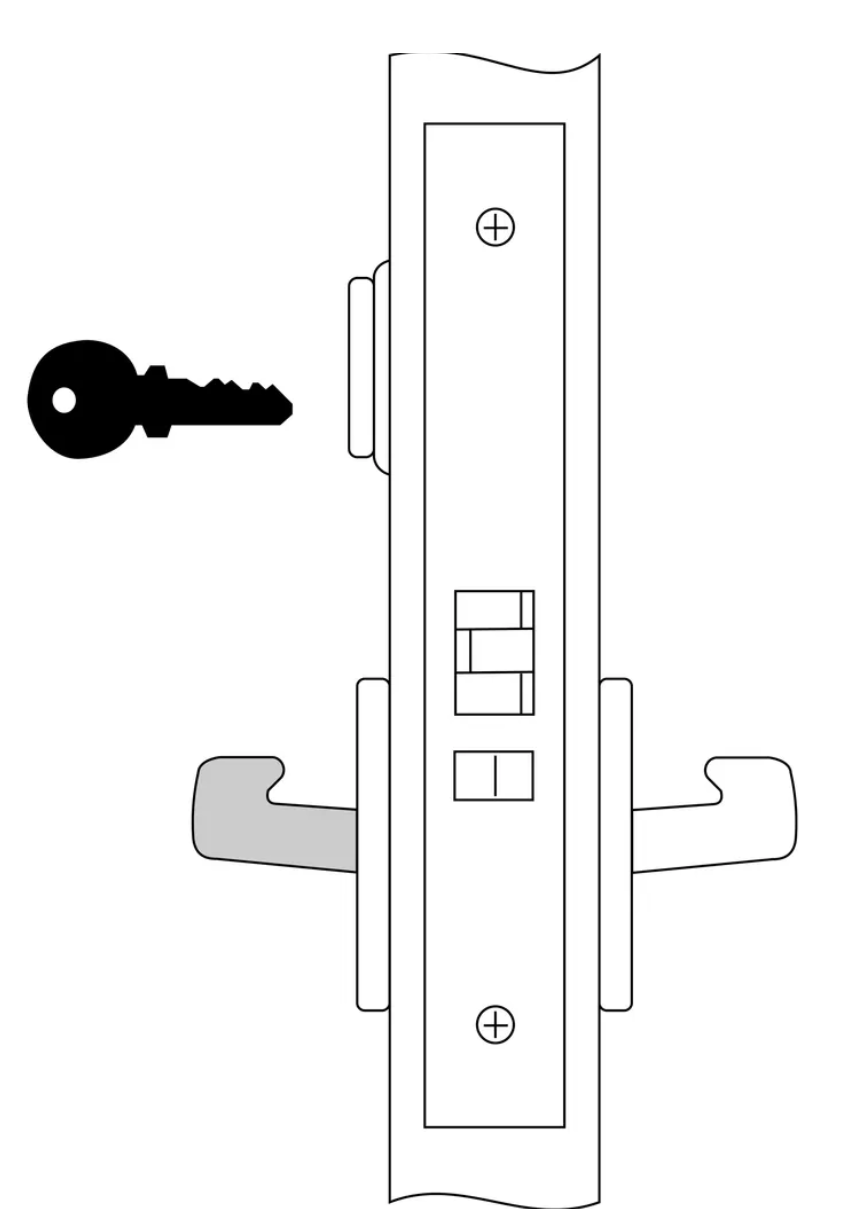

Function
- For use on storeroom, utility, exit doors
- Latchbolt retracted by key outside, knob/lever inside
- Outside knob/lever rigid at all times
- Inside knob/lever always active
- Deadlocking latchbolt
