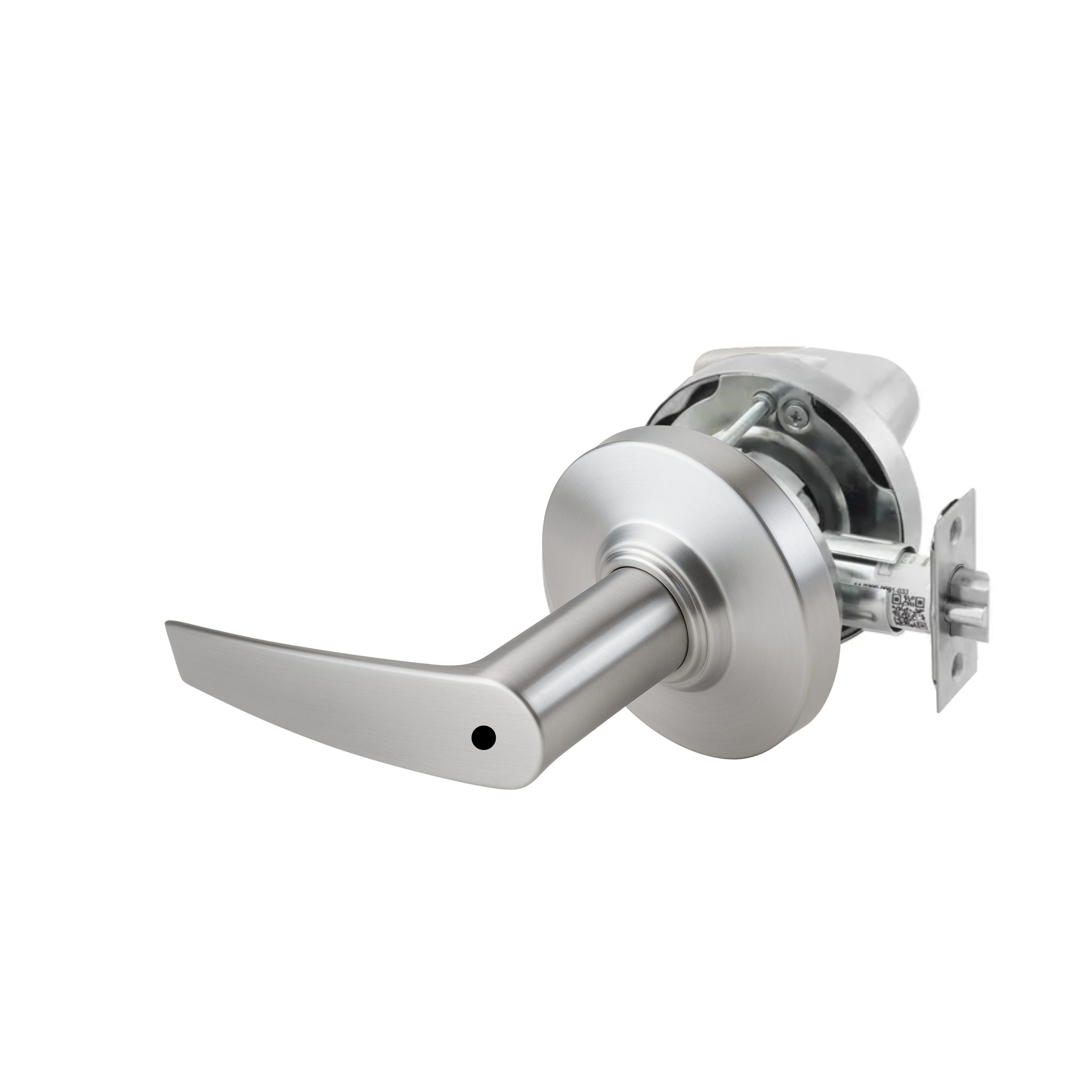

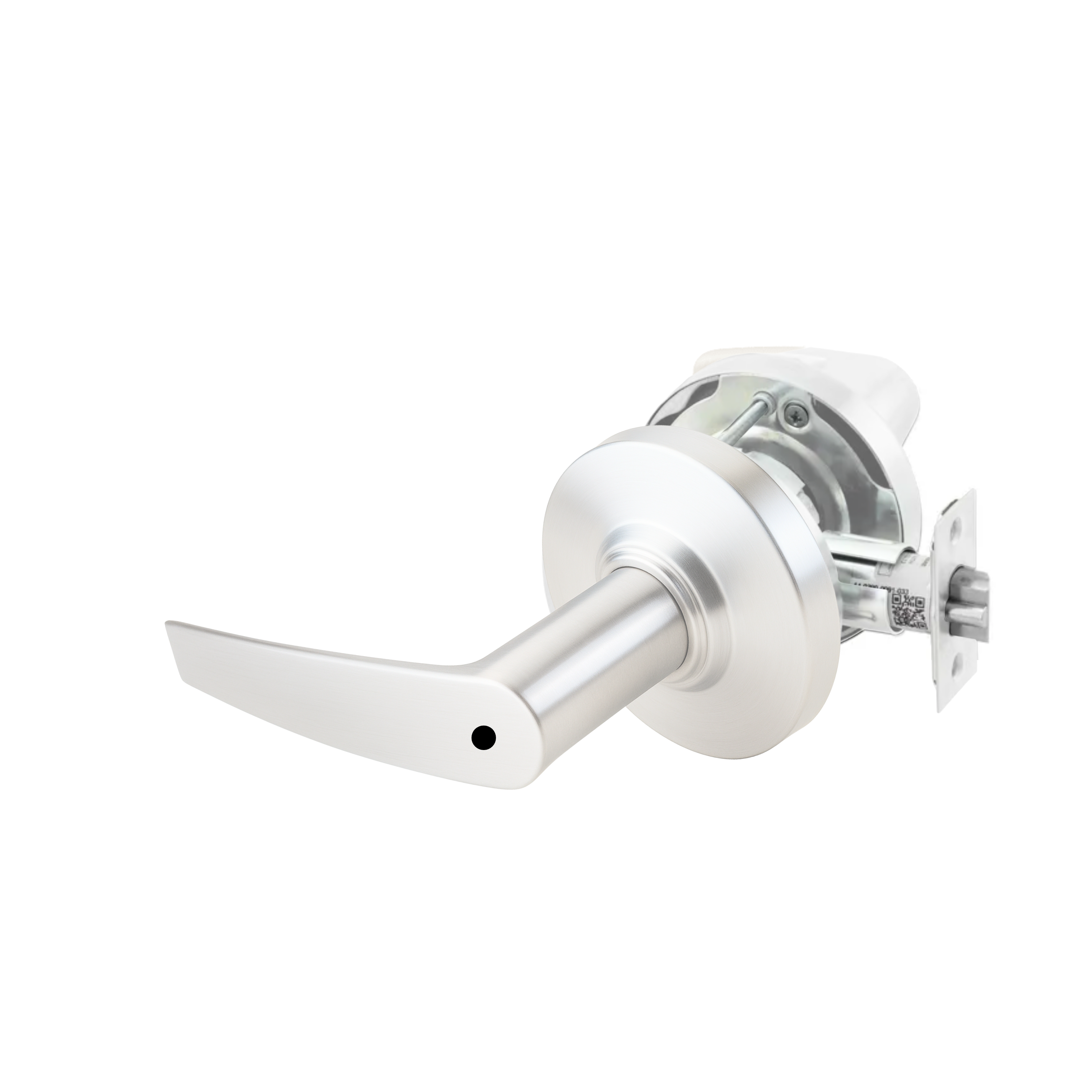

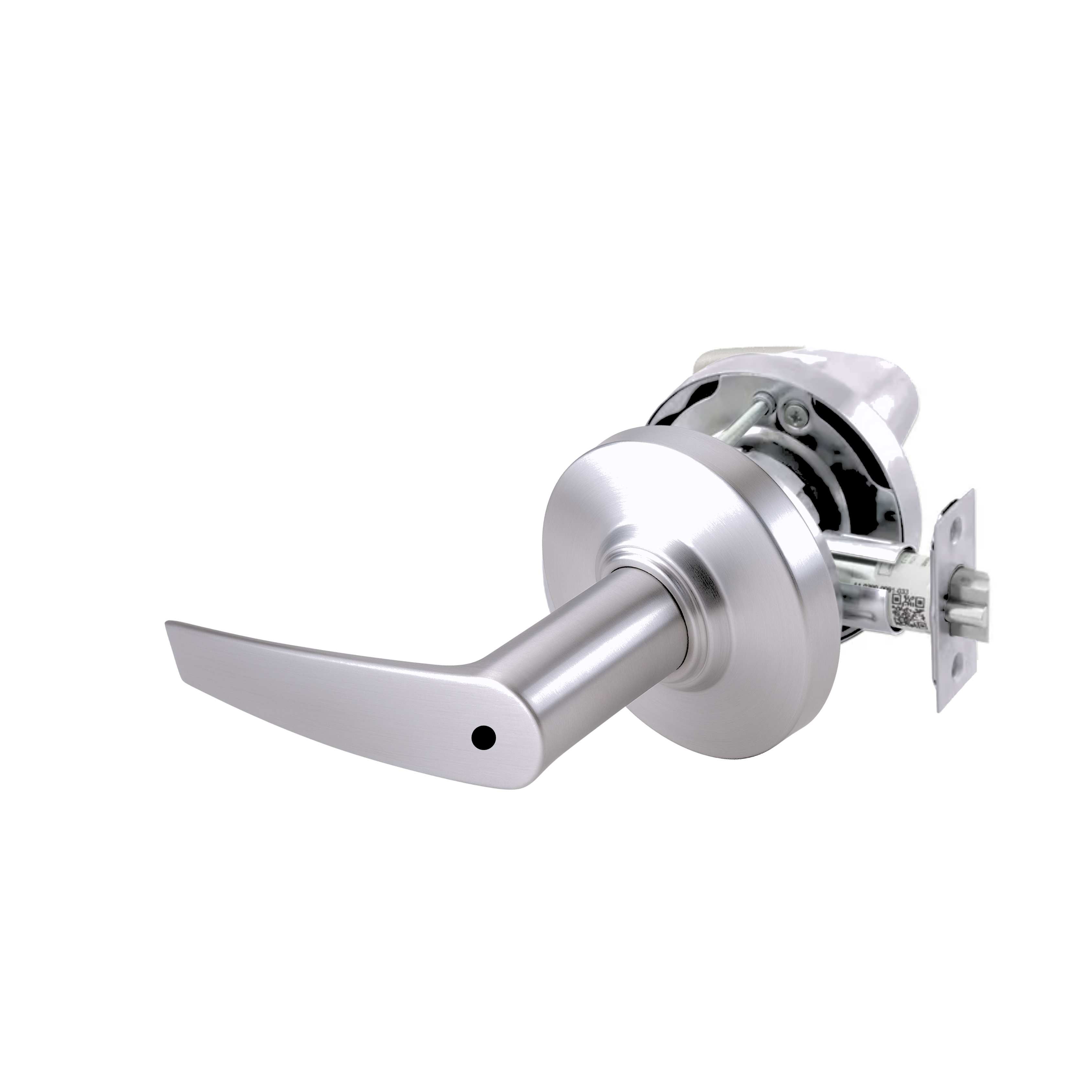

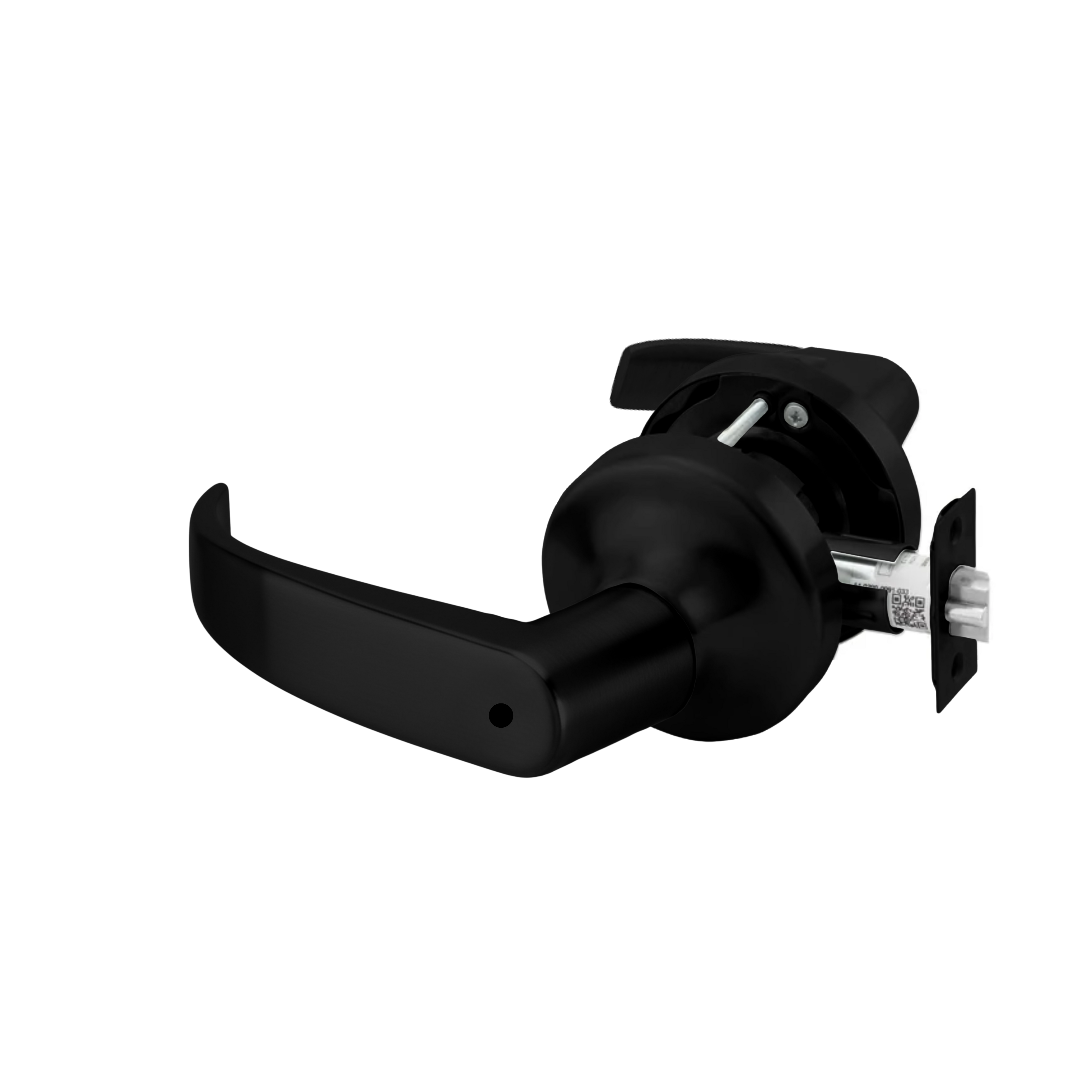

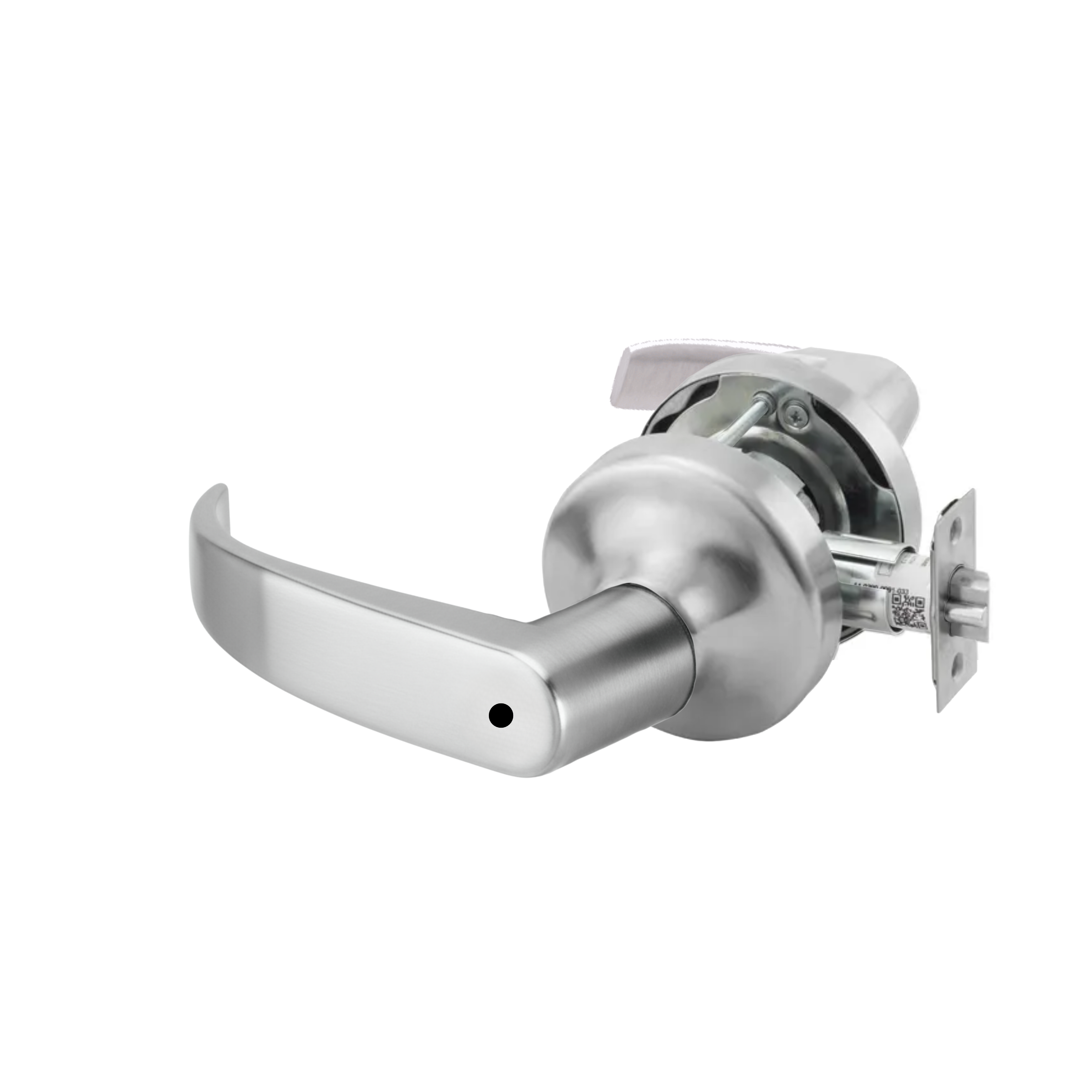

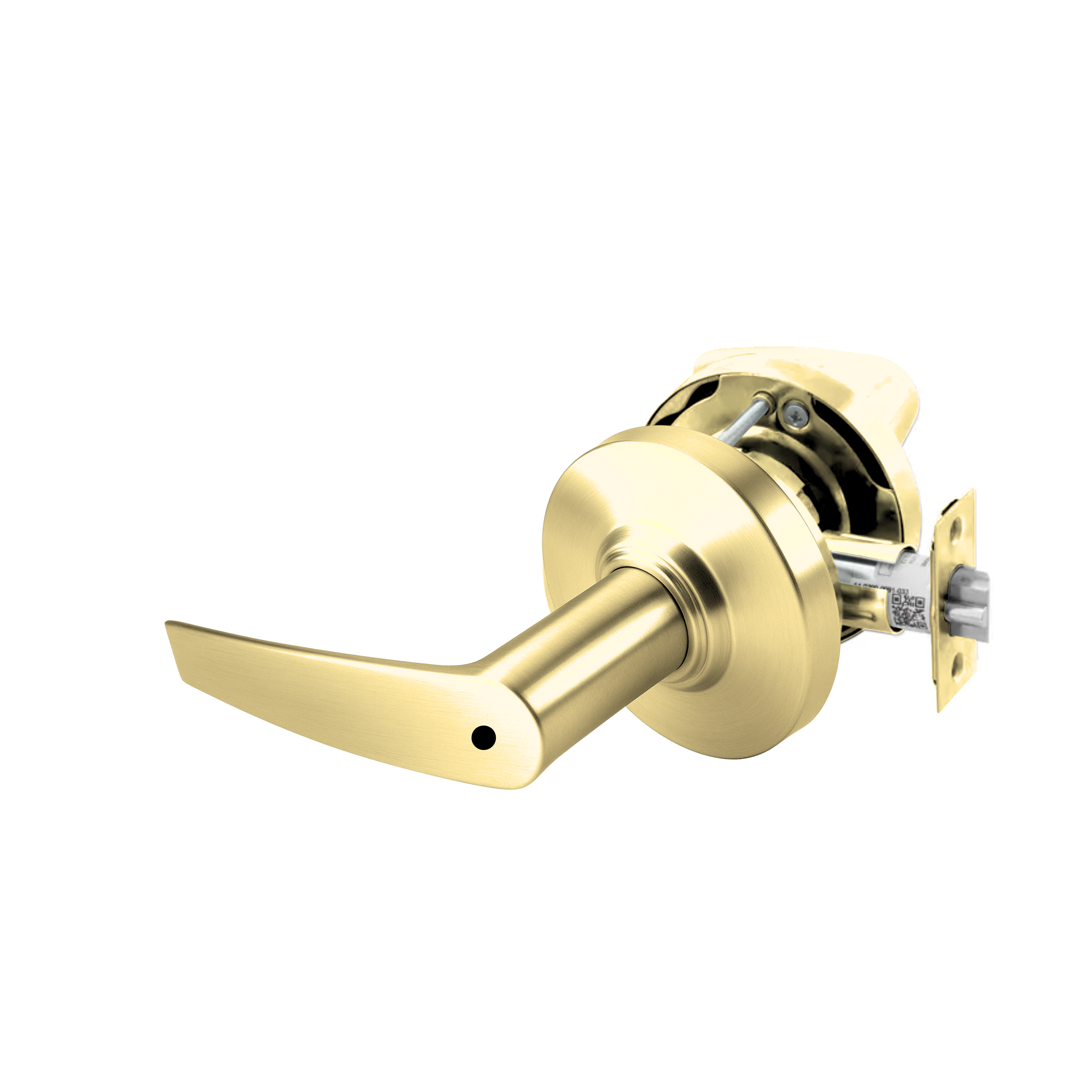

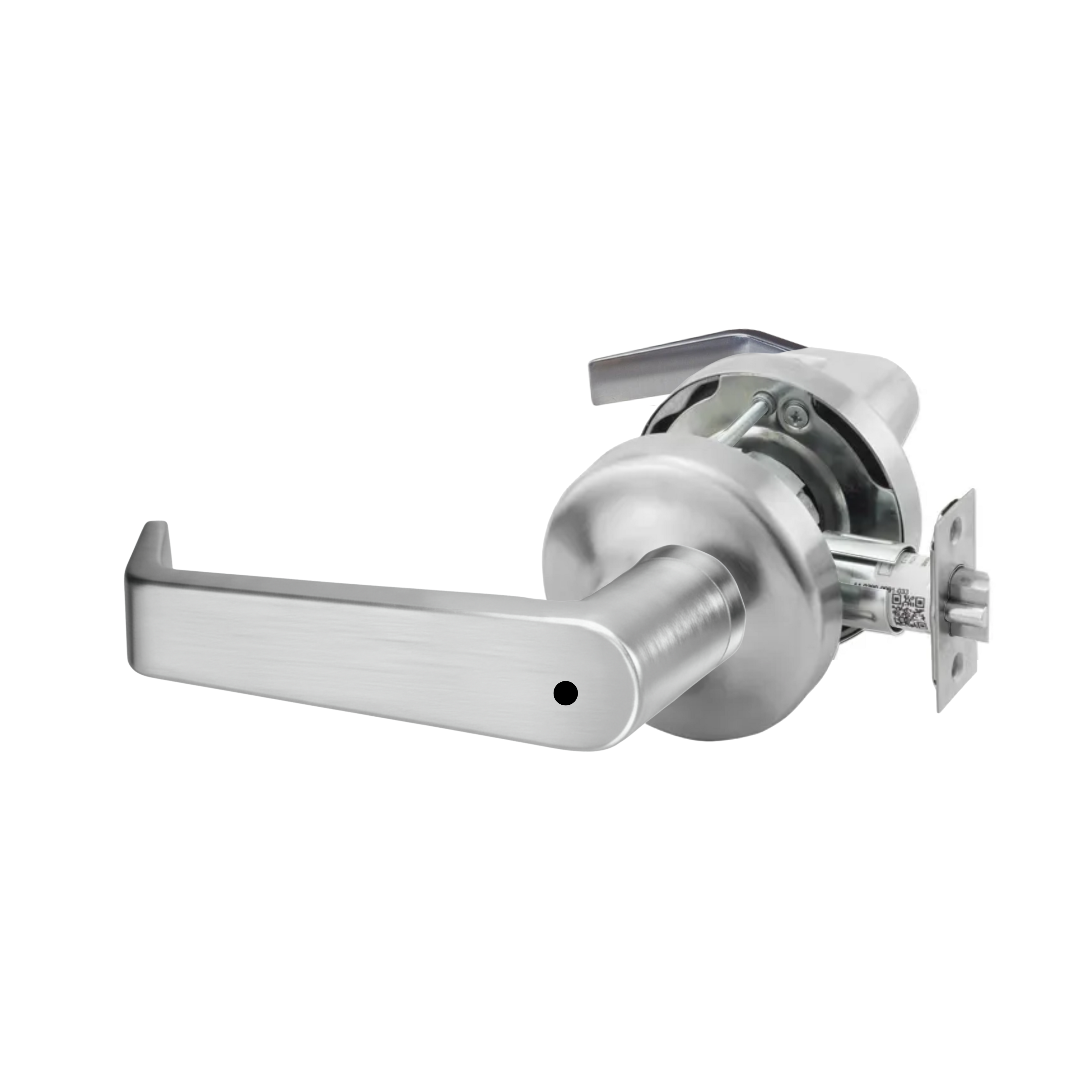

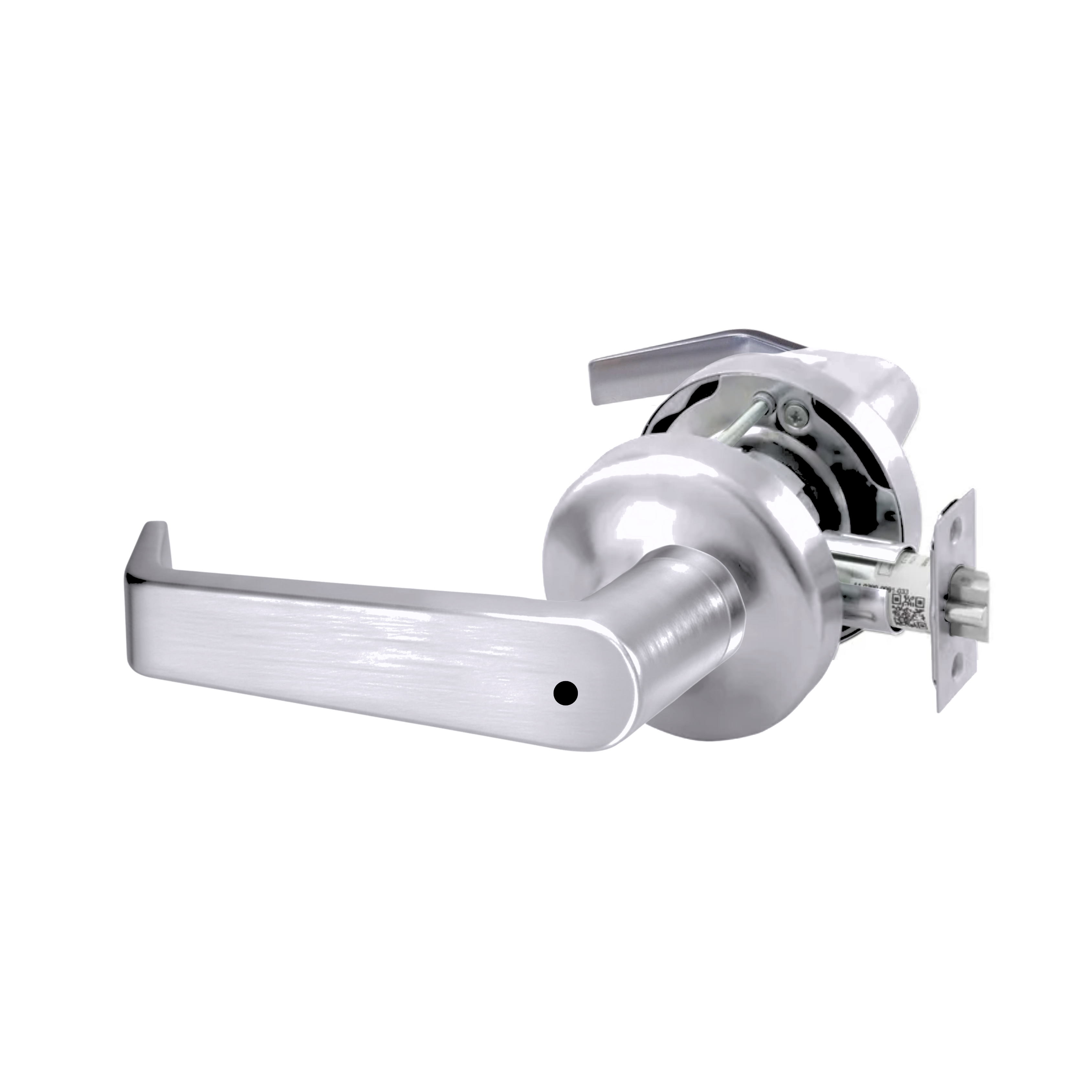

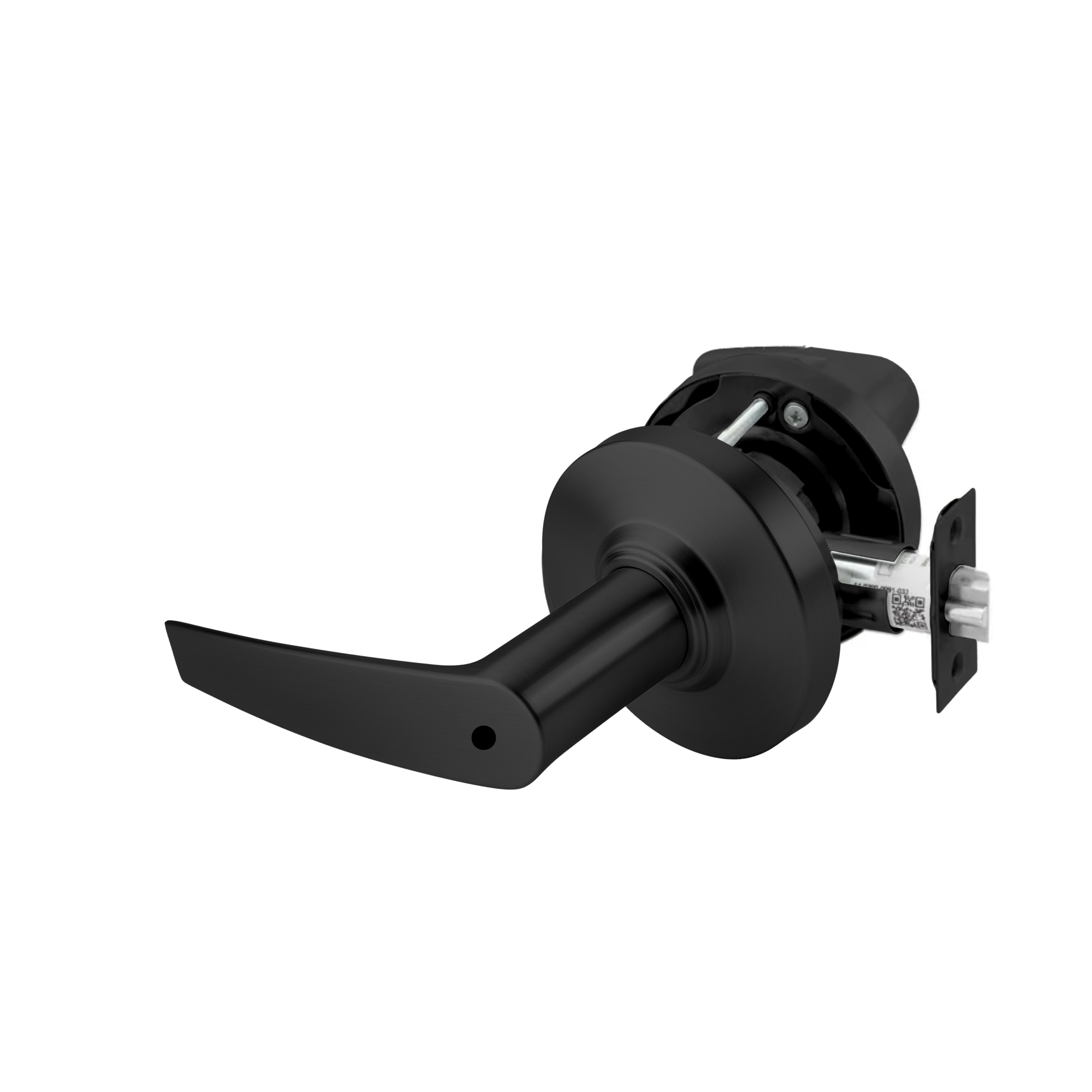

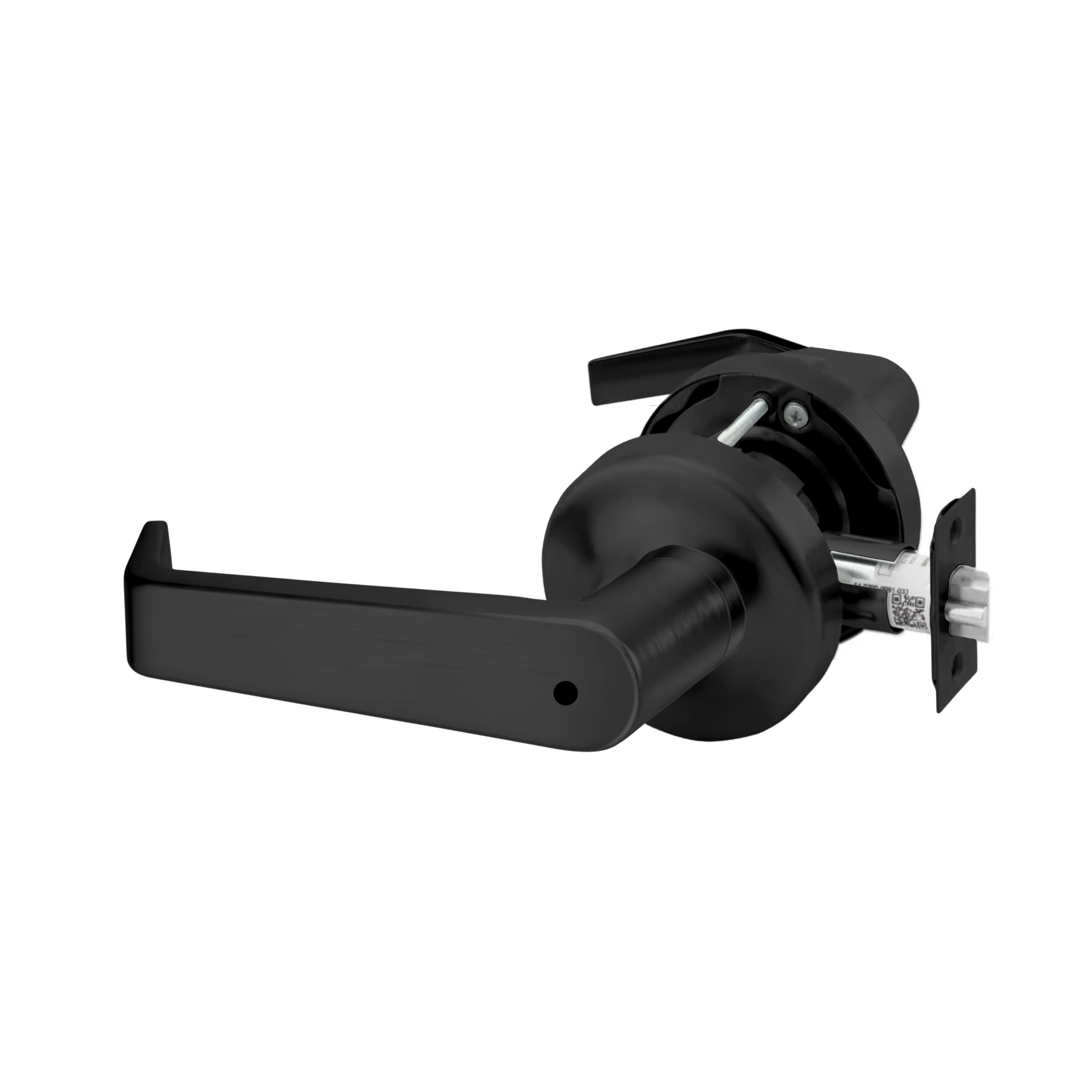

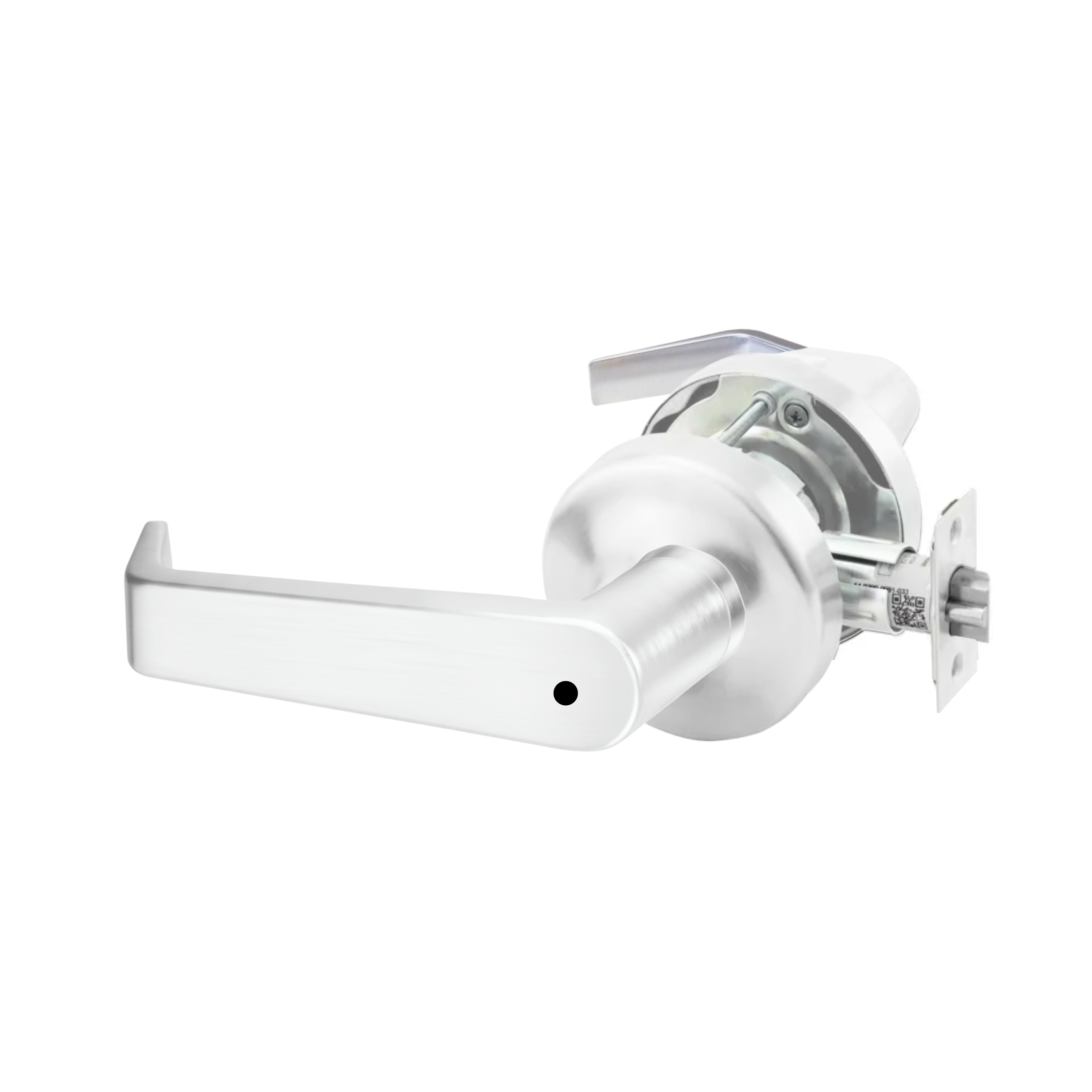

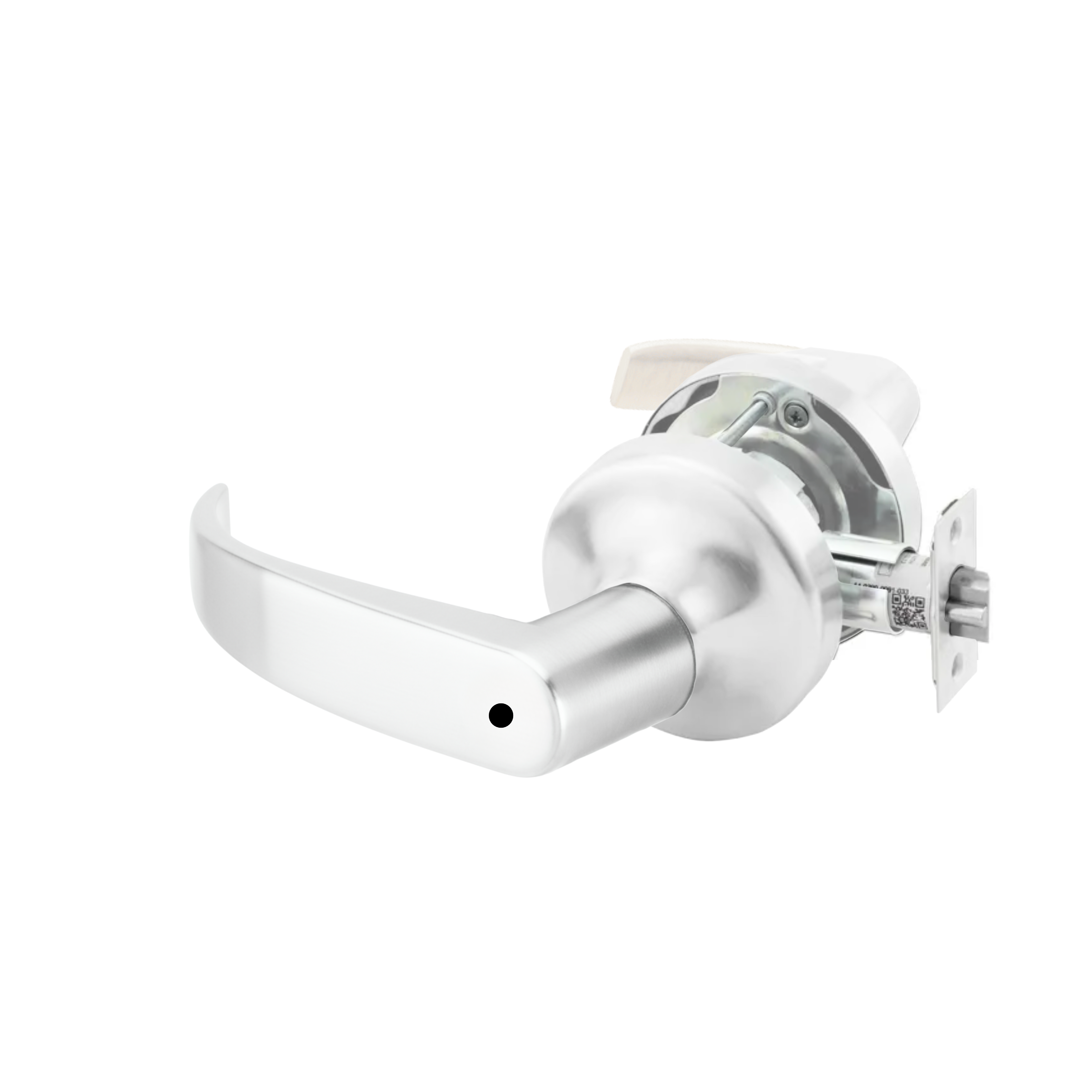

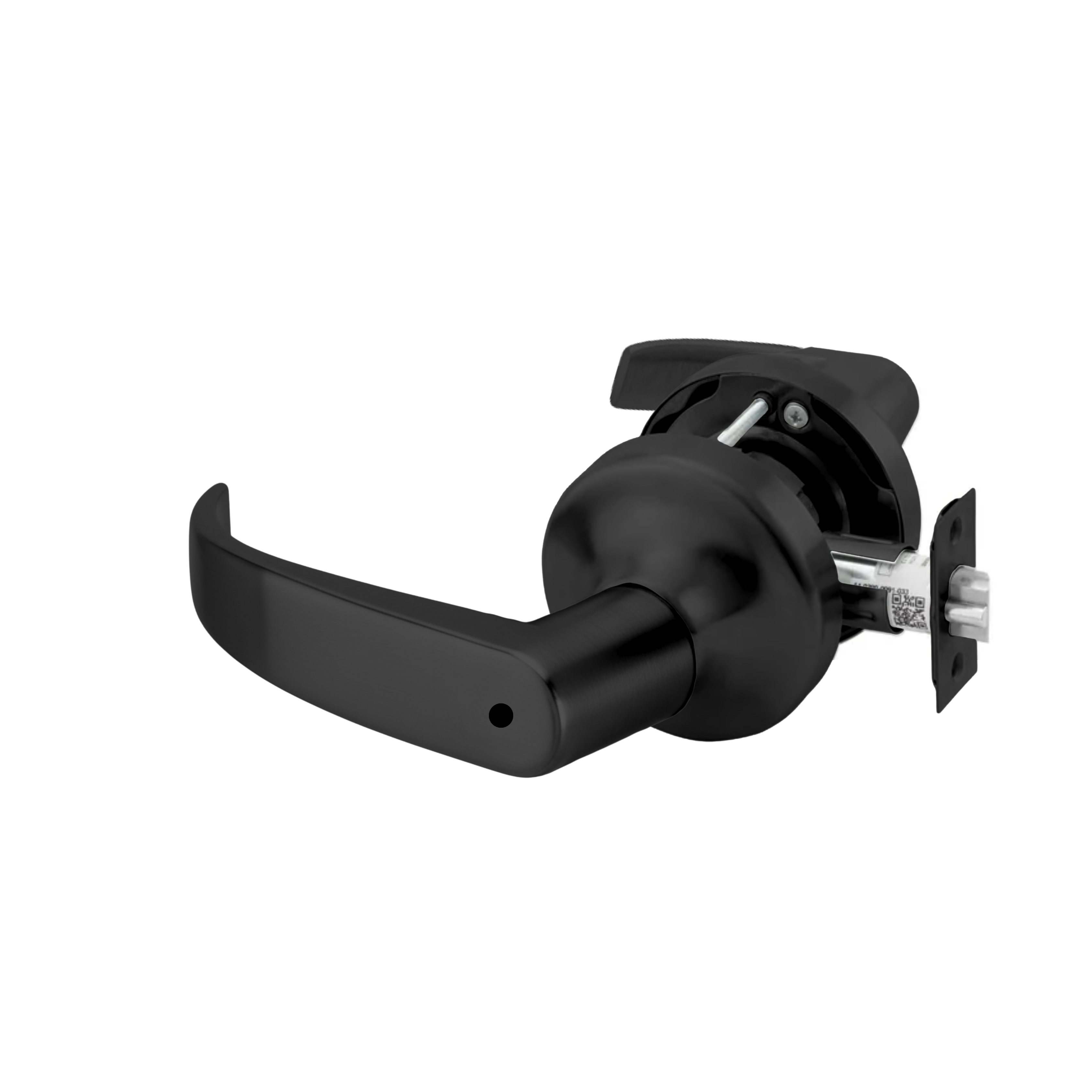

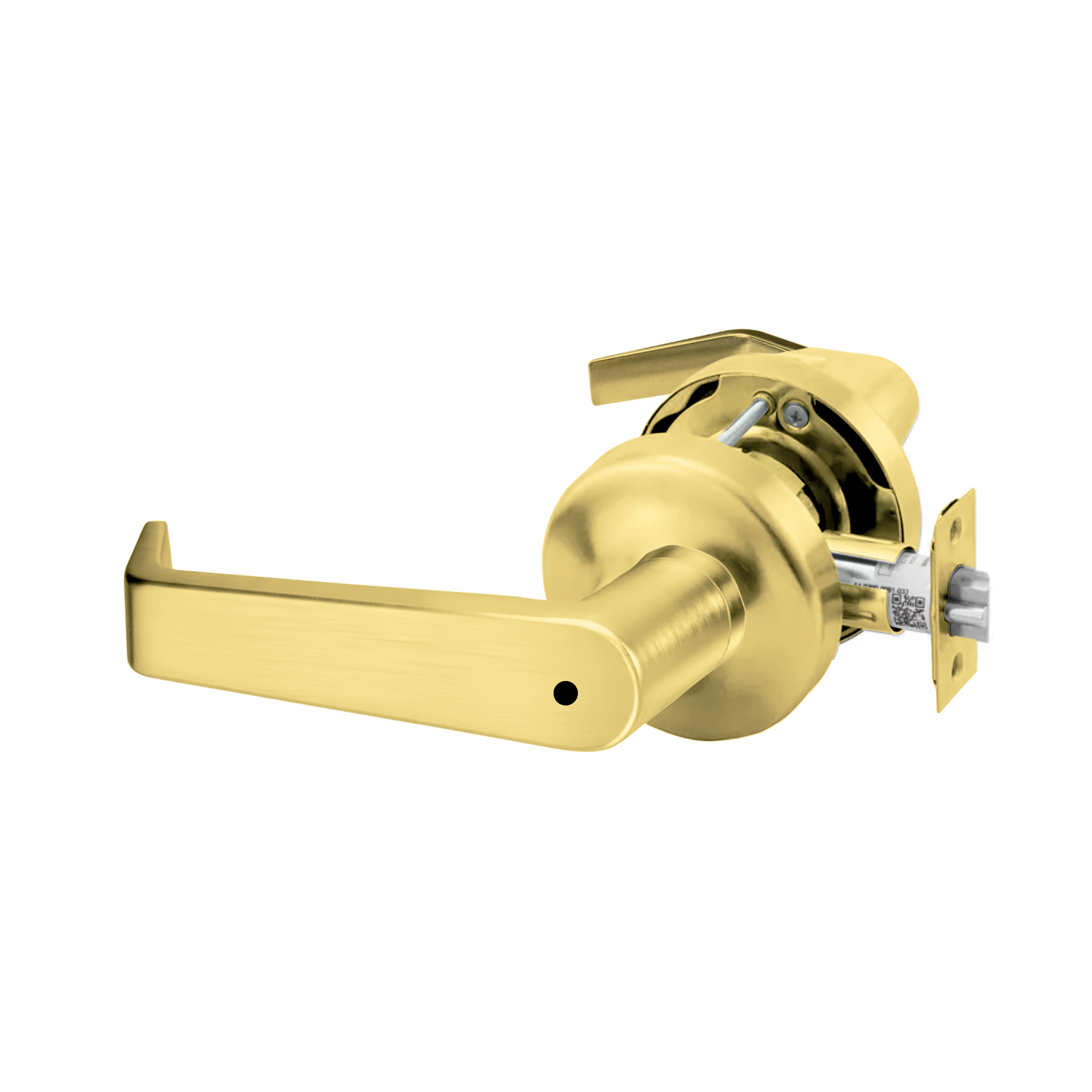

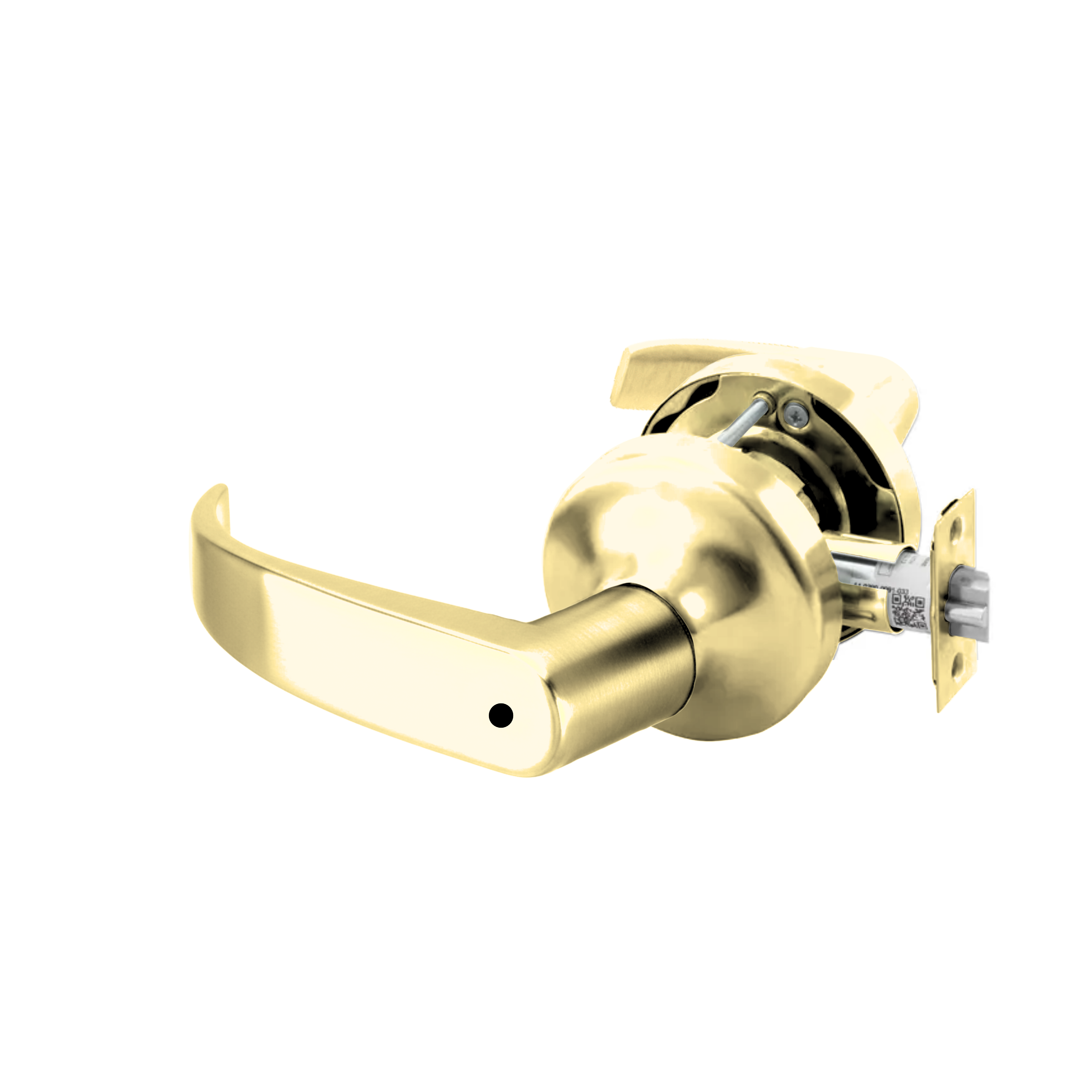

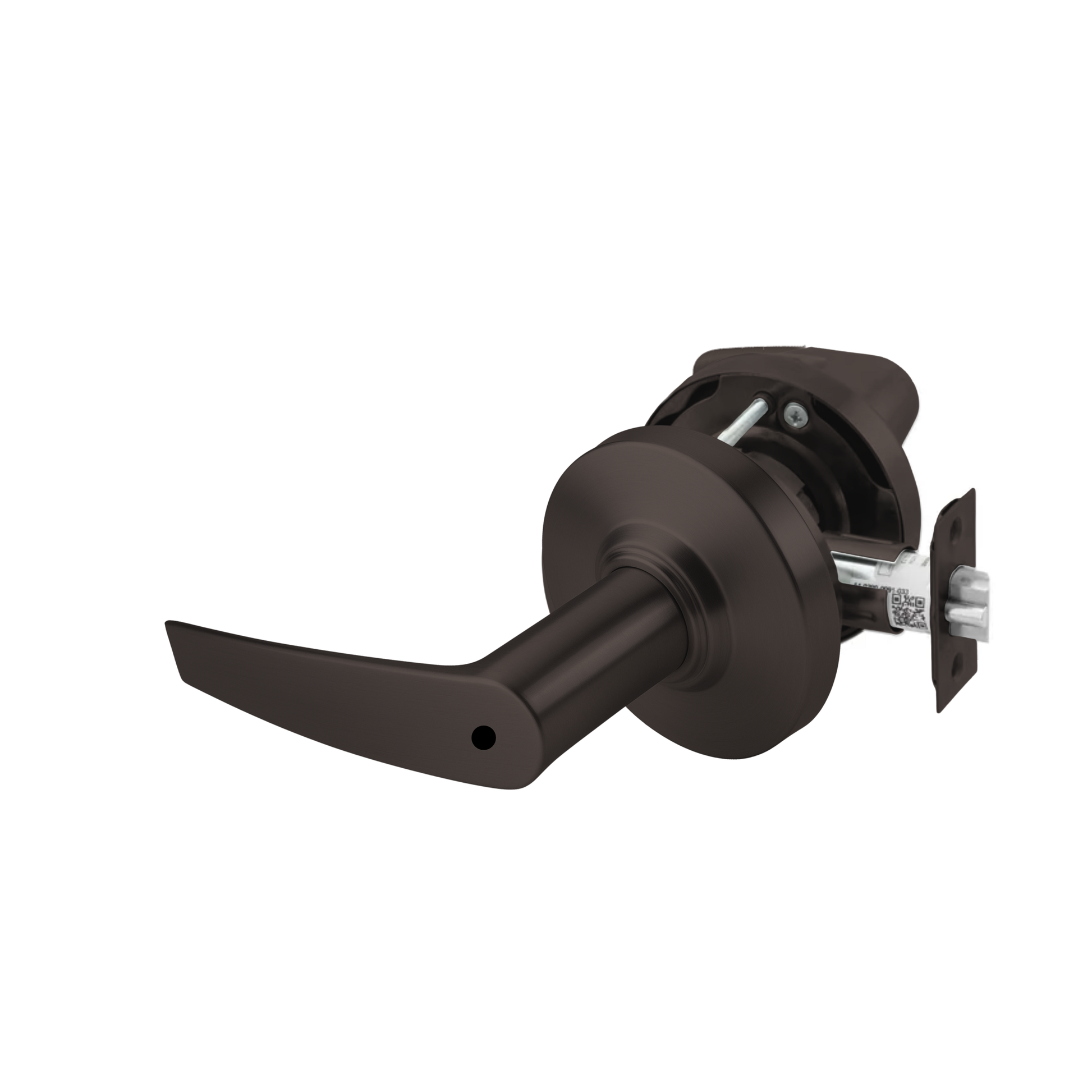

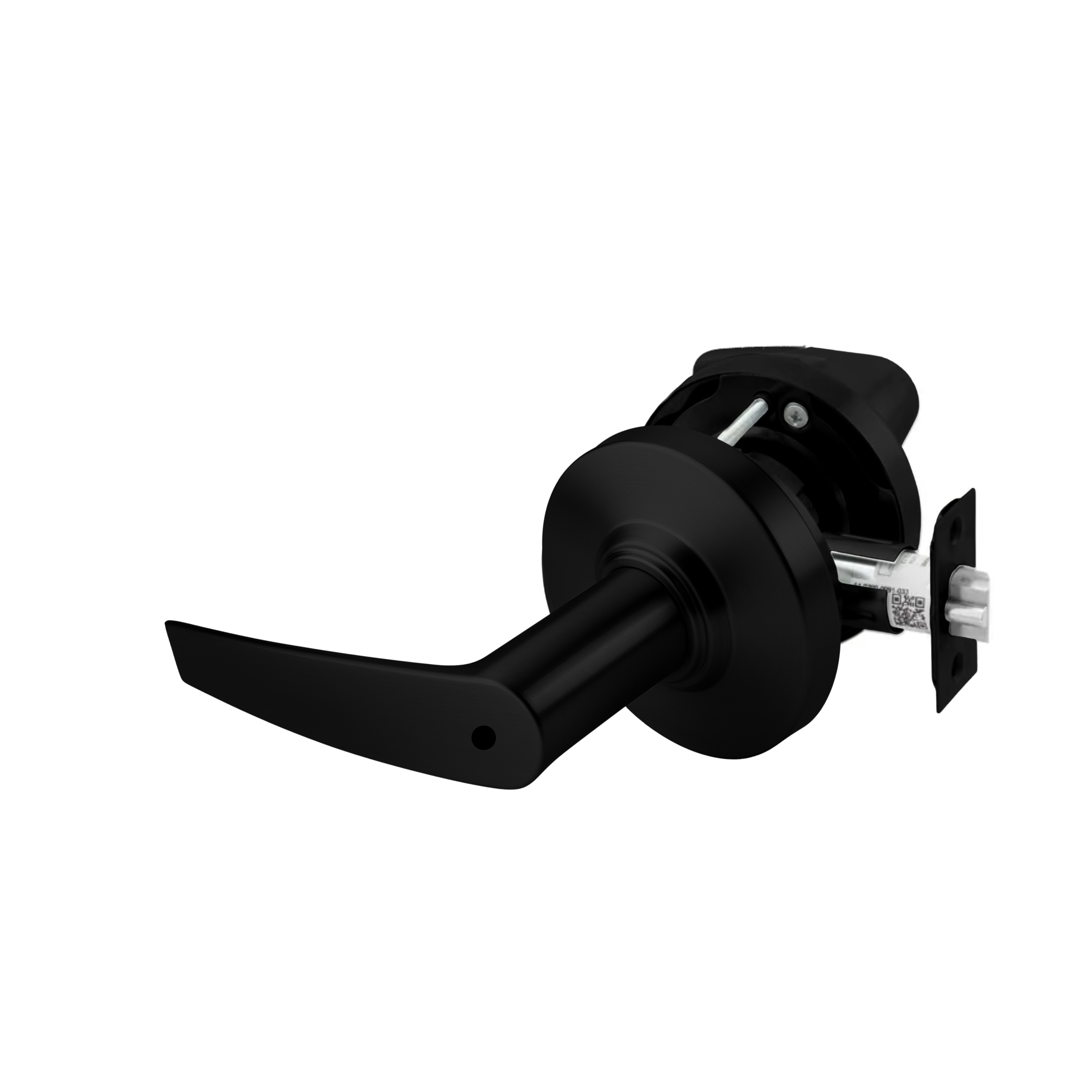

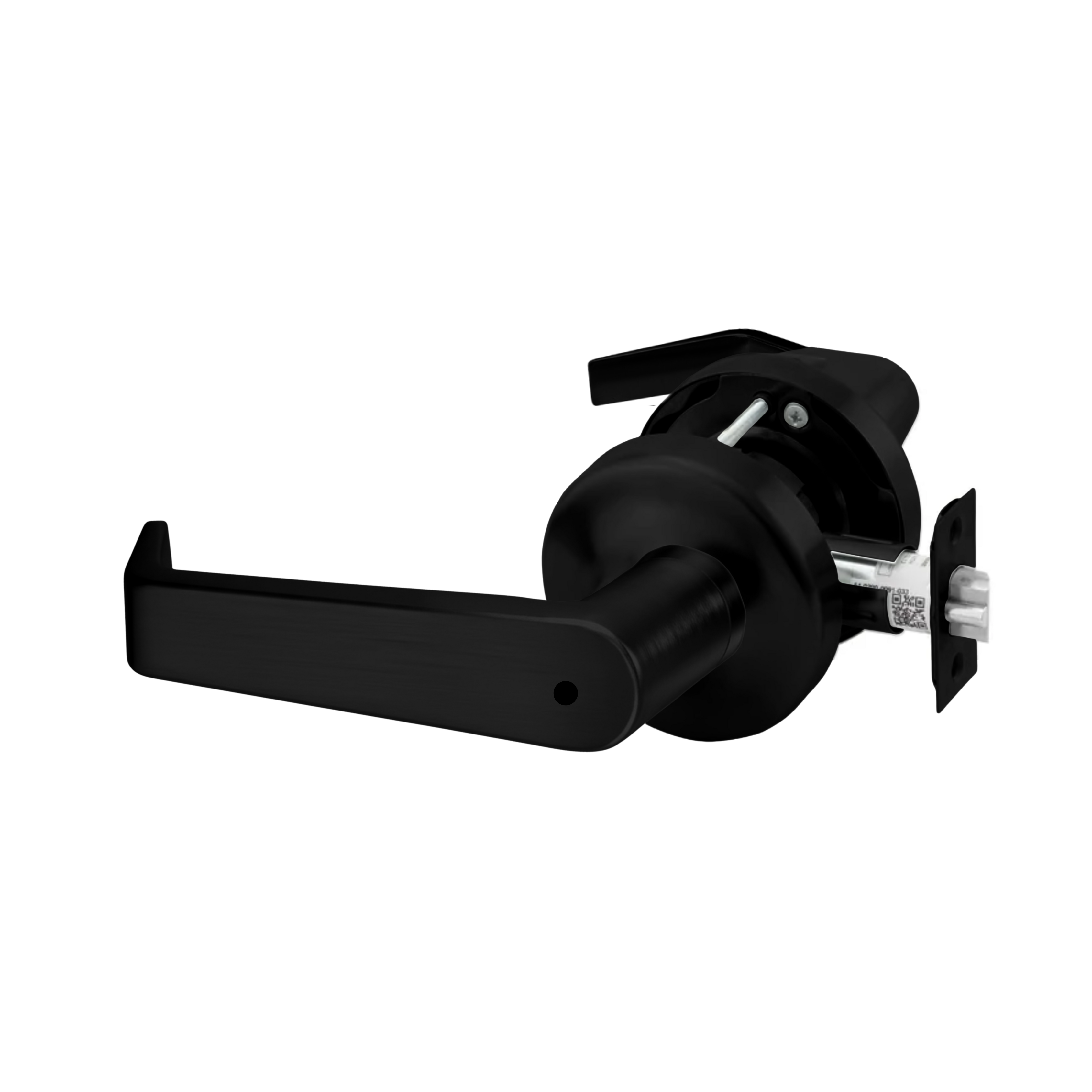

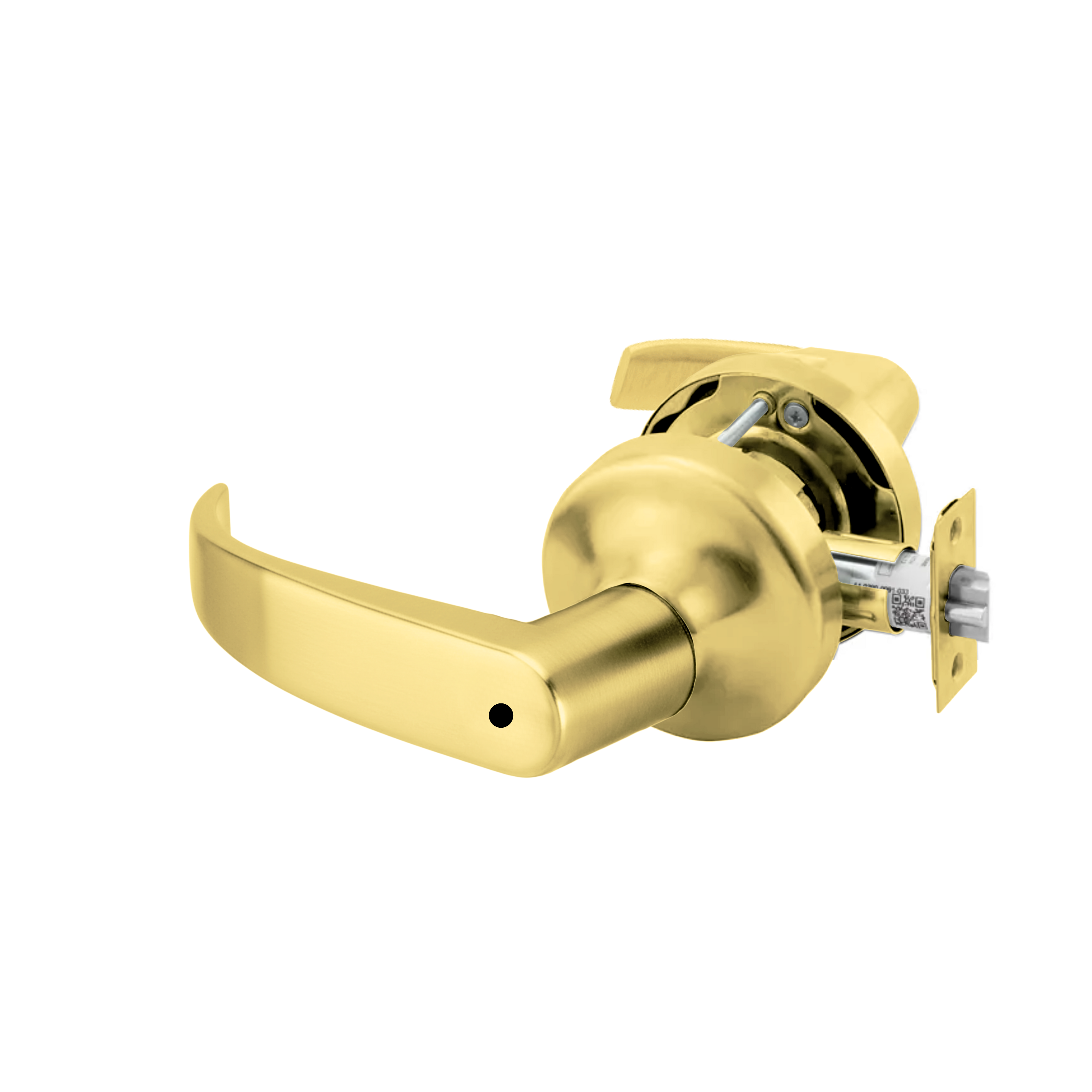

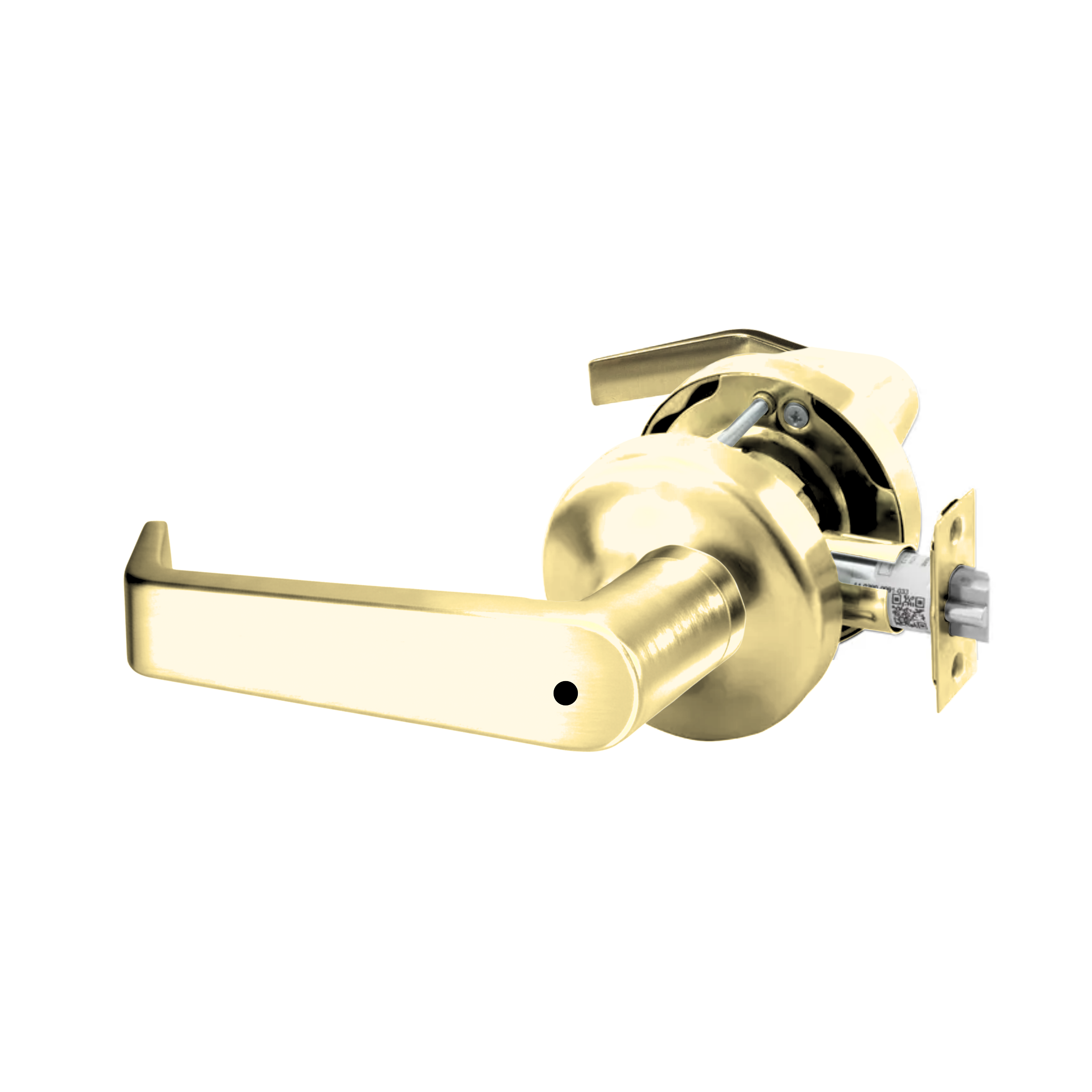

Designed for industrial and commercial use, the ASSA ABLOY ACCENTRA™ 5400LN Series heavy-duty cylindrical lockset offers no compromise when it comes to rugged reliability and performance.
Product Overview
Features
- Heavy duty construction provides strength and durability
- Free wheeling lever for vandal resistance
- Adjustable rose support plates
- Available in 24 functions, including electrified
- ADA compliant for ease of accessibility
- UL/cUL fire rated up to 3-hours
Benefits
- Rugged construction offers greater reliability and resists wear-and-tear
- Easy installation with adjustable rose allows for easy adjustment on different door thicknesses
- Certified Grade 1, ANSI/BHMA A156.2
- Windstorm Certified (refer to local codes)
- 7-year mechanical warranty
Specifications
- ANSI/BHMA Code: A156.2
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 19"
- Minimum Backset: 2 3/4"
- Maximum Door Thickness: 2 1/4"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type: ANSI Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 7-year limited warranty
Certifications
- ANSI/SDI 250.13 Certified
- ASTM E330 Certified
- Florida Building Code Approved FL# 3063
- Americans with Disabilities Act (ADA) Compliant
- UL-cUL Fire-Rated Up to 3 Hours
- ASTM E1996 Certified
- ASTM E1886 Certified
- NFPA 80 Compliant
- TAS 201 Certified
- TAS 202 Certified
- TAS 203 Certified
- ICC A117.1 Compliant
- ANSI/BHMA A156.2, Series 4000, Grade 1
- ANSI/BHMA A156.41
Functions
- For lavatory or other privacy doors.
- Either lever operates latchbolt (except when outside lever is locked by inside pushbutton).*
- Button automatically releases by turning inside lever or closing door.
- Door can be unlocked, when necessary, by operating outside turnbutton.
- No emergency key required.
- Optional flush turnbutton available for outside. Specify option "FTB".
*Lever handles are Free Wheeling in locked position.
