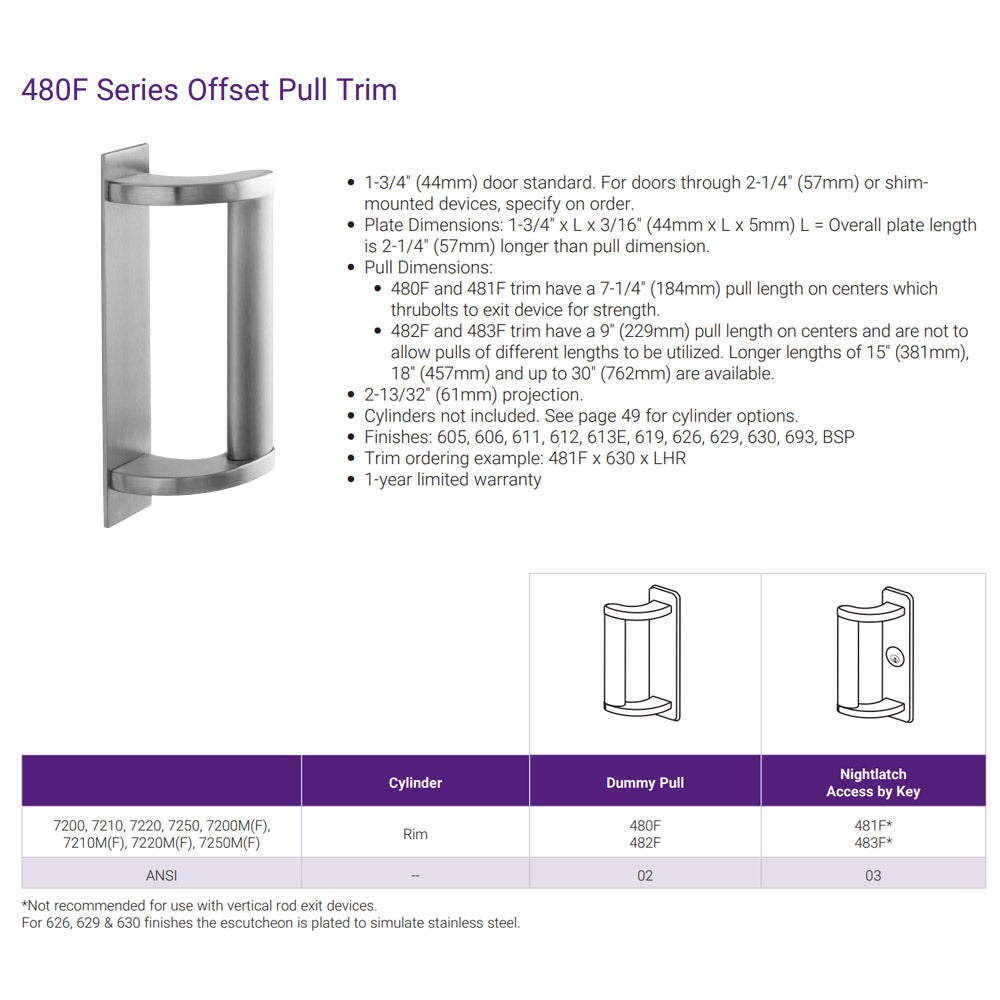

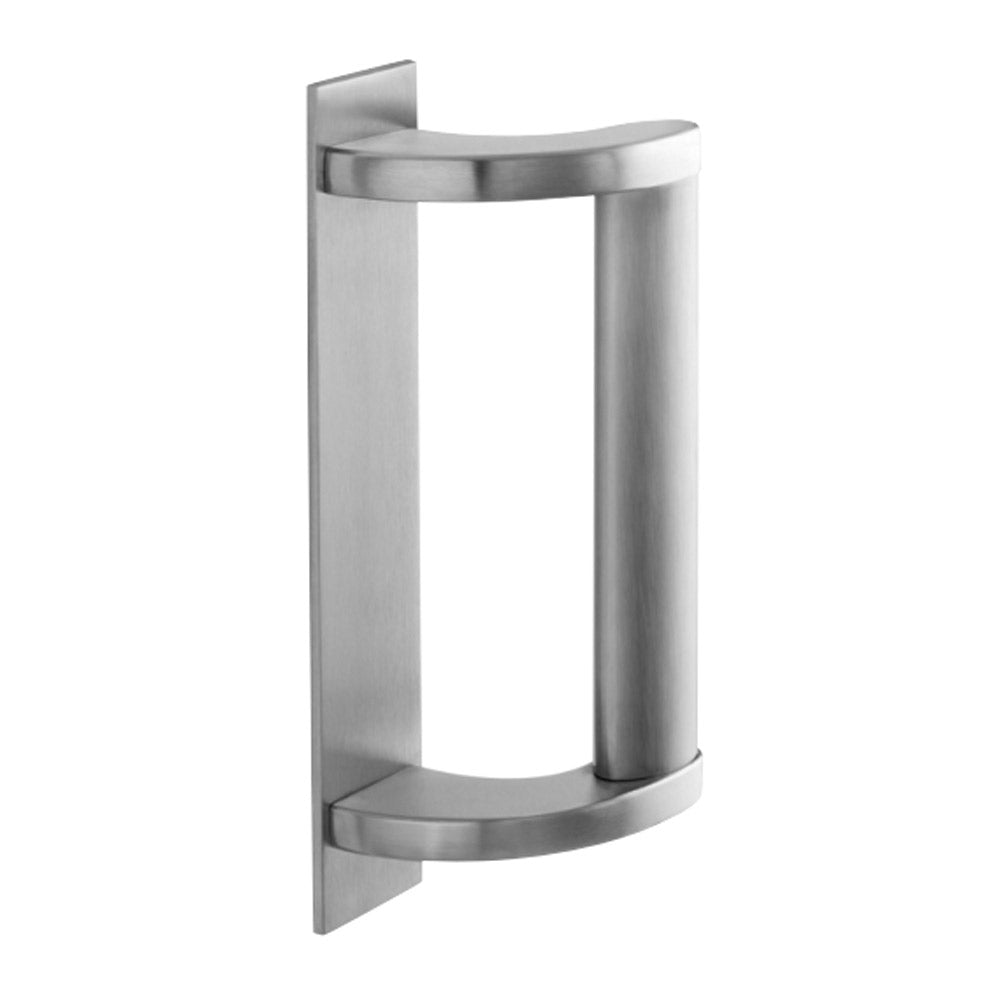

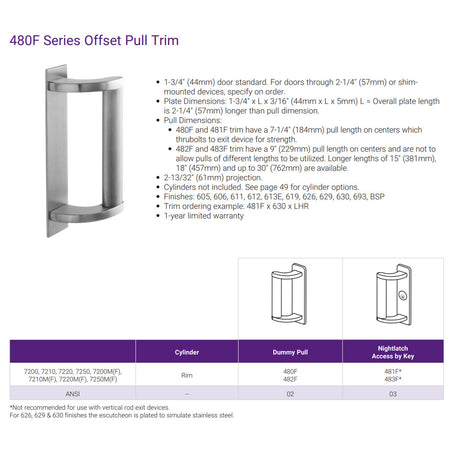

480F Series Offset Pull Trim – Durable, Versatile, and Architecturally Refined
Enhance your door hardware with the 480F Series Offset Pull Trim—engineered for strength, compatibility, and modern appeal. Ideal for commercial and institutional applications, this trim is designed to seamlessly pair with a variety of exit devices, offering flexible sizing and finish options to meet the demands of your project.
Key Features:
-
Strong & Secure Fit: Thrubolted to the exit device for enhanced durability and security.
-
Standard Door Compatibility: Fits 1-3/4" (44mm) thick doors; specify for doors up to 2-1/4" (57mm) or shim-mounted devices.
-
Customizable Sizing:
-
480F/481F models feature a 7-1/4" (184mm) pull length on centers.
-
482F/483F models offer a 9" (229mm) pull length on centers.
-
Optional extended pull lengths of 15", 18", and up to 30" (381mm–762mm) available.
-
-
Trim Plate Dimensions: 1-3/4" x L x 3/16" (44mm x L x 5mm), where L = pull length + 2-1/4" (57mm).
-
Projection: 2-13/32" (61mm) from door surface.
-

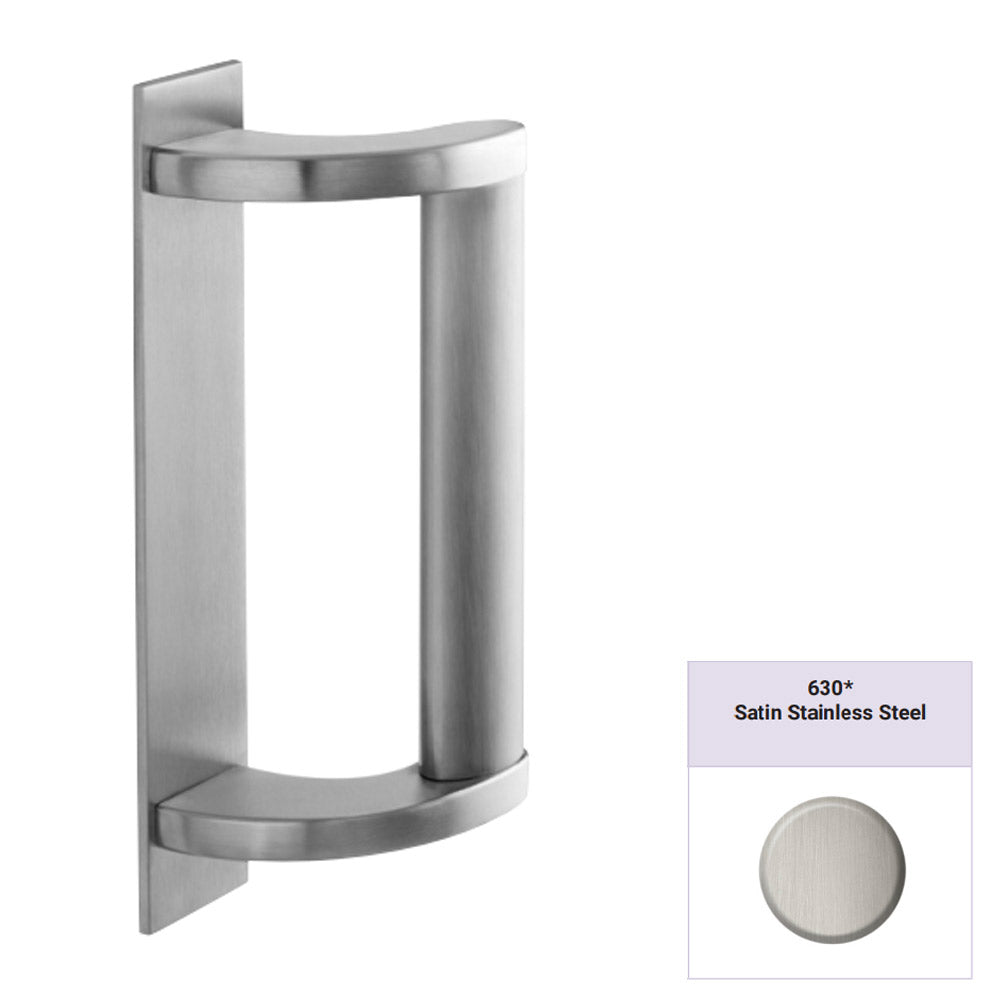

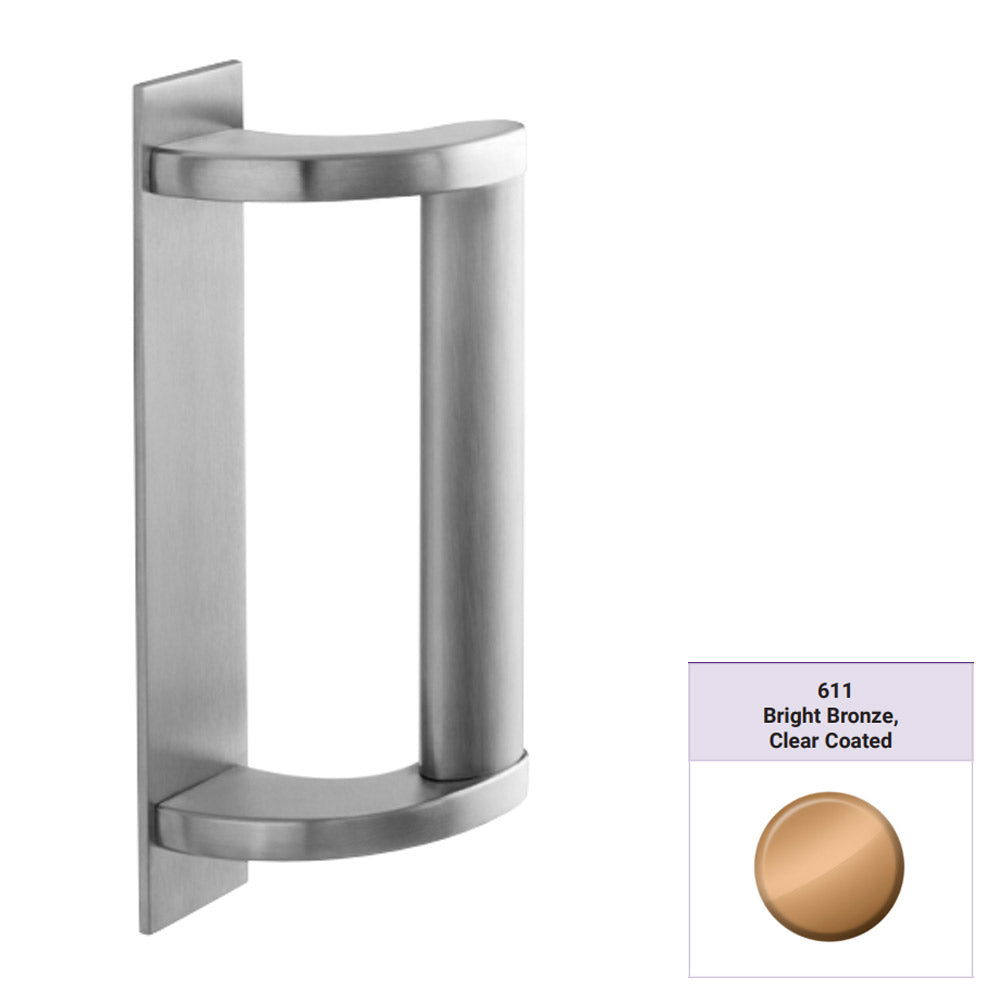

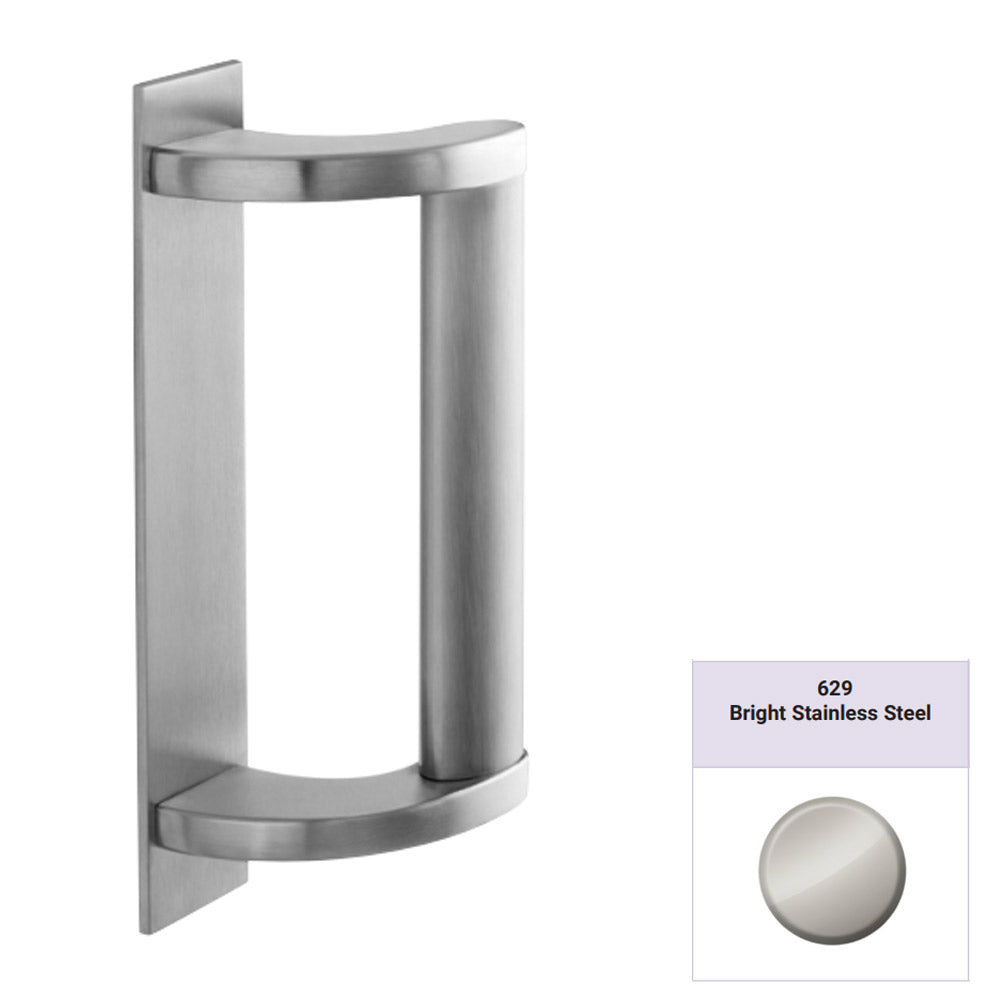

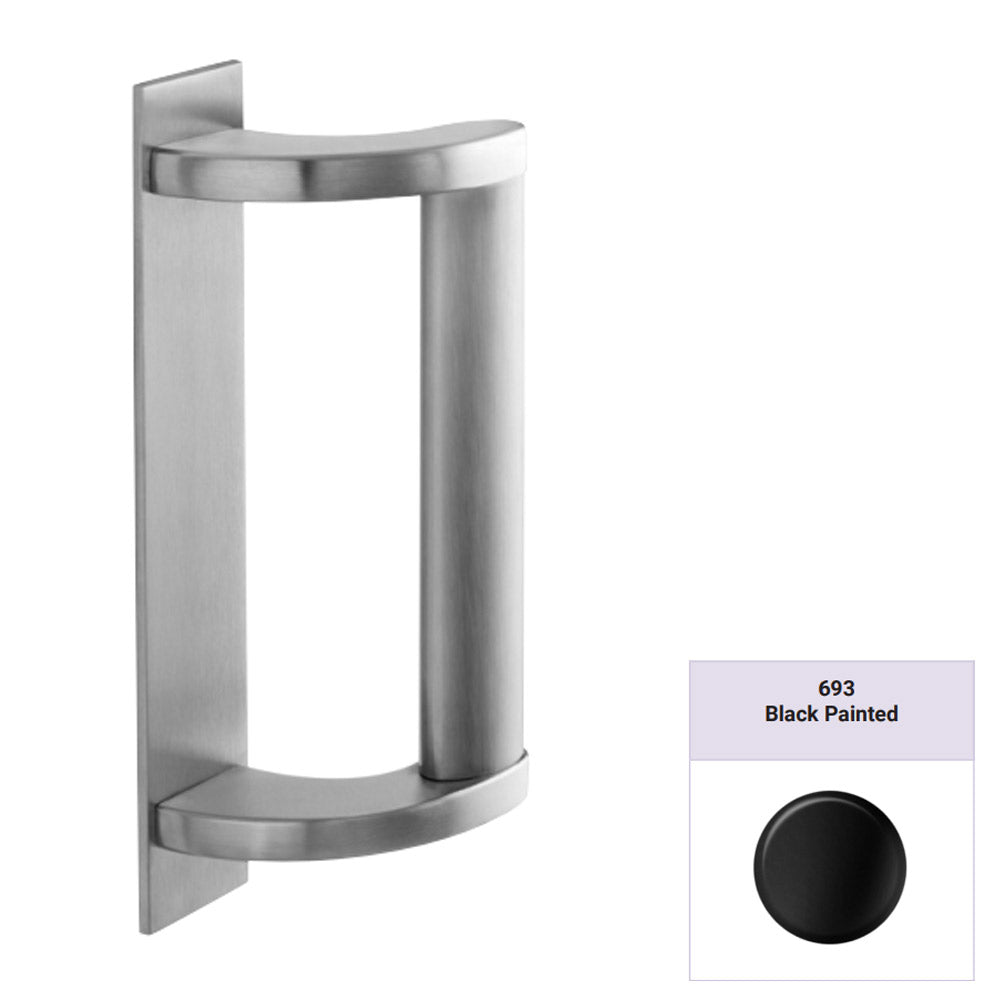

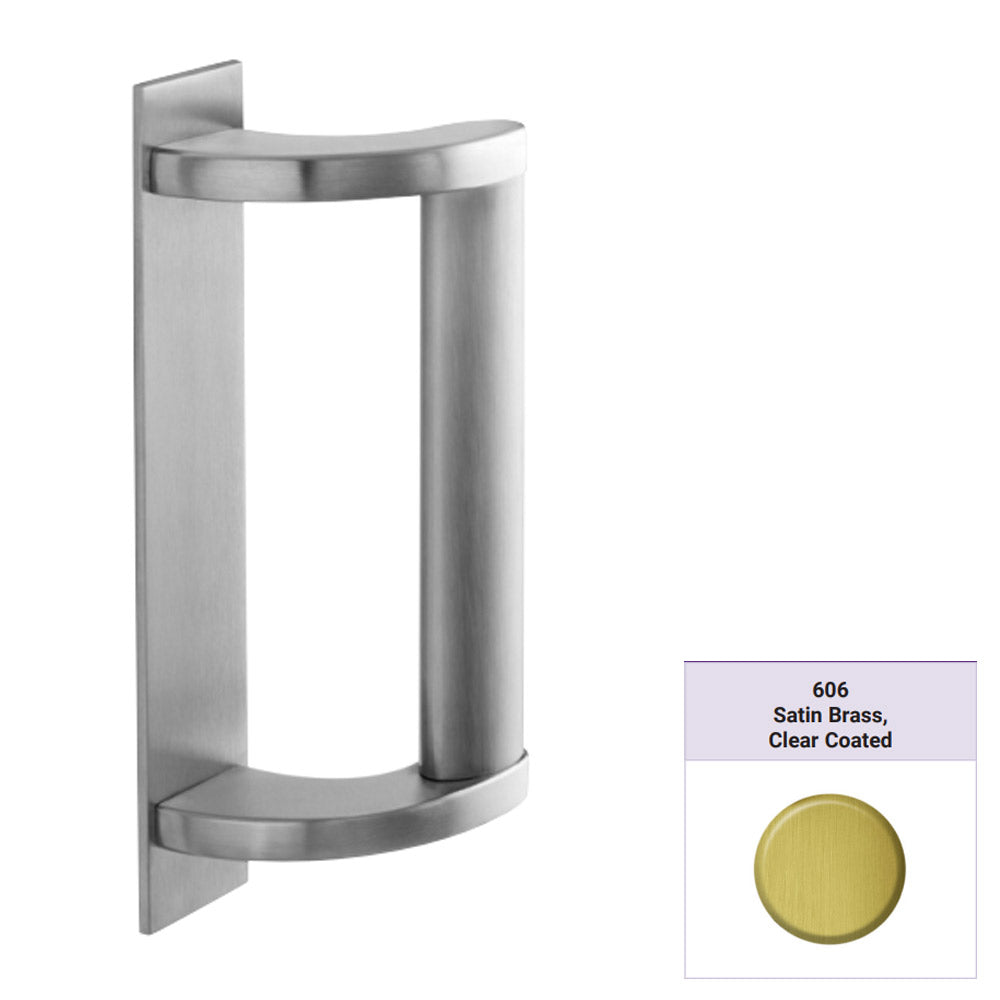

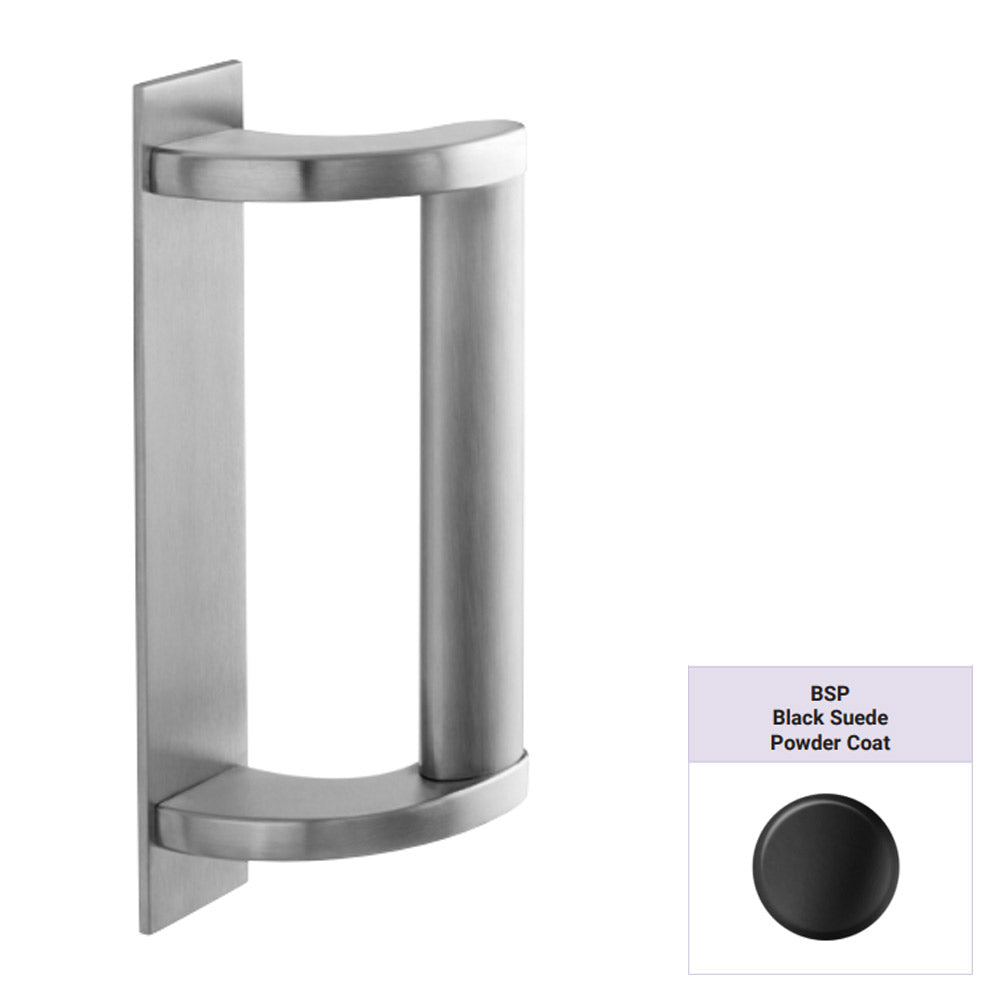

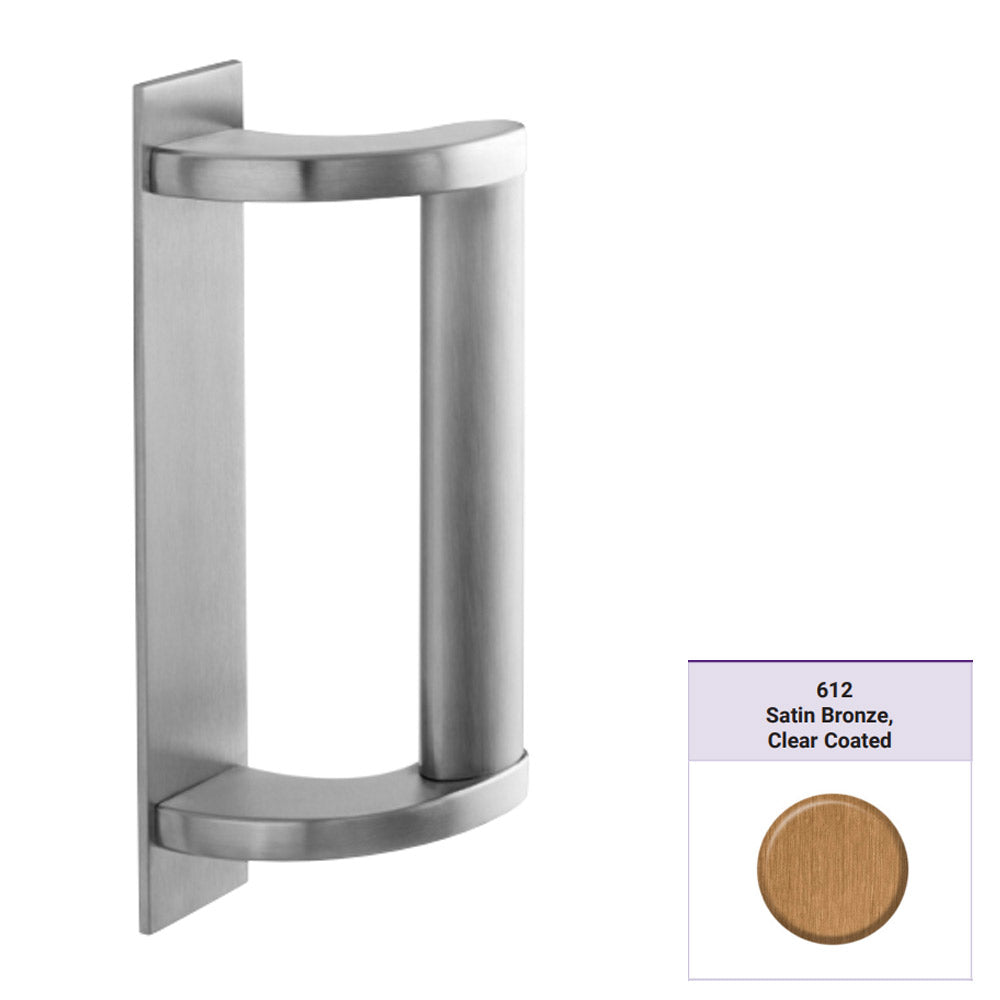

Finish Options: Wide variety including 605, 606, 611, 612, 613E, 619, 626, 629, 630, 693, BSP for design flexibility.
-
Cylinders Not Included: See accessories for cylinder options.
Application Compatibility:
Pairs with the following exit devices:
7200, 7210, 7220, 7250, 7200M(F), 7210M(F), 7220M(F), and 7250M(F)
Ordering Example: 481F x 630 x LHR
