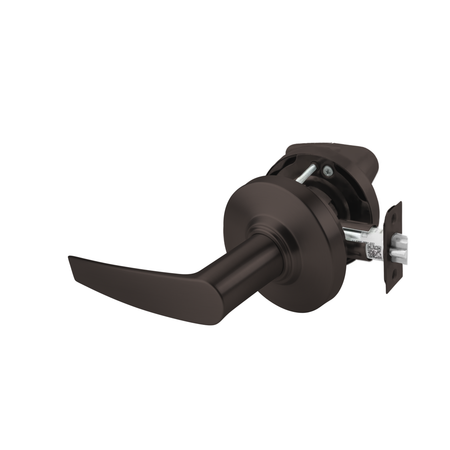

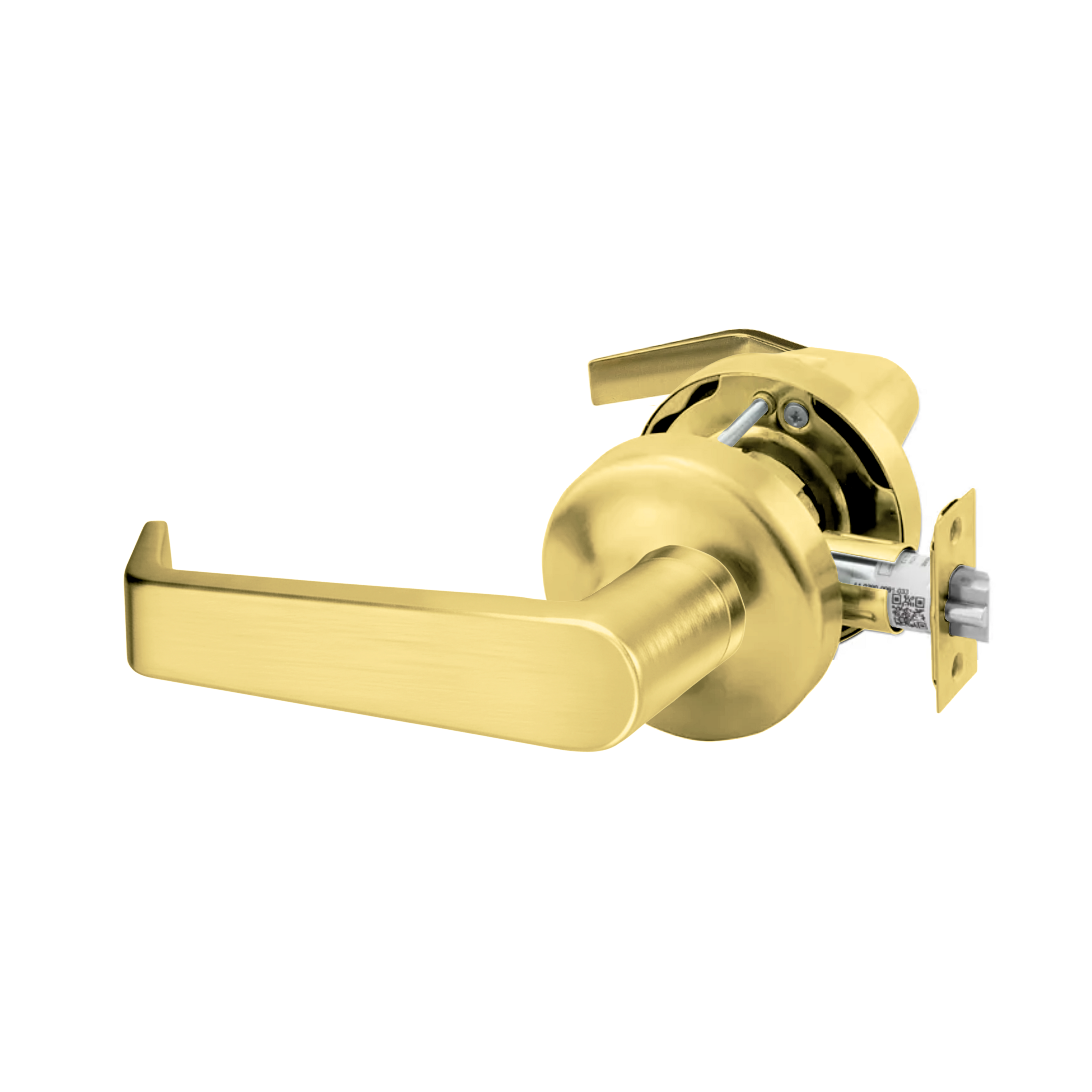

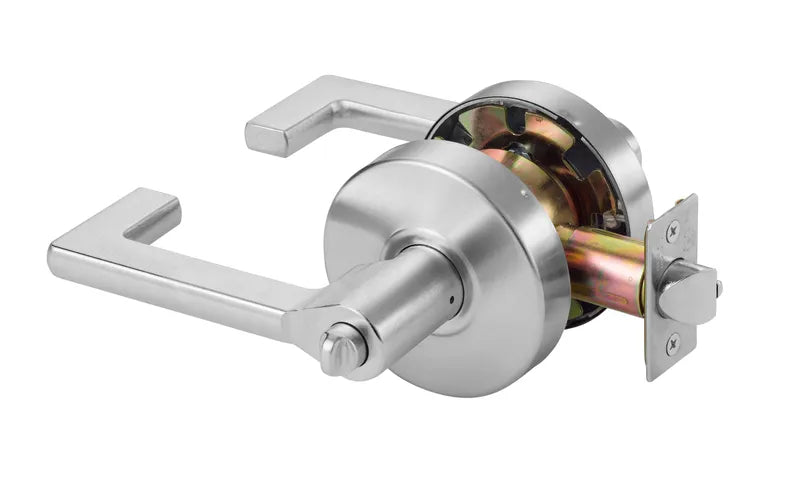

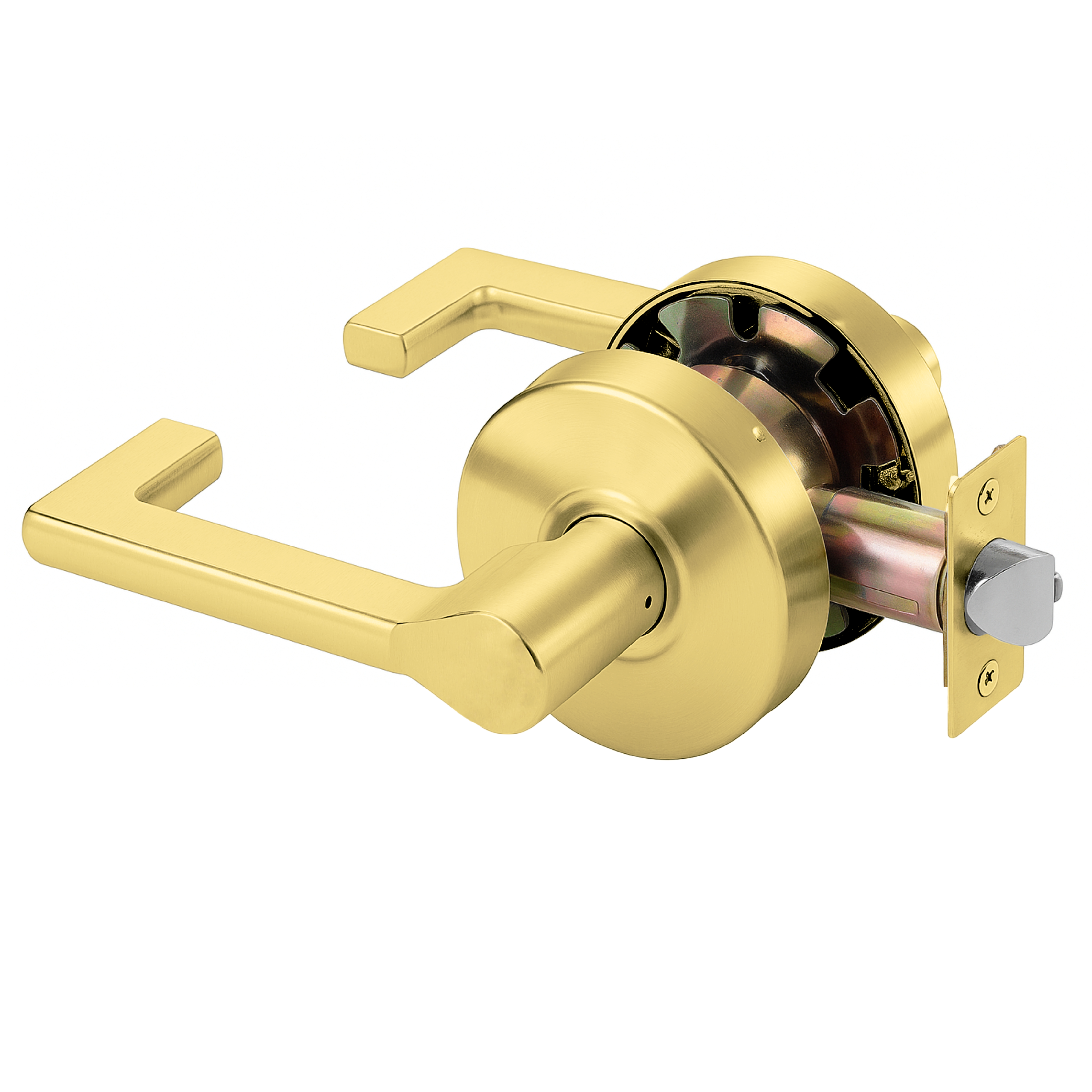

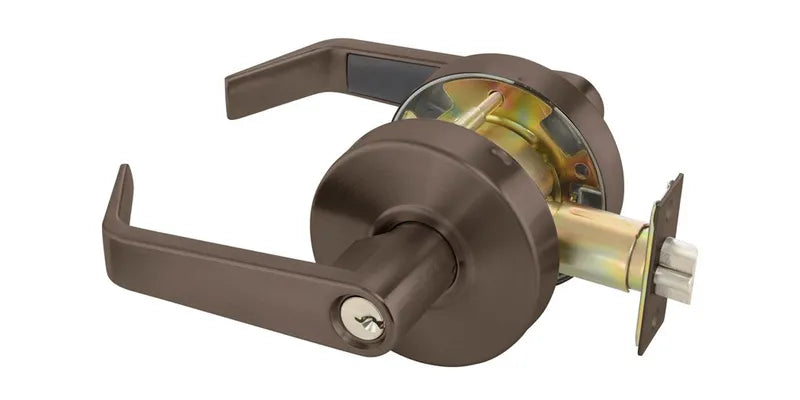

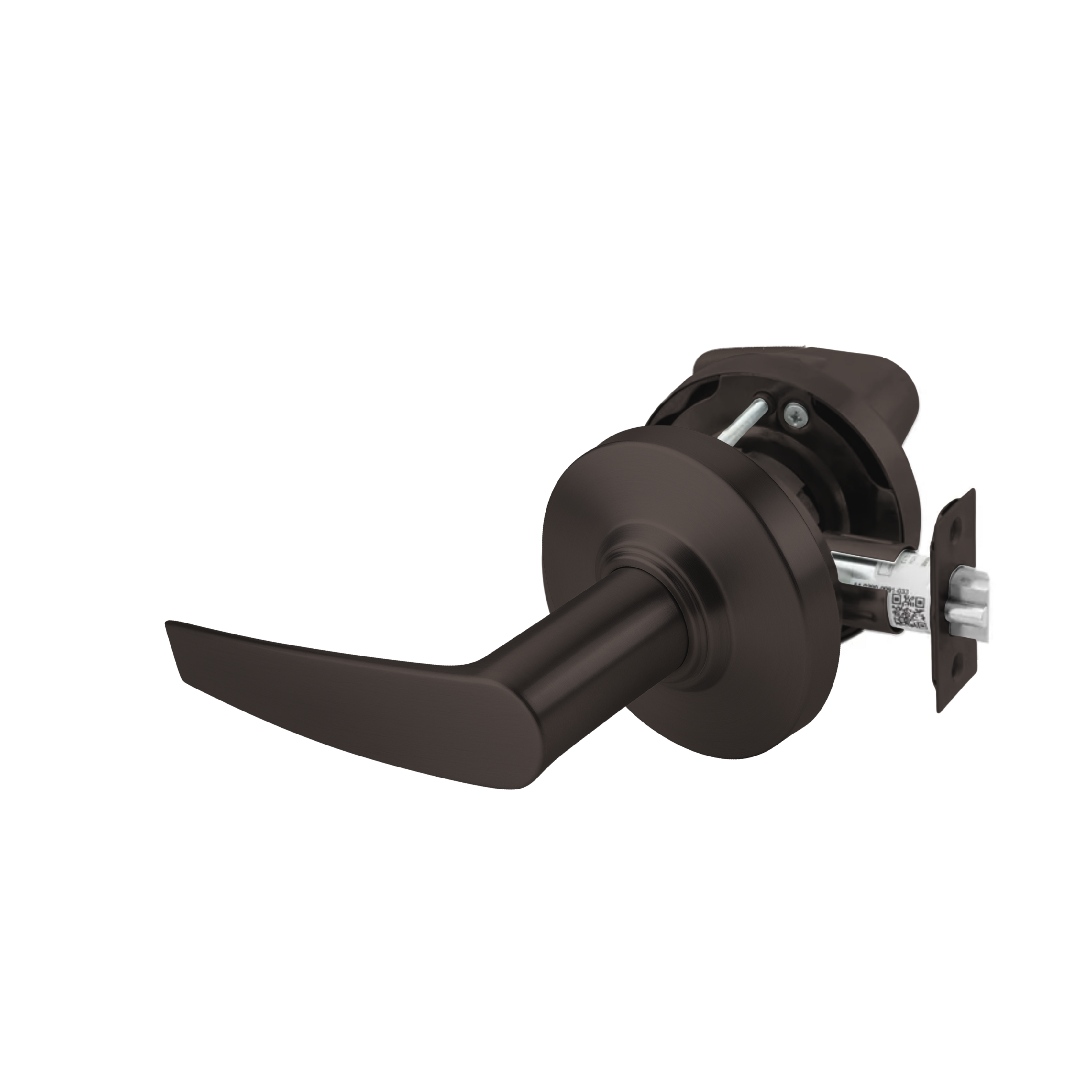

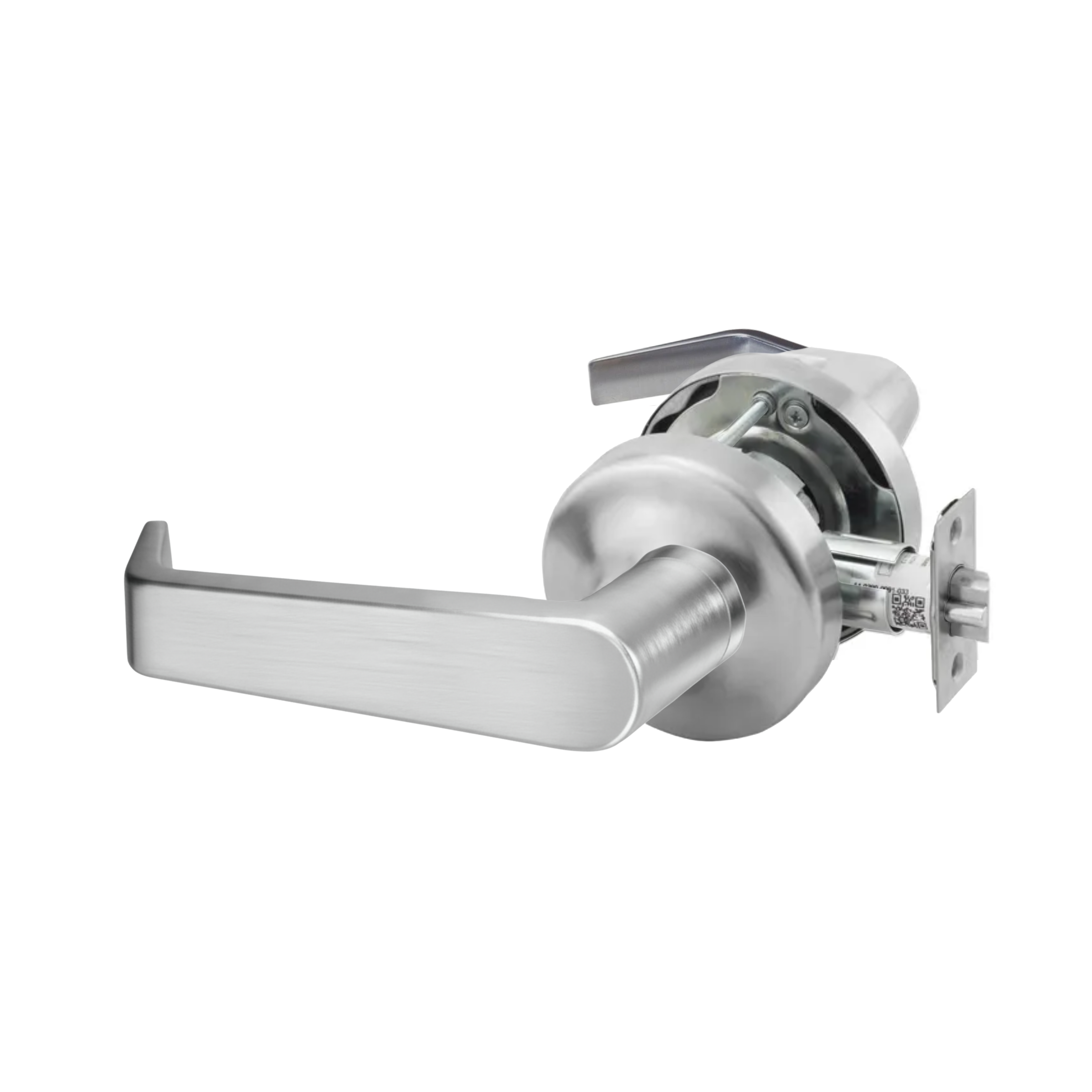

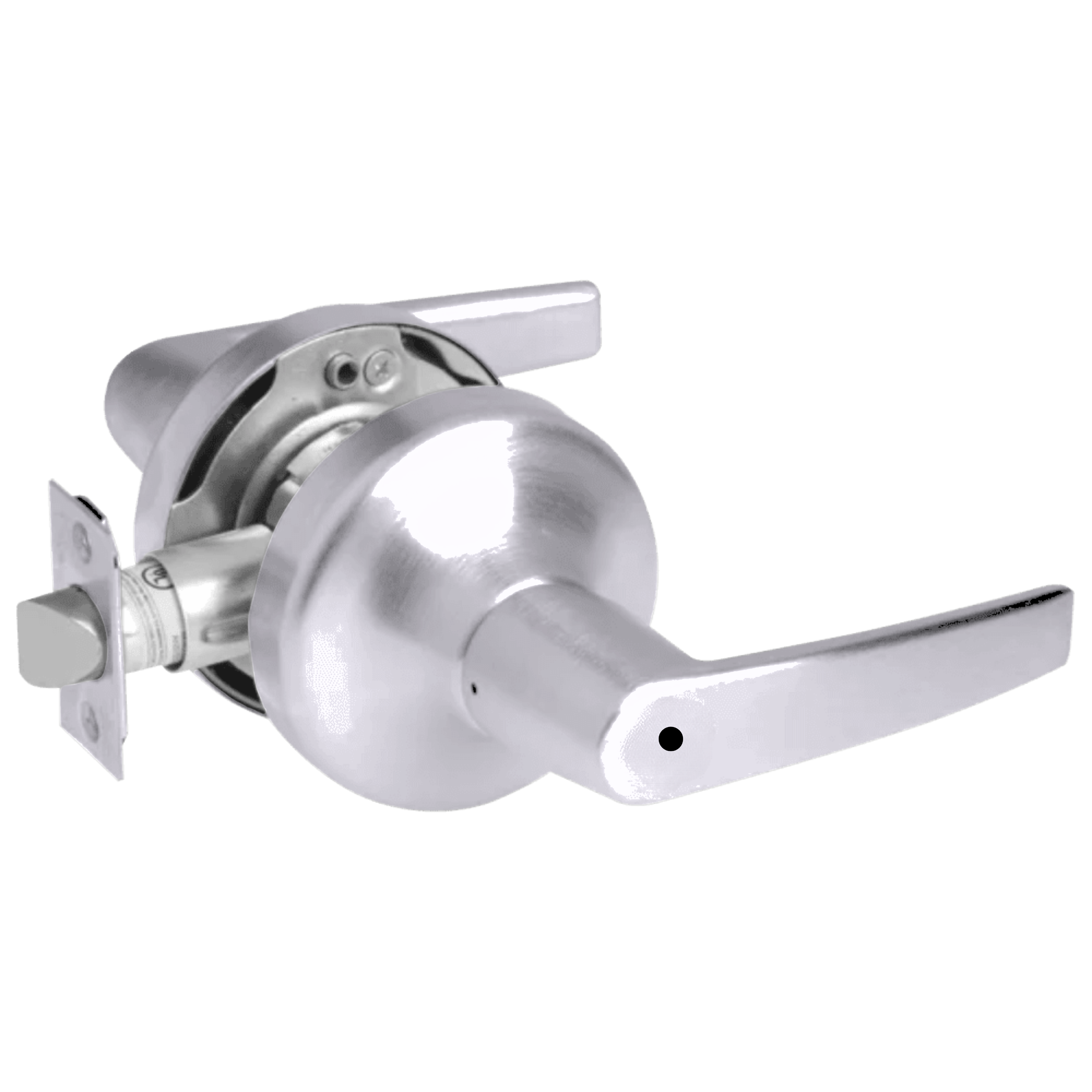

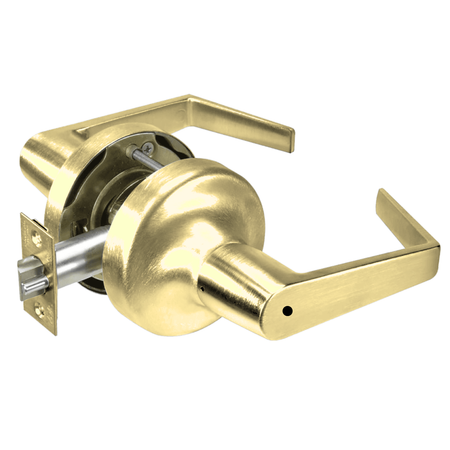

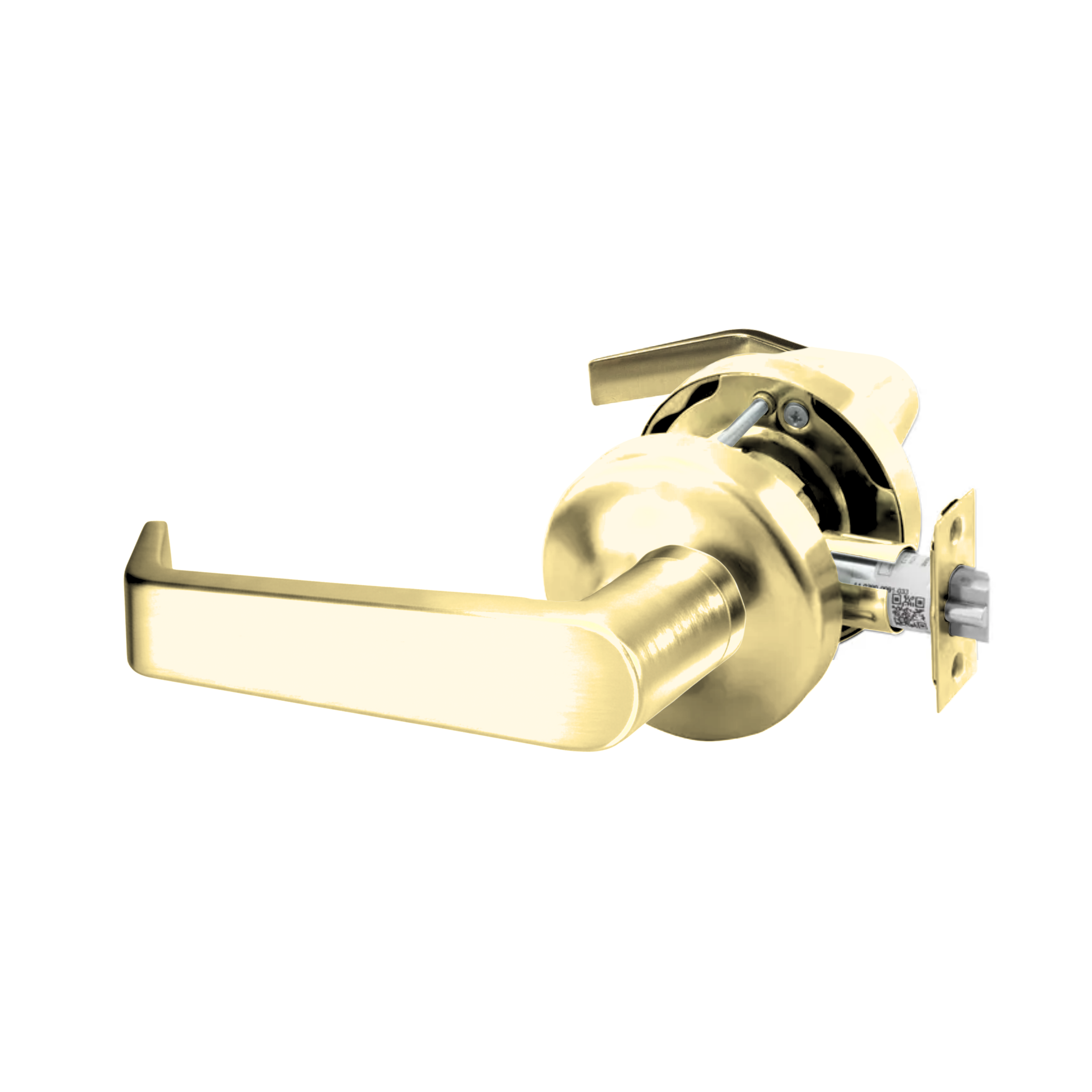

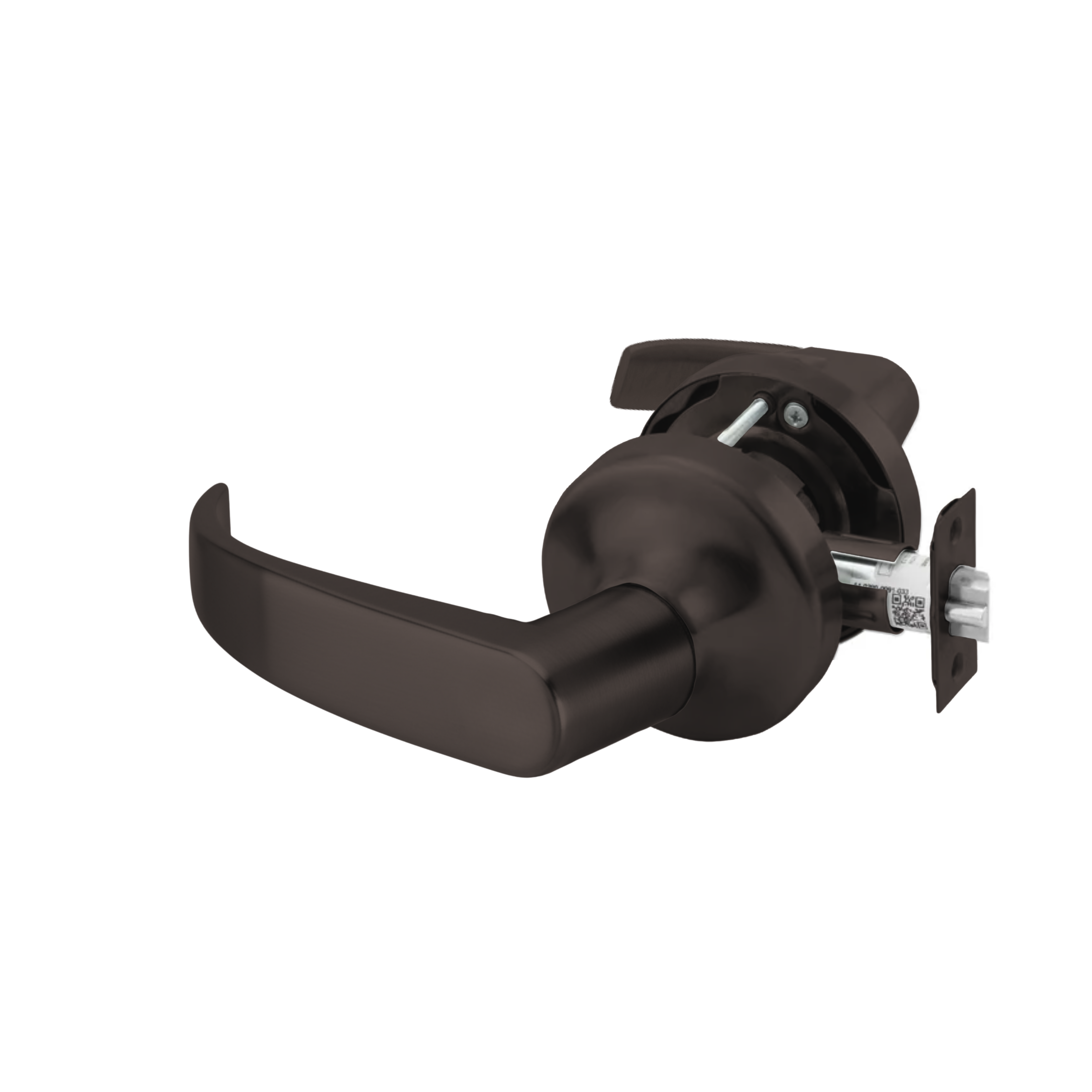

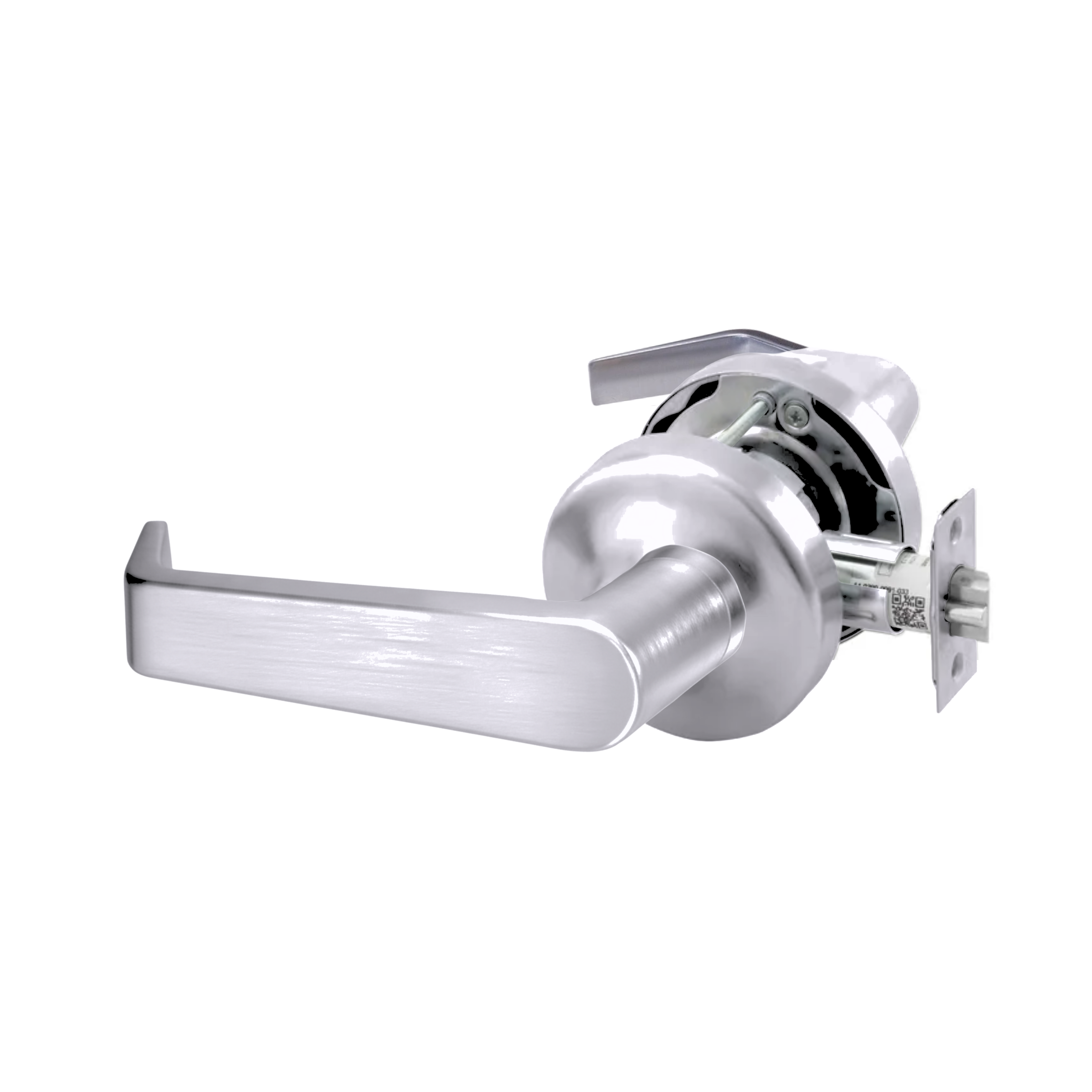

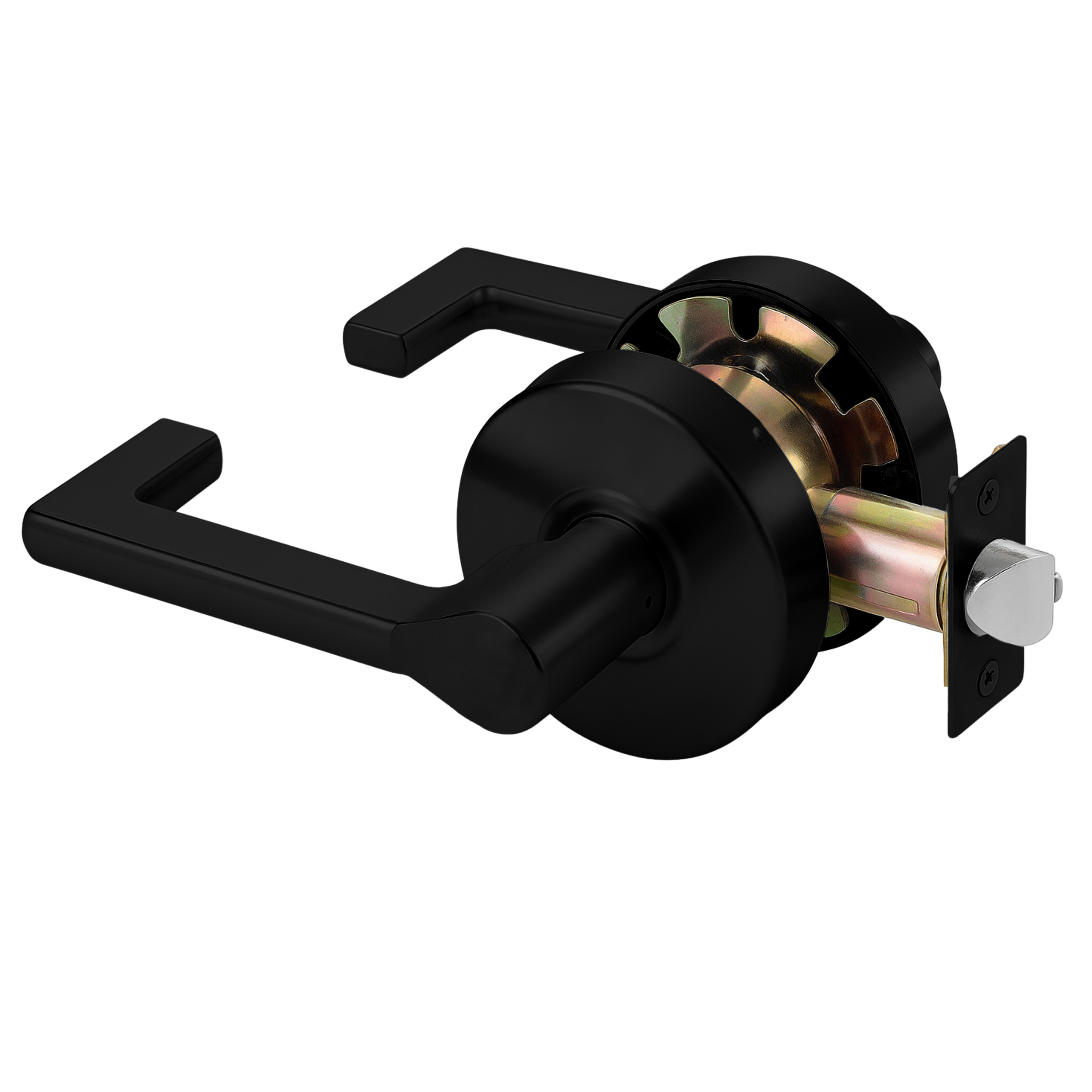

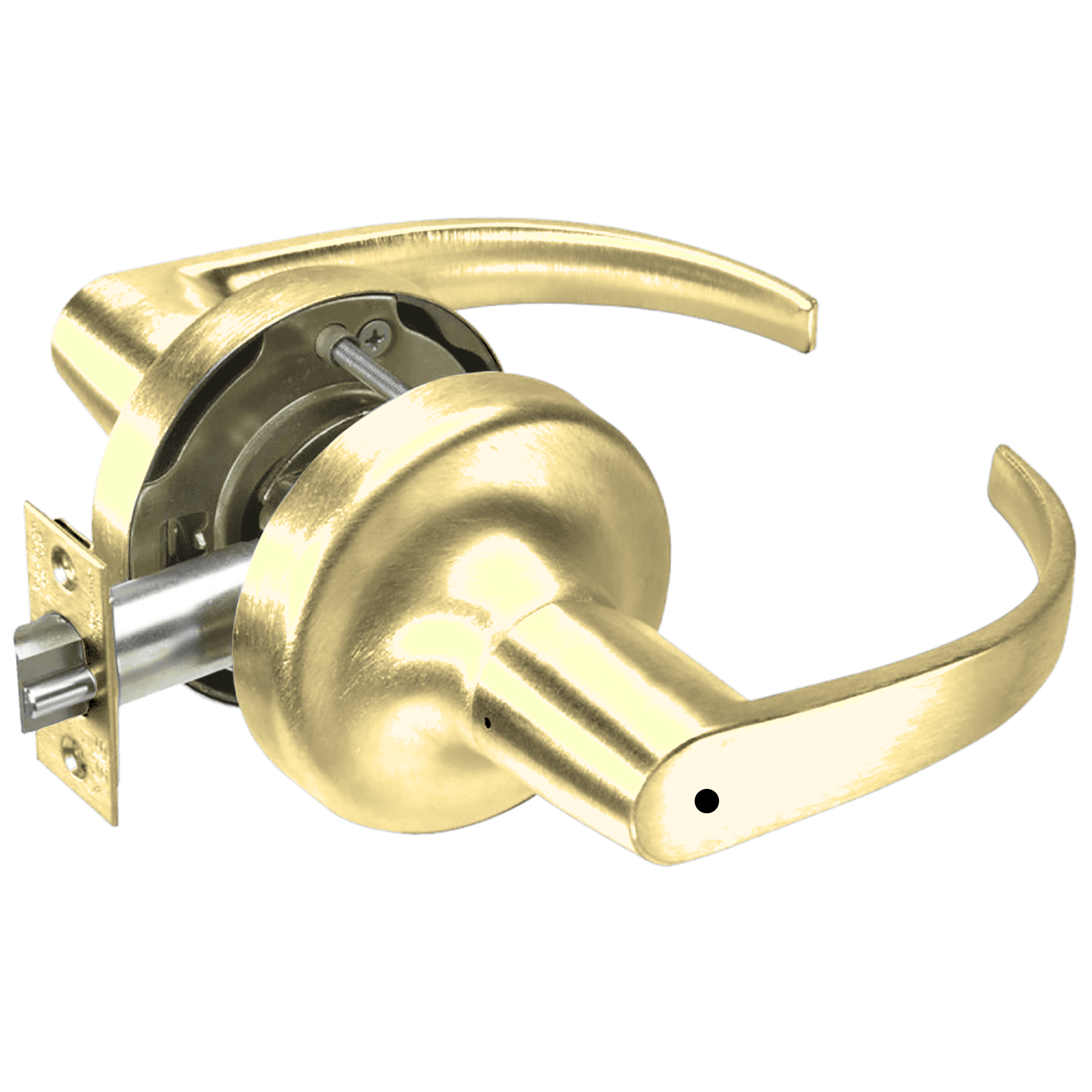

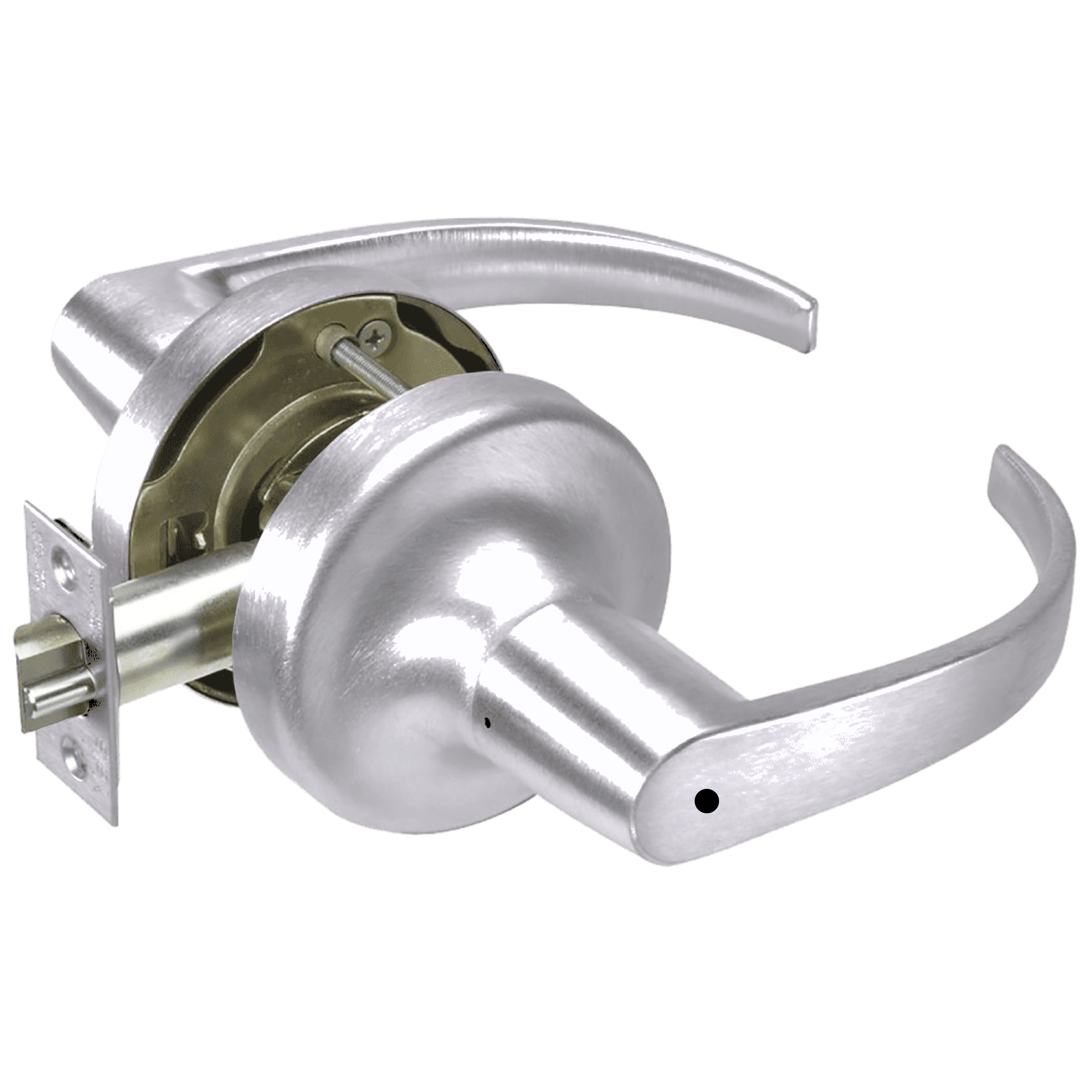

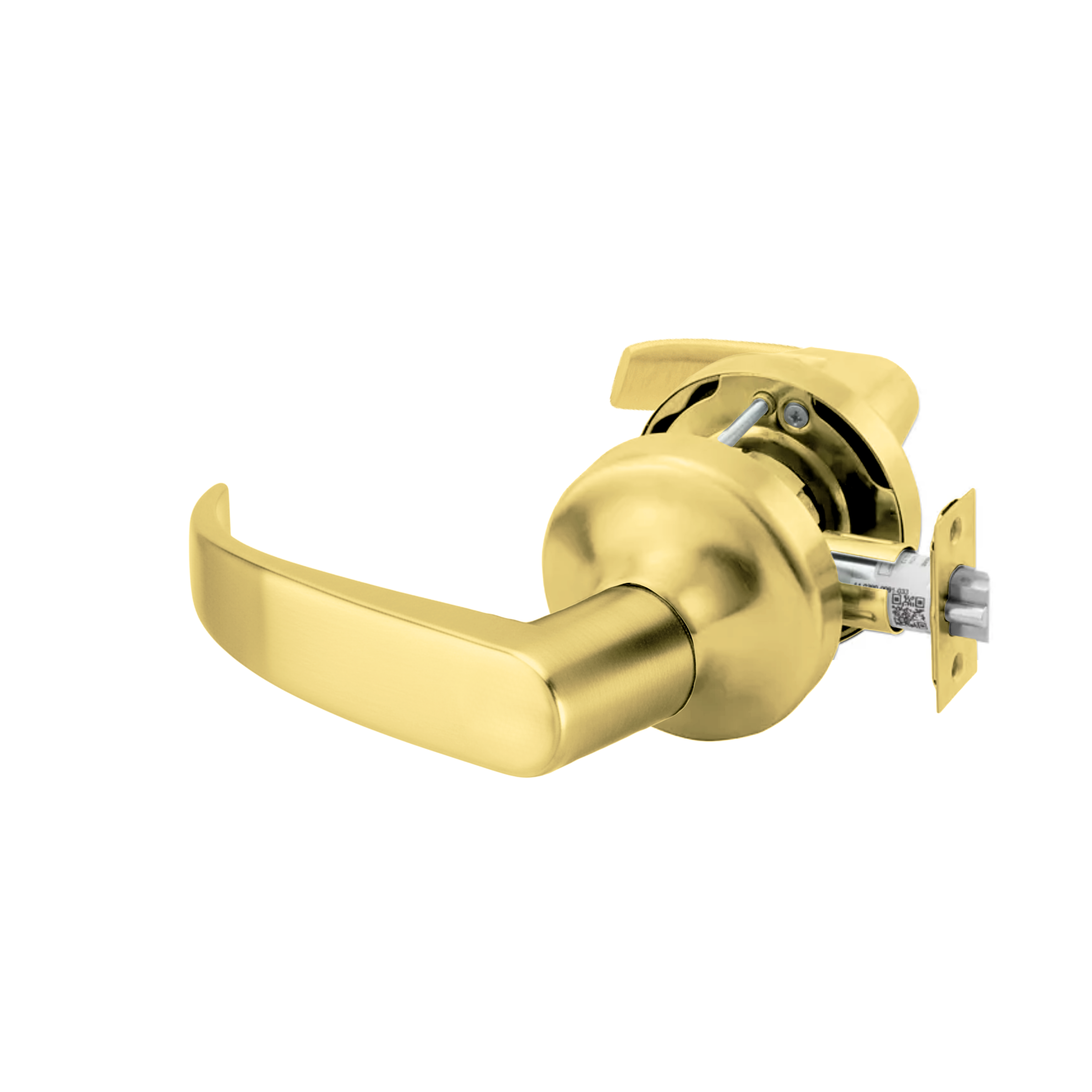

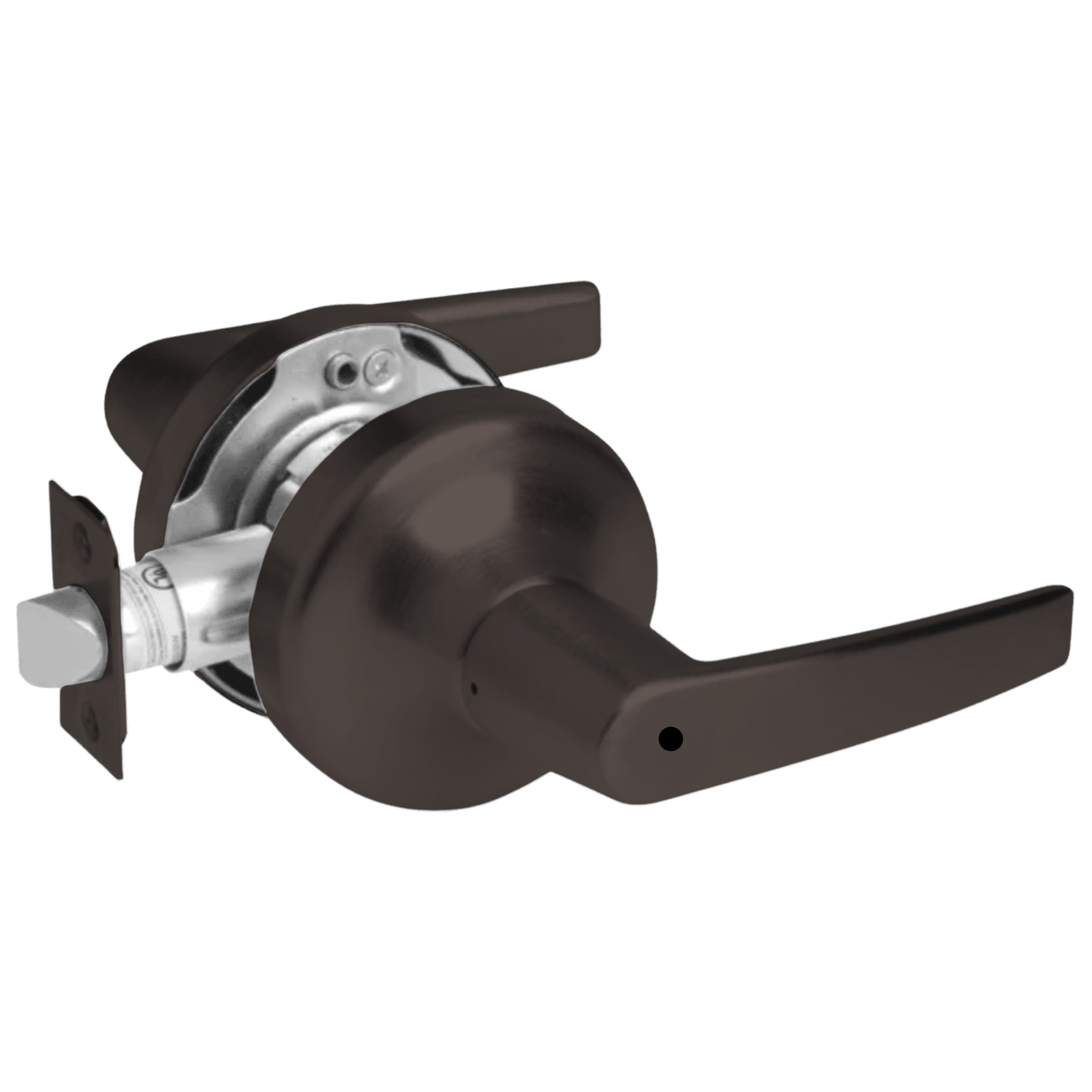

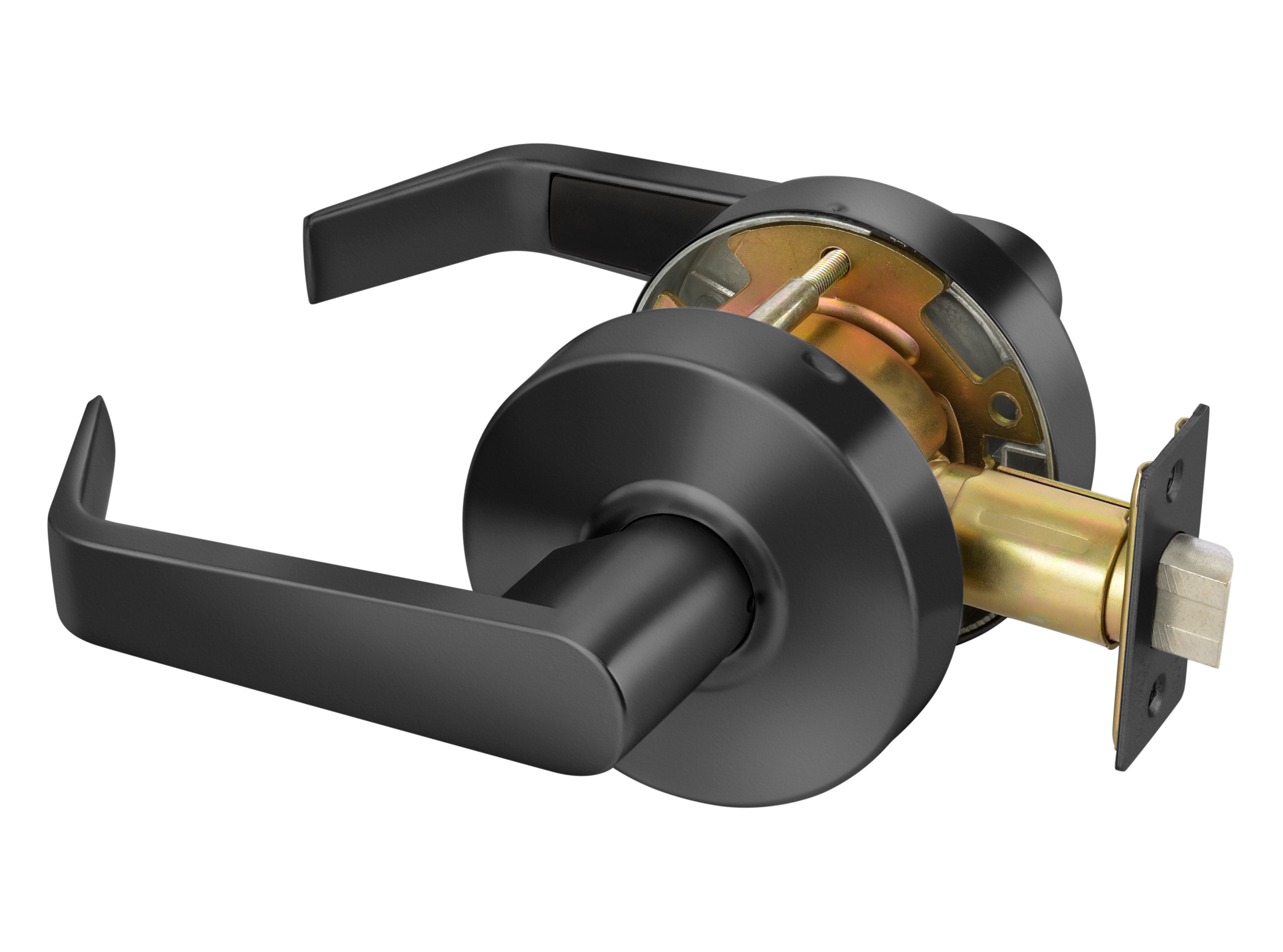

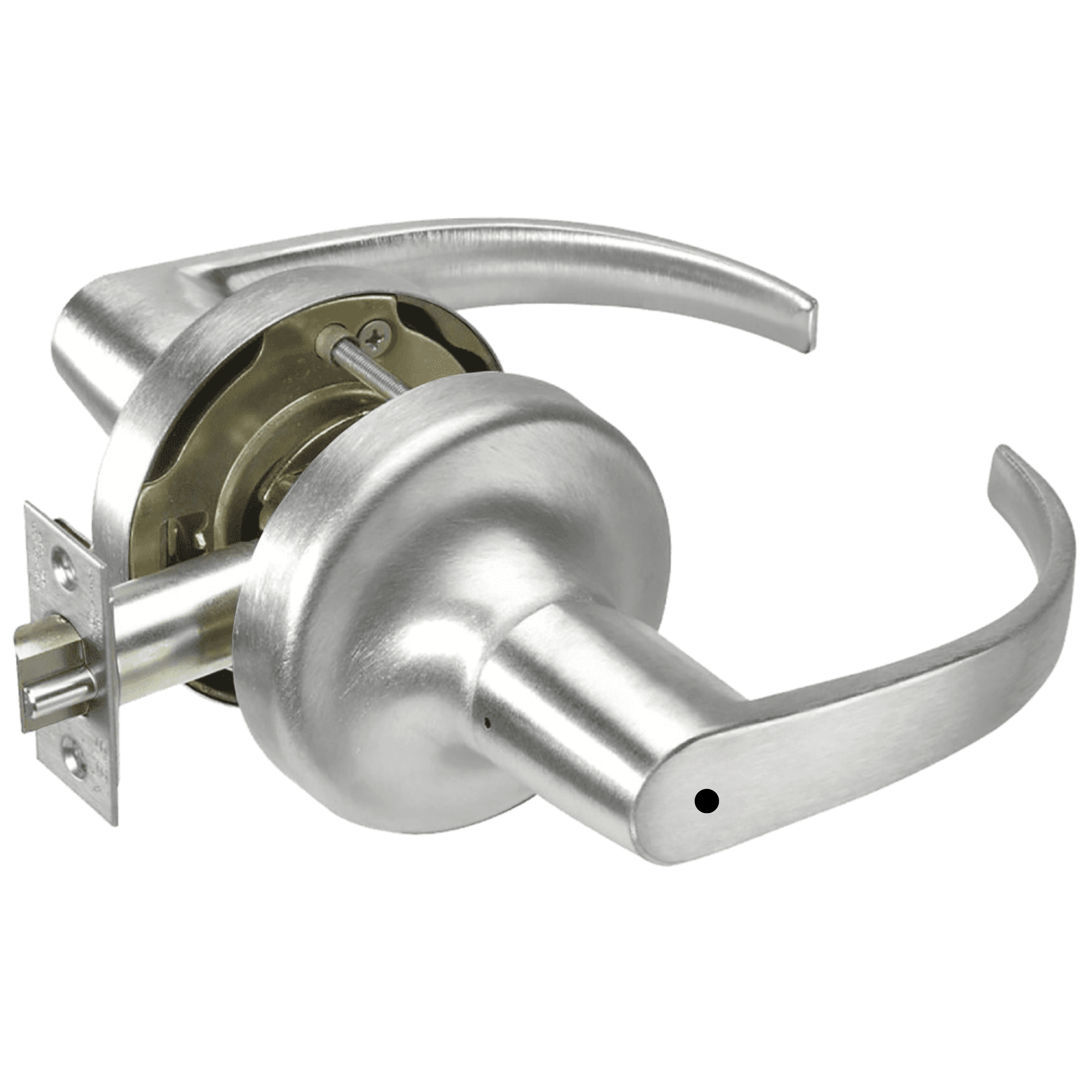

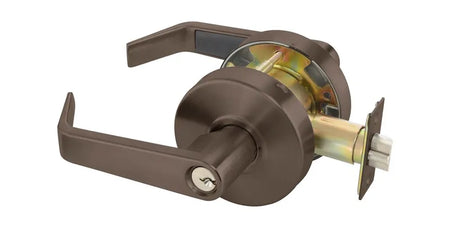

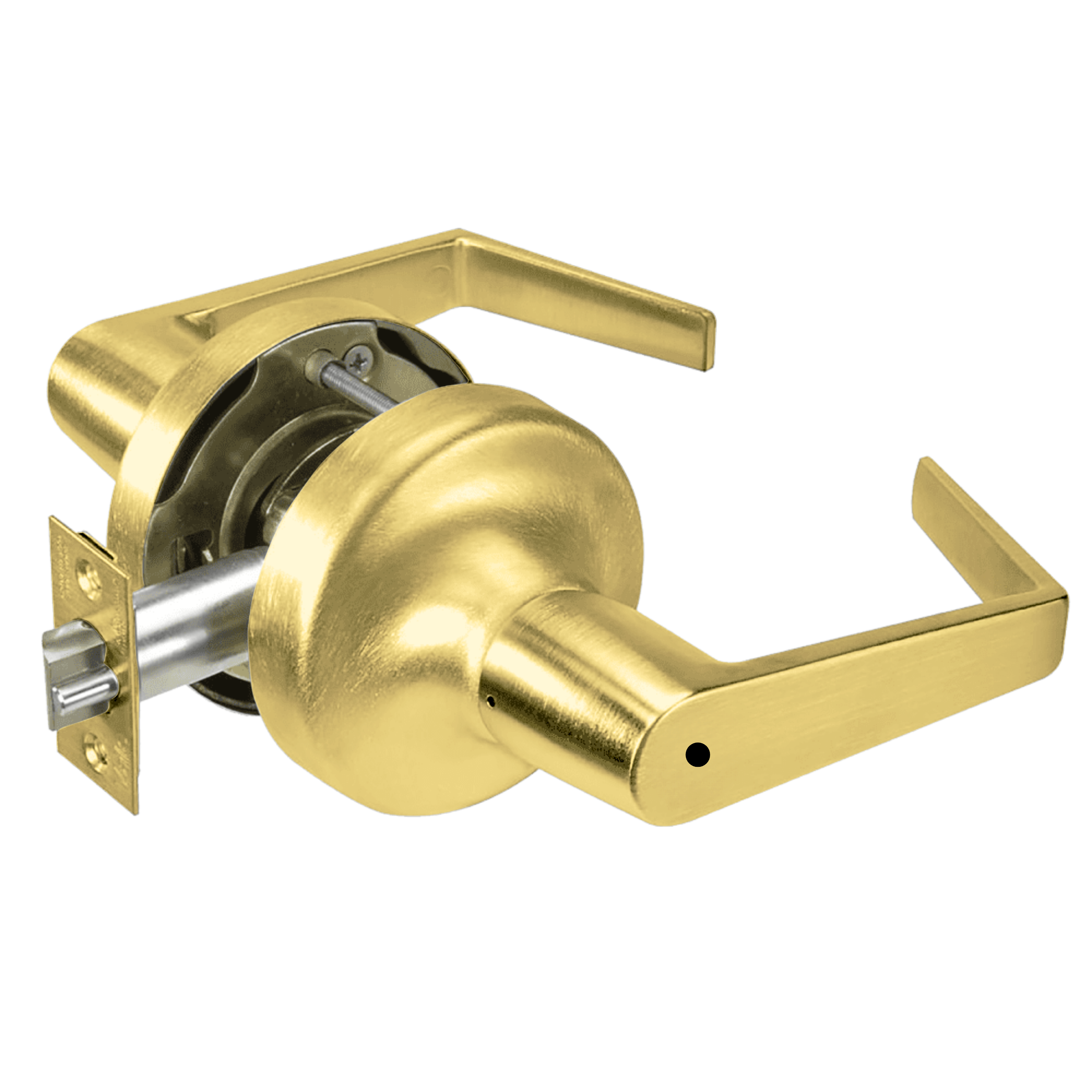

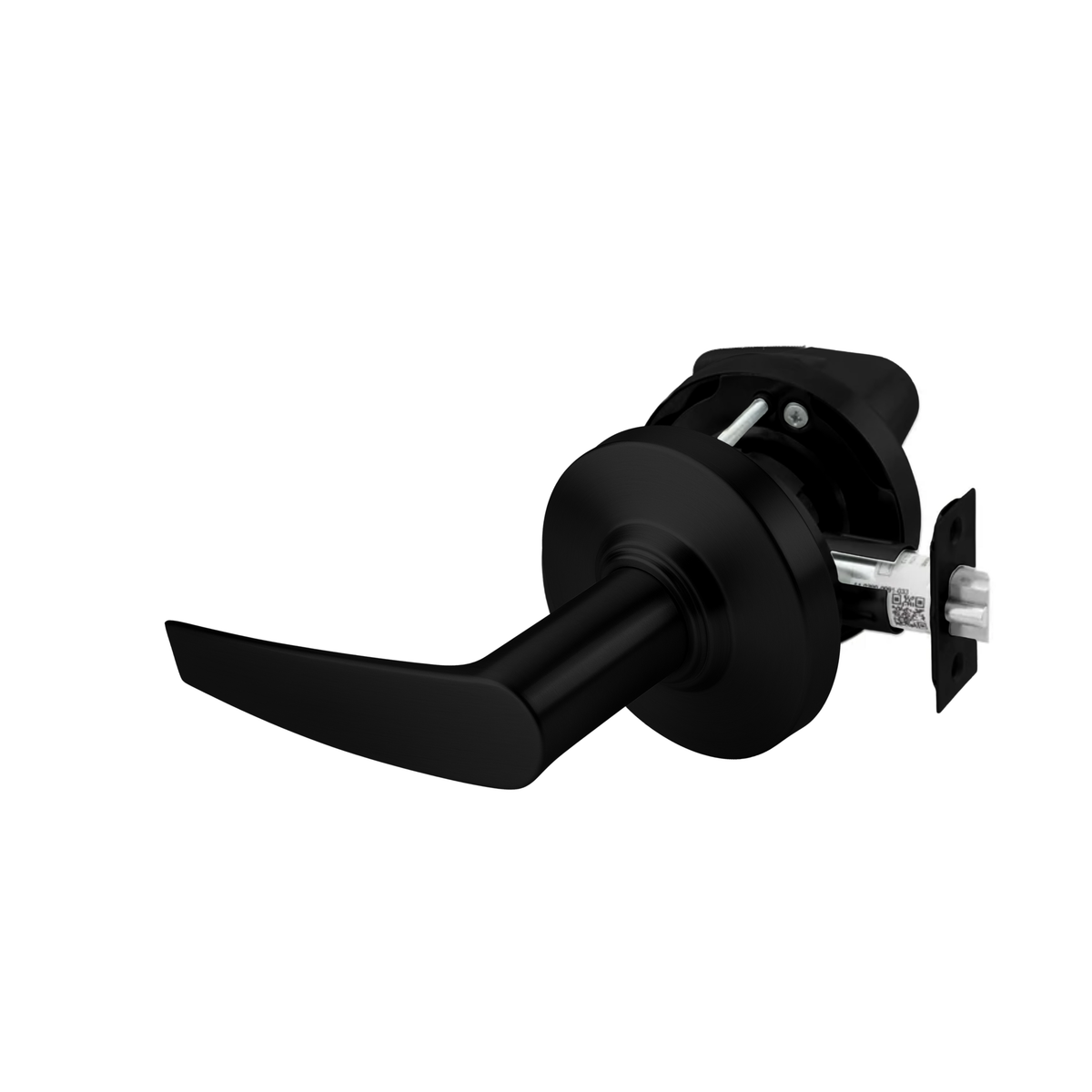

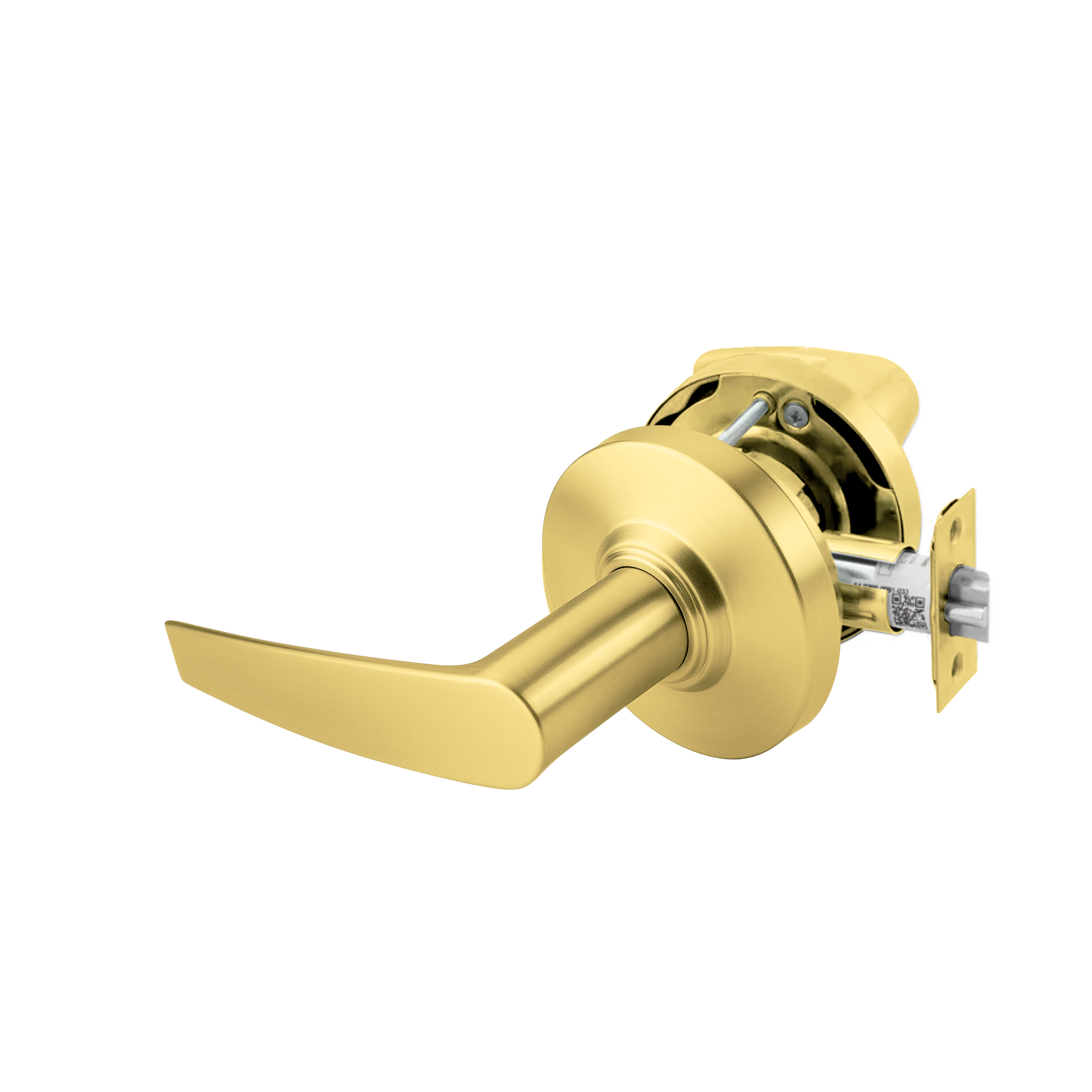

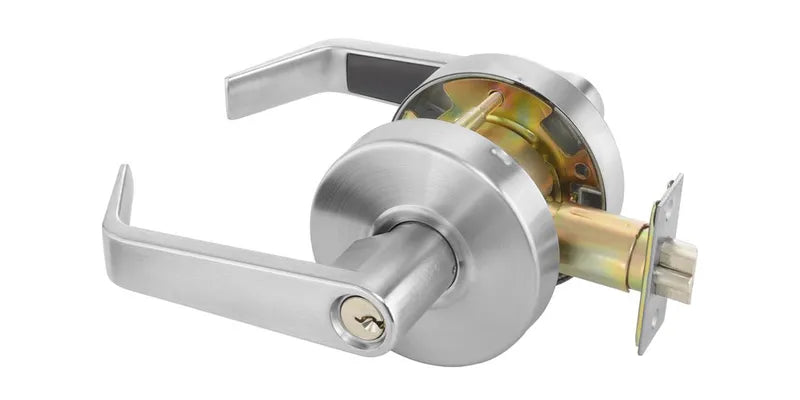

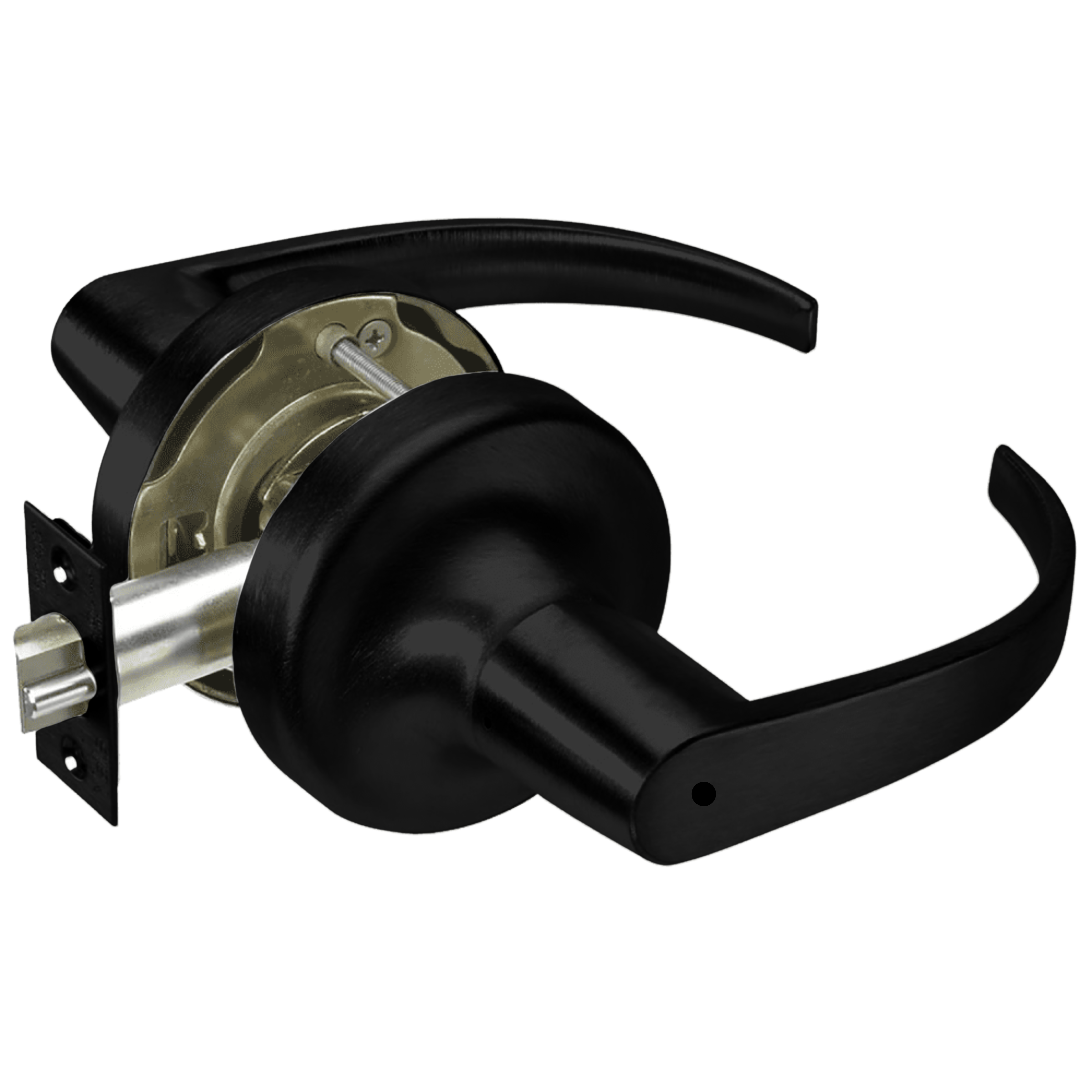

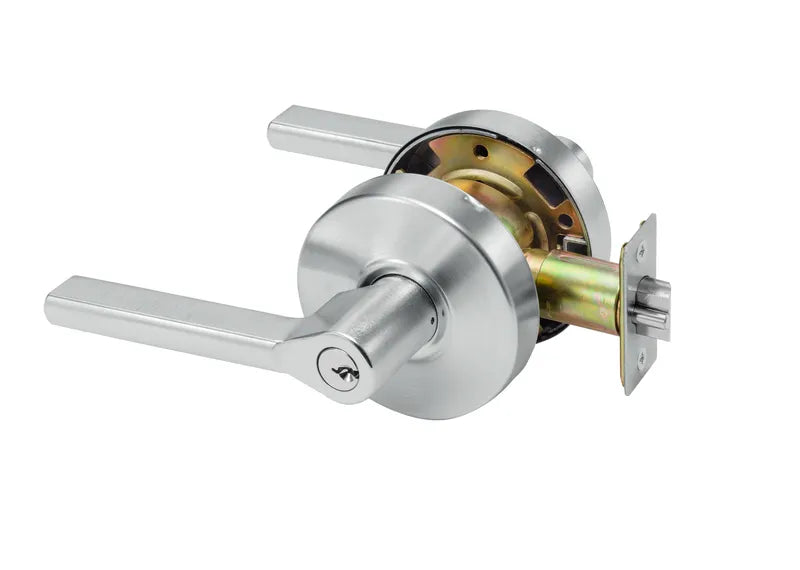

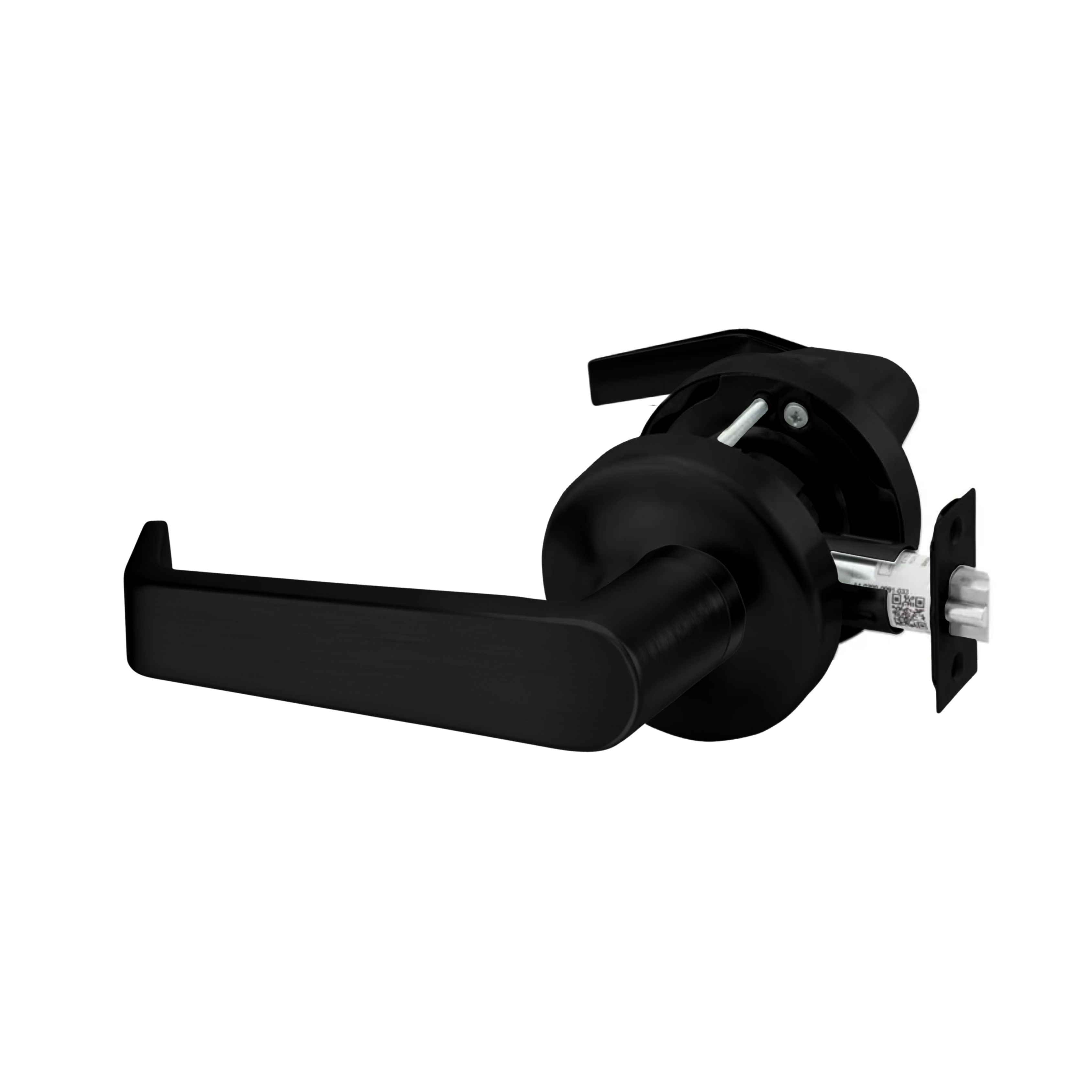

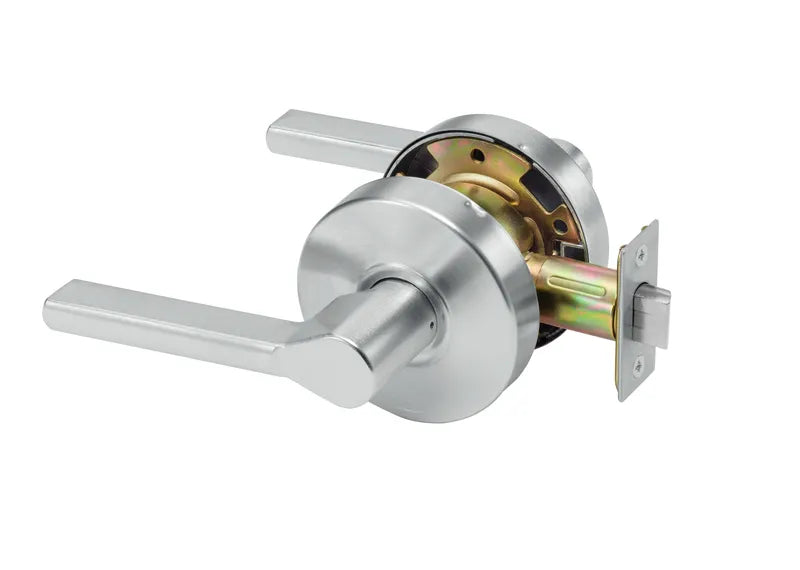

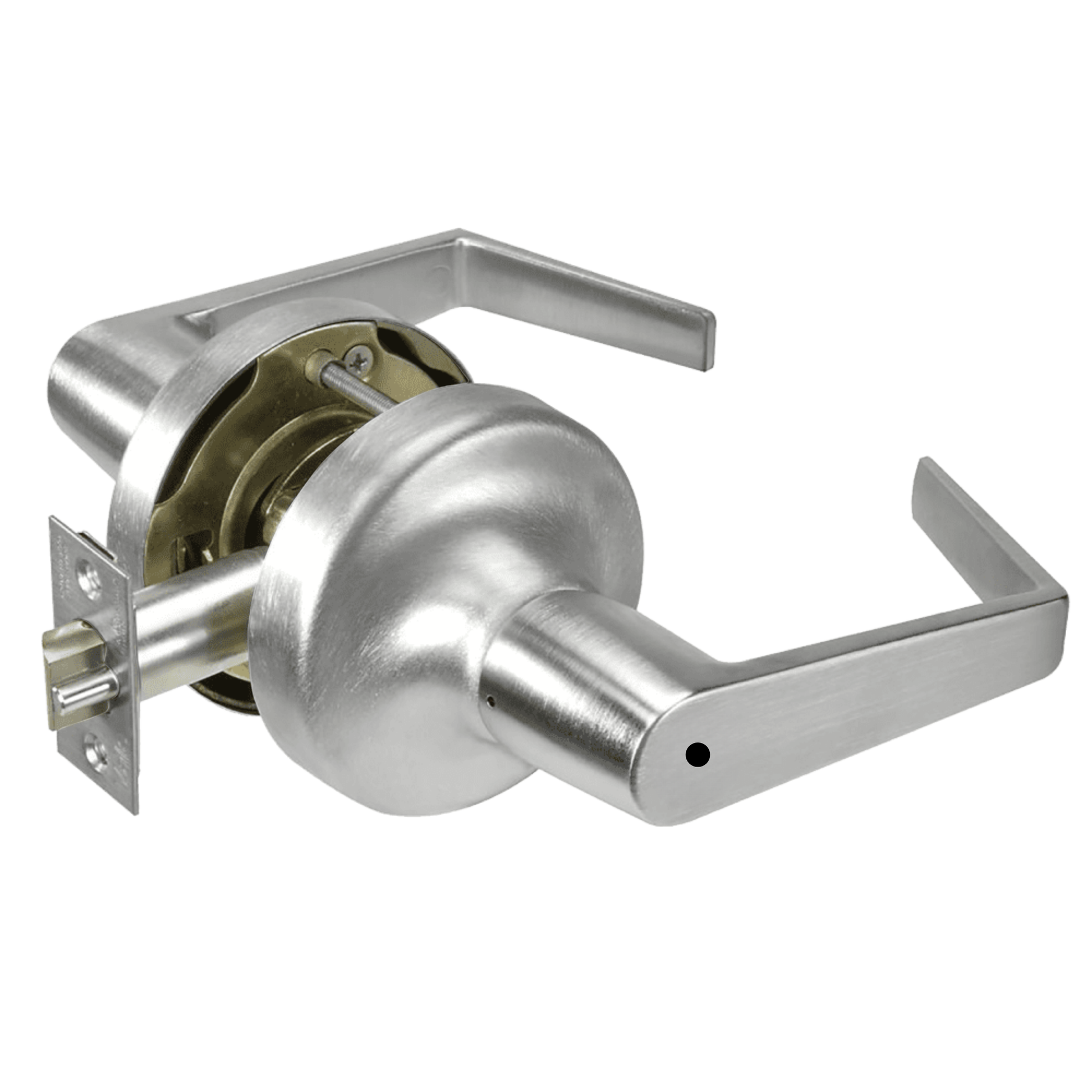

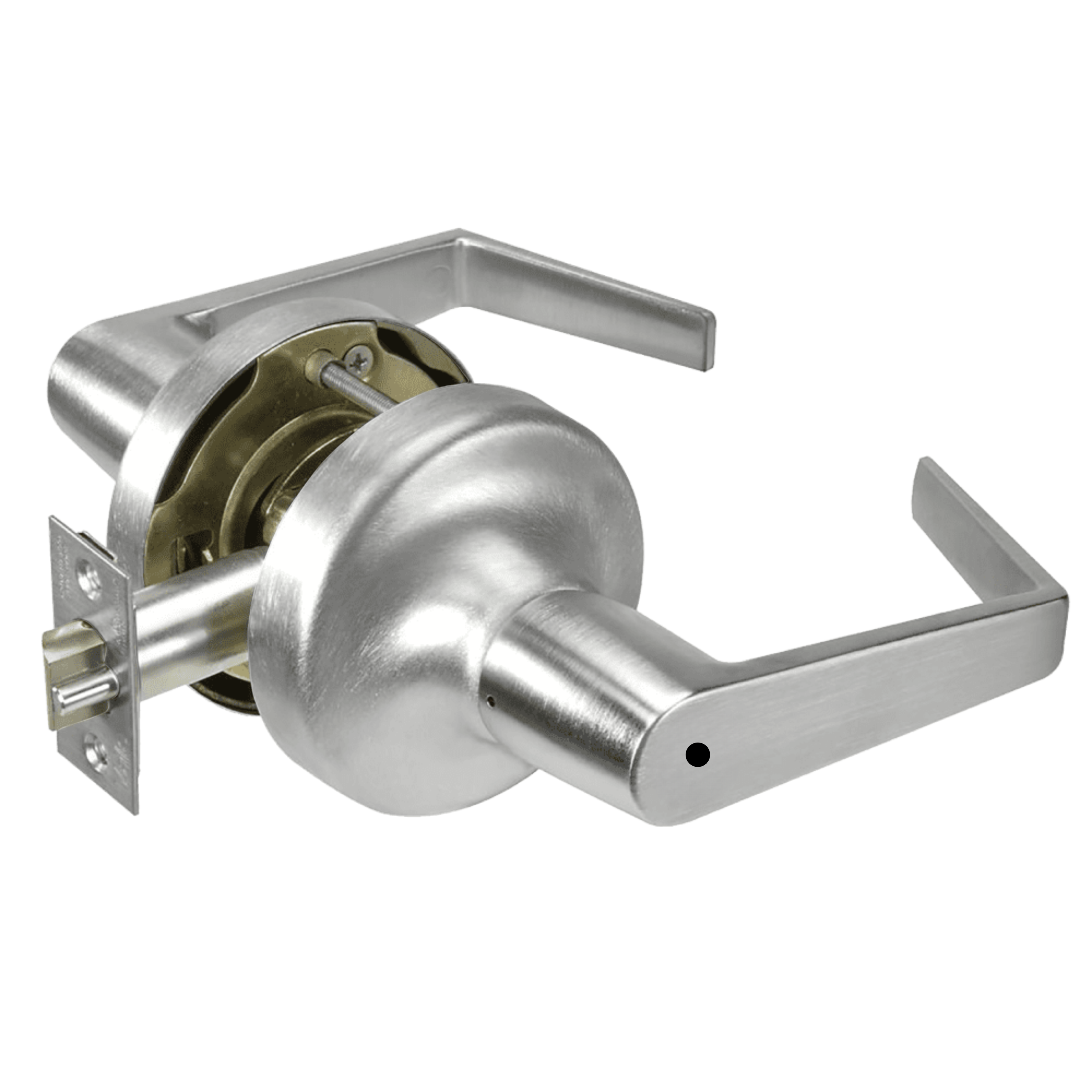

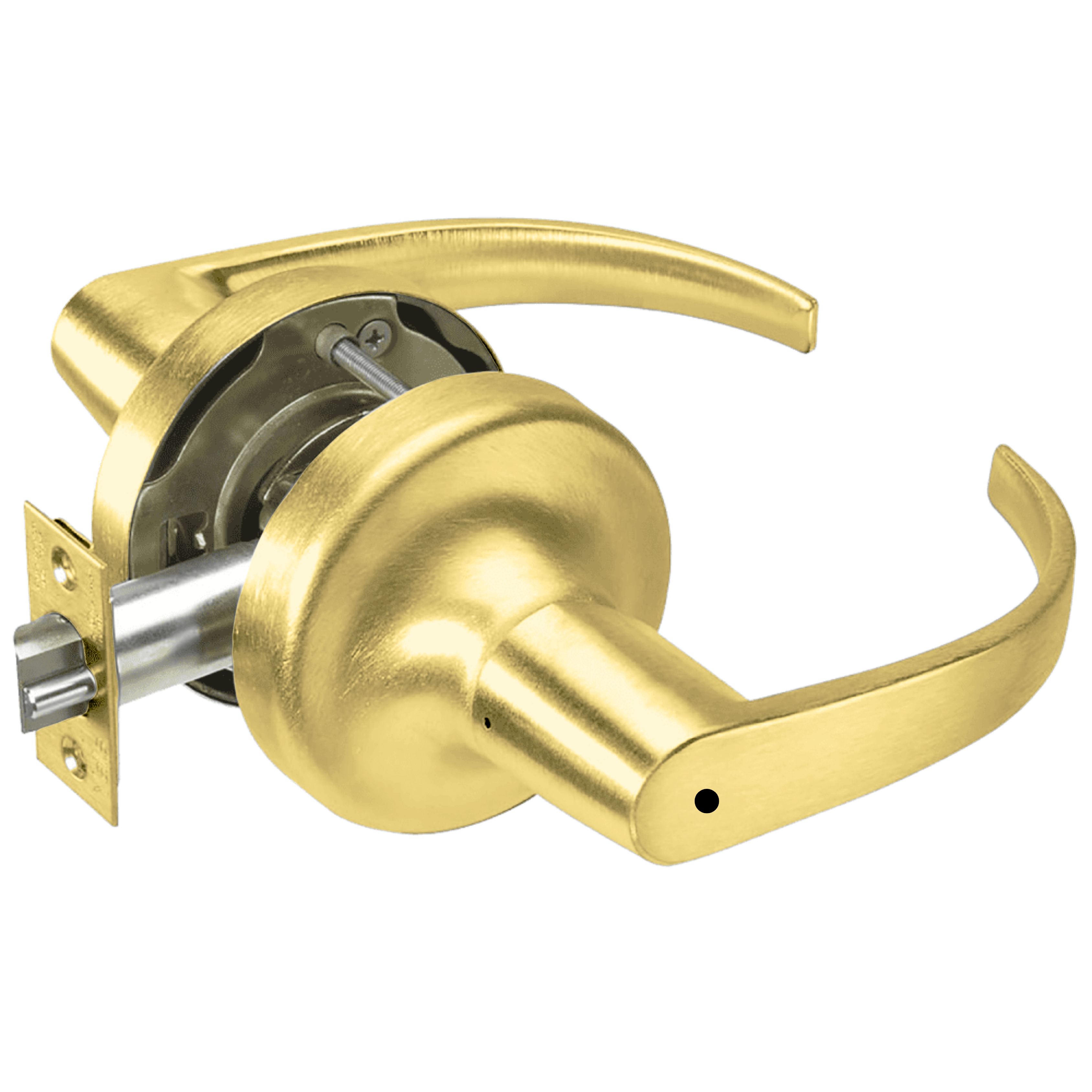

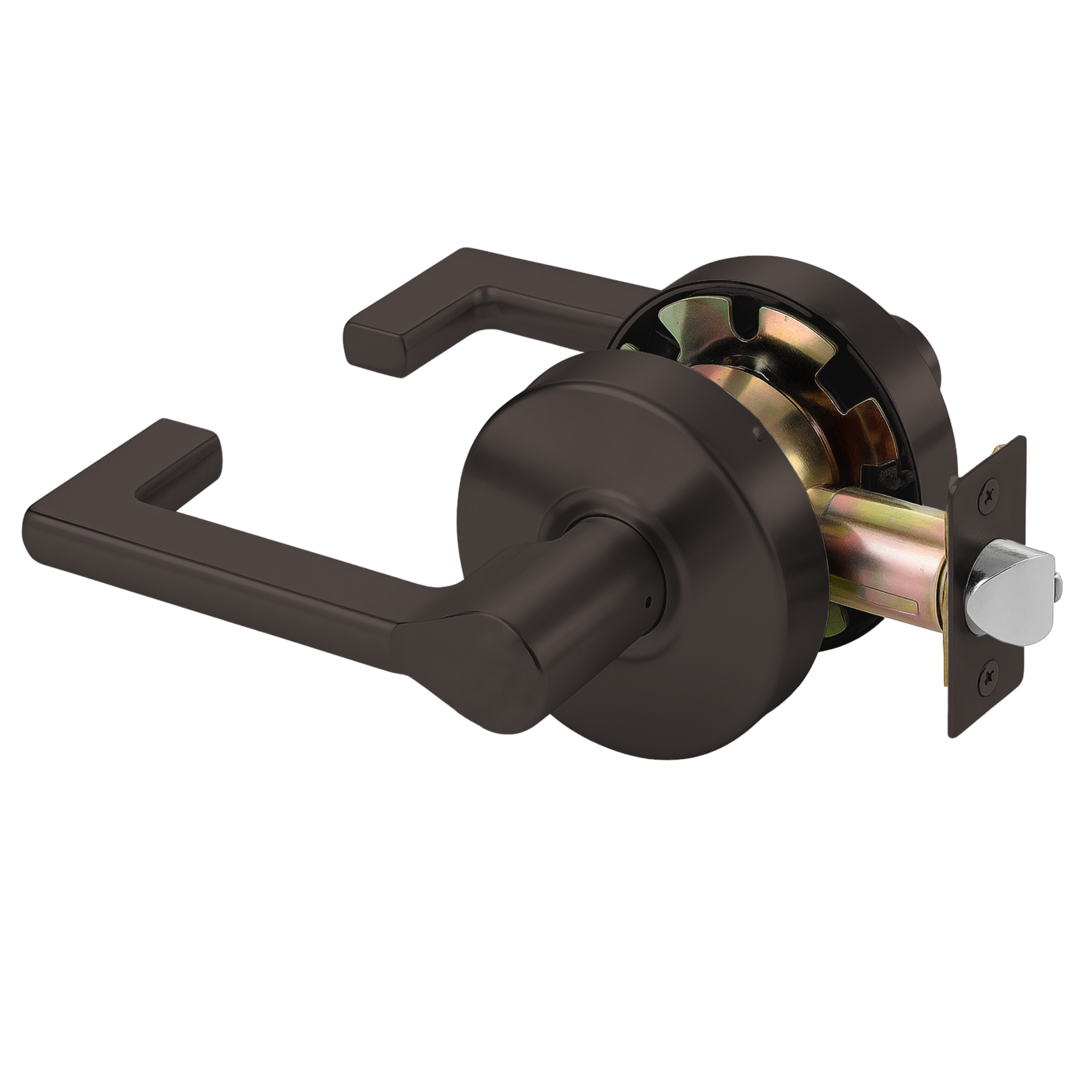

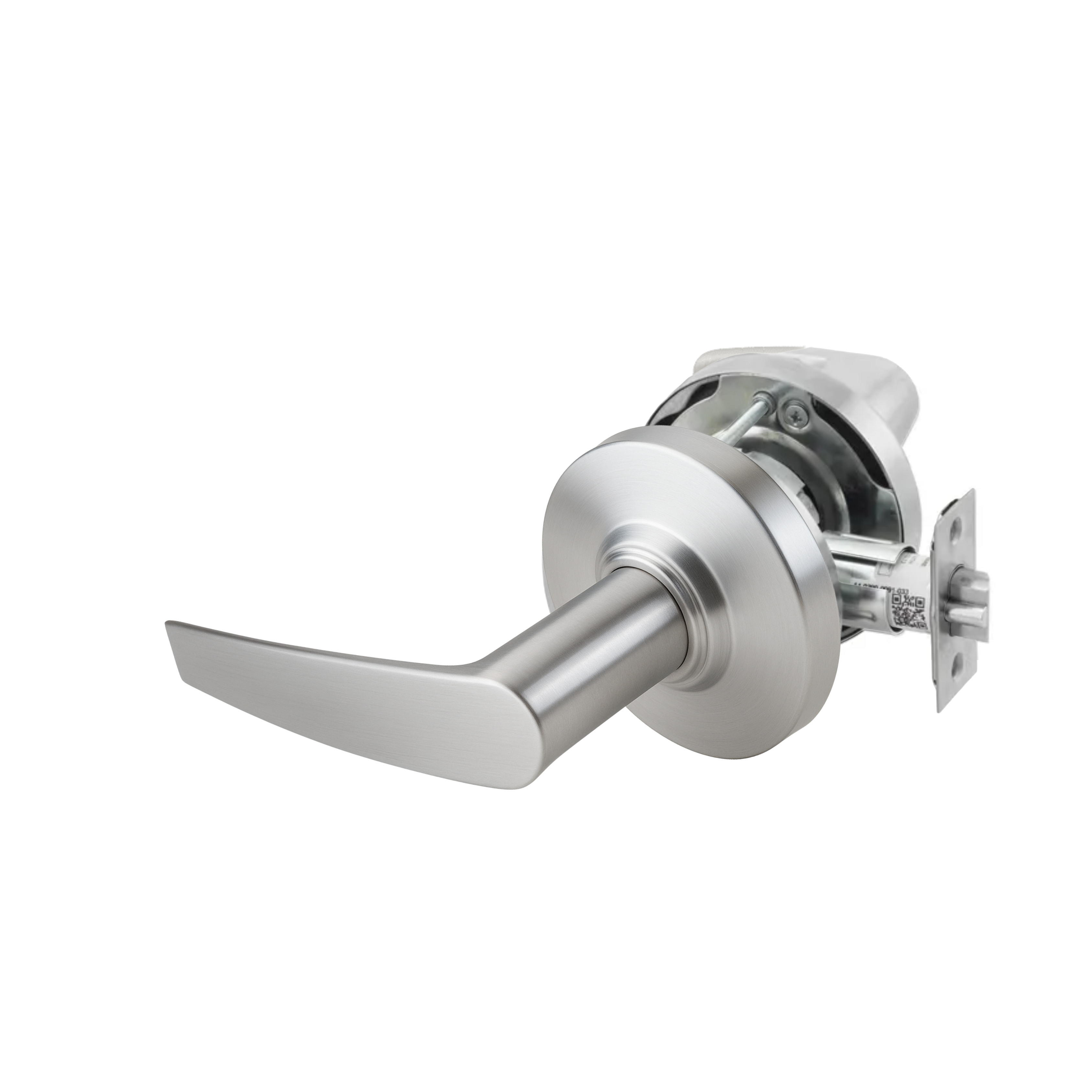

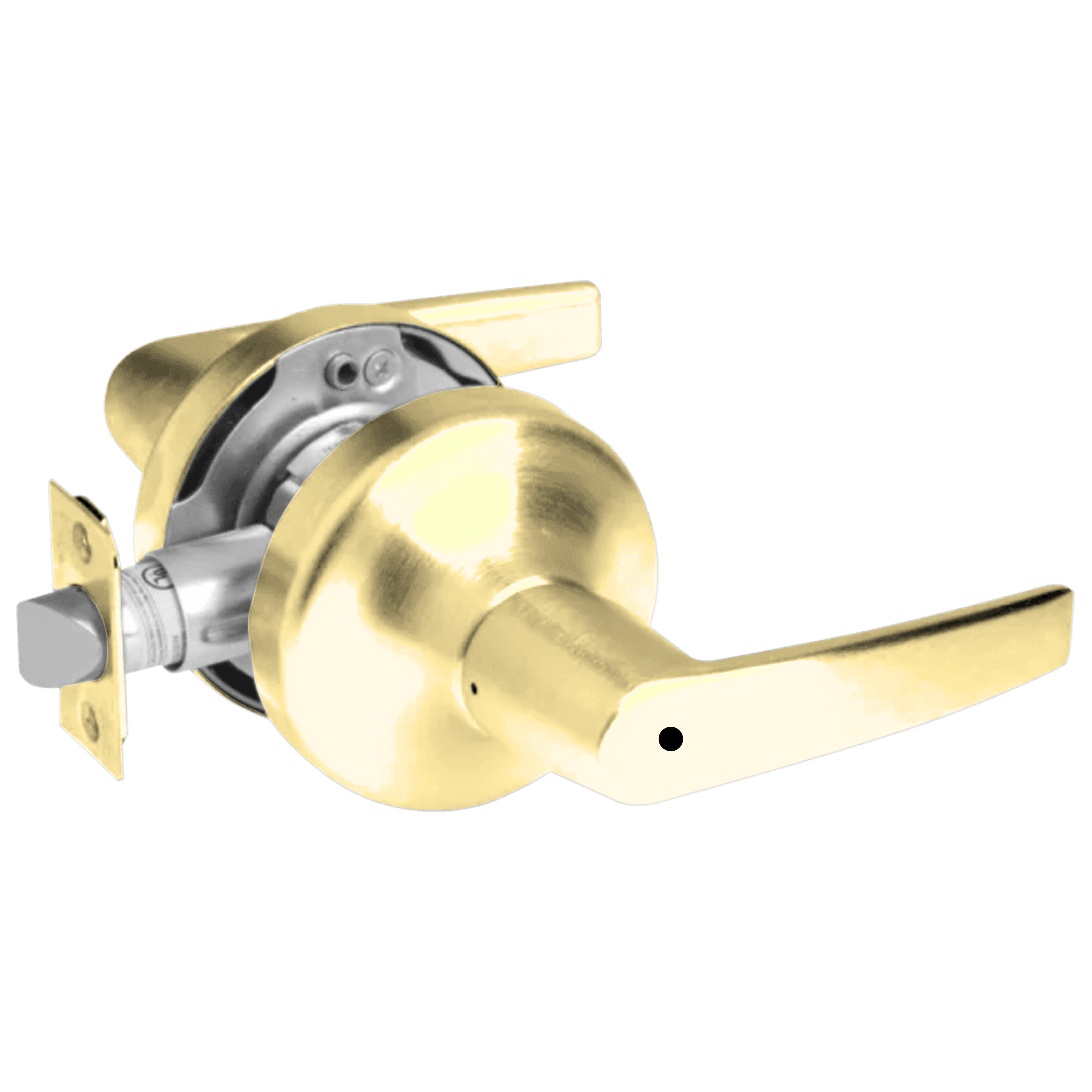

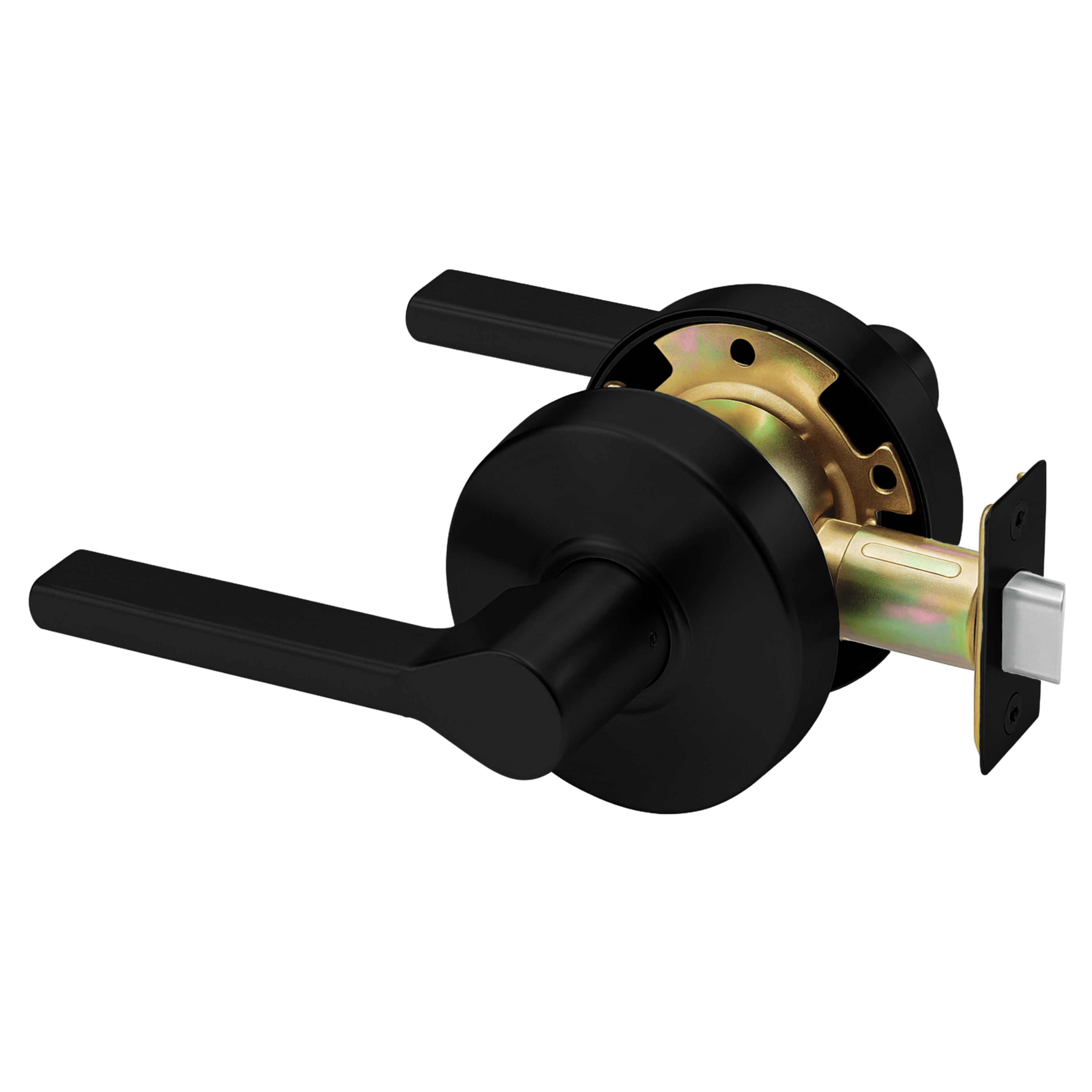

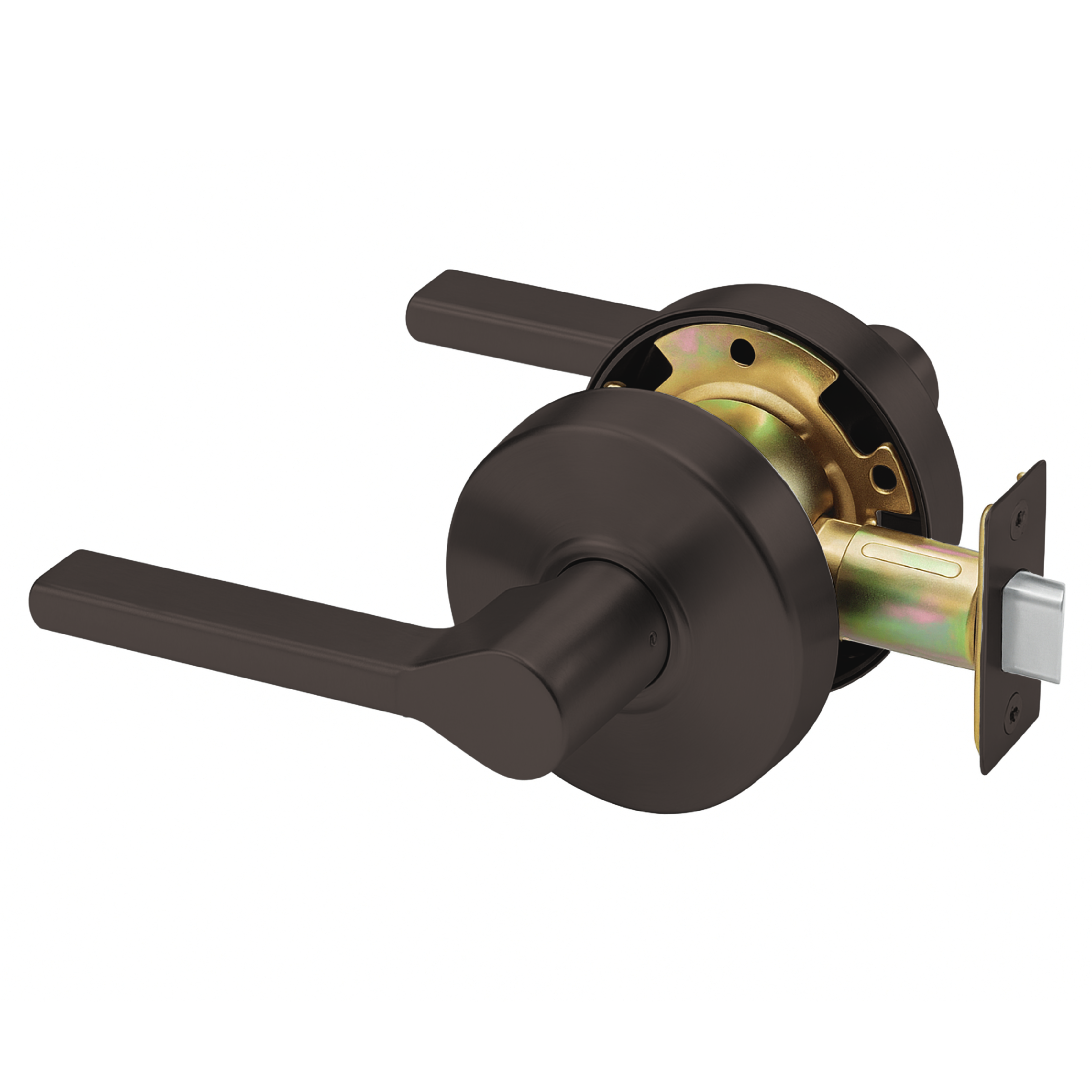

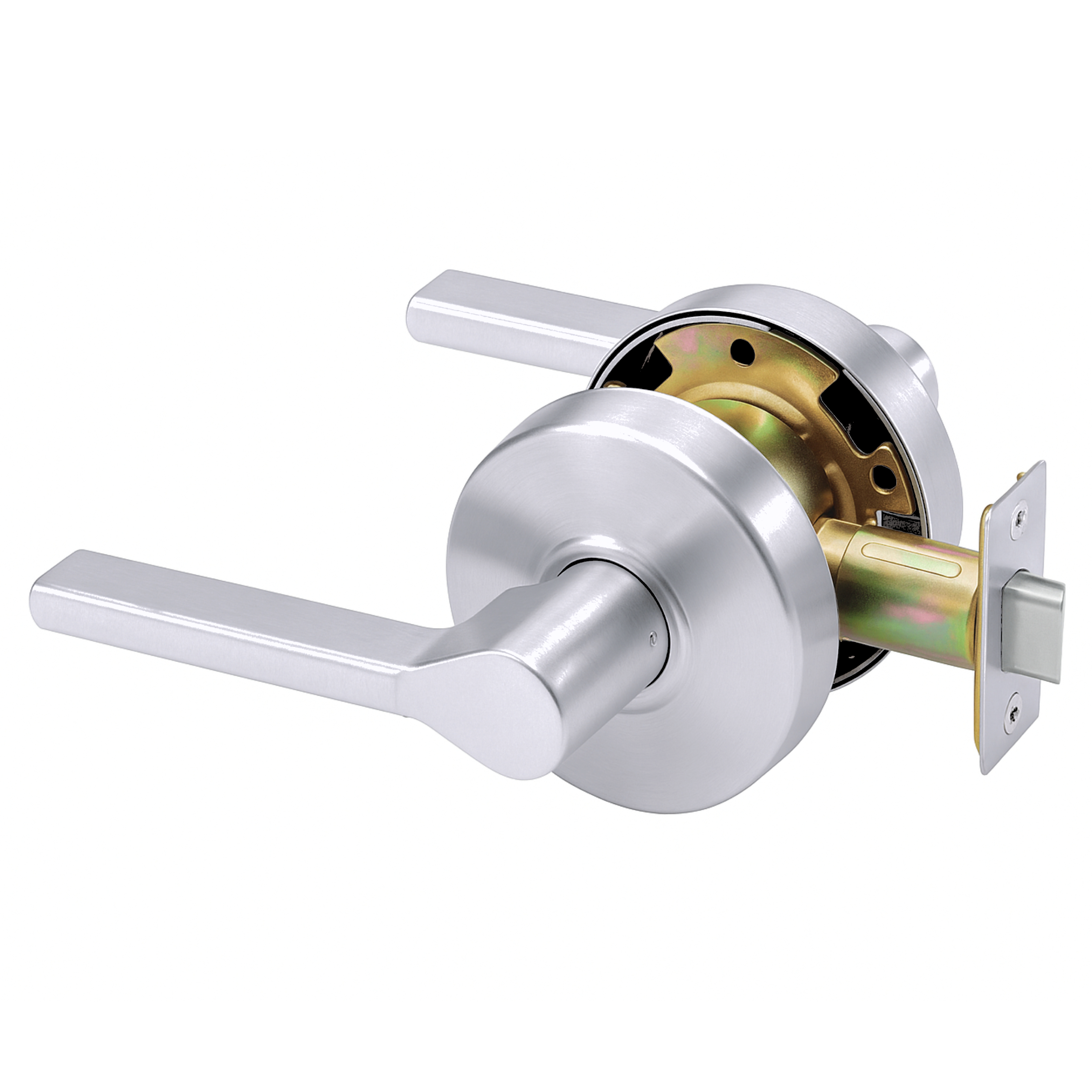

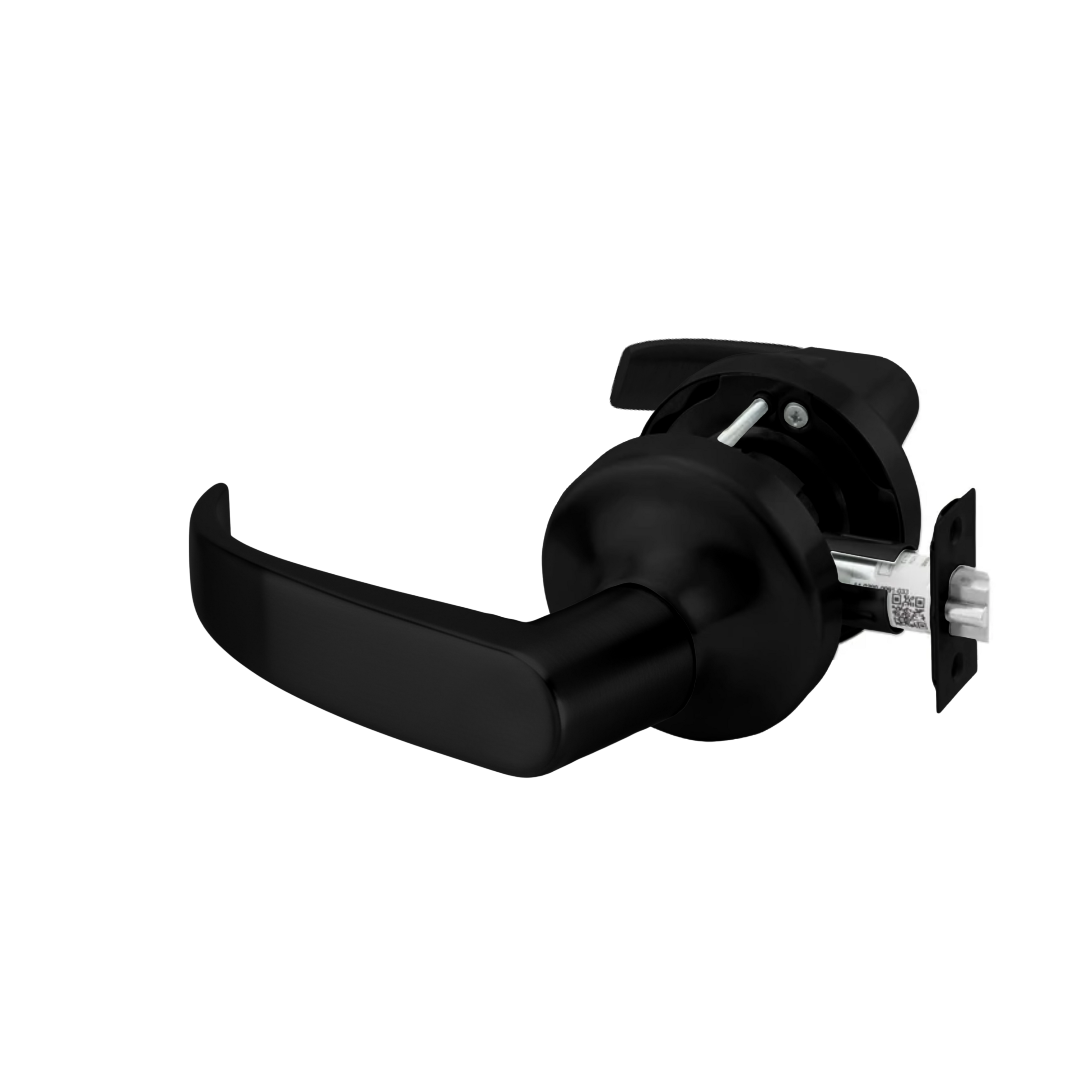

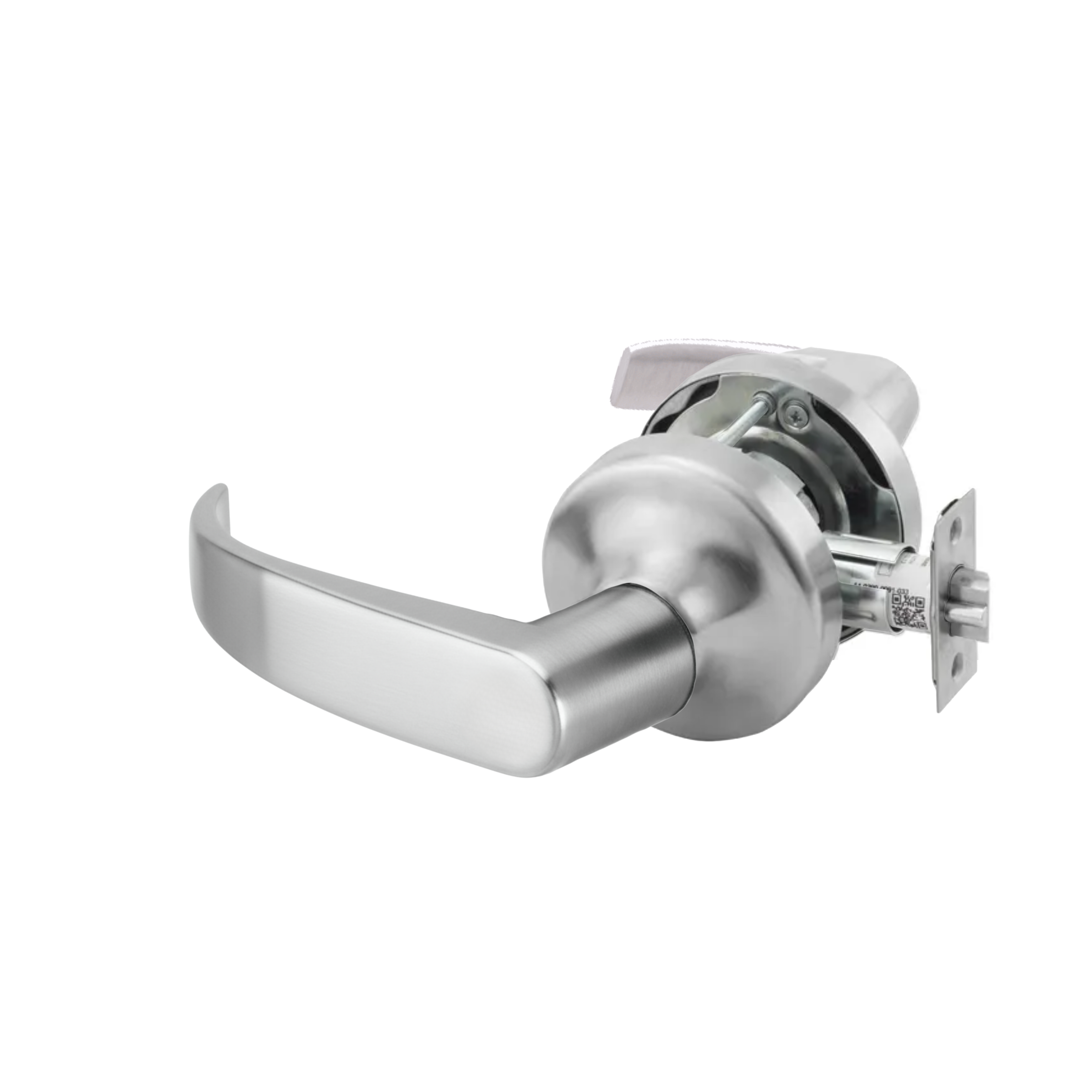

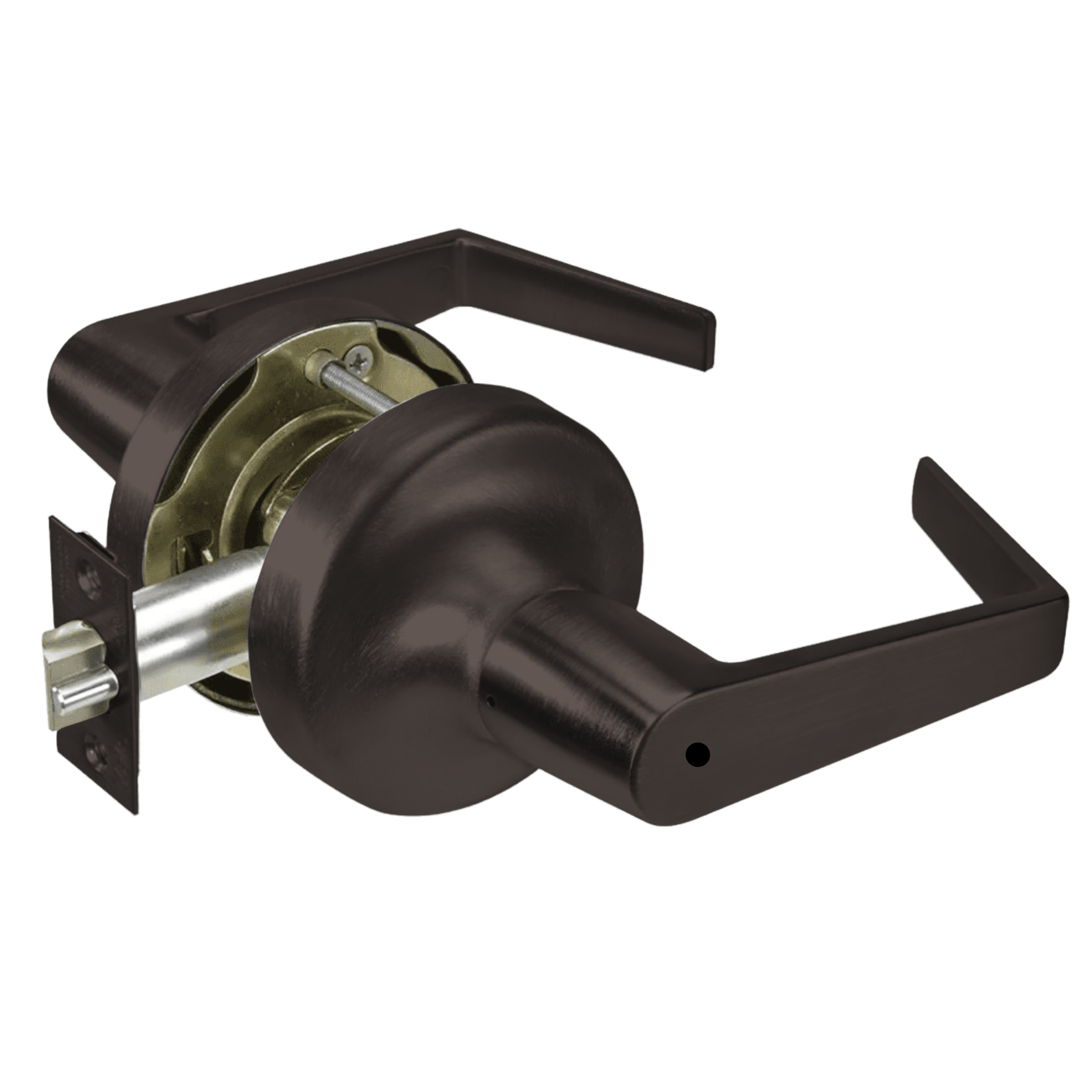

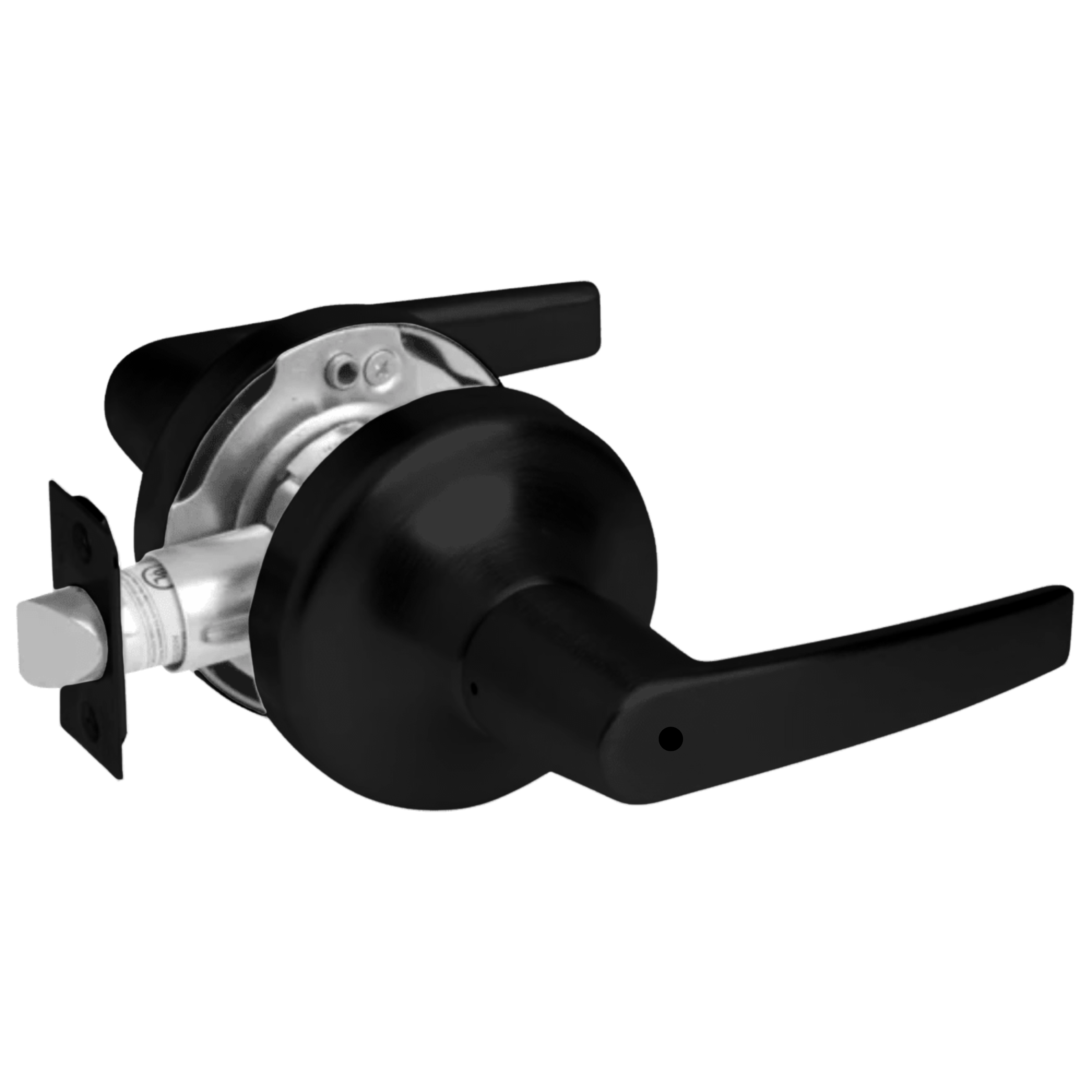

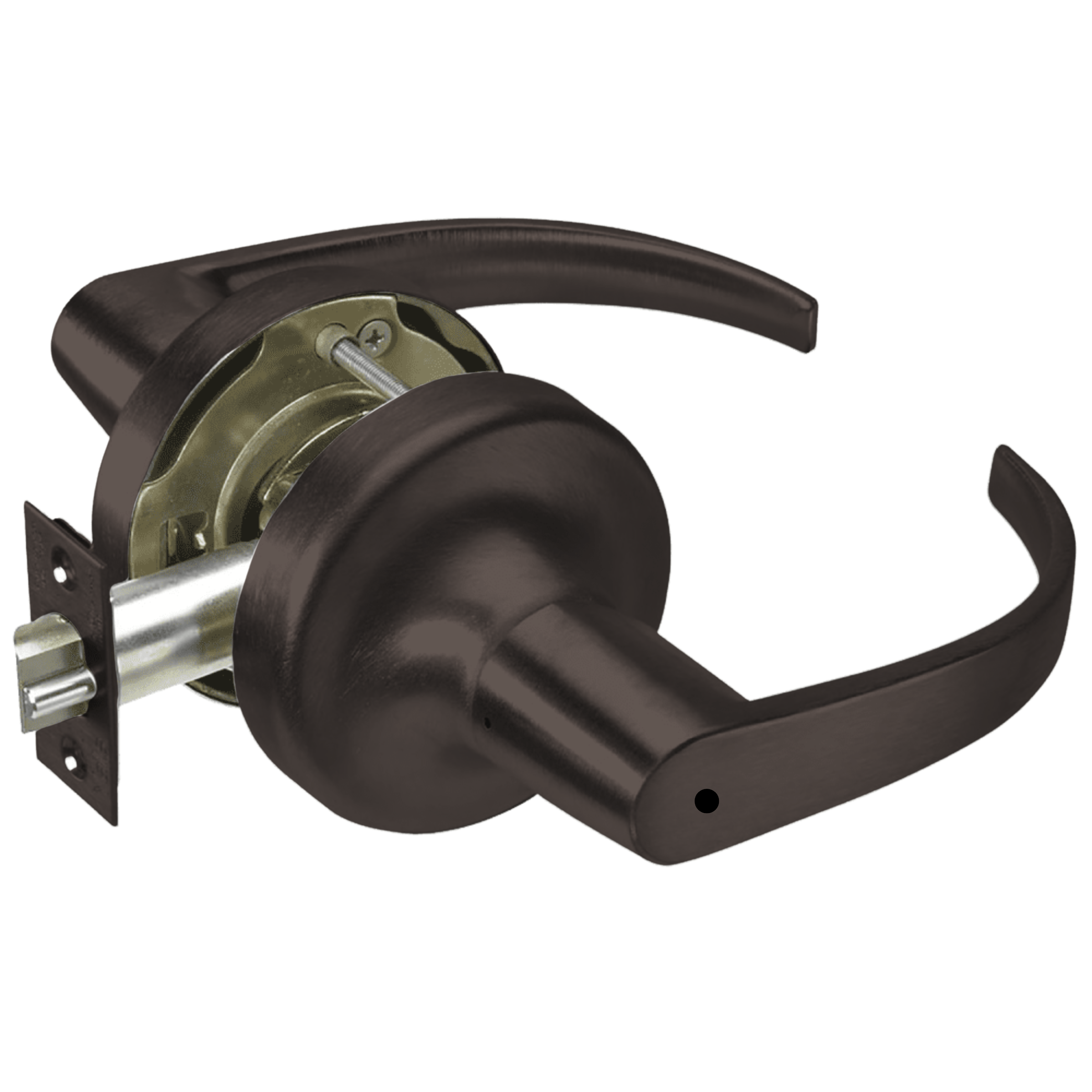

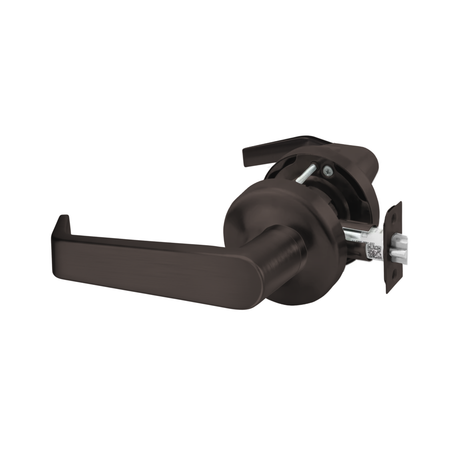

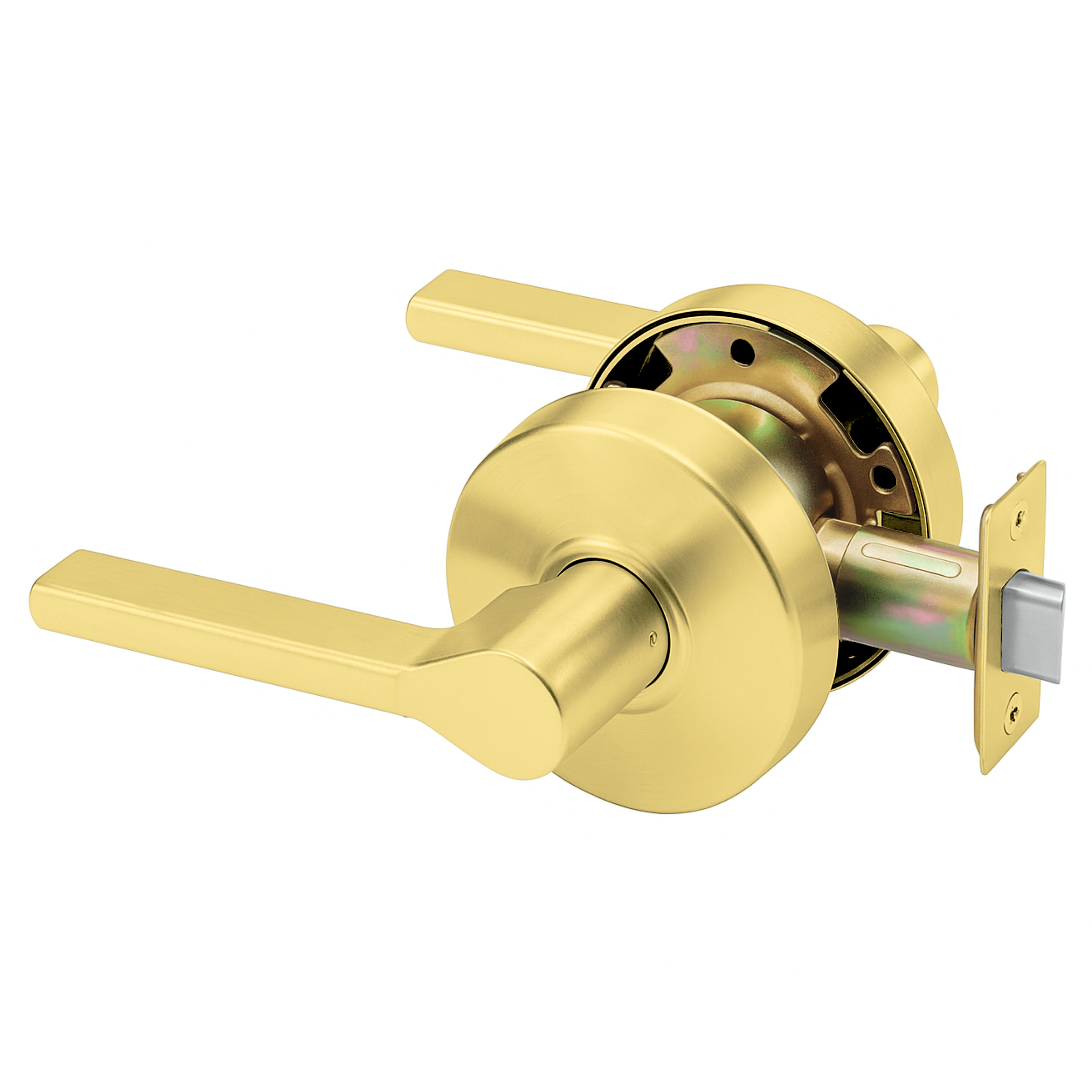

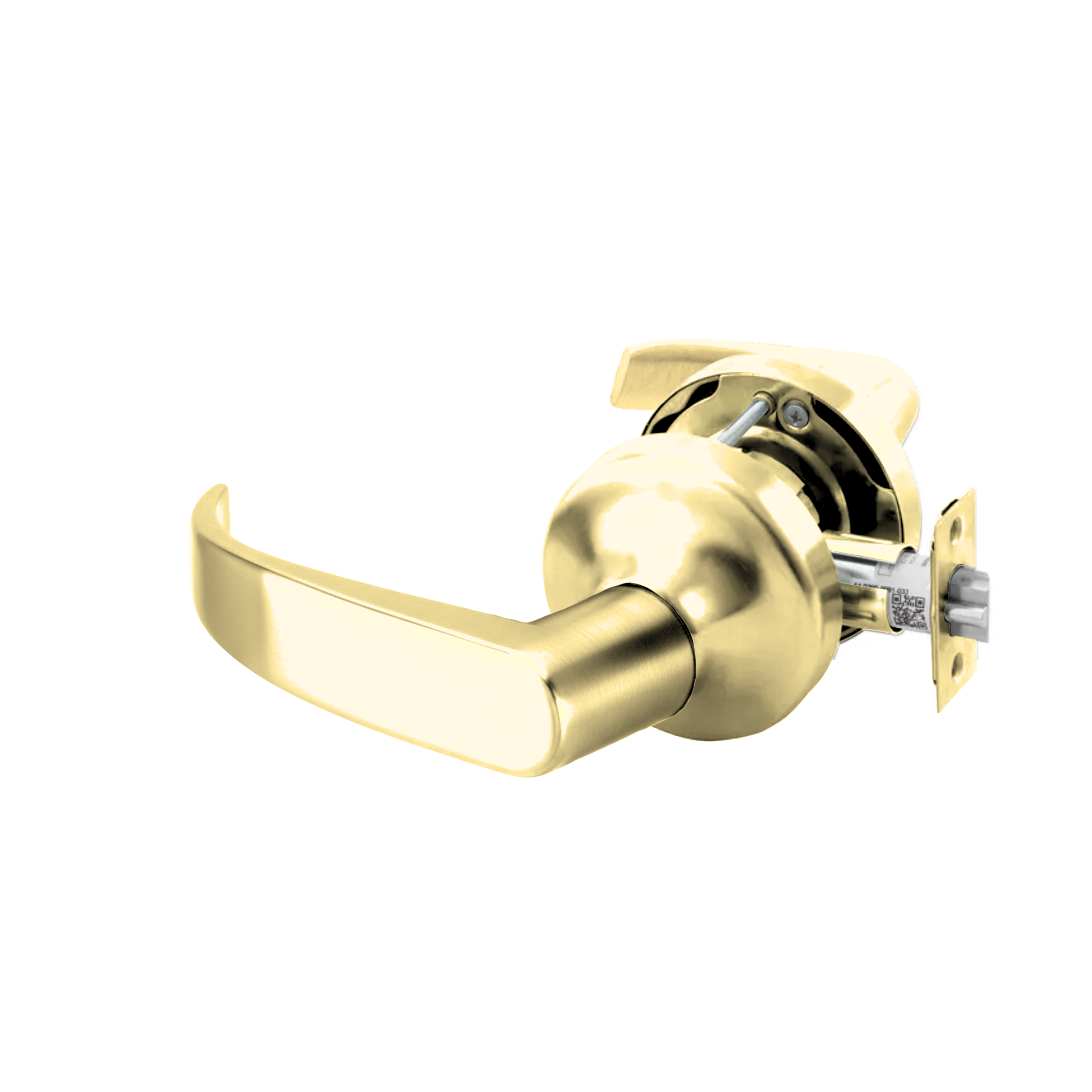

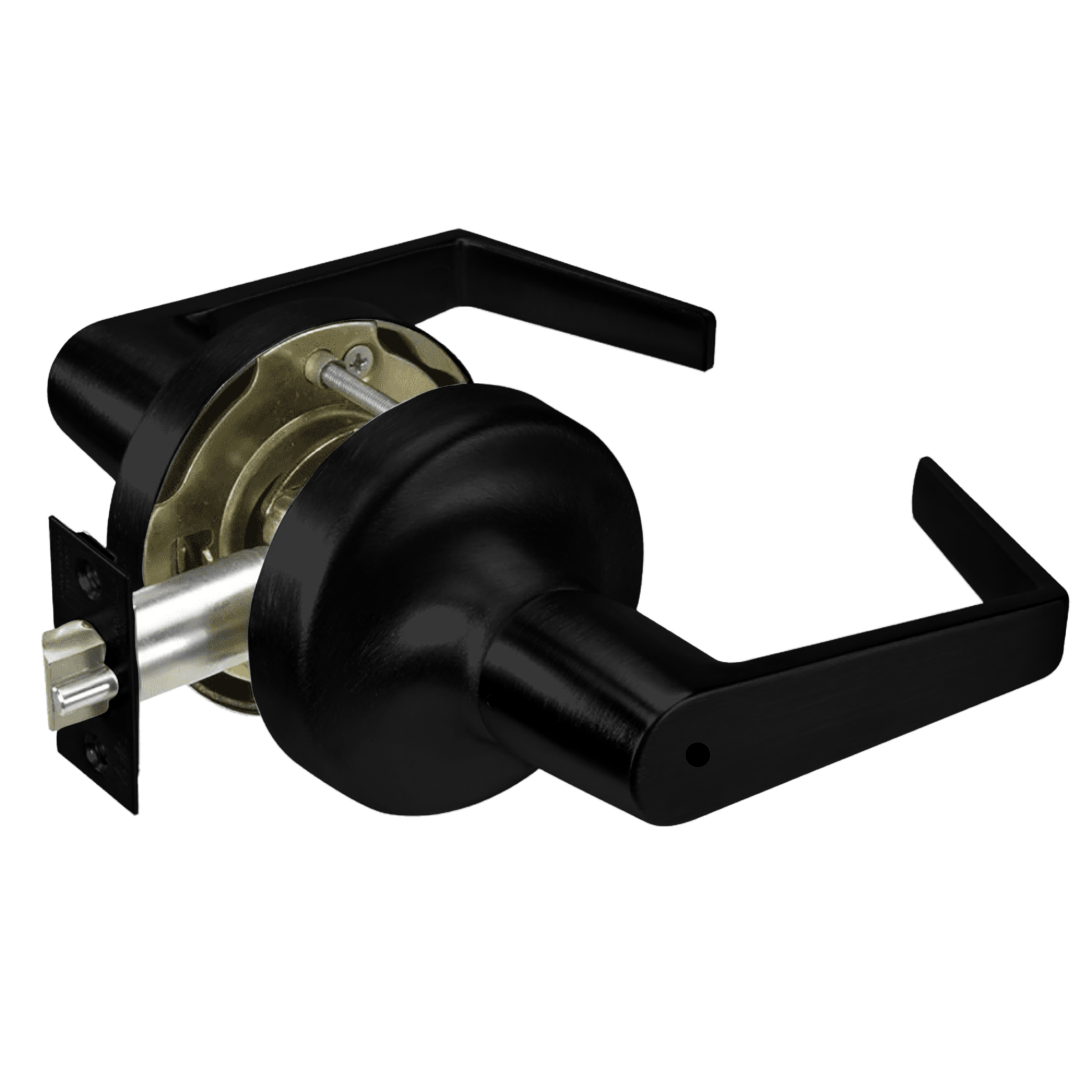

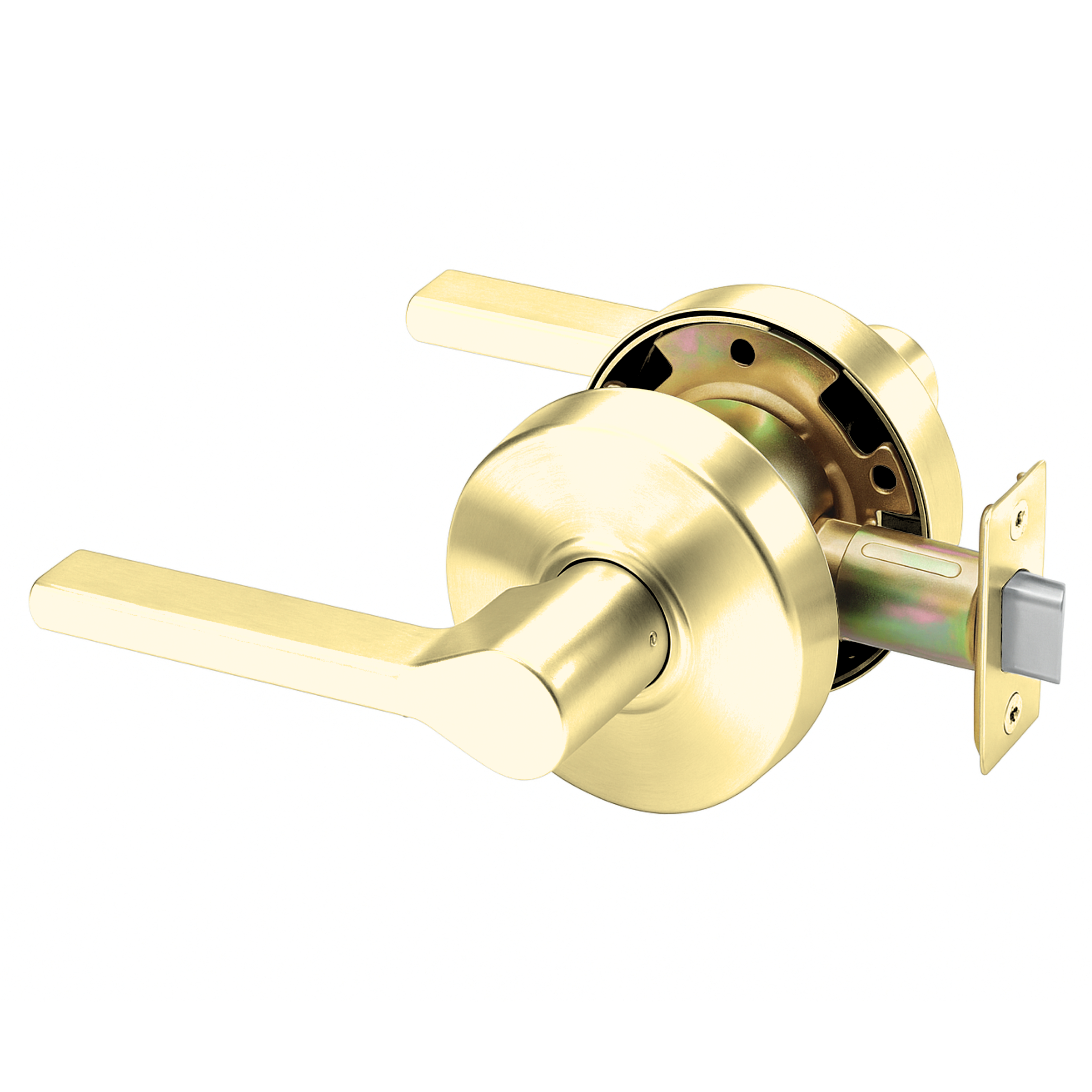

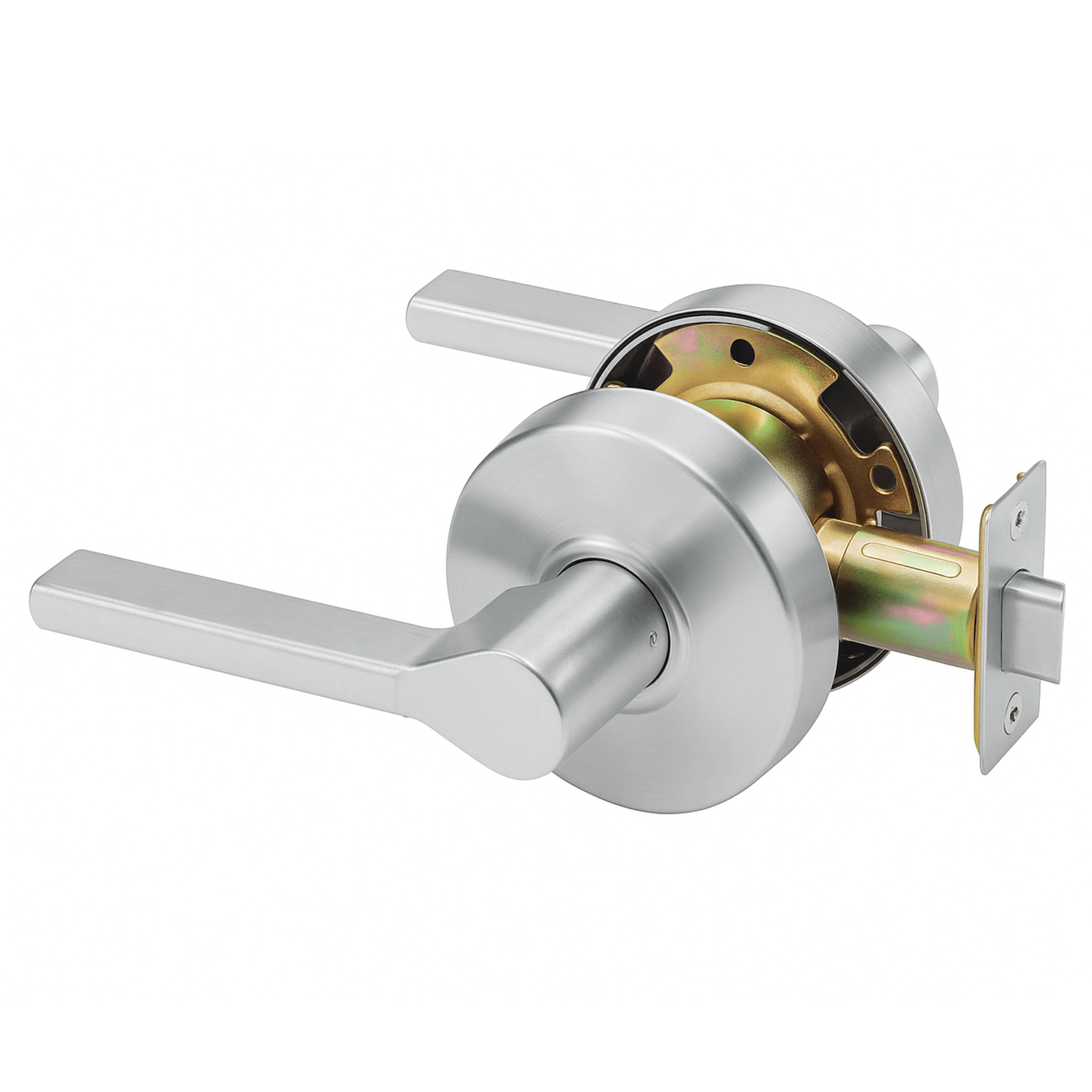

4600LN Series
ASSA ABLOY ACCENTRA® 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

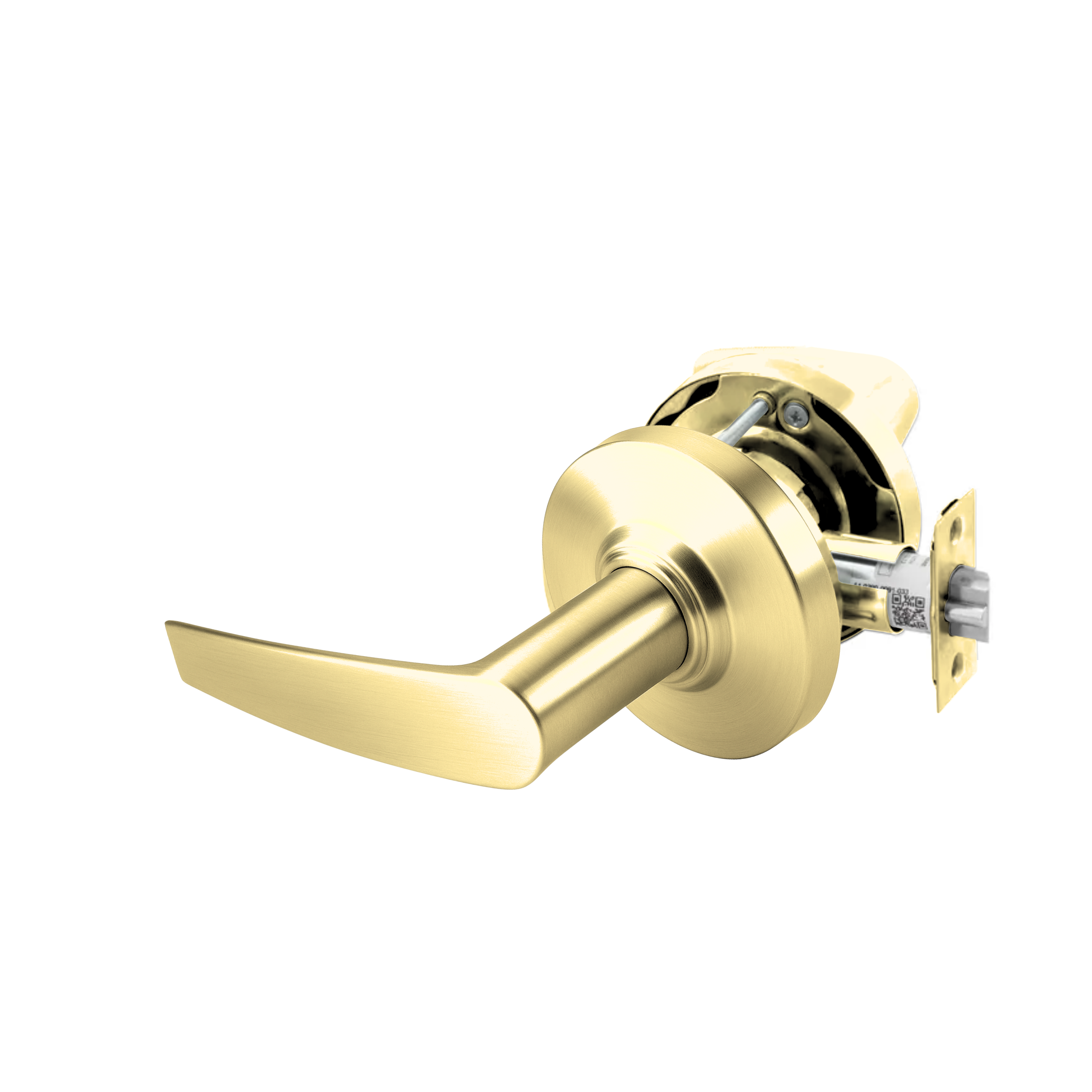

- For twin communicating or exit doors where one side operation is required.
- Also when space is limited between door and switch panel.
- Deadlocking latchbolt.
- One lever operation.
- Blank rose.
- Should be used only where rooms have more than one entrance.
Product Overview
Features
- Field reversible handing for easy installation
- Range of functions and other options for a wide variety of commercial applications
- Available in 5 trims and 6 finishes
- ADA compliant lever for ease of accessibility
- UL/cUL fire rated up to 3-hours
Benefits
- Field reversible handing and other product options offer flexibility in many commercial applications
- Priced affordably to suit projects of all budgets
- Certified Grade 2, ANSI/BHMA A156.2, Series 4000
- Windstorm Certified (refer to local codes)
- 3-year mechanical warranty
Specifications
- Filter
- ANSI/BHMA Code: A156.2
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Small Format
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1 3/4"
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type: ANSI Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 3-year limited warranty
Certifications
- ANSI/SDI 250.13 Certified
- ASTM E330 Certified
- Florida Building Code Approved FL# 3063
- Americans with Disabilities Act (ADA) Compliant
- UL-cUL Fire-Rated Up to 3 Hours
- ASTM E1996 Certified
- ASTM E1886 Certified
- NFPA 80 Compliant
- TAS 201 Certified
- TAS 202 Certified
- TAS 203 Certified
