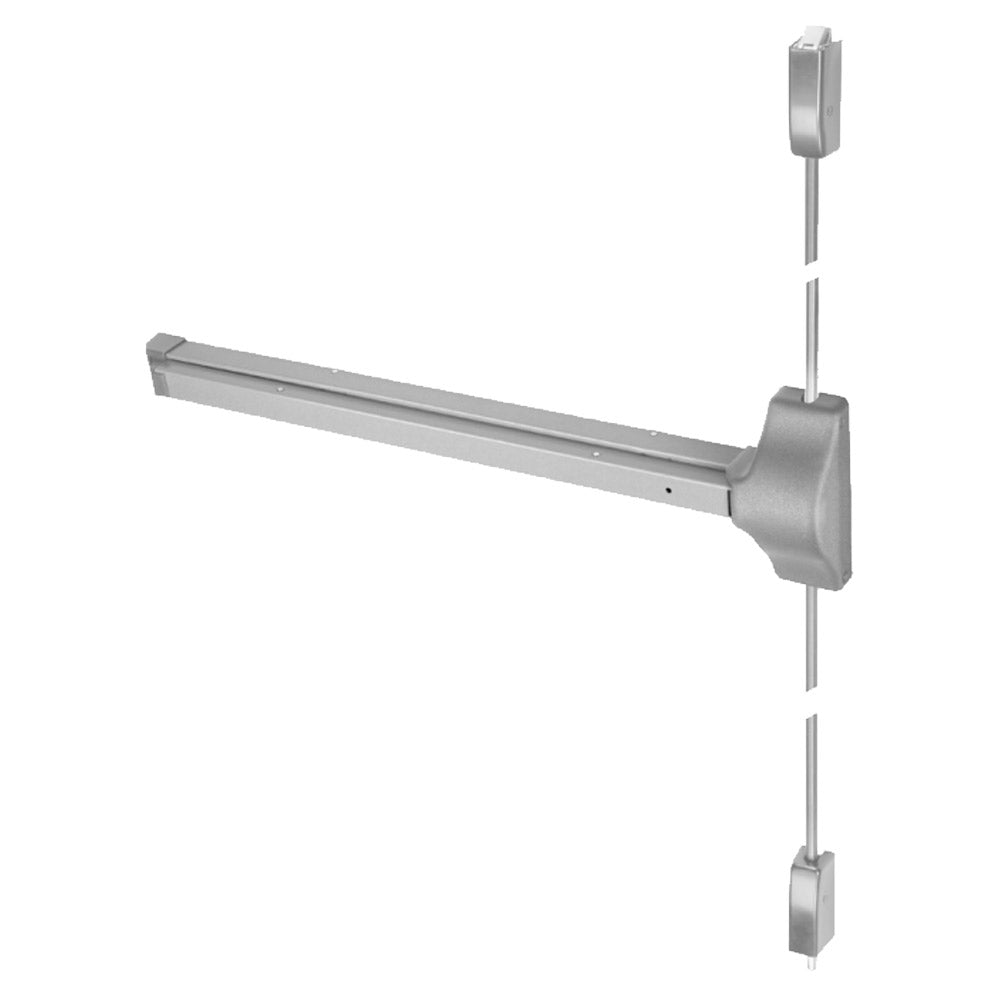

Accentra 1810 Series Surface Vertical Rod Exit Device – Panic Rated / Fire Rated
The Accentra 1810 Series Surface Vertical Rod Exit Device is engineered for strength, safety, and dependable egress on a wide range of commercial double-door applications. Designed for pairs of doors up to 8' in height, this exit device provides secure two-point latching with a durable, reliable mechanism for high-traffic environments.
With panic-rated and fire-rated certification, the 1810 Series offers confidence in compliance while ensuring smooth operation and maximum protection. Its versatile design makes it an excellent choice for schools, healthcare facilities, offices, and other demanding applications.

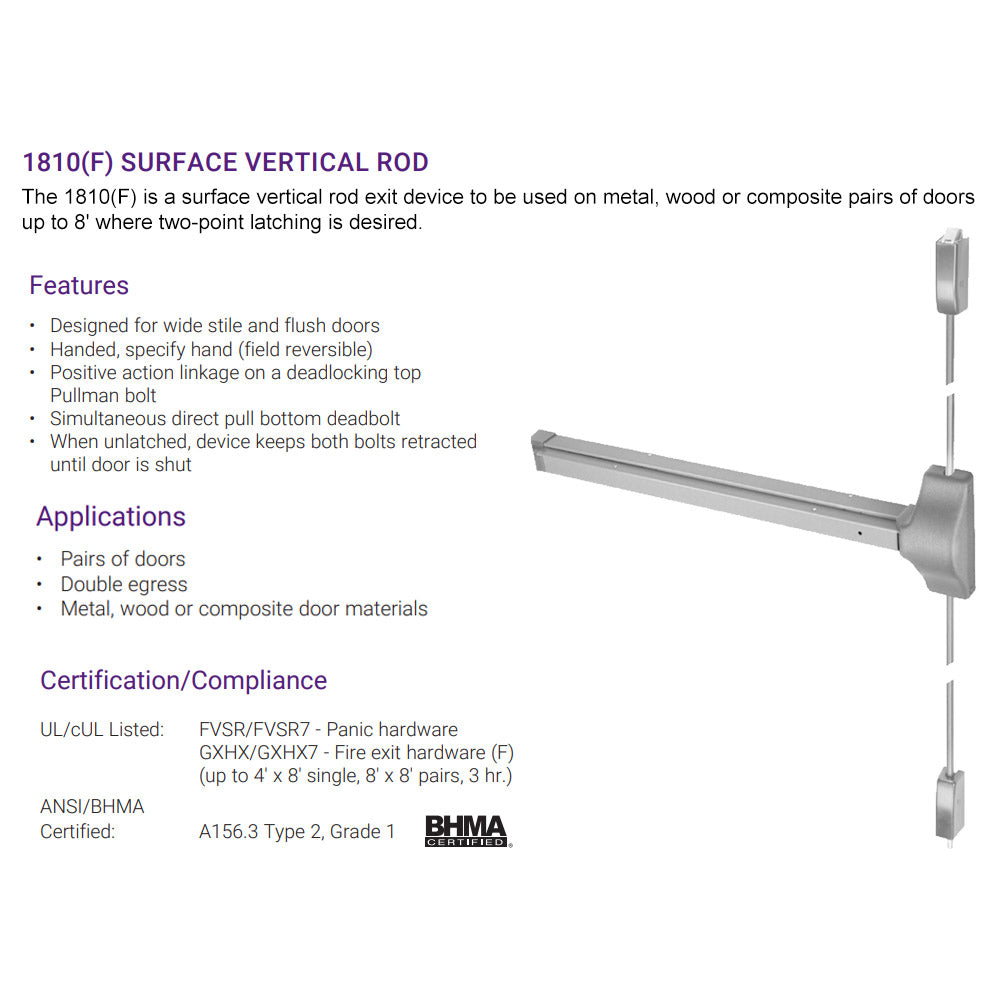

Features
-
Two-Point Latching – Positive action linkage on the deadlocking top Pullman bolt with a simultaneous direct-pull bottom deadbolt.
-
Automatic Retraction – Both bolts remain retracted when unlatched until the door is shut, ensuring reliable performance.
-
Flexible Installation – Field reversible (handed) design accommodates various door setups.
-
Versatile Design – Compatible with wide stile and flush doors made of metal, wood, or composite materials.
-
Durable & Secure – Built for heavy-duty use in high-demand commercial environments.
Applications
-
Pairs of doors
-
Double egress openings
-
Metal, wood, or composite door construction

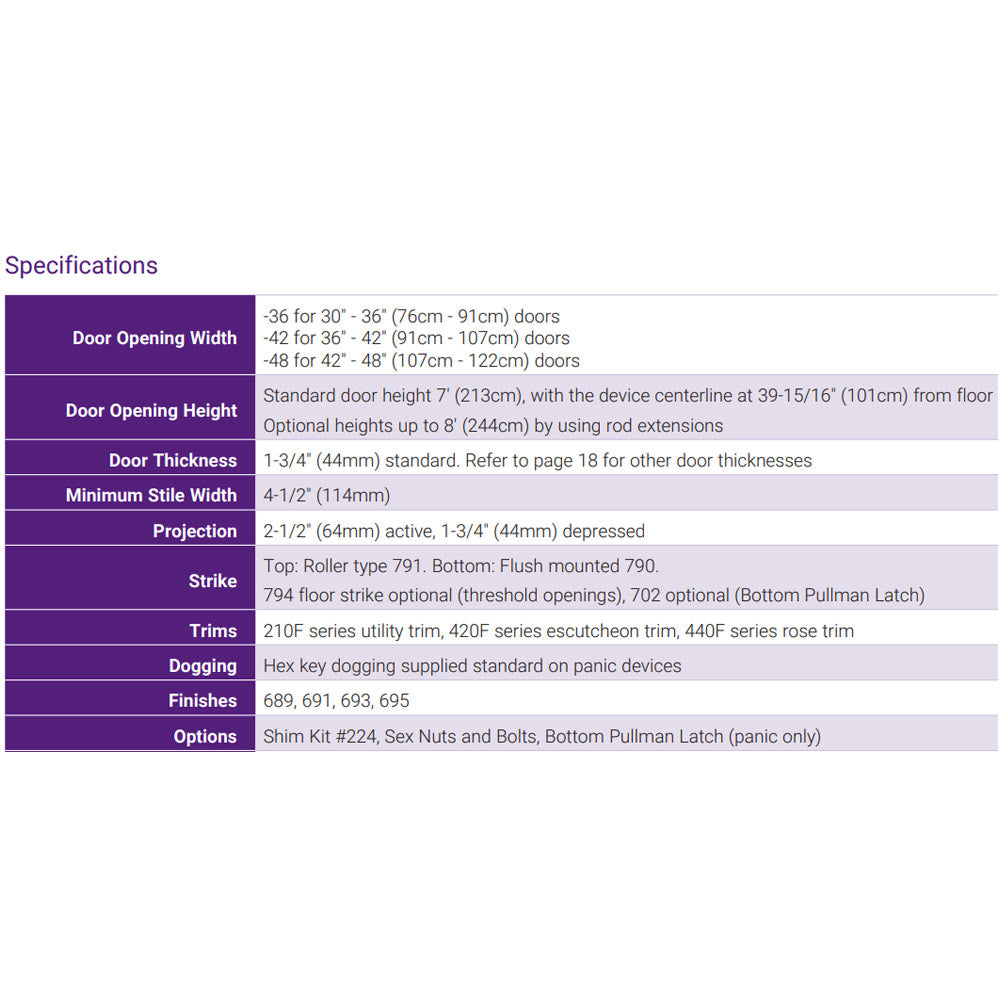

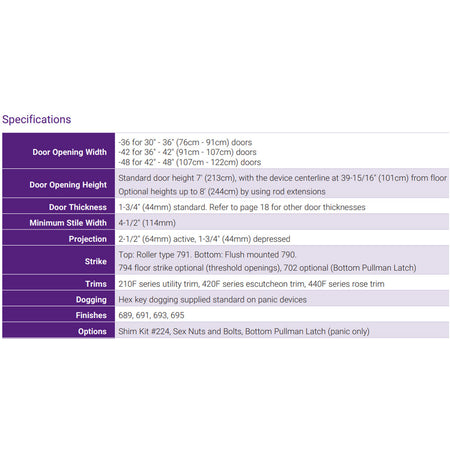

Specifications
-
Door Opening Height: 7' (standard) | up to 8' with rod extensions
-
Door Thickness: 1-3/4" (44mm) standard (other sizes available)
-
Minimum Stile Width: 4-1/2" (114mm)
-
Projection: 2-1/2" (64mm) active | 1-3/4" (44mm) depressed
-
Handing: Handed, specify hand (field reversible)
Available Finishes
-

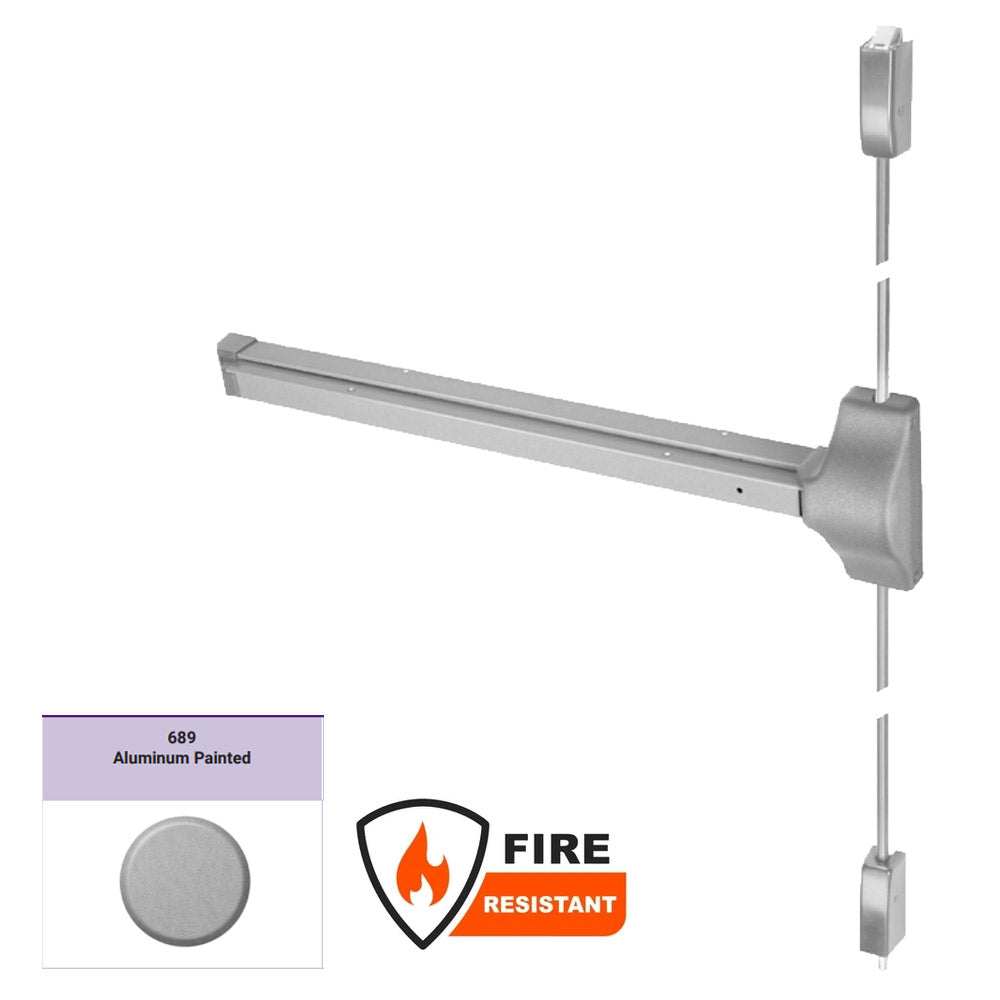

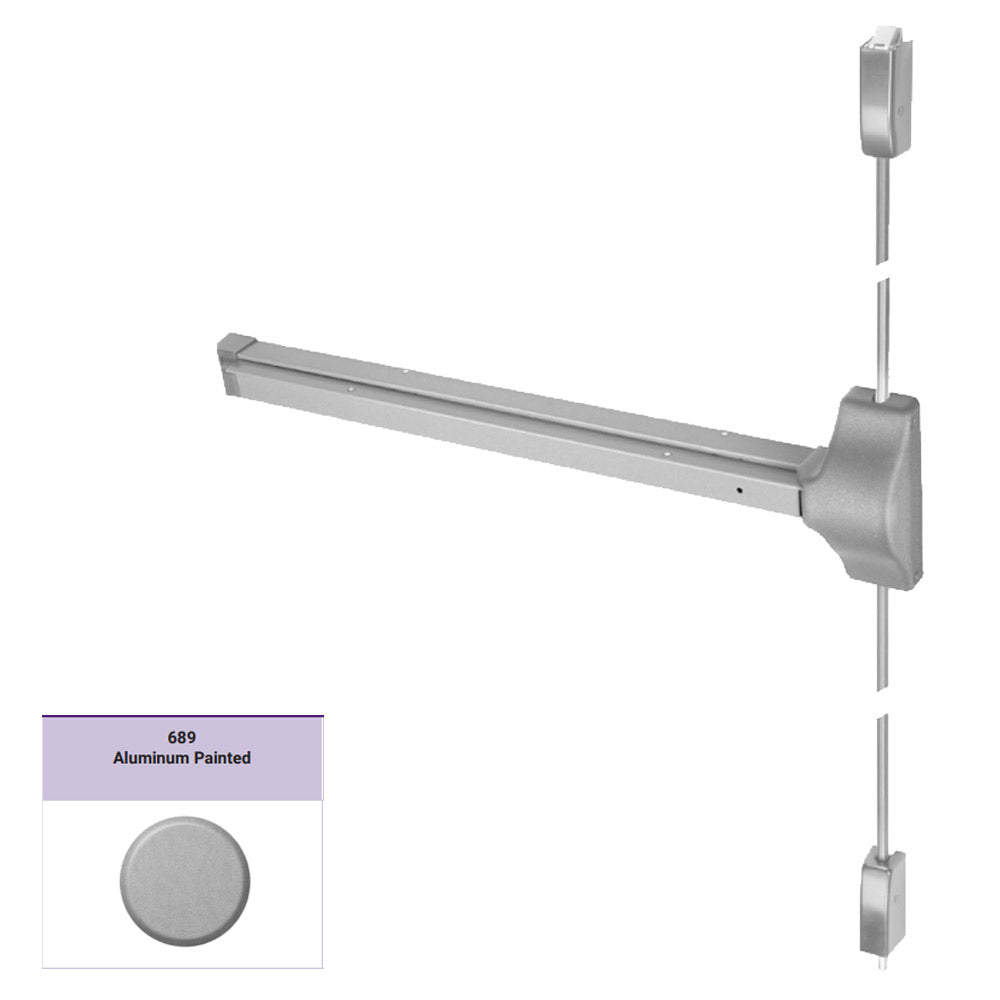

689 – Aluminum
-

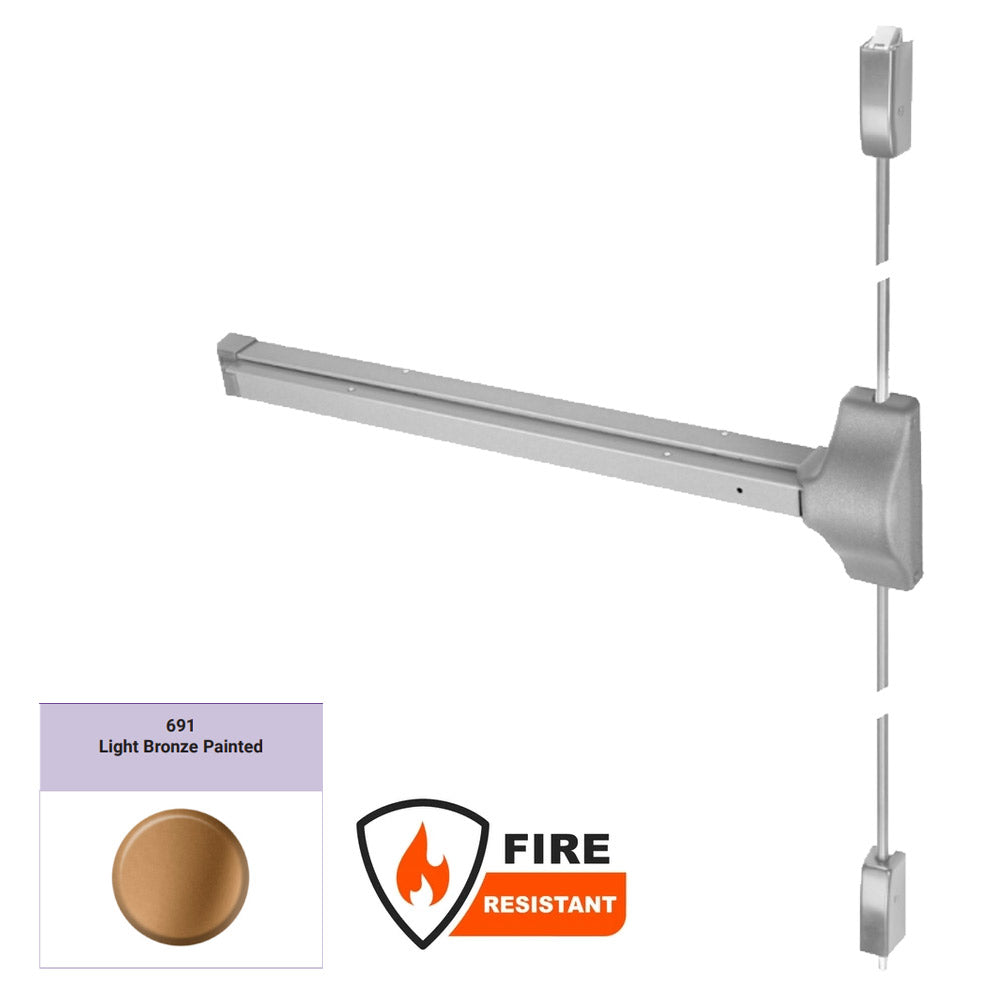

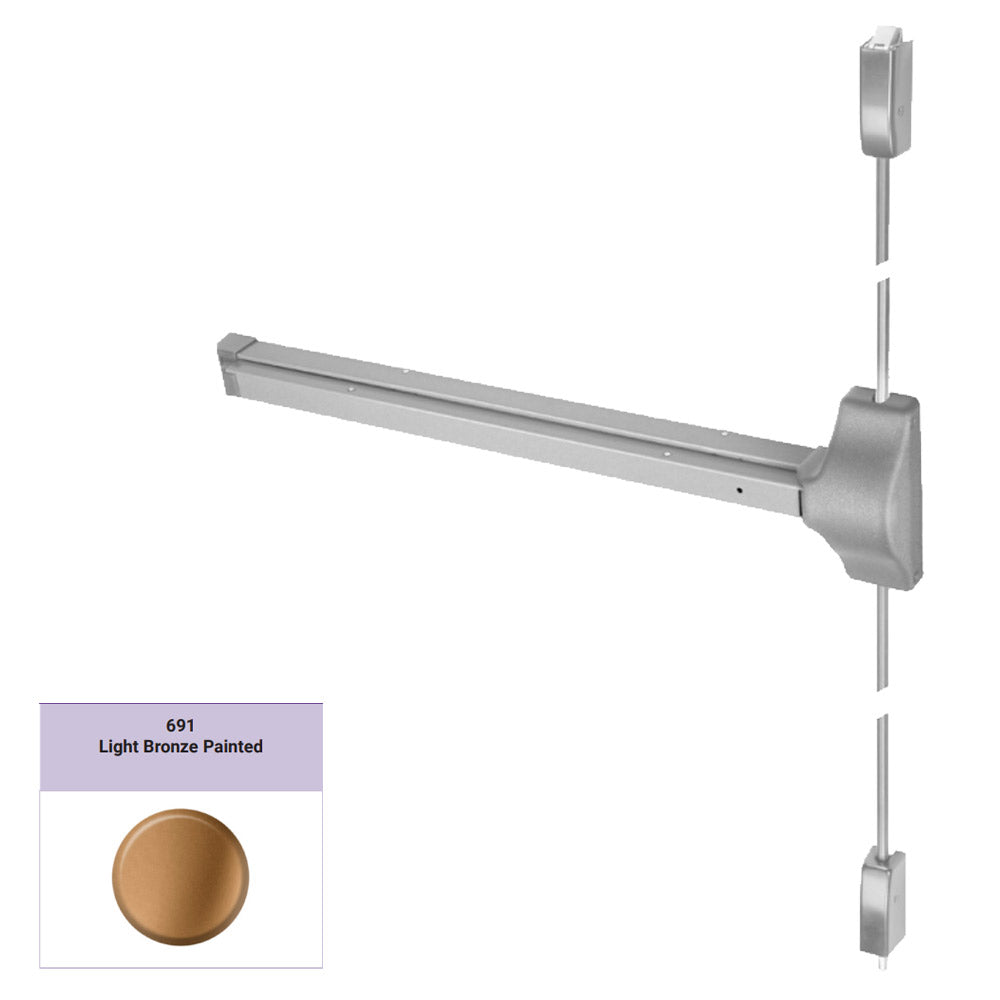

691 – Light Bronze Painted
-

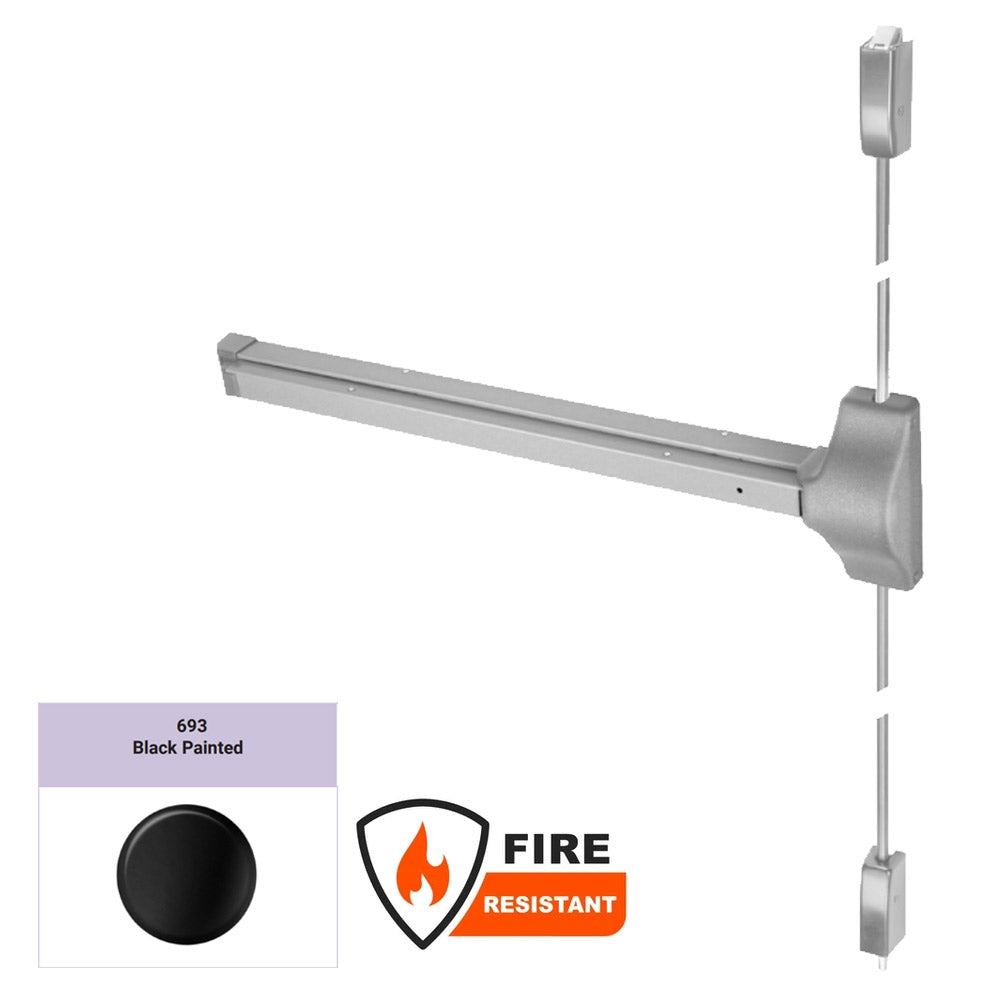

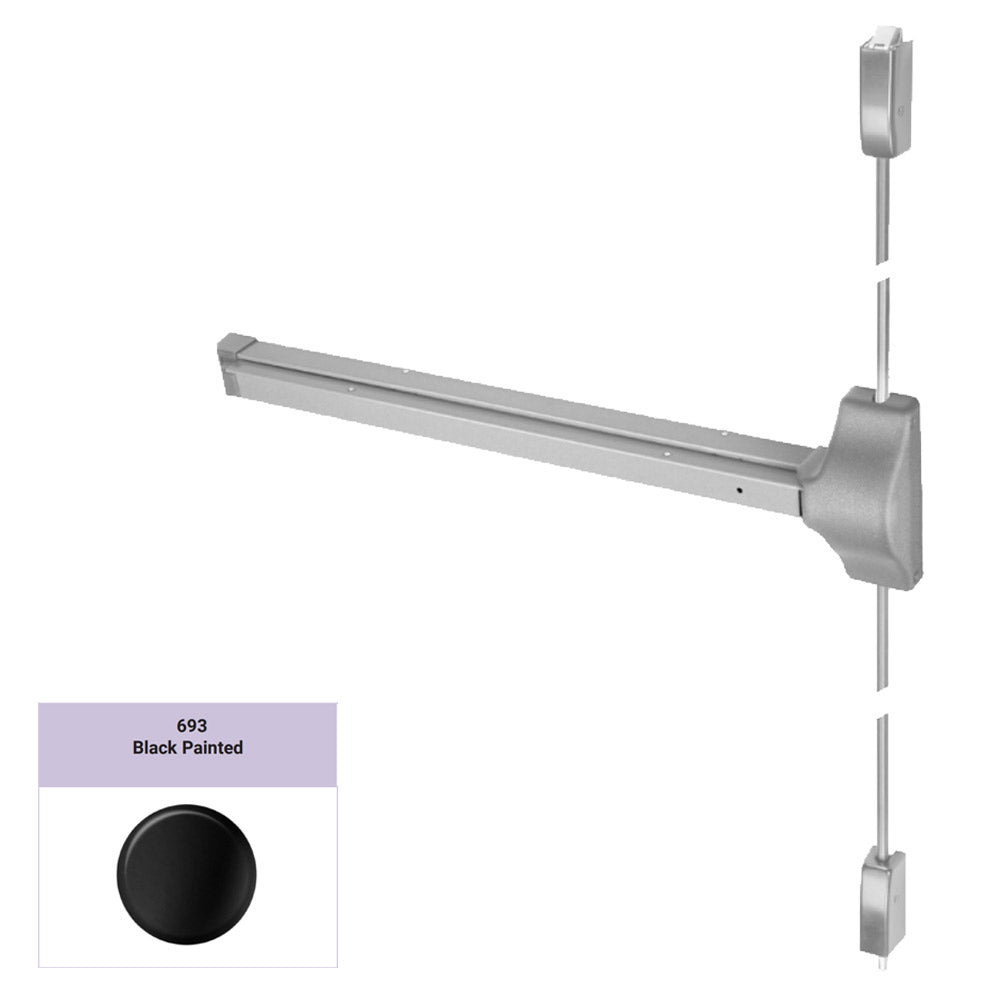

693 – Black
-

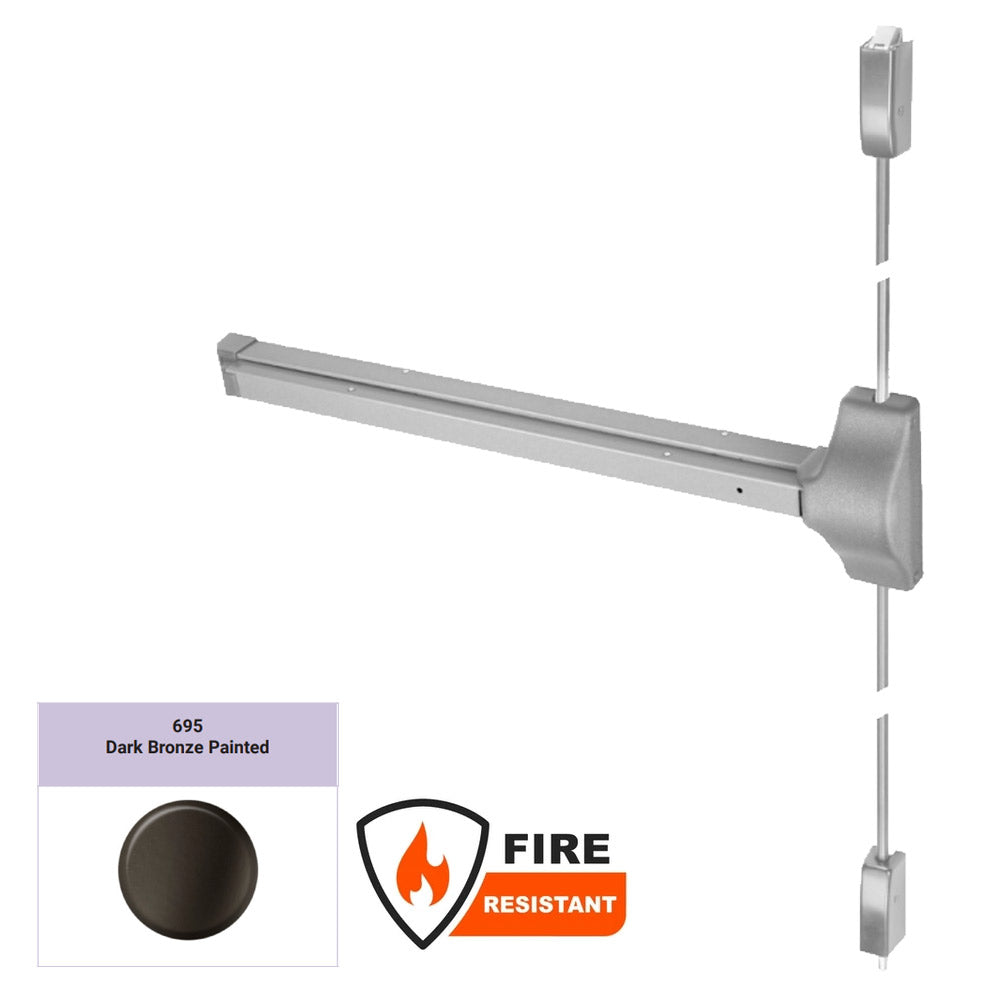

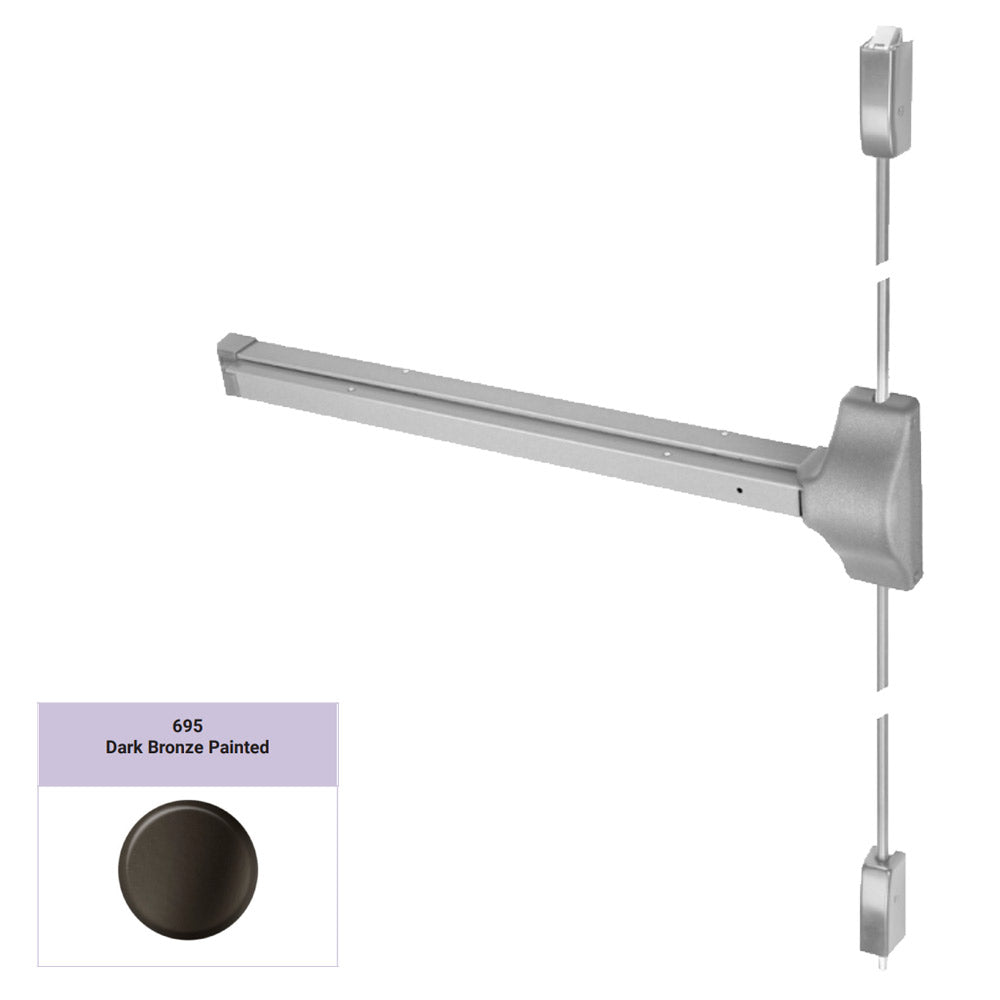

695 – Dark Bronze
✅ Reliable. Compliant. Built to Last. The Accentra 1810 Series Surface Vertical Rod Exit Device delivers the safety and durability your building demands—while ensuring smooth, secure operation every time.
