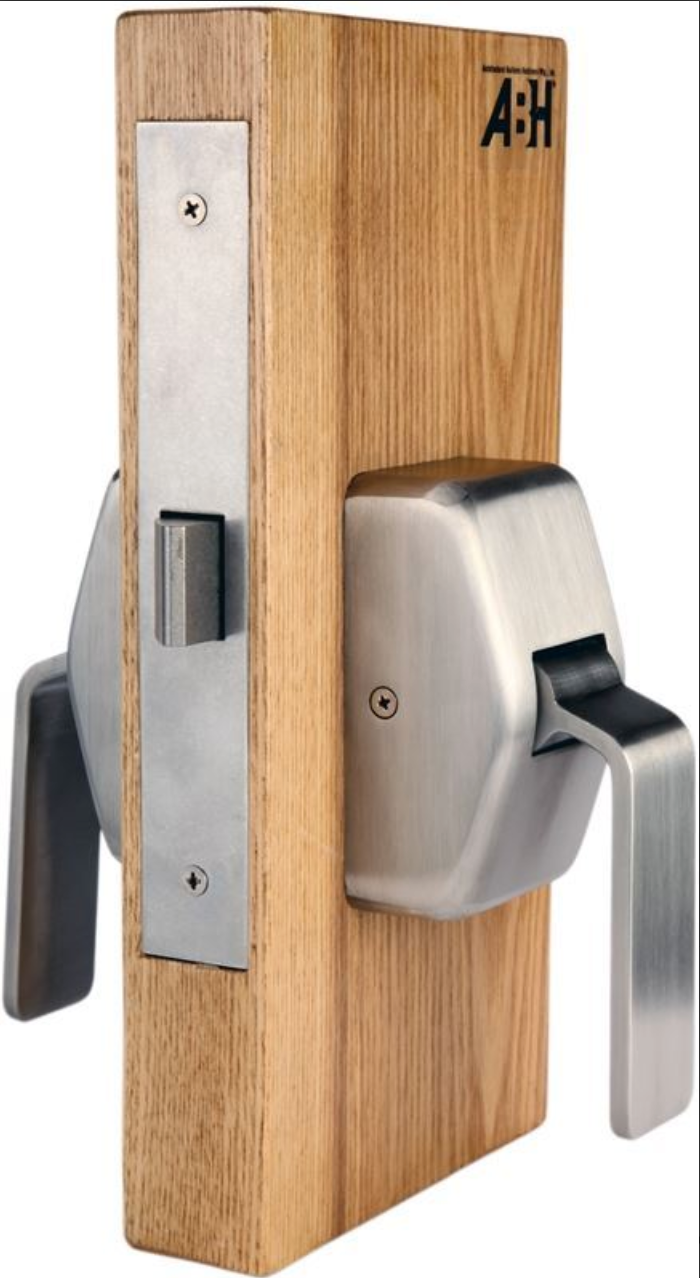

ABH 6600 Series Mortise Lock Hospital Latch

SKU: 6610-2-3/4”T-US32D
$ 435.60
  • Features:
    • Mortise lock body provided - specify function
    • Mortise lock body only available in 2-3/4" backset
    • 4-7/8" ASA strike supplied standard
    • Mortise lock cylinder and cam not provided
      • Uses clover leave-type cam - Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
      • 6 Pin Cylinder = 1-1/8" long
      • 7 Pin Cylinder = 1-1/4" long
    • 1-3/4" standard door thickness (specify if greater than 1-3/4")
    • Meets ADA requirements

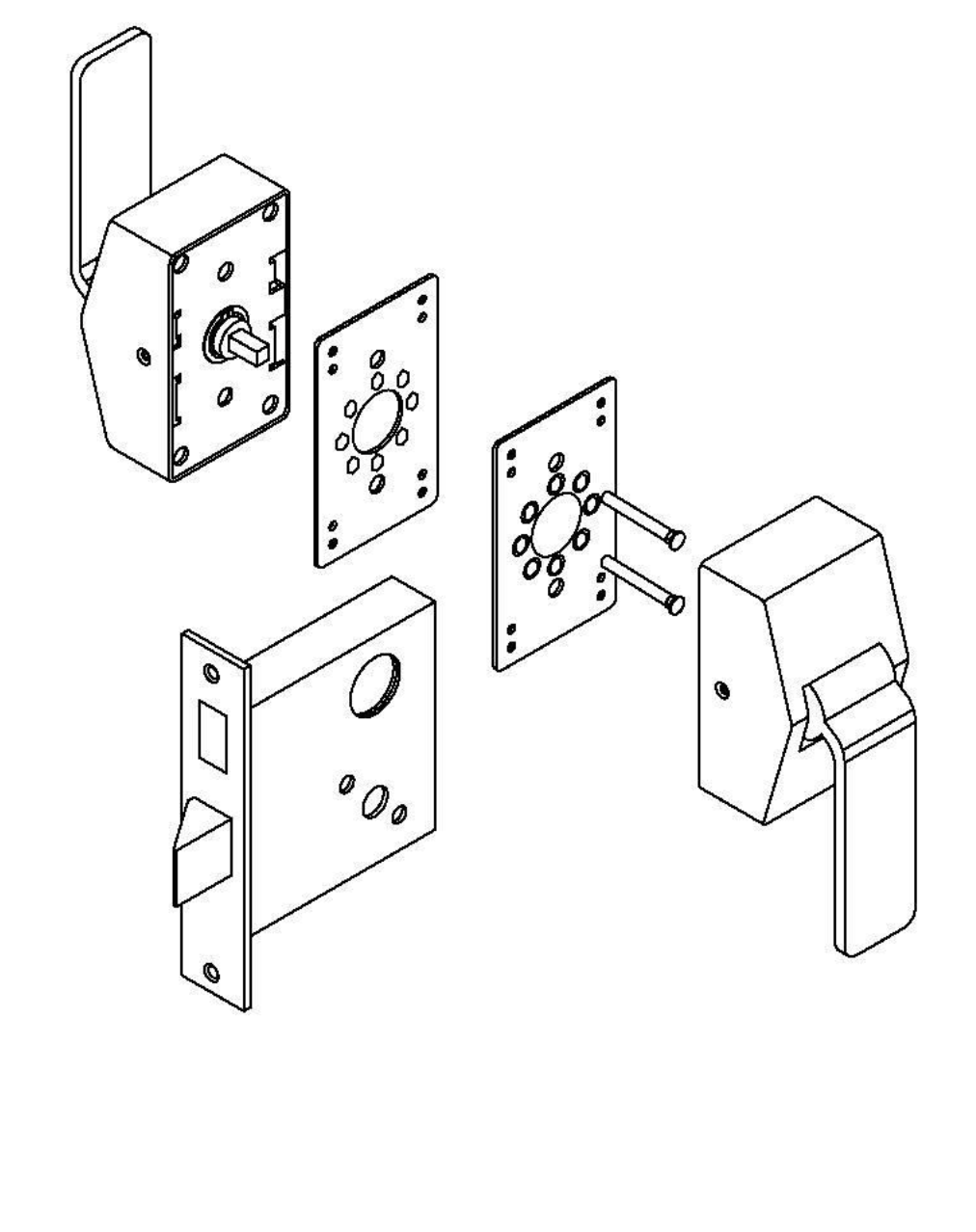

    • All mounting hardware goes through mortise lock body prep - no additional prep required
    • One continuous spring provides a smoother operation and an extended life for the unit
    • Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
    • Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
      • For ortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
    • Handles can be mounted up or down by simply rotating trim 180°
    • UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
    • 3/4" Latch Bolt Throw
    • Average weight per unit = 7 lbs
    • Patent# 5,730,478 & #6,196,599
  •  "SEC" Fasteners
  •  "THICK" Special Door Thickness
  •  "L" Lead-Lined
  •  "AM" Anti-Microbial Coating
  •  "EL" Electronically Locked
  •  "EU" Electronically Unlocked
  •  "RX" Request to Exit
  •  "H" Hip Paddle
  •  "EX" Extended Handle
  •  "X" Slip-On Handle Extension
  •  "PL" Entrance Only
  •  "PS" Exit Only
  •  "AB" Asylum Trim on Both Sides - 6200, 6600 & 6700 models (Specify B or C Knob)
  •  'PLA" Push/Pull Trim on pull side and Asylum Knob on push side (Specify B or C Knob) - 6600 or 6700
  •  "PSA" Push/Pull Trim on push side and Asylum Knob on pull side (Specify B or C Knob) - 6600 or 6700
  •  "J" Junior Cover
  •  "RC" Round Cover

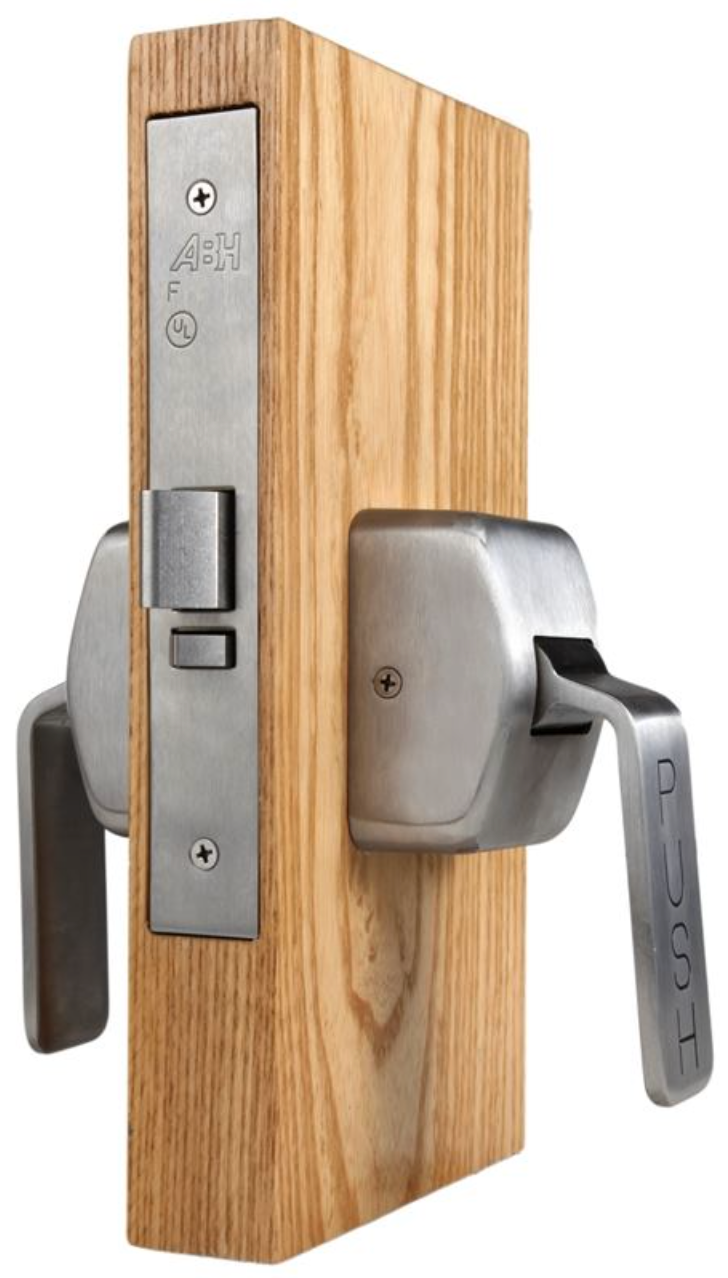

  •  "P" Engraved Handles "PUSH" or "PULL"
