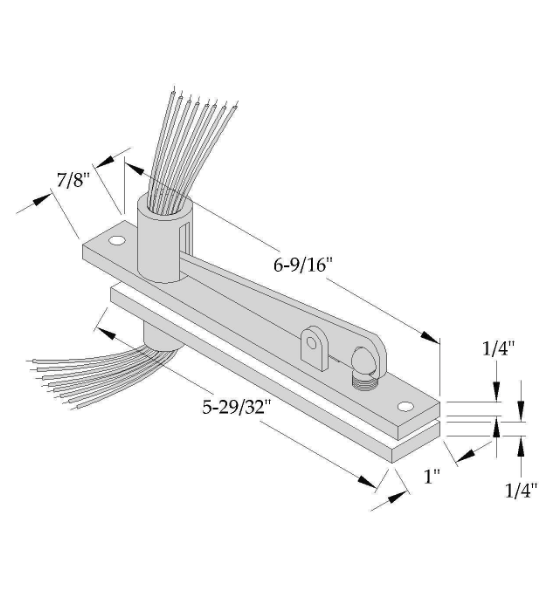

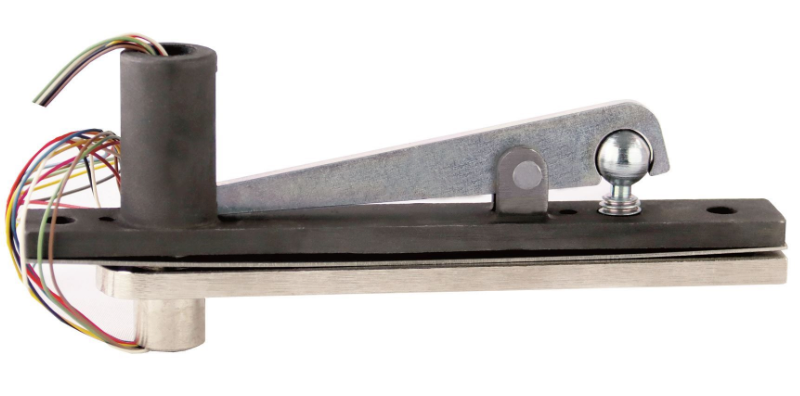

ABH E0320 Electrified Top Pivot - Center Hung

SKU: E0320-RH-US32D
$ 271.15
  • Features:
    • Provides electrical power transfer from the frame to the door
      • (8) 30 AWG Wires
    • Medium Duty
    • Mortises into header and top of the door
    • Dress plate provided for jamb portion
    • Non-Handed
    • Average weight per unit = 2.25 lbs
  •  "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  •  "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  •  "EZ" Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
  •  "SEC" Fasteners
