Home » ABH E0340 Electrified Top Pivot - Center Hung
ABH

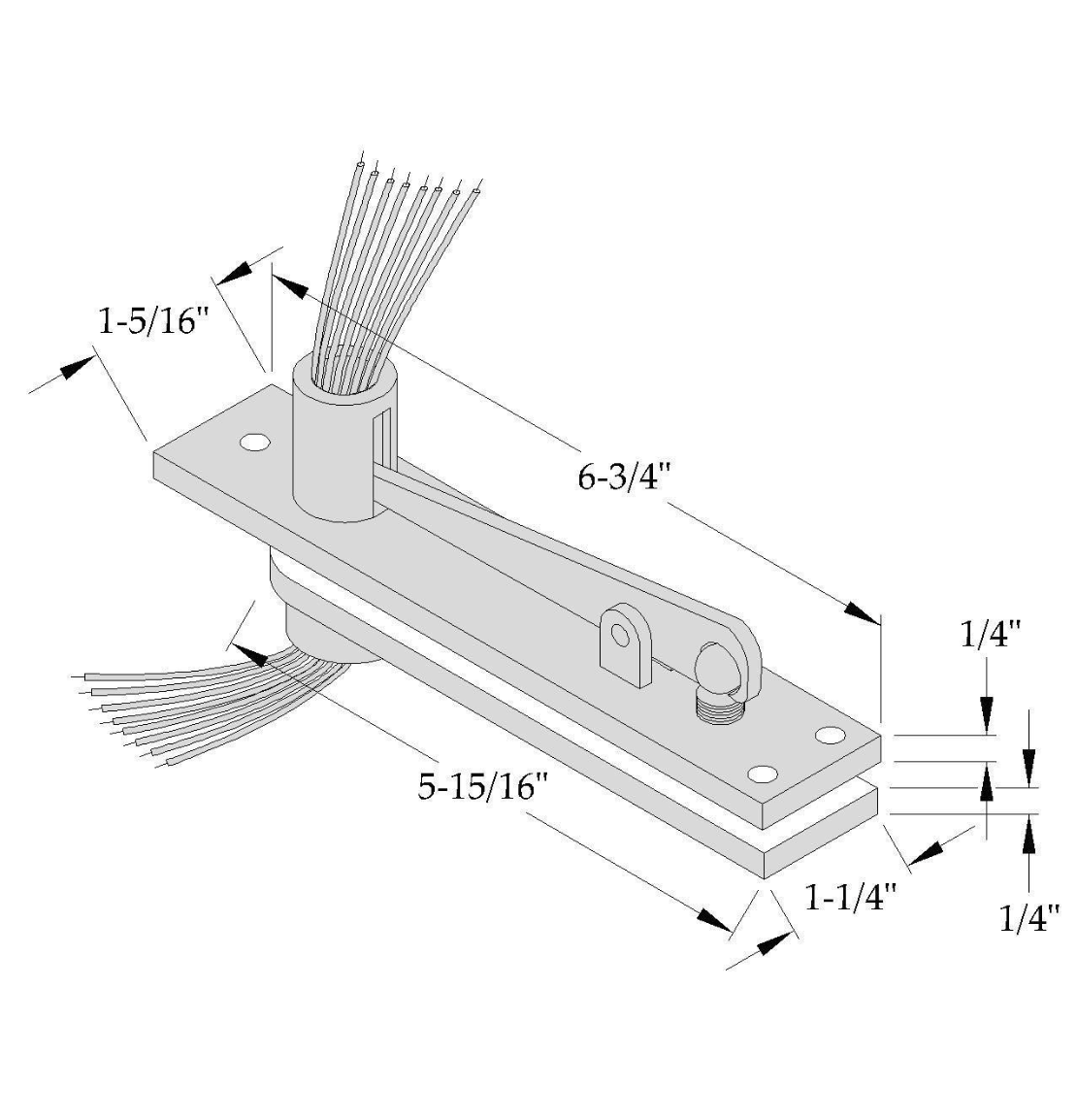

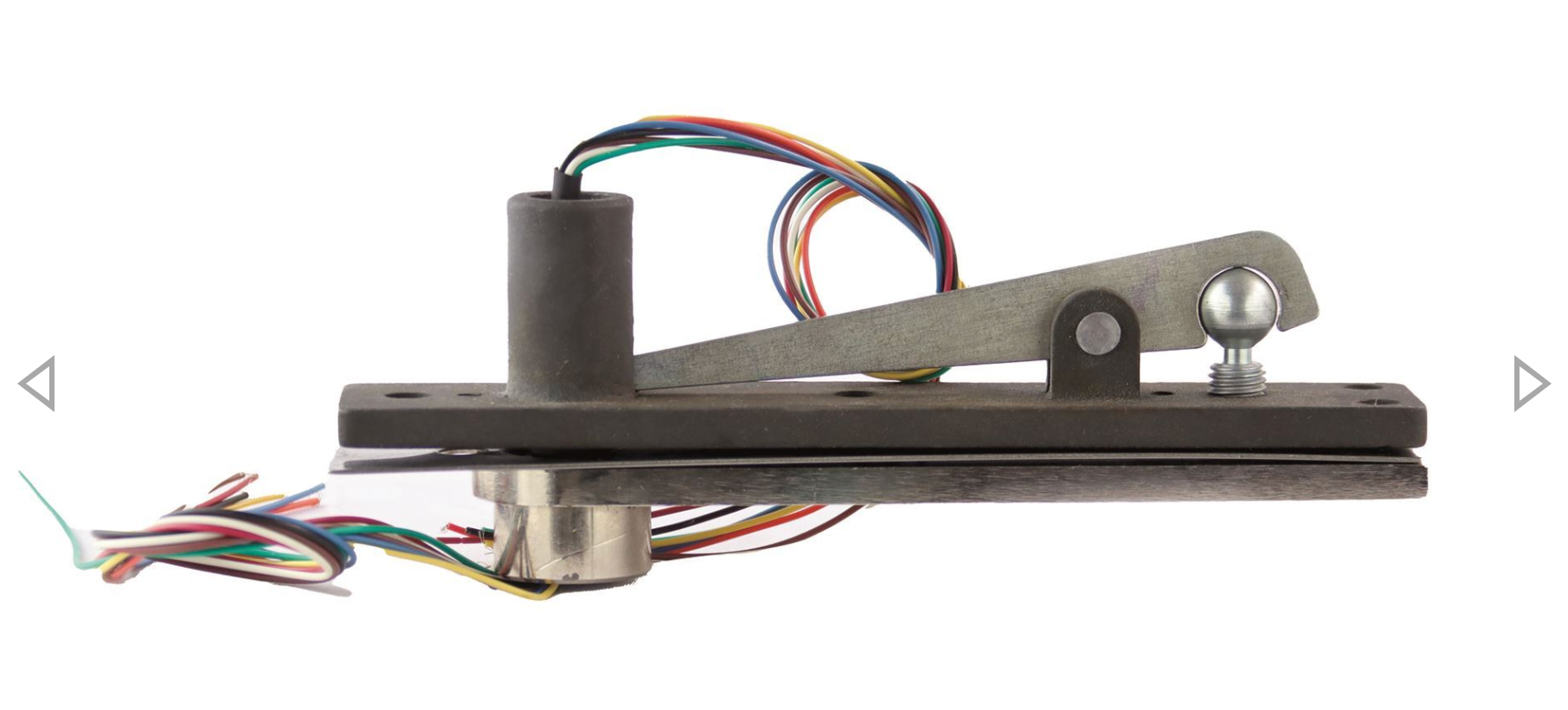

ABH E0340 Electrified Top Pivot - Center Hung

SKU: E0340-RH-US10
$ 348.70
  • Features:
    • Provides electrical power transfer from the frame to the door
      • (8) 30 AWG Wires
    • Heavy Duty
    • Mortises into header and top of the door
    • Dress plate provided for jamb portion
    • Non-Handed
    • Average weight per unit = 2 lbs
  •  "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  •  "EZ" Add Molex® Microft 3.0 “EZ” Connectors to Electrifed Pivots
  •  "SEC" Fasteners
