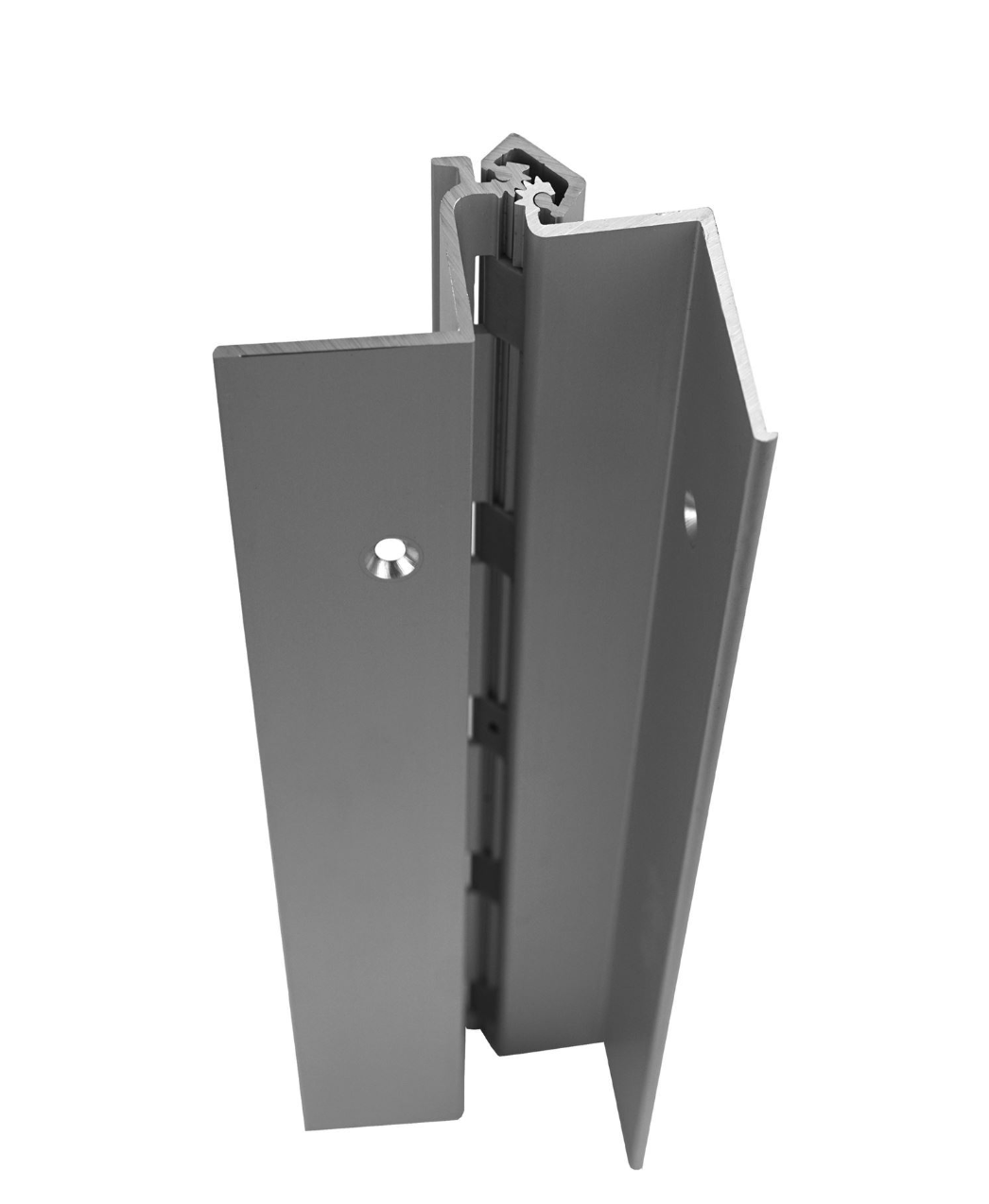

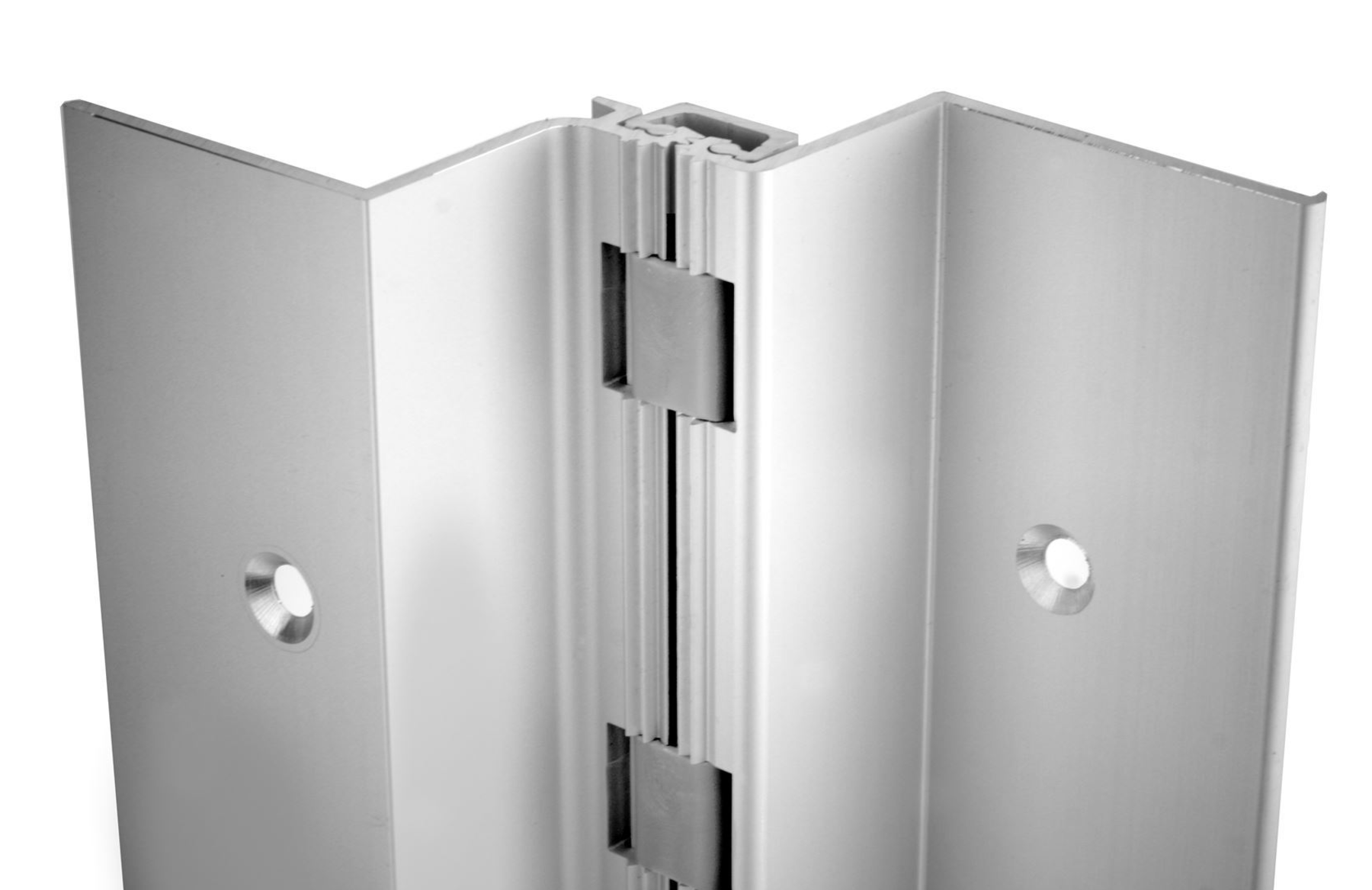

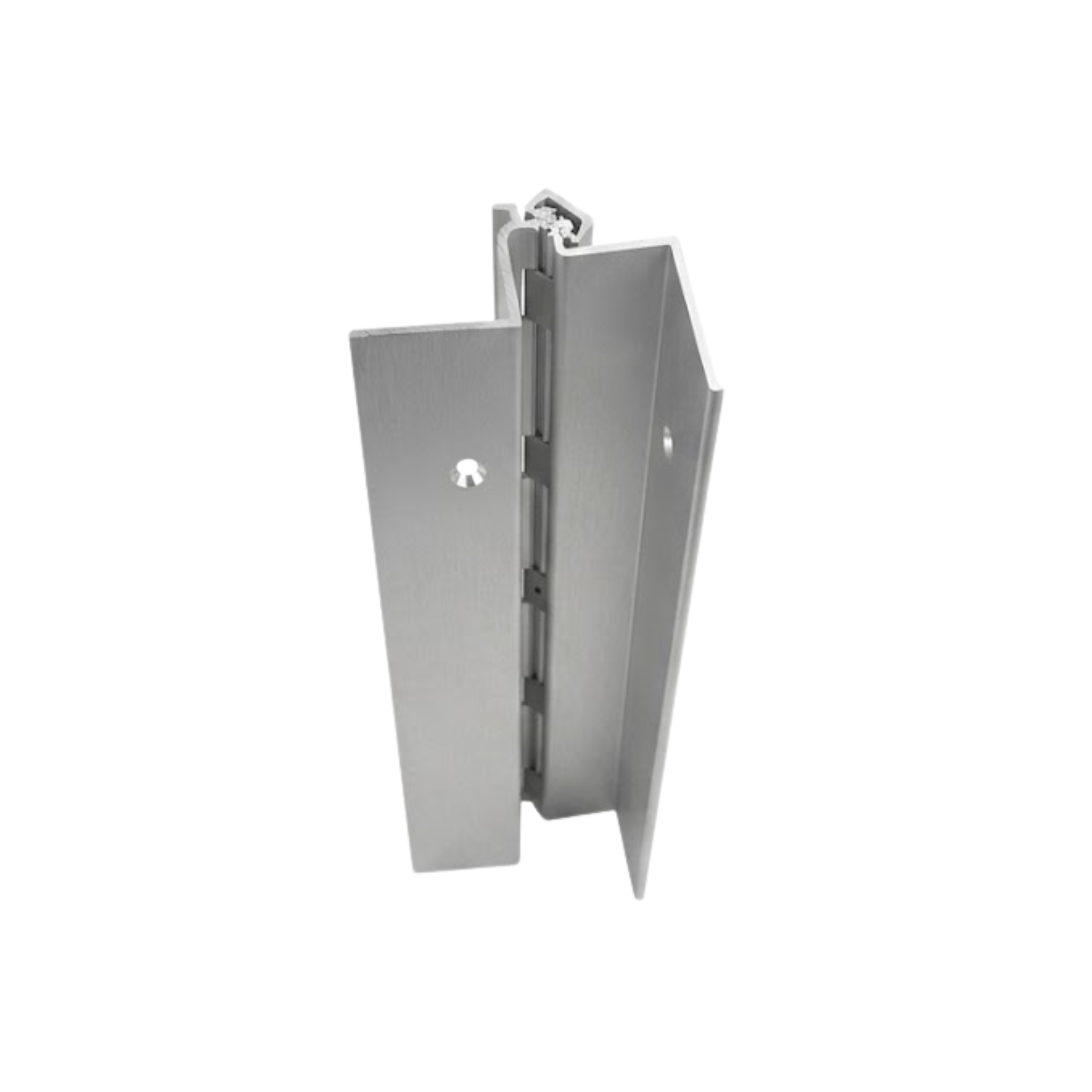

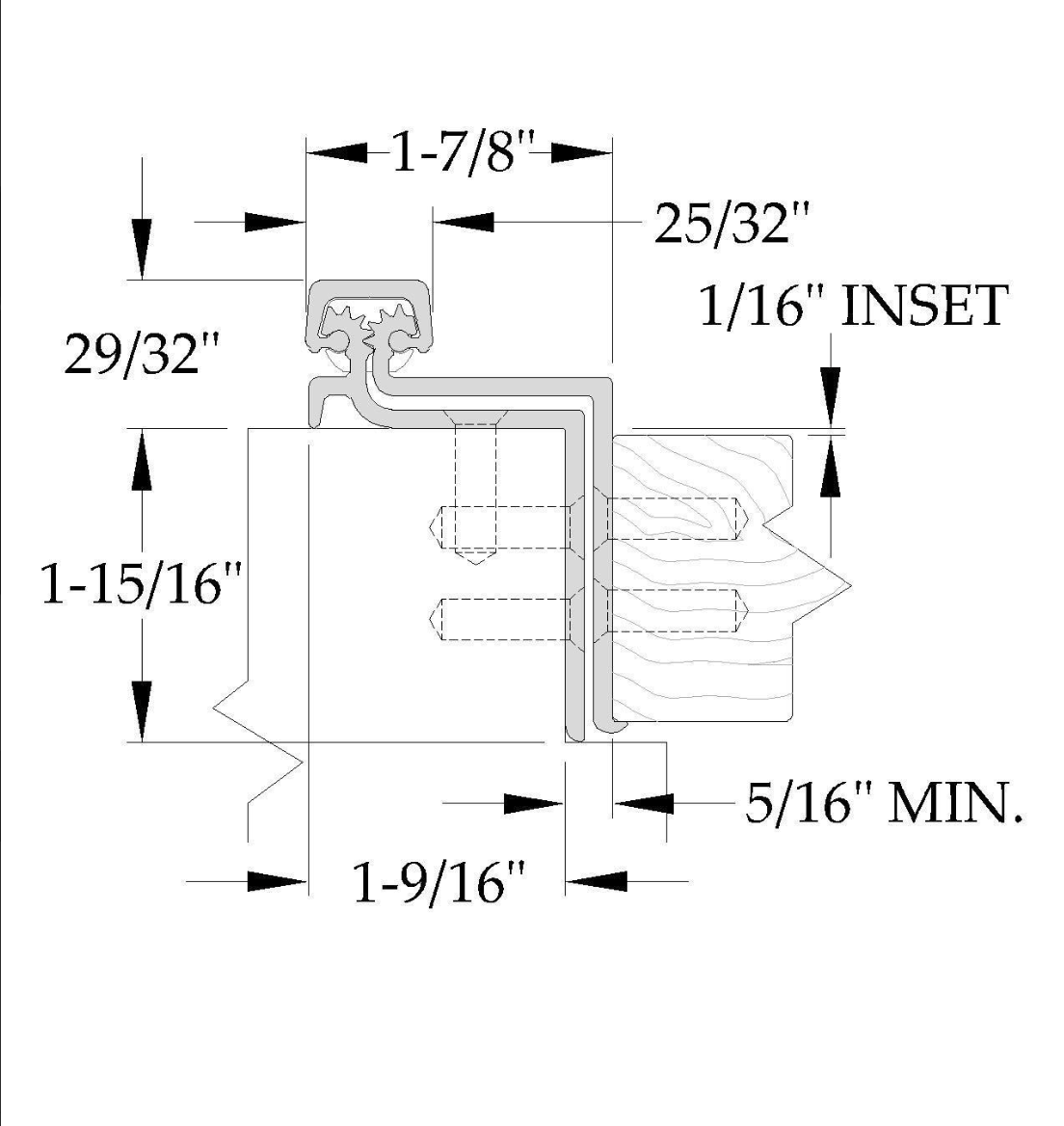

ABH A410LL Aluminum Continuous Gear Hinges Full Mortise Swing Clear

SKU: A410LL-C079
$ 140.80
  • BHMA Grade 1
  • Full Concealed, Heavy Duty
  • No Door Inset, Flush Mount
  • Swing Clear application
  • Door edge protection lip
  • For use on 1-3/4" thick door, squared edged only
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Average weight per unit = 14 lbs
  • "LL" model for doors up to 1,000 lbs (lead-lined staggered hole pattern)

  • Fasteners:
    12-24 X 3/4" undercut self drilling, thread forming tek machine screws

  • Standard Lengths:
    79", 83", 85", 95" and 120" + Custom Sizes Available

  • Fire Rating:
    • Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating)
    • Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy "FR" option for 90 minute rating)

  • Reinforcement:
    • Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
    • Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.
  •  "PT" Electrical Power Transfer Prep (Specify Electrical Power Transfer Model, Location & Handing
  •  "EM" Concealed Electrical Magnetic Monitoring Switch
  •  "ES" Exposed Electrical Monitoring Switch
  •  "FR" Fire Studs
  •  "WEDGE-FM" Adjustable Safety Wedge for Full Mortise Models
  •  "LR-BEAR" Ligature-Resistant Bearings
  •  "DD" Dutch Door Prep
  •  "SEC" Fasteners
  •  "CUT" Cut to Custom Length
  •  "SC" School Cap
  •  "SPLICE" Spliced Hinge
  •  "SL" - Sheared Leaf
  •  "THICK" Special Door Thickness
  •  "CUSTOM HOLE" Custom hole locations

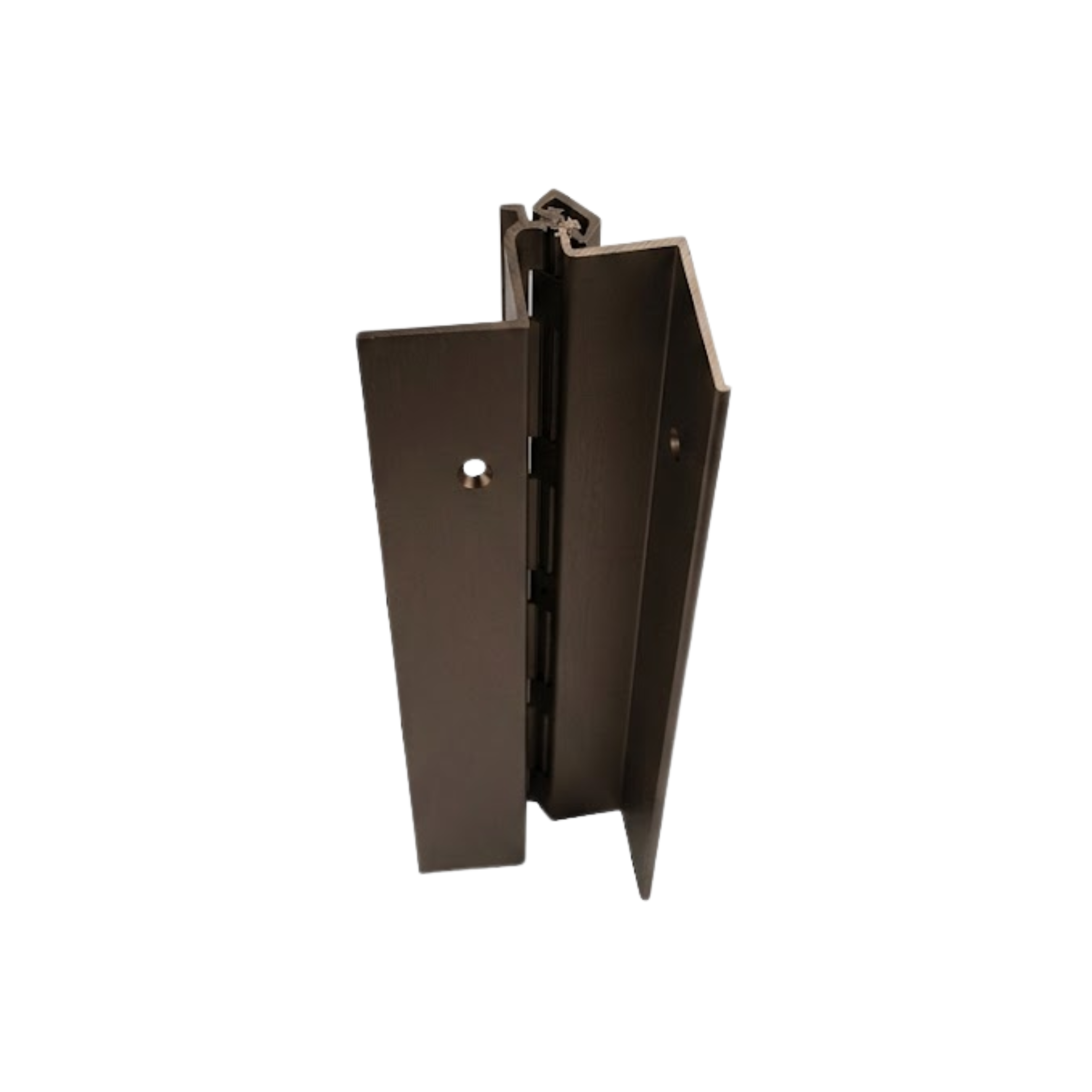

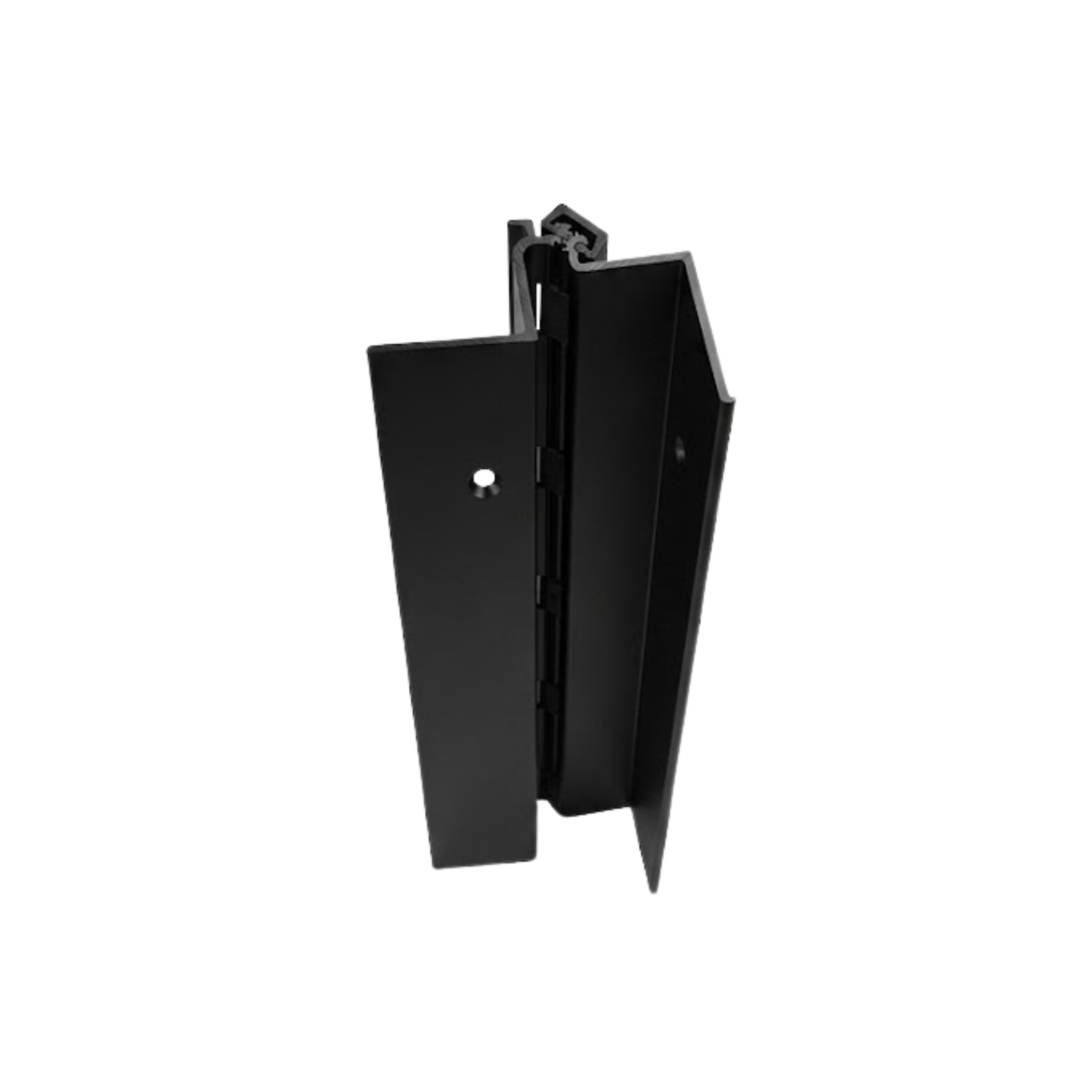

  •  "CUSTOM FINISH"
  • No Inset For Lead Lined Doors Swing Clear
