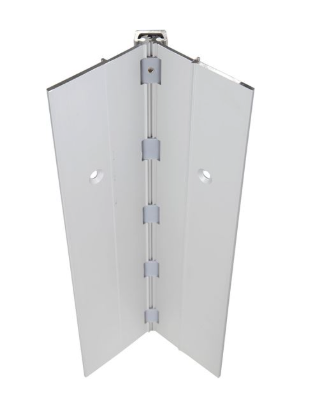

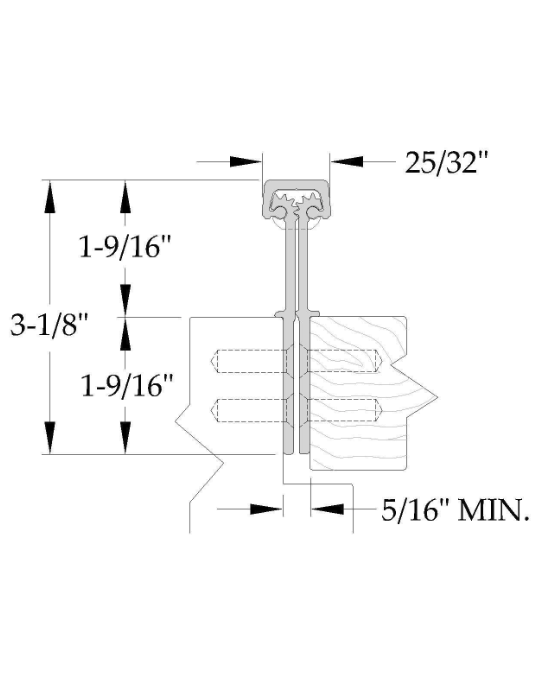

ABH A110WT Wide Throw Aluminum Continuous Hinge Full Mortise

• Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating)
• Approved for use on wood swinging type fire doors rated up to and including 60 minutes (Specifiy "FR" option for 90 minute rating)



• Door Side: Not required for door weight up to 200 lbs. ABH recommends a minimum 12 gauge plate/channel for heavier doors.
• Frame Side: Not required for door weight up to 200 lbs. For doors more than 200 lbs., a 16 gauge channel is recommended.

•  "EA-12" Easy Access (12) 22 AWG Super Flex Ribbon Through Wire
•  "EA12-EZ" Easy Access (12) 22 AWG Super Flex Ribbon Through Wire with EZ Connectors
•  "R" Removable Electrical Access Prep
•  "PT" Electrical Power Transfer Prep (Specify Electrical Power Transfer Model, Location & Handing
•  "EM" Concealed Electrical Magnetic Monitoring Switch
•  "ES" Exposed Electrical Monitoring Switch
•  "FR" Fire Studs
•  "LR-BEAR" Ligature-Resistant Bearings
•  "DD" Dutch Door Prep
•  "SEC" Fasteners
•  "CUT" Cut to Custom Length
•  "TR" Tamper-Resistant (Hospital Tip, Every Other Bearing has a Set Screw) & Security Fasteners (Specify Door & Frame Material)
•  "SC" School Cap
•  "SPLICE" Spliced Hinge
•  "THICK" Special Door Thickness
•  "CUSTOM HOLE" Custom hole locations
•  "CUSTOM FINISH"
