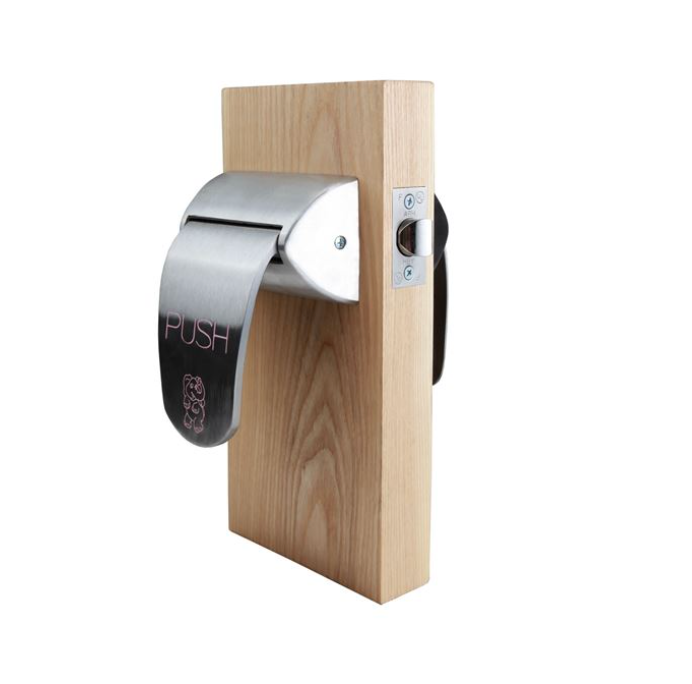

Ligature-resistant wide paddle cylindrical hospital latch providing sleek appearance and enhanced safety for behavioral health applications with continuous spring operation.
Key Features
- Ligature-Resistant Design
- Wide Paddle Configuration
- Continuous Spring Operation
- Non-Handed Installation
- UL Listed
- Backset and strike are selected from the product options
Additional Information
Trim mountable vertical or horizontal. Handles can be mounted up or down by rotating 180°.
Technical Specifications
| Model Numbers | LR602T, LR602A, LR603T, LR603A, LR605T, LR605A, LR607T, LR607A |
| Material | Stainless steel |
| Finishes | US3, US4, US9, US10, US10B, US26, US32, US32D, S4/BSPC, Custom Finishes Available |
| Door Thickness | 1-3/4" standard |
| Bolt Throw | 1/2" latch bolt throw |
| Latch Function | Cylindrical passage function |
| Weight | 6 lbs. average per unit |
| Mounting | Four thru-bolts for maximum stability |
| Fire Rating | UL Listed for use on 90-minute fire door assemblies up to 4'0" × 8'0" |
| LR602T | T Strike |
| LR602A | ASA Strike |
| LR603T | T Strike |
| LR603A | ASA Strike |
| LR605T | T Strike |
| LR605A | ASA Strike |
| LR607T | T Strike |
| LR607A | ASA Strike |
Available Options
- SEC – Security Fasteners for all exposed screws (Standard on 6200)
- THICK – For 1-3/8" or 2-1/4" thick door (Mortise only offered for 2-1/4")
- L – Lead provided to cover cut-outs made in lead-lined doors
- AM – Anti-microbial clear coating applied to handles and covers
- CN – Copper/Nickel Natural Anti-microbial metal alloy provided for handles and covers
- EL – Electrically Locking Mortise Lock Body (6641, 6658, LR6641 & LR6658 only)
- EU – Electrically Unlocking Mortise Lock Body (6641, 6658, LR6641 & LR6658 only)
- RX – Request to Exit for Electrified Mortise Locks
- H – Hip Paddle for Push Side only
- EX – 6" Solid Extended Handle (Specify Push or Pull)
- X – Aluminum Slip-On Handle Extension (Specify model)
- PL – Exit Only plate on push side & standard Push/Pull trim on pull side
- PS – Exit Only plate on pull side & standard Push/Pull trim on push side
- M – Security Plate for Exit Only to Prevent Latch Tampering
- AB – Asylum Knob on both door sides - 6200, 6600 & 6700 models (Specify B or C Knob)
- PLA – Push/Pull Trim on pull side and Asylum Knob on push side (Specify B or C Knob) - 6600 or 6700
- PSA – Push/Pull Trim on push side and Asylum Knob on pull side (Specify B or C Knob) - 6600 or 6700
- FM – Flush Mount Asylum Trim (Cylindrical Latch only)
- J – Junior Cover 3-1/2" x 2-3/4"
- RC – Round Covers (Standard for 6800Q model)
- F – Flip-Up Handle for ligature-resistant on push side (LR6000, LR6600 & LR6700 only)
- ETCHING OPTIONS –
- P1 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Down / Non-Handed
- P2 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Up / Non-Handed
- P3 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Up / Non-Handed
- P4 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Down / Non-Handed
- P5 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Right-Handed
- P6 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Left-Handed
- P7 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Right-Handed, 7" Backset Only
- P8 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Left-Handed, 7" Backset Only
- P9 – Standard 'PUSH' laser etched - Push Up / Single Handle Only
- P10 – Standard 'PUSH' laser etched - Push Down / Single Handle Only
- P11 – Standard 'PULL' laser etched - Pull Up / Single Handle Only
- P12 – Standard 'PULL' laser etched - Pull Down / Single Handle Only
Documents & Spec Sheets
Cut Sheets
- LR6000 Cut Sheet (PDF)
Templates
Product Selection Tools
- Cross Reference 2025 (PDF)
Installation Resources & Tech Info
Forms
- Custom Strike Order Form (PDF)
- Substitution Request Form (PDF)
Models
- LR602T – Push / Pull Trim / Cylindrical / 2.75"Latch / T-Strike
- LR602A – Push / Pull Trim / Cylindrical / 2.75" Latch / ASA Strike
- LR603T – Push / Pull Trim / Cylindrical / 3.75" Latch / T-Strike
- LR603A – Push / Pull Trim / Cylindrical / 3.75" Latch / ASA Strike
- LR605T – Push / Pull Trim / Cylindrical / 5" Latch / T-Strike
- LR605A – Push / Pull Trim / Cylindrical / 5" Latch / ASA Strike
- LR607T – Push / Pull Trim / Cylindrical / 7" Latch / T-Strike
- LR607A – Push / Pull Trim / Cylindrical / 7" Latch / ASA Strike
Pricing per ABH Price List No. 15. Contact us for custom sizes and options.
