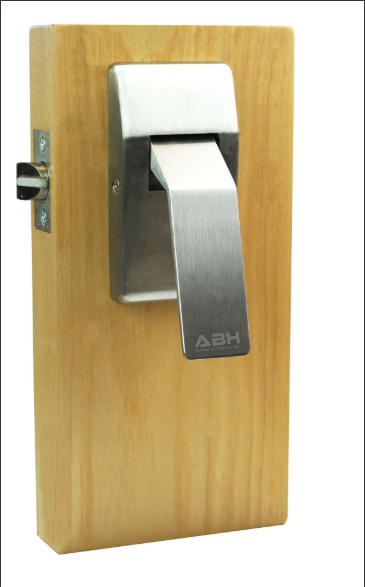

Exit only cylindrical low profile hospital push/pull latch providing one-way egress for applications requiring controlled access with emergency exit capability.
Key Features
- Exit Only Function
- Low Profile Design
- Cylindrical Operation
- One-Way Egress
- Emergency Exit Capability
- Backset and strike are selected from the product options
- UL Listed for use on 90-minute fire door assemblies up to 4'0" × 8'0"
Additional Information
Specify backset and strike.
Technical Specifications
| Model Numbers | 6840, 6841, 6842, 6844, 6843, 6845, 6846, 6847 |
| Material | Stainless steel |
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S4/BSPC, Custom Finishes Available |
| Door Thickness | 1-3/4" standard |
| Weight | 5 lbs. average per unit |
| Mounting | Four thru-bolts for maximum stability |
| 6840 | Push Down LH |
| 6842 | Pull Down LH |
| 6844 | Push Up LH |
| 6846 | Pull Up LH |
| 6841 | Push Down RH |
| 6843 | Pull Down RH |
| 6845 | Push Up RH |
| 6847 | Pull Up RH |
Available Options
- SEC – Security Fasteners for all exposed screws (Standard on 6200)
- ETCHING OPTIONS –
- P1 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Down / Non-Handed
- P2 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Up / Non-Handed
- P3 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Up / Non-Handed
- P4 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Down / Non-Handed
- P5 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Right-Handed
- P6 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Left-Handed
- P7 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Right-Handed, 7" Backset Only
- P8 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Left-Handed, 7" Backset Only
- P9 – Standard 'PUSH' laser etched - Push Up / Single Handle Only
- P10 – Standard 'PUSH' laser etched - Push Down / Single Handle Only
- P11 – Standard 'PULL' laser etched - Pull Up / Single Handle Only
- P12 – Standard 'PULL' laser etched - Pull Down / Single Handle Only
Documents & Spec Sheets
Cut Sheets
- 6840 Cut Sheet (PDF)
Templates
Product Selection Tools
- Cross Reference 2025 (PDF)
Forms
- Custom Strike Order Form (PDF)
- Substitution Request Form (PDF)
Models
- 6840 – Push Down LH / 2.75", 3.75", 5", 7" Latch
- 6842 – Pull Down LH / 2.75", 3.75", 5", 7" Latch
- 6844 – Push Up LH / 2.75", 3.75", 5", 7" Latch
- 6846 – Pull Up LH / 2.75", 3.75", 5", 7" Latch
- 6841 – Push Down RH / 2.75", 3.75", 5", 7" Latch
- 6843 – Pull Down RH / 2.75", 3.75", 5", 7" Latch
- 6845 – Push Up RH / 2.75", 3.75", 5", 7" Latch
- 6847 – Pull Up RH / 2.75", 3.75", 5" Latch
Pricing per ABH Price List No. 15. Contact us for custom sizes and options.
