Reverse latch for time-out rooms and behavioral settings with latch bolt retracted until handle activation, ideal for specialized institutional applications.
Key Features
- Reverse Latch Operation
- Time-Out Room Applications

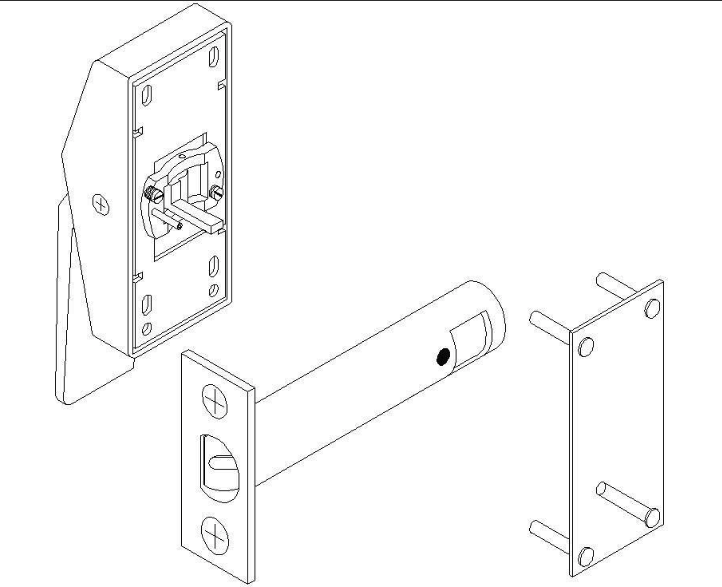

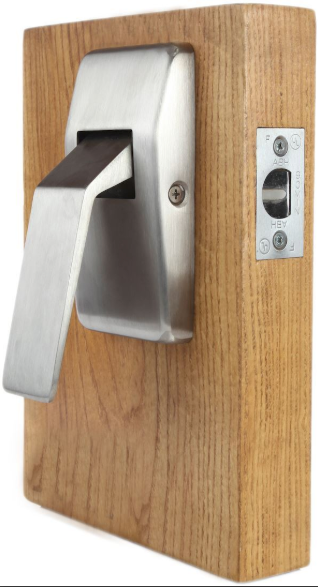

- Push/pull handle on one side, flat plate on other
- Behavioral Setting Design
- Latch bolt retracted until handle activated
- Cylindrical reverse latch passage function
- Linear Acting Cam
- Backset and strike are selected from the product options
- UL Listed for use on 90-minute fire door assemblies up to 4'0" × 8'0"
Additional Information
Specify backset and strike.
Technical Specifications
| Model Numbers | 6830, 6832, 6834, 6836, 6831, 6833, 6835, 6837 |
| Material | Stainless steel |
| Finishes | US3, US4, US9, US10, US10B, US32, US32D, S4/BSPC, Custom Finishes Available |
| Door Thickness | 1-3/4" standard |
| Weight | 4.25 lbs. average per unit |
| Bolt Throw | 1/2" latch bolt throw |
| Mounting | Four thru-bolts for maximum stability |
| 6830 | Push Down LH |
| 6832 | Pull Down LH |
| 6834 | Push Up LH |
| 6836 | Pull Up LH |
| 6831 | Push Down RH |
| 6833 | Pull Down RH |
| 6835 | Push Up RH |
| 6837 | Pull Up RH |
Available Options
- SEC – Security Fasteners for all exposed screws (Standard on 6200)
- L – Lead provided to cover cut-outs made in lead-lined doors
- AM – Anti-microbial clear coating applied to handles and covers
- H – Hip Paddle for Push Side only
- EX – 6" Solid Extended Handle (Specify Push or Pull)
- X – Aluminum Slip-On Handle Extension (Specify model)
- RC – Round Covers (Standard for 6800Q model)
- P – Engraved Handles "PUSH" or "PULL"
- ETCHING OPTIONS –
- P1 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Down / Non-Handed
- P2 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Up / Non-Handed
- P3 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Up / Non-Handed
- P4 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Down / Non-Handed
- P5 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Right-Handed
- P6 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Left-Handed
- P7 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Right-Handed, 7" Backset Only
- P8 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Left-Handed, 7" Backset Only
- P9 – Standard 'PUSH' laser etched - Push Up / Single Handle Only
- P10 – Standard 'PUSH' laser etched - Push Down / Single Handle Only
- P11 – Standard 'PULL' laser etched - Pull Up / Single Handle Only
- P12 – Standard 'PULL' laser etched - Pull Down / Single Handle Only
Documents & Spec Sheets
Cut Sheets
- 6830 Cut Sheet (PDF)
Templates
Product Selection Tools
- Cross Reference 2025 (PDF)
Installation Resources & Tech Info
Forms
- Custom Strike Order Form (PDF)
- Substitution Request Form (PDF)
Models
- 6830 – Push Down LH / 2.75", 3.75", 5", 7" Latch
- 6832 – Pull Down LH / 2.75", 3.75", 5", 7" Latch
- 6834 – Push Up LH / 2.75", 3.75", 5", 7" Latch
- 6836 – Pull Up LH / 2.75", 3.75", 5", 7" Latch
- 6831 – Push Down RH / 2.75", 3.75", 5", 7" Latch
- 6833 – Pull Down RH / 2.75", 3.75", 5", 7" Latch
- 6835 – Push Up RH / 2.75", 3.75", 5", 7" Latch
- 6837 – Pull Up RH / 2.75", 3.75", 5", 7" Latch
Pricing per ABH Price List No. 15. Contact us for custom sizes and options.
