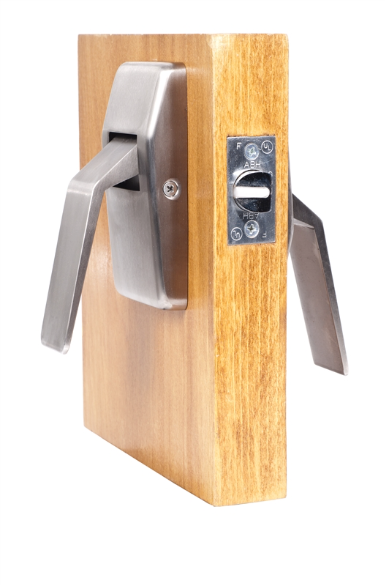

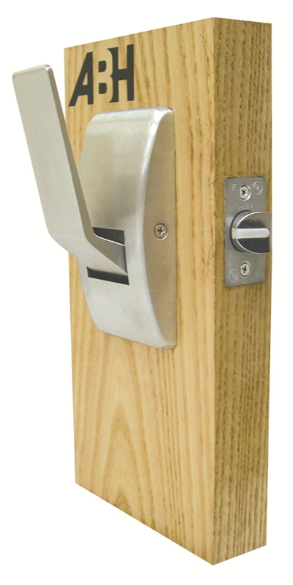

ABH 6800Q Series Quiet Low Profile Hospital Latch

Quiet, low-profile hospital latch with zero ambient noise gain, providing silent operation for patient care environments requiring minimal sound disruption.

Key Features

• Field Reversible Handing
• Zero Noise Operation
• ANSI 161 Prep
• Passage Function
• Low Profile Design
• Multiple Backset Options
• Backset and strike are selected from the product options
• UL Listed for use on 90-minute fire door assemblies up to 4'0" × 8'0"

Additional Information

CuVerro® material (CN option) provides a healthy environment solution. See www.cuverro.com for details.

Technical Specifications

Available Options

• SEC – Security Fasteners for all exposed screws (Standard on 6200)
• THICK – For 1-3/8" or 2-1/4" thick door (Mortise only offered for 2-1/4")
• L – Lead provided to cover cut-outs made in lead-lined doors
• AM – Anti-microbial clear coating applied to handles and covers
• CN – Copper/Nickel Natural Anti-microbial metal alloy provided for handles and covers
• RX – Request to Exit for Electrified Mortise Locks

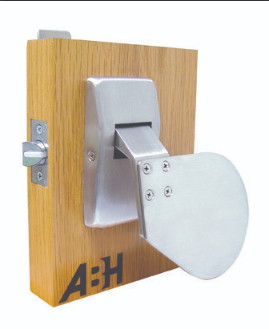

• H – Hip Paddle for Push Side only
• EX – 6" Solid Extended Handle (Specify Push or Pull)
• X – Aluminum Slip-On Handle Extension (Specify model)
• PL – Exit Only plate on push side & standard Push/Pull trim on pull side
• PS – Exit Only plate on pull side & standard Push/Pull trim on push side
• M – Security Plate for Exit Only to Prevent Latch Tampering

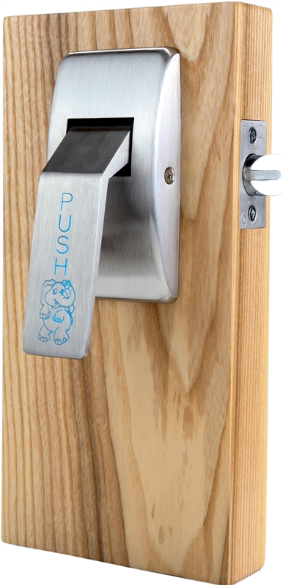

• P – Engraved Handles "PUSH" or "PULL"
• J – Junior Cover 3-1/2" x 2-3/4"
• RC – Round Covers (Standard for 6800Q model)
• ETCHING OPTIONS –
• P1 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Down / Non-Handed
• P2 – Standard 'PUSH' & 'PULL' laser etched - Push Up, Pull Up / Non-Handed
• P3 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Up / Non-Handed
• P4 – Standard 'PUSH' & 'PULL' laser etched - Push Down, Pull Down / Non-Handed
• P5 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Right-Handed
• P6 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Hinge-Side / Left-Handed
• P7 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Right-Handed, 7" Backset Only
• P8 – Standard 'PUSH' & 'PULL' laser etched - Handle Pointed Lock-Side / Left-Handed, 7" Backset Only
• P9 – Standard 'PUSH' laser etched - Push Up / Single Handle Only
• P10 – Standard 'PUSH' laser etched - Push Down / Single Handle Only
• P11 – Standard 'PULL' laser etched - Pull Up / Single Handle Only
• P12 – Standard 'PULL' laser etched - Pull Down / Single Handle Only

Documents & Spec Sheets

Cut Sheets

• 6800Q Cut Sheet (PDF)

Templates

• 6000 6800 Vertical Backset Template (PDF)
• Push/Pull Dimensional Outline Template (PDF)
• Engraving Guide for Push Pull Latches (PDF)

Product Selection Tools

• Cross Reference 2025 (PDF)
• 6800Q & LR6600 Sell Sheet - When Quiet Matters (JPG) (PDF)
• Behavioral Health (PDF)

Installation Resources & Tech Info

• 6800 Series Low Profile Installation (PDF)

Forms

• Custom Strike Order Form (PDF)
• Substitution Request Form (PDF)

Models

• 6811Q – Push Down / Pull Up LH / 2.75", 3.75", 5", 7" Latch
• 6812Q – Push Up / Pull Down LH / 2.75", 3.75", 5", 7" Latch
• 6813Q – Push Up / Pull Up LH / 2.75", 3.75", 5", 7" Latch
• 6814Q – Push Down / Pull Down LH / 2.75", 3.75", 5", 7" Latch
• 6816Q – Push Down / Pull Up RH / 2.75", 3.75", 5", 7" Latch
• 6817Q – Push Up / Pull Down RH / 2.75", 3.75", 5", 7" Latch
• 6818Q – Push Up / Pull Up RH / 2.75", 3.75", 5", 7" Latch
• 6819Q – Push Down / Pull Down RH / 2.75", 3.75", 5", 7" Latch

Pricing per ABH Price List No. 15. Contact us for custom sizes and options.
