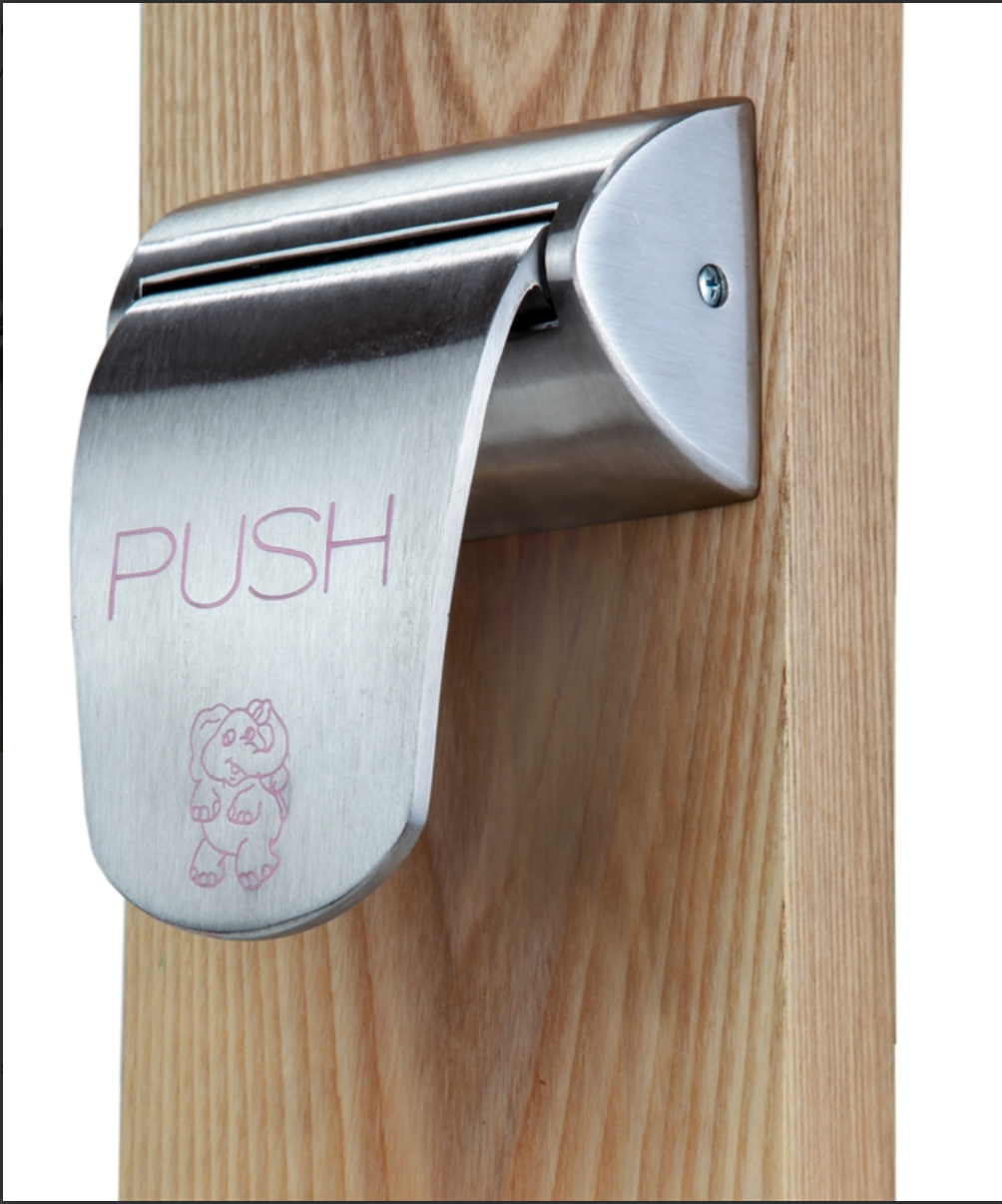

ABH LR6700 Hospital Latch Trim For Other MFG. Mortise Lock
SKU: LR6710-2-3/4”T-US32D
Regular price
$ 248.60
New ligature-resistant design provices a sleek look as well as functionality not comonly found in push/pull trim

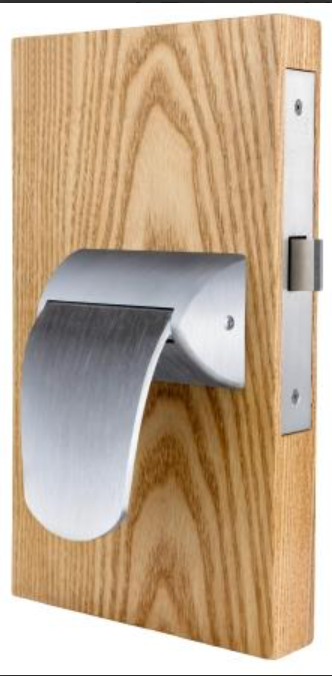

ABH custom manufactures the hospital push/pull trim to work with other manufacturers' mortise lock bodies
Great for retrofit applications where the owner wants to keep existing lock bodies and keep keying system in-tact and keep costs ow
Models and manufacturers are as follows:
LR6710 - Trim for Best*, Falcon*, Marks*, Dorma* mortise lock body
LR6720 - Trim for Schlage* mortise lock body
LR6730 - Trim for Yale* mortise lock body
LR6740 - Trim for Corbin Russwin* mortise lock body
LR6750 - Trim for Sargent* mortise lock body
LR6760 - Trim for PDQ* mortise lock body
LR6770 - Trim for Arrow* mortise lock body
No mortise lock body or strike supplied
Must complete special order form found online www.abhmfg.com or by sending in a sample mortise lock body being used prior to manufacturing
1-3/4" standard door thickness minimum (specify if other than 1-3/4")
Meets ADA requirements
All mounting hardware goes thrugh existing mortise loce body prep - no additional prep required
Once continuous spring provides a smoother operation and an extended life for the unit
Push/pull trim is non-handed
Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
For mortise lock functions where thumb turn will be used, eithe rmoun the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
Handles can be mounted up or down by simply rotatiing trim 180°
UL listed in the U.S.A. and Canada for use on door fire rated 3 hour or less up to 4'0" x 8'0"
