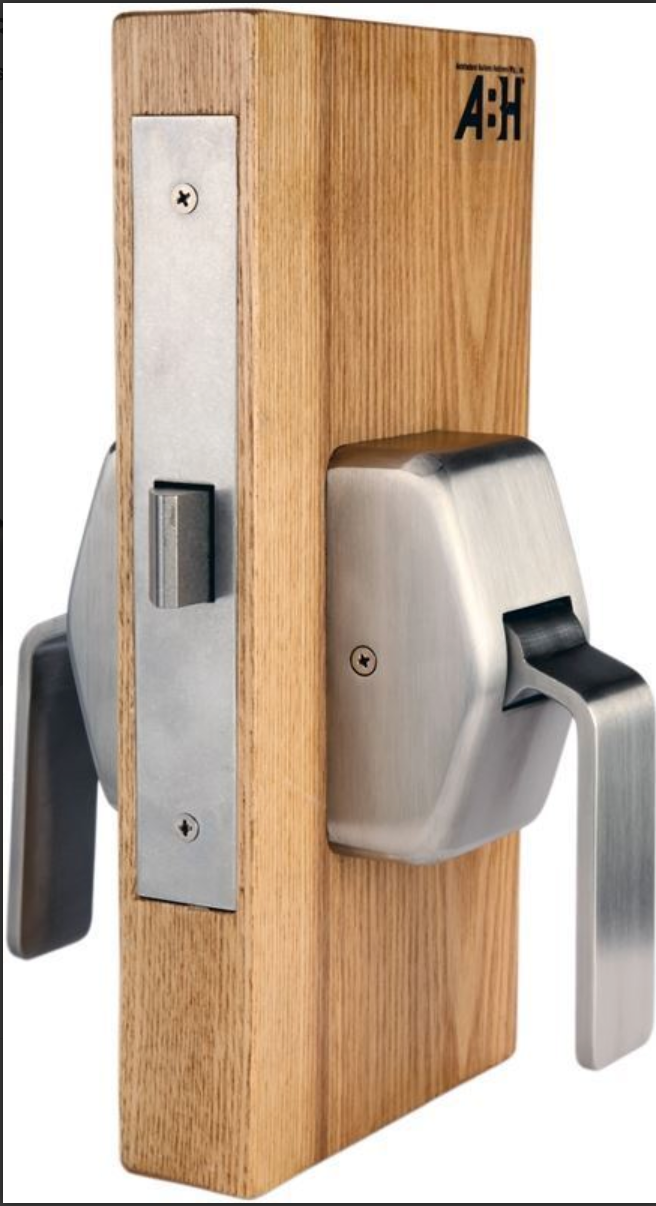

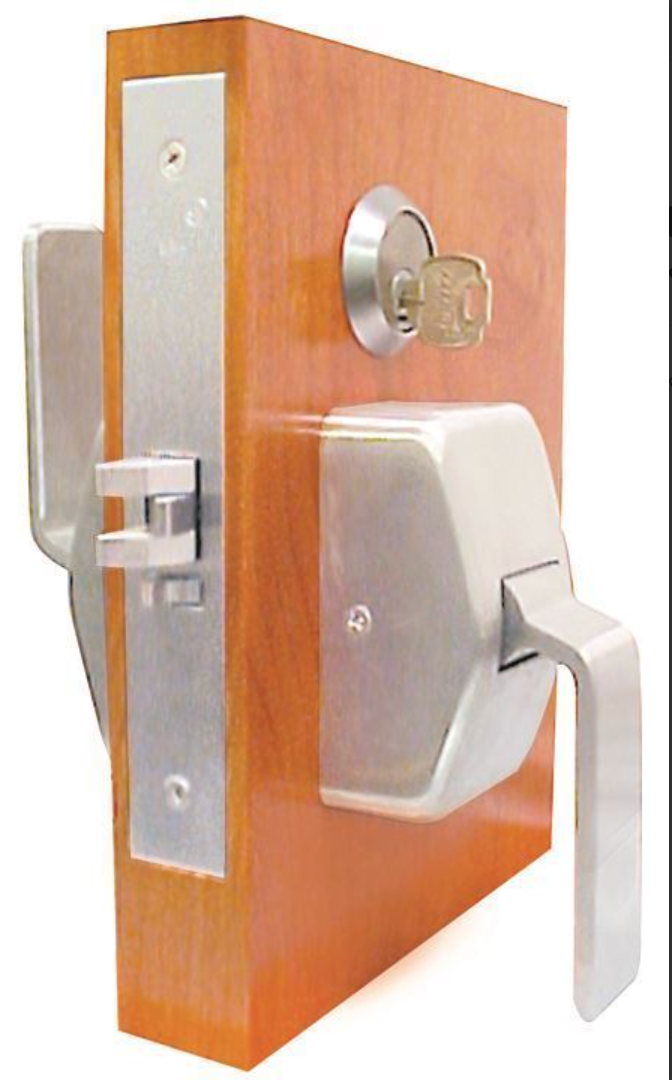

ABH 6700 Series Hospital Latch Trim For Other MFG. Mortise Lock

SKU: 6710-2-3/4”T-US32D
$ 248.60
  • Features:
    • ABH custom manufactures the hospital push/pull trim to work with other manufacturers' mortise lock bodies
    • Great for retrofit applications where the owner wants to keep existing lock bodies and keep keying system in-tact and keep costs ow
    • Models and manufacturers are as follows:
      • 6710 - Trim for Best*, Falcon*, Marks*, Dorma* mortise lock body
      • 6720 - Trim for Schlage* mortise lock body
      • 6730 - Trim for Yale* mortise lock body
      • 6740 - Trim for Corbin Russwin* mortise lock body
      • 6750 - Trim for Sargent* mortise lock body
      • 6760 - Trim for PDQ* mortise lock body
      • 6770 - Trim for Arrow* mortise lock body
    • No mortise lock body or strike supplied
    • Must complete special order form found online www.abhmfg.com or by sending in a sample mortise lock body being used prior to manufacturing
    • 1-3/4" standard door thickness minimum (specify if other than 1-3/4")
    • Meets ADA requirements
    • All mounting hardware goes thrugh existing mortise loce body prep - no additional prep required
    • Once continuous spring provides a smoother operation and an extended life for the unit
    • Push/Pull Trim is non-handed
    • Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
      • For mortise lock functions where thumb turn will be used, eithe rmoun the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
    • Handles can be mounted up or down by simply rotatiing trim 180°
    • UL listed in the U.S.A. and Canada for use on door fire rated 3 hour or less up to 4'0" x 8'0"
    • Average weight per unit = 4.25 lbs
    • Patent #5,730,478 & #6,196.599
  •  "SEC" Fasteners
  •  "THICK" Special Door Thickness
  •  "AM" Anti-Microbial Coating
  •  "H" Hip Paddle
  •  "EX" Extended Handle
  •  "X" Slip-On Handle Extension
  •  "PL" Entrance Only
  •  "PS" Exit Only
  •  "J" Junior Cover
  •  "RC" Round Cover
  •  "AB" Asylum Trim on Both Sides - 6200, 6600 & 6700 models (Specify B or C Knob)
  •  'PLA" Push/Pull Trim on pull side and Asylum Knob on push side (Specify B or C Knob) - 6600 or 6700
  •  "PSA" Push/Pull Trim on push side and Asylum Knob on pull side (Specify B or C Knob) - 6600 or 6700
  •  "P" Engraved Handles "PUSH" or "PULL"
