Features:
Mortise lock body provided - specify function
New ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
Mortise lock body only available in 2-3/4" backset
4-7/8" ASA strike supplied standard
Mortise lock cylinder and cam not provided
- Uses clover leave-type cam - Best®* C258 or equal (except 6638 and 6645 models, which use Best®* C293 or equal on outside)
- 6 Pin Cylinder = 1-1/8" long
- 7 Pin Cylinder = 1-1/4" long
1-3/4" standard door thickness (specify if greater than 1-3/4")
Meets ADA requirements
All mounting hardware goes through mortise lock body prep - no additional prep required
One continuous spring provides a smoother operation and an extended life for the unit
Trim is non-handed; however, the mortise lock body is handed (can be changed in field)
Can be mounted vertical or horizontal (with handles pointing toward hinge edge of door)
- For ortise lock functions where thumb turn or cylinder will be used, either mount the trim horizontal or select "J" option (Junior Covers) to achieve required clearance
Handles can be mounted up or down by simply rotating trim 180°
UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
3/4" Latch Bolt Throw
Average weight per unit = 10 lbs
Patents Pending

"AM" Anti-Microbial Coating
"L" Lead-Lined
"PL" Entrance Only
"PS" Exit Only
"SEC" Fasteners
"THICK" Special Door Thickness
"EL" Electronically Locked
"EU" Electronically Unlocked
"RX" Request to Exit

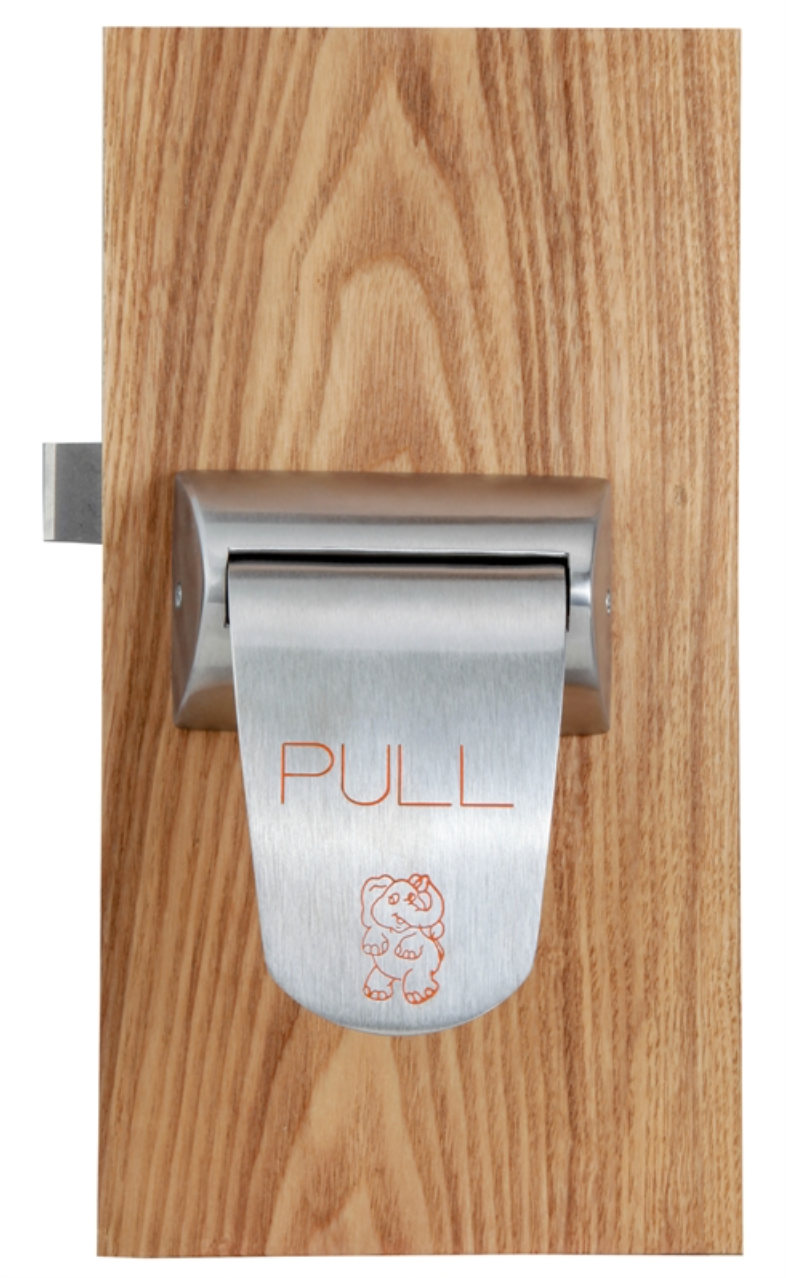

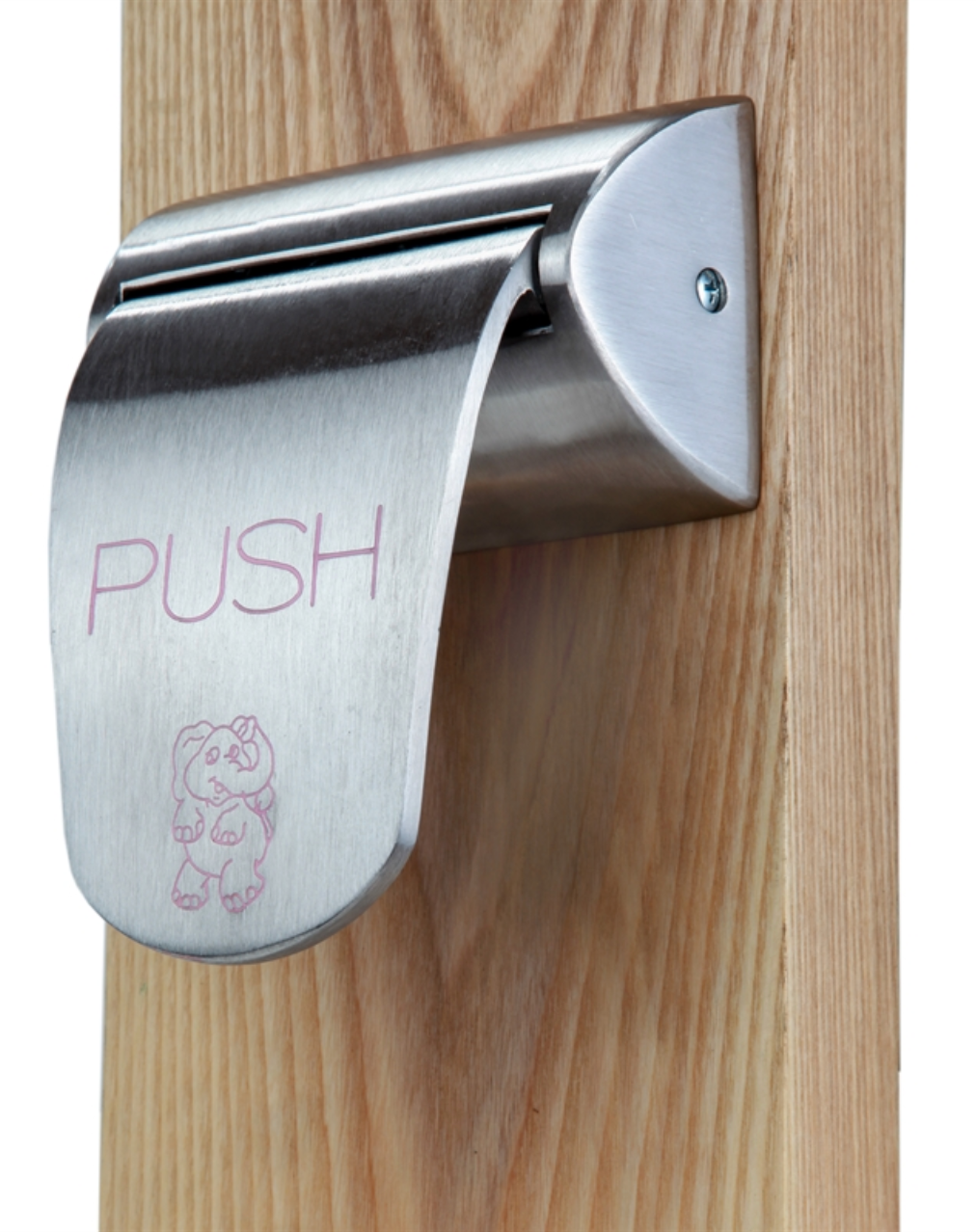

"P" Engraved Handles "PUSH" or "PULL"
"F" Flip-Up Handle for ligature-resistant on push side (LR6000, LR6600 & LR6700 only)

ABH LR6600 Hospital Latch with Mortise Lock
