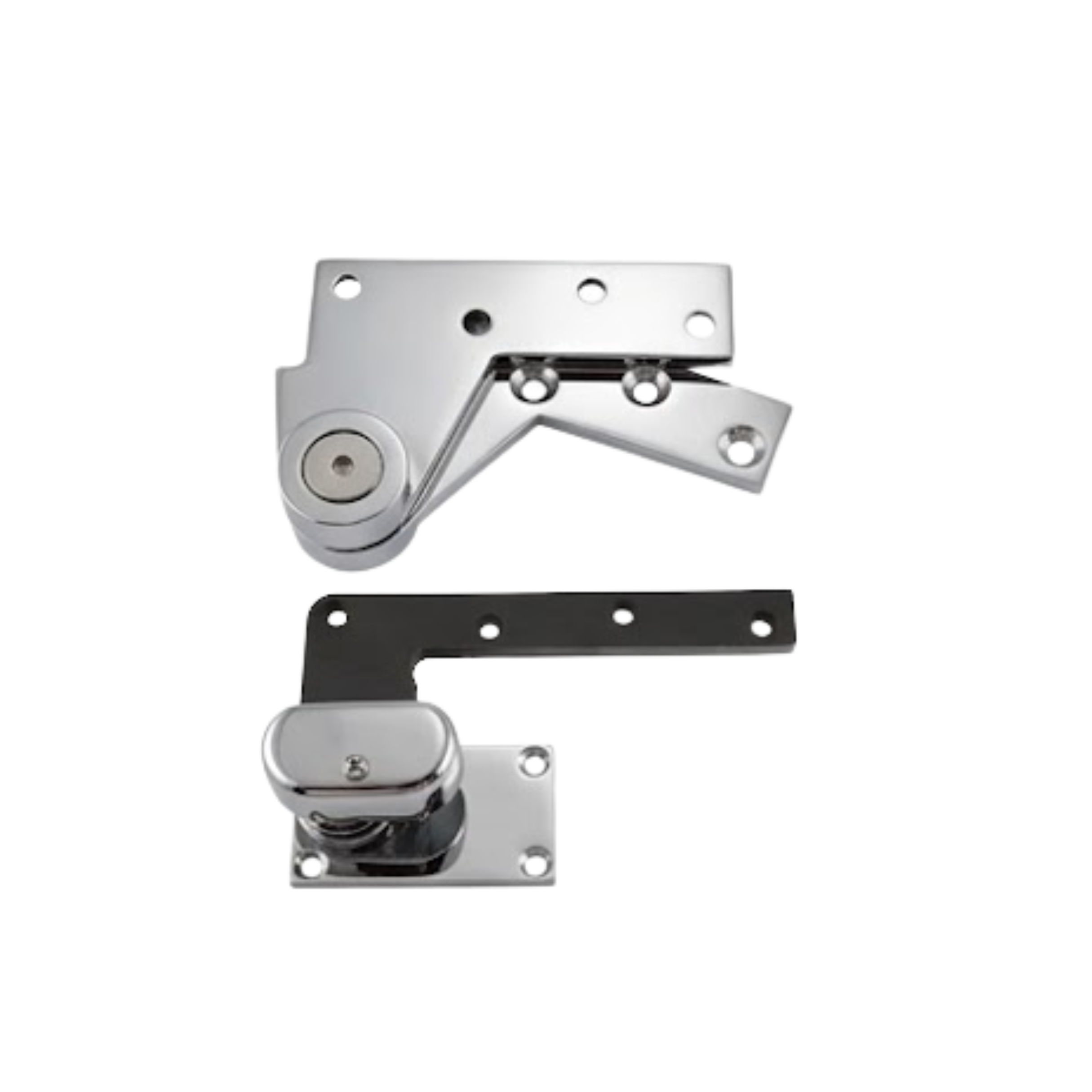

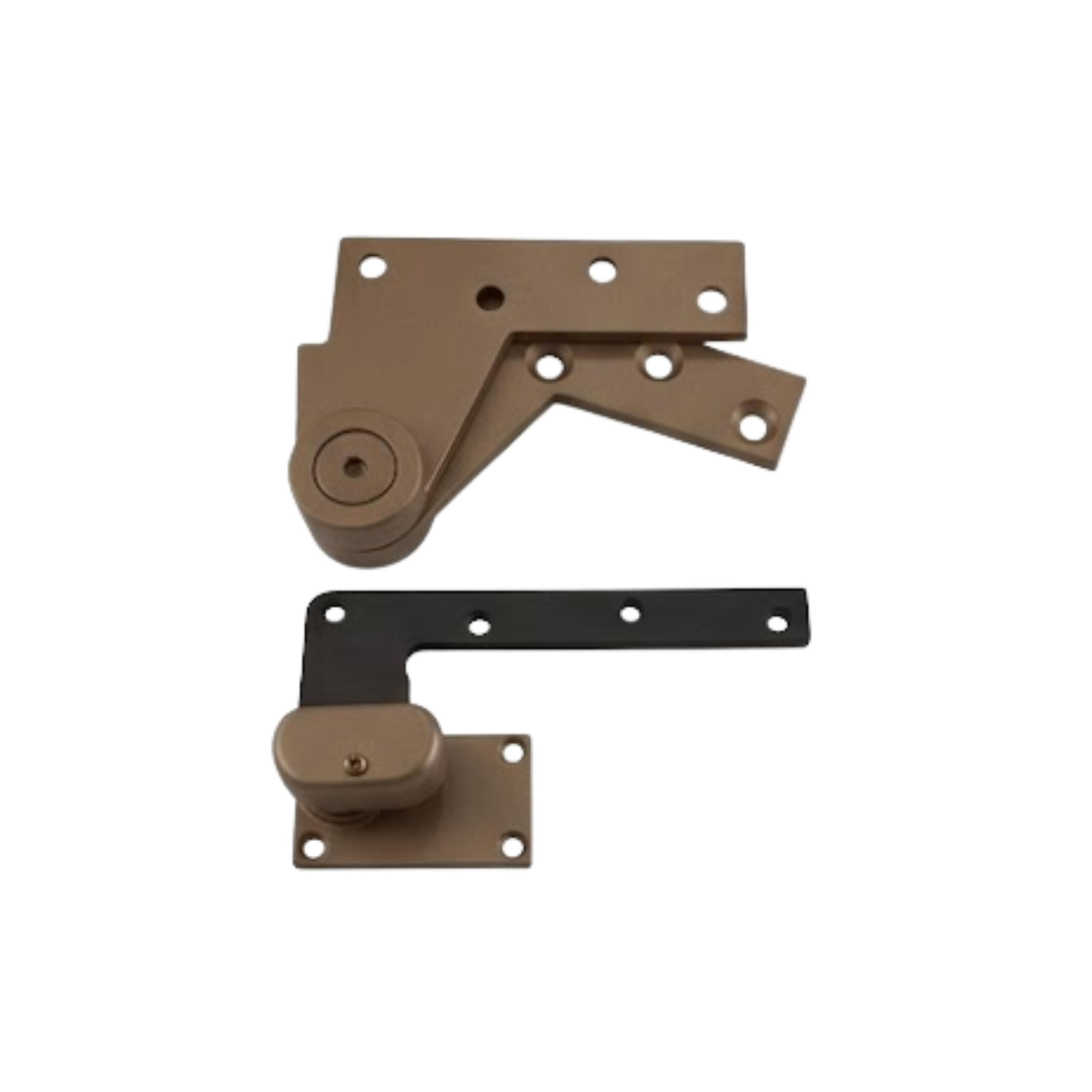

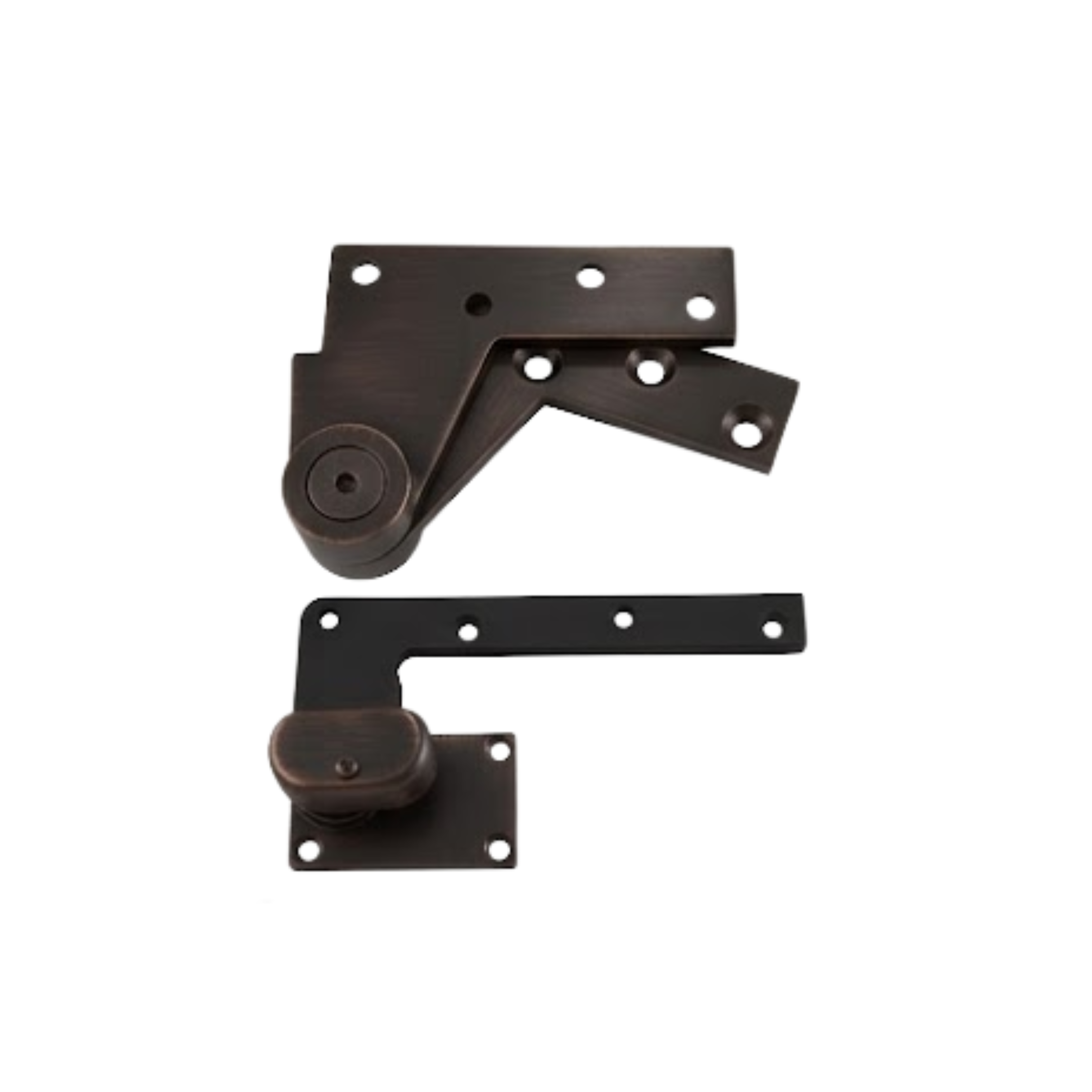

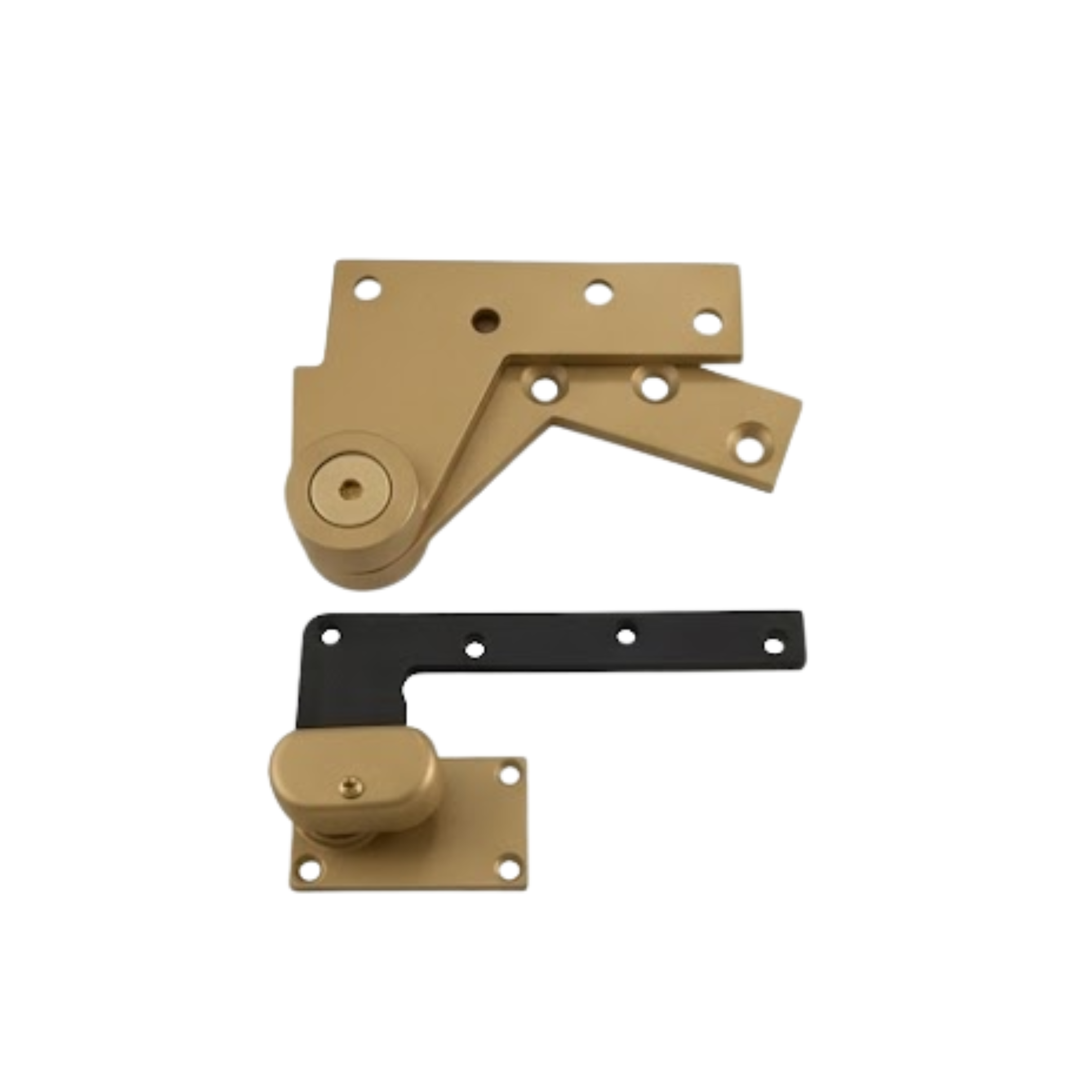

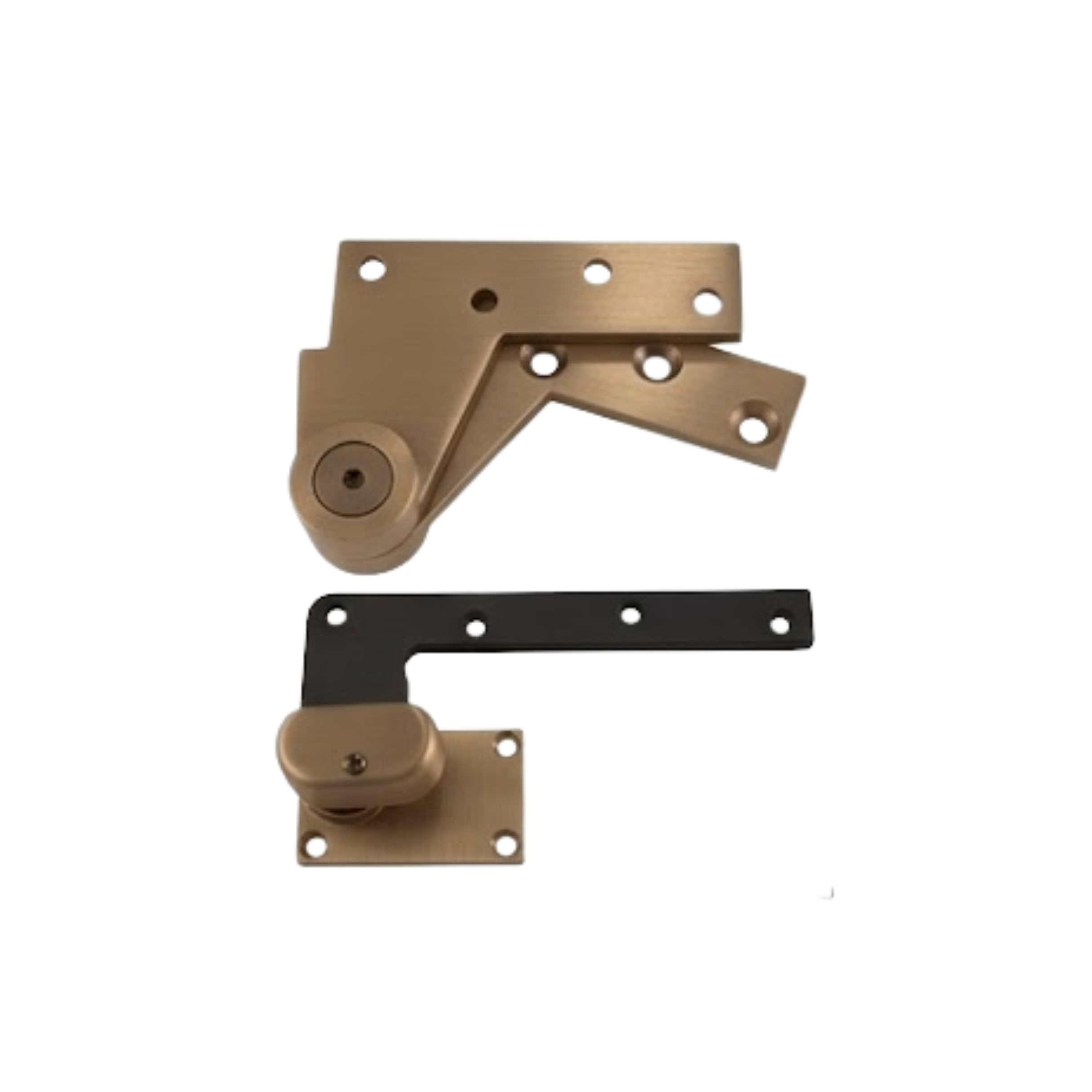

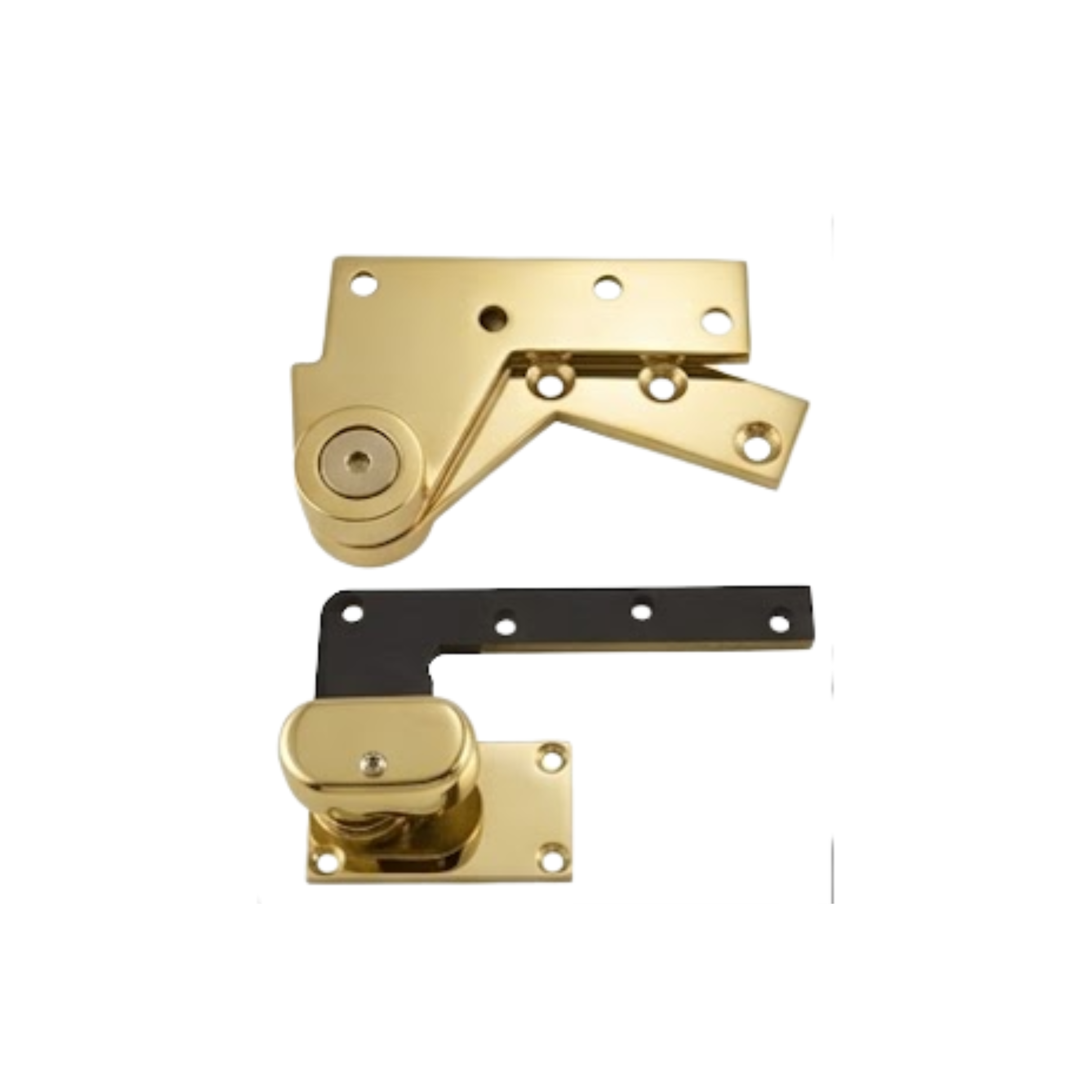

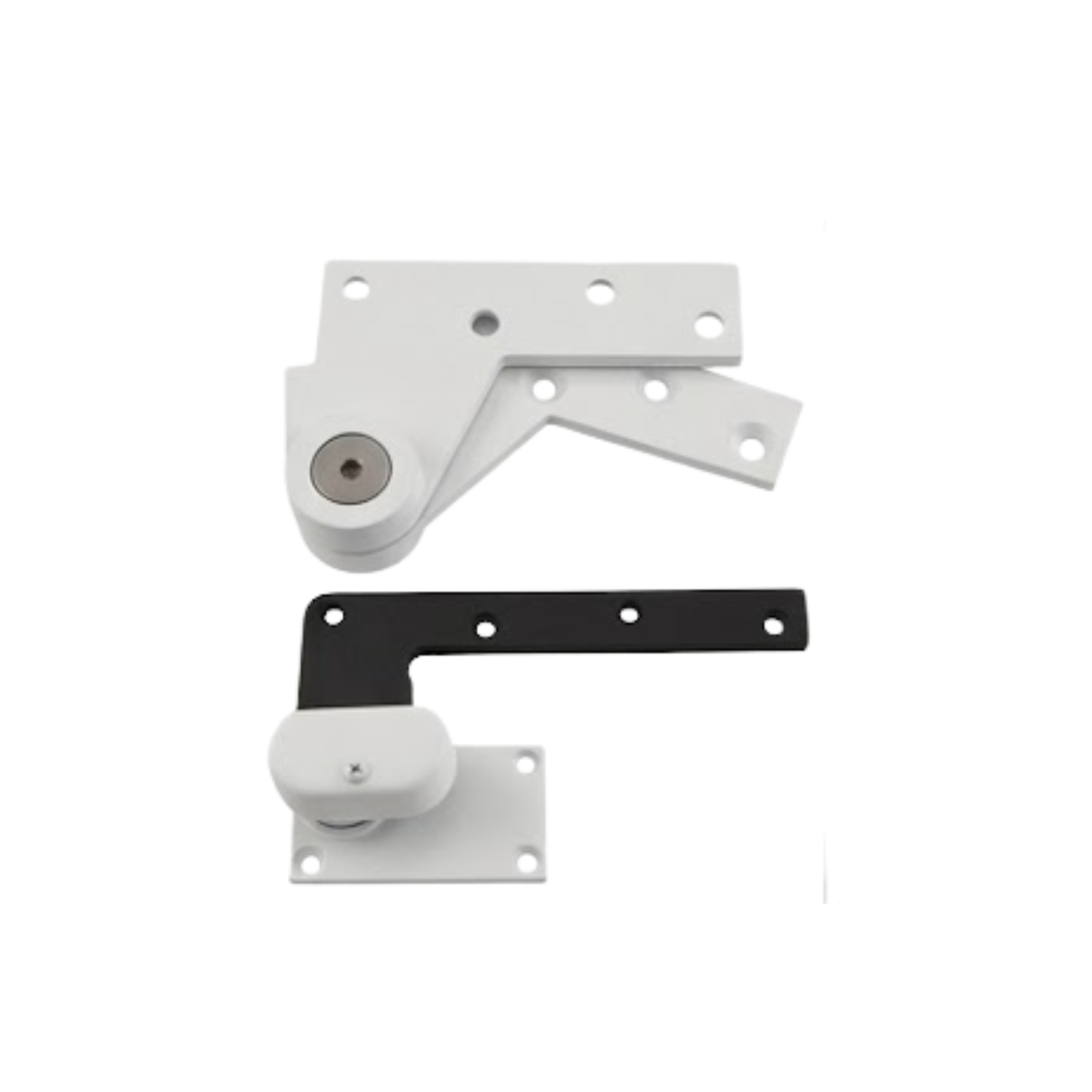

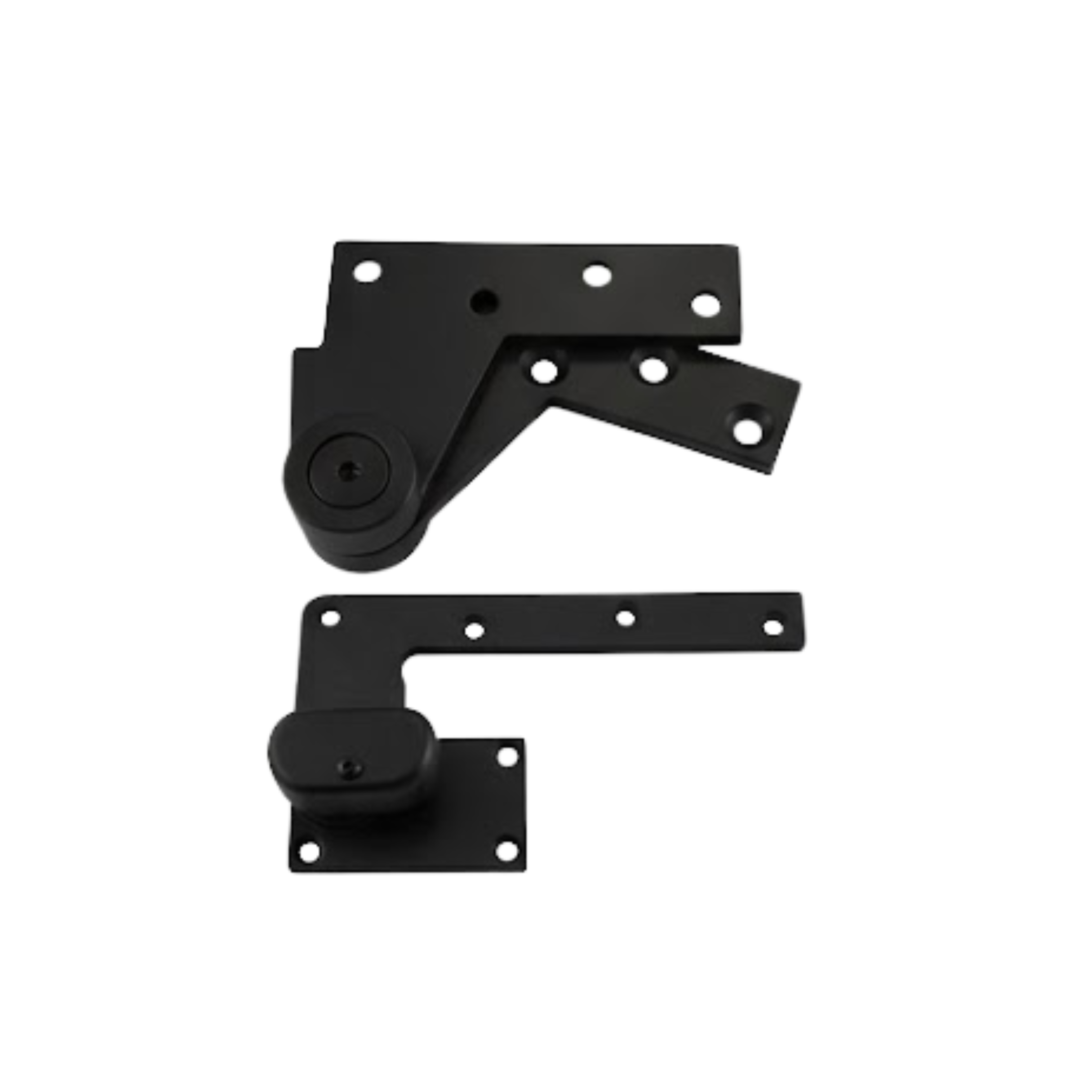

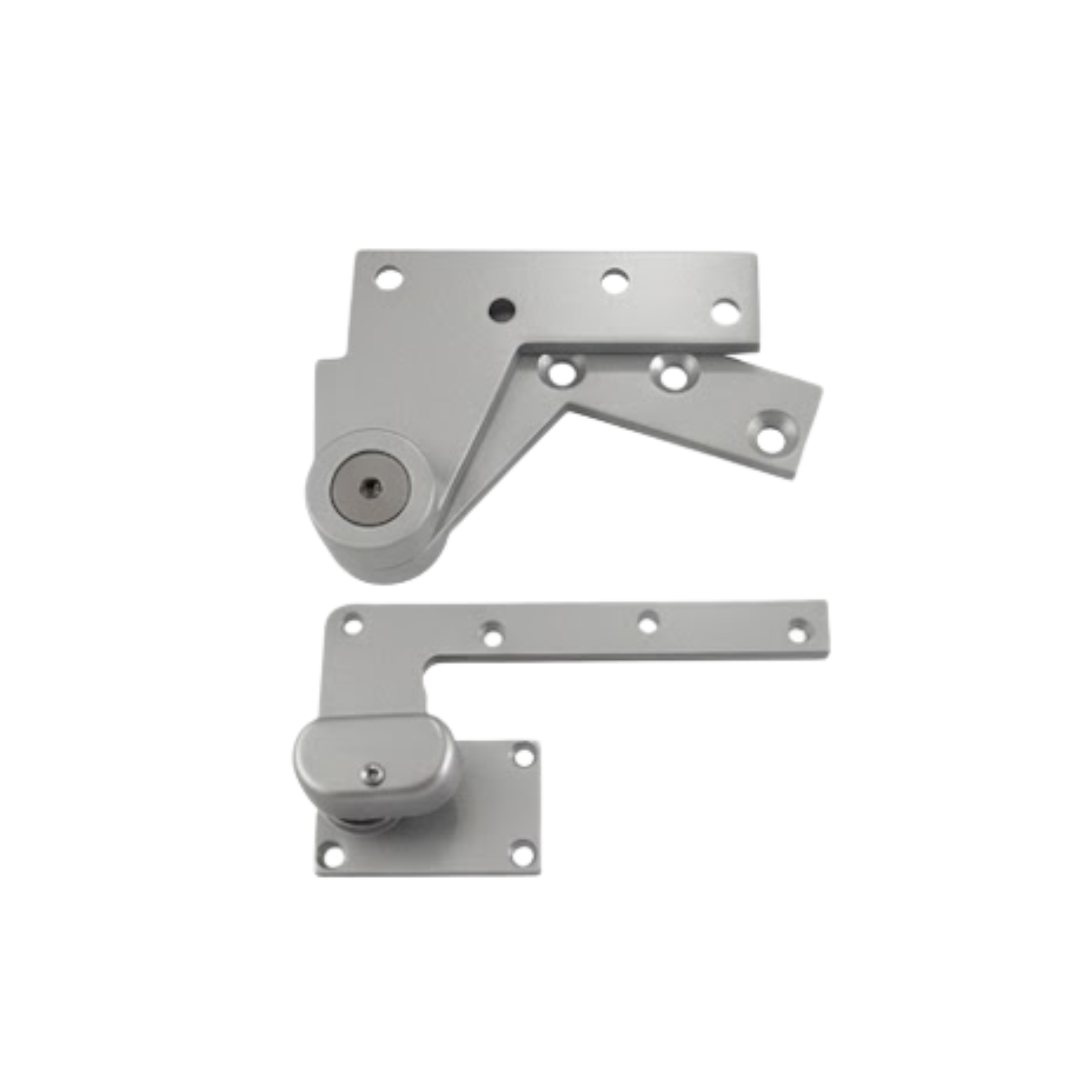

ABH 0147 - 1.5 Pivot Set - 1-1/2" Offset

SKU: 0147-1.5-RH-US32D
$ 360.25
  • Features:
    • 019-1.5 Offset intermediate pivot required (order separately)
    • Handed - Specify LH or RH
    • Maximum door load 350 pounds
    • Maxium door width - 48"
    • UL listed for use on 3-hour fire rated doors - Standard
    • Heavy duty bearings
    • Stainless steel base material
    • Average weight per unit = 5 lbs
    • Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height. (ie, 120" tall door should use two intermediate pivots)

  • Includes:
    • 0180 - 1.5 Top Pivot
      • Frame leaf mortises into header
      • Door leaf mortises into top of door
    • 0147 - 1.5 Bottom Pivot
      • Bottom leaf mounts on top of concrete floor
      • Door leaf mortises into botton of door
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  •  "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  •  "SEC" Fasteners
