Foor doors without bottom pivot or using floor closer
Maximum door load 300 pounds
Maxium door width - 42"
Heavy duty bearings
Stainless steel base material
Average weight per unit = 7 lbs
Doors ranging from 60" to 90” tall have two intermediate pivots. An additional intermediate pivot should be used for each additional 30" in door height.

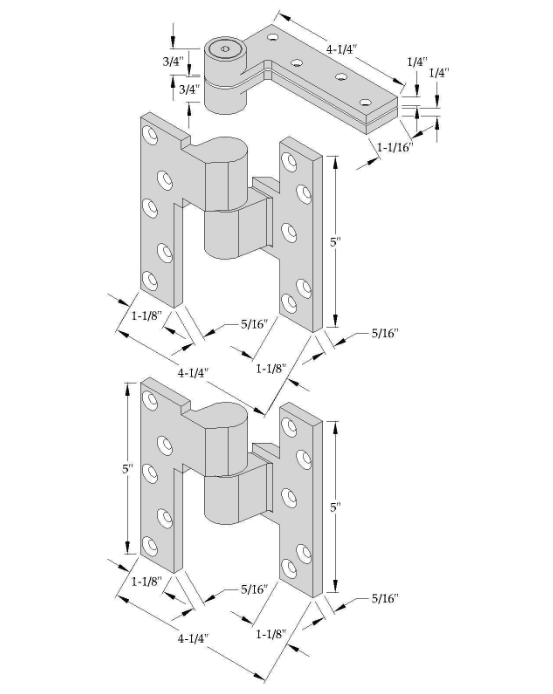

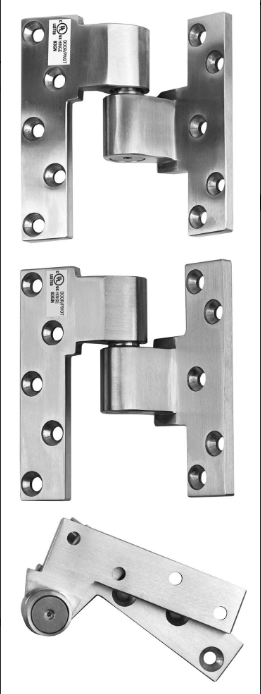

Includes:
0180 Top Pivot
Frame leaf mortises into header
Door leaf mortises into top of door
(2) 019 Intermediate Pivots
Bottom leaf mortises into side jamb
Door leaf mortises into side of door
"EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
"EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
