UL listed for use on 3-hour fire rated doors - Standard
Heavy duty bearings
Stainless steel base material
Average weight per unit = 4 lbs
Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.
Frame leaf mortises into header
Door leaf mortises into top of door
Bottom leaf mounts on top of concrete floor
Door leaf mortises into botton of door

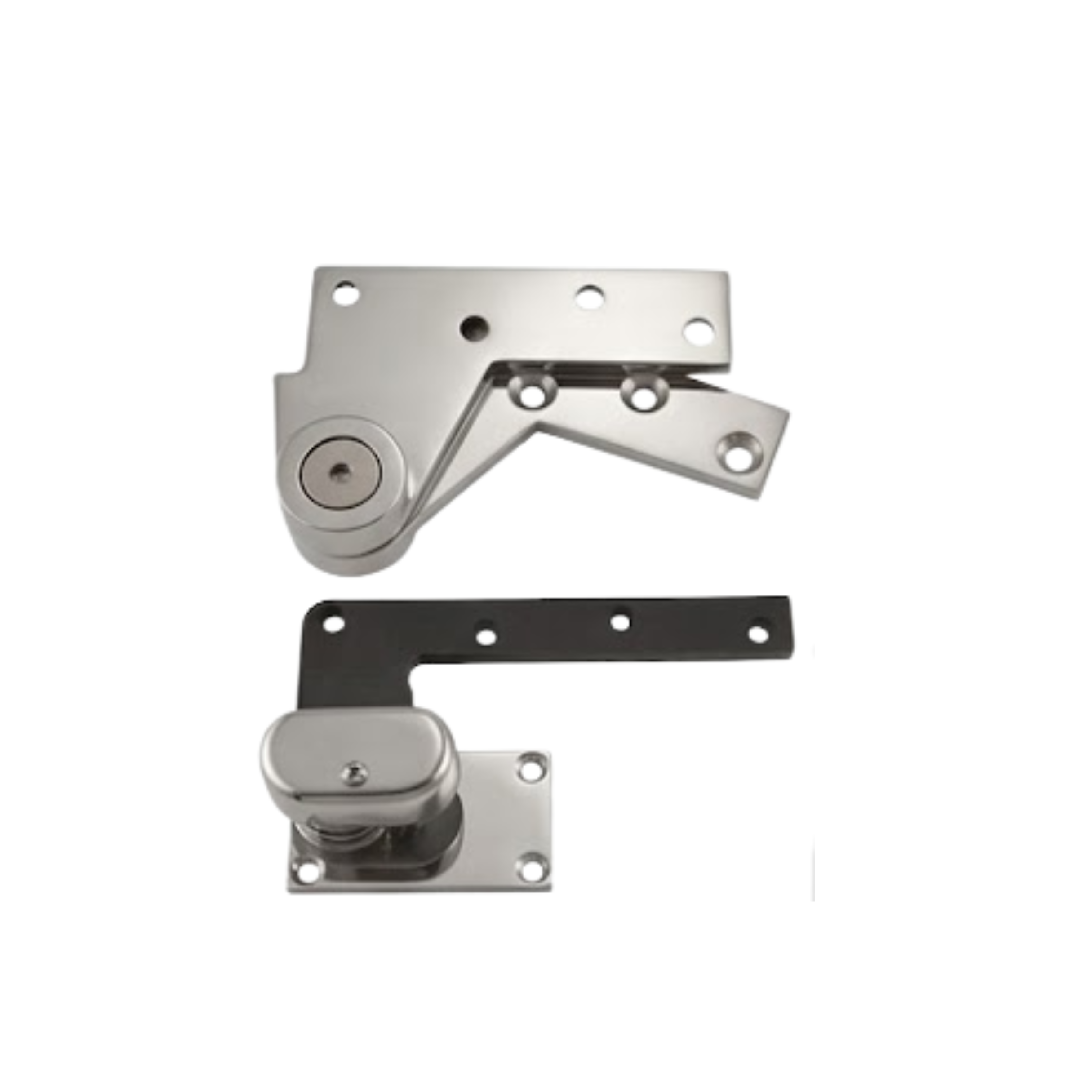

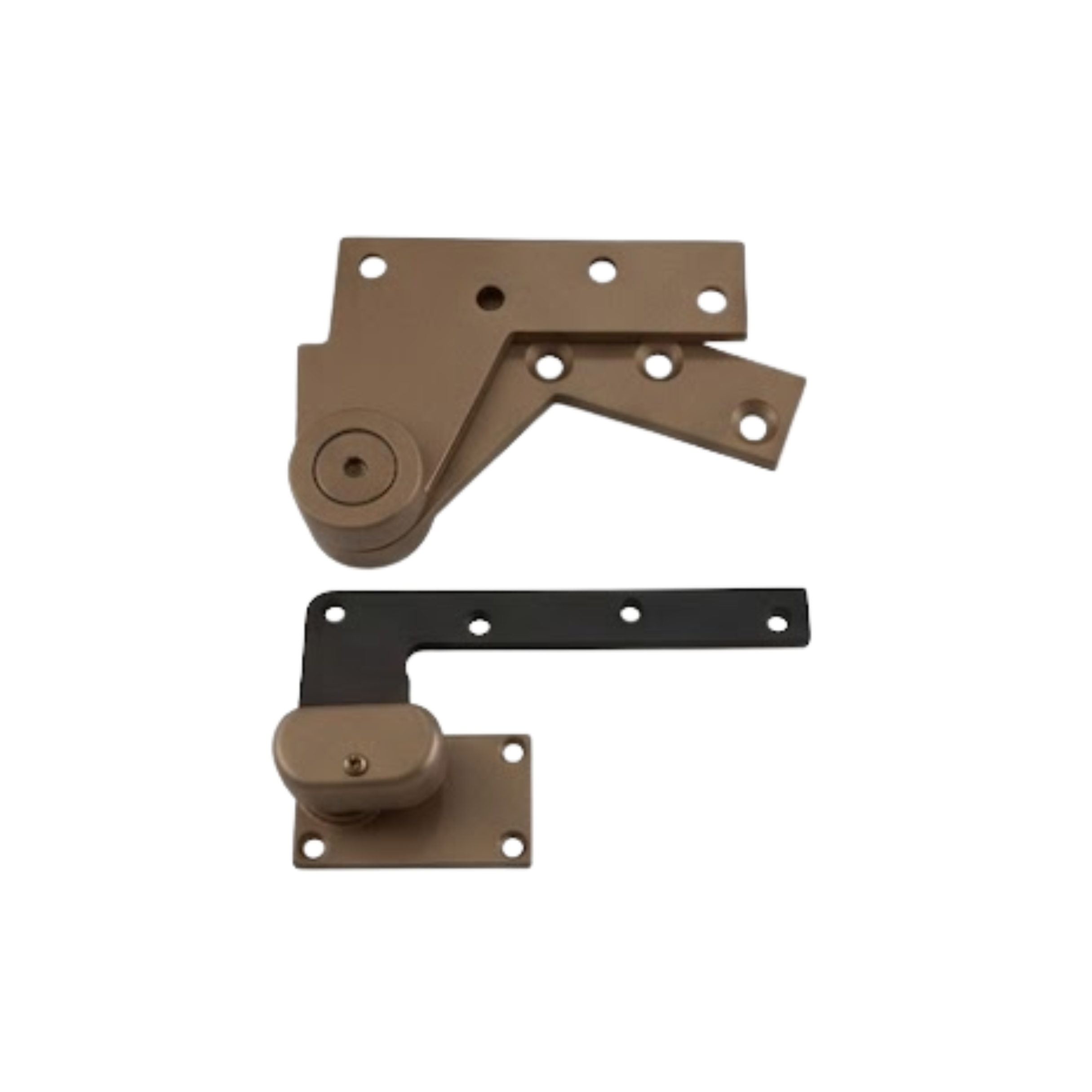

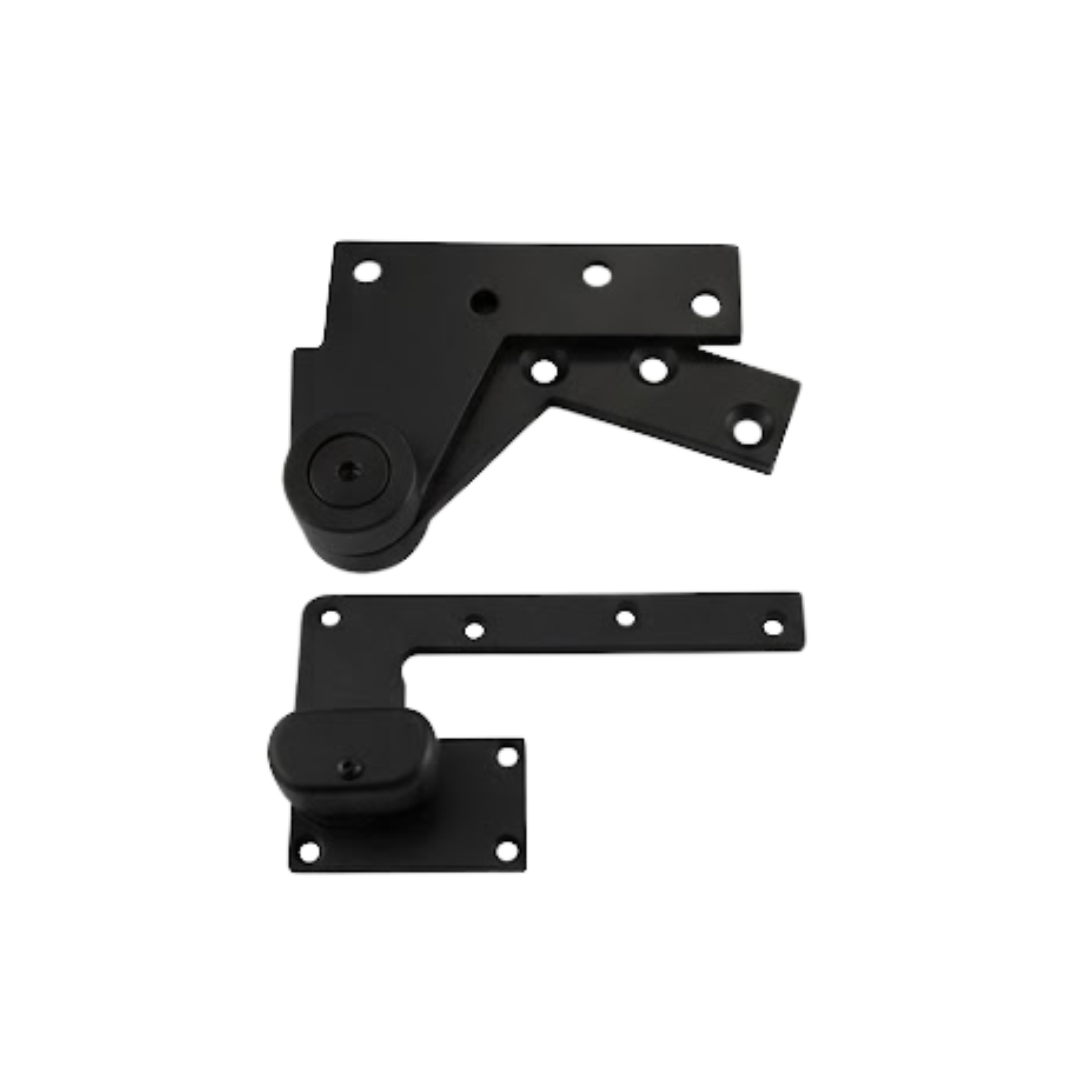

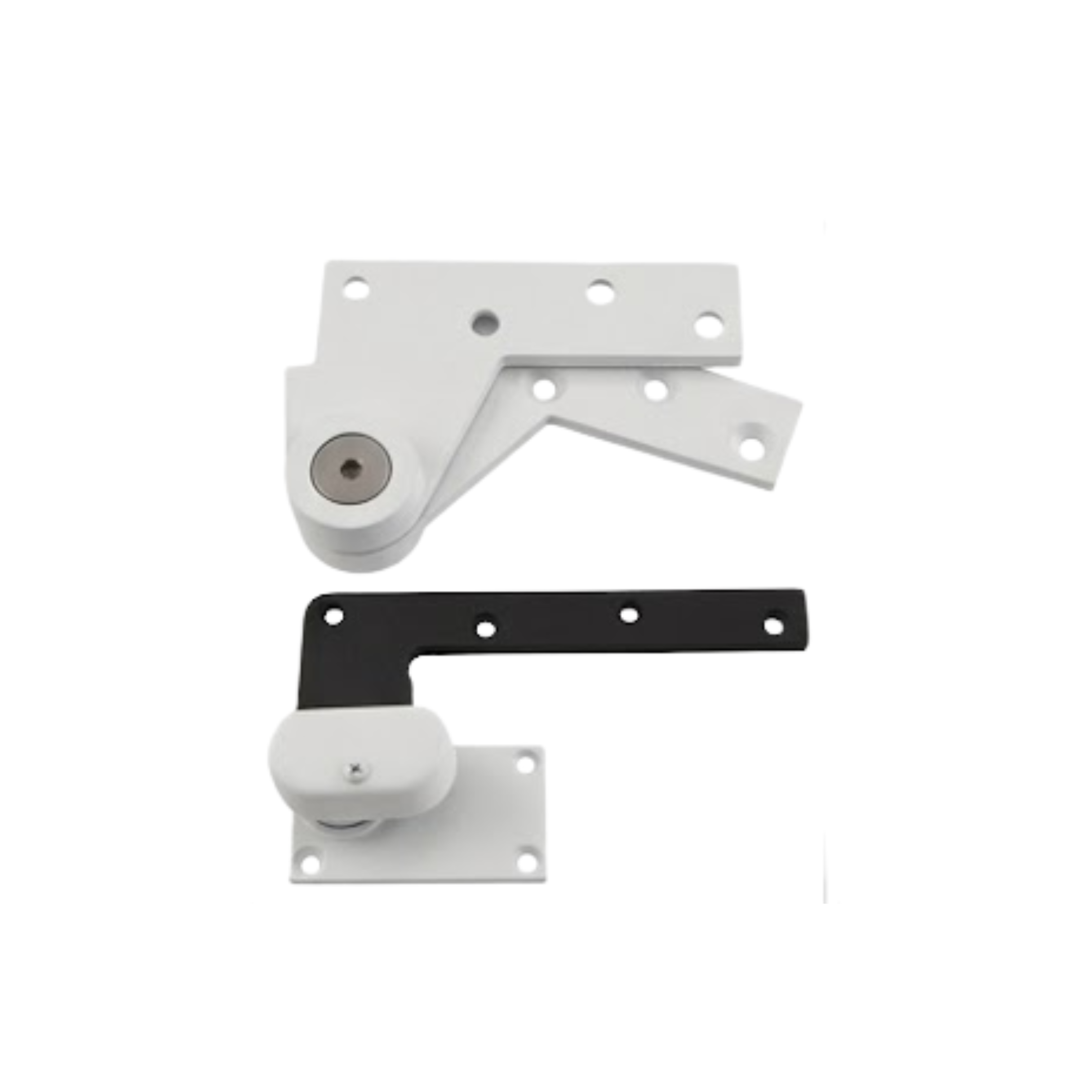

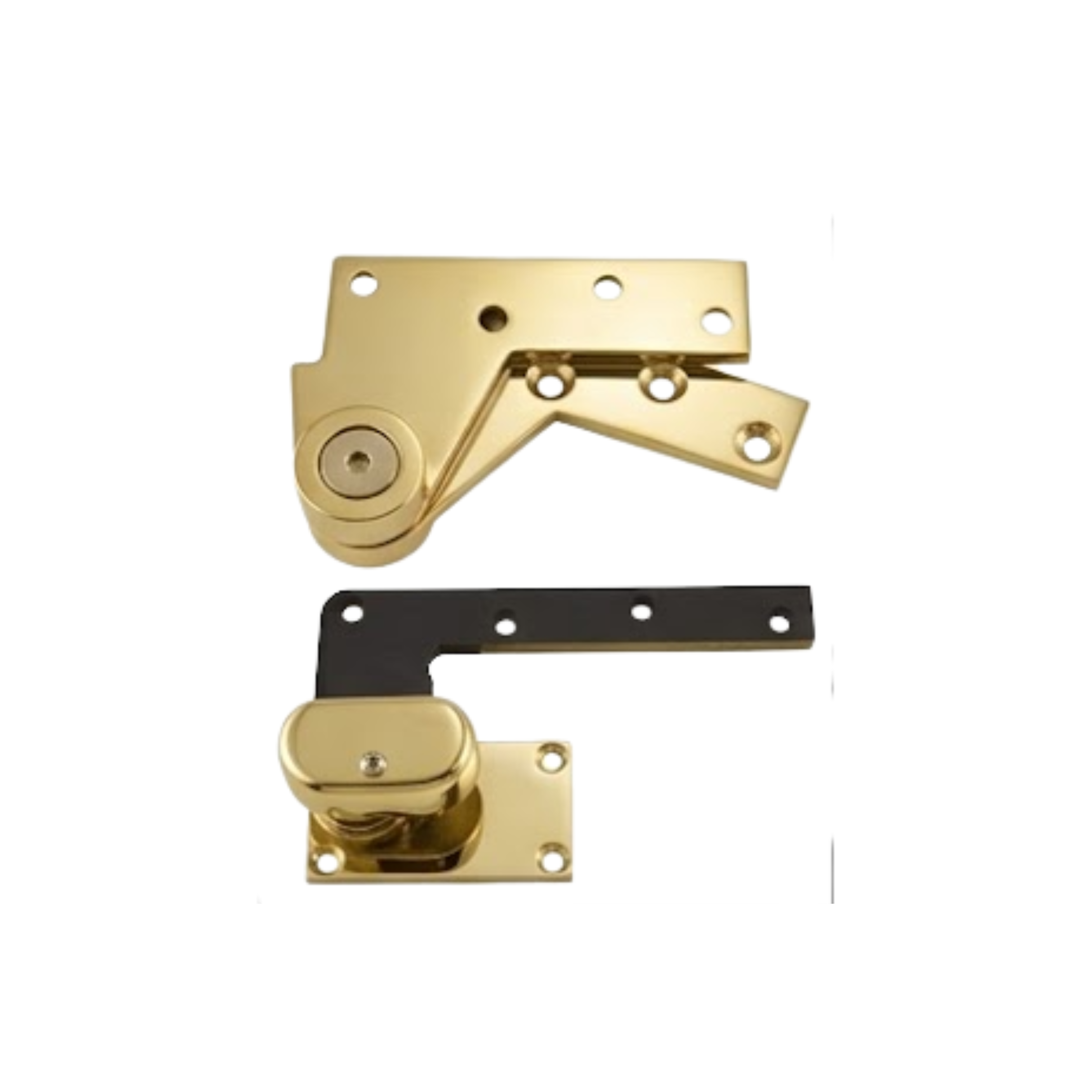

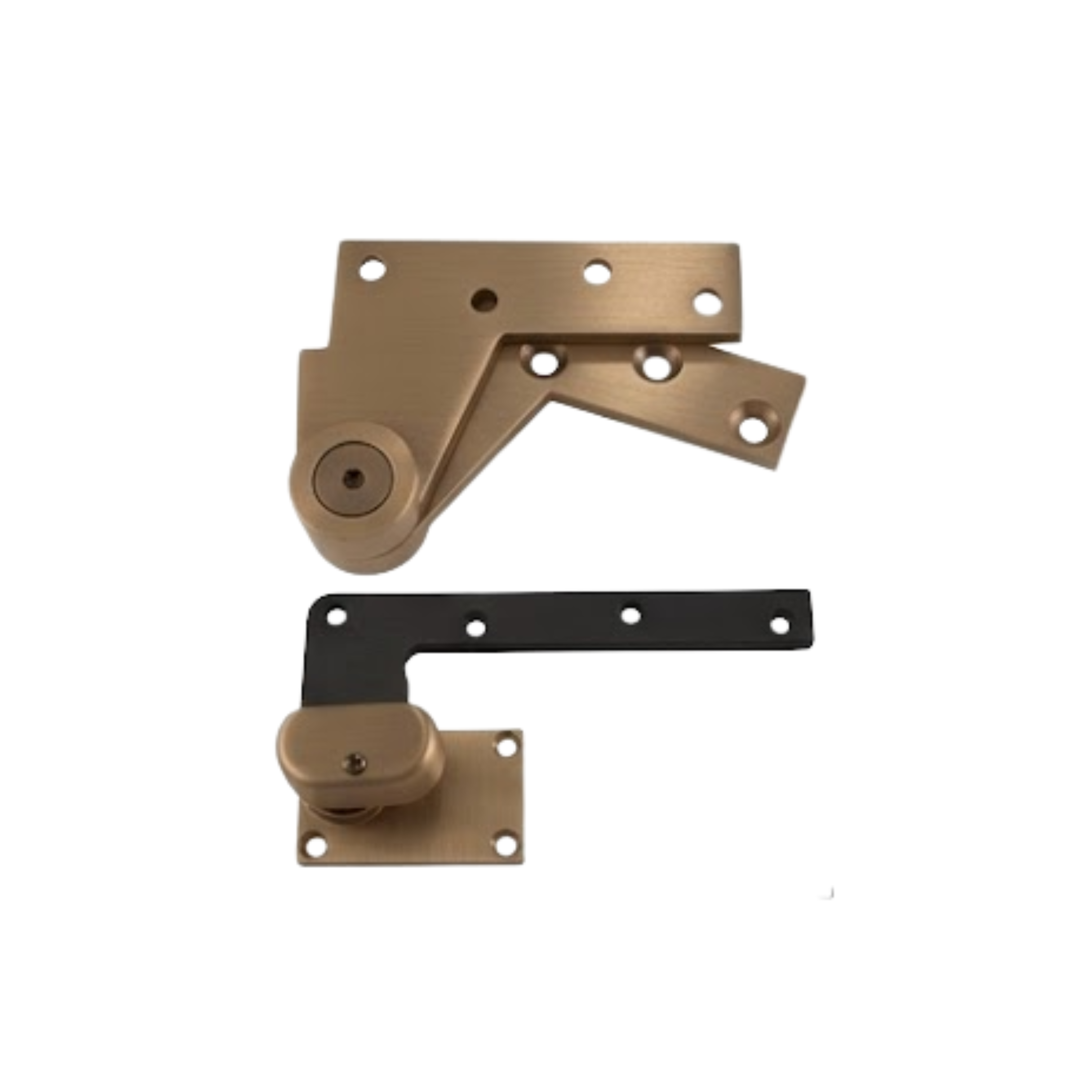

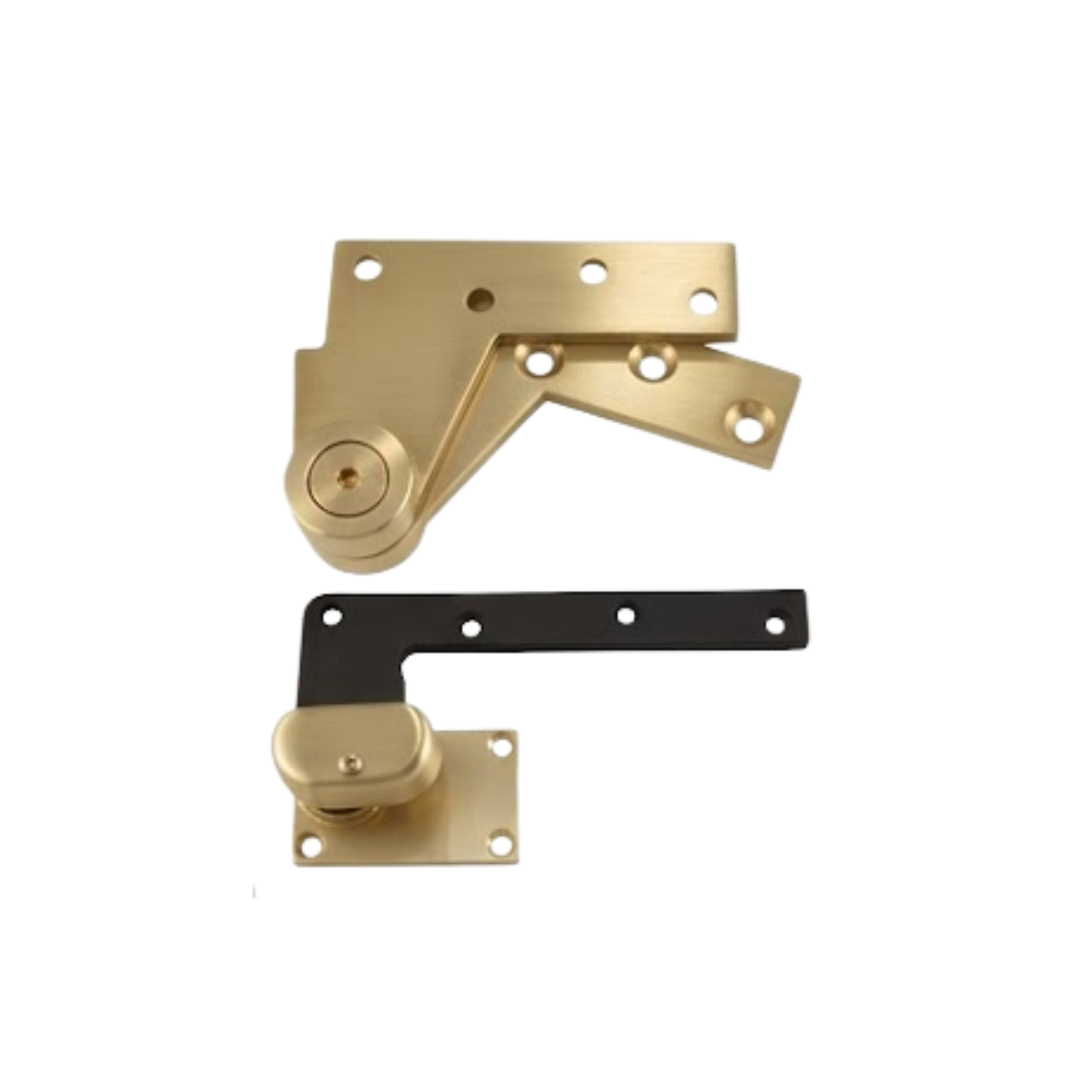

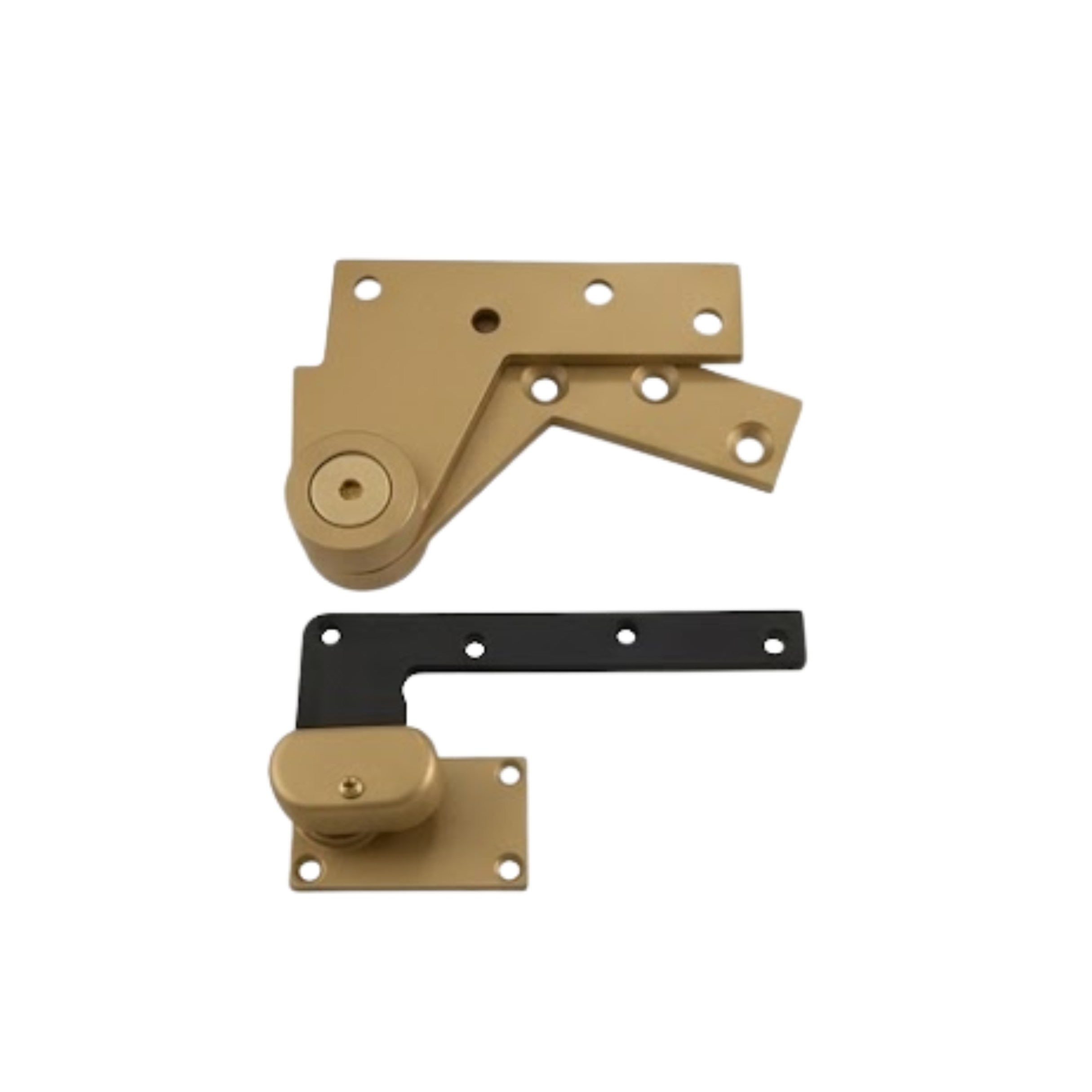

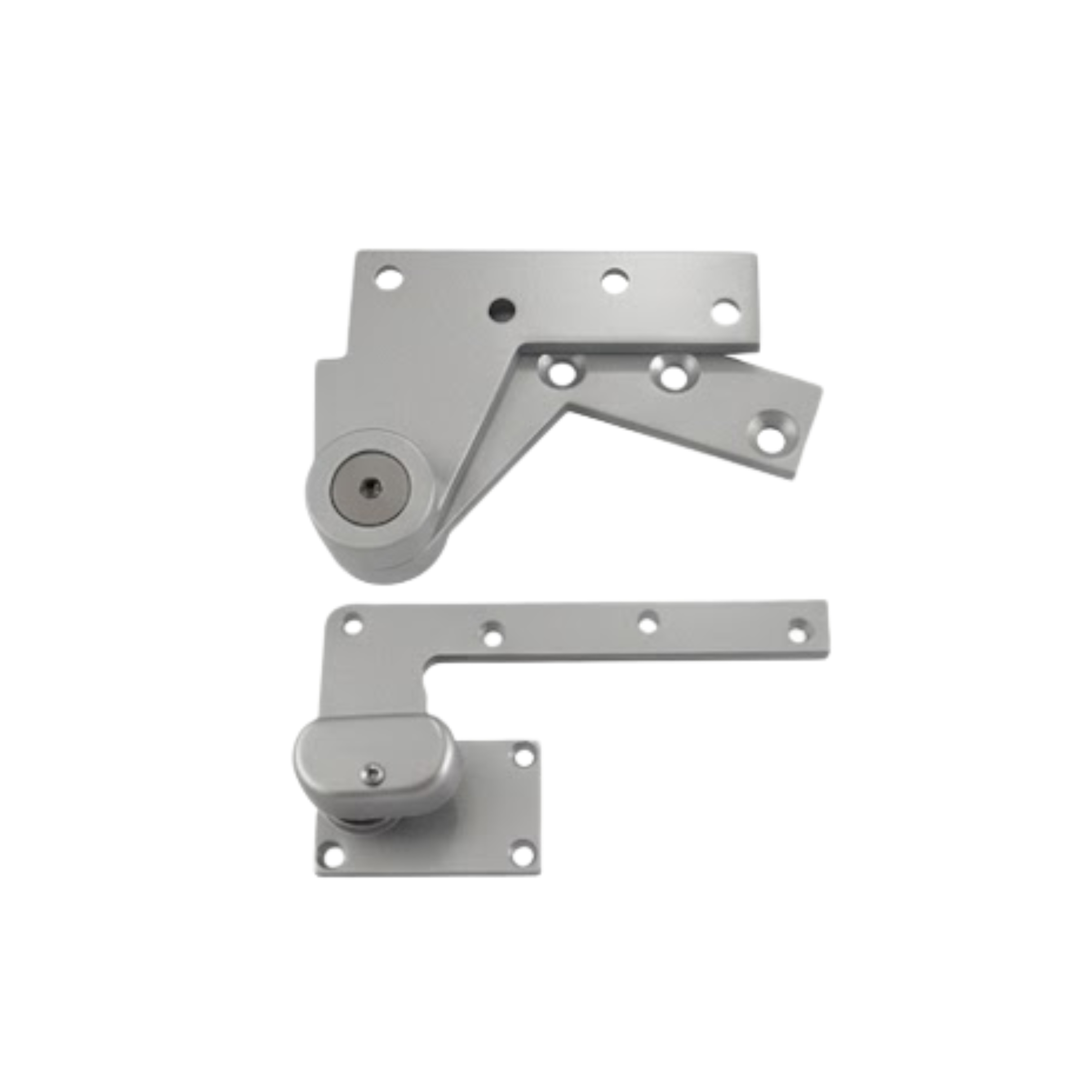

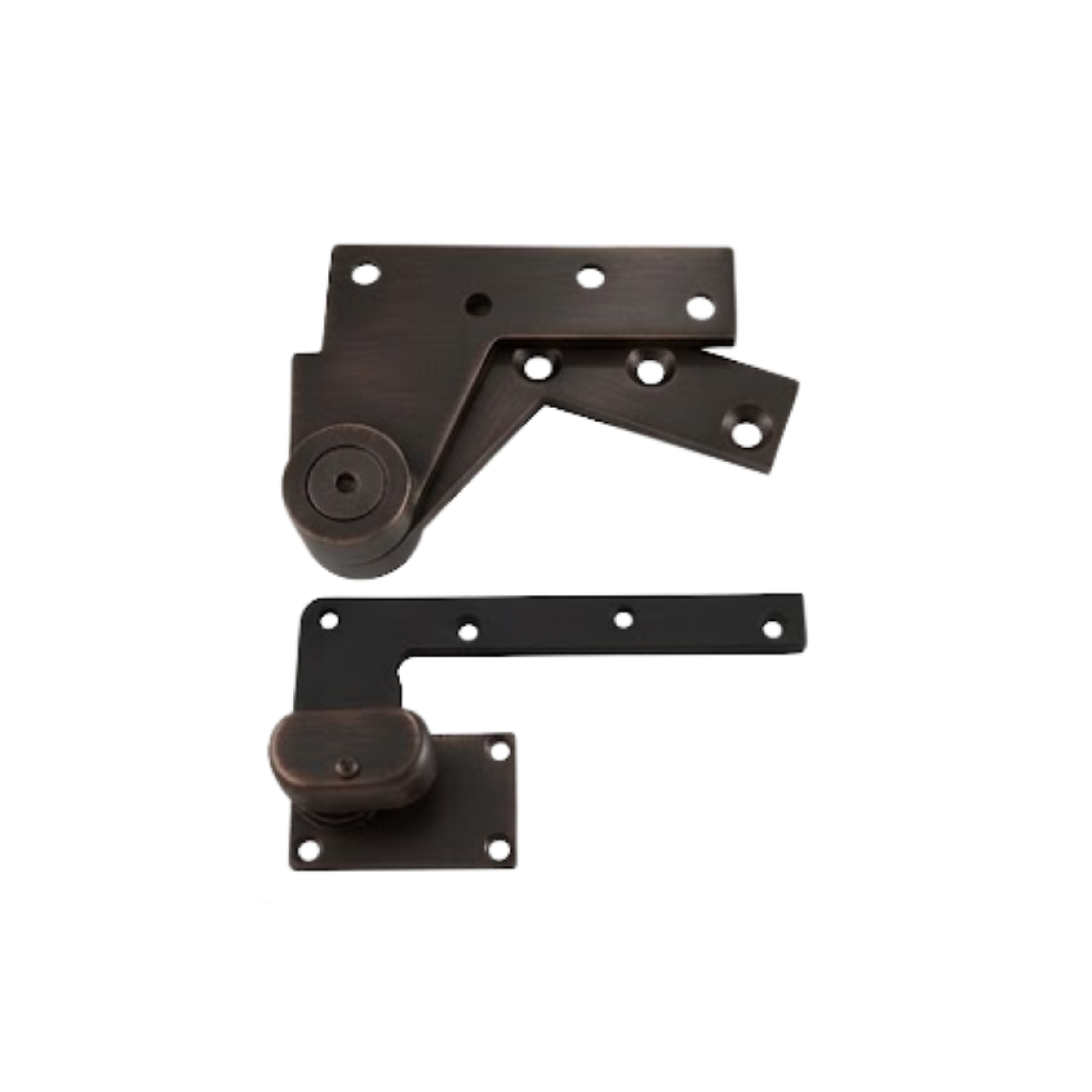

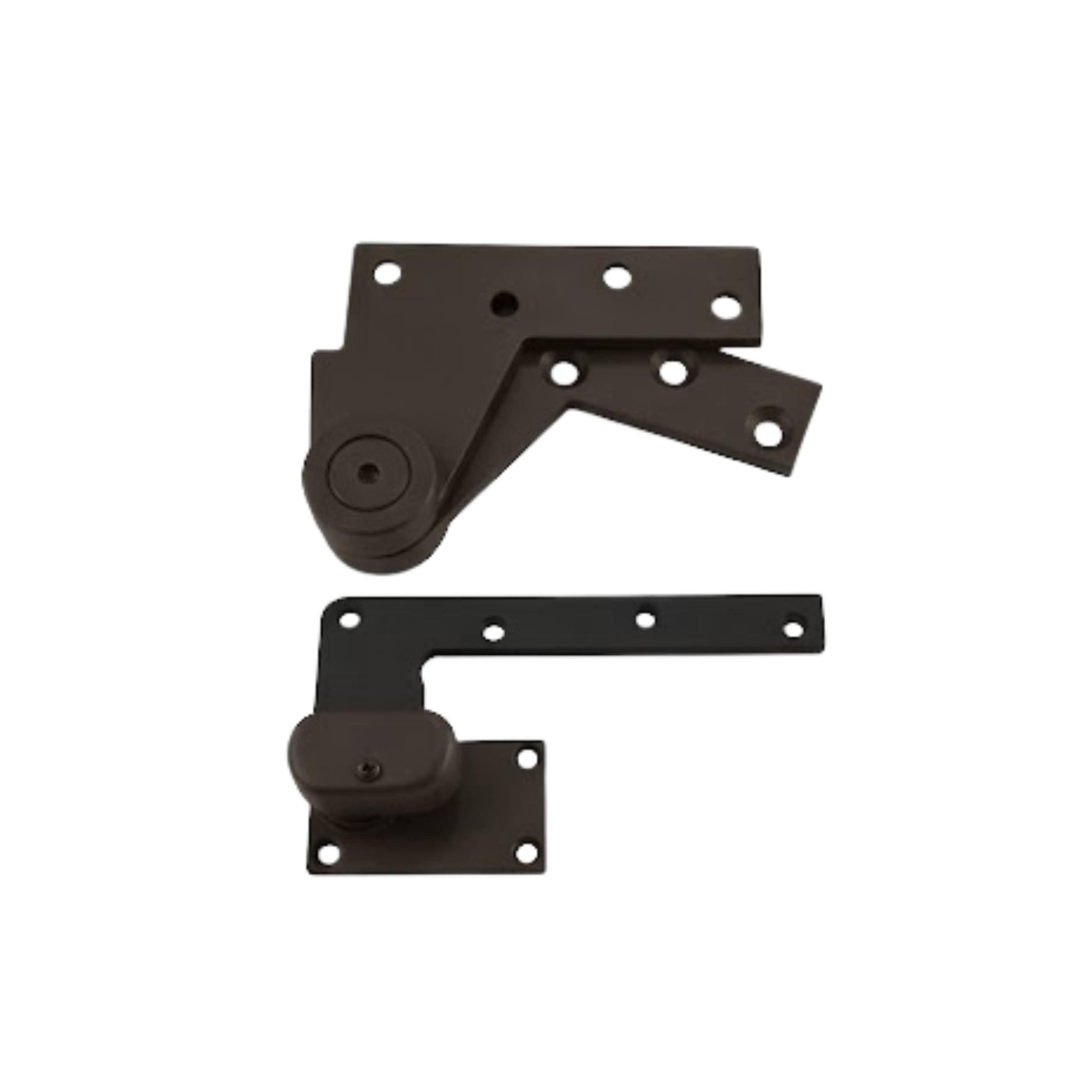

Includes:
0180 Top Pivot
Frame leaf mortises into header
Door leaf mortises into top of door
0147B Bottom Pivot
Bottom leaf mounts on top of concrete floor
Door leaf mortises into botton of door
"EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
"EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
