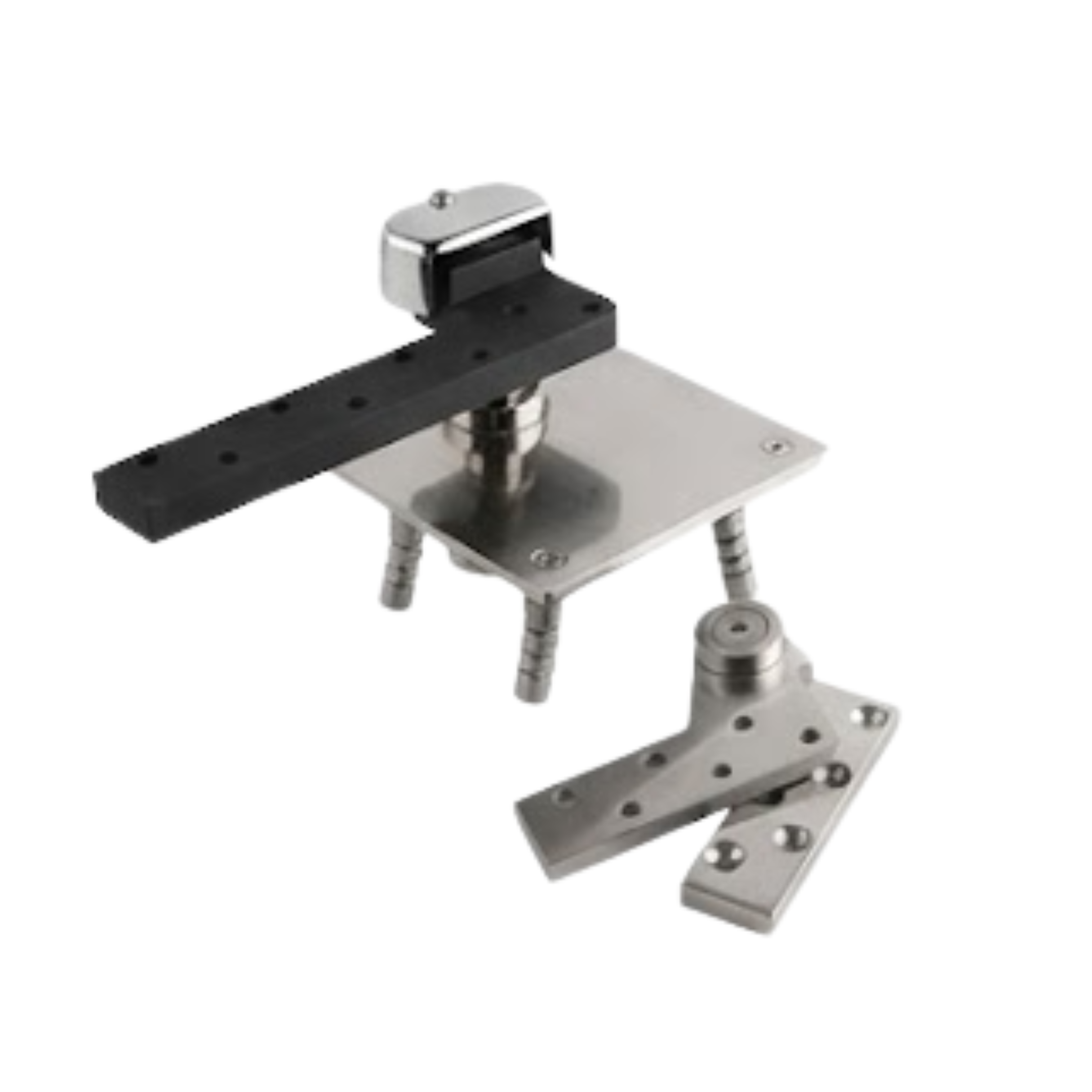

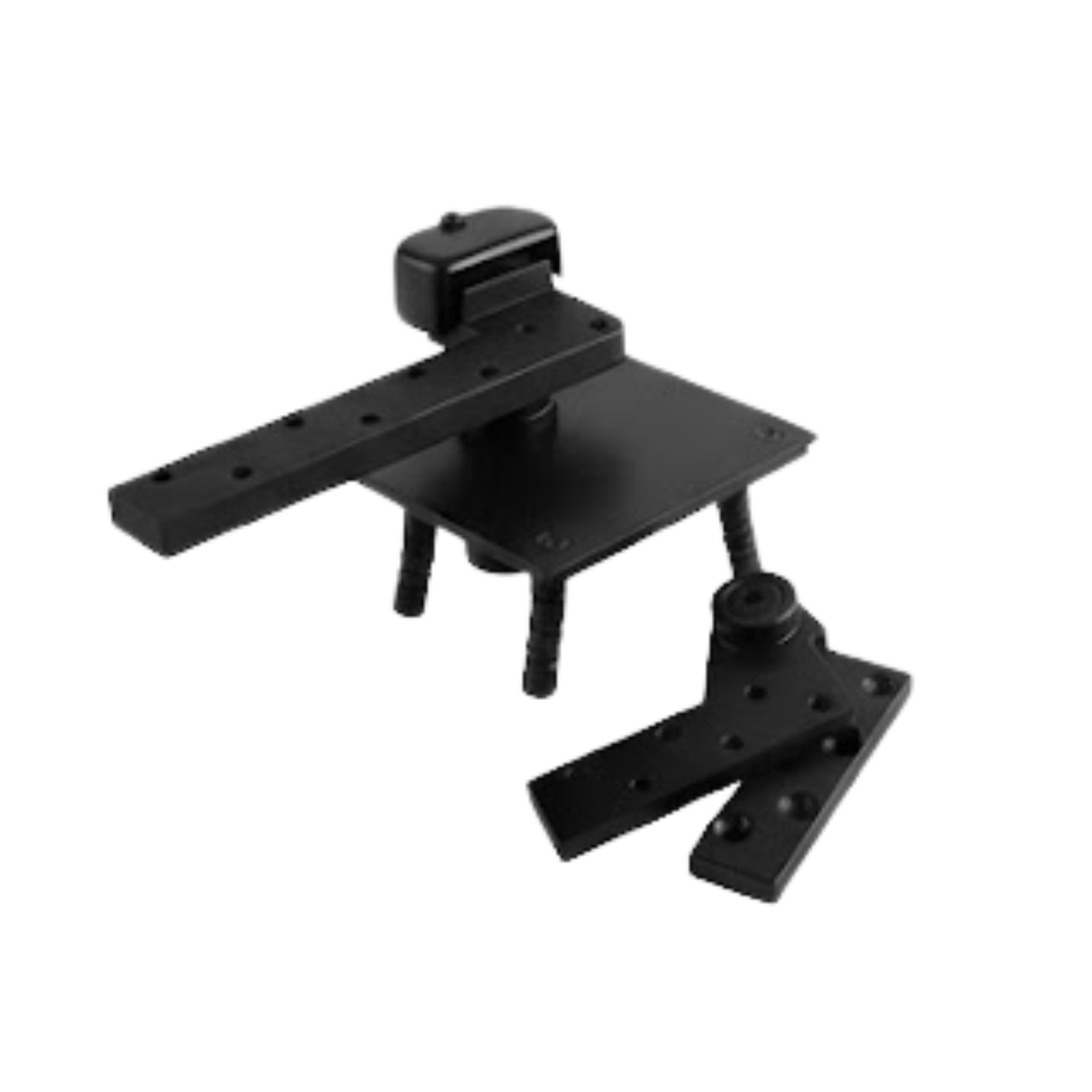

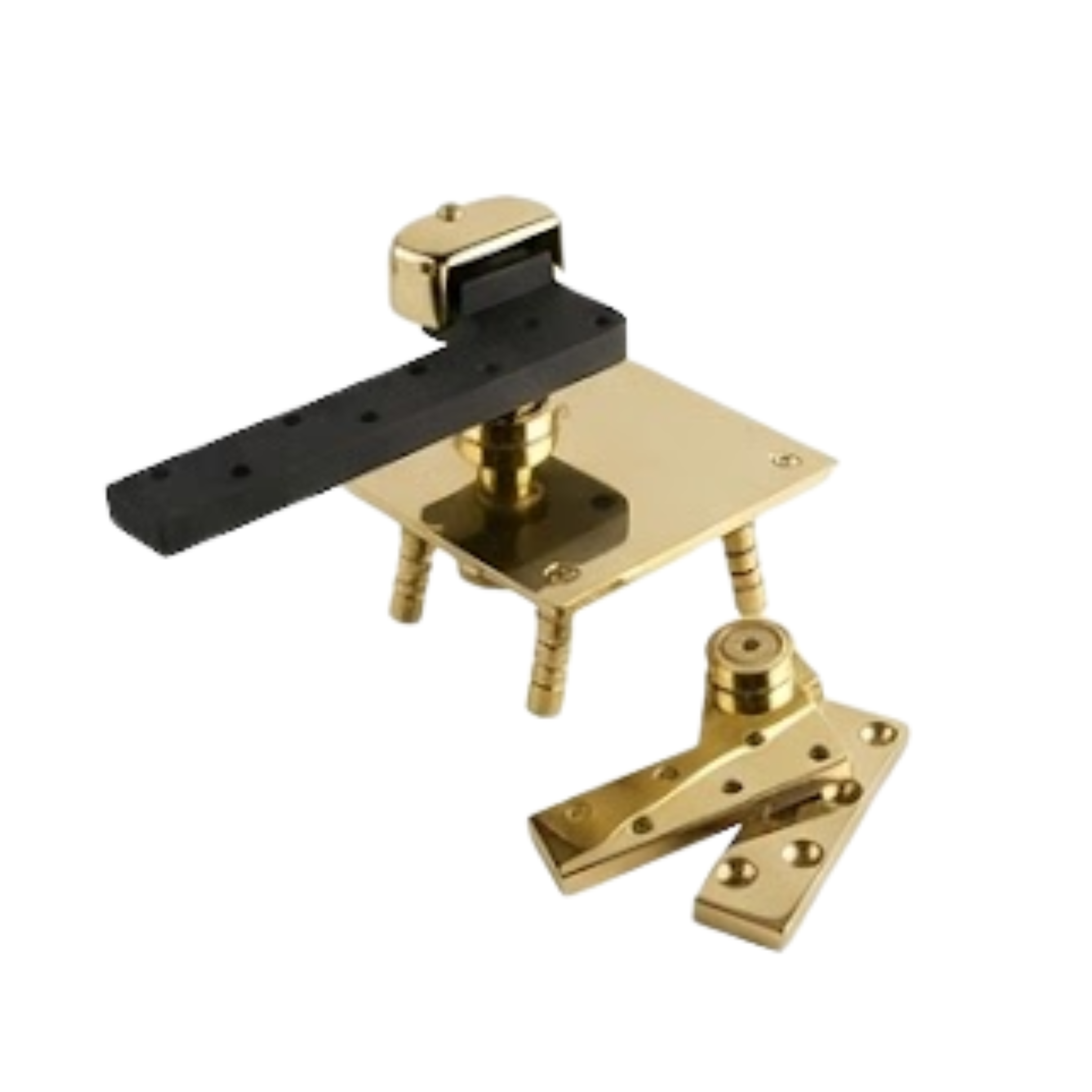

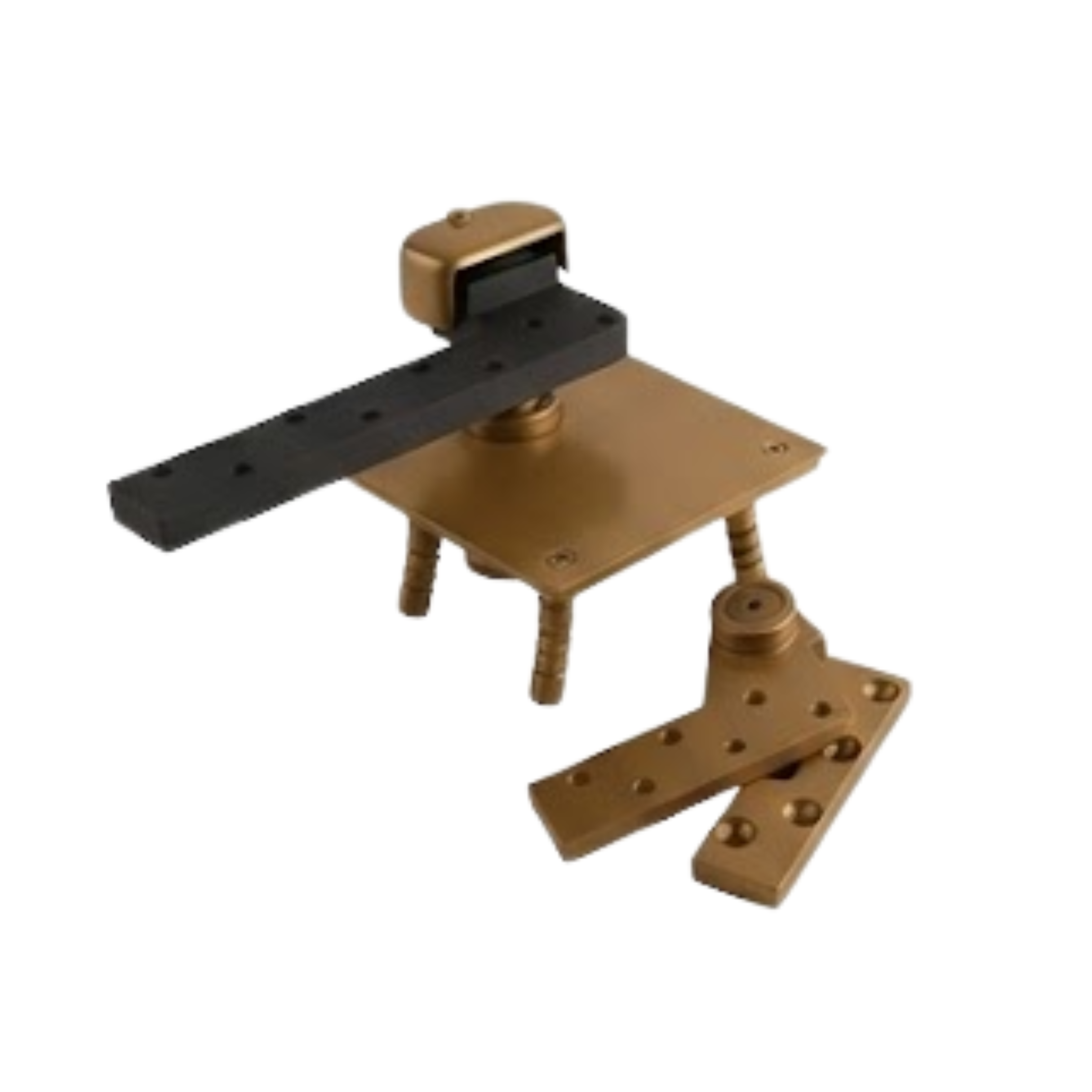

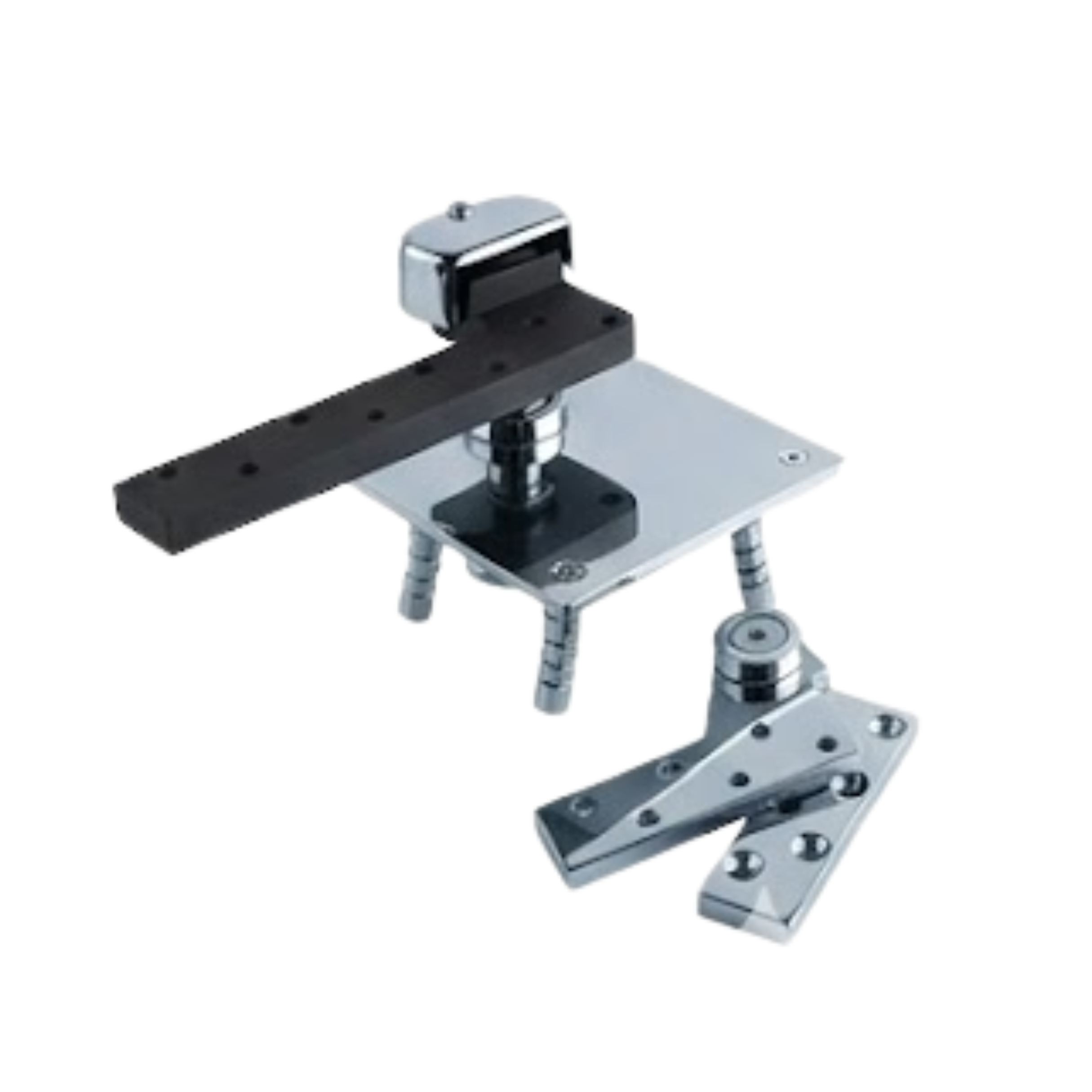

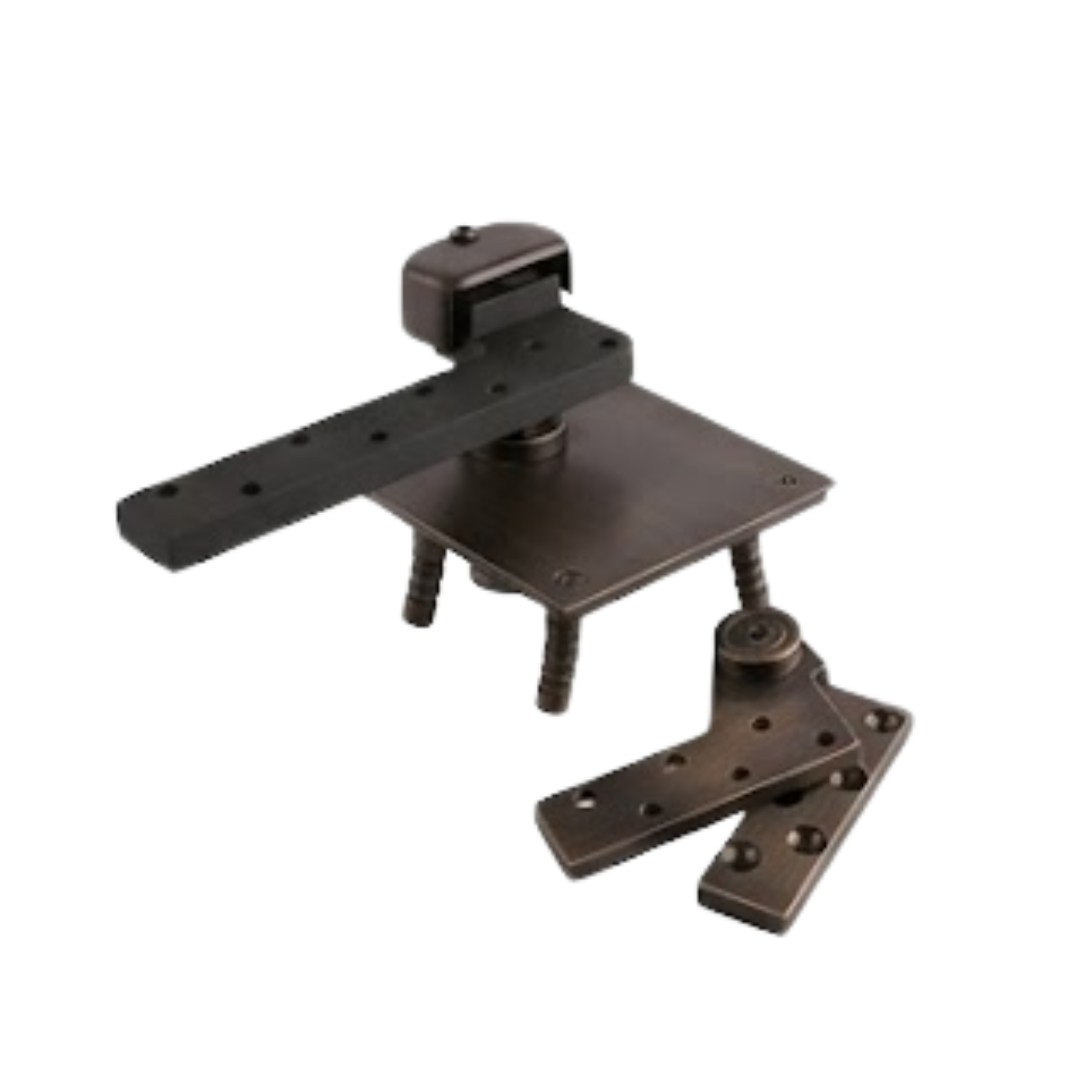

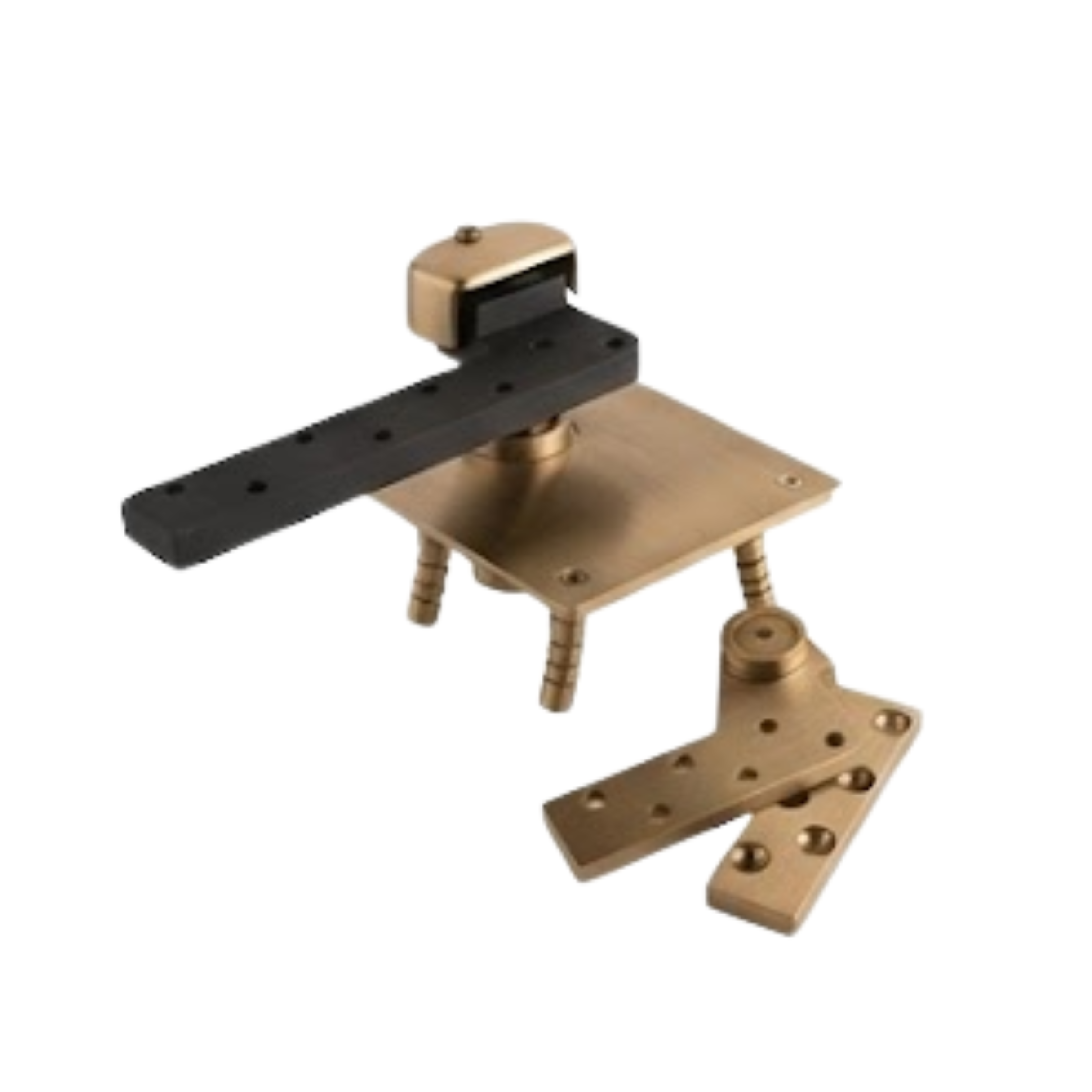

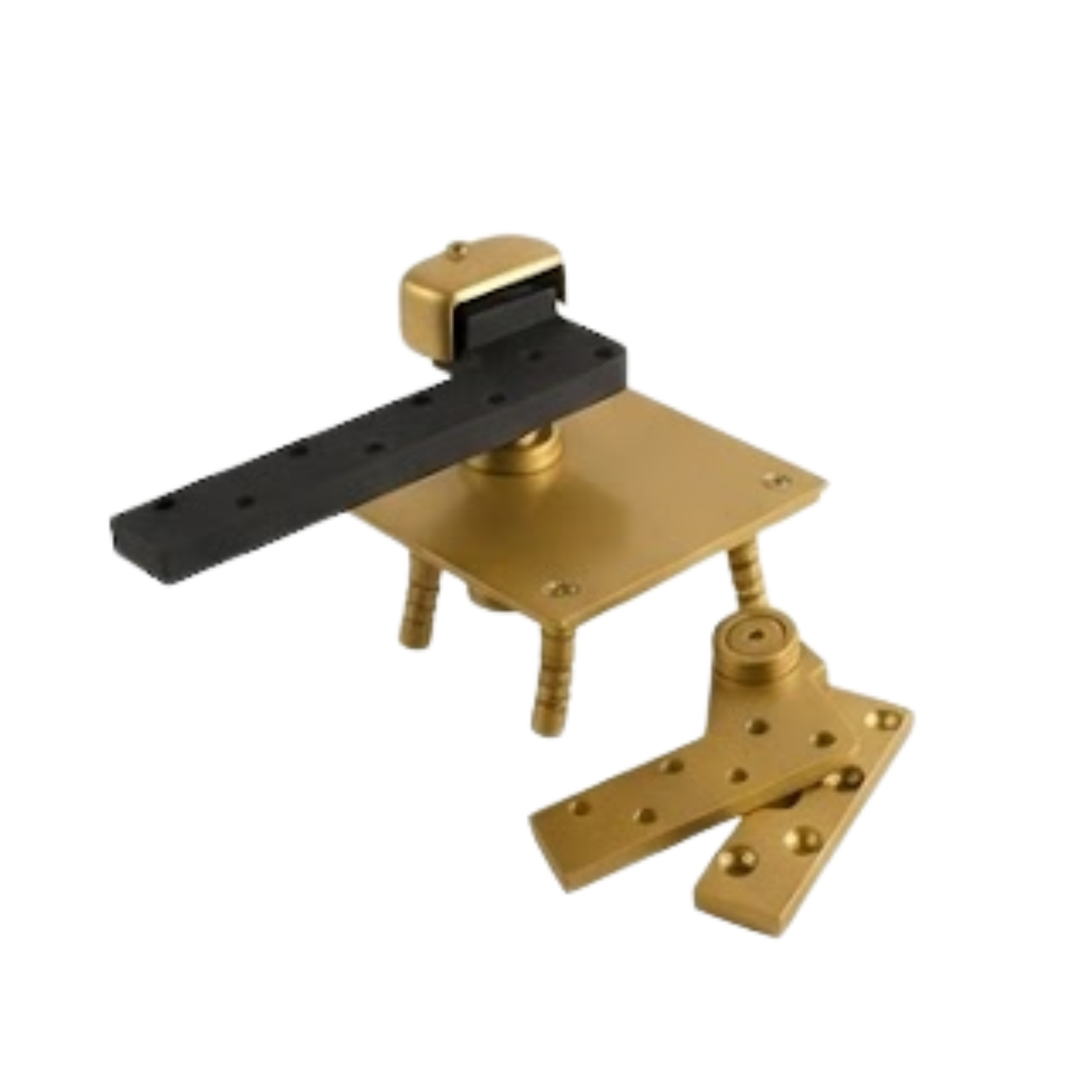

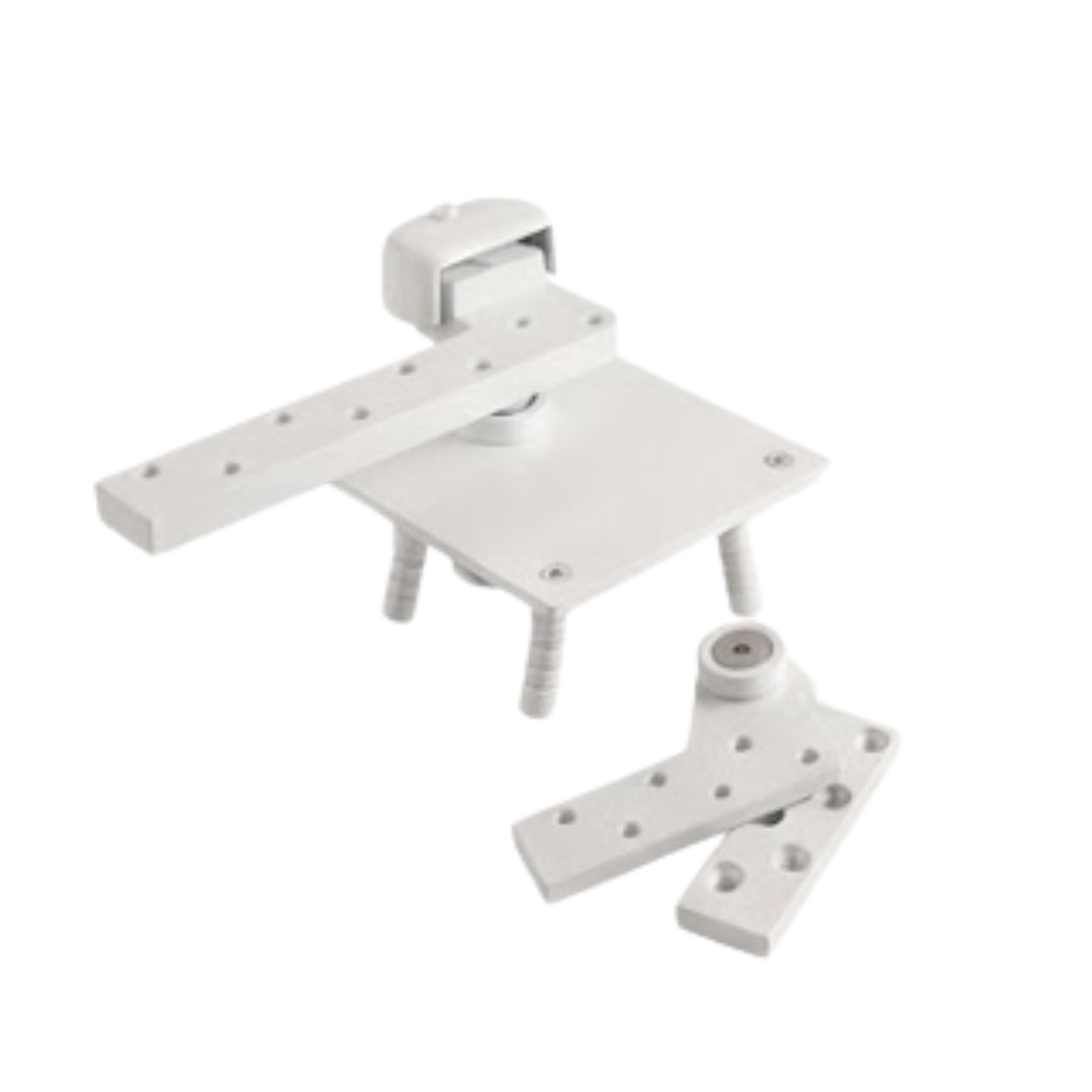

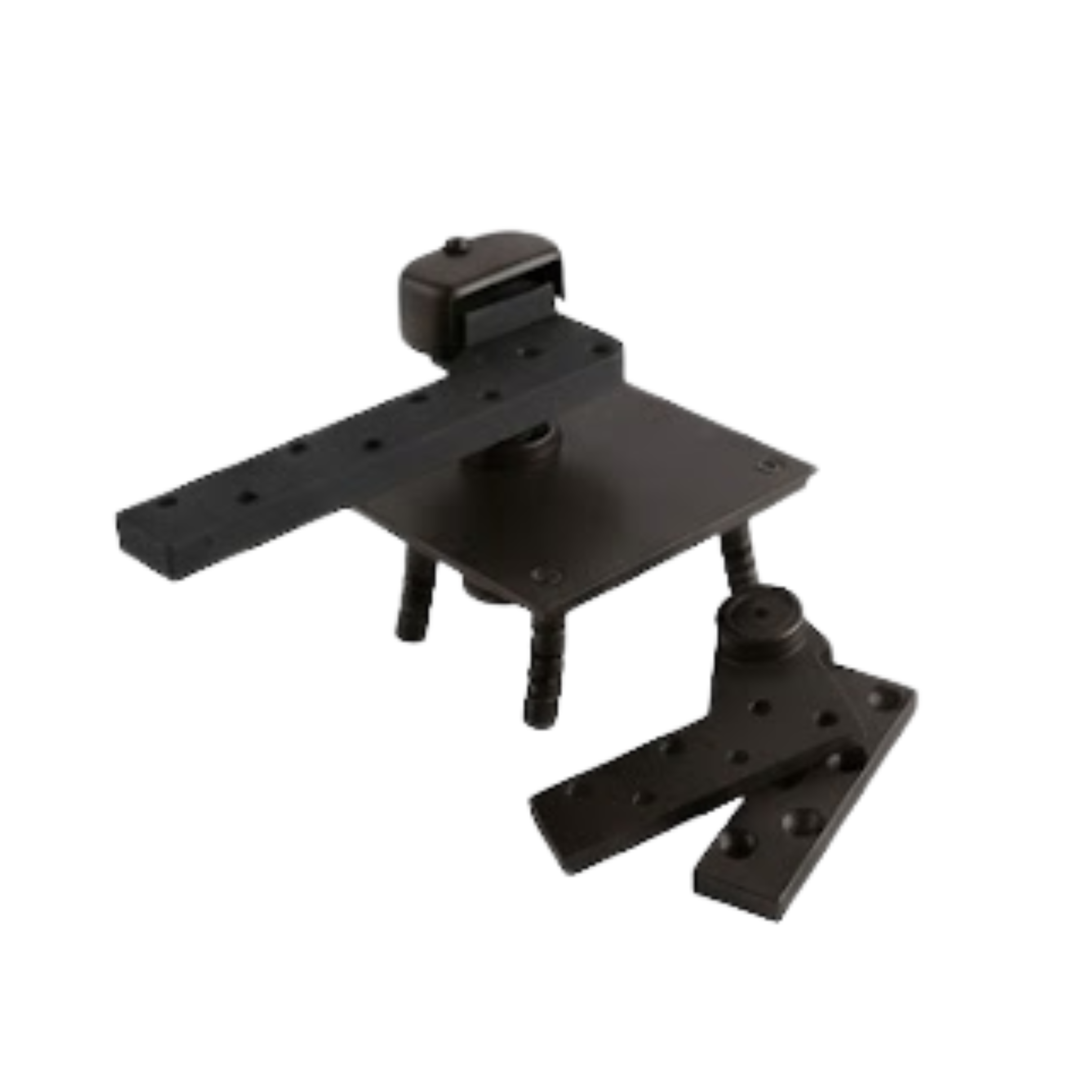

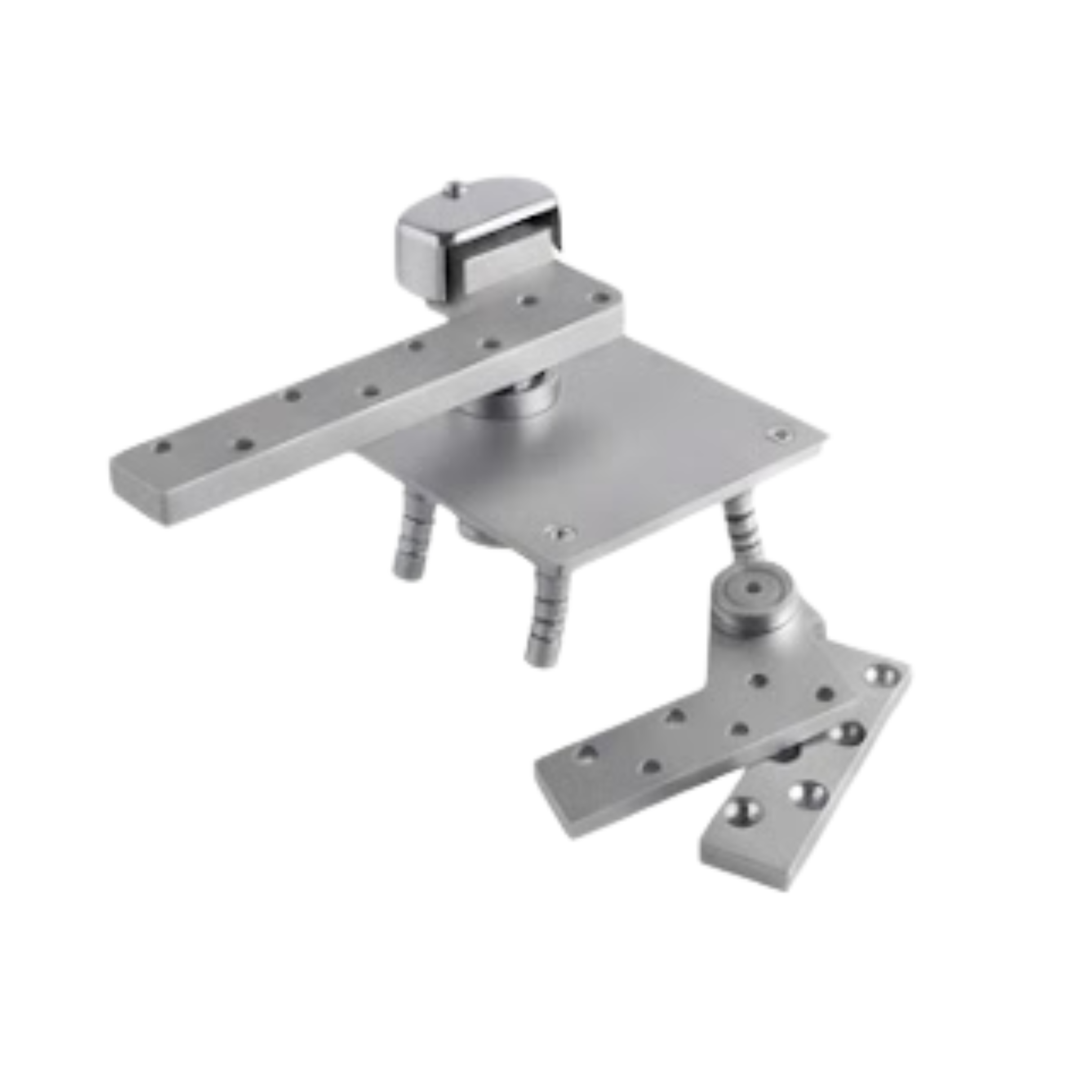

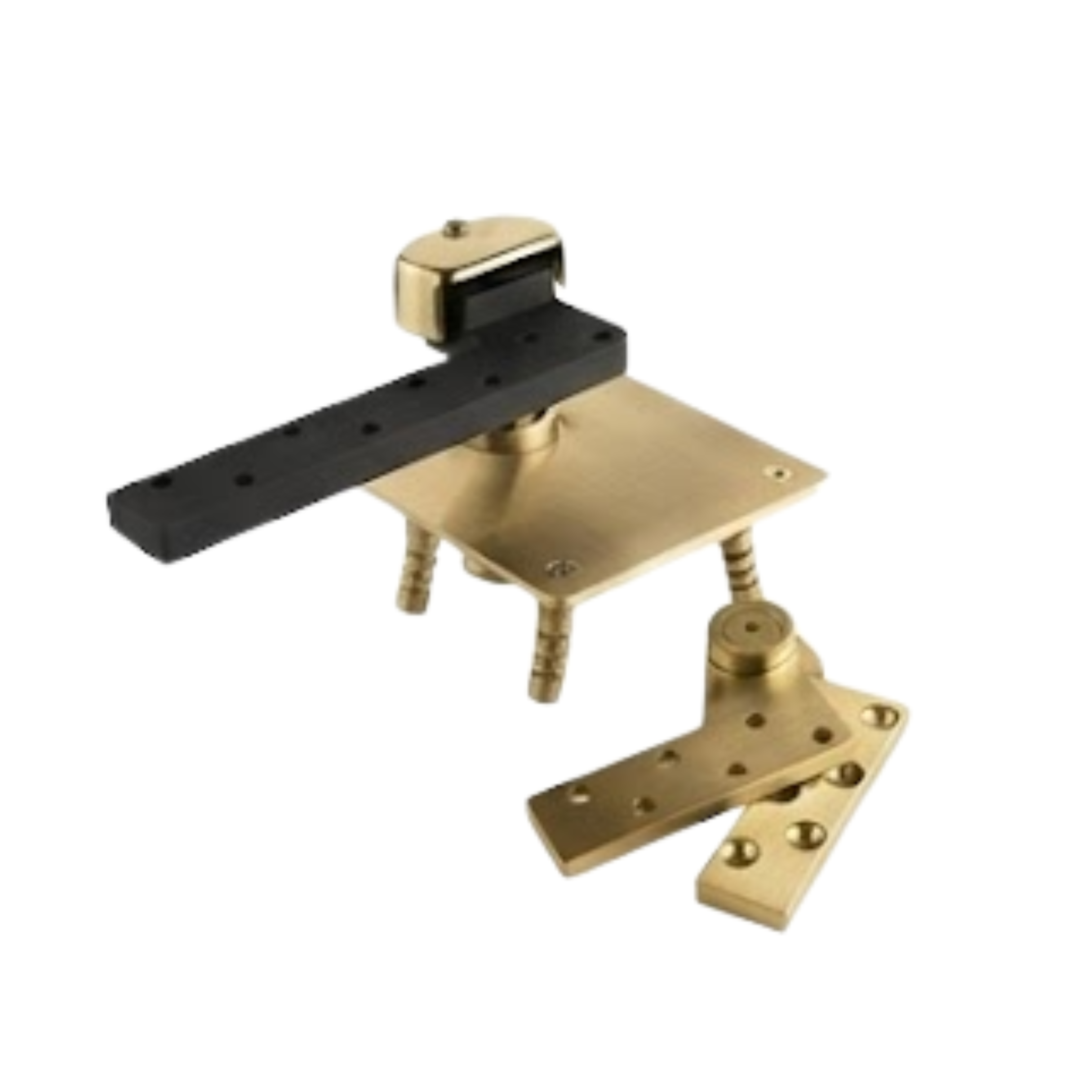

ABH 0117.50 Pivot Set - 3/4" Offset

SKU: 0117.50-RH-US32D
Regular price $ 407.55
  • Features:
    • 019 intermediate pivot required (order separately)
    • Handed - Specify LH or RH
    • Maximum door load 650 pounds
    • Maxium door width - 48"
    • UL listed for use on 3-hour fire rated doors - Standard
    • Heavy duty bearings
    • Stainless steel base material
    • Average weight per unit = 9 lbs
    • Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height.

  • Includes:
    • 0180 Top Pivot
      • Frame leaf mortises into header
      • Door leaf mortises into top of door
    • 0117.50B Bottom Pivot
      • Bottom leaf mortises into floor
      • Door leaf mortises into botton of door
  • "EXT-SPIN" Extended Spindle for Bottom Pivot (1/8” Increments up to 2” Longer than Standard)
  •  "EXT-PIN" Extended Pin for Top Pivot (1/8” Increments up to 3/4” Longer than Standard)
  •  "SEC" Fasteners
