The 5100 Series electric door strike is highly configurable, providing a versatile and time-saving solution for interior and exterior doors. It is useful in most retail and commercial applications requiring electric strike use for cylindrical locks or dead latches. The 5100 Series strike can be easily converted in-field with dual voltage and selectable power fail mode to suit the need. An adjustable keeper and three faceplates simplify fit to frame.

The 5100 Series is compatible with Schlage, Falcon and many other manufacturers' cylindrical locks with up to 5/8" throw, as well as many aluminum narrow stile deadlatches.

Application

• Designed for cylindrical lock and dead latch applications
• For interior or exterior doors with hollow metal, aluminum, or wood frames

Versatility

• 12 in-field configurations
• Three faceplates standard in every box
• Field-selectable 12/24 VDC
• Non-handed, internal solenoid design
• Field-selectable power failure mode
• Adjustable keeper improves fit on tight door preps

Strength and durability

• 1000 lbs. static strength
• 70 ft-lbs. dynamic strength

Opening

• Single doors with wood, hollow metal or aluminum frames
• Cylindrical lock and dead latch applications

Throw

• 1/2" to 5/8"

Power

• Field-selectable voltage and power fail mode
• 12 VDC continuous duty at 0.38 Amp
• 24 VDC continuous duty at 0.19 Amp

Dimensions

• See the 5100 Series data sheet for dimensions and wiring.
• 3 faceplates:
• Square corner 4-7/8” x 1-1/4”
• Round corner 4-7/8" x 1-1/4”
• Wood application 7-15/16" x 1-7/16”
• 1-11/16" backbox depth

Available finishes

• BHMA 689 / US SP28 aluminum
• BHMA 622 / US19 flat black
• BHMA 695 / US SP313 dark bronze

Options

• 12 VAC to 12 VDC rectifier
• 24 VAC to 24 VDC rectifier

Downloads

• 5100 Series electric strike data sheet
• Von Duprin® electric security products and accessories catalog
• Electronic Access Control catalog
• Guide to selecting an electric strike
• Electric strikes application guide
• System components quick cross reference guide
• Fire, Life, Safety and Accessibility code reference guide
• 5100 Series installation instructions, templates or wiring diagrams

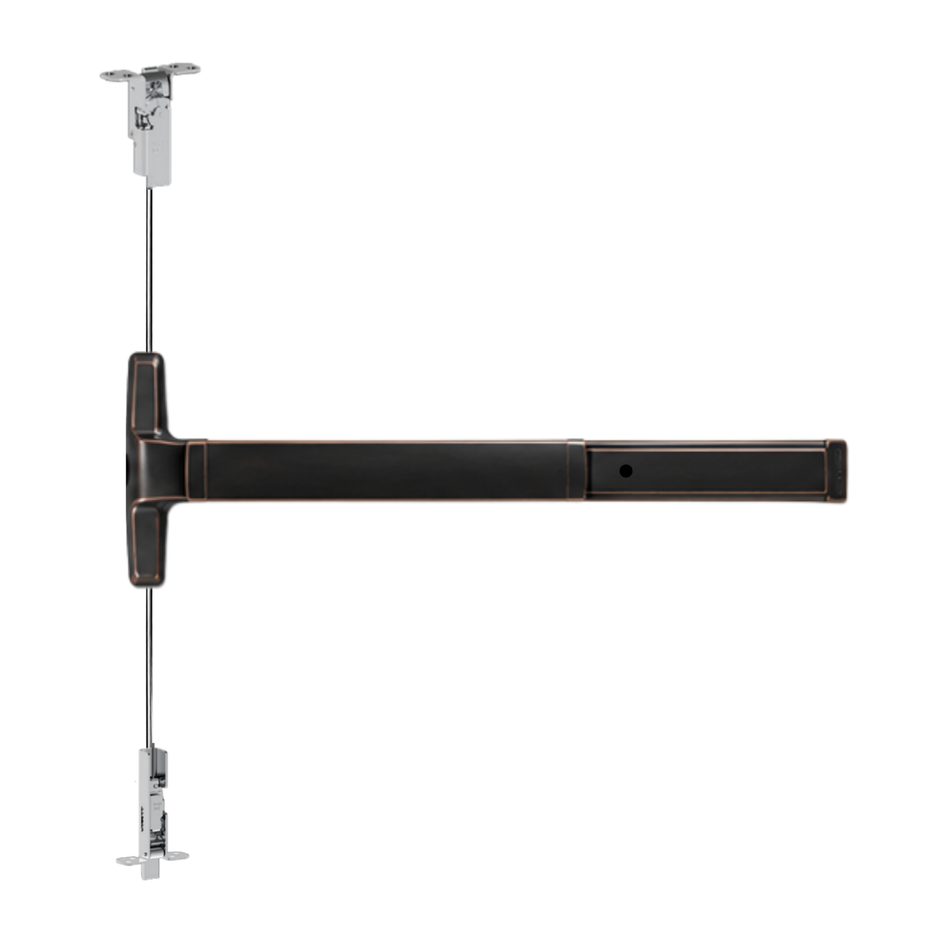

Dimensions

• Crossbar height to finished floor 36 13/16" (935mm) at center
• Crossbar projection — neutral 3 3/4" (95mm)
  depressed 2 3/8" (60mm)
• Crossbar length 42" (1067mm)
• Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Vertical rods-hexagon 3/8" (10mm) adjustable top rod
• Crossbar tubing 1" (25mm)
  Note: Maximum door undercut, 1/4" (6mm).

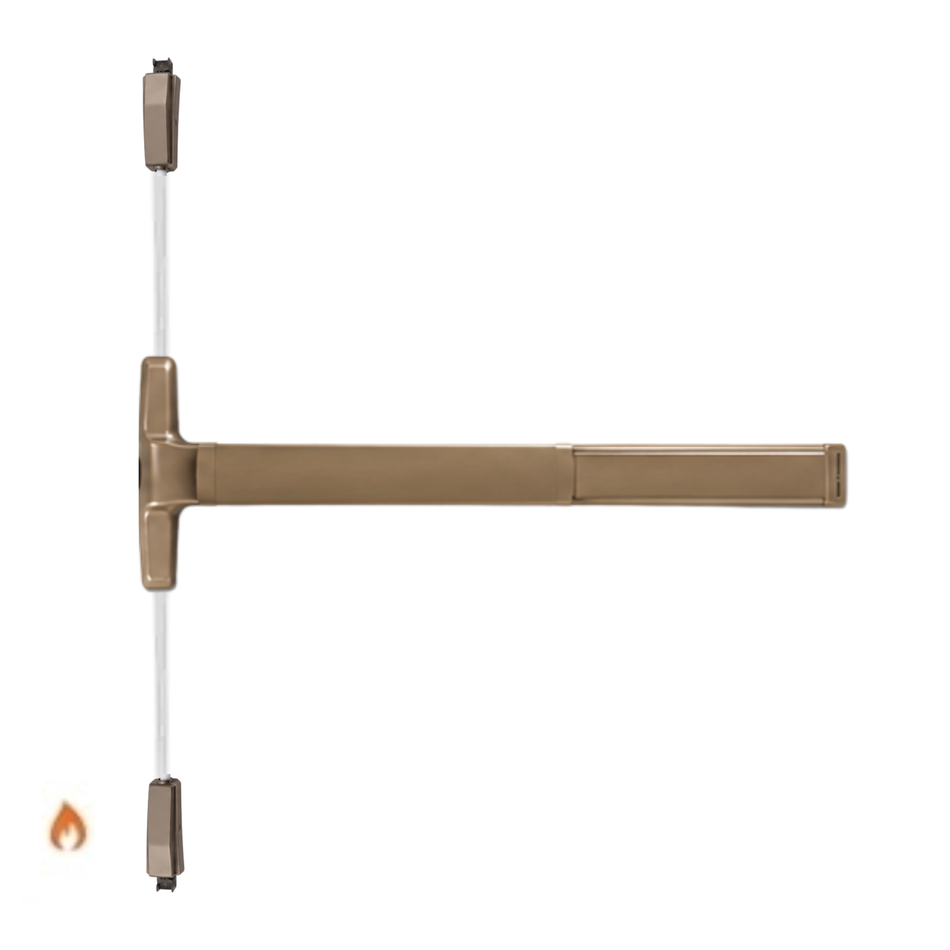

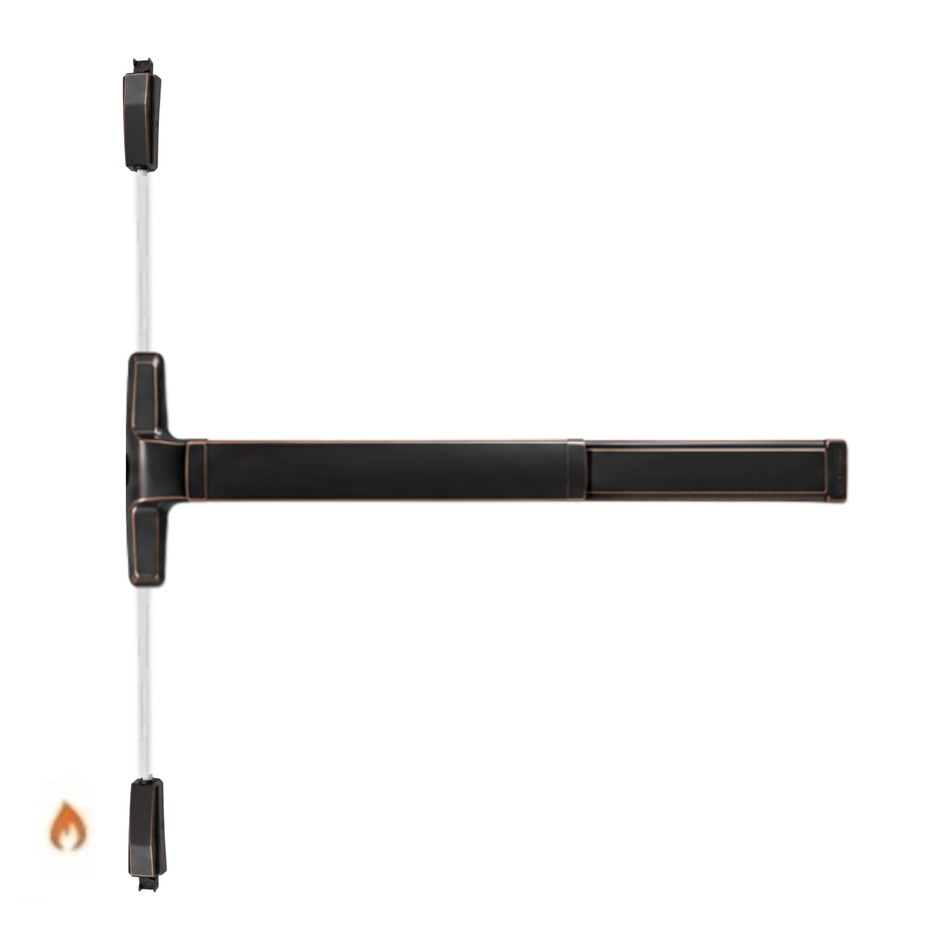

Dimensions

• Crossbar height to finished floor 36 13/16" (935mm) at center
• Crossbar projection — neutral 3 3/4" (95mm)
  depressed 2 3/8" (60mm)
• Crossbar length 42" (1067mm)
• Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Vertical rods-hexagon 3/8" (10mm) adjustable top rod
• Crossbar tubing 1" (25mm)
  Note: Maximum door undercut, 1/4" (6mm).

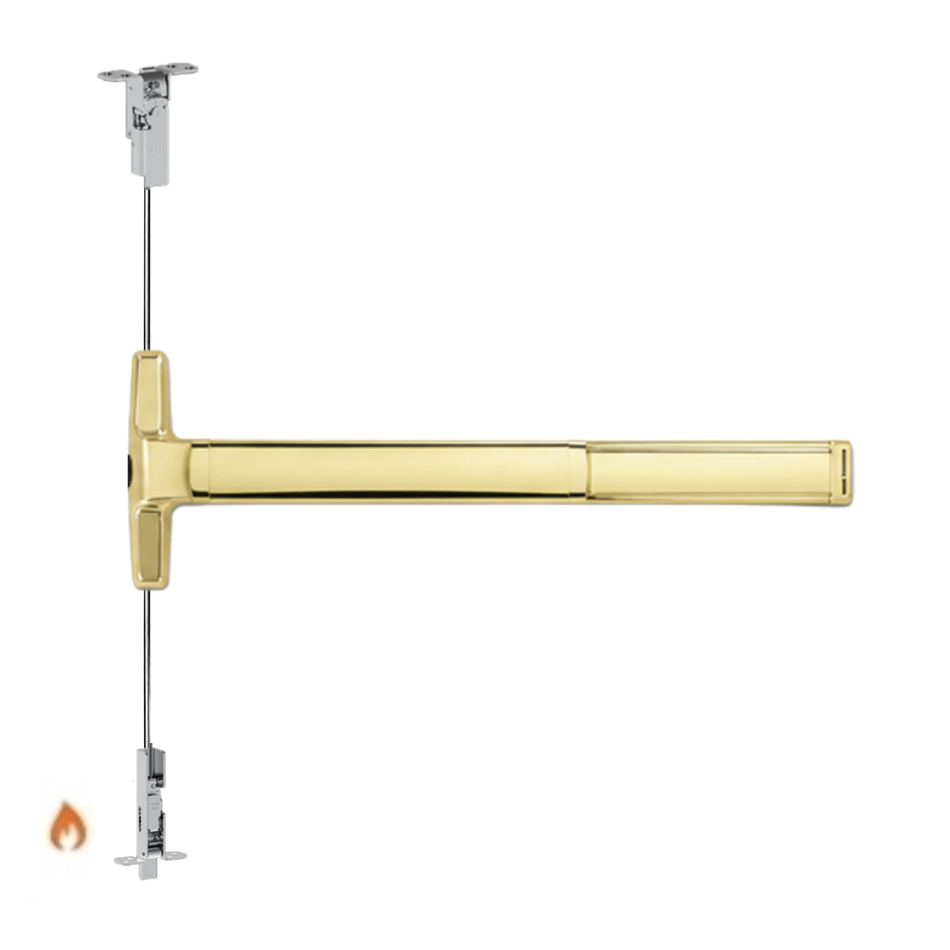

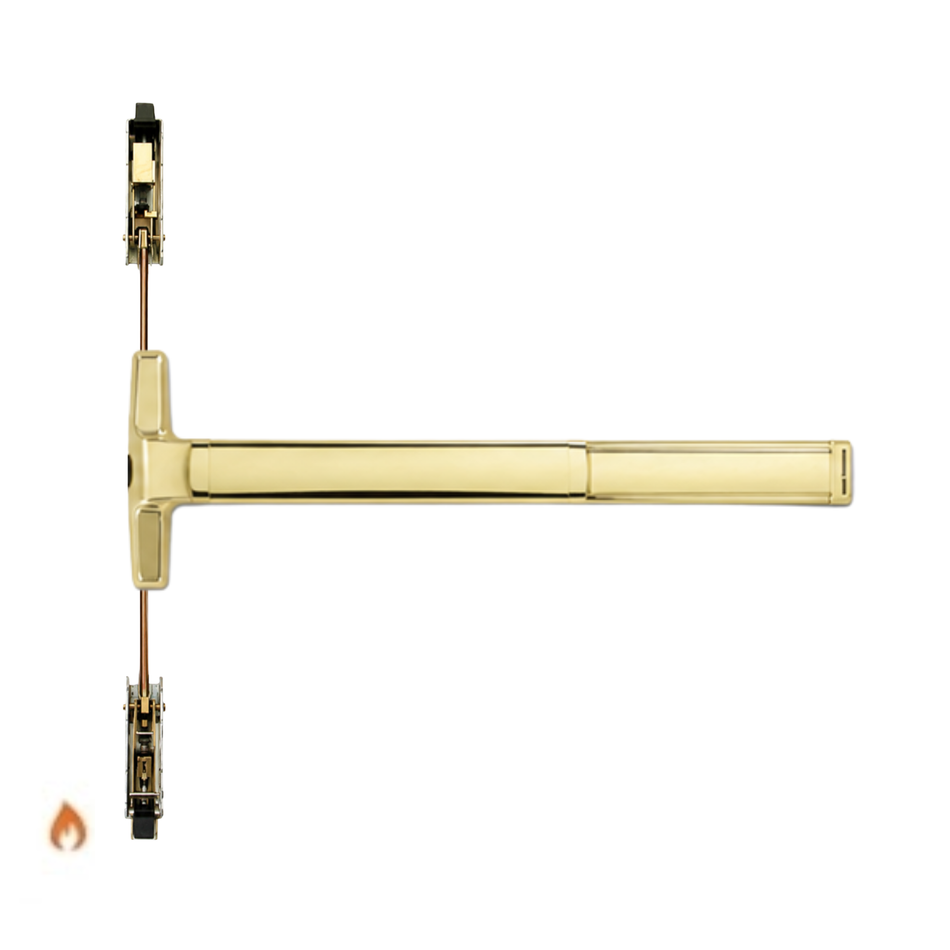

Dimensions

• Crossbar height to finished floor 36 13/16" (935mm) at center
• Crossbar projection — neutral 3 3/4" (95mm)
  depressed 2 3/8" (60mm)
• Crossbar length 42" (1067mm)
• Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Vertical rods 3/8" (10mm) hexagon
• Crossbar tubing 1" (25mm)
  Note: Maximum door undercut, 1/4" (6mm).

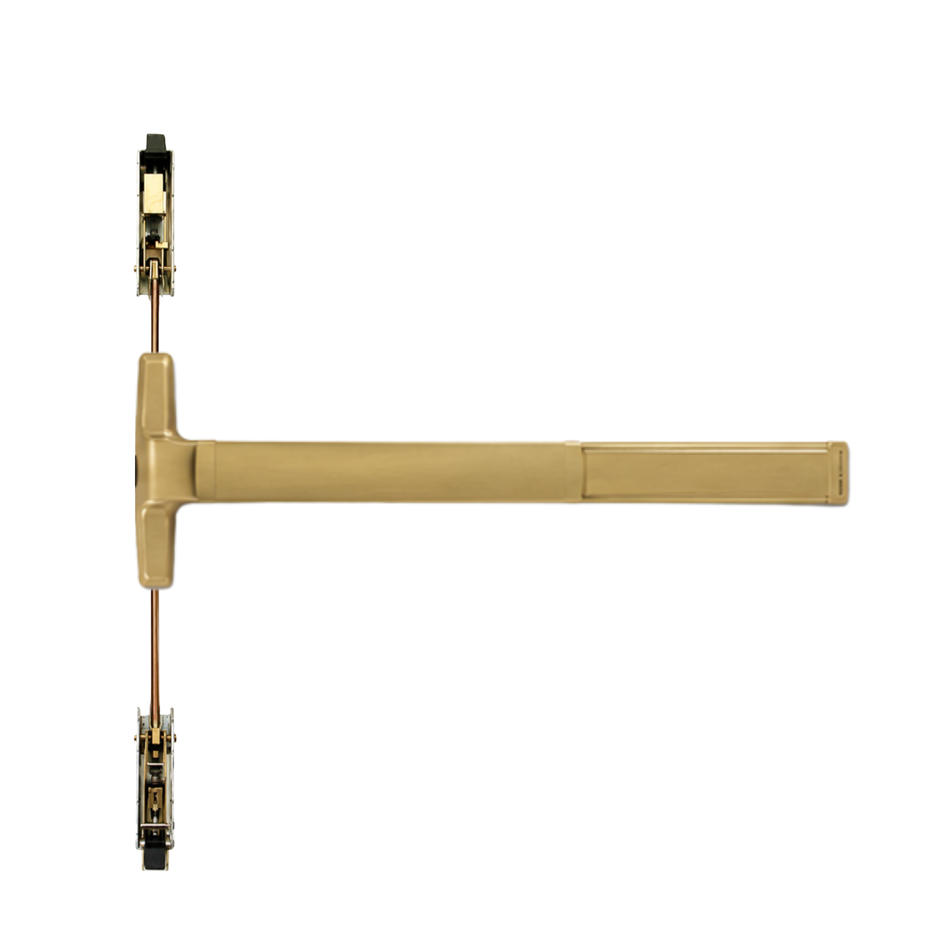

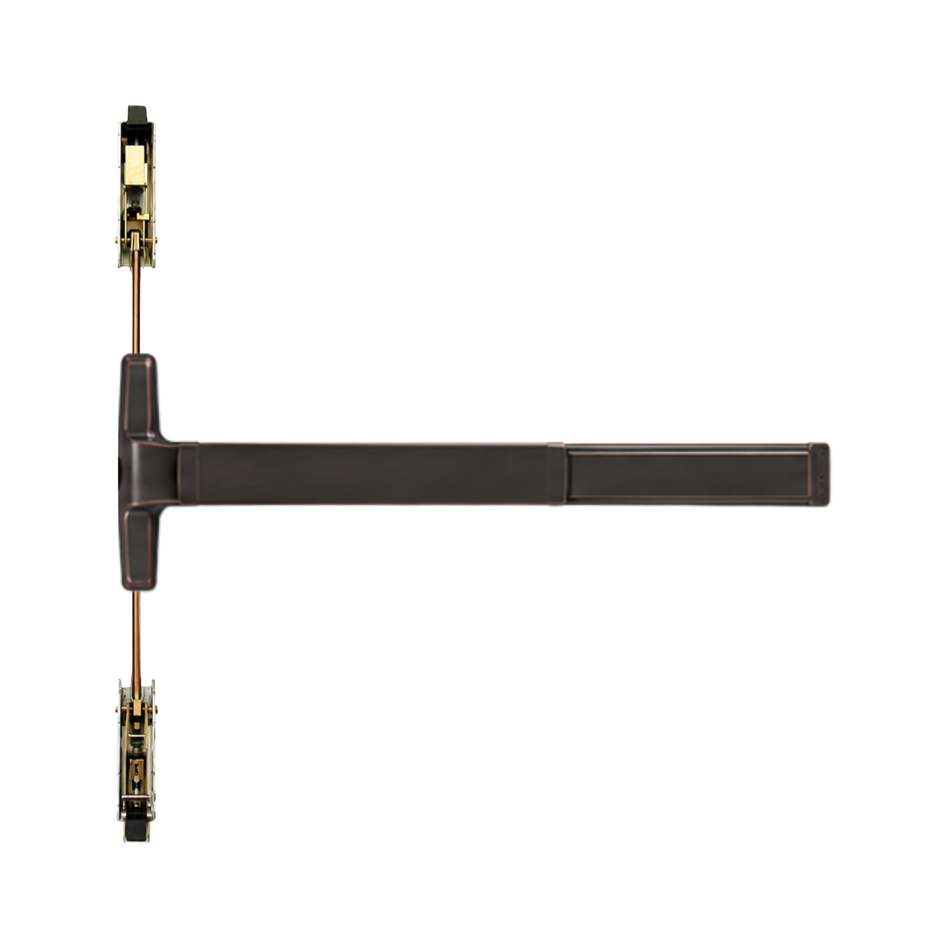

Dimensions

• Crossbar height to finished floor 36 13/16" (935mm) at center
• Crossbar projection — neutral 3 3/4" (95mm)
  depressed 2 3/8" (60mm)
• Crossbar length 42" (1067mm)
• Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Vertical rods 3/8" (10mm) hexagon
• Crossbar tubing 1" (25mm)
  Note: Maximum door undercut, 1/4" (6mm).

5575EO Mortise lock devices for all types of single and double doors. UL listed for accident hazard installations. The 7500 Mortise lock is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Wood doors required 589 cover plate. Specify for 2 1/4" door. Finishes – US3, US4, US10B, US10, US26, US26D.

Dimensions

• Crossbar height to finished floor 36 13/16" (935mm) at center
• Latch bolt height to finished floor 40 3/32" (1018mm) at center
• Crossbar projection — neutral 3 3/4" (95mm)
  depressed 2 3/8" (60mm)
• Crossbar length 42" (1067mm)
• Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Lock case 4 5/8" x 5 3/4" x 1 1/16" (117mm x 146mm x 27mm)
• Faceplate 1 1/4" x 8" x 7/32" (32mm x 203mm x 6mm)
• Cylinder backset 2 3/4" (70mm)
• Crossbar tubing 1" (25mm)

5575EO FIRE RATED Mortise lock devices for all types of single and double doors. UL listed for accident hazard installations. The 7500 Mortise lock is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Wood doors required 589 cover plate. Specify for 2 1/4" door. Finishes – US3, US4, US10B, US10, US26, US26D.

Dimensions

• Crossbar height to finished floor 36 13/16" (935mm) at center
• Latch bolt height to finished floor 40 3/32" (1018mm) at center
• Crossbar projection — neutral 3 3/4" (95mm)
  depressed 2 3/8" (60mm)
• Crossbar length 42" (1067mm)
• Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Lock case 4 5/8" x 5 3/4" x 1 1/16" (117mm x 146mm x 27mm)
• Faceplate 1 1/4" x 8" x 7/32" (32mm x 203mm x 6mm)
• Cylinder backset 2 3/4" (70mm)
• Crossbar tubing 1" (25mm)

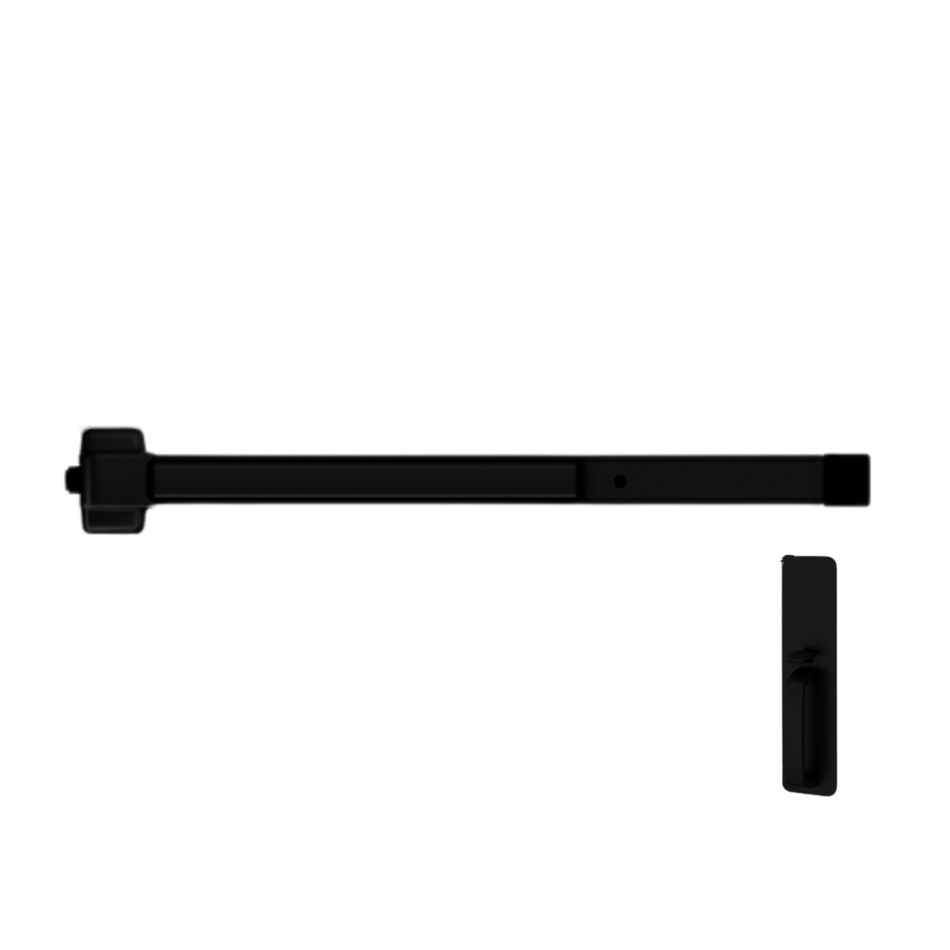

• Crossbar height to finished floor 36 13/16" (1011mm) at center
• Crossbar projection — neutral 3 3/4" (95mm) depressed 2 3/8" (60mm)
• Crossbar length 42" (1067mm)
• Lock stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Hinge stile case 7 1/4" x 1 3/16" x 2 1/4" (184mm x 30mm x 57mm)
• Crossbar tubing 1" (25mm)

Von Duprin Electric Strike Replacement Solenoid 050237-12VDC, 050239-16VDC, 050240-24VDC (FS & FSE)

• Fits all 6000 Series electric strikes
• Grade 1

The 6200 Series electric strikes are designed to use with mortise and cylindrical devices on single and pair doors. These heavy-duty strikes are UL 10C fire rated and factory configurable to fail safe or fail secure applications. Their stainless steel construction with integrated faceplate and smooth keeper movement help assure durability and reliability.

Available designs are suitable for a wide range of new construction applications and may also retrofit a number of competitive and older model Von Duprin electric door strikes.

Application

• 17 model configurations available for cylindrical and mortise applications
• For doors with hollow metal, aluminum, or wood frame models

Simplicity

• Factory orderable to exact specification
• 6 popular finishes available to suite with existing hardware
• Two-piece plug connectors are included for ease of installation and removal during strike servicing

Strength and durability

• Heavy-duty stainless steel construction
• 70 ft-lbs. dynamic strength
• 1,000,000 cycles endurance tested
• 5-year limited warranty

Product information

6200 Series electric strike data sheet
Von Duprin® electric security products and accessories catalog
Electronic Access Control catalog

Technical resources

Guide to selecting an electric strike
Electric strikes application guide
System components quick cross reference guide
Fire, Life, Safety and Accessibility code reference guide
6200 Series installation instructions, templates or wiring diagrams

Overview

The 6300 Series electric door strike is designed for installation speed and convenience. It can be used with most rim exit devices as a no-cut solution for storefronts and other challenging applications. Suitable for single or pair doors with a mullion, the 6300 Series is fire-rated and made of heavy-duty, stainless steel. Standard features include plug-in voltage connectors and internal solenoid for a "no-cut" quick installation, indoors or out.

The 6300 Series is designed for use with the Von Duprin 98/99 Series, but can be used with Falcon and most other manufacturers' rim exit devices.

Application

• Designed for use with rim exit devices
• For interior or exterior doors with hollow metal, aluminum, or wood frames
• Simplicity

Surface mounted

• Requires no alteration or cutting to existing frame
• Field-selectable voltage 12VDC or 24VDC
• Non-handed, internal solenoid design
• Plug-in voltage connectors included for easy installation and removal during strike servicing

Strength and durability

• Heavy-duty stainless steel construction
• 1500 lbs. static strength
• 70 ft-lbs. dynamic strength

Opening

• Single doors or pair with mullion on wood, hollow metal or aluminum frames

Lockset

• Rim exit devices

Throw

• 3/4" latch


Power

• 24 VDC standard with 12 VDC and rectifier kit conversion to VAC optional
• 12 VDC continuous duty at 0.5 Amp
• 24 VDC continuous duty at 0.24 Amp

Dimensions

• See 6300 Series data sheet for dimension and wiring diagrams.
• 9" L x 1-3/4"W x 3/4"D

Available finishes

• BHMA 630 Satin stainless steel

Options

• 12 VAC to 12 VDC rectifier
• 24 VAC to 24 VDC rectifier
• Entry buzzer

Downloads

• 6300 Series electric strike data sheet
• Von Duprin® electric security products and accessories catalog
• Electronic Access Control catalog
• Guide to selecting an electric strike
• Electric strikes application guide
• System components quick cross reference guide
• Fire, Life, Safety and Accessibility code reference guide
• 6300 Series installation instructions, templates or wiring diagrams

Overview

The 6400 Series electric door strike is designed to be highly configurable to fit almost any mortise or cylindrical lock, including those with offset latches. It provides a fail-secure only solution for fire-rated openings.

The strike allows installers to insert and lock in place the deadbolt keeper, or the plug and dead latch ramp, anywhere within its 3-1/8” vertical opening to suit latchbolt position and functional needs Combined with horizontal adjustability, this makes the easy-to-install 6400 Series a good fit for installations where misalignment or a tight fit may be a problem.

Application

• Fits cylindrical and nearly any mortise lock
• For interior or exterior doors with hollow metal, aluminum, or wood frames
• 3-hour fire-rated to UL 10C (fail secure only)

Versatility

• Modular design is configurable to functional needs
• Two faceplates standard
• Field-selectable 12/24 VDC or 12/24 VAC
• Non-handed, internal solenoid design
• 1/8" horizontal with a range of vertical adjustments for misaligned doors & frames

Strength and durability

• Heavy-duty stainless steel construction
• 1500 lbs. static strength
• 70 ft-lbs. dynamic strength

Opening

• Single doors with wood, hollow metal or aluminum frames
• Mortise locks, cylindrical locks and dead latch applications
• 1" deadbolt (as night latch only, no release)

Throw

• 3/4" latch

Power

• Field-selectable voltage
• 12 VDC continuous duty at 0.375 Amp
• 24 VDC continuous duty at 0.19 Amp
• 12/24 VAC intermittent duty at 0.28-0.565 Amp

Dimensions

• See the 6400 Series data sheet for dimensions and wiring diagrams.
• Standard 4-7/8" faceplates (one each for offset and centerline locks)
• 1-3/4" backbox depth

Available finishes

• BHMA 630 satin stainless steel

Part options

• Plug-in latchbolt monitor
• 12 VAC to 12 VDC rectifier
• 24 VAC to 24 VDC rectifier
• Entry buzzer

Downloads

• 6400 Series electric strike data sheet
• Von Duprin® electric security products and accessories catalog
• Electronic Access Control catalog
• Guide to selecting an electric strike
• Electric strikes application guide
• System components quick cross reference guide
• Fire, Life, Safety and Accessibility code reference guide

Von Duprin 8847EO-F Concealed vertical rod fire exit device 88 Series. 8847-F fire exit concealed vertical rod devices for all types of 8" x 8" (2438 mm x 2438 mm) double metal doors, UL listed, 3 hours and fits door stiles as narrow as 4 3/4" (121mm). Finishes – US26, US26D, US3, US4, US10B, US10,

Here is the service manual for the 8847-F

Installation Instructions Fot The 8847-F Exit Device

• Field sizeable
• 5/8" (16mm) throw latch bolt
• Five popular finishes

Von Duprin 8875EO Mortise Lock Cross Bar Exit Device 88 Series. Von Duprin 8875 mortise lock devices for all types of single or double doors, UL listed for accident hazard installations. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4 3/4" (121mm).

The 8875 mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a nonhanded auxiliary bolt for deadlockiing and a faceplace with an adjustable bevel. Field selection of functions are furnished standard. TP, K or L function may be field selected by removing a set screw. Electric locking or unlocking options are available, refer to pages 18-19 in the catalog.

Features

• Field sizeable
• 3/4" (19mm) throw latch bolt
• Latch bolt deadlocking
• Five popular finishes
• Hex key dogging

Dimensions

Von Duprin 8875-F Fire Rated mortise lock devices for all types of single or double doors, UL listed for accident hazard installations. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4 3/4" (121mm).

The 8875 mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a nonhanded auxiliary bolt for deadlockiing and a faceplace with an adjustable bevel. Field selection of functions are furnished standard. TP, K or L function may be field selected by removing a set screw. Electric locking or unlocking options are available..

Features

• Field sizeable
• 3/4" (19mm) throw latch bolt
• Latch bolt deadlocking
• Five popular finishes
• Hex key dogging

Dimensions

The 88EO is an exit only rim cross bar exit device for all types of single and double doors with mullion, UL listed for accident hazard installations.  Covers stock hollow metal doors with 86 or 161 cutouts.

Series 88 exit devices ... a traditional crossbar design with proven service on rugged applications. Available in rim, mortise, surface and concealed vertical rod mountings.  All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.

Von Duprin 88 series catalog

Features

• Field reversible
• Field sizeable
• 3/4" (19mm) throw latch bolt
• Six popular finishes
• Hex key dogging

Dimensions

All 88 series exit devices are UL listed from Accident Hazard and Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade 1.
