Norton

Norton is known for manufacturing door closers with a proven track record of quality. US Lock Supply offers all the most popular models of these reliable door closers, which are the choice of engineers around the globe.

We offer the Norton 1600 Series, which come standard with many features and are available with other options, and in your choice of 4 finishes to match any color scheme. If you need a door closer that is good for interior or exterior doors and comes with a hold open option, the Norton 7500 series is an excellent choice.

Our Norton collection also includes the Norton 78-B/F door closer, which features adjustable spring power, adjustable sweep/latch speed and adjustable backcheck cushioning, as well as additional options you can choose to fit your application.

The Norton 8300 series Hold Door closer is ideal for both interior and exterior doors and holds up to heavy usage in settings such as banks, offices, retail stores and more. Norton’s 8501 door closer is durable, affordable and comes with plenty of features as well as a complete range of arm and cover options. We also carry Norton 9300BC door closers in your choice of finishes and in spring size 2, 3, 4 or 5.

For Norton door closers with all the features and finishes you’ve been looking for, shop US Lock Supply today!

Norton 1601 Door Closer - Barzellock.com

Norton 1601 Door Closer

by Norton
$ 104.00

"Excellent service, excellent price, excellent timing! Huge help in crazy construction business environment! Five stars! Would suggest us lock supply to anybody, no doubt about it." Regency Glass.

                          Compare The Norton 1601
Brand/Model #
US Lock Supply Comment
Dorma 7400
Great Closer
Falcon SC60
Highly Recommended
Norton 1601
Best In Class Closer
S. Parker 900
Good Imported Closer
Sargent 1130

Solid Closer

Yale 51

Solid Closer

Best Used In Medium To High Traffic Doors


US Lock Supply Stocks The Norton 1601 Closer In All Options & Finishes Ready To Ship Free On Orders Over $189.  Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

1601 Arm Options:

RW/PA Regular Arm
HW/PA Hold Open With Regular Arm

1601 Finishes:

689-Aluminum
690-Dark Bronze
691-Light Bronze
696-Satin Brass

Features

    • 1600BC: Sized springs 3 or 4
    • 1601: Adjustable spring sizes 3-6
    • 1601BF: Adjustable spring sizes 1-4
    • Exceeds 12 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack and pinion design
    • Cast aluminum body
    • 2-7/8" (73mm) projection
    • 1-3/8" (35mm) diameter piston
    • 5/8" (16mm) diameter pinion journals
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Staked valves

    Optional Features

    • Delayed action (in lieu of backcheck). Specify 1601DA or 1601BFDA
    • Corrosion-resistant model (non-hold open only). Specify 1601SS or 1601BFSS. (Not tri-packed)
    • Molded plastic cover. Specify suffix P
    • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®

    The 1600BC/1601 Series Door Closers are designed to fit almost any application and are the choice of engineers worldwide. Ideal for use with aluminum storefront doors and frames, these closers have a history of proven quality and tradition.

    Features

    • 1600BC: Sized springs 3 or 4
    • 1601: Adjustable spring sizes 3-6
    • 1601BF: Adjustable spring sizes 1-4
    • Exceeds 12 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack and pinion design
    • Cast aluminum body
    • 2-7/8" (73mm) projection
    • 1-3/8" (35mm) diameter piston
    • 5/8" (16mm) diameter pinion journals
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Staked valves

    Optional Features

    • Delayed action (in lieu of backcheck). Specify 1601DA or 1601BFDA
    • Corrosion-resistant model (non-hold open only). Specify 1601SS or 1601BFSS. (Not tri-packed)
    • Molded plastic cover. Specify suffix P
    • Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®

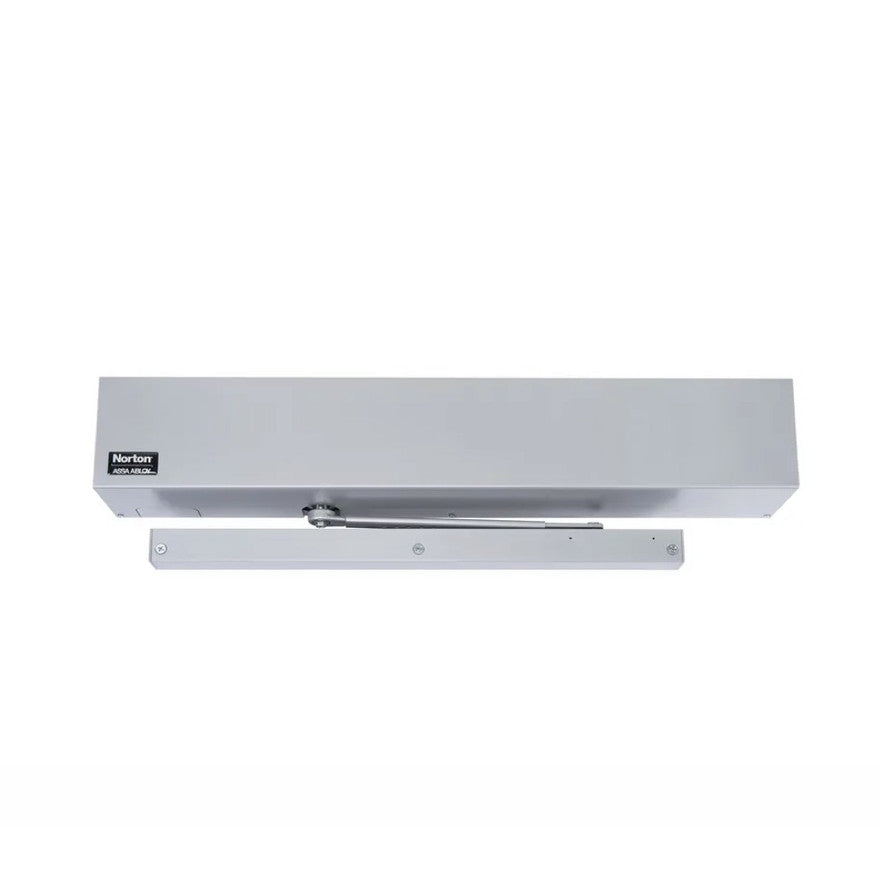

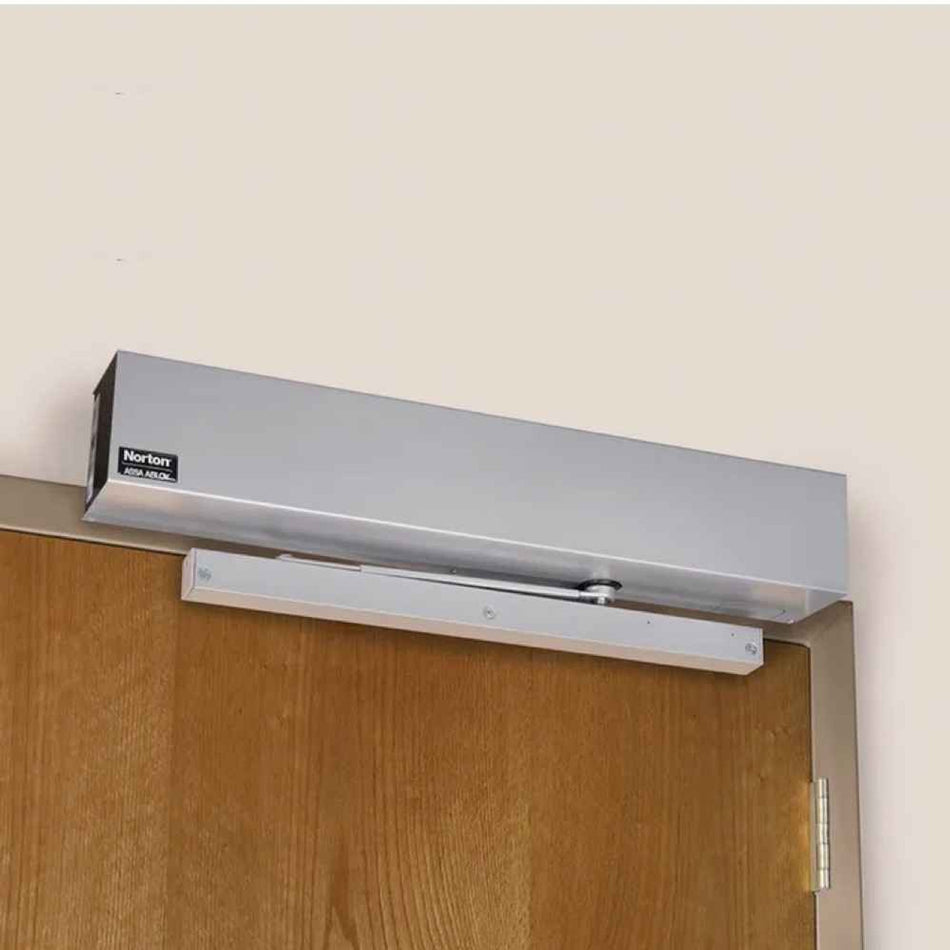

    Norton 5700 Power Operated Door Closer 5710, 5730, 5730 - Barzellock.com

    Norton 5700 Series is the latest generation of power door operators. Low energy door operators were once considered a necessity only for those with physical challenges. Today, due to the population?s busy lifestyles, the convenience of ?hands-free? door opening is more popular than ever. The patented design of LEO? is based on ease and simplicity. LEO installs in minutes rather than hours and consists of three basic components: inverter, motor and Norton

    Features

    Non-Handed

    Ease of installation and setup - Simple instructions

    Application versatility & ease of adjustment - Push or pull side mounting units available

    Operates as mechanical surface closer during close cycles or when door is opened manually or if power is turned off - Quiet operation, acceptable for fire-rated doors, spring force provides the feel of a normal manual door closer, door can be opened manually if desired

    Power Size: Multi-Sized Door Closer Adjustable through the power range of sizes 3 through 6.

    Separate and independent, latch, sweep and backcheck intensity valves

    Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10from the closed position.

    Latch Speed: Allows adjustment of door speed from approximately 10down to the door?s fully closed position.

    Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

    Unit Activation Options - Wall switches, Motion sensor, Radio frequency device

    End-User On/Off Switch

    Hold Open options - 0-30 seconds (5 seconds minimum required for ADA and ANSI A156.19)

    Obstruction Detection - Motor stops if door is obstructed during an opening, door closes under manual spring force.

    "Push and Close" Allows the operator to skip the hold open time when it is not necessary or required Adjustable door sensitivity

    Overload Safety Shut-Off After two minutes of receiving a door activation signal, the inverter will time out and close the door Prevents motor/inverter damage

    Motor Start Delay for Locking Hardware 0-5 second delay to allow locking hardware to release first

    2-year warranty (refer to current Nortonprice book for terms & conditions)

    Model: Norton, 5710, 5730, 5740

    Norton 5730xPCx689

    Norton 5730xPCx689

    by Norton
    $ 1,880.00

    Double Lever Arm, Push Side Door Operator, Adjustable Size 3-6, Power Cord, Aluminum Painted

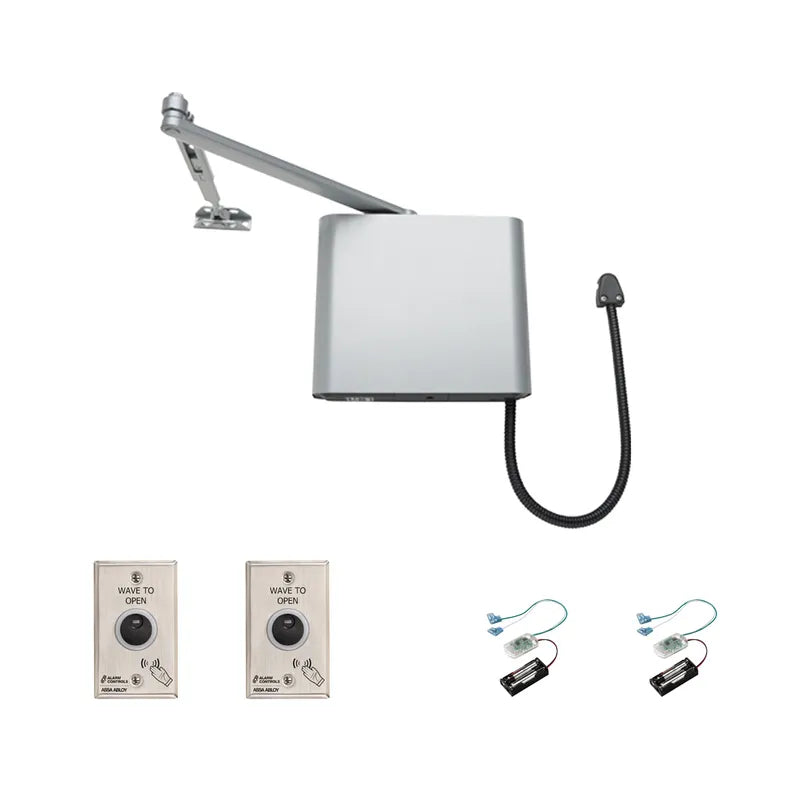

    Norton 5845xNPB Power Operator

    Norton 5845xNPB Power Operator

    by Norton
    $ 2,319.00



    ADAEZ PRO COMPLETE: MODEL 5845 (PUSH AND PULL)

    » Bundles all the configurations of the ADAEZ PRO and ADAEZ PRO PLUS models into one easy to stock package

    » Right or left hand doors

    » Push and pull side mounting hardware

    » Black and aluminum finish covers

    » Mounting hardware for virtually any door and frame

    » 24VDC plug-in transformer kit for continuous automatic use applications



    FEATURES

    » Regenerative drive or continuous duty operation

    » Non-handed

    » 5° door opening

    » Push and pull side mounting

    » Push-and-Go (ADA1015P Kit must be connected)

    » Power Close (ADA1015P Kit must be connected)

    » Radio Frequency stainless steel push buttons

    » Integral RF receiver

    » Shock absorbing arm

    » 693T (black) and 689 (aluminum) covers

    » 24VDC input port » ADA1015P hardware kit

    » Built-in ON/OFF Switch

    » Auxiliary activation input port

    » Maximum door width - 48"

    » Maximum door weight - 250 lbs

    » Patented Auto-Tune feature ensures safety and compliance with A156.19 code

    » 2 year limited warranty



    CERTIFICATIONS

    » ANSI/BHMA A156.19 certified

    » ETL tested to UL/cUL standard for automatic doors on fire & smoke barrier doors

    » Complies with requirements for Americans with Disabilities Act (ADA)

    » UL10c 90-minute positive pressure fire rating

    » Manufactured in an ISO 9001 and ISO 14001 certified facility

    » Verified by GreenCircle to offer these energy savings as compared to similar products:

    › 5800 Series ADAEZ® (plug-in) – 91% efficiency

    › 5800 Series ADAEZ® (wireless) – 100% efficiency

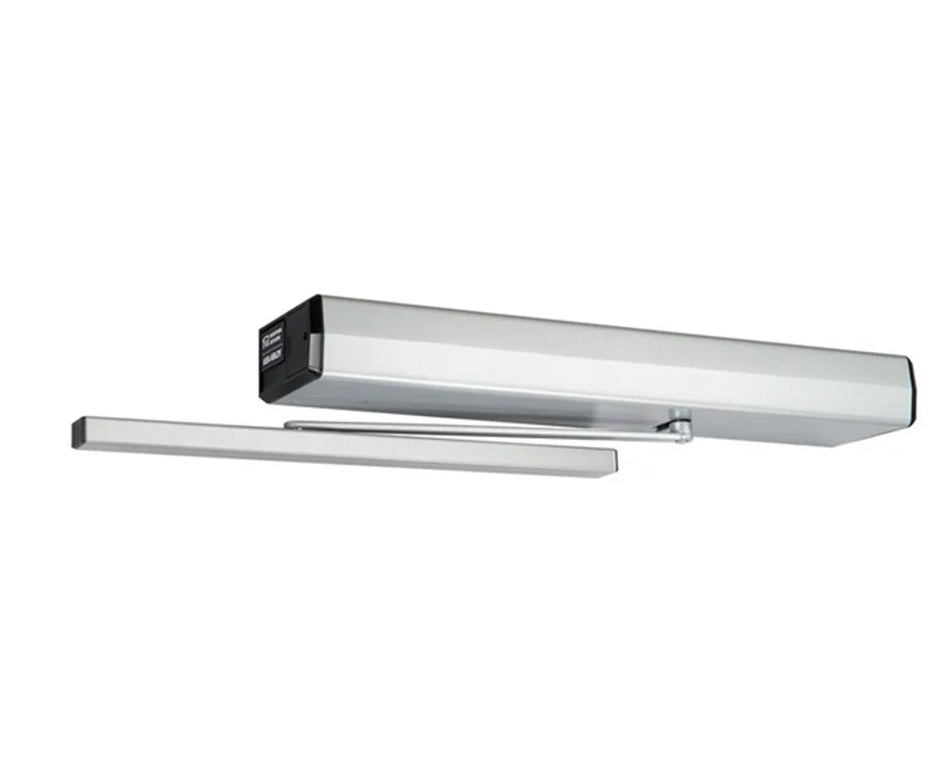

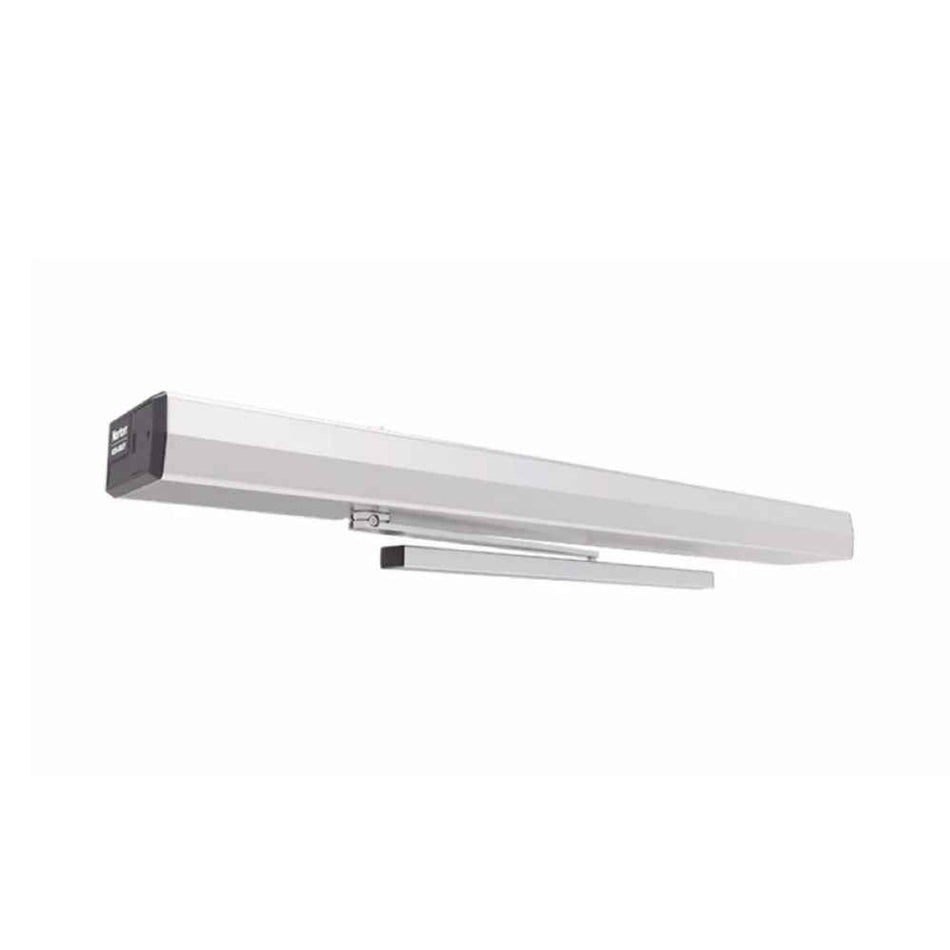

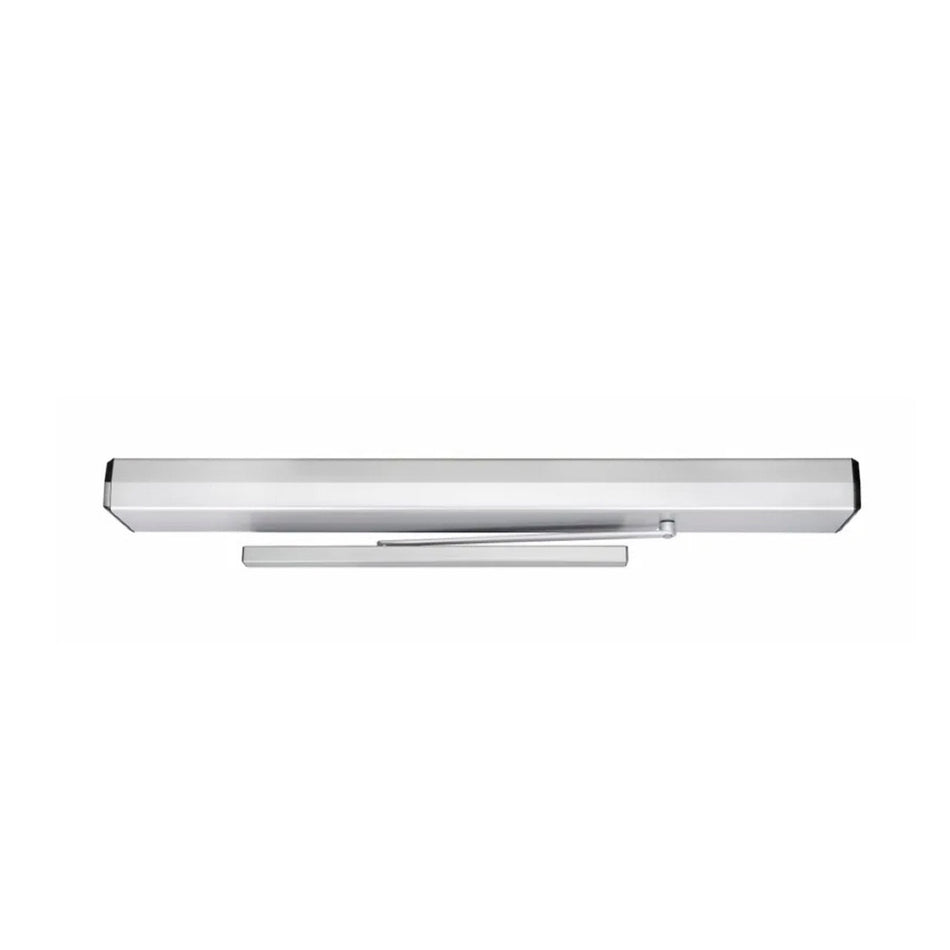

    Norton 6331 Push Side Power Operator

    The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new wifi interface via a mobile device make for easy installation and setup.



    Door Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control. Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated. Door Operator shall have electronic backcheck to cushion the door speed if door is opened violently. [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing - Push and Go.) (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)] Operator shall have selectable power close to provide additional closing force to overcome conditions that may prevent door from latching. Unit shall have delay switches for motor activation, electric lock interfacing, and hold open time. Units shall interface with latch assist exit devices or similar products and have 24VDC @ 1.3A maximum (less accessories) output for connection of electric strike, lock, radio frequency receiver, etc. Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched "ON" to monitor for function inputs, switch to "H/O" for infinite hold open function or switched "OFF" which will disable function inputs allowing unit to be used as a manual door closer. Unit shall be U.L. Listed for automatic closing door. The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA). Unit shall be certified by BHMA to meet A156.19 requirements. Unit shall meet UL325/991, UL10C standards.




    689
    Aluminum

    690
    Statuary Bronze


    BSP
    Black Suede Powder Coat


    WSP
    White Suede Powder Coat



    Downloads

    Catalog

    Brochure

    Installation Instructions*

    Templates

    Videos



    Features

    • Push and pull side mounting
    • Non-handed
    • Activated by push button, hands-free and RF devices
    • Door Width (single or pair): min 36", max 48"
    • Door Weight: 250 lbs.
    • Aesthetically pleasing, slim profile
    • Modular Design
    • LCD Screen
    • Wifi Interface
    • Push & Go (selectable)
    • Obstruction detection (open and close)

    ...

    • Modular design
    • Latch assist feature for enhanced security
    • Power Close
    • Selectable mode switch (off, on, hold open)
    • Adjustable opening force
    • Adjustable closing power
    • Blow open and blow close for smoke ventilation
    • 2 year limited warranty

    Functions

    • Power Assist
      • Senses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs.
      • Door opens only as far as it is moved manually, then closes once released
    • Push & Go (selectable)
      • As the door is manually opened, the operator “senses” movement and opens door to the full-open position
    • Obstruction Detection
      • Open - Door closes if it hits an obstruction while opening
      • Close - Door will reverse to open position if it hits an obstruction while closing
      • Close (Selectable - Stop on Stall) - Door will stop once it hits an obstruction and will rest against the obstruction until removed

    Motor Startup Delay

      • Delays operator opening for locking hardware
    • Infinite Hold Open
      • Door will hold open at set position until power is turned off
    • Power Close (Selectable)
    • Additional closing force to overcome conditions that might otherwise prevent the door from latching (ex: weather stripping, stack pressure)
    • Selector mode switch (3 position)
      • Off - door functions as a standard door closer
      • On - door functions as an automatic low energy operator
      • Hold Open - activates the unit to the hold open position


    Benefits

    SMART

    • Latch assist ensures door closes to secure facility
    • Occupant safety enhanced by obstruction detection, power assist, and push & go functions
    • Customizable inputs and outputs for accessories, including security override and fire safety

    GOOD LOOKING

    • Unique design with slim profile blends seamlessly with frame
    • Low profile easily fits applications with minimal header space



    SIMPLE

    • Modular design allows for one-person installation
    • Heavy-duty back plate serves as template simplifying and speeding installation
    • Unit learns door properties (approximate weight) during installation for easy programming and set-up
    • Easy to use controls simplify setup
    • Easy setup via a mobile device
    • USB port allows for quick software updates

    Applications

    Moderate to high traffic openings are ideal applications for the 6300 Series Low Energy Operator. Whether an interior or exterior door, the 6300 Series is a low energy door control solution that allows facilities to meet ADA (Americans with Disabilities Act) requirements by enabling a door to be operated through the use of push buttons, wave switches or hands-free radio frequency devices.

    ...

    • Corridors
    • Hospitals
    • Universities Entrance Doors
    • Schools
    • Theaters
    • Banks
    • Large office buildings
    • Large department stores

    Electrical Data

    • Power input 120 VAC, 3A, 60Hz
    • Current draw 1.5A

    ...

    • Power output 24VDC @ 1.3A max draw (less accessories)

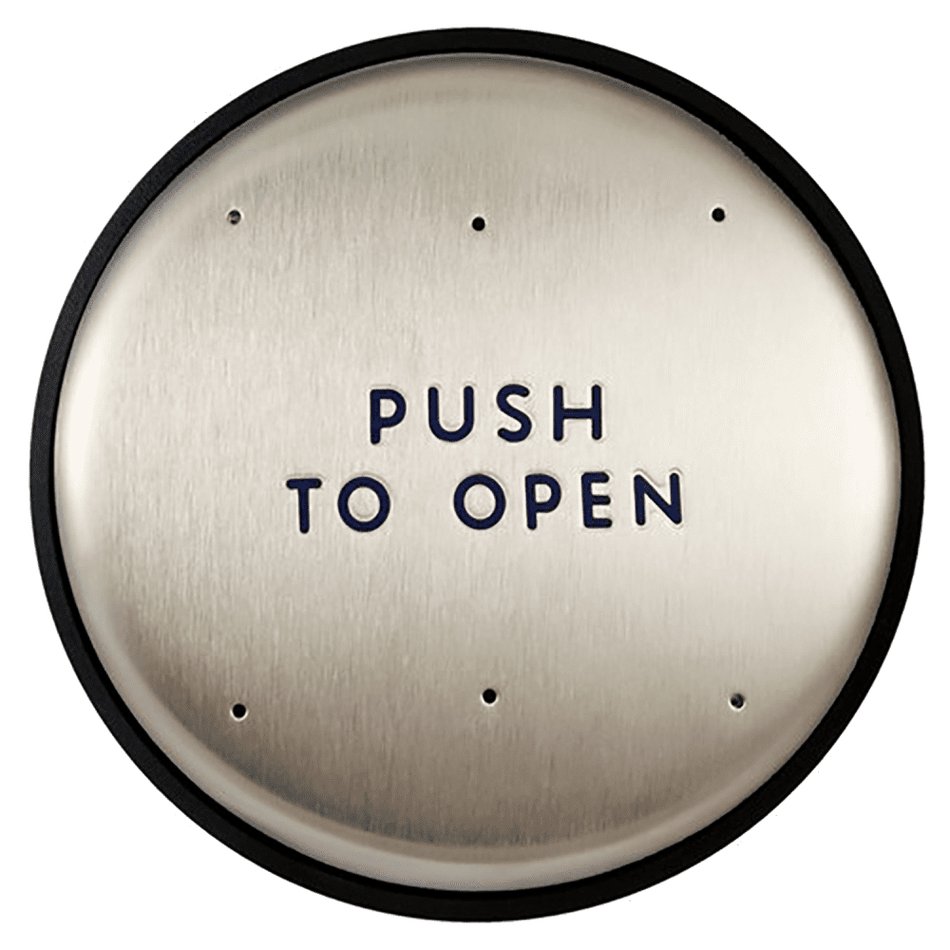

    Norton 700 NOR Activation Plates

    Touchless Wall Switch – width: 2-3/4″ (single), 4-1/2″ (double)





    Norton 7500 Door Closer - Barzellock.com

    Norton 7500 Door Closer

    by Norton
    $ 214.00

    US Lock Supply Stocks The Norton 7500 Series Door Closer Ready To Ship Free On Orders Over $189. Order Today!

    • Adjustable spring sizes 1 through 6 (ADA Compliant)
    • Tri-Style® packaging for regular, top jamb or parallel arm mounting
    • Exceeds 25 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack-and-pinion design
    • Cast aluminum body
    • 2-3/16" (56mm) projection
    • 1-1/2" (38mm) diameter piston
    • 5/8" (16mm) diameter pinion journals
    • Staked valves
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Backcheck positioning valve
    • NorGlide® fluid
    • Molded plastic cover
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Self-drilling screws
    • Slide Tracks: push or pull side mounting

    Optional Features

    • Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
    • Corrosion resistant model (non-hold open only). Specify 7500SS
    • Metal cover. Specify M suffix



    • Lead lined metal cover. Specify MLL suffix
    • Enhanced backcheck. Specify EBC suffix
    • Delayed action with pressure relief valve
    • Retrofit plates

    Typical Applications

    Recommended for interior or exterior doors including:



    • Classrooms
    • Offices
    • Main entrance doors
    • Hospitals
    • High use, high abuse doors

    Certifications

    • ANSI/BHMA A156.4, Grade 1 certified
    • ANSI/BHMA standard A117.1 certified
    • UL listed



    • UL10c compliant for positive pressure
    • Listed by the New York City Materials and Equipment Acceptance Division
    • 25-year limited warrant
    Norton 7500SS 689 Stainless Steel Door Closer
    Grade 1 Stainless Steel Tri Mount Door Closer, Push or Pull Side, Regular Arm, Size 1 to 6, Plastic Cover, Aluminum Painted Finish, Non-Handed
    Norton 8301/8301Hold Door Closer Norton 8000 Series - Barzellock.com

    Features

    • 8301/8501: Adjustable spring sizes 1-6
    • 8301/8501: Tri-style® packaging standard (regular arm, top jamb and parallel arm mounting)
    • Exceeds 15 million cycles (witnessed and verified by UL)
    • Non-handed
    • Staked valves
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Cast aluminum body



    • Rack and pinion design
    • 1-1/4" (32mm) piameter piston
    • 5/8" (16mm) diameter pinion journals
    • 2-1/8" (54mm) projection (standard covers)
    • All standard arm applications (with slim, full or metal covers) allow doors to swing 180°, conditions permitting
    • 8301: shipped with slim line plastic cover
    • 8501: shipped with full plastic cover

    Optional Features

    • Metal, architectural plastic or architectural metal covers (8500 or 8501 only)
    • Lead lined metal cover - suffix MLL
    • Delayed action





    • Heavy duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
    • Slide tracks: push or pull side mounting

    Typical Applications

    Recommended for interior or exterior doors including:





    • Offices
    • Banks
    • Retail Malls
    • Hotels
    • Health Care
    • Clinics

    Certifications

    • ANSI/BHMA A156.4, Grade 1 certified
    • UL listed
    • UL10c compliant for positive pressure







    • ADA compliant (8301 & 8501)
    • 25-year limited warranty
    Norton 8501 Door Closer - Barzellock.com

    Norton 8501 Door Closer

    by Norton
    $ 148.00

    US lock supply Stocks The Norton 8501 Door Closer Ready To Ship For Free On Orders Over $189. Order Today!

     Similar Items Norton 8301/8301H

    Norton 9300

     Regular Arm With PA Bracket Hold Open Arm
     689-Aluminum 690-Dark Bronze 691-Light Bronze 696-Satin Brass



     The 8501 is common in Schools, Office Buildings, Hospitals, Storefront Doors & High Traffic Doors.

    The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

    Norton 8000 Catalog

    Norton 8501 Installation Instructions

    Features • Exceeds 15 million cycles (witnessed and verified by UL) • Adjustable spring sizes 1 through 6 • Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting) • Non-handed • Staked valves • Cast aluminum body • Rack and pinion design • 1-1/4" (32mm) diameter piston • 5/8" (16mm) diameter pinion journals • 2-1/8" (54mm) projection (standard covers) • All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting • Full size template • Metal, architectural plastic or architectural metal covers (8501 only) • Lead lined metal cover - suffix MLL • Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P) • Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol® • Slide Tracks: push or pull side mounting • 25-year limited warranty

    Functions • Standard, separate and independent, latch, sweep and backcheck intensity valves • Delayed action

    1601 Top Jamb-For efficiency reasons this application provides the best alternative to the regular arm application. There must be sufficient frame face and/or ceiling clearance for this application. It requires a top rail on the door of just 2-1/8" (54mm). This application provides the best door control for doors in exterior walls that swing out of a building. The entire door closer and arm assembly project from the frame, similar to the regular arm application, where the matters of appearance and malicious abuse can be of concern. Consideration must be given to depth of the frame reveal.

    Typical Applications

    Recommended on interior or exterior doors including:

    • Aluminum Storefronts
    • Office Doors
    • Utility Closets
    • Storage Rooms

    Certifications

    • ANSI/BHMA A156.4, Grade 1 certified
    • UL listed
    • UL10c compliant for positive pressure

    Features

    • 1600BC: Sized springs 3 or 4
    • 1601: Adjustable spring sizes 3-6
    • 1601BF: Adjustable spring sizes 1-4
    • Exceeds 12 million cycles (witnessed and verified by UL)
    • Non-handed
    • Rack and pinion design
    • Cast aluminum body
    • 2-7/8" (73mm) projection
    • 1-3/8" (35mm) diameter piston





    • 5/8" (16mm) diameter pinion journals
    • Standard, separate and independent, latch, sweep and backcheck intensity valves
    • Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
    • All standard arm applications allow doors to swing 180°, conditions permitting
    • Staked valves
    Norton UNI7500 Unitrol Arm Door Closer



    Grade 1 Parallel Arm Door Closer, Push Side, Unitrol Arm, Size 1 to 6, For 33" to 41" Doors, Plastic Cover, Aluminum Painted Finish, Non-Handed

    Unitrol® Arm
    Can be used for either parallel arm or top jamb applications. Unitrol arms combine the features of a double lever arm overhead door
    stop/holder with the backcheck feature of the door closer to reduce door stopping shock loads to a minimum. The Unitrol uses a
    compression spring buffer at the soffit plate/arm shoe that will absorb 30 lbf. of force, 5° prior to the door’s dead stop. Coupled with the
    door closer’s backcheck feature, this arm provides the most controlled stop available with a surface door closer.
    For parallel arm applications there are three different length arm assemblies. Each length is designed for a specific range of door widths
    to provide precise door control. This further lessens the dead stop impact on the door’s hinges/pivots.
