Schlage F10 Plymouth Knob Passage, Privacy, Entrance, Dummy in Stock Ready To Ship Free On Orders Over $189.

Functions:

Passage

Privacy

Entrance

Dummy

FINISHES:

Bright Brass, Antique Brass, Aged Bronze, Oil Rubbed Bronze, Antique Pewter, Bright Chrome, Satin Nickel, Satin Chrome, & Matte Black.

FEATURES:

• Non-locking - ideal for closets and rooms where locking is not needed (Passage).
• Privacy locking - ideal for bedrooms and bathrooms (Privacy).
• Resistant to pick and bump security attacks, certified as meeting ANSI Grade 2 standards (Entrance).
• Decorative door pull, non-turning(Dummy).
• Easy 3-step installation, only a screwdriver needed.
• Quality materials and construction for exceptional security.
• Lifetime finish and mechanical guarantee (Oil-Rubbed Bronze is only a mechanical guarantee).
• Quality finishes coordinate with plumbing and lighting.

SPECIFICATIONS:

• Applications: Residential single- and multi-family doors.
• Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
• U.L. Listed: Locks for up to three-hour fire doors available.
• Keying: 5-pin tumbler C keyway with two keys Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard.
• Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available.
• ADA compliant: No.

LARGE QUANTITY IN STOCK!

PLEASE CALL US AT 718-957-0007 TO CHECK AVAILABILITY.

Designed specifically for multifamily properties

Eliminated the cost and hassle of managing keys

Two styles with a broad selection of finishes and decorative lever designs

Modern credentials - use a smart credential or smartphone as key

Interconnected design provides single motion egress

Upgrades property visual appeal

Increases intelligence and efficiency for property managers

Lock programming via mobile application on phone or tablet (Bluetooth connection)

Improves security and safety, reduces liability

ADA compliant

Supports networked (Gateway required), No-Tour and standalone applications

Up to 500 users per lock*

Audit trail reports up to 1,000 events**

Easy installation no wires to run and fits standard door prep

Up to 1 1/2-years (offline mode), up to 1 year (BLE credential enabled)

Also available as a deadbolt

*Maximum database storage capacity of lock. Can vary by access control software database capacity

**Maximum audit storage capacity of lock. Can vary by access control software audit storage capacity

ADA Compliant: Yes

Backset: Adjustable backset, fits 2-3/8 to 2-3/4 backsets

Battery: 4-AA batteries (included), 9V Battery Backup (If loss of battery power occurs, a 9V battery can be used to jump start the lock and provide access with an assigned credential.)

Certifications:

Commercial Standard Certification:ANSI/BHMA A156.12 Grade 2, UL 90 minute, Canada UL 20 minute wood door rated, FCC Part 15, FBC

Door thickness range: 1-3/8" to 1-3/4" (thick door kit available up to 2")

Latch: 1" x 2-1/4" square and round corner faceplate (round corner standard, square corner included in package), 1" edge bore required

Material: All-metal chassis and escutcheons

Bore: 2-1/8"

Strike: 1-1/8 x 2-3/4, round corner, no box, latch strike

Warranty: Lifetime limited mechanical and finish; 1-year limited electronics

Free Shipping On All Orders Over $189.00

FEATURES:

• Non-locking - ideal for closets and rooms where locking is not needed (Passage).
• Privacy locking - ideal for bedrooms and bathrooms (Privacy).
• Resistant to pick and bump security attacks, certified as meeting ANSI Grade 2 standards (Entrance).
• Decorative door pull, non-turning(Dummy).
• Easy installation, only a screwdriver needed.
• Quality materials and construction for exceptional security.
• Lifetime finish and mechanical guarantee.
• Quality finishes coordinate with plumbing and lighting.

SPECIFICATIONS:

• Applications: Residential single- and multi-family door.
• Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
•  Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard.
•  Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset  available.
•  ADA compliant: No.

FINISHES:

Bright Brass, Antique Brass, Aged Bronze, Antique Pewter, Bright Chrome, Satin Nickel, & Matte Black.

Overview
The ENGAGETM Gateway is designed to be used with devices that feature
ENGAGETM technology, including Schlage® ControlTM, LE, NDE, CTE as well as Von
Duprin® Remote Undogging (RU) and Remote Monitoring (RM). The ENGAGE
Gateway enables these devices to be connected in real-time with Physical Access
Control Software (PACS) providers. Each ENGAGE Gateway can support up to
10 wireless devices for a wide range of applications, including resident units,
office and suite entries, conference rooms, sensitive storage areas and perimeter
entries.
Security
ENGAGE technology was designed from the ground up with security in mind.
ENGAGE technology leverages industry-leading security practices, including
AES 256 bit and TLS encryption to provide customers with a secure, dependable
experience.
Reliability
Regular, frequent communication between the Gateway and linked ENGAGETM
enabled devices allows the Gateway to send commands such as lock, unlock and
lock down from an ACP or IP host in real-time (commands are executed in < 5
seconds). All while enabling up to a 2-year battery life in linked wireless devices.
Efficiency
The ENGAGE Gateway provides the ability to leverage existing IP based or RS-485
infrastructure for maximum efficiency. Ethernet connectivity provides ability to

connect to the network for real-time access control directly from an in- or out-
of-network host; to further simplify installation the Gateway can be powered

over ethernet (PoE). Additionally, the ENGAGE Gateway is designed to work
seamlessly in an existing RS-485 environment to extend access control to more
doors. It can be powered from the access control panel (ACP) or from the 12VDC
supply (included).

Features and benefits
§ Small form factor, versatile design fits almost
anywhere
§ Plug and play connectivity without opening or
drilling into the housing. External recessed
power, antenna, RS-485 and Ethernet (PoE)
ports for easy set-up
§ Designed to work seamlessly in an existing
RS-485 environment
§ Designed with PoE built in to leverage a
building’s existing network infrastructure for
communication and power
§ Easily and securely commissions in seconds
with the ENGAGETM mobile app—no proprietary
handheld device required
§ Secure AES-256 bit encrypted 2.4 GHz
Bluetooth 4.0 communication between
Gateway and ENGAGETM enabled devices does
not interfere with Wi-Fi networks
§ Capable of managing up to 10 ENGAGEenabled
devices
§ Optional 12 VDC external power supply included
to achieve UL294 Listing

CYBERSECURITY
Learn about Allegion’s commitment

GWE Gateway
ENGAGETM Gateway with
IP (PoE) and RS-485
communication

Gateway specifications
Communication protocol
(Gateway to Lock)

2.4 GHz Bluetooth version 4.0 (spread spectrum, dynamic channel
switching, 40 channels)

Transmission/encryption
(Gateway to Lock)

AES-256 bit key
Credential verification time < 1 second1
BLE communication range A detailed site survey is recommended to determine range in
each unique environment. Up to 30’ can be achieved in typical
building environments. Under ideal conditions, up to 50’ line of
sight may be possible. A detailed site survey is recommended to
determine if the extended range can be achieved. Performance is
dependent on local physical (geometry, construction materials,
and furnishings) and RF environment. For planning purposes
users should consider estimating at least 10% contingency for
Gateway quantity.
The TKE ENGAGE Test Kit is now available for site surveys.
Reference the ENGAGE Gateway Placement Guide for details.

Visual communications LED status indicators
System interface Ethernet to IP host2
RS-485 to ACP3

Transmission/encryption
(Gateway to ACP or IP host)

TLS version 1.2 or greater (to IP host)
Optional AES-128 bit key (to ACP)

Gateway Discovery Methods
(by partner IP host)

Zero-configuration (zeroconf), Static IP, or DHCP with
hostname option

Power supply PoE (12.95W compliant to IEEE 802.3af/at)
12 VDC or 24 VDC (terminals)

Operating current PoE: 60 mA

12 VDC: 330 mA, 24 VDC: 100 mA
Operating temperature 32° to 120°F (0° to 49°C)
Operating humidity 0% to 100% non-condensing
Dimensions (H x W x D) 5.1" x 6.0" x 1.2"
(13.0 cm x 15.3 cm x 3.04 cm)

Weight 8.6 oz (.24 kg)
Cable specifications DC terminal input: 18AWG, 2 conductor (Belden 8760 or

equivalent) up to 1000 ft (305 m)
Gateway to ACP: 24AWG, 2 or 4 conductor shielded (Belden 9842,
9841 or equivalent) up to 4000 ft (1219 m)
Gateway to router: CAT3, CAT5/5E or CAT6 up to 328 ft (100 m)

Data rate Gateway to Lock: up to 1 Mbps (Bluetooth)
Gateway to ACP: 9.6 kbps (RS-485)
Gateway to IP Host: up to 100 Mbps (Ethernet)
Certifications UL294, FCC Part 15, Industry Canada(IC), RoHS

Padlock, 5/16" Dia. Shackle, 1-1/2" Clearance

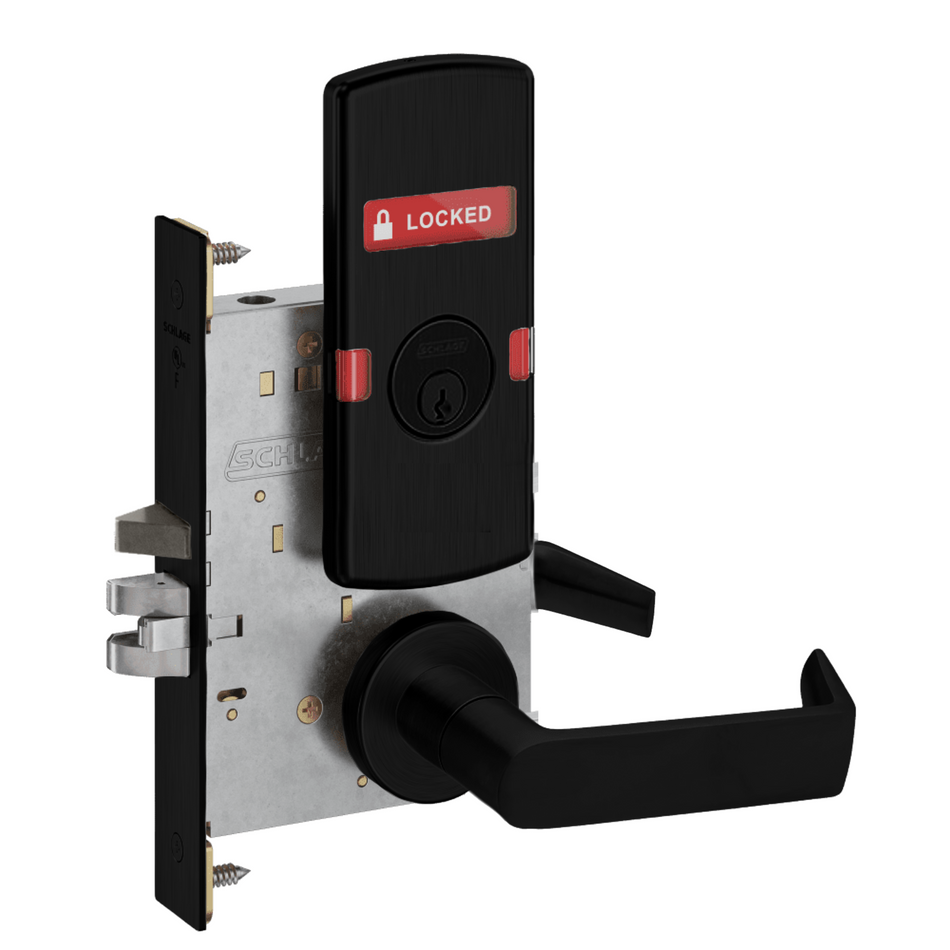

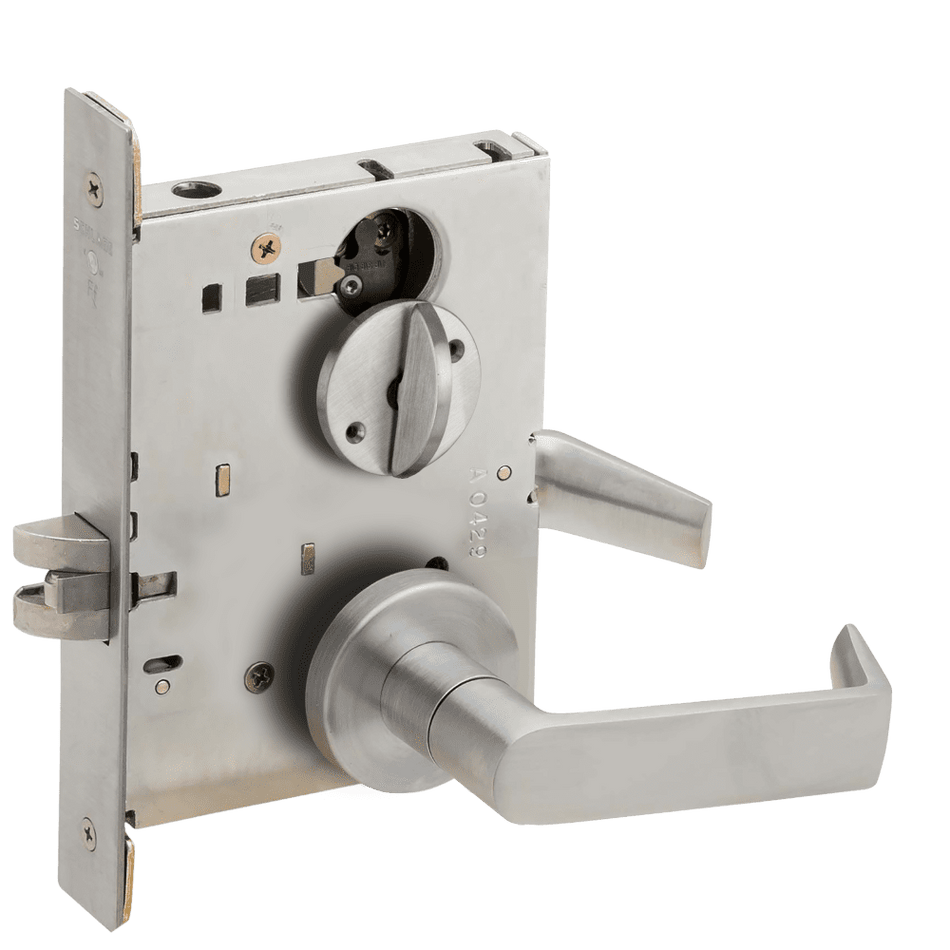

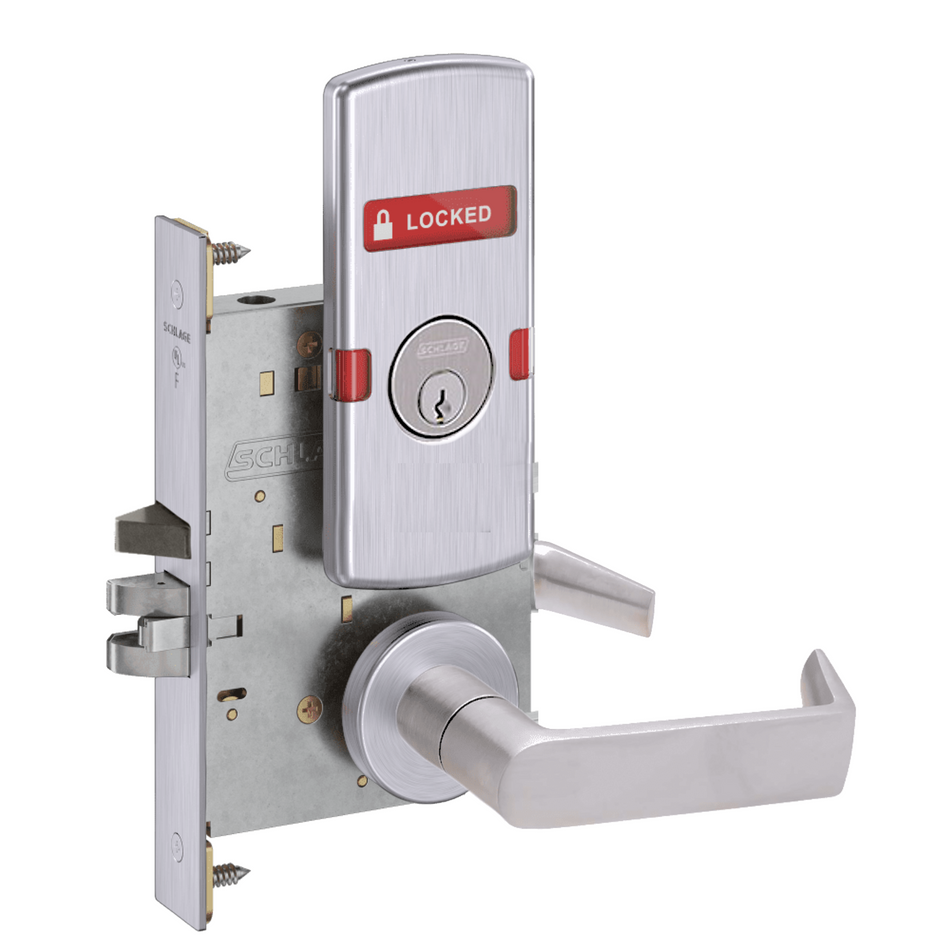

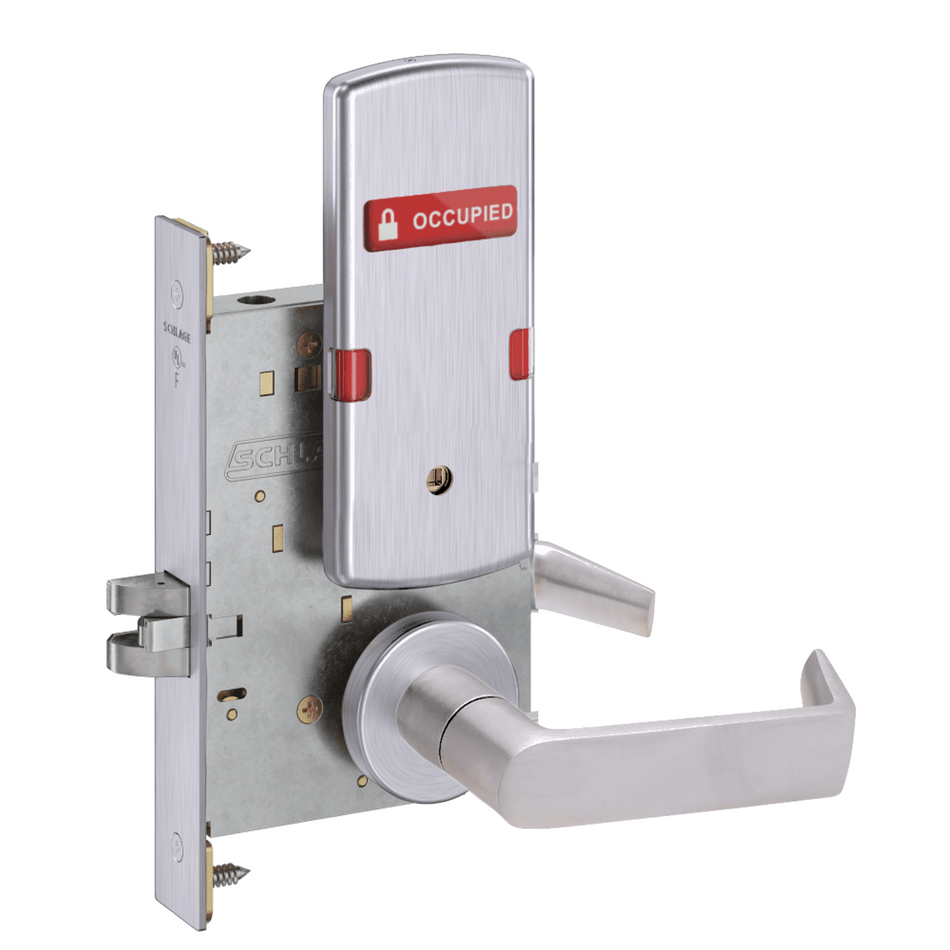

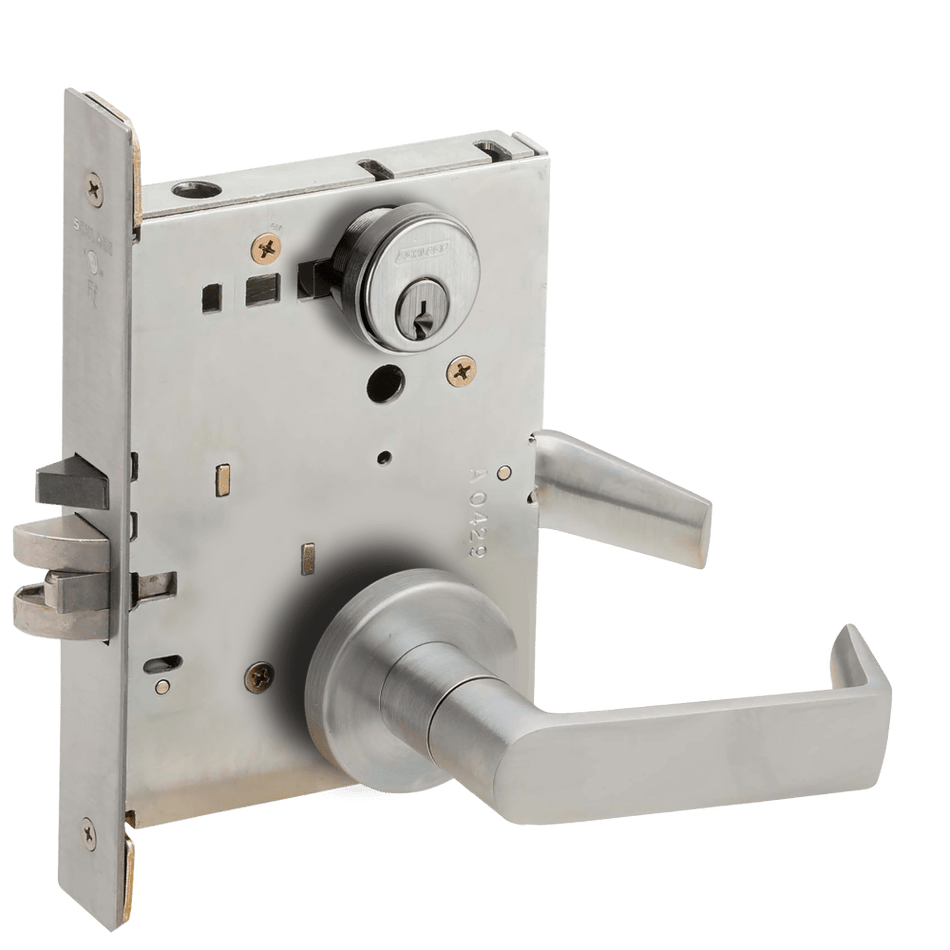

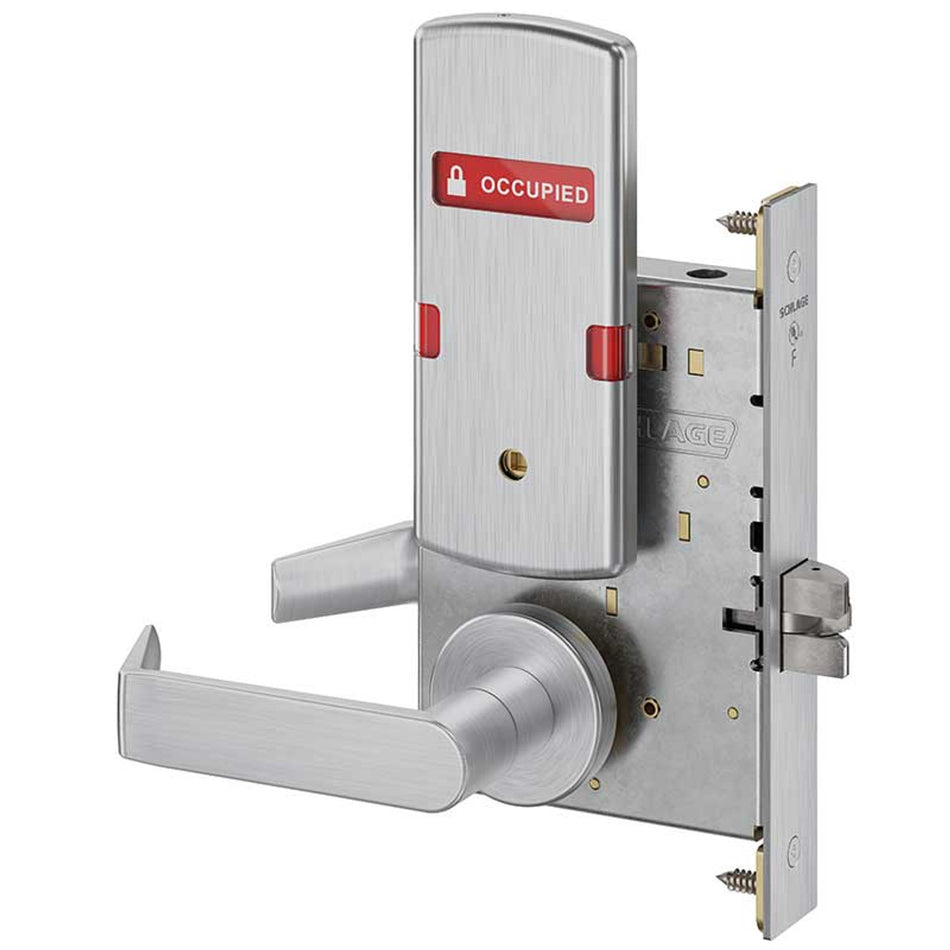

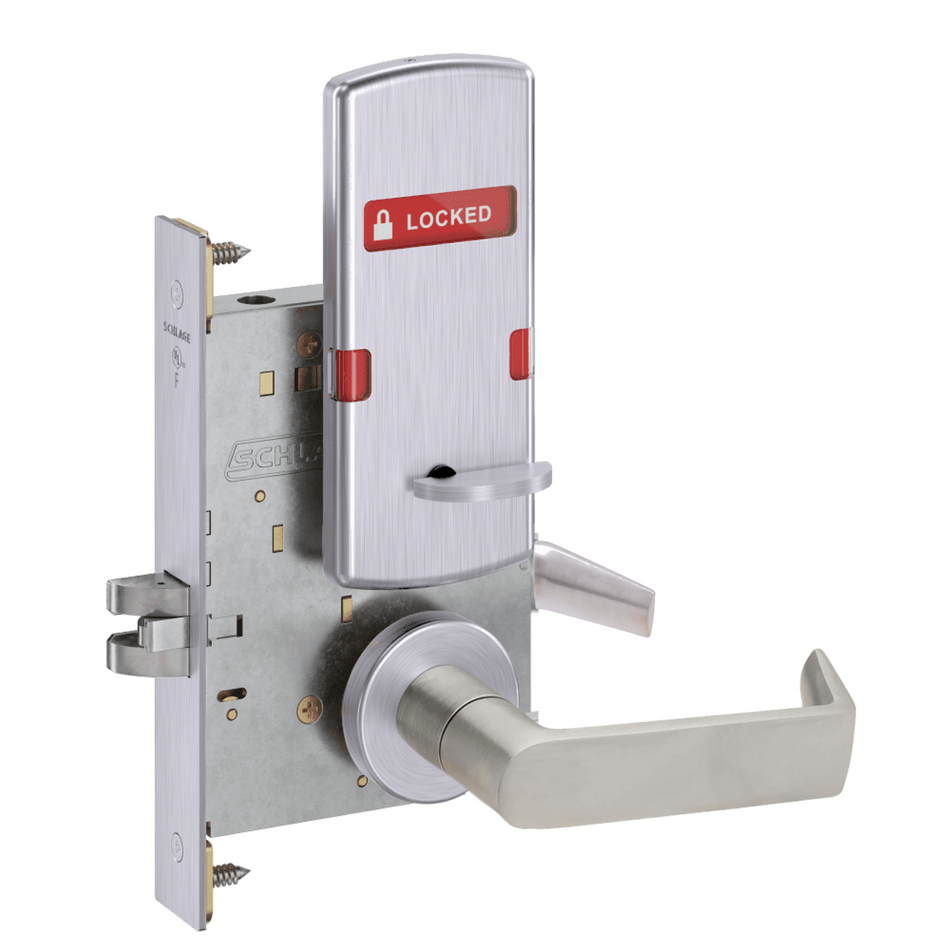

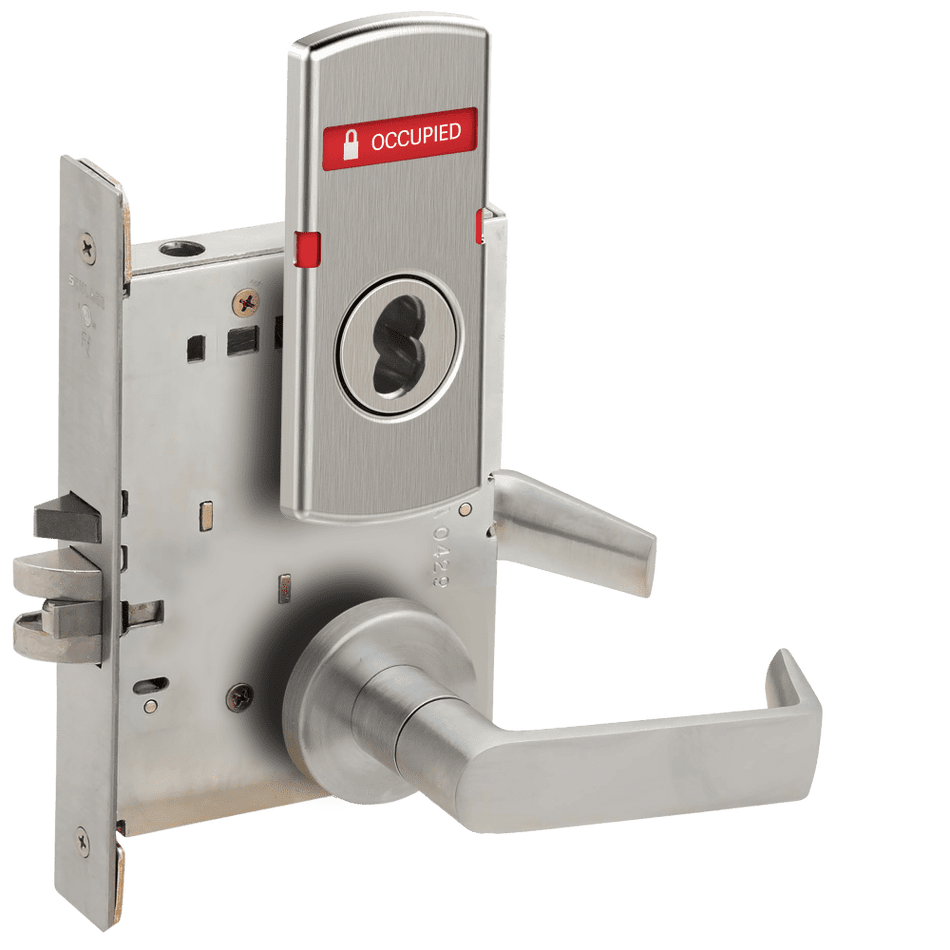

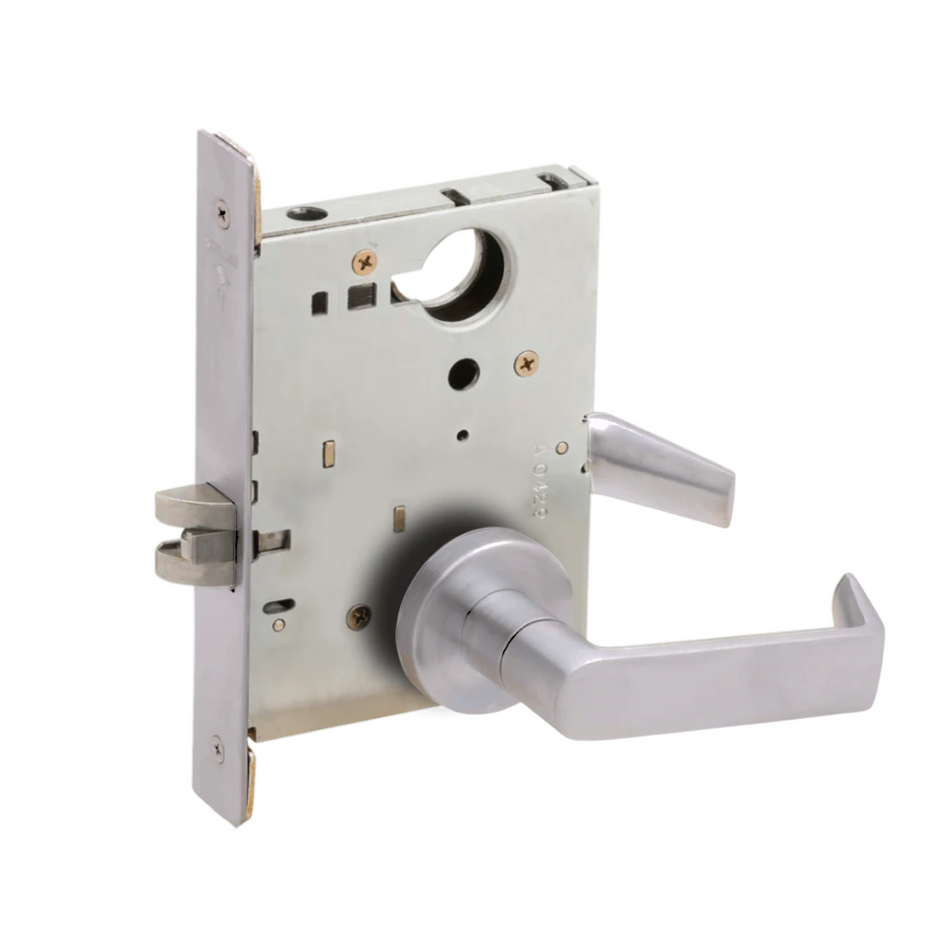

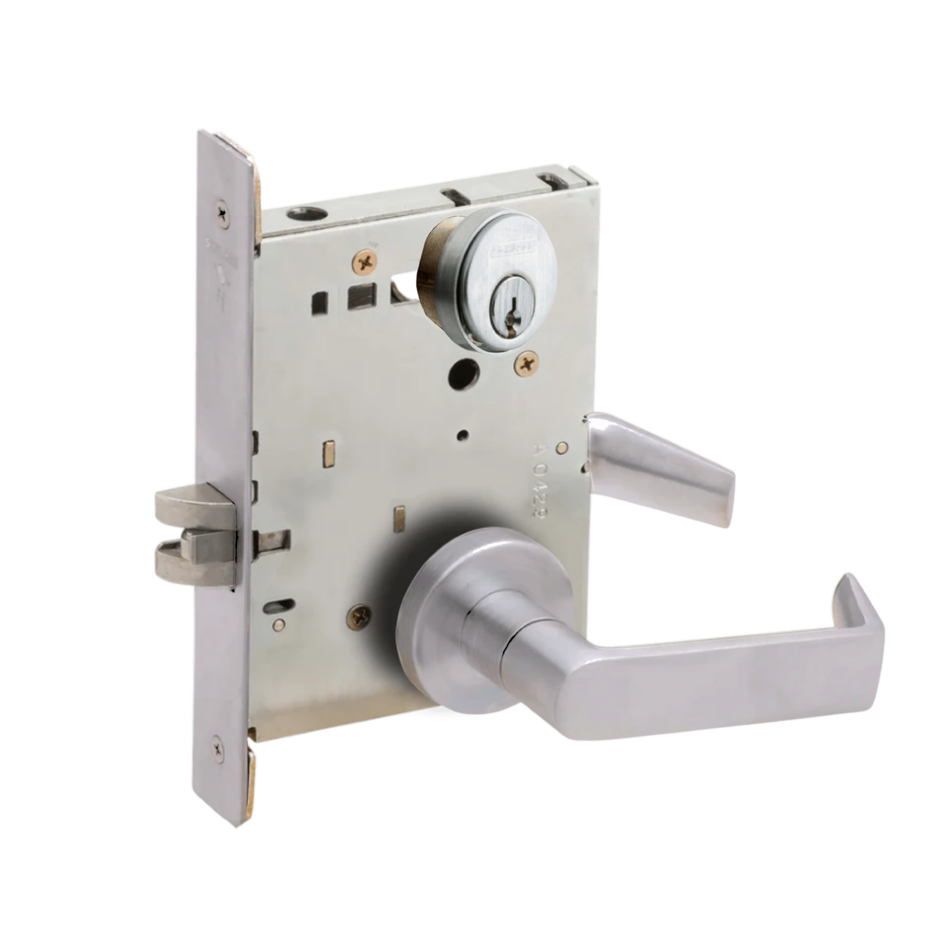

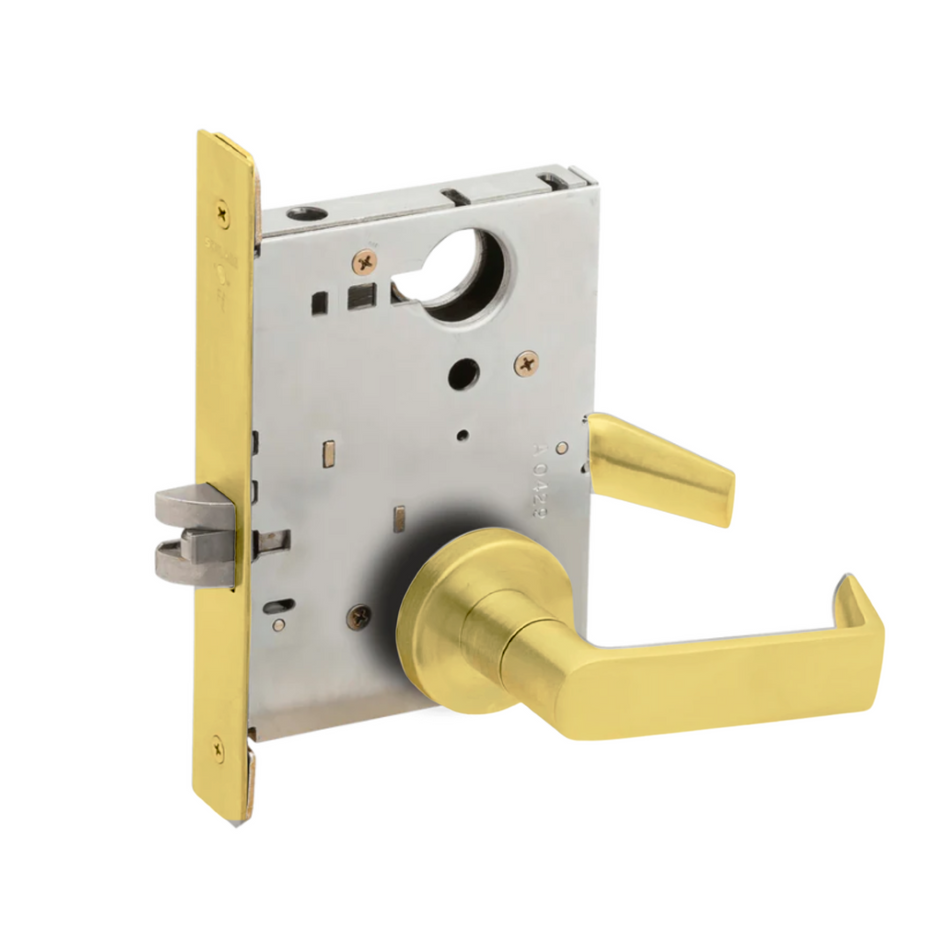

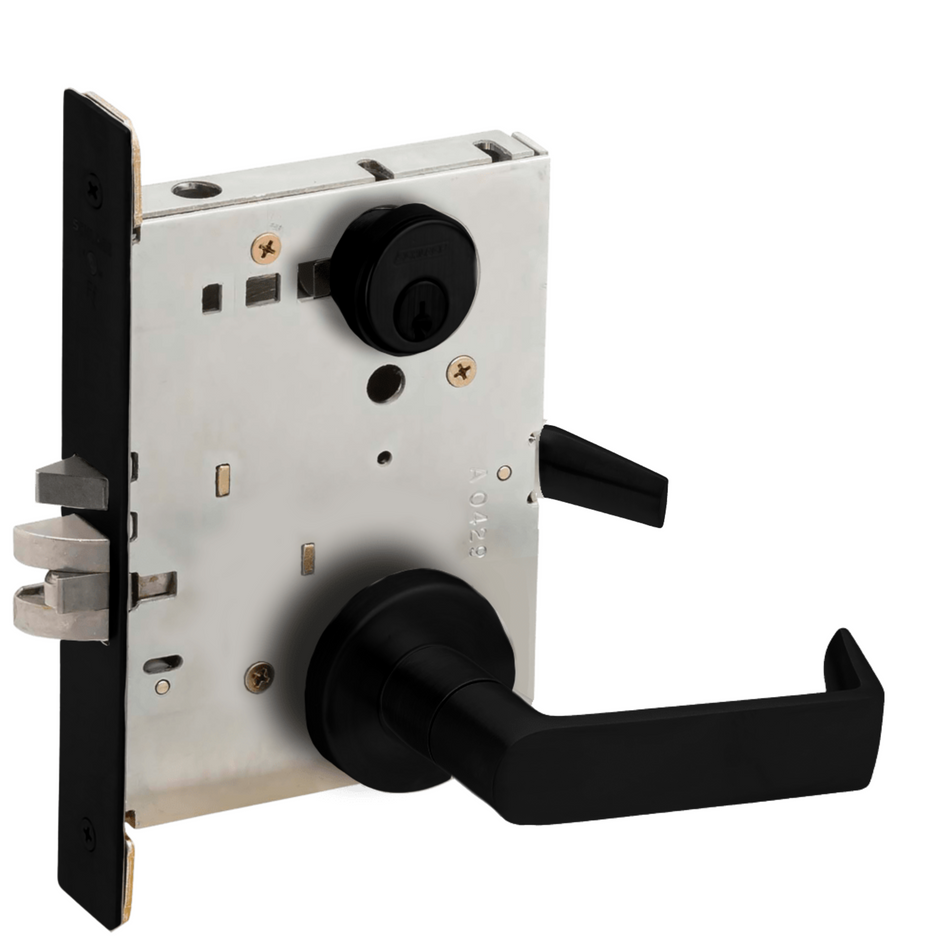

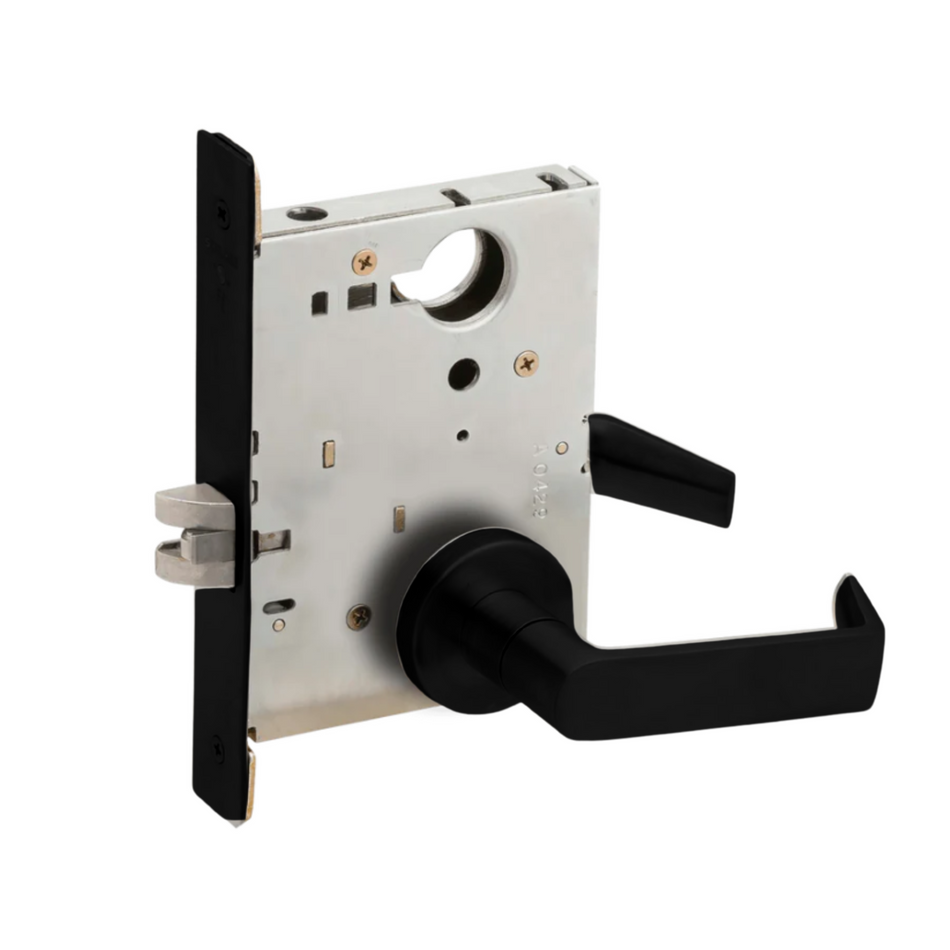

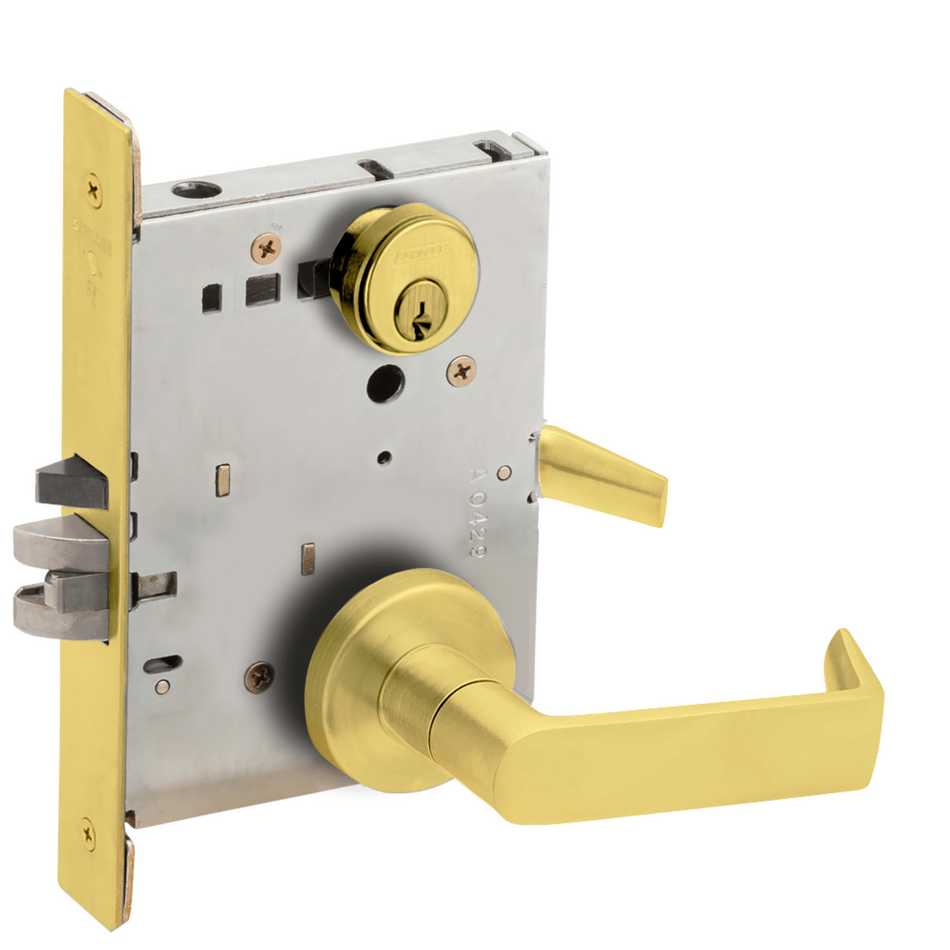

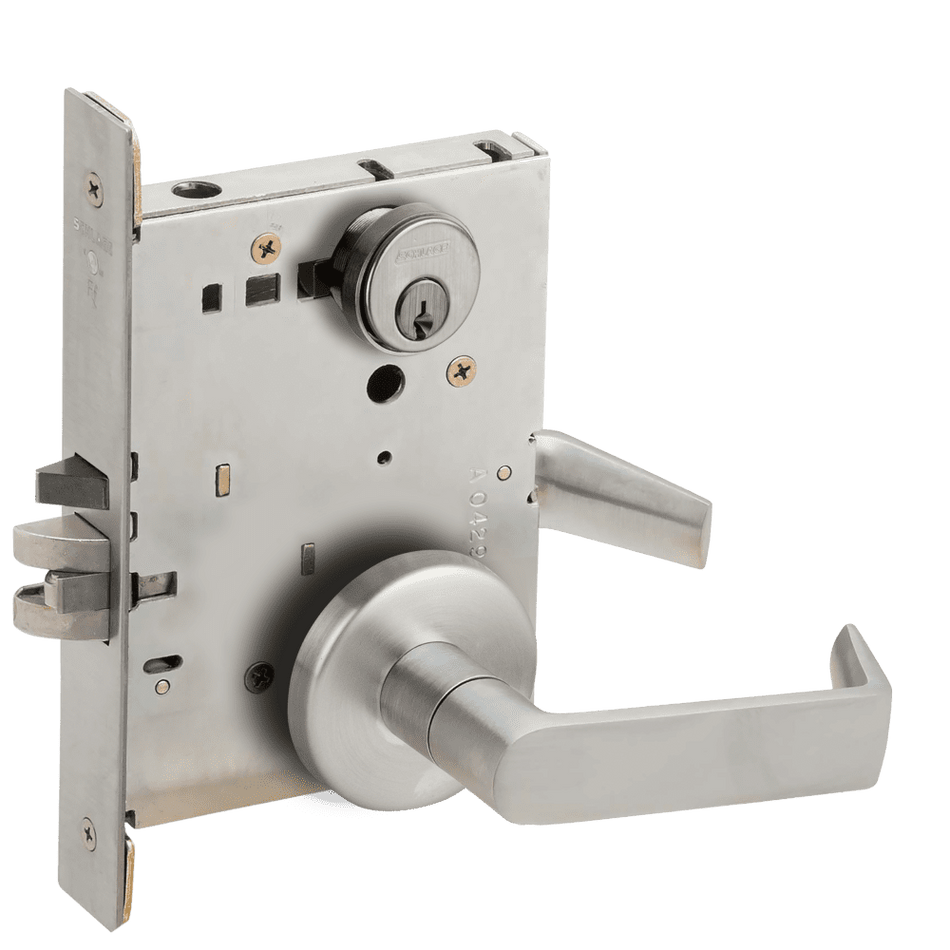

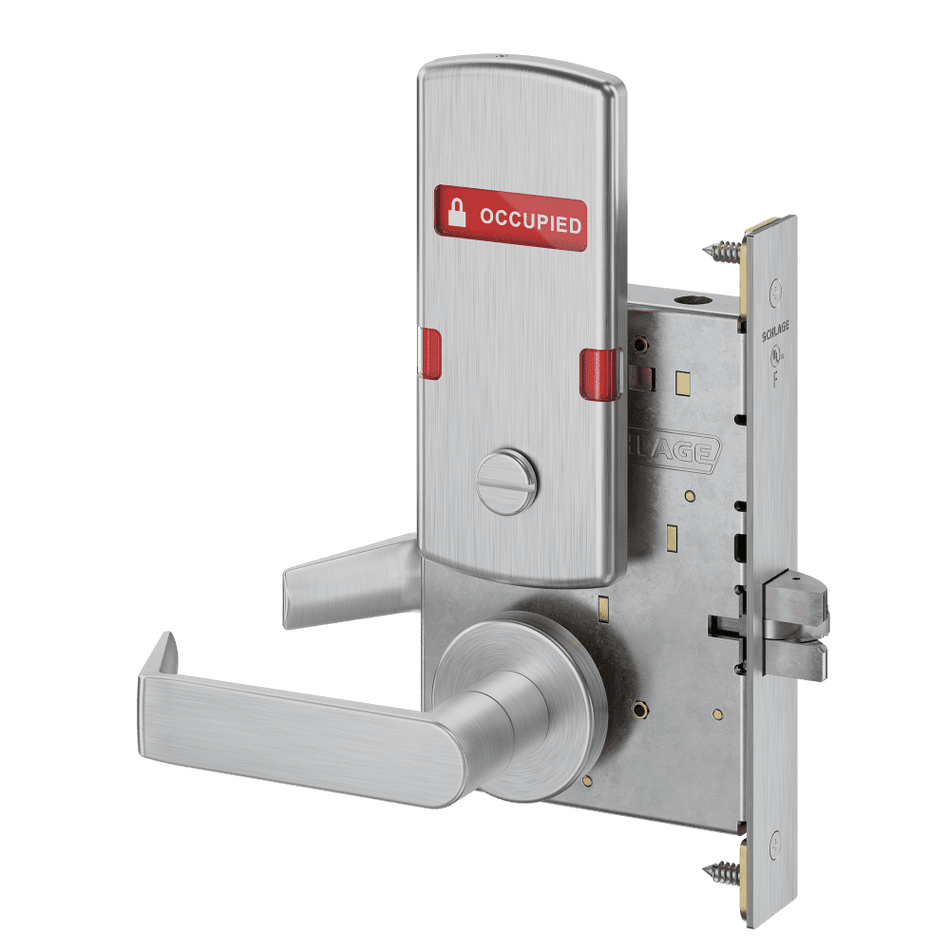

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

• 55+ standard functions (custom functions are also available)
• Universal lock case allows 10 functions to be created from a single lock body

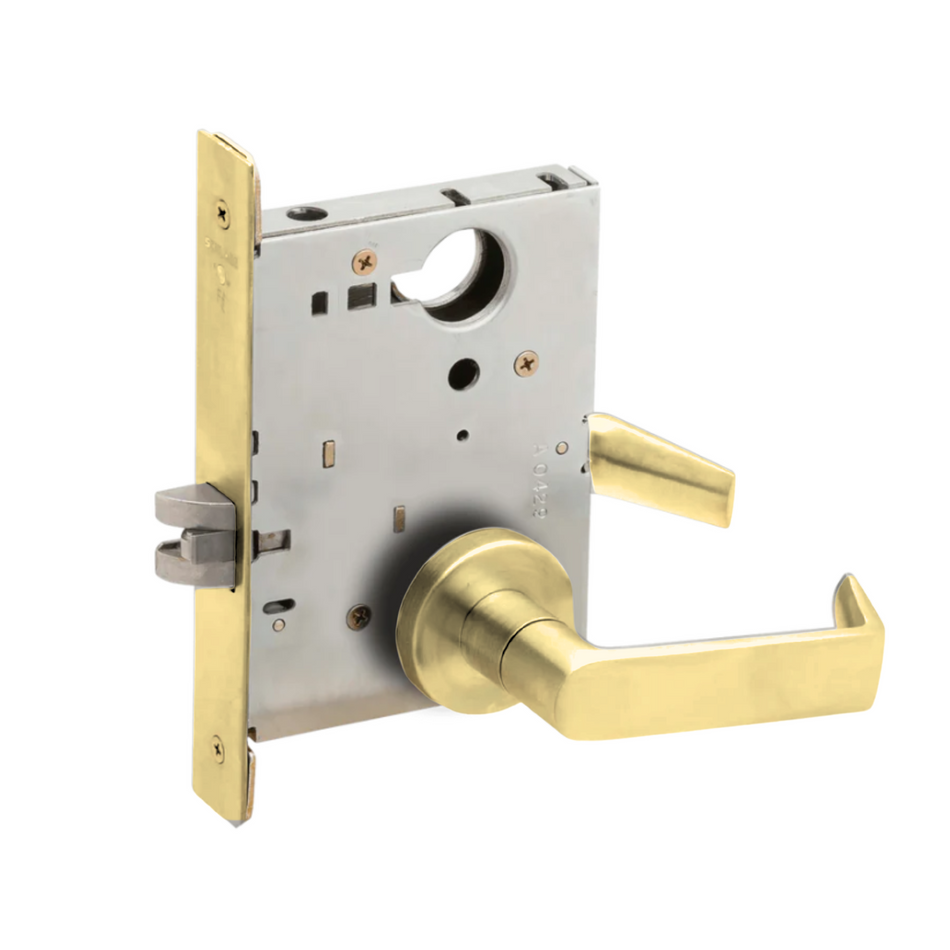

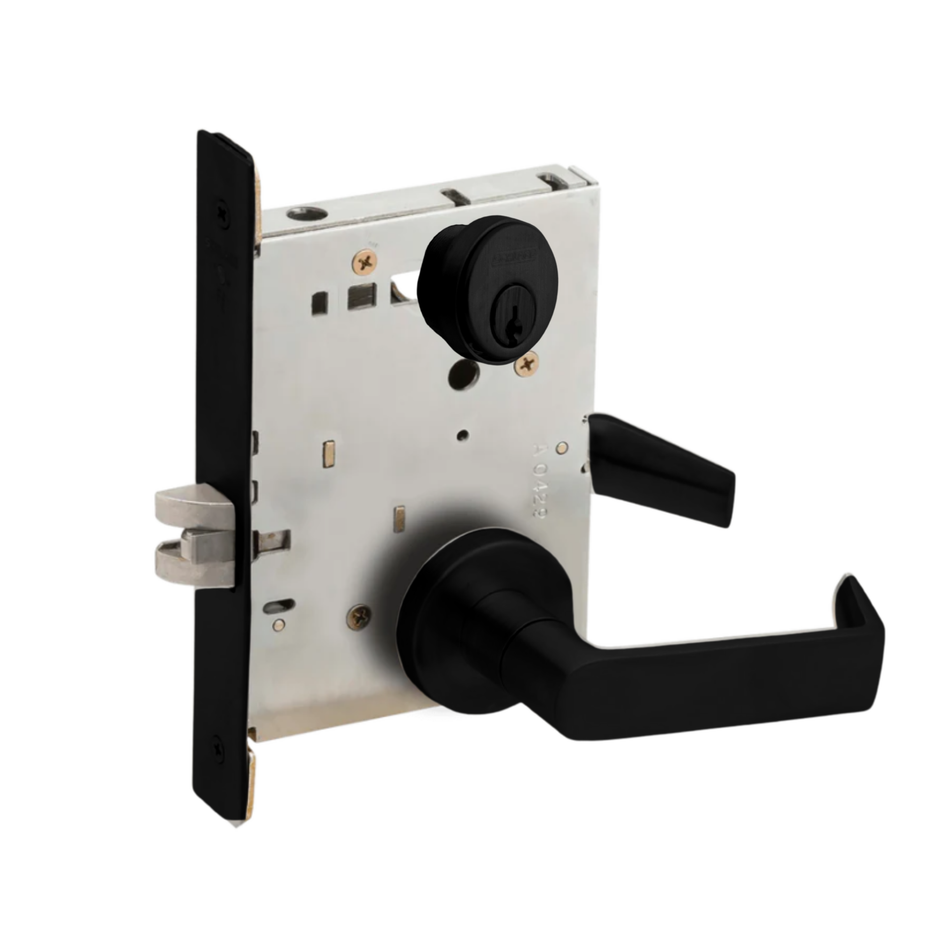

• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

• 14 finishes

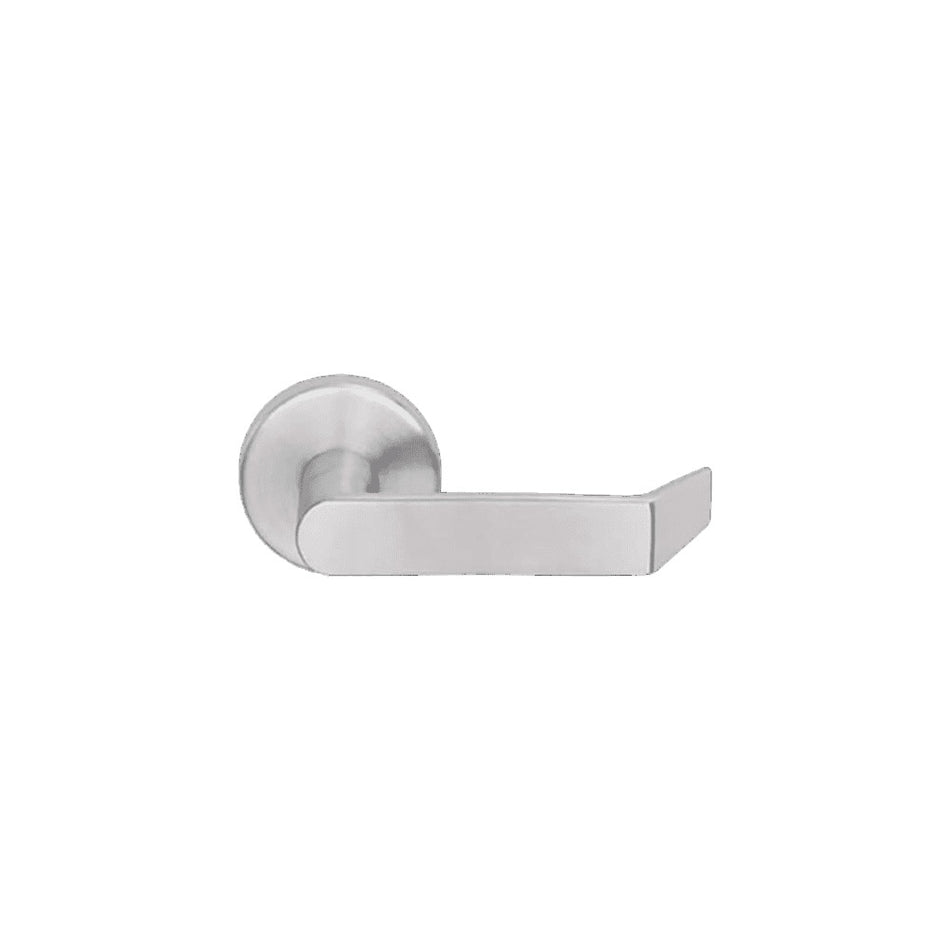

• 33 lever, two knob, five rose and three escutcheon designs
• Locking lever bushing eliminates exposed screws on inside levers
• All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

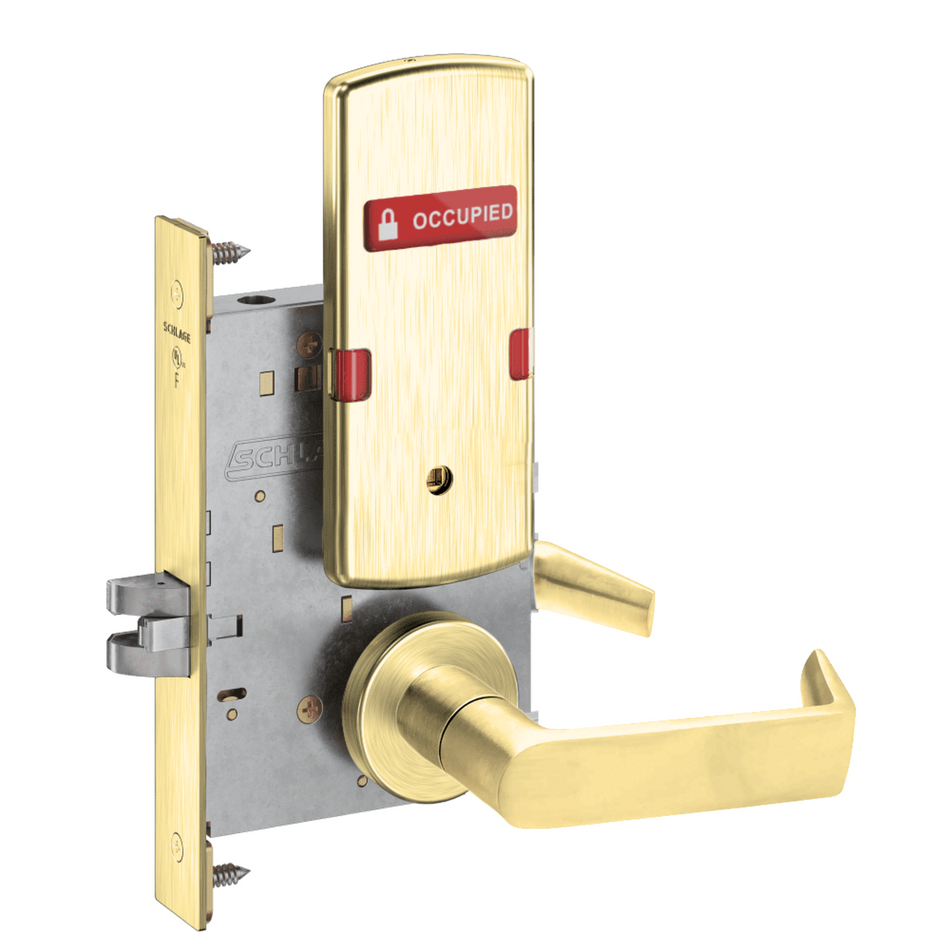

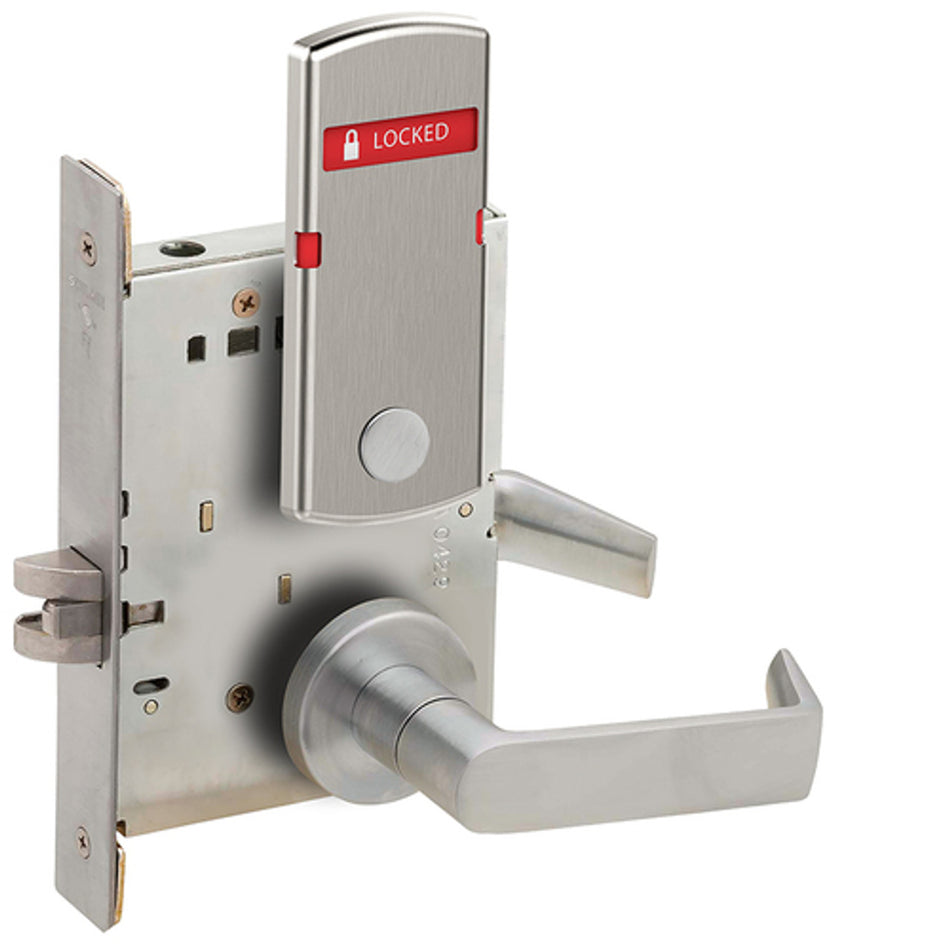

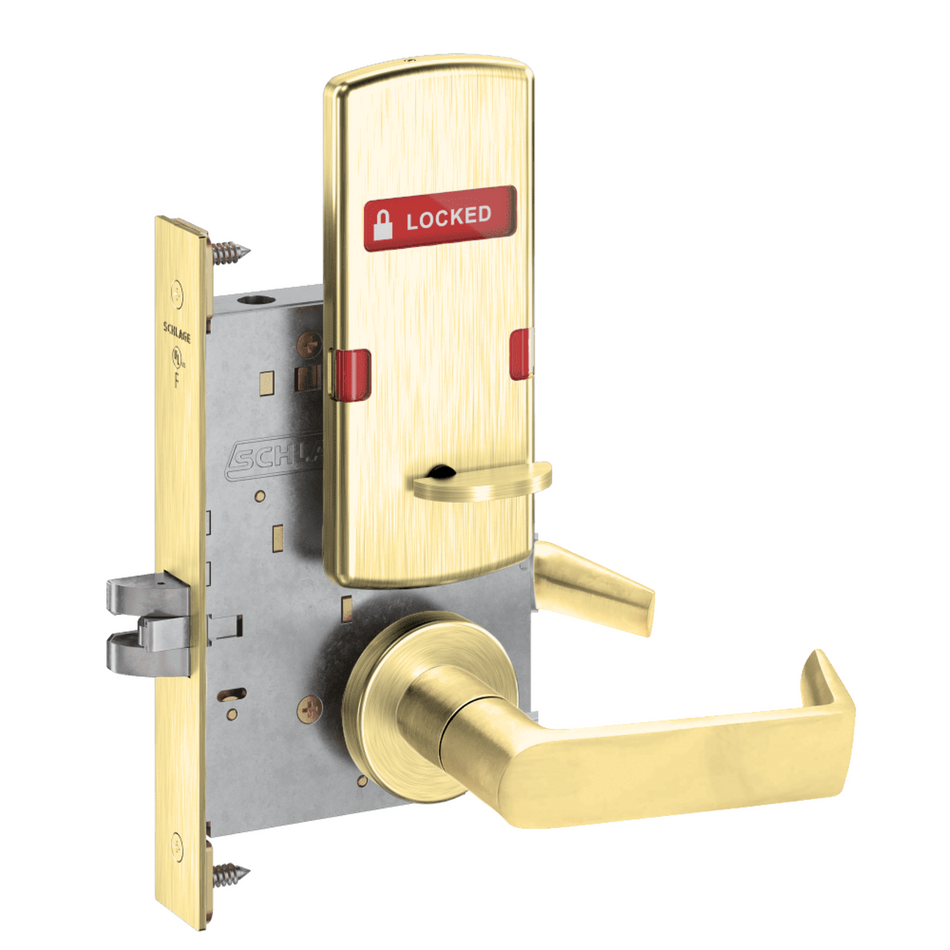

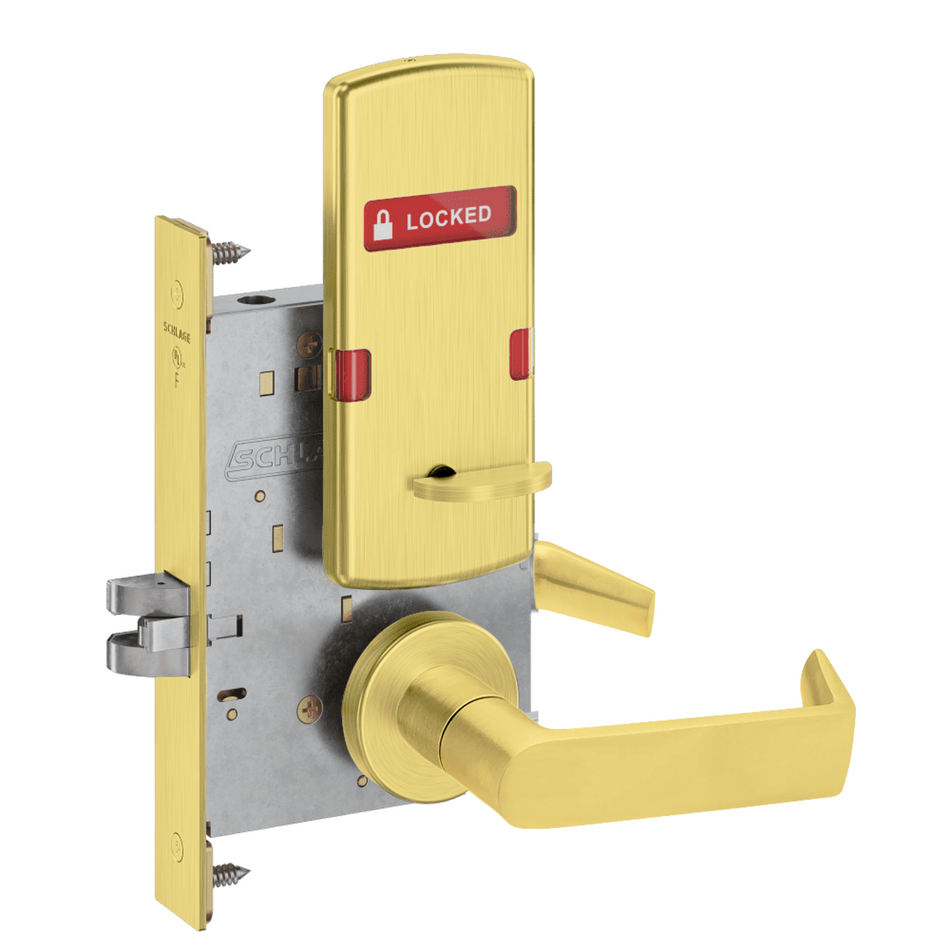

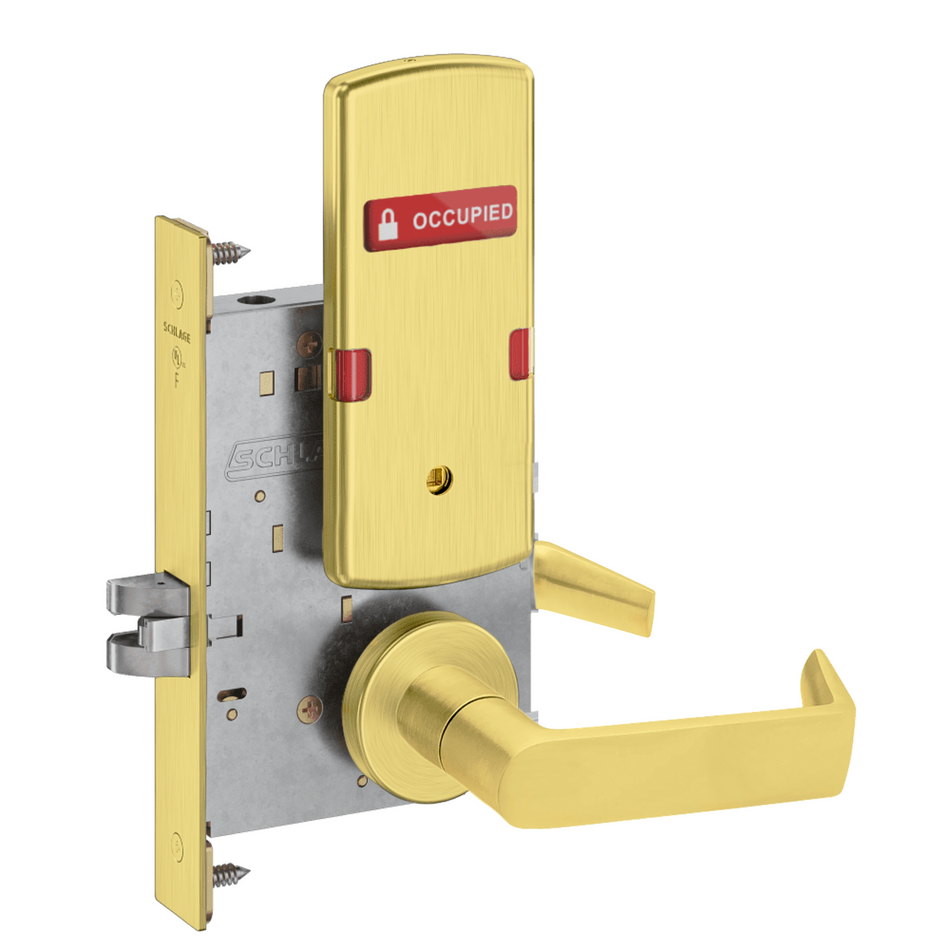

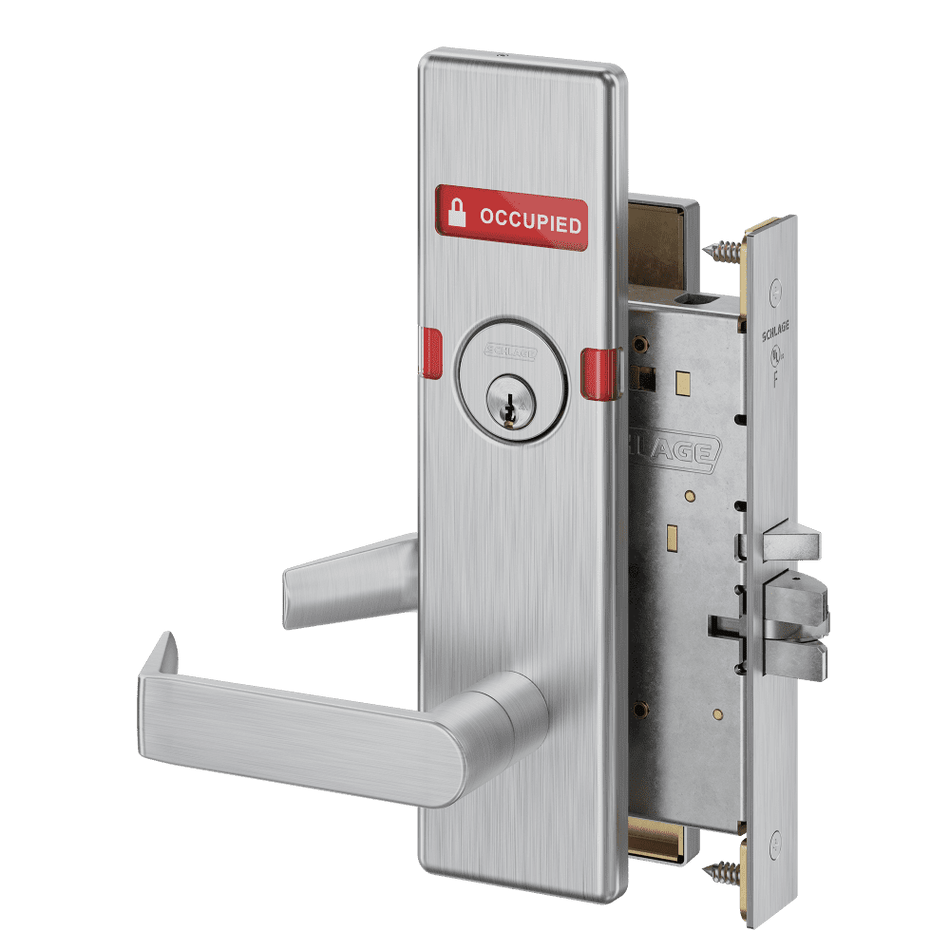

• Exclusive 180° visibility indicator
• Vandlgard^® free-wheeling outside trim option is available on most functions, including electrified
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications

View the Schlage L Series catalog to see all specifications and certifications.

• Meets BAA (Buy American Act)
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
• UL listed for 3-hour fire door (except L9076 and L9077)
• With interchangeable core cylinders: Grade 2 security
• With concealed shell cylinder: A156.13 Grade 1 operational and security
• ANSI/ASTM F476-76 Grade 40, UL listed
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
• UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
• Electrified functions are UL19X listed for single-point locking applications
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
• Miami-Dade NOA's and Florida Building Commission Listings
• Meet ADA requirements

Schlage L Series Catalog

Schlage L Series Electrified Data Sheet

NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet

Schlage SL1/SK1 Ligature Resistant Trim Data Sheet

Schlage L Series 180 Indicator Data Sheet

Schlage M Collection Levers Data Sheet

Decorative Levers Brochure

Securing Your School - Door Hardware Solutions for Education

Allegion Connect Data Sheet

Classroom Upgrade Kits

Case study: Ligature resistant hardware

Technical resources

Schlage L Series Service Manual

Schlage L Series Templates

L Series Universal Transformation Guide

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

• 55+ standard functions (custom functions are also available)
• Universal lock case allows 10 functions to be created from a single lock body
• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

• 14 finishes
• 33 lever, two knob, five rose and three escutcheon designs
• Locking lever bushing eliminates exposed screws on inside levers
• All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

• Exclusive 180° visibility indicator
• Vandlgard^® free-wheeling outside trim option is available on most functions, including electrified
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications

View the Schlage L Series catalog to see all specifications and certifications.

• Meets BAA (Buy American Act)
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
• UL listed for 3-hour fire door (except L9076 and L9077)
• With interchangeable core cylinders: Grade 2 security
• With concealed shell cylinder: A156.13 Grade 1 operational and security
• ANSI/ASTM F476-76 Grade 40, UL listed
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
• UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
• Electrified functions are UL19X listed for single-point locking applications
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
• Miami-Dade NOA's and Florida Building Commission Listings
• Meet ADA requirements

Schlage L Series Catalog

Schlage L Series Electrified Data Sheet

NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet

Schlage SL1/SK1 Ligature Resistant Trim Data Sheet

Schlage L Series 180 Indicator Data Sheet

Schlage M Collection Levers Data Sheet

Decorative Levers Brochure

Securing Your School - Door Hardware Solutions for Education

Allegion Connect Data Sheet

Classroom Upgrade Kits

Case study: Ligature resistant hardware

Technical resources

Schlage L Series Service Manual

Schlage L Series Templates

L Series Universal Transformation Guide

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

• 55+ standard functions (custom functions are also available)
• Universal lock case allows 10 functions to be created from a single lock body
• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

• 14 finishes
• 33 lever, two knob, five rose and three escutcheon designs
• Locking lever bushing eliminates exposed screws on inside levers
• All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

• Exclusive 180° visibility indicator
• Vandlgard^® free-wheeling outside trim option is available on most functions, including electrified
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications

View the Schlage L Series catalog to see all specifications and certifications.

• Meets BAA (Buy American Act)
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
• UL listed for 3-hour fire door (except L9076 and L9077)
• With interchangeable core cylinders: Grade 2 security
• With concealed shell cylinder: A156.13 Grade 1 operational and security
• ANSI/ASTM F476-76 Grade 40, UL listed
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
• UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
• Electrified functions are UL19X listed for single-point locking applications
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
• Miami-Dade NOA's and Florida Building Commission Listings
• Meet ADA requirements

Schlage L Series Catalog

Schlage L Series Electrified Data Sheet

NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet

Schlage SL1/SK1 Ligature Resistant Trim Data Sheet

Schlage L Series 180 Indicator Data Sheet

Schlage M Collection Levers Data Sheet

Decorative Levers Brochure

Securing Your School - Door Hardware Solutions for Education

Allegion Connect Data Sheet

Classroom Upgrade Kits

Case study: Ligature resistant hardware

Technical resources

Schlage L Series Service Manual

Schlage L Series Templates

L Series Universal Transformation Guide

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

• 55+ standard functions (custom functions are also available)
• Universal lock case allows 10 functions to be created from a single lock body
• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

• 14 finishes
• 33 lever, two knob, five rose and three escutcheon designs
• Locking lever bushing eliminates exposed screws on inside levers
• All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

• Exclusive 180° visibility indicator
• Vandlgard^® free-wheeling outside trim option is available on most functions, including electrified
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications

View the Schlage L Series catalog to see all specifications and certifications.

• Meets BAA (Buy American Act)
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
• UL listed for 3-hour fire door (except L9076 and L9077)
• With interchangeable core cylinders: Grade 2 security
• With concealed shell cylinder: A156.13 Grade 1 operational and security
• ANSI/ASTM F476-76 Grade 40, UL listed
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
• UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
• Electrified functions are UL19X listed for single-point locking applications
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
• Miami-Dade NOA's and Florida Building Commission Listings
• Meet ADA requirements

Schlage L Series Catalog

Schlage L Series Electrified Data Sheet

NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet

Schlage SL1/SK1 Ligature Resistant Trim Data Sheet

Schlage L Series 180 Indicator Data Sheet

Schlage M Collection Levers Data Sheet

Decorative Levers Brochure

Securing Your School - Door Hardware Solutions for Education

Allegion Connect Data Sheet

Classroom Upgrade Kits

Case study: Ligature resistant hardware

Technical resources

Schlage L Series Service Manual

Schlage L Series Templates

L Series Universal Transformation Guide

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

• 55+ standard functions (custom functions are also available)
• Universal lock case allows 10 functions to be created from a single lock body
• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

• 14 finishes
• 33 lever, two knob, five rose and three escutcheon designs
• Locking lever bushing eliminates exposed screws on inside levers
• All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Available options

• Exclusive 180° visibility indicator
• Vandlgard^® free-wheeling outside trim option is available on most functions, including electrified
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications

View the Schlage L Series catalog to see all specifications and certifications.

• Meets BAA (Buy American Act)
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
• UL listed for 3-hour fire door (except L9076 and L9077)
• With interchangeable core cylinders: Grade 2 security
• With concealed shell cylinder: A156.13 Grade 1 operational and security
• ANSI/ASTM F476-76 Grade 40, UL listed
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
• UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
• Electrified functions are UL19X listed for single-point locking applications
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
• Miami-Dade NOA's and Florida Building Commission Listings
• Meet ADA requirements

Schlage L Series Catalog

Schlage L Series Electrified Data Sheet

NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet

Schlage SL1/SK1 Ligature Resistant Trim Data Sheet

Schlage L Series 180 Indicator Data Sheet

Schlage M Collection Levers Data Sheet

Decorative Levers Brochure

Securing Your School - Door Hardware Solutions for Education

Allegion Connect Data Sheet

Classroom Upgrade Kits

Case study: Ligature resistant hardware

Technical resources

Schlage L Series Service Manual

Schlage L Series Templates

L Series Universal Transformation Guide

Mobile ready Schlage® MTB readers deliver maximum capabilities and compatibility in one single unit for simplified access control. The MTB15 wall mount is designed to support Bluetooth® (BLE) and NFC technologies in addition to reading both proximity and smart, allowing a seamless transition to more secure credentials at customers' own pace.

Technology

• Support for the widest range of credential technologies, including the latest in mobile:

  • Schlage Mobile Bluetooth® Credentials (BLE)
  • NFC including Apple’s Enhanced Contactless Polling (ECP) to support credentials in the Apple Wallet
• All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication
• OSDP Verified

Simplicity

• Commission via ENGAGE mobile app for reader updates and easy configuration

• Improved voltage range of 5V to 28V for simplified power management
• Accommodates interior, exterior, metal and non-metal installation environments
• Limited lifetime warranty

Installation

• Improved quick-connect cable allows for easy installation

• Easy-to-install mounting bracket
• Reads 125 kHz proximity, 13.56 MHz smart, 2.4 GHz Bluetooth and NFC technologies, with the ability to process multiple formats
• Wiegand, Clock & Data and RS-485 outputs come standard for simple interface with most access control panels

Physical dimensions (HxWxD): 5.1″ x 3.25″ x 0.76″
Frequency: 2.4GHz, 13.56 MHz and 125 kHz
System interface: Wiegand / Clock & Data / OSDP / Optional RS-485 capability
Standard default PIV output: 75 bit†
Standards: ISO 14443A, ISO 15693
Power: 5-28 VDC
Wiring: 22 AWG, 12 conductor, 12" length
Operating temperatures: -31° to 151°F (-35° to 67° C)
LED (red, green, or amber) visual indicator and audio feedback
Material: PBT Polymer

Compatibility

The MTB mobile enabled multi-technology reader will read Schlage® Mobile Bluetooth® Credentials, industry-leading smart credentials as well as proximity credentials. When installed as part of a proximity credential based system, the multi-technology reader will enable you to step up over time to more secure and versatile smart or mobile technology.

Credential types

• 2.4 GHz Mobile Bluetooth Low Energy (BLE)

• Mobile Near Field Communication (NFC)
• 13.56 MHz smart, including MIFARE Classic® and MIFARE® DESFire® EV1, EV2 and EV3
• 125 kHz proximity Schlage Mobile Access Credentials via 2.4 GHz Bluetooth

For full credential system compatibility list, see the MTB reader data sheet.

Styles

• Mobile (Bluetooth, NFC)

• Cards
• Keyfobs
• PVC adhesive discs
• Wearable wristbands
• Custom artwork options

For complete details, visit the Credentials page.

Category information

• Electronic Access Control Catalog

• Schlage eHardware reference sheet
• Wireless access control solutions brochure

Product information

• MTB reader data sheet

• Reader accessories data sheet

Technical resources

• MTB15 MTKB15 installation instructions
• MTB reader specifications

SIA OSDP Verified

• Learn More

• Verified Products List

Release notes

• CTE firmware release notes 01.08.04, December 2021

Schlage ND10S passage lock is available in stock & ready to ship.

They come available in all lever styles & finished.

Schlage ND Series Catalog

Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade
1 requirements for cycle, lever torque, hammer blow, lever
pull and other tests. This means confidence that the lock
will last—whether the application calls for high abuse
resistance or just operation over millions of cycles—
without any degradation in performance.

Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic
solutions allow a common aesthetic and consistent
user experience throughout the building while
lowering the total cost of ownership.

World-class design
A proven, easy to install product with extensive
function, keying, trim and finish capabilities that
work in nearly any applications.

Schlage ND40S privacy lock is available in stock & ready to ship.

They come available in all lever styles & finished.

Schlage ND Series Catalog

Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade
1 requirements for cycle, lever torque, hammer blow, lever
pull and other tests. This means confidence that the lock
will last—whether the application calls for high abuse
resistance or just operation over millions of cycles—
without any degradation in performance.

Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic
solutions allow a common aesthetic and consistent
user experience throughout the building while
lowering the total cost of ownership.

World-class design
A proven, easy to install product with extensive
function, keying, trim and finish capabilities that
work in nearly any applications.

Schlage ND50PD entrance/office lock is available in stock & ready to ship.

They come available in all lever styles & finished.

Schlage ND Series Catalog

Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade
1 requirements for cycle, lever torque, hammer blow, lever
pull and other tests. This means confidence that the lock
will last—whether the application calls for high abuse
resistance or just operation over millions of cycles—
without any degradation in performance.

Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic
solutions allow a common aesthetic and consistent
user experience throughout the building while
lowering the total cost of ownership.

World-class design
A proven, easy to install product with extensive
function, keying, trim and finish capabilities that
work in nearly any applications.

Schlage ND53PD entrance lock is available in stock & ready to ship.

They come available in all lever styles & finished.

Schlage ND Series Catalog

Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade
1 requirements for cycle, lever torque, hammer blow, lever
pull and other tests. This means confidence that the lock
will last—whether the application calls for high abuse
resistance or just operation over millions of cycles—
without any degradation in performance.

Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic
solutions allow a common aesthetic and consistent
user experience throughout the building while
lowering the total cost of ownership.

World-class design
A proven, easy to install product with extensive
function, keying, trim and finish capabilities that
work in nearly any applications.

Schlage ND70PD Classroom lock is available in stock & ready to ship.

They come available in all lever styles & finished.

Schlage ND Series Catalog

Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade
1 requirements for cycle, lever torque, hammer blow, lever
pull and other tests. This means confidence that the lock
will last—whether the application calls for high abuse
resistance or just operation over millions of cycles—
without any degradation in performance.

Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic
solutions allow a common aesthetic and consistent
user experience throughout the building while
lowering the total cost of ownership.

World-class design
A proven, easy to install product with extensive
function, keying, trim and finish capabilities that
work in nearly any applications.

Schlage ND75PD Classroom Security lock is available in stock & ready to ship.

They come available in all lever styles & finishes.

Schlage ND Series Catalog

Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade
1 requirements for cycle, lever torque, hammer blow, lever
pull and other tests. This means confidence that the lock
will last—whether the application calls for high abuse
resistance or just operation over millions of cycles—
without any degradation in performance.

Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic
solutions allow a common aesthetic and consistent
user experience throughout the building while
lowering the total cost of ownership.

World-class design
A proven, easy to install product with extensive
function, keying, trim and finish capabilities that
work in nearly any applications.

Schlage ND80PD Storeroom lock is available in stock & ready to ship.

They come available in all lever styles & finishes.

Schlage ND Series Catalog

Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade
1 requirements for cycle, lever torque, hammer blow, lever
pull and other tests. This means confidence that the lock
will last—whether the application calls for high abuse
resistance or just operation over millions of cycles—
without any degradation in performance.

Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic
solutions allow a common aesthetic and consistent
user experience throughout the building while
lowering the total cost of ownership.

World-class design
A proven, easy to install product with extensive
function, keying, trim and finish capabilities that
work in nearly any applications.

500+ IN STOCK.

PLEASE CONTACT US WITH ANY QUESTIONS 718-957-0007.

US Lock Supply is a leading distributor for Schlage wireless products.

2-3/8" Backset

Gateway Link

The Schlage NDE wireless locks can be managed from anywhere using ENGAGE™ web and mobile applications.

The NDE design packages the cylindrical lock, credential reader, and access control sensors together in to a small footprint that is both easy to install and affordable. The NDE enables the use of both proximity (125 kHz) and/or smart (13.56 MHz) credentials which feature a much higher level of security and versatility.

NDE electronic wireless locks can be managed with other wireless locks including Schlage Control™ and LE. NDE locks can be updated immediately at the door using a smart phone or tablet. For even greater efficiency, NDE locks can be connected to a Wi-Fi network for overnight updates. Please visit the ENGAGE™ web and mobile app page for additional details.

Security

• Electronics bring more visibility and control to the opening
• Reads high security smart (13.56 MHz) as well as proximity (125 kHz) credentials
• Built on proven Schlage ND Series, Grade 1 mechanical lock

Efficiency

• Updates can be made immediately at the door, or automatically when connected to the Wi-Fi network
• Set automatic lock and unlock schedules, user schedules and holidays
• Suites with Schlage mechanical and electrified ND Series locks with many common parts

Convenience

• Works with same credential used on the building perimeter
• Smart credentials can be used for vending and other applications
• Standard cylindrical 161L prep; installs in minutes with a Phillips screwdriver

NDE wireless locks can be managed with ENGAGE™ web and mobile applications.

• ANSI/BHMA A156.25-2013 (Indoor/Outdoor)
• ANSI/BHMA A156.2-2011, Series 4000, Grade 1
• UL 294
• UL 10C
• CSA C22.2 No. 205-M1983
• FCC Part 15
• IC RSS-210
• ADA
• RoHS
• ICC ANSI A117.1

Electronic Access Control Catalog

NDE wireless lock data sheet

Engage web and mobile app data sheet

Schlage ENGAGE WiFi Requirements Technical Application Solution Sheet

Schlage ENGAGE 6.1 User Guide
