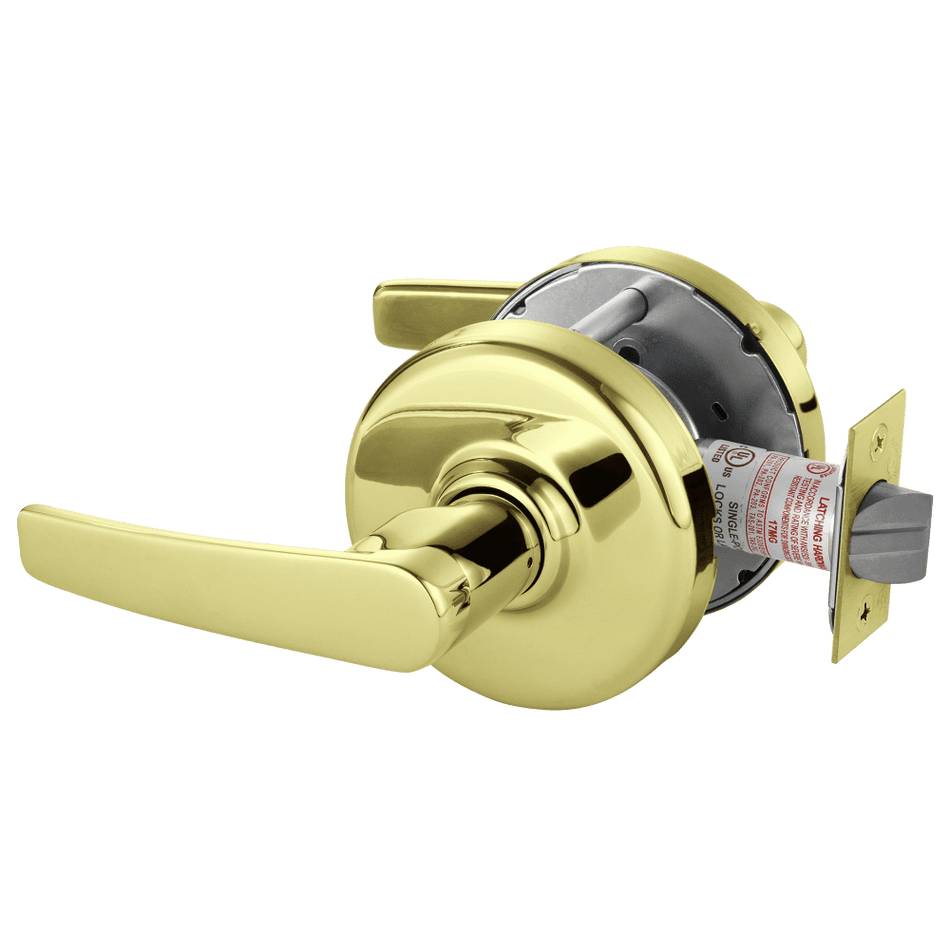

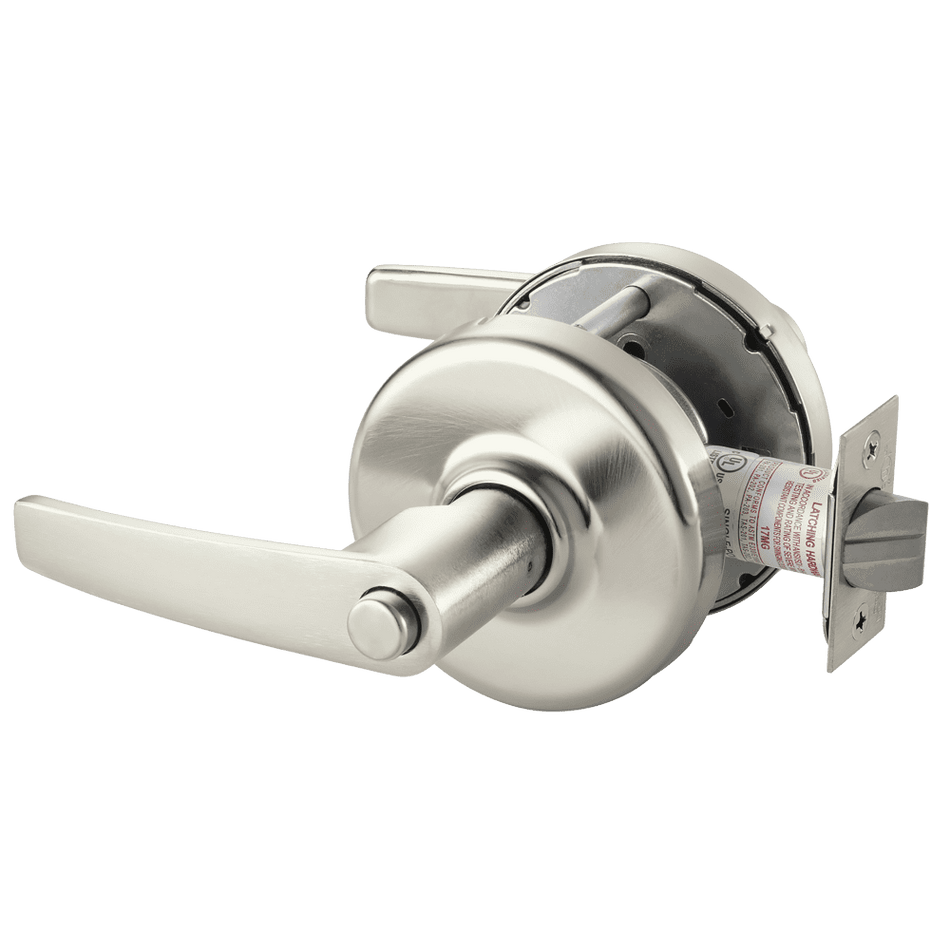

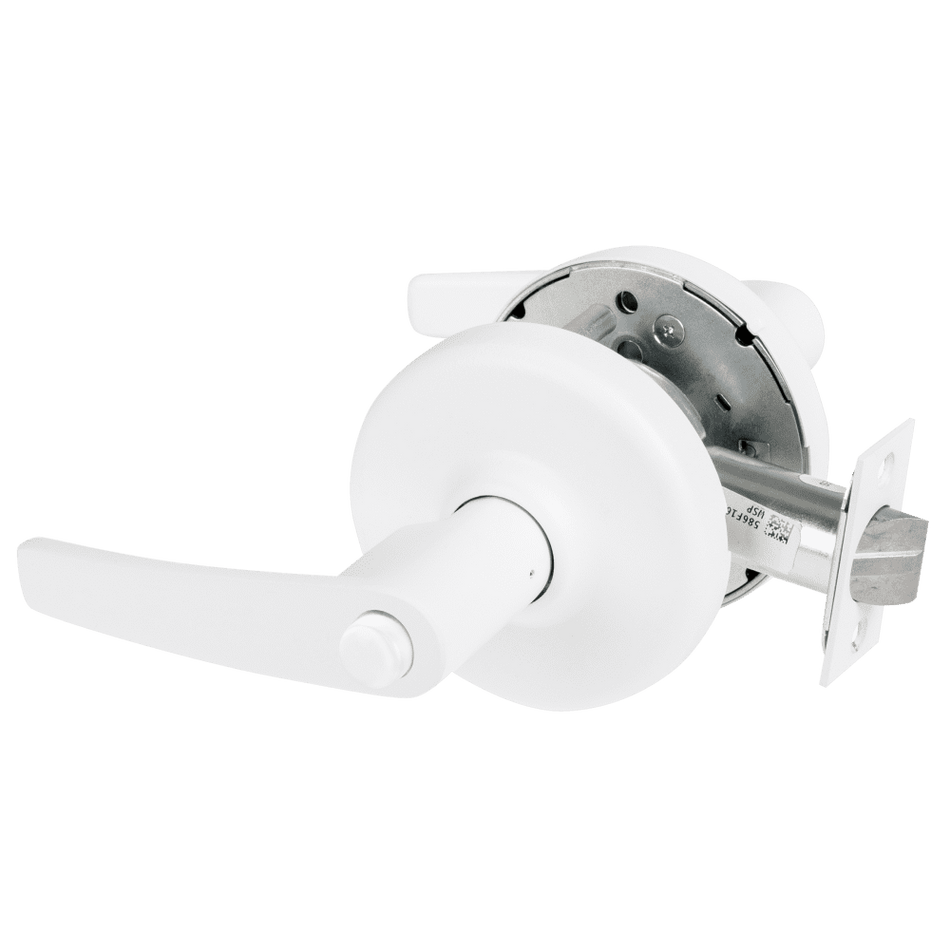

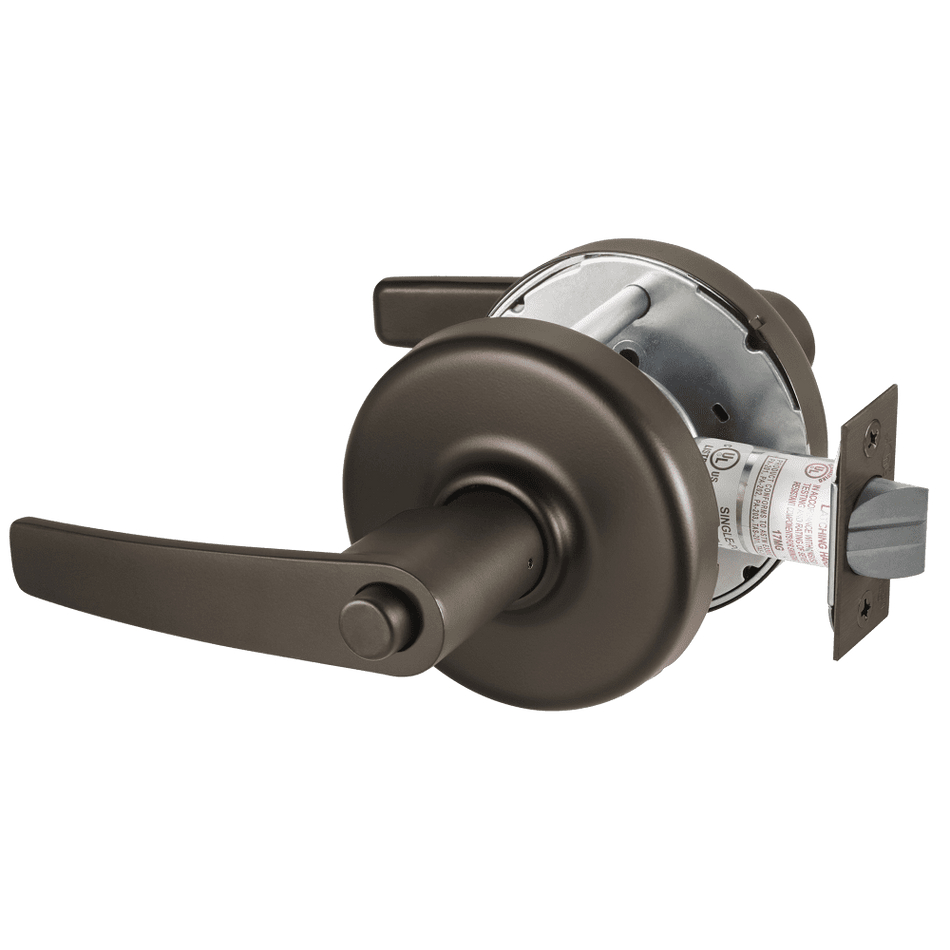

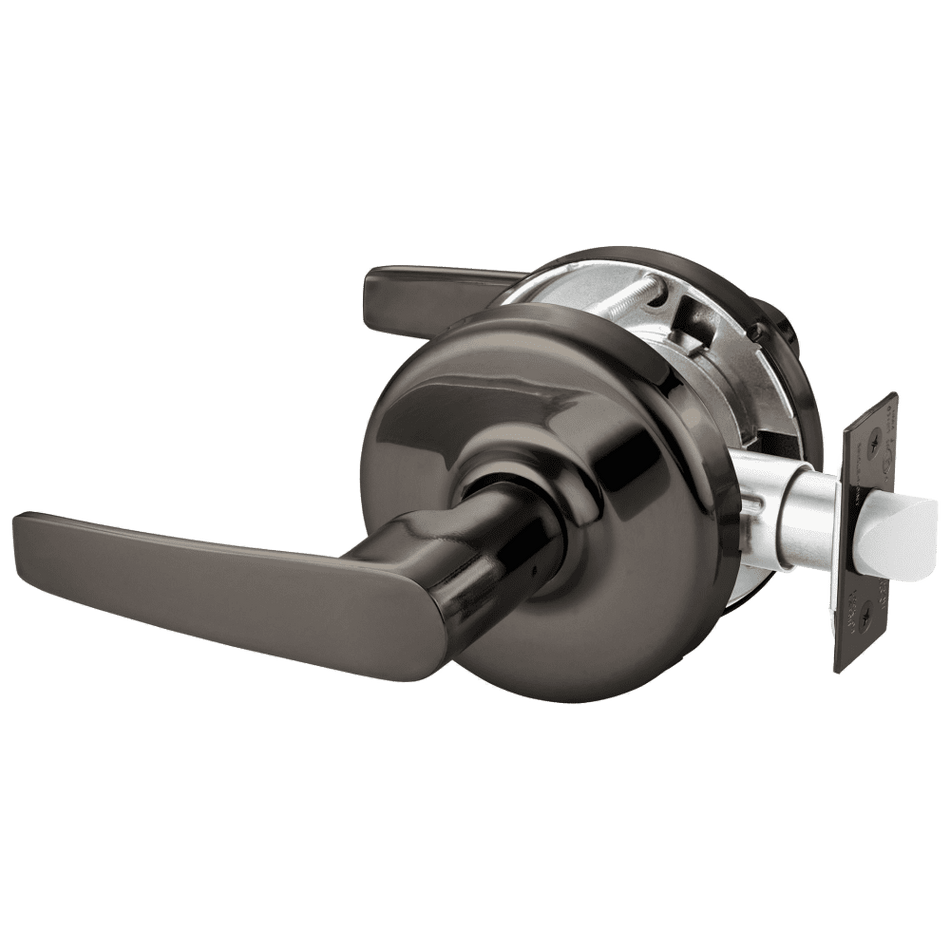

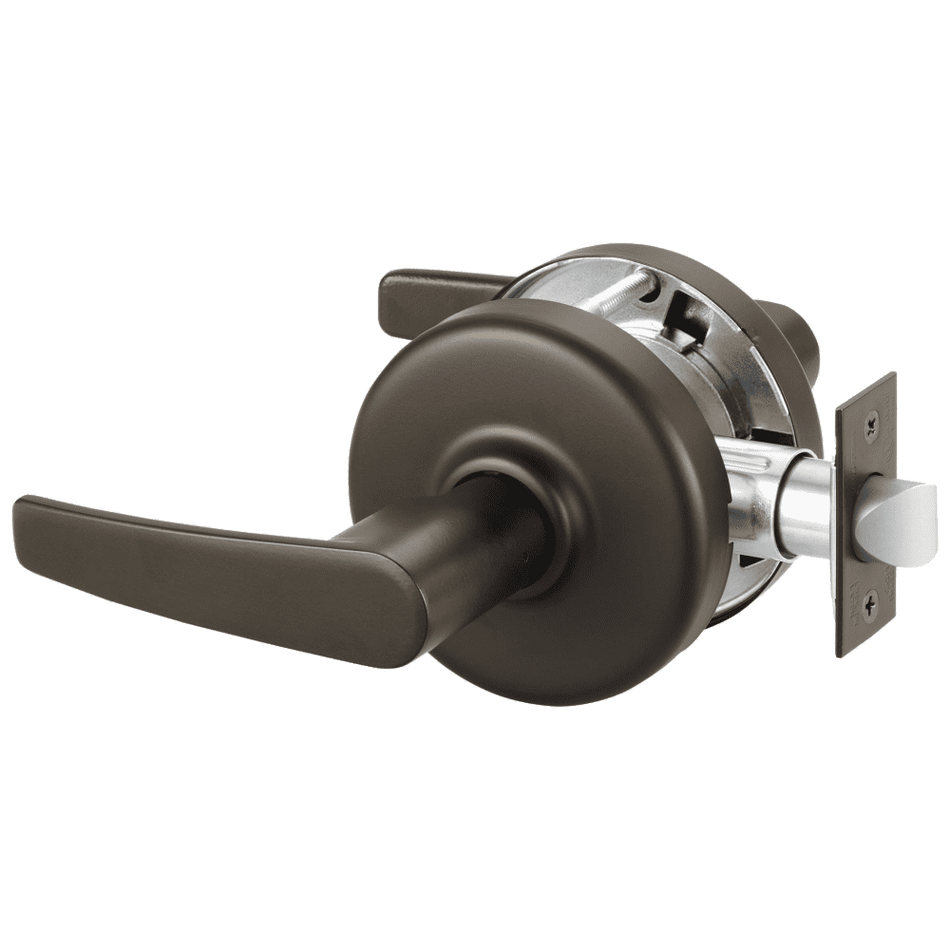

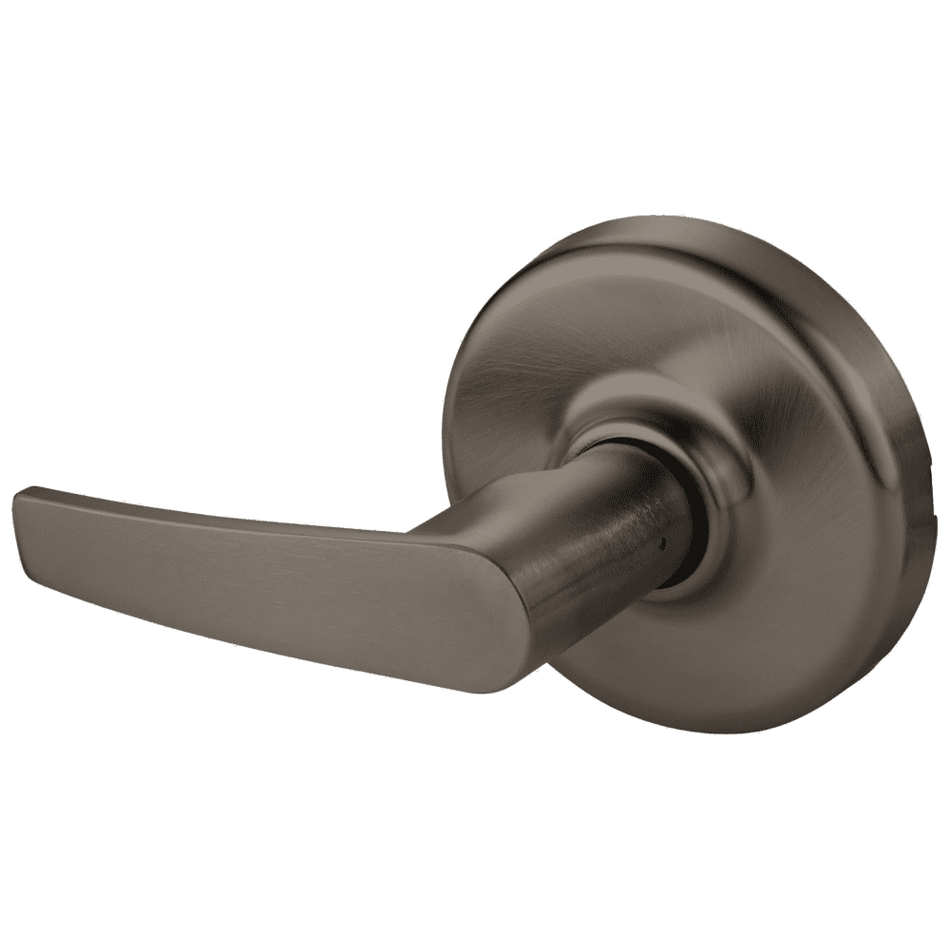

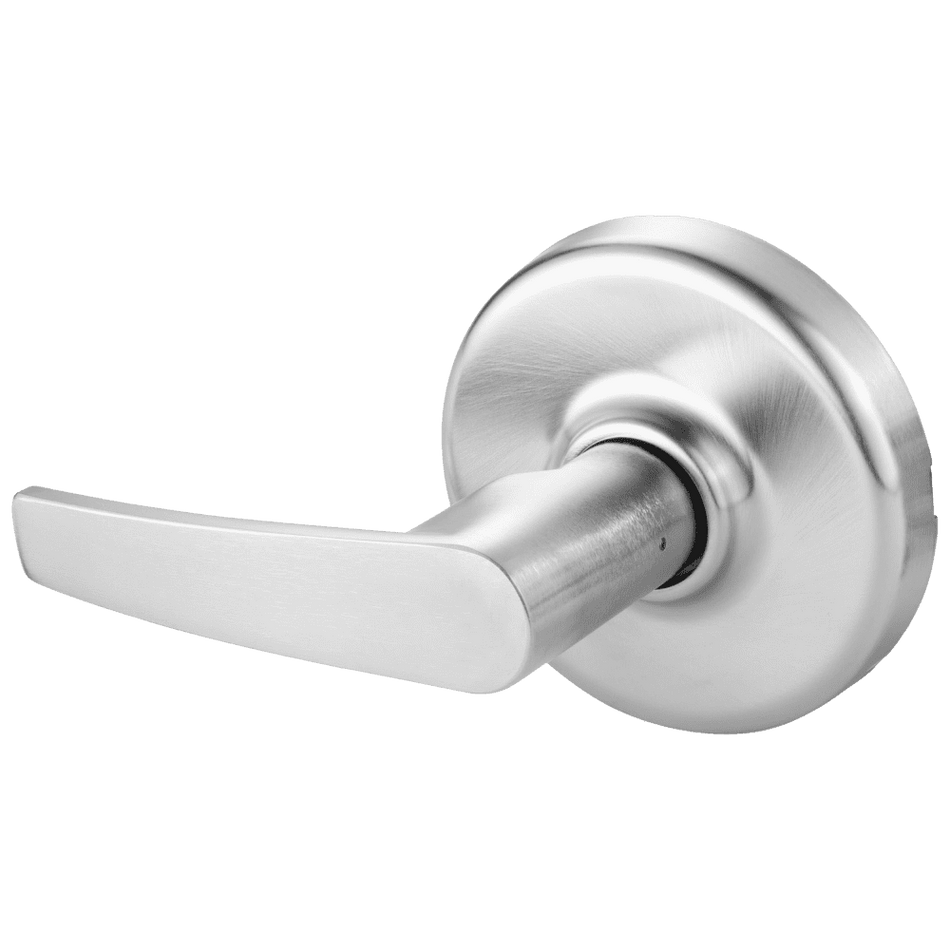

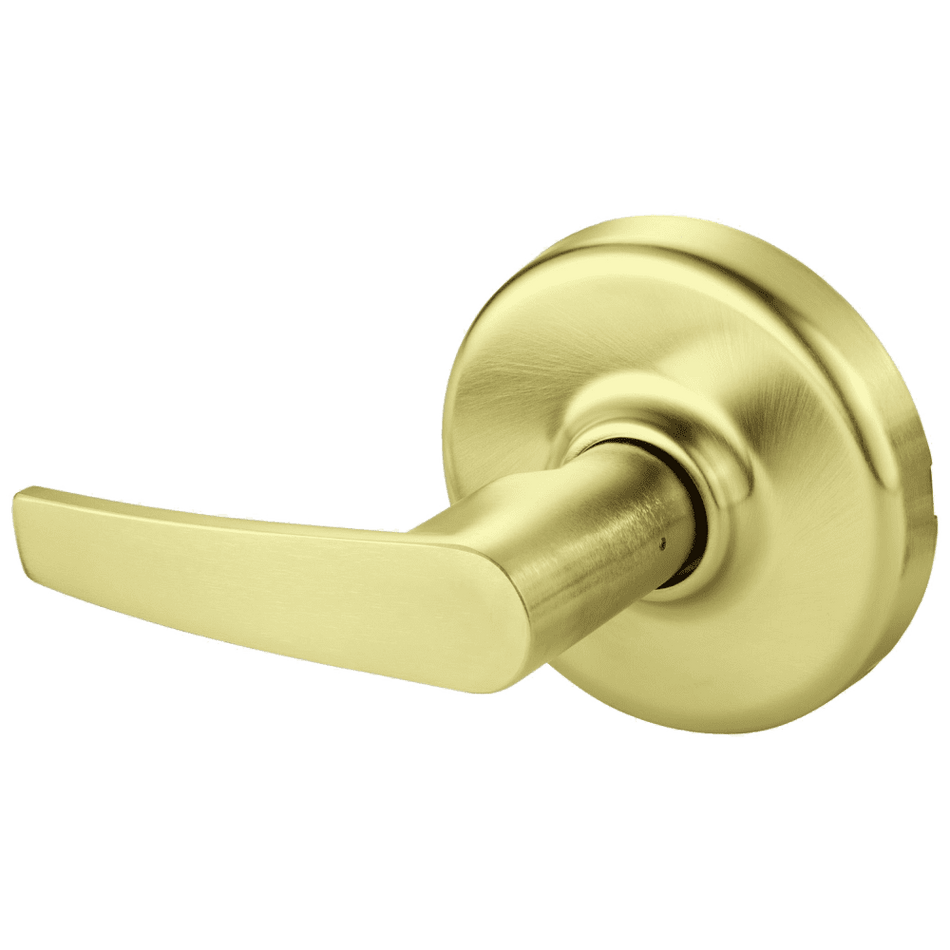

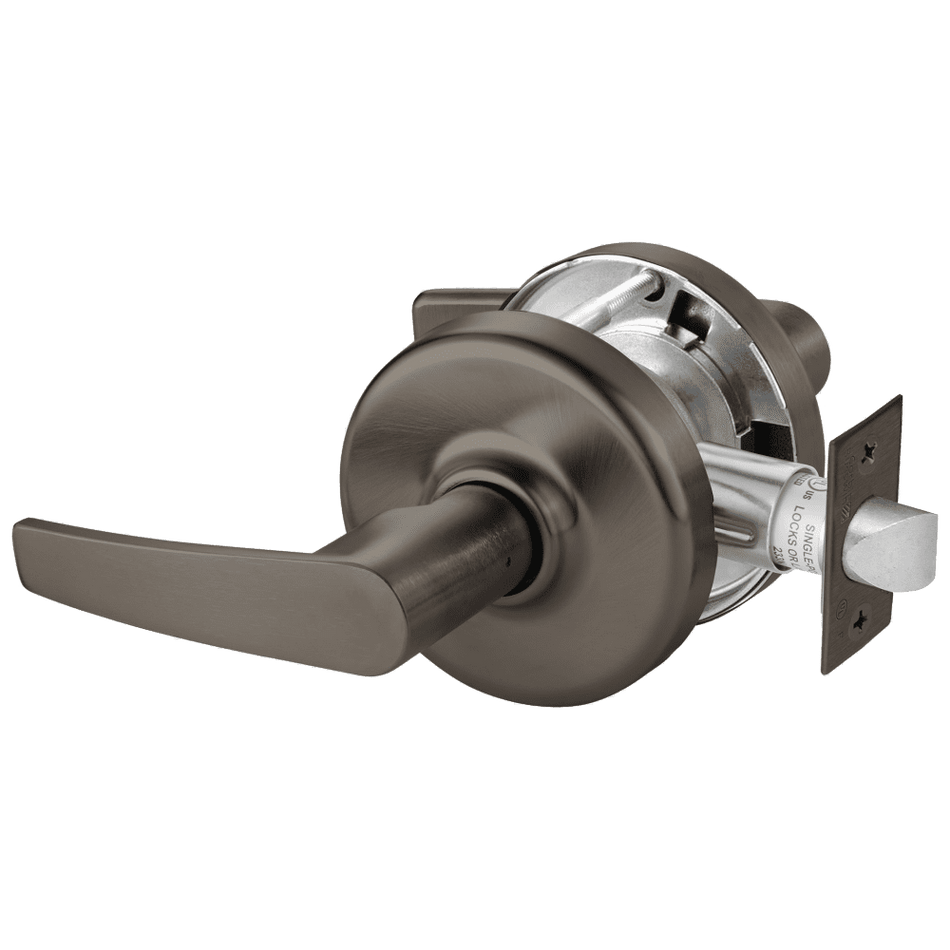

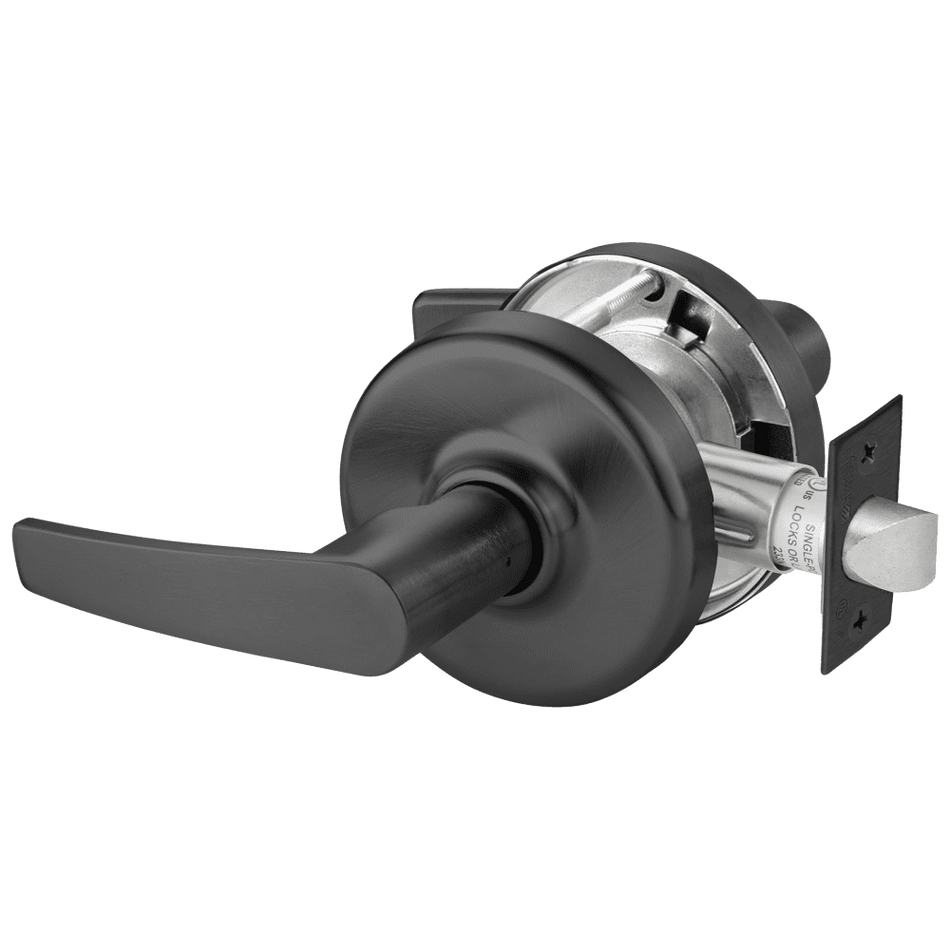

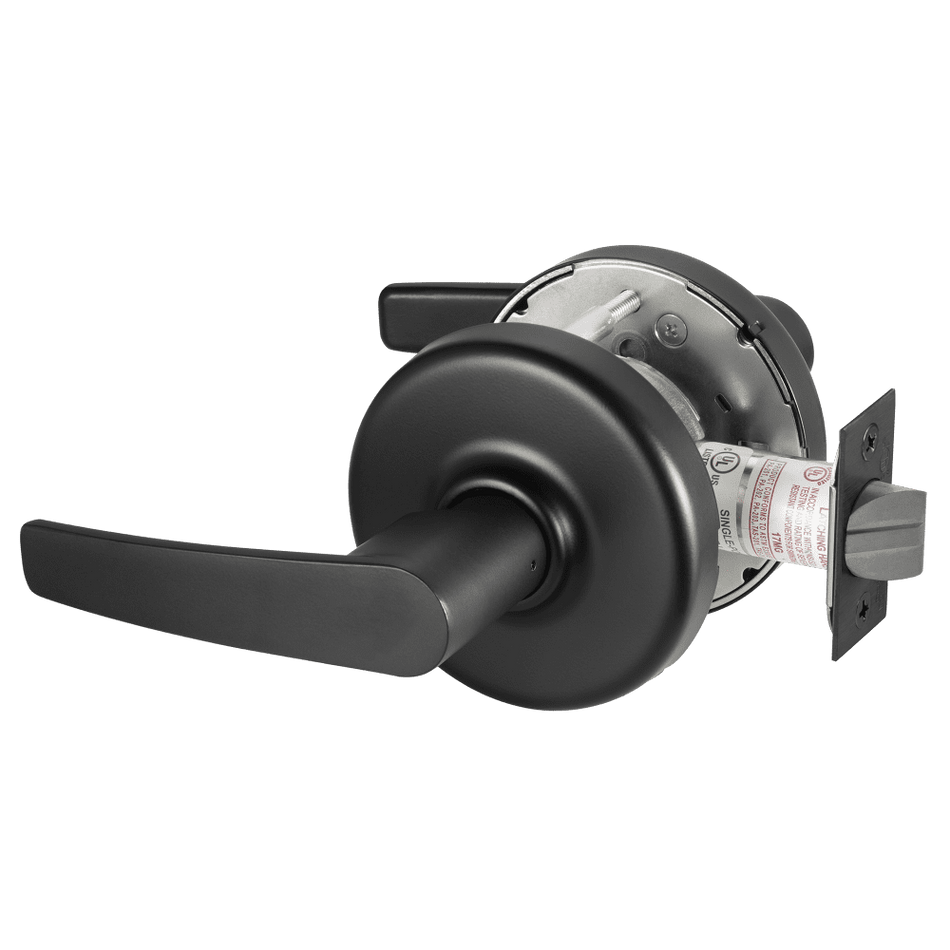

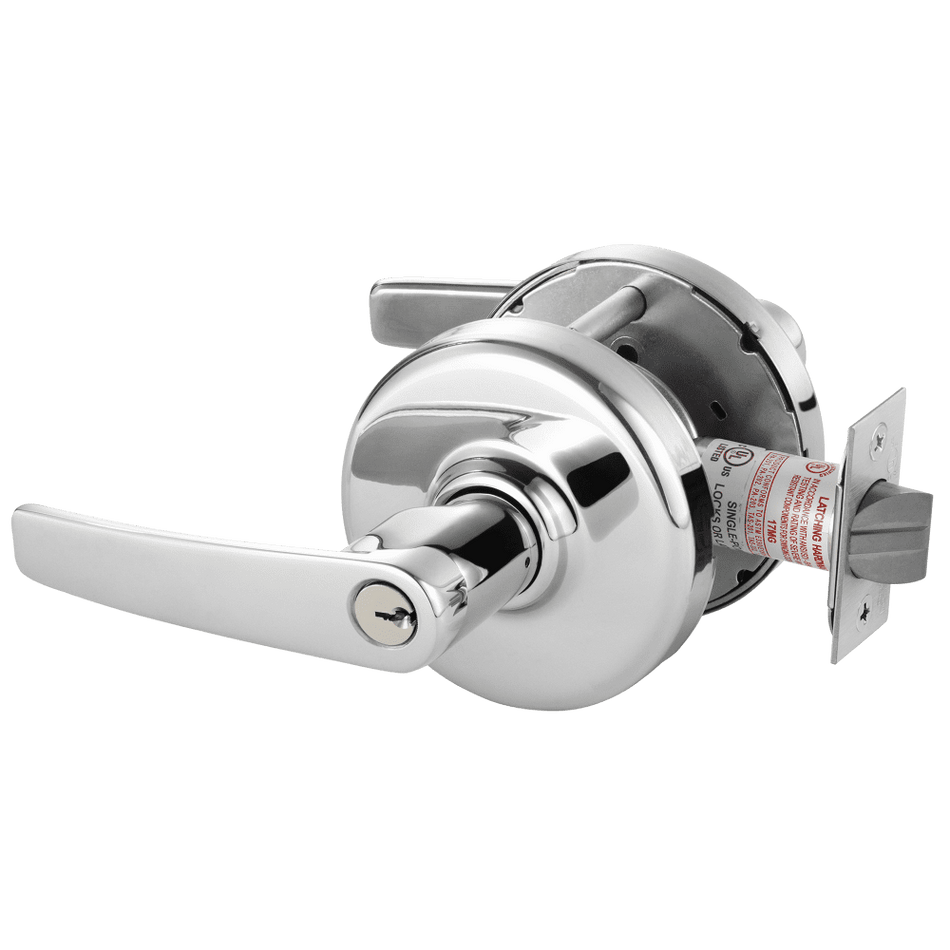

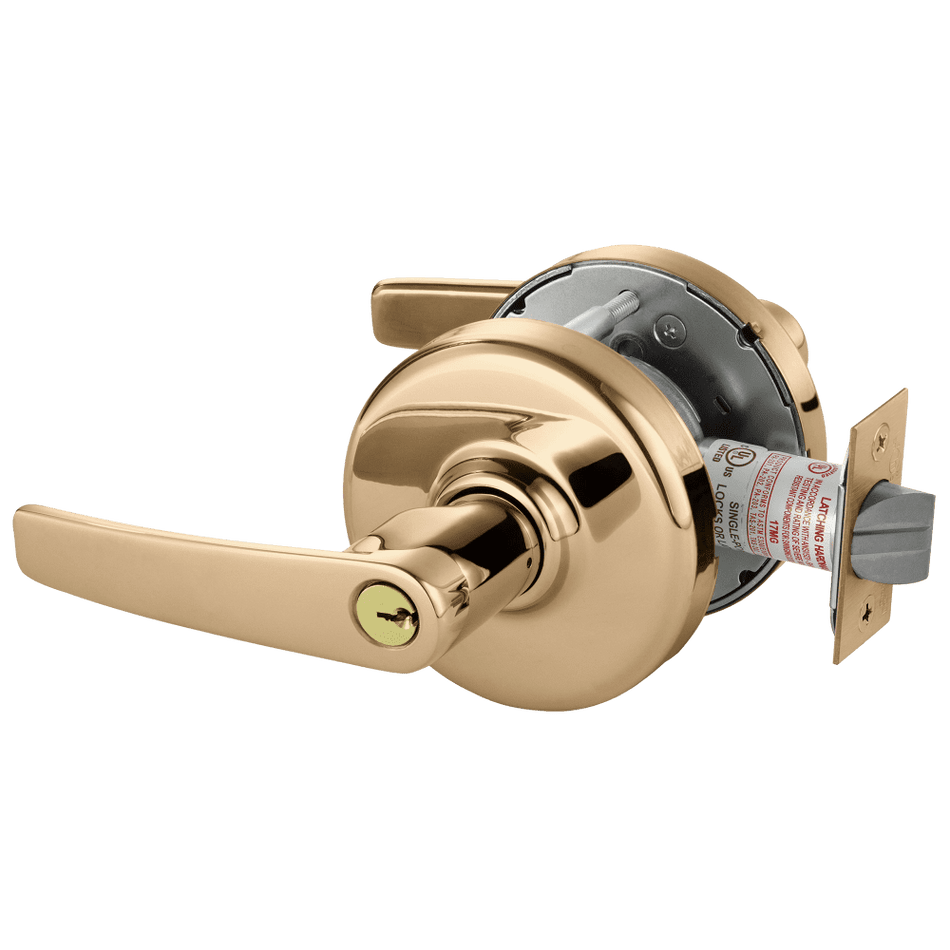

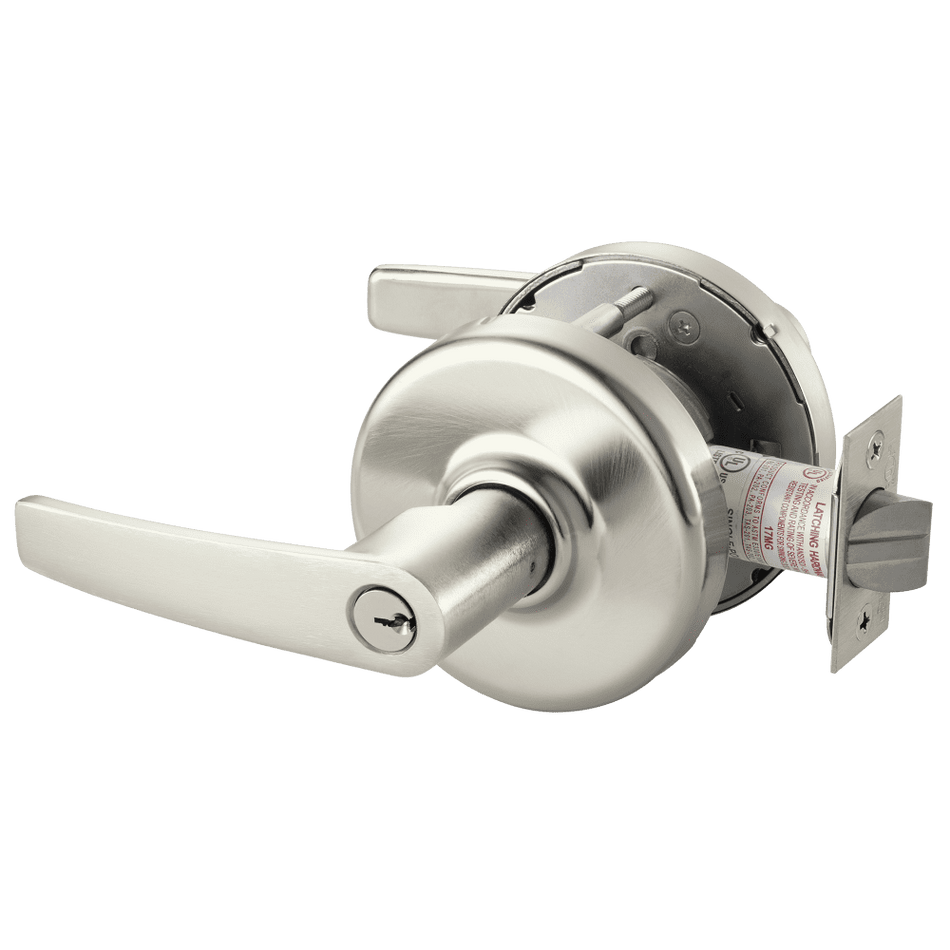

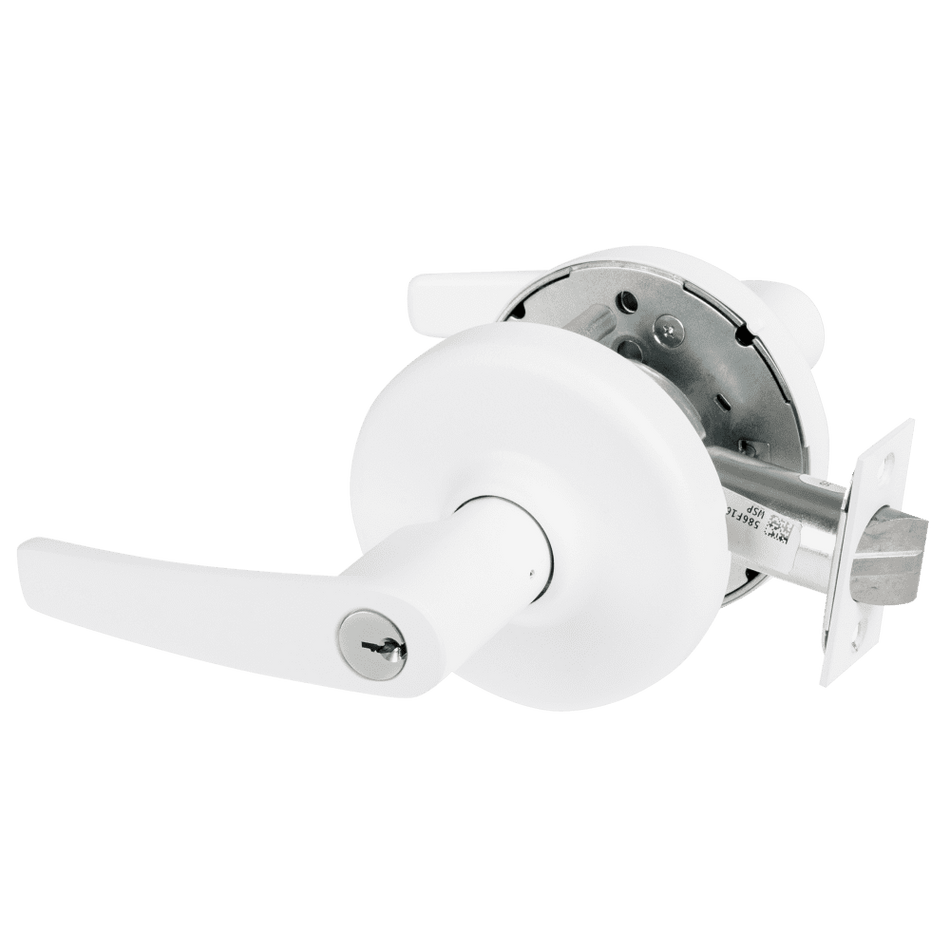

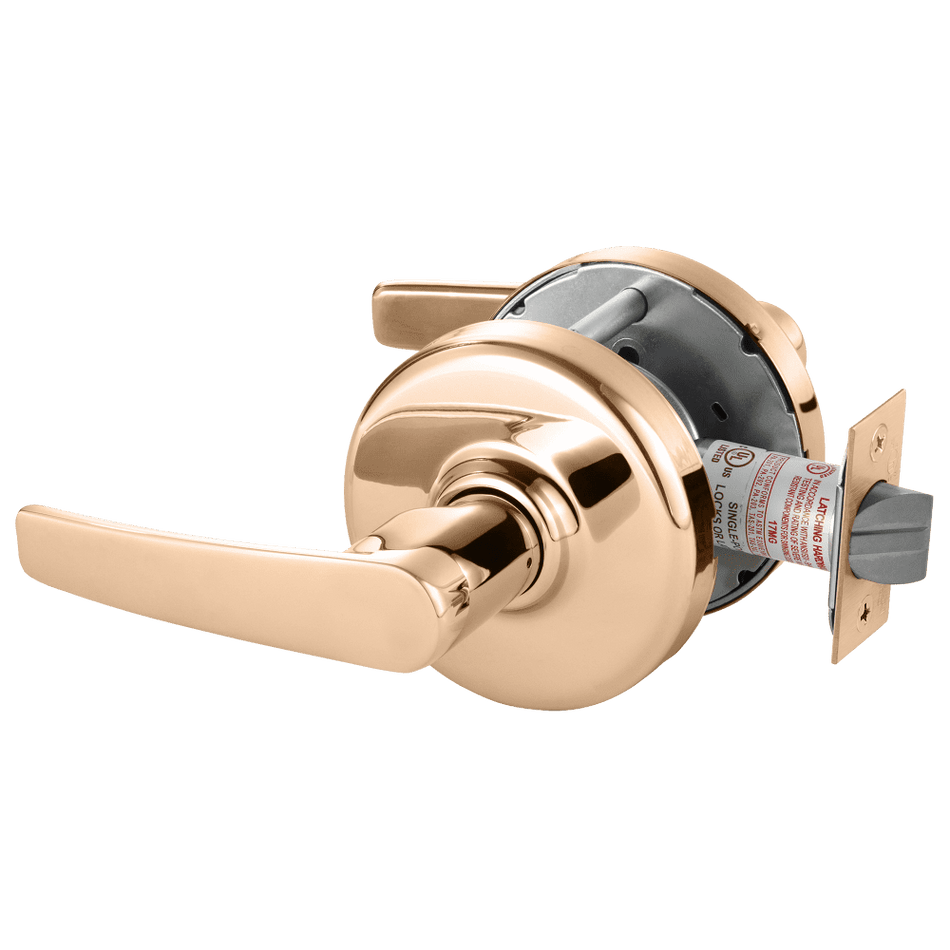

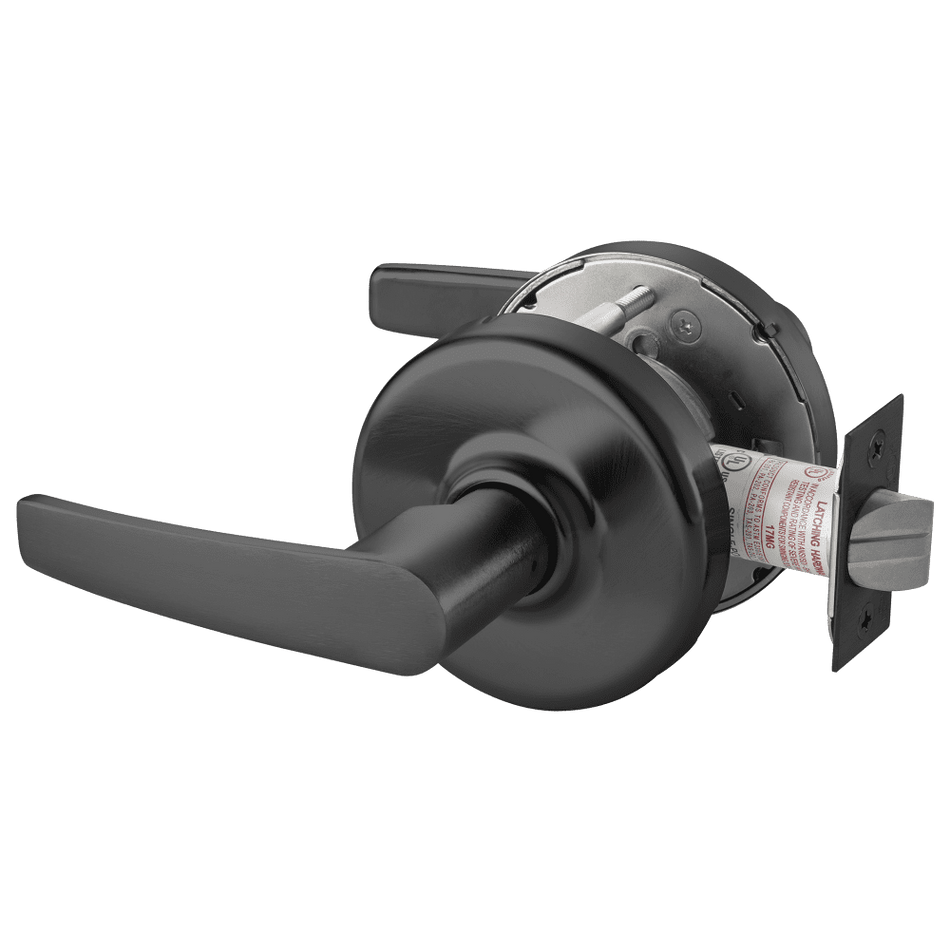

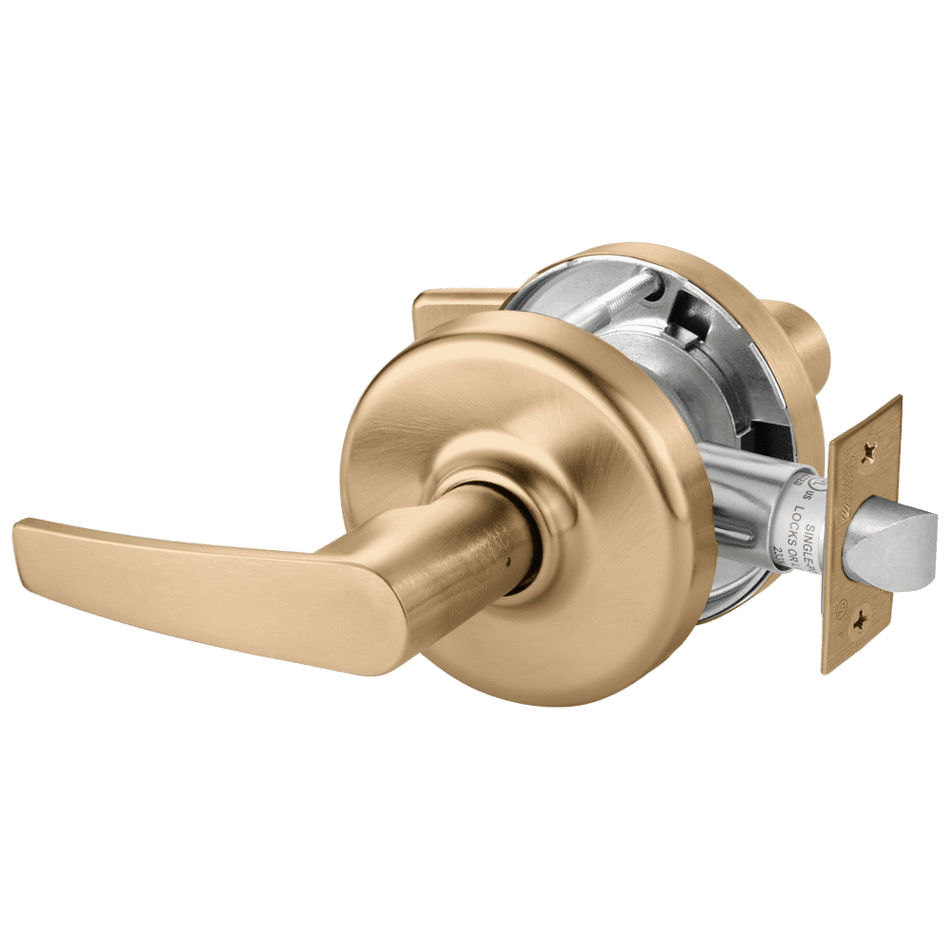

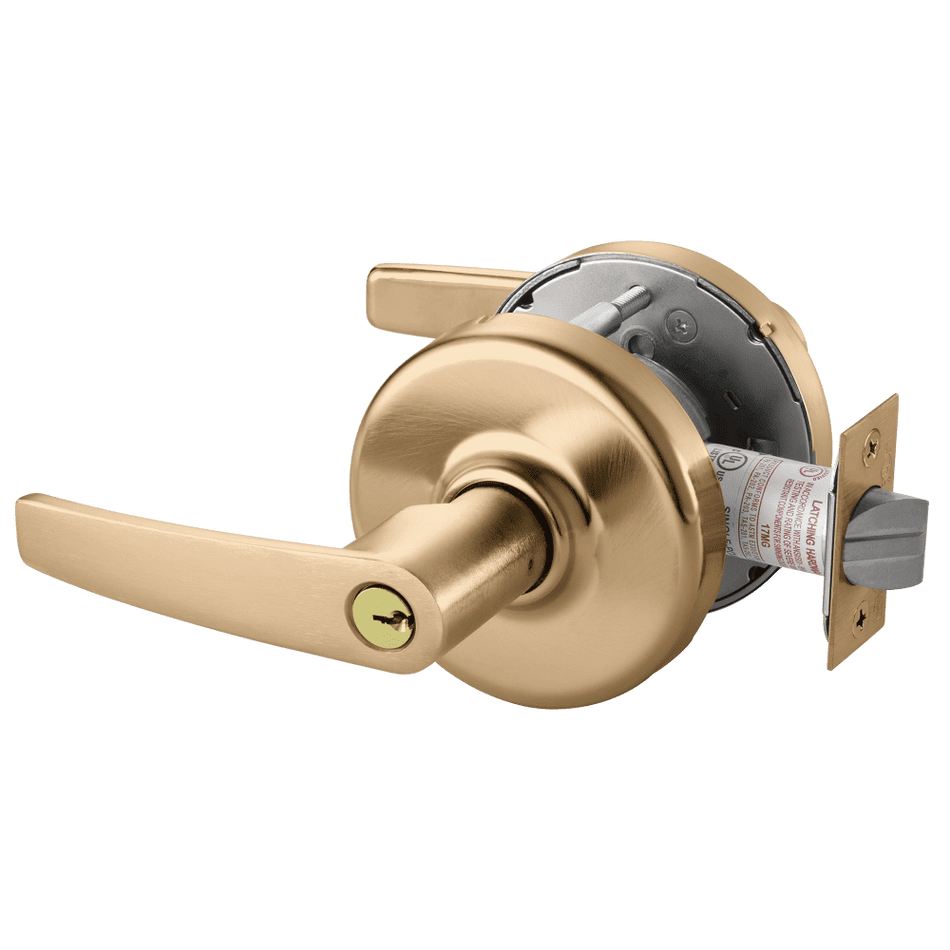

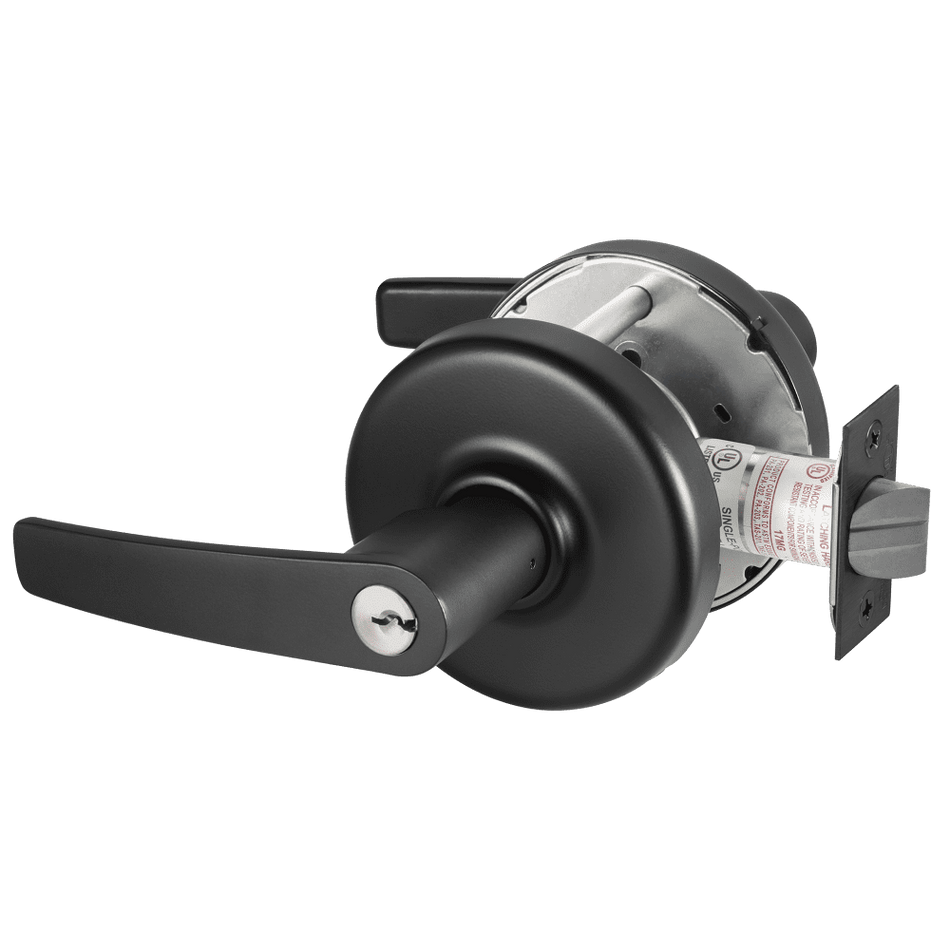

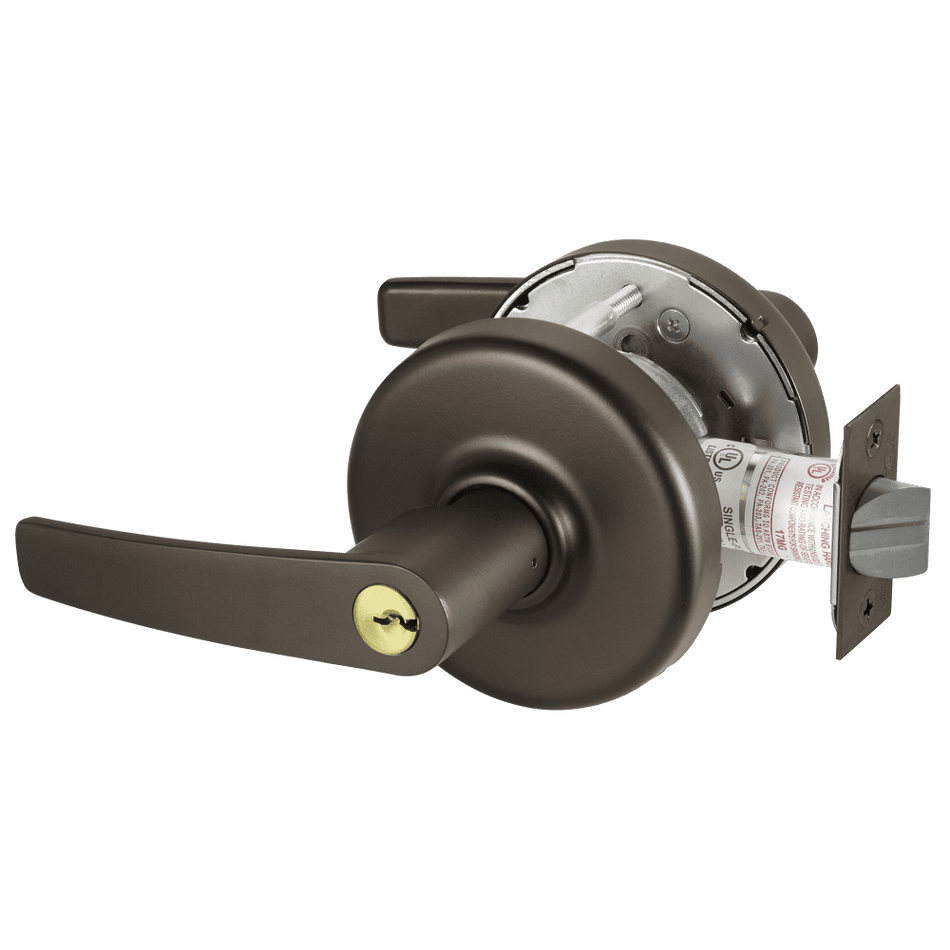

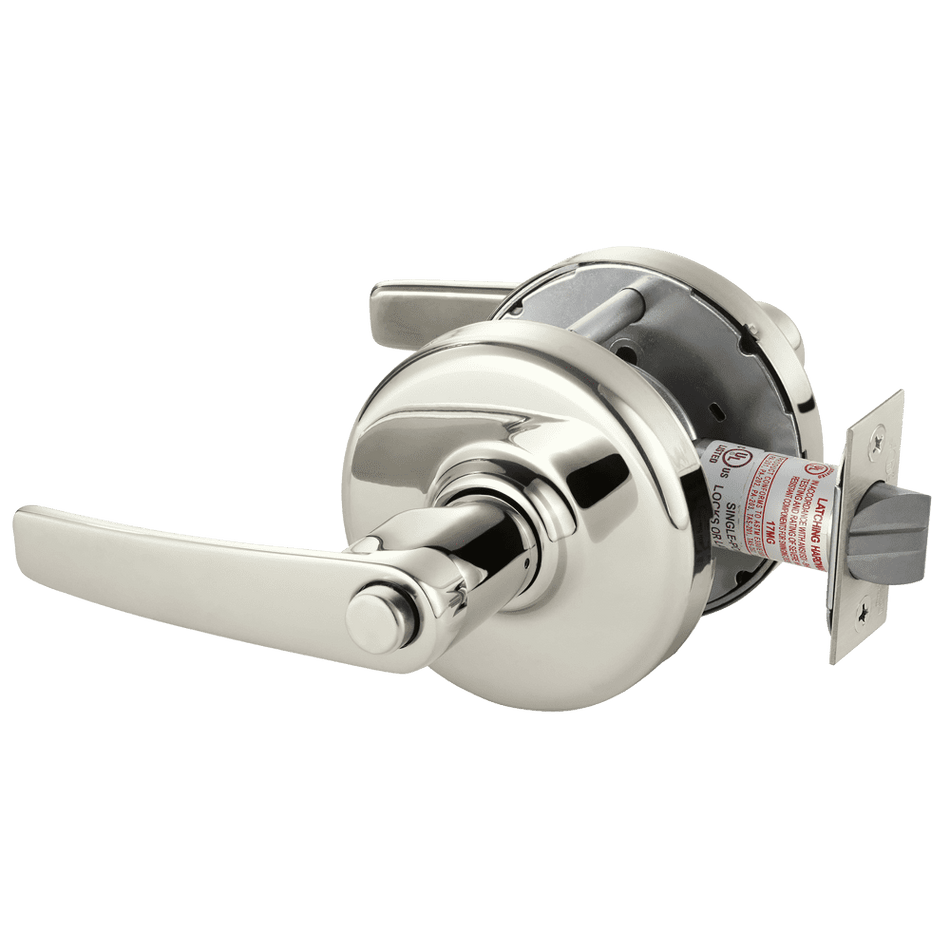

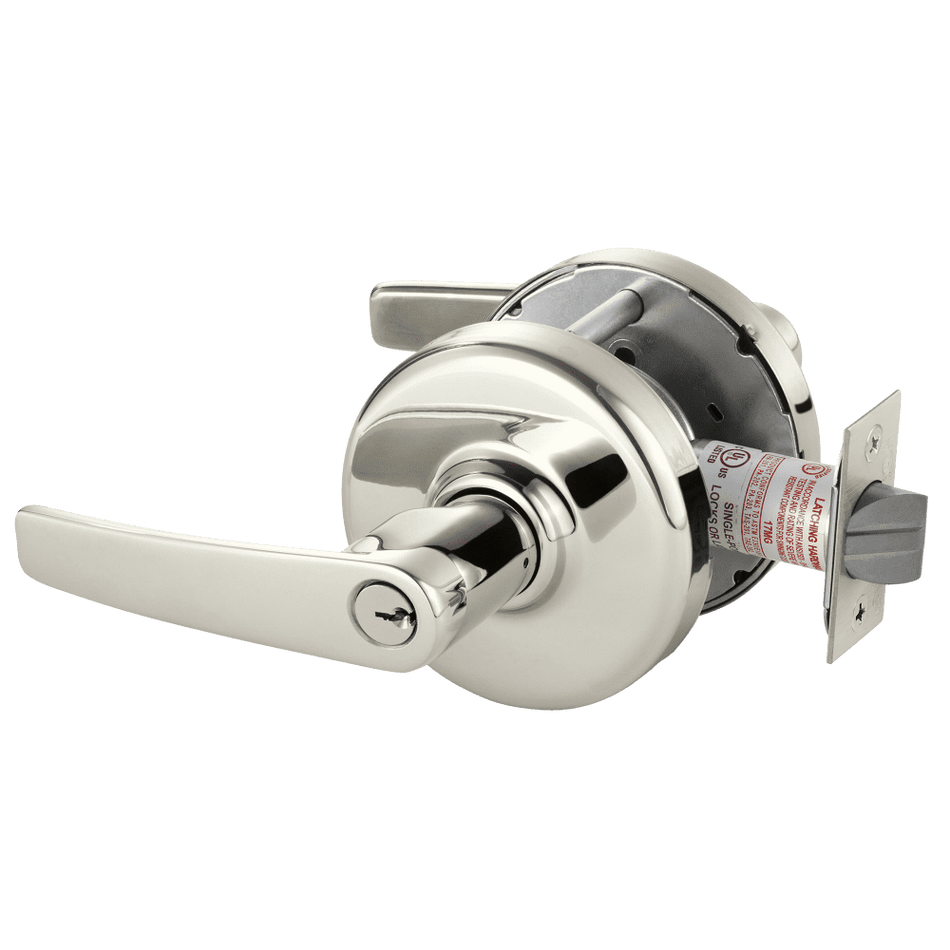

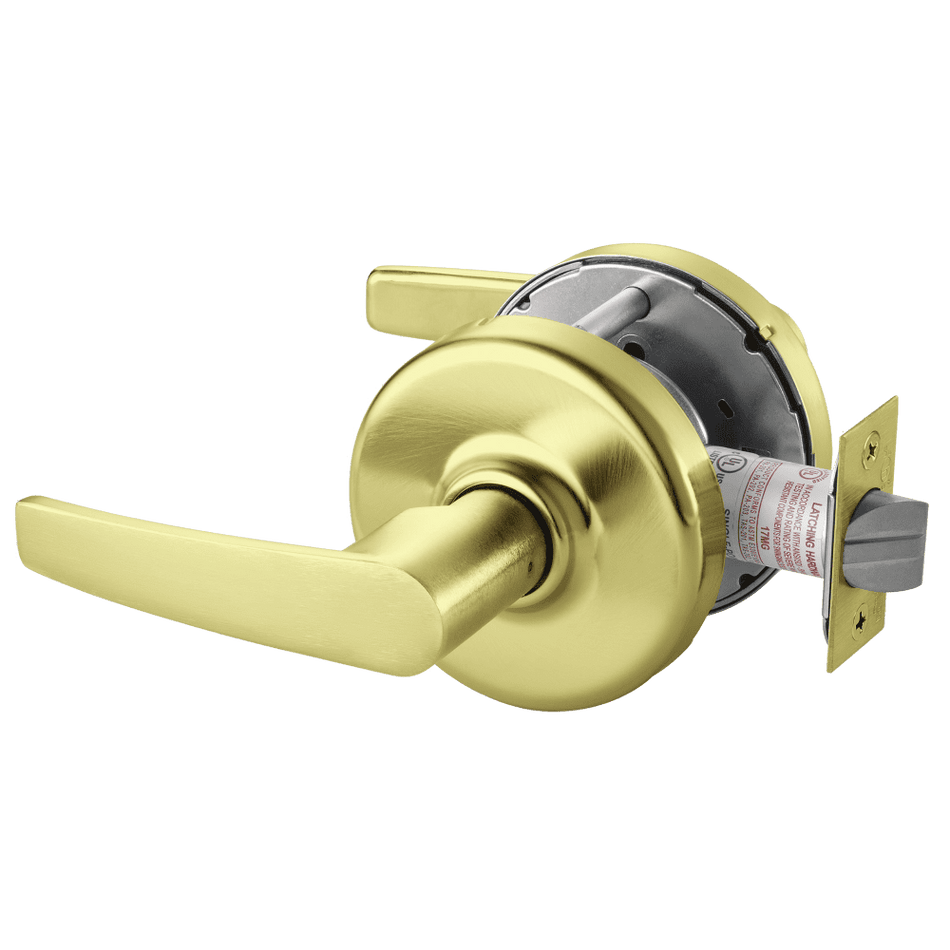

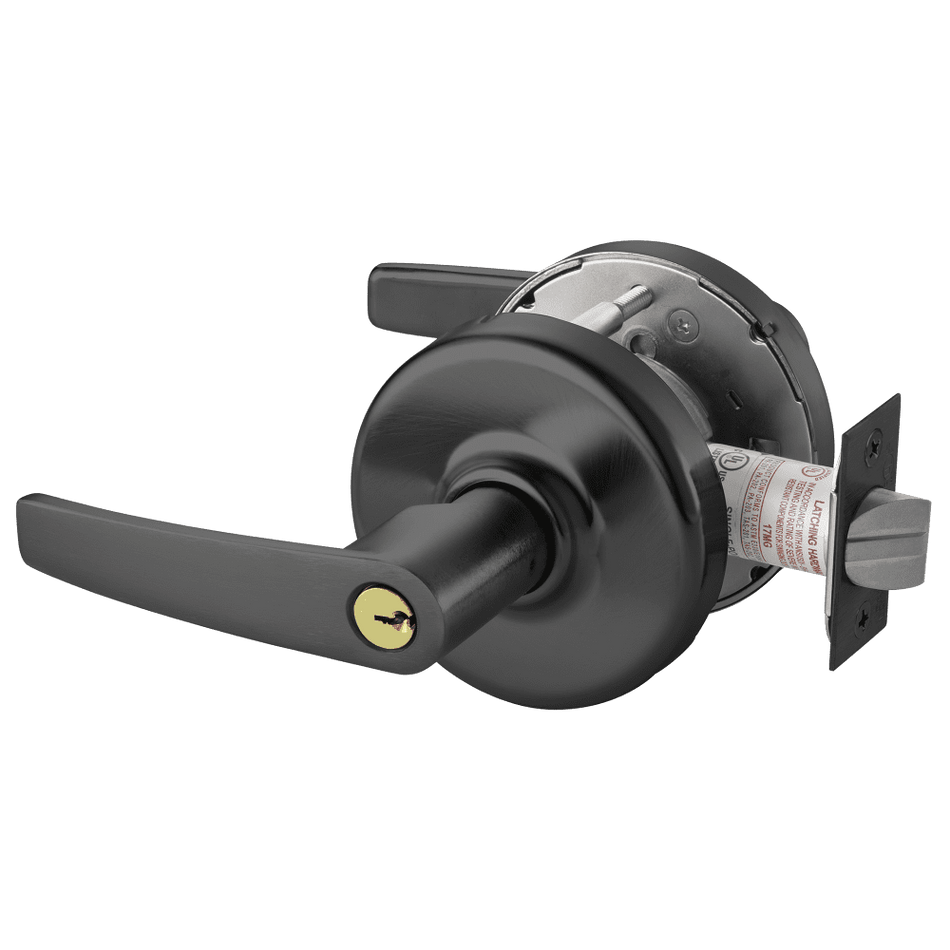

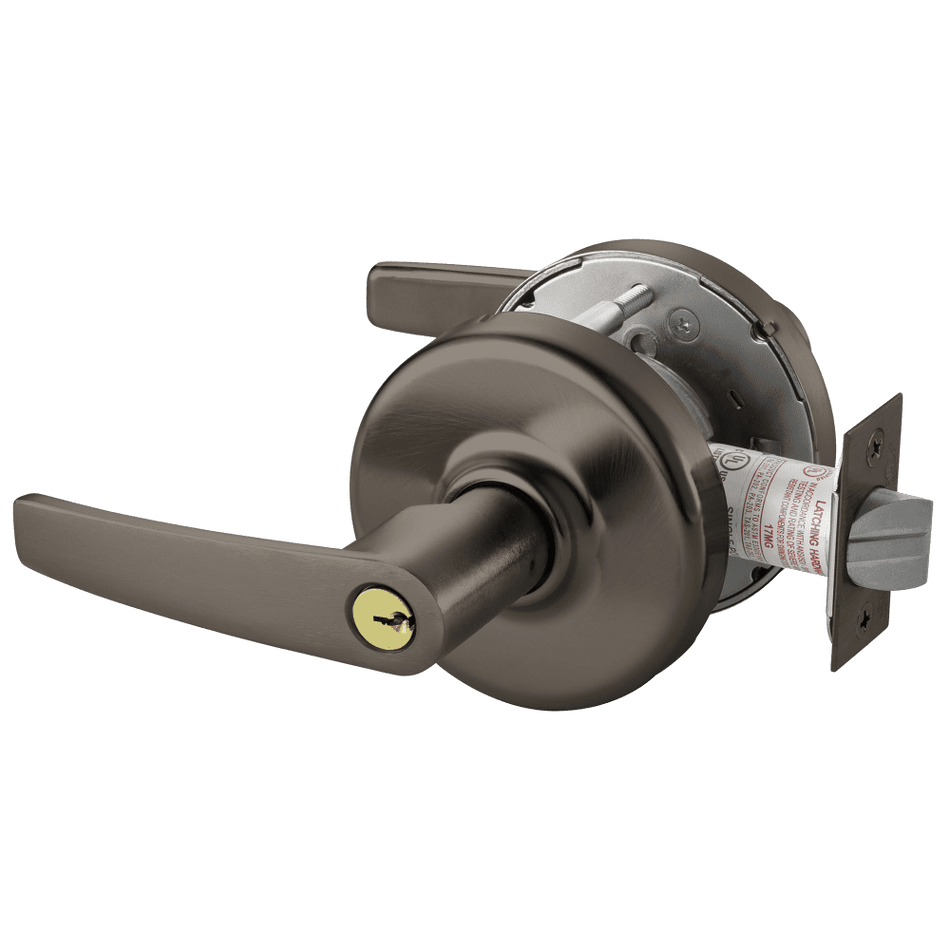

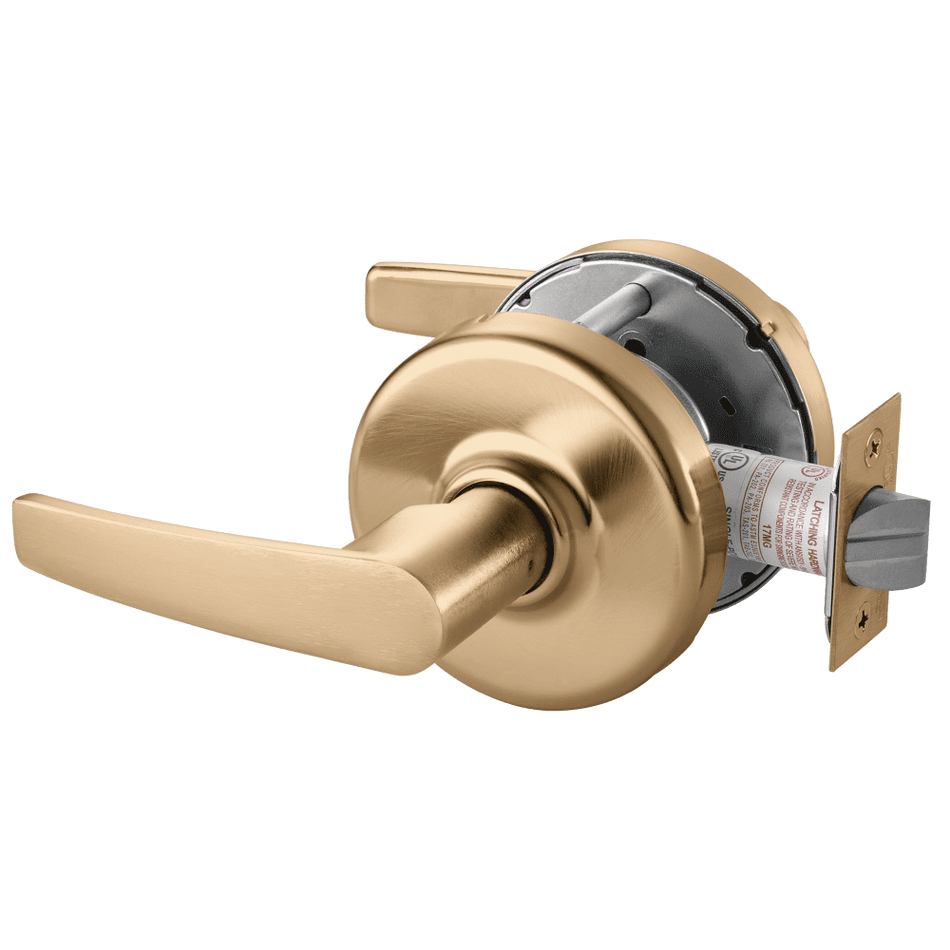

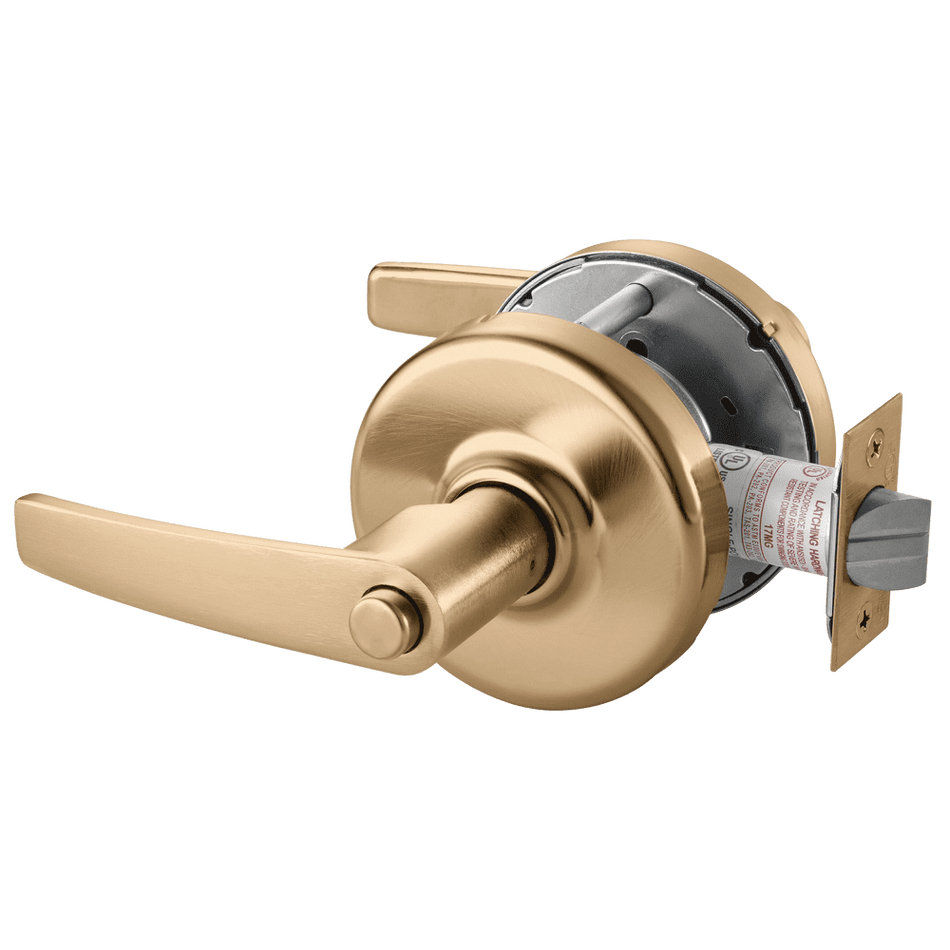

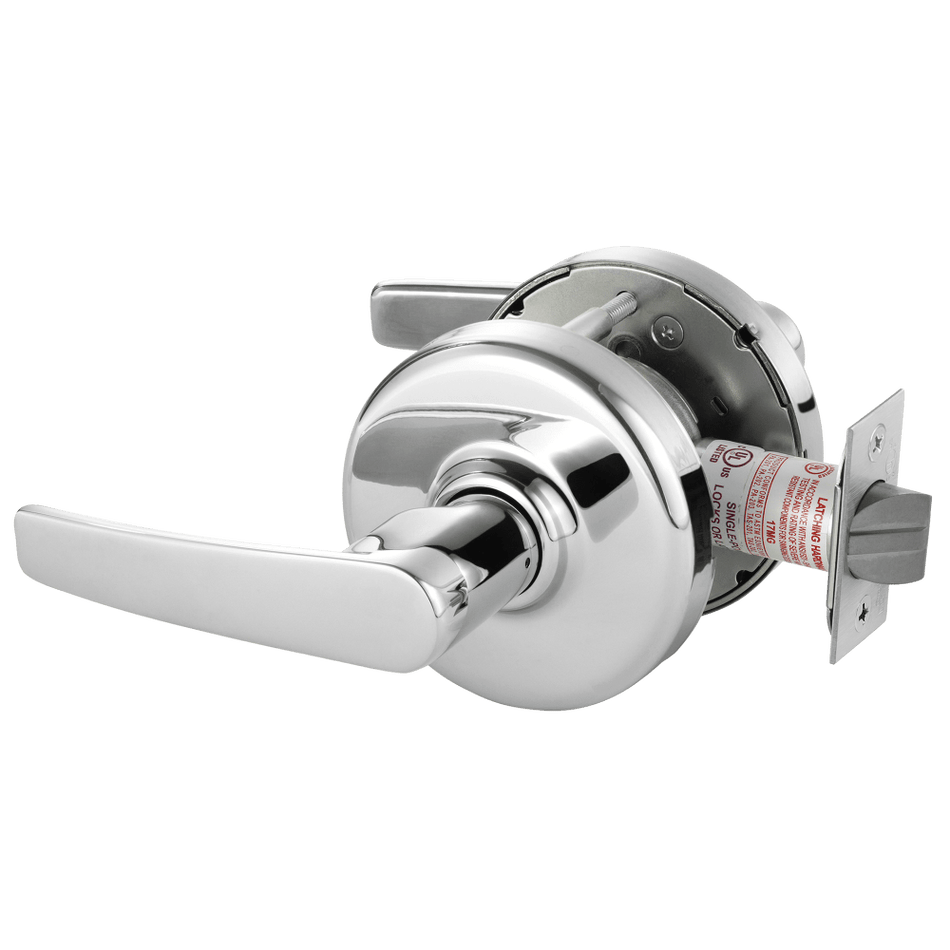

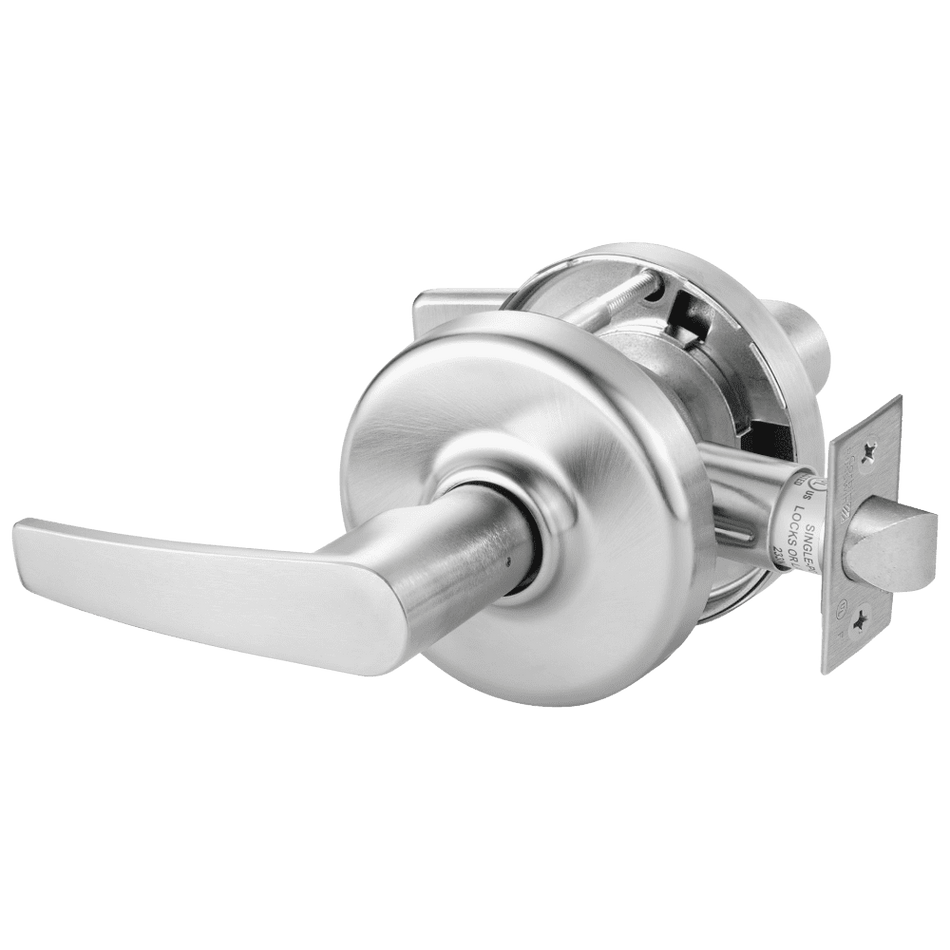

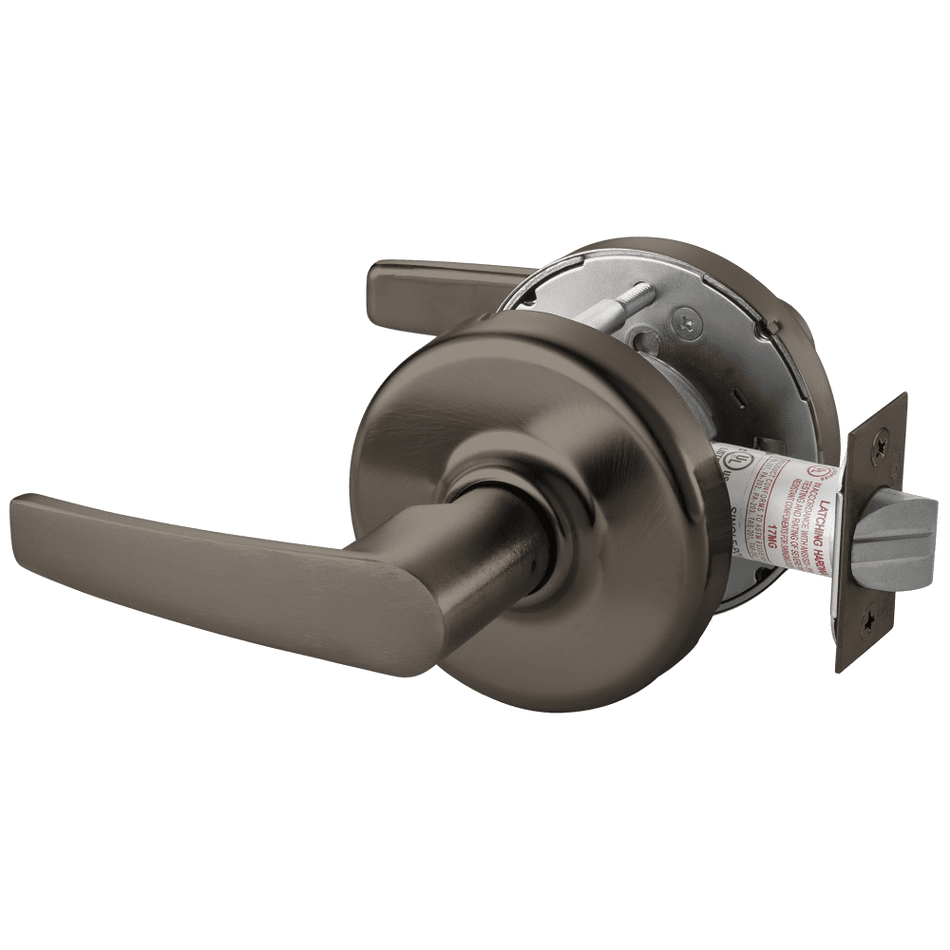

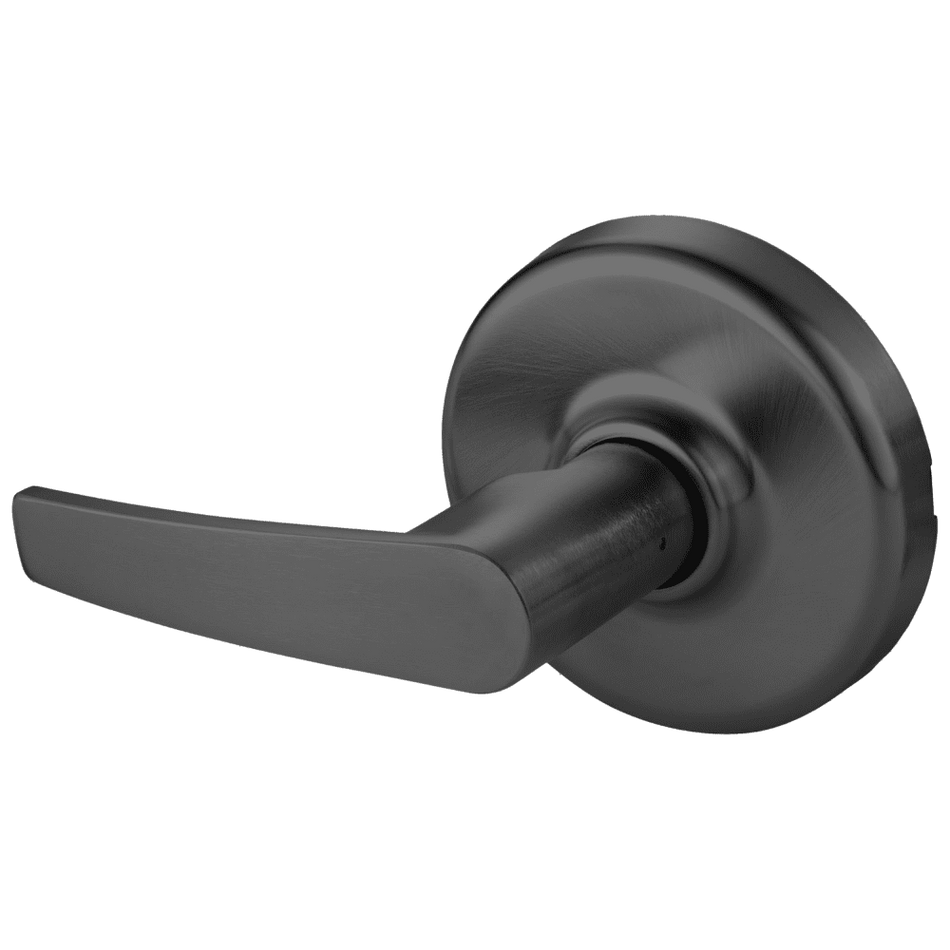

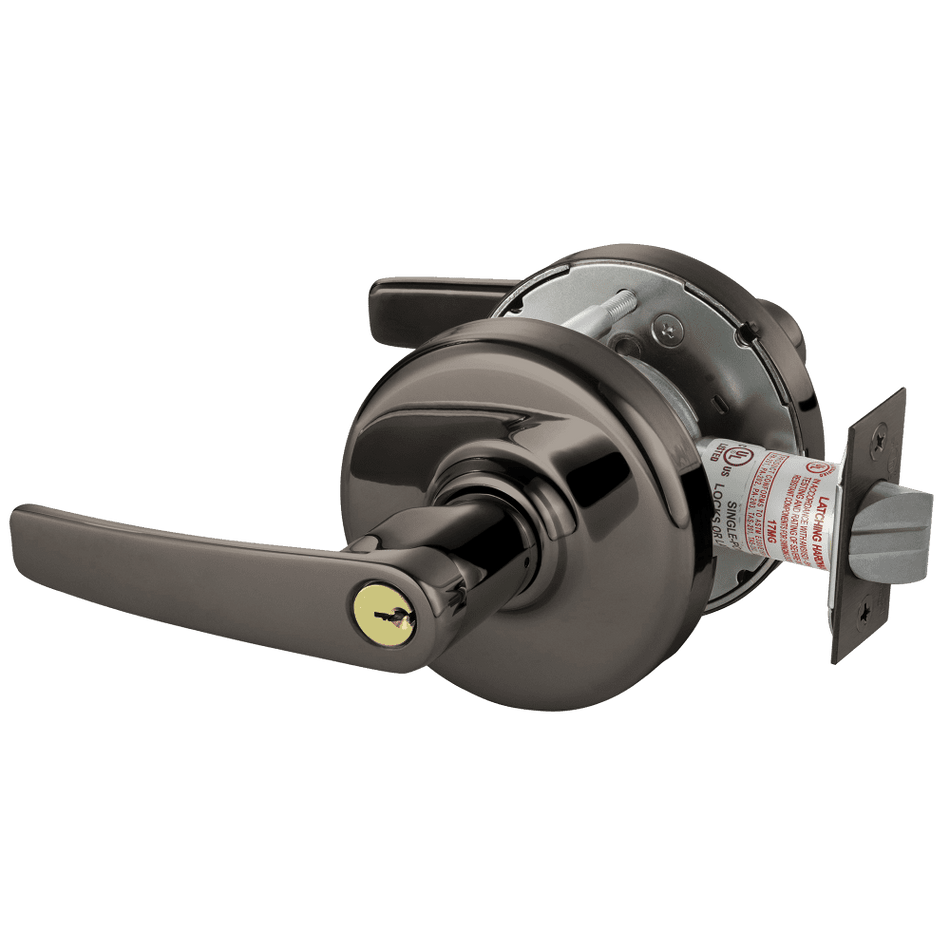

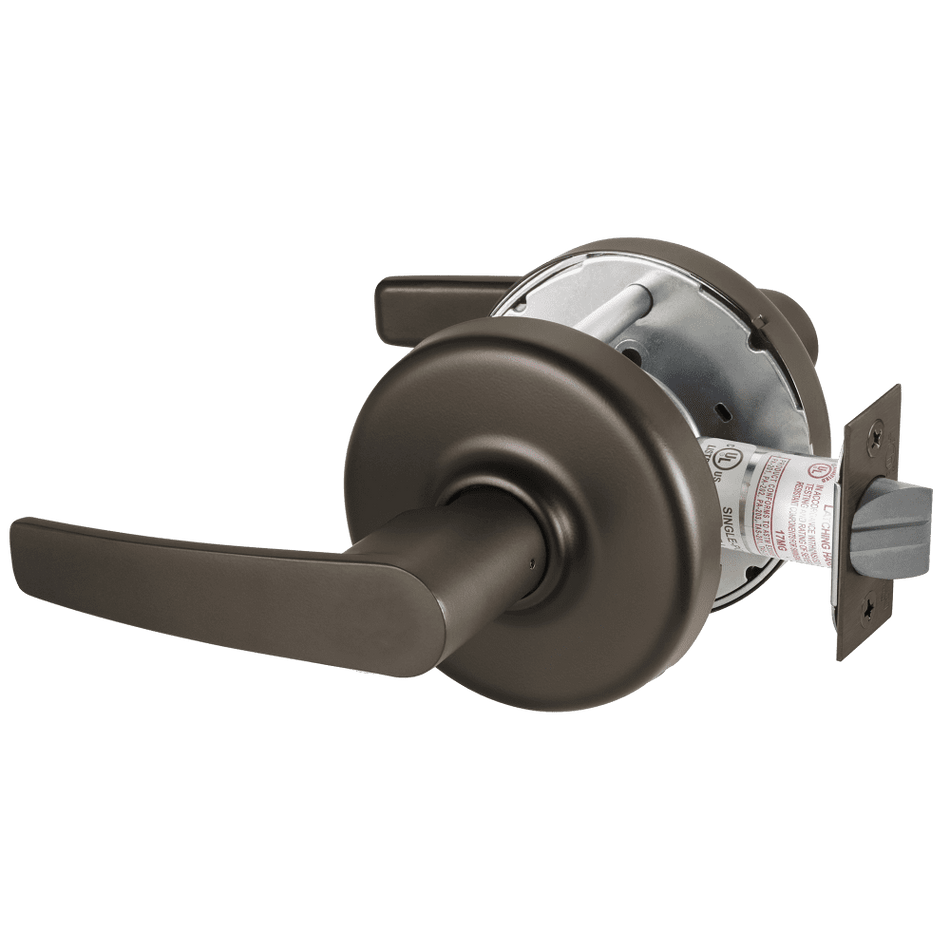

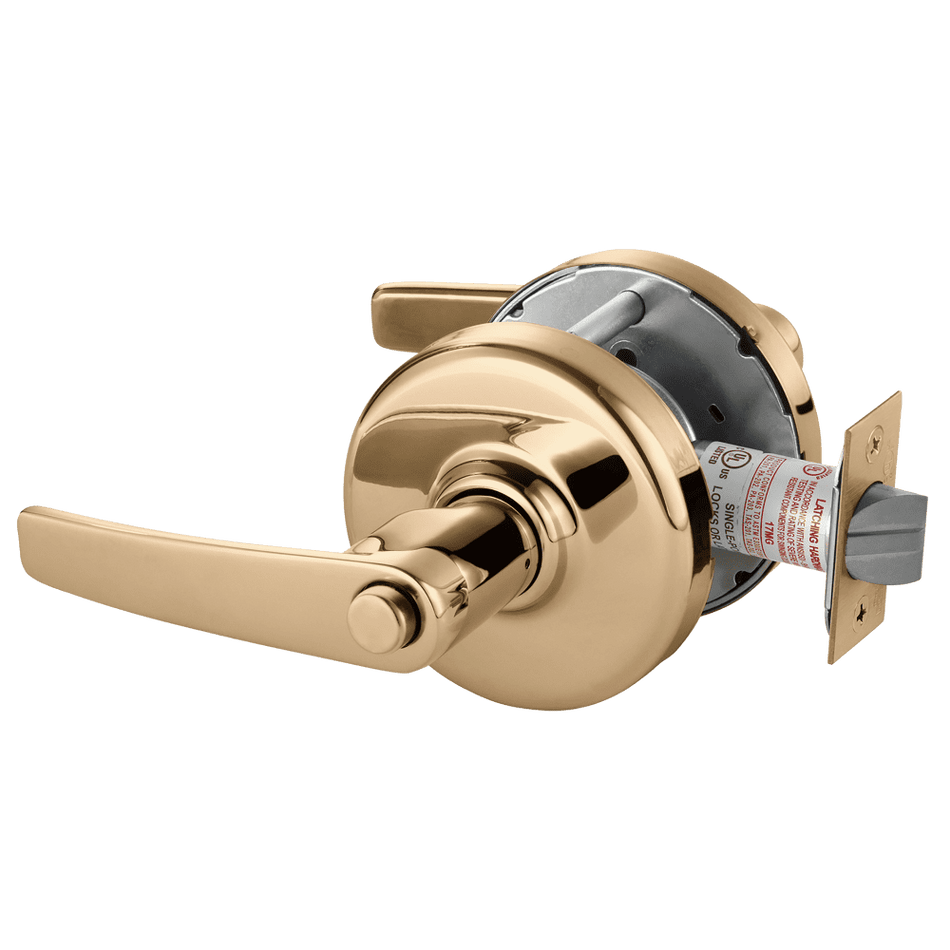

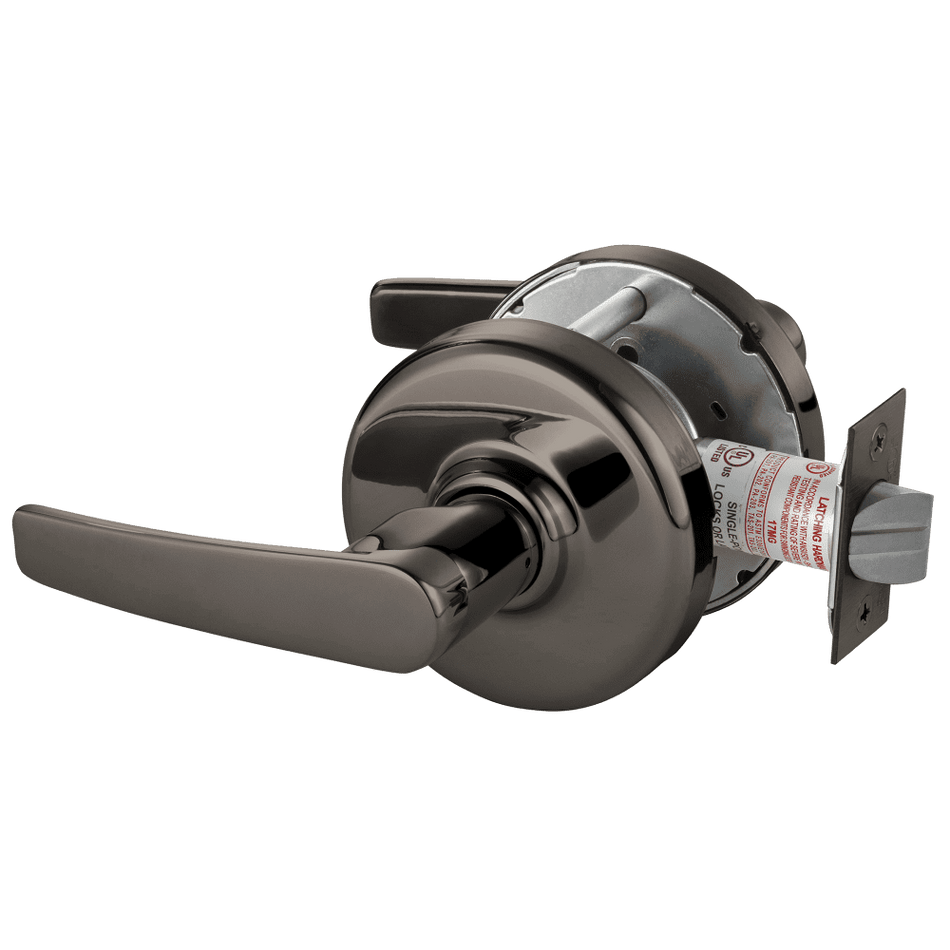

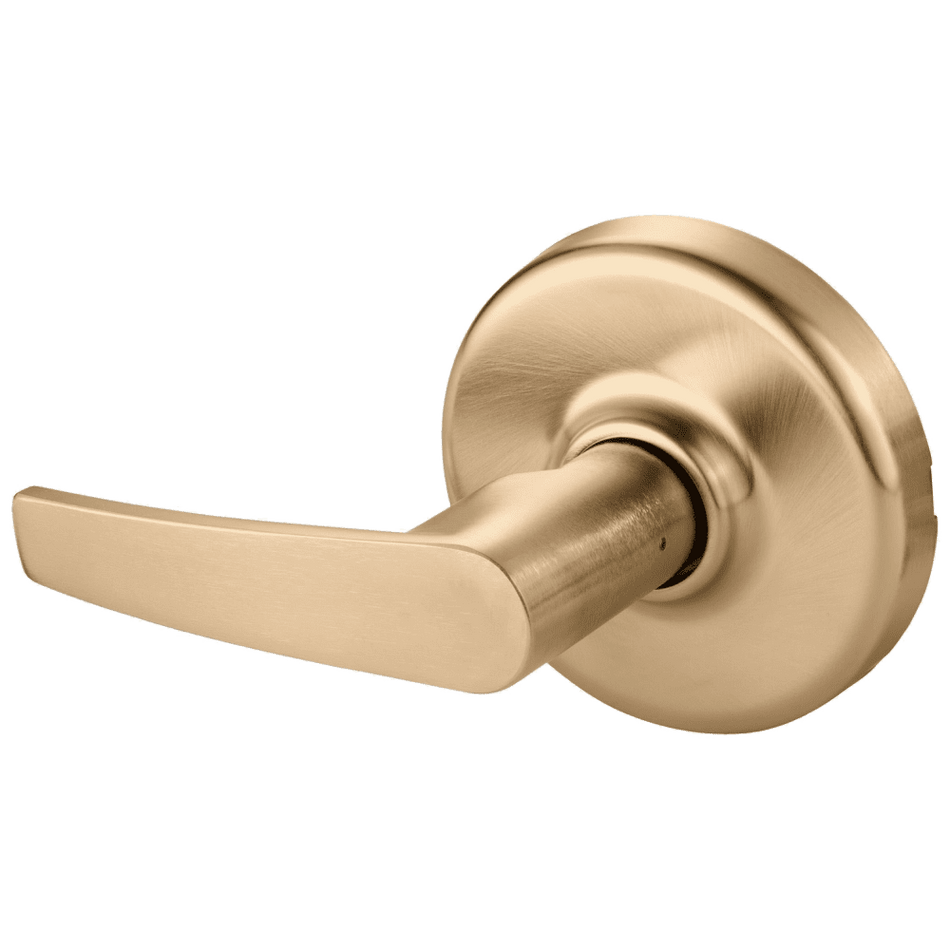

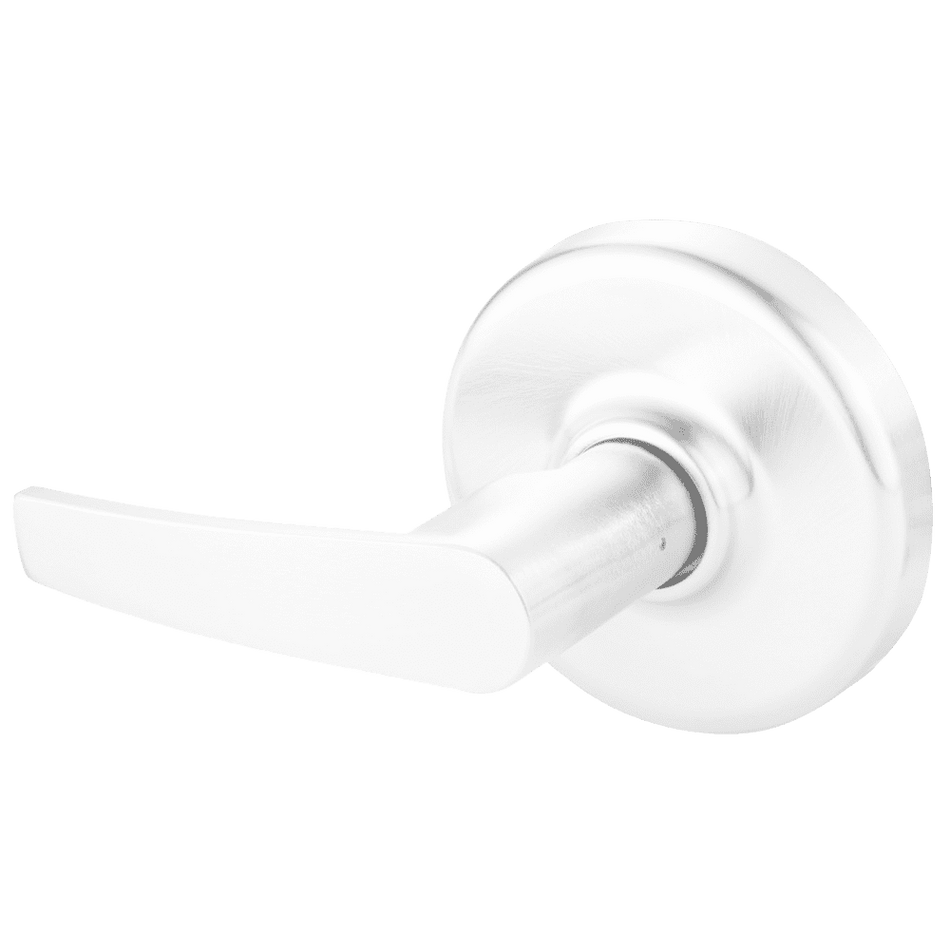

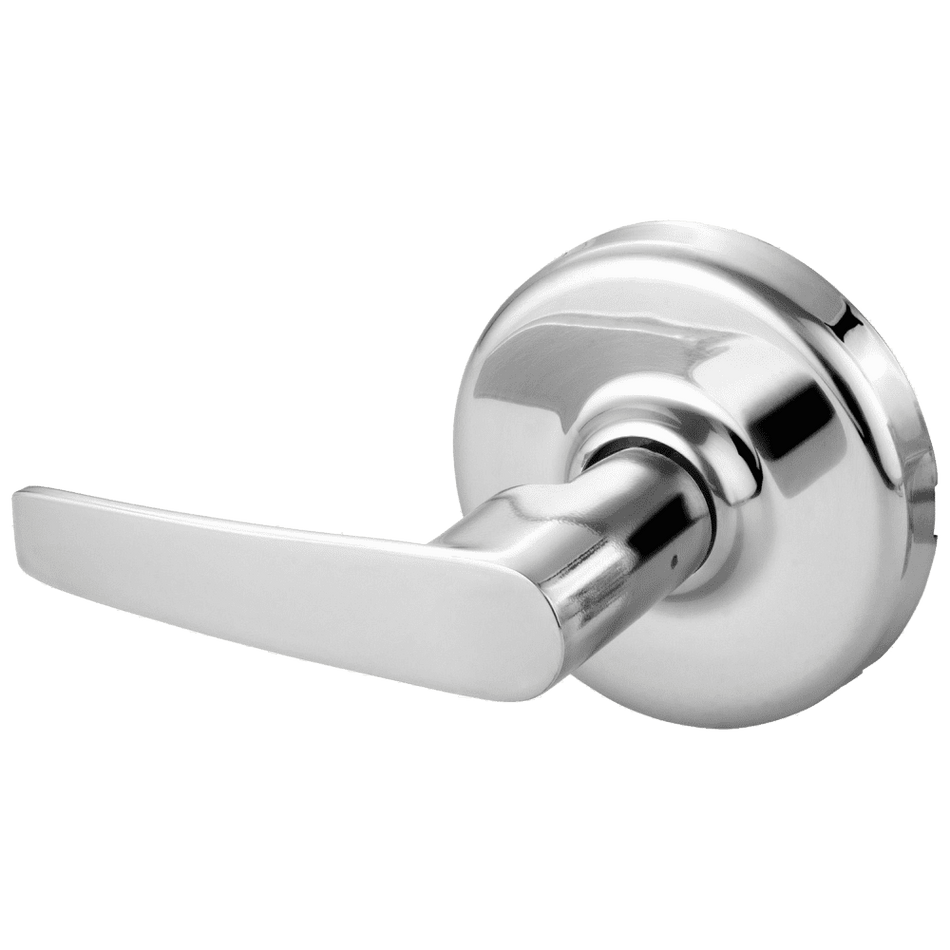

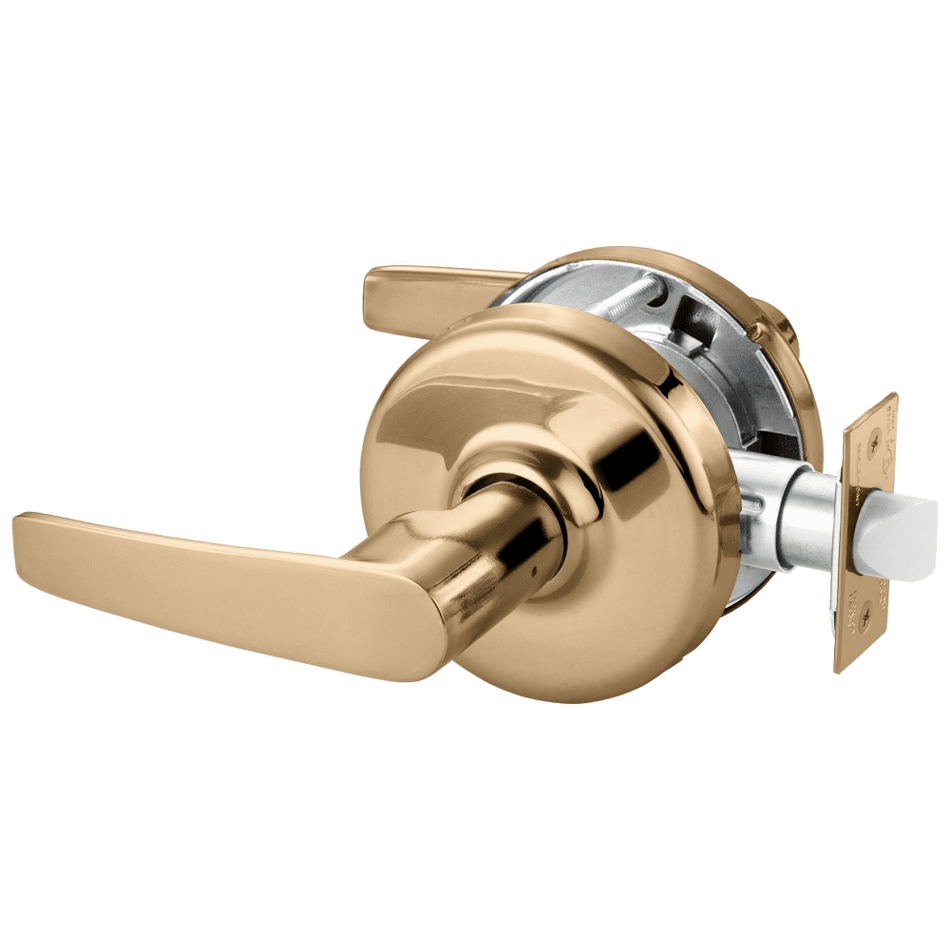

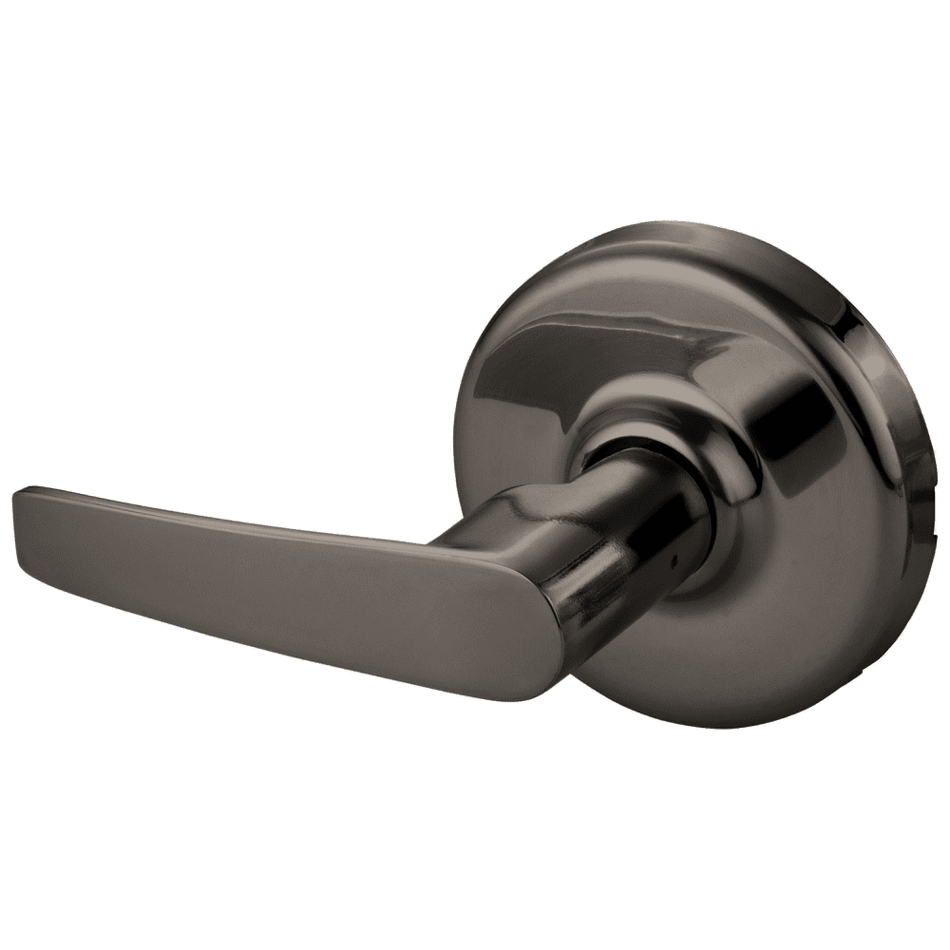

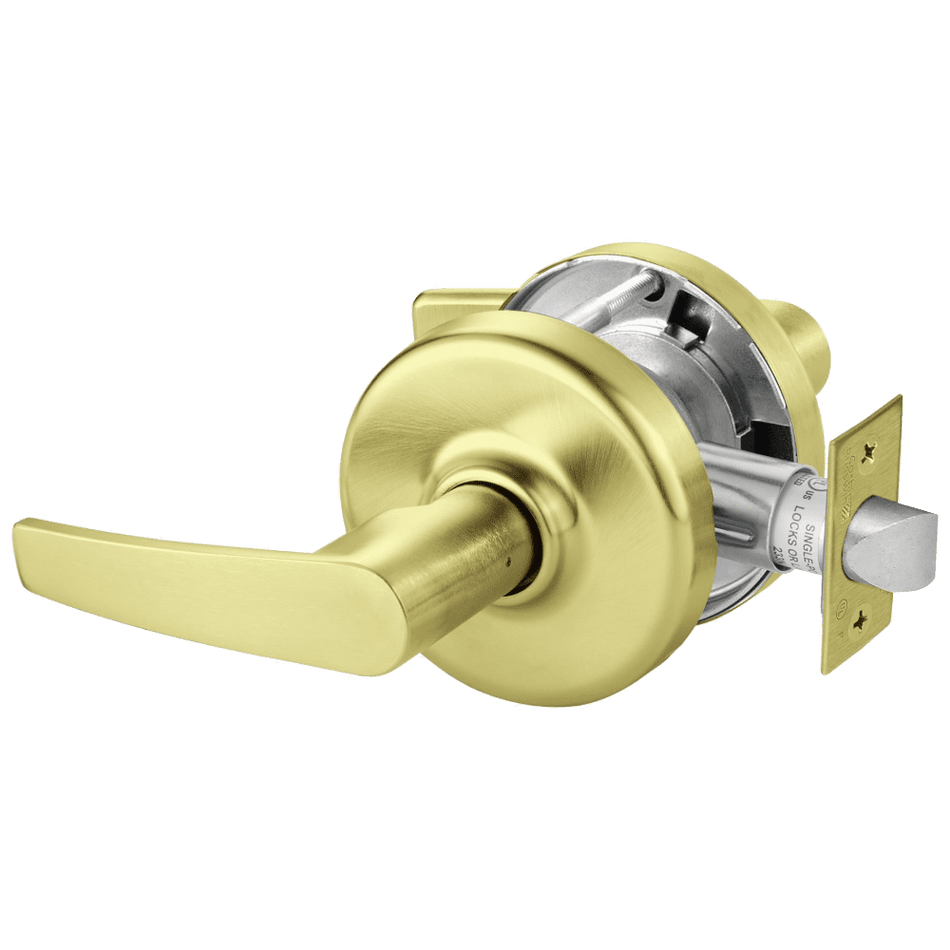

CL3800 Series Is an economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It’s the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability.

Typical applications

• Interior offices
• Closets
• Multi-family housing
• Restaurants
• Retail complexes

• Deadlocking latchbolt by lever either side except when turn button locks outside lever. (Lever handle is free-wheeling in locked position). Pushing turn button locks outside lever, requiring use of key outside to unlock.

• Turning inside lever unlocks outside lever.

• Pushing in and turning button locks outside lever, requiring key at all times. Turning inside lever does not unlock outside lever until button is manually turned to unlocked position.

• Turning inside lever unlocks outside lever.

• Inside lever always free.

Advantages

• Lever Release™ for vandal resistance
• Solid cast levers
• ANSI Grade 2 certification
• UL 3-hour fire rating
• Independent lever return springs
• Through-bolts on door for solid attachment
• Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”

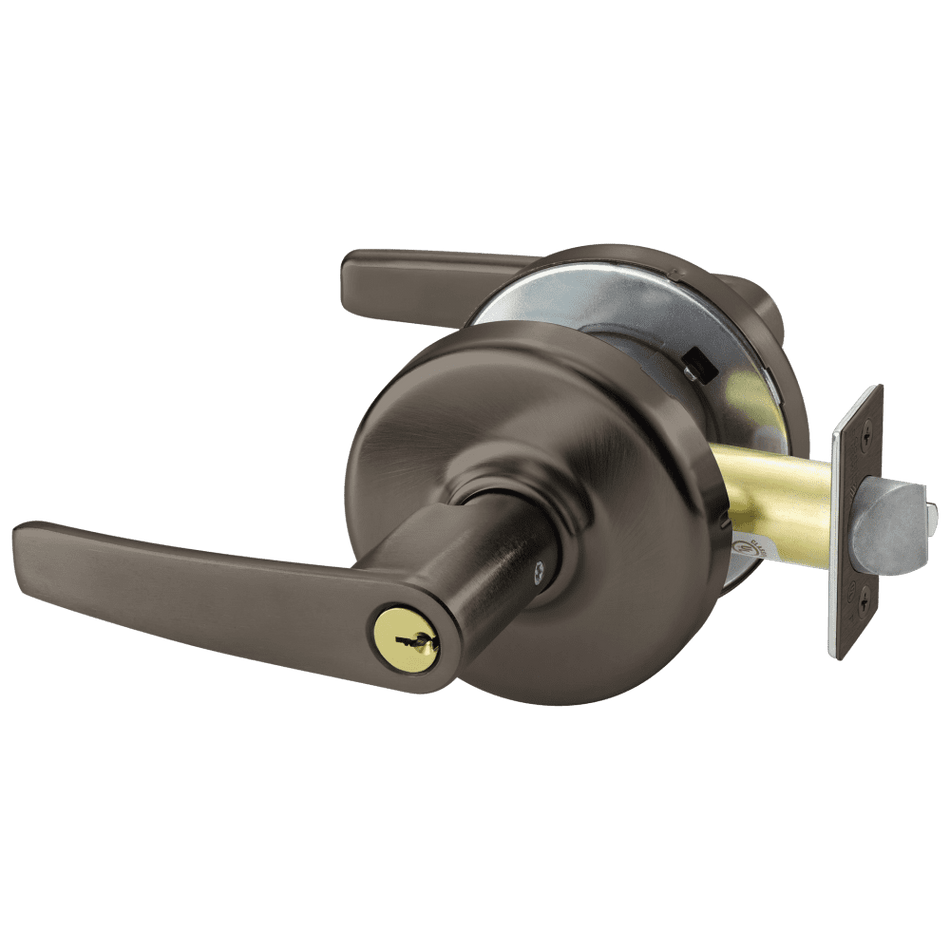

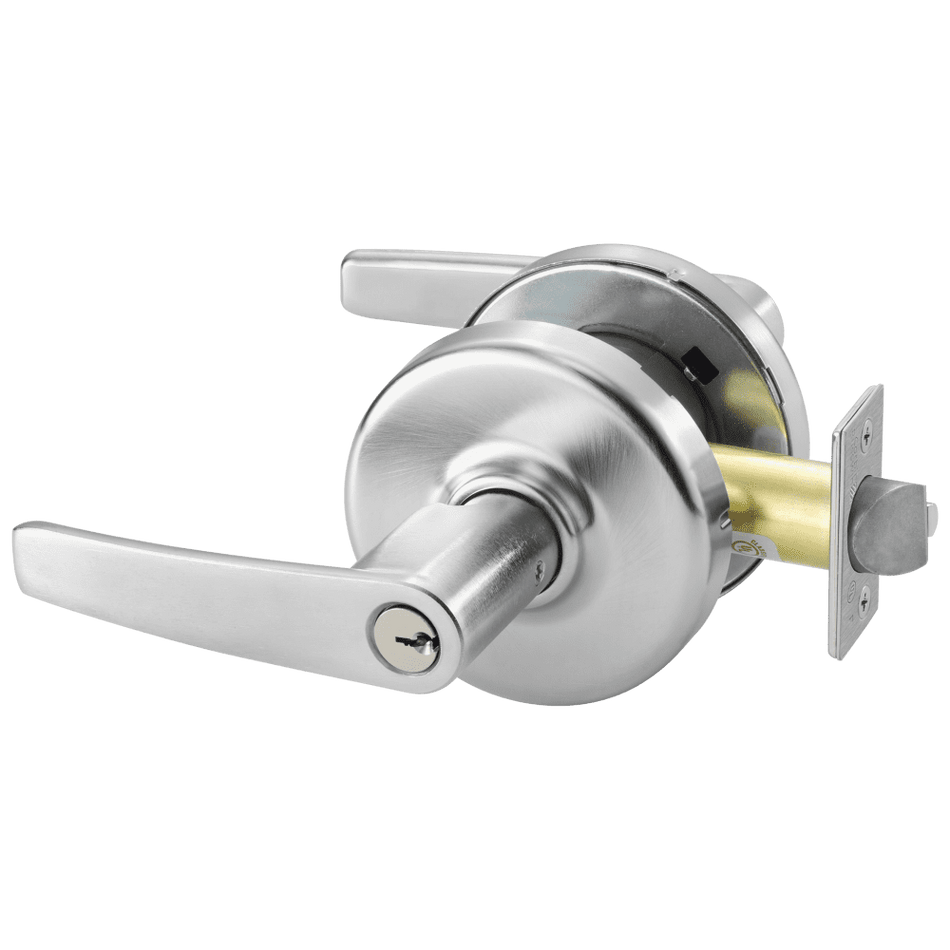

CL3800 Series Is an economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It’s the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability.

Typical applications

• Interior offices
• Closets
• Multi-family housing
• Restaurants
• Retail complexes

• Deadlocking latchbolt by lever either side except when key outside locks outside lever. (Lever handle is free-wheeling in locked position.)

• Outside lever unlocked by key outside.

• Inside lever always free.

Advantages

• Lever Release™ for vandal resistance
• Solid cast levers
• ANSI Grade 2 certification
• UL 3-hour fire rating
• Independent lever return springs
• Through-bolts on door for solid attachment
• Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”

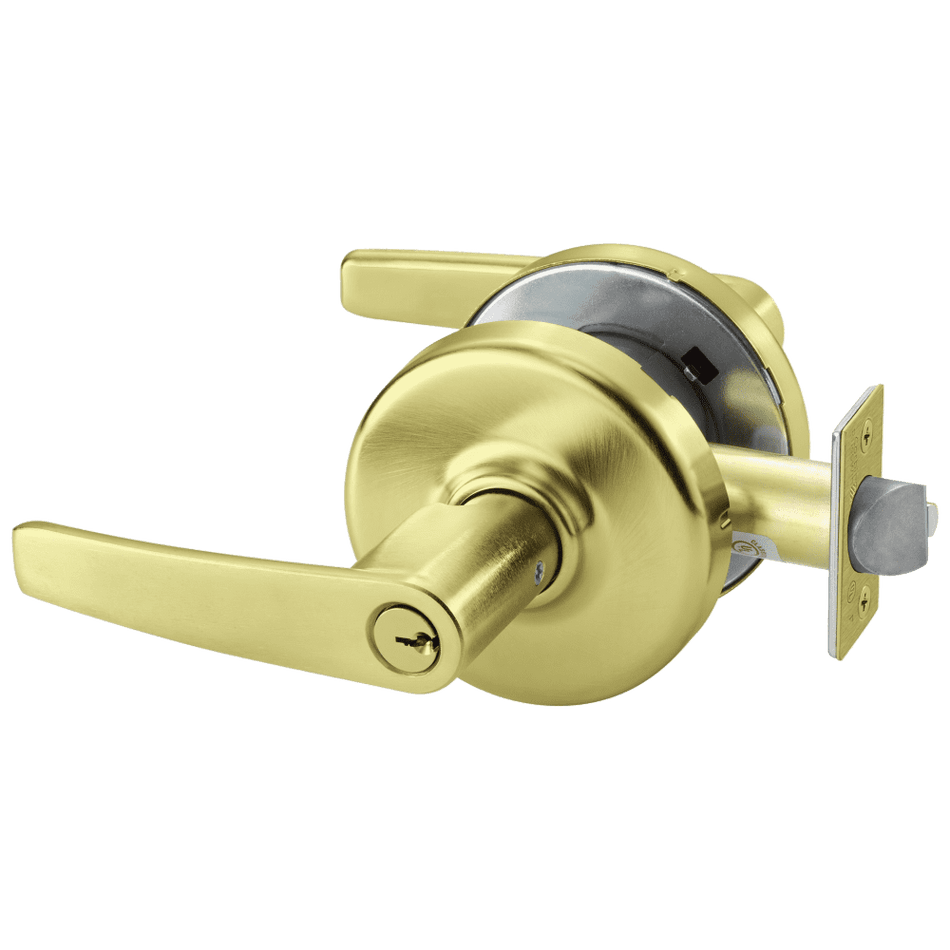

CL3800 Series Is an economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. It’s the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability.

Typical applications

• Interior offices
• Closets
• Multi-family housing
• Restaurants
• Retail complexes

• Deadlocking latchbolt by key in outside lever or by rotating inside lever.

• Outside lever always locked (lever handle is free-wheeling in locked position).

• Inside lever always free.

Advantages

• Lever Release™ for vandal resistance
• Solid cast levers
• ANSI Grade 2 certification
• UL 3-hour fire rating
• Independent lever return springs
• Through-bolts on door for solid attachment
• Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”

US Lock Supply Stocks The Corbin Russwin DC3200 Door Closer In All Finishes & Arms Ready To Ship Same Day. The mid-priced, cost-effective choice for high-traffic situations. The DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations, including:

• Schools and universities
• Health care
• Government
• Commercial and industrial
• Office and retail
• Transportation and utilities
• Hotels and conference centers
• Religious

Corbin Russwin DC3200 Installation Instructions

Corbin Russwin DC3000 Door Closer Catalog

Similar Items: Corbin Russwin DC6200 Closer | Corbin Russwin DC8200 Closer

Advantages

• Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
• Compliance with building and barrier-free codes
• Up to full 180° door opening
• One-piece seamless steel spring tube seals in hydraulic fluid
• Tapered valves allow precise adjustment
• Cast iron body
• Quik-Install™ mounting bracket speeds installation, reducing cost and errors
• Five-year limited warranty
• UL10C, UBC
• Powder painted arms and retrofit plates

The DC6000 series is the perfect closer for high-use openings or openings that must meet ADA requirements, such as schools, office buildings, health care facilities, and retail complexes. The series also meets UL and UL10C positive pressure requirements for fire door openings.

Quality

More than meets the eye…The design of the DC6000 Series incorporates internal advantages engineered to provide consistent quality operation. Double O-rings, a robust spring tube design and captured valves ensure longevity.

Security

Engineered to meet high security standards, the DC6000 offers a full array of security features. Heavy-duty arms offer increased strength for high-use, high-abuse situations. Captured valves and optional Torx® security screws also assist in security situations by making the closer tamper resistant.

Key Advantages

• Heavy-duty forged arm
• Spring-adjust
• Captured valves
• Self-drilling screws
• Quik-Install™ bracket
• Cast iron body
• Retrofit plates
• Powder painted arms

The Grade 1 DC8000 Series door closer is the perfect choice for high-use openings that must meet ADA requirements. A variety of arms, finishes and quality features make the easy-to-install DC8000 ideal for schools, office buildings, health care facilities and retail complexes. The series also meets UL10C and UBC7-2c positive pressure requirements for fire-rated openings.

Quality

Corbin Russwin products are engineered for quality, and the DC8000 Series is no exception. With heavy-duty construction, captured valves and a double heat-treated steel pinion, the DC8000 ensures quality and long-lasting performance.

Security

With a heavy-duty arm and a strong, durable cast-iron closer body, the DC8000 offers added muscle for high-use and high-abuse situations. Captured valves and optional Torx® security screws offer added security, making the closer highly vandal- and tamper-resistant.

Key Advantages

• Heavy-duty forged arm
• Multi-sized (1 through 6)
• Captured valves
• Self-drilling screws
• Double heat-treated steel pinion
• Universal Quik-Install™ bracket
• Optional Tri-packed arm assembly
• Cast-iron closer body
• Retrofit plates allow direct retrofit of competitor's product

Corbin Russwin DL2211 Cylinder x Blank Deadlock:  By key one side only; opposite side blank.

Features

• Handing: Non-handed.
• Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard -  2-3/4" (70mm); Optional: 2-3/8" (60mm)
• Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
• Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
• Warranty: One-year limited.

Corbin Russwin DL2212 Double Cylinder Deadlock: - By key either side.

Features

• Handing: Non-handed.
• Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard -  2-3/4" (70mm); Optional: 2-3/8" (60mm)
• Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
• Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
• Warranty: One-year limited.

Corbin Russwin DL2213 Single Cylinder Deadlock:- By key outside and by thumbturn inside.

Features

• Handing: Non-handed.
• Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard -  2-3/4" (70mm); Optional: 2-3/8" (60mm)
• Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
• Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
• Warranty: One-year limited.

Corbin Russwin DL2217 Classroom Deadlock:- By key outside and by thumbturn inside. - Thumbturn will retract but not project deadbolt.

Features

• Handing: Non-handed.
• Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard -  2-3/4" (70mm); Optional: 2-3/8" (60mm)
• Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
• Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
• Warranty: One-year limited.

Corbin Russwin DL2260 Thumbturn x Blank Deadlock:- By thumbturn one side only; opposite side blank.

Features

• Handing: Non-handed.
• Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard -  2-3/4" (70mm); Optional: 2-3/8" (60mm)
• Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
• Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
• Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
• Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
• Warranty: One-year limited.

Corbin Russwin DL3011 Cylinder x Blank: By key one side only; opposite side blank.

Features

• Handing: Non-handed, except DL3017, which is handed and field reversible.
• Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
• Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
• Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
• Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.

Corbin Russwin DL3012 Double Cylinder: - By key either side.

Features

• Handing: Non-handed, except DL3017, which is handed and field reversible.
• Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
• Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
• Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
• Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.

Corbin Russwin DL3013 Single Cylinder: - By key outside and by thumbturn inside.

Features

• Handing: Non-handed, except DL3017, which is handed and field reversible.
• Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
• Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
• Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
• Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.

Corbin Russwin DL3017 Classroom Deadlock:- By key outside and by thumbturn inside. - Thumbturn will retract but not project deadbolt.

Features

• Handing: Non-handed, except DL3017, which is handed and field reversible.
• Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
• Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
• Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
• Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.

Corbin Russwin DL3060 Thumbturn x Blank Deadlock: Thumbturn x Blank Deadlock

Features

• Handing: Non-handed, except DL3017, which is handed and field reversible.
• Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
• Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
• Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
• Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
• Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
• Keys: Two nickel silver standard.
• Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty: One-year limited.

Corbin Russwin ED 8200 Rim Exit Device

Handing- Non-handed.

Finishes:

689-Aluminum Painted

691-Light Bronze Painted

Bar Length: Easily field cut to size.

Standard: 36" bar fits 31" - 36" (787mm-914mm) door.

Optional: 30" bar fits 28" - 30" (711mm-762mm) door; .

Optional: 42" bar fits 37" - 42" (940mm-1067mm) door; .

Optional: 48" bar fits 43" - 48" (1092mm-1219mm) door; .

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm). Device and trim cover standard

Latchbolt: 3/4" (19mm) stainless steel pullman-type with stainless steel deadlocking latch

Materials: Heavy-duty wrought steel chassis and pushpad; aluminum front and rear bar covers; stainless steel springs; nylon bearings.

Dogging: Standard on ED8200 devices: single point 1/4 turn dogging.

Optional: less dogging; specify M51(Call To See If Its Avail.).

Fasteners: Standard on ED8200 devices: machine screws and wood door fasteners.

Certification/Compliance ANSI Meets A156.3, Type 1, Grade 1. Meets A117.1 Accessibility Code. C-UL US All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. UL symbol on rear cover label indicates listing. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on rear cover label indicates listing. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. Warnock Hersey International Inc. ED8200B listed as fire exit hardware for installation on up to 1-1/2 hour fire doors, up to 8' x 8'. California State Reference Code This product has been approved by the California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Corbin Russwin ED 8200A Fire Rated Rim Exit Device

Handing- Non-handed.

Finishes:

689-Aluminum Painted

Bar Length: Easily field cut to size.

Standard: 36" bar fits 31" - 36" (787mm-914mm) door..

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm). Device and trim cover standard

Latchbolt: 3/4" (19mm) stainless steel pullman-type with stainless steel deadlocking latch

Materials: Heavy-duty wrought steel chassis and pushpad; aluminum front and rear bar covers; stainless steel springs; nylon bearings.

Dogging: Standard on ED8200 devices: single point 1/4 turn dogging.

Optional: less dogging; specify M51(Call To See If Its Avail.).

Fasteners: Standard on ED8200 devices: machine screws and wood door fasteners.

Certification/Compliance ANSI Meets A156.3, Type 1, Grade 1. Meets A117.1 Accessibility Code. C-UL US All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. UL symbol on rear cover label indicates listing. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on rear cover label indicates listing. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. Warnock Hersey International Inc. ED8200B listed as fire exit hardware for installation on up to 1-1/2 hour fire doors, up to 8' x 8'. California State Reference Code This product has been approved by the California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Corbin Russwin ED4200 Narrow Stile Rim Exit Device

Handing: Device non-handed.

Instructions

Bar Length: Easily field cut to size.

Standard: 36" (914mm) bar fits 30"- 36"

Optional: 48" (1219mm) bar fits 36"- 48" (914mm-1219mm) door; specify W048.

Finishes:

630-Satin Stainless Steel

613-Oil Rubbed Bronze

606-Satin Brass

Door Thickness: 1-3/4" (44mm) standard

Latchbolt: 3/4" (19mm) throw, pullman type with stainless steel deadlocking latch.

Dogging Standard: single point 1/4 turn hex key dogging.

Contact Us To See If We Have These Options In Stock

Optional: less dogging; specify M51.

Optional: cylinder dogging; specify M52.

Optional: electric dogging; specify M97.

Strike: Surface mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims.

Warranty: Five-year limited.

Certification/Compliance ANSI Meets A156.3, Type 4, Grade 1. Meets A117.1 Accessibility Code. UL/cUL All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. UL symbol on active case cover indicates listing. California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. ADA Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Corbin Russwin ED4400 Narrow Stile Surface Vertical Rod Exit Device

Handing: Device is handed but easily field reversible.

Finish:

630-Satin Stainless Steel

613-Oil Rubbed Bronze

Bar Length: Easily field cut to size. Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door

Door Thickness: 1-3/4" (44mm) standard.

Stile: Minimum width 2" (51mm).

Door Height: Standard: Top rod for 7' door. All top rods easily field cut to size.

Latchbolt: Top: 3/4" (19mm) throw, pullman type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing

Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides

Materials: Heavy-duty cold-forged steel chassis; heavy-gauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged.

Dogging: Standard: single point 1/4 turn hex key dogging.

Fasteners: Standard: machine screws.

Strike: Top: Adjustable roller strike with positive locking plate and shims. Bottom: flush mounted.

Warranty: Five-year limited.

Certification/Compliance ANSI Meets A156.3, Type 5, Grade 1. UL/cUL All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. UL symbol on active case cover indicates listing. California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. ADA Lever trims and pulls comply with Americans with Disabilities Act.

Corbin Russwin ED5200  Rim Exit Device

Handing: Standard Device is non-handed.

ED5200 Installation Instructions

ED5200 Product Templates

Bar Length: Easily field cut to size.

Standard: 36" (914mm) bar fits 30"- 36"

Optional: 48" (1219mm) bar fits 36"- 48" (914mm-1219mm) door; specify.

Finishes:

630-Satin Stainless Steel

613-Oil Rubbed Bronze

606-Satin Brass

Door Thickness: 1-3/4" (44mm) standard

Latchbolt: 3/4" (19mm) throw,Stainless Steel pullman type with stainless steel deadlocking latch.

Dogging Standard: single point 1/4 turn hex key dogging.

Contact Us To See If We Have These Options In Stock

Optional: less dogging; specify M51.

Optional: cylinder dogging; specify M52.

Optional: electric dogging; specify M97.

Strike: Surface mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims, assuring low friction relocking for a long, trouble-free life.

Warranty: Five-year limited.

Certification/Compliance ANSI Meets A156.3, Type 1, Grade 1. Meets A117.1 Accessibility Code. UL /cUL All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on active case cover indicates listing. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Corbin Russwin ED5200A Fire Rated Rim Exit Device

Handing: Standard Device is non-handed.

Instructions

Bar Length: Easily field cut to size.

Standard: 36" (914mm) bar fits 30"- 36"

Optional: 48" (1219mm) bar fits 36"- 48" (914mm-1219mm) door; specify.

Finishes:

630-Satin Stainless Steel

Door Thickness: 1-3/4" (44mm) standard

Latchbolt: 3/4" (19mm) throw,Stainless Steel pullman type with stainless steel deadlocking latch.

Dogging Standard: single point 1/4 turn hex key dogging.

Contact Us To See If We Have These Options In Stock

Optional: less dogging; specify M51.

Optional: cylinder dogging; specify M52.

Optional: electric dogging; specify M97.

Strike: Surface mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims, assuring low friction relocking for a long, trouble-free life.

Warranty: Five-year limited.

Certification/Compliance ANSI Meets A156.3, Type 1, Grade 1. Meets A117.1 Accessibility Code. UL /cUL All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on active case cover indicates listing. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Corbin Russwin ED5400 Surface Vertical Rod Exit Device

Handing: Device is handed but easily field reversible. Lever trim is handed.

ED5000 Catalog

Finish:

630-Satin Stainless Steel

626-Satin Chrome

613-Oil Rubbed Bronze

612-Satin Bronze

Bar Length: Easily field cut to size. Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door Optional: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door; specify W048.

Door Thickness: 1-3/4" (44mm) standard.

Stile: Minimum width 4-1/2" (114mm).

Door Height: Standard top rod for 7' door. All rods easily field cut to size.

Latchbolt: Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.

Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides.

Materials: Heavy-duty cold-forged steel chassis; heavygauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Dogging: Standard on panic devices; single-point 1/4 turn hex key dogging.

Optional: Cylinder dogging less Cylinder,

Fasteners: Standard on panic devices: machine screws and wood door fasteners. Standard on fire-rated devices: sex nuts and bolts

Strike Top: adjustable roller strike with positive locking plate and shims. Bottom: flush mounted.

Warranty: Five-year limited.

Certification/Compliance ANSI Meets A156.3, Type 2, Grade 1. UL /cUL All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 8’ x 8’ double doors; ­UL symbol on active case cover indicates listing. Any retrofit or other field modification to a fire- rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Lever trims and pulls comply with Americans with Disabilities Act.

Corbin Russwin ED5400A Fire Rated Surface Vertical Rod Exit Device

Handing: Device is handed but easily field reversible. Lever trim is handed.

ED5000 Catalog

Finish:

630-Satin Stainless Steel

626-Satin Chrome

613-Oil Rubbed Bronze

612-Satin Bronze

Bar Length: Easily field cut to size. Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door Optional: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door; specify W048.

Door Thickness: 1-3/4" (44mm) standard.

Stile: Minimum width 4-1/2" (114mm).

Door Height: Standard top rod for 7' door. All rods easily field cut to size.

Latchbolt: Top: 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching. Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing.

Vertical Rods: 1/2" O.D. tubular brass, bronze or stainless steel with rod guides.

Materials: Heavy-duty cold-forged steel chassis; heavygauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged

Dogging: Standard on panic devices; single-point 1/4 turn hex key dogging.

Optional: Cylinder dogging less Cylinder,

Fasteners: Standard on panic devices: machine screws and wood door fasteners. Standard on fire-rated devices: sex nuts and bolts

Strike Top: adjustable roller strike with positive locking plate and shims. Bottom: flush mounted.

Warranty: Five-year limited.

Certification/Compliance ANSI Meets A156.3, Type 2, Grade 1. UL /cUL All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware. Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 8’ x 8’ double doors; ­UL symbol on active case cover indicates listing. Any retrofit or other field modification to a fire- rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. California State Reference Code This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code. NFPA All exit devices comply with NFPA 101 Life Safety Code. All fire-rated devices comply with NFPA 80 Fire Doors and Windows. ADA Lever trims and pulls comply with Americans with Disabilities Act.
